SERVICE MANUAL
COLOUR TELEVISION
Chassis No. GA6
21G-FX10L
In the interests of user safety (Required by safety regulations in some countries) the set should be restored to its original
condition and only parts indentical to those specified should be used.
S9914021GFX10L
MODEL
ELECTRICAL SPECIFICATIONS
Chassis No. GA8P
CONTENTS
IMPORTANT SERVICE SAFETY PRECAUTION ................................................................................................... 1-1
Page
LOCATION OF USER’S CONTROL ...................................................................................................................... 2-1
INSTALLATION AND SERVICE INSTRUCTIONS ................................................................................................. 3-1
SERVICE MODE ..................................................................................................................................................... 4-1
ADJUSTMENT METHOD ........................................................................................................................................ 5-1
WAVEFORMS ......................................................................................................................................................... 6-1
CHASSIS LAYOUT ................................................................................................................................................. 7-1
BLOCK DIAGRAM .................................................................................................................................................. 8-1
DESCRIPTION OF SCHEMATIC DIAGRAM .......................................................................................................... 9-1
SCHEMATIC DIAGRAMS ......................................................................................................................................10-1
PRINTED WIRING BOARD ASSEMBLIES ........................................................................................................... 11-1
Parts Guide
POWER INPUT............................AC 110-220 V, 50/60 Hz
POWER RATING .....................................................89W
PICTURE SIZE .............................1,239 cm2 (192sq inch)
CONVERGENCE ............................................. Magnetic
SWEEP DEFLECTION .................................. .. Magnetic
FOCUS ......................................................... Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ...................... 45.75 MHz
Sound IF Carrier Frequency ...................... 41.25 MHz
Color Sub-Carrier Frequency ......................42.17 MHz
(Nominal)
AUDIO POWER
OUTPUT RATING... ...................... 3.0 W(RMS) x 2pcs
SPEAKER
SIZE ........................................................ 9 x 5cm, 2pcs
VOICE COIL IMPEDANCE .................16 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF ........................................75 ohm Unbalanced
TUNING RANGES
VHF-Channels ................................................. 2 thru 13
UHF-Channels ................................................14 thru 69
CATV Channels ............................................. 1 thru 125
(EIA, Channel Plan U.S.A.)
Specifications are subject to change without
prior notice.
SHARP CORPORATION This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
21G-FX10L

21G-FX10L
1 – 1
TV21G-FX10LService Manual21G-FX10LMarketE
CHAPTER 1. IMPORTANT SERVICE SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualified service technicians who are
thoroughly familiar with all safety checks and the servicing guidelines which follow:
X-RADIATION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation.
The only potential source of X-ray in current solid
state TV receivers is the picture tube. However, the
picture tube does not emit measurable X-Ray
radiation, if the high voltage is as specified in the
"High Voltage Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage should always be kept at the rated value
−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem.
Every time a color chassis is serviced, the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
not exceed the specified value and that it is regulating
correctly.
5. Do not use a picture tube other than that specified
or make unrecommended circuit modifications to the
high voltage circuitry.
6. When trouble shooting and taking test
measurements on a receiver with excessive high
voltage, avoid being unnecessarily close to the
receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.
4. The chassis in this receiver has two ground systems
which are separated by insulating material. The non-
isolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit. The
isolated ground system is for the low B+ DC voltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic-
ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)
1. Picture tube in this receiver employs integral
implosion protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.


21G-FX10L
1 – 2
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by " "
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.

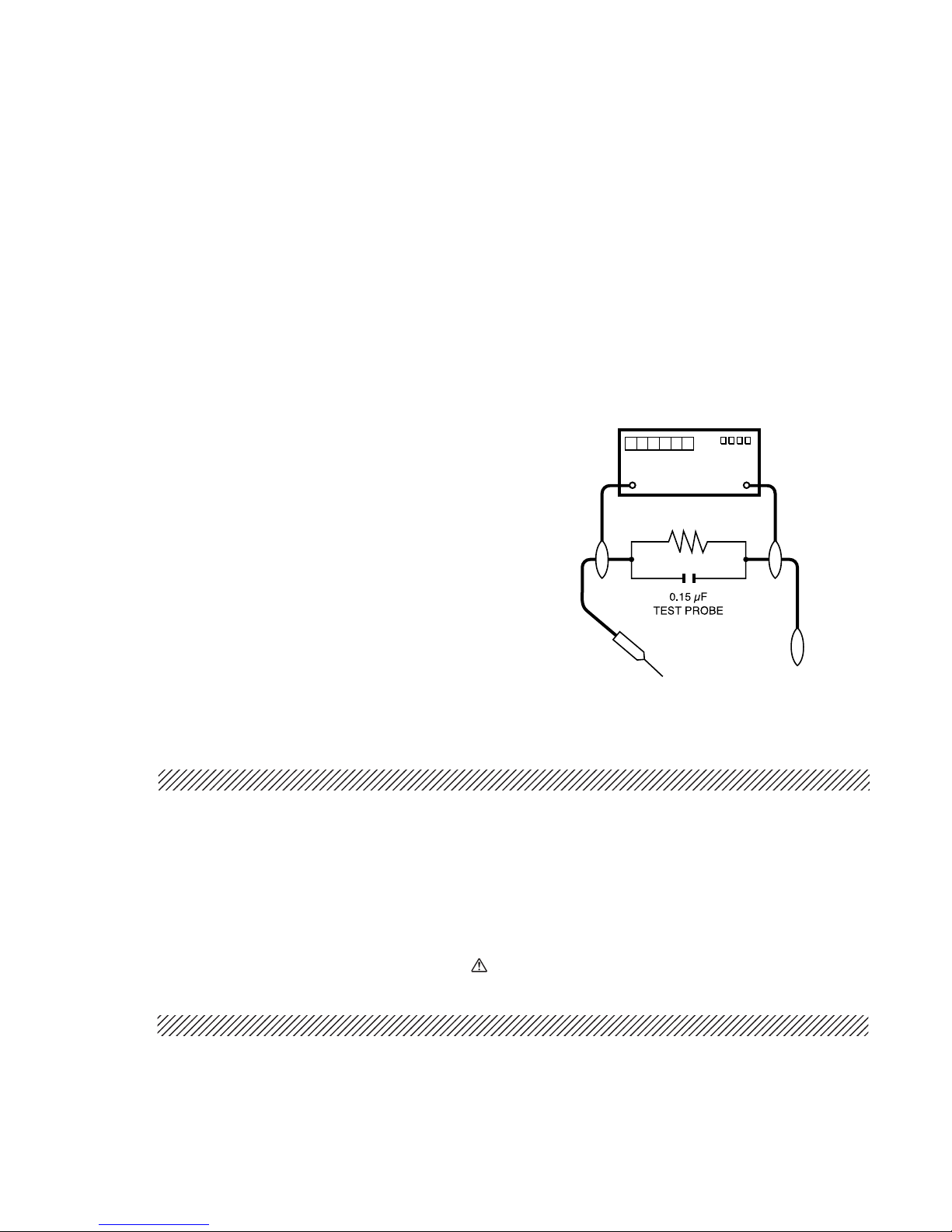

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
Plug the AC cord directly into a 110~220 volt AC
outlet, (Do not use an isolation transformer for this
test).
Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15μF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to earth ground.
Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
•
•
•
•

21G-FX10L
2 – 1
TV21G-FX10LService Manual21G-FX10LMarketE
CHAPTER 2. LOCATION OF USER'S CONTROL
[1] LOCATION OF USER'S CONTROL
AV a
AV
AV
a
AV

21G-FX10L
3 – 1
TV21G-FX10LService Manual21G-FX10LMarketE
CHAPTER 3. INSTALLATION AND SERVICE INSTRUCTIONS
CIRCUIT PROTECTION
The receiver is protected by a 3.15A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIATION PROTECTOR CIRCUIT TEST
After service has been performed on the horizontal
deflection system, high voltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1. Apply 110~220V AC using a variac transformer for
accurate input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter to C602 +ve and make
sure that the voltmeter reads 20 ±1.1V.
5. Apply external 28.5V DC at C602 +ve by using an
external DC supply, TV must be shut off.
6. To reset the protector, unplug the AC cord and make
a short circuit between C602 -ve and C602 +ve.
Now make sure that normal picture appears on the
screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.
HIGH VOLTAGE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 110~220V
AC line voltage, with a strong air signal or a properly
tuned in test signal.
3. Enter the service mode and set Y-mute ON by using
Service R/C.
4. The voltage should be approximately 26kV (at zero
beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
make Y-mute off to the normal mode.
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1) When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2) Before performing adjustments, the TV set must be on at least 15 minutes.

21G-FX10L
4 – 1
TV21G-FX10LService Manual21G-FX10LMarketE
CHAPTER 4. SERVICE MODE

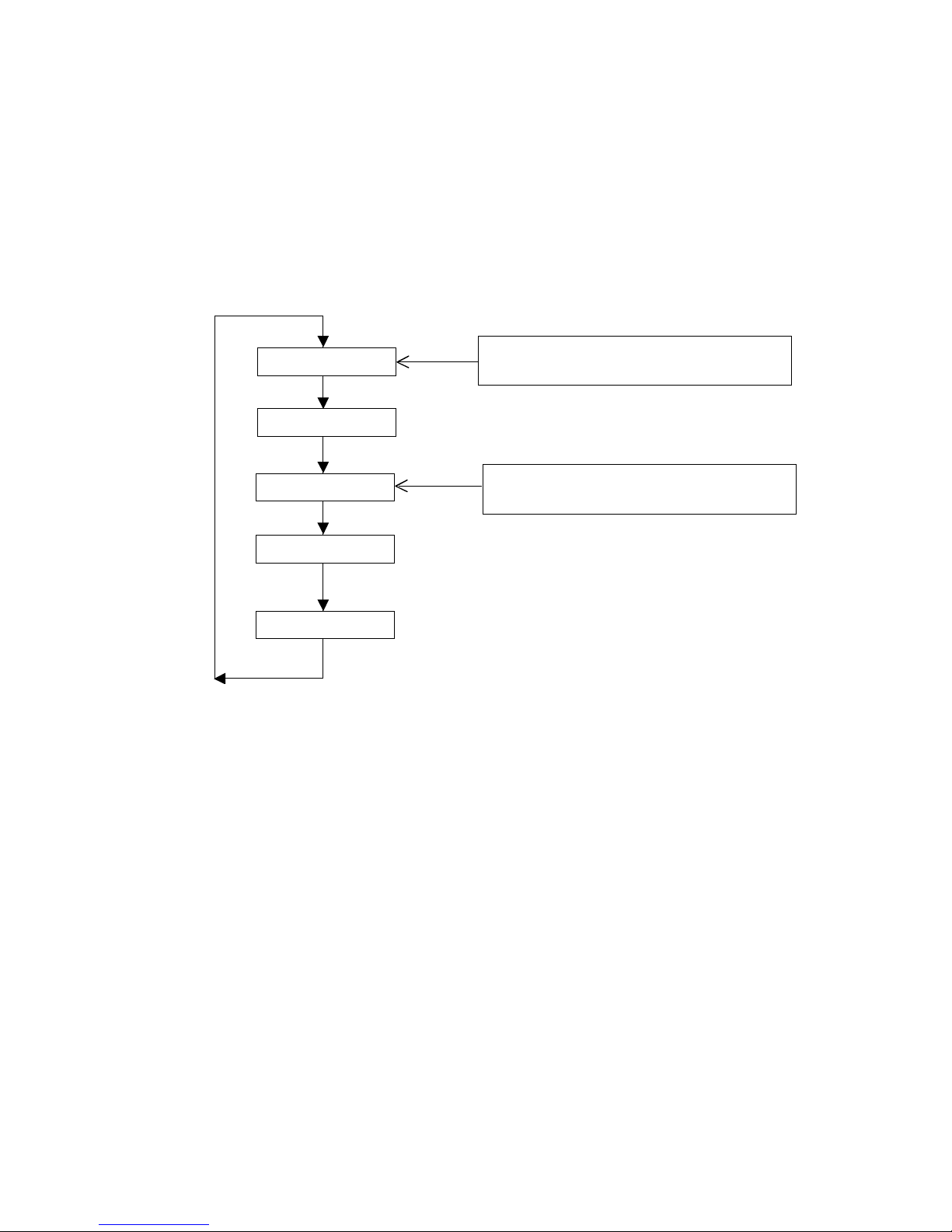

SERVICE MODE
Adjustment mode
Setting mode
First mode of service when entering by
SERVICE key.
First mode of service when entering by
2 local keys.
Option mode
Confirmation mode
1. Service mode is switched by SERVICE key, CH UP + VOL DOWN when reset.
2. Service mode is cancelled by SERVICE key during Service mode.
3. Service mode can be switched to the following 5 modes via MENU key:
4䋮During Service mode, AFT operation is prohibited. The setting data for PLL is always set to fo data.
5䋮During Service mode, the following user data are set to default value and stored as last memory.
PICTURE䋯TINT䋯COLOR䋯BRIGHT䋯SHARP䋯COLOR TEMP.
BASS䋯TREBLE䋯BALANCE䋯MTS䋯FAO䋯SPEAKER䋯ENERGY SAVE
6䋮During Service mode, OSD display for ON/OFF is toggled via [CH CALL] key.
䊶At display OFF condition, if changing adjustment data, channel, input source, it remains display OFF.
䊶At display OFF condition, if changing adjustment item, it returns to display ON.
7䋮During Service mode, the following operation are prohibited.
CLOSED CAPTION䋯No signal BLUE SCREEN
8䋮During Service mode, sound is muted(only MTSIC) except when selecting the following items.
V24, M01
NVM Edit mode

21G-FX10L
4 – 2
AUTO ADJUSTMENT
H-VCO
RF-AGC
PIF-VCO

1. When there is H-VCO auto adjustment key input at item H-VCO, auto adjustment will be implemented.
2. H-FREE (1chip) is set to 1.
3. H-OUT (1chip) is set by intelligent monitor output.
4. IM input becomes TIM input.
5. H-VCO (1chip) data is changed so that the number is 126 inside 8ms interval.
6. When adjustment is completed, OSD display and H-VCO auto adjustment data of EERPOM are updated.
7. H-FREE
(
1chip
)
, intelli
g
ent monitor output, IM input mode are recovered.
1. If there is RF-AGC auto adjustment key input at item RF-AGC, auto adjustment will be implemented.
2. AGC-OUT (MONITOR(1chip)is set by intelligent monitor output.
3. IM input becomes AD input.
4. RF-AGC(1chip) is decreased from current RF-AGC value to 0, the maximum AFT input voltage is obtained.
5. RF-AGC(1chip) is increased until at the point of AFT input voltage is (max. 0.3V), adjustment is completed.
6. When adjustment is completed, OSD display and RFGC auto adjustment status in EEPROM are updated.
7. Intelli
g
ent monitor output, IM input mode are recovered.
1. If there is PIF-VCO auto adjustment key input at item PIF- VCO, auto adjustment will be implemented.
2. VIF-DEF (1chip) is set to 1.
3. AFT output (1chip) is set by intelligent monitor output.
4. IM input becomes AD input.
5. VIF-VCO (1chip) is changed so the input voltage becomes 2.5V.
6. When adjustment is completed, OSD display and PIF-VCO auto adjustment status in EEPROM are updated.
7. VIF-DEF
(
1chip
)
intelli
g
ent monitor output, IM input mode are recovered.
S-TRAP
1. If there is S-TRAP auto adjustment key input at item S-TRAP, auto adjustment will be implemented.
2. S-TRAP OUTPUT is set by intelligent monitor output.
3. IM input becomes AD input.
4. S-Trap (1chip) is set to the value of V45(S-TRAP ADJ Start).
5. S_Trap_Result is set to the value of V45(S-TRAP ADJ Start).
6. S-Trap (1chip) is increased until the minimum input voltage becomes minimum.
7. Wait 20ms before sampling the new_ AD_data.
8. When adjustment is completed, OSD display and S-TRAP auto adjustment status in EEPROM are updated.
9. S-TRAP
(
1chip
)
intelli
g
ent monitor output, IM input mode are recovered.

21G-FX10L
5 – 1
TV21G-FX10LService Manual21G-FX10LMarketE
CHAPTER 5. ADJUSTMENT METHOD
Memory Map Data
Caution: To
g
et into the service mode, one of the wa
y
s is press direct ke
y
for service items.
There is three stage of Service Mode data
First sta
g
edata from V01 ~ M01
to go into second stage of service mode data, press MENU key
Second sta
g
edata from F01 ~ F160
to go into third stage of service mode data, press MENU key
Third stage data from O01 ~ O31
DATA INITIAL
LENGTH DATA
V01 127 127 ADJ
V02 0~127 64 64 ADJ
V03 0~127 64 64 ADJ
V04 0~255 128 128 ADJ
V05 0~63 41 40 *FIX
V06 0~63 41 24 *FIX
V07 0~7 4 4 ADJ
V08 0~31 16 16 ADJ
V09 0~127 127 127 AUTO
V10 0~63 32 32 ADJ
V11 -7~+7 0 0 FIX
V12 -15~+15 0 0 FIX
V13 -31~+31 0 0 FIX
V14 0~63 32 32 AUTO
V15 0~255 127 127 ADJ
V16 0~255 127 127 ADJ
V17 0~255 127 127 ADJ
V18 0~127 64 64 ADJ
V19 0~127 64 64 ADJ
V20 0~127 64 64 FIX
V21 0~127 64 64 FIX
V22 0~255 32 32 ADJ
V23 0~2 0 0 FIX
0~127 (O20=0) 127 115
0~255 (O20=1) 255 -
V25 0~7 4 4 AUTO
V26 0~127 64 64 AUTO
V27 0~63 36 26 *FIX
ADJUST IF NECESSARY TO
IMPROVE
V28 -13~+13 0 0 FIX
V29 0~63 35 37 *FIX
ADJUST IF NECESSARY TO
IMPROVE
V30 -13~+13 0 0 FIX
V31 0~63 32 32 ADJ
V32 -13~+13 0 0 FIX
V33 0~63 32 32 ADJ
V34 -13~+13 0 0 FIX
V35 0~63 32 32 ADJ
V36 -13~+13 0 0 FIX
V37 0~63 32 32 ADJ
V38 -13~+13 0 0 FIX
V39 0~63 32 32 ADJ
V40 -13~+13 0 0 FIX
V41 0~63 31 31 ADJ
V42 -13~+13 0 0 FIX
V43 0~63 31 31 ADJ
V44 -13~+13 0 0 FIX
V45 0~127 25 25 FIX
V46 0~127 95 95 FIX
M01 0~15 10 10 FIX
Auto Adjustment Item
Ԙ H-VCO , ԙ RF-AGC, Ԛ VIF-VCO, ԛ S-TRAP
VIF-VCO
V24 *FIX
R-CUT
G-CUT
LOWER CORNER
H-SIZE
UPPER CORNER50
TRAPEZIUM50
H-SIZE50
UPPER CORNER
Adjustmet Mode (First Stage)
SUB-CON
SUB-TINT
SUB-BRI
SUB-COL
ANGLE ADJ
S-TRAP
B-CUT
R-DRI
B-DRI
SUB-COLOR-YUV
SUB-VOL
LOWER CORNER50
SUB-TINT-YUV
CC-POS
ANGLE ADJ50
Remark: * Initial Data different with Setting Data
MTS-ATT
S-TRAP ADJ START
S-TRAP STOP
BOW ADJ50
BOW ADJ
TRAPEZIUM
V LINEARITY50
SCREEN CUT OFF
VS-CORRECT
VS-CORRECT50
V LINEARITY
PARABOLA
PARABOLA50
H-VCO
REMARKEEPROM ITEMS OSD
RF-AGC
SETTING DATA FIX/ADJ/AUTO
V-SHIFT50
H-SHIFT50
V-SIZE50
SUB-SHP-PRE
SUB-SHP-OVER
V-SHIFT
H-SHIFT
V-SIZE
0~127

21G-FX10L
5 – 2
SETTING MODE (Second Stage)
DATA INITIAL
LENGTH DATA
F01 0/1 0 0 FI
X
F02 -16~+16 0 -10 *FIX
F03 -16~+16 0 0 FIX
F04 -31~+31 0 0 FIX
F05 -31~+31 0 0 FI
X
F06 -16~+16 0 -10 *FI
X
F07 -16~+16 0 0 FIX
F08 -31~+31 0 0 FI
X
F09 -31~+31 0 0 FI
X
F10 -15~0 -10 -10 FI
X
F11 0/1 0 0 FI
X
F12 0~63 30 30 FI
X
0~127 (O20=0) 120 81
0~255 (O20=1) 246 -
F14 0~7 5 7 *FI
X
F15 0~7 5 5 FI
X
F16 0~7 5 5 FI
X
F17 0~7 5 5 FI
X
F18 0~7 5 5 FI
X
F19 0~7 5 5 FI
X
F20 0~7 5 4 *FI
X
F21 0~7 0 0 FI
X
F22 -32~+32 +6 -16 *FI
X
F23 -32~+32 0 +10 *FI
X
F24 -31~+31 +24 +24 FI
X
F25 -31~+31 0 0 FI
X
F26 -32~+32 +3 +7 *FI
X
F27 -32~+32 -2 0 *FI
X
F28 -32~+32 -8 -20 *FI
X
F29 -32~+32 +6 +9 *FI
X
F30 0~3 1 3 *FI
X
F31 0~3 0 0 FI
X
F32 0~3 0 0 FI
X
F33 0~7 2 1 *FI
X
F34 0~7 2 2 FI
X
F35 0~7 0 0 FI
X
F36 0~3 0 1 *FI
X
F37 0~7 5 1 *FI
X
F38 0~7 7 2 *FI
X
F39 0~7 1 0 *FI
X
F40 0/1 1 1 FI
X
F41 0/1 1 1 FI
X
F42 0/1 0 0 FI
X
F43 0/1 0 0 FI
X
F44 0/1 0 0 FI
X
F45 0/1 0 0 FI
X
F46 0/1 0 0 FI
X
F47 0/1 1 1 FI
X
F48 0~31 0 0 FI
X
F49 0~31 0 14 *FI
X
F50 1~55 38 48 *FI
X
F51 1~50 23 32 *FIX
F52 -32~+32 +10 +15 *FIX
F53 -32~+32 +2 +9 *FIX
F54 0/1 1 1 FI
X
F55 -63~+63 0 0 FI
X
F56 -63~+63 0 0 FI
X
F57 -63~+63 0 0 FI
X
F58 -63~+63 0 0 FI
X
F59 -63~+63 0 0 FI
X
OSD FIX/ADJ/AUTOSETTING DATA
F13 *FIX
EEPROM ITEMS
SHP-P-PRE
SHP-N3-PRE
SHP-AV-OVER
A
BCL-Gain
SHP-AV-PRE
SHP-YUV-PRE
SHP-YUV-OVER
SHP-P-OVER
SHP-N3-OVER
SHP ANT-ON II OFFSET
RGB-CLIP
E-SAVE
VIF-G
FAO-VOL
YDL-TV
YDL-TV-P
YDL-TV-N3
YDL-AV
YDL-AV-P
YDL-AV-N3
YDL-YUV
TINT-AV
COL-AV
COL-P
COL-N3
R-R
R-B
B-R
B-B
GAMM
A
BS-D
BS-C
SL-TV
SL-AV
SL-YUV
A
FC2
VD-TV
VD-AV
VD-YUV
A
S-TV
A
S-AV
A
S-YUV
FBP-TV
FBP-AV
FBP-YUV
C.Clip Level
CP
CC LEVEL
OSD POS-H
OSD POS-V50
OSD POS-V60
OFFSET-ADJ-COLOR
OFFSET-ADJ-TINT
WAIT˴MD˴TIMER
R-CUT-YUV
G-CUT-YUV
B-CUT-YUV
R-DRI-YUV
B-DRI-YUV
Remark: * Initial Data different with Setting Data

21G-FX10L
5 – 3
SETTING MODE (Second Stage)
DATA INITIAL
LENGTH DATA
OSD FIX/ADJ/AUTOSETTING DATAEEPROM ITEMS
ABCL G i
F60 -63~+63 0 0 FI
X
F61 -63~+63 0 0 FIX
F62 -63~+63 0 0 FI
X
F63 -15~+15 +1 +4 *FIX
F64 -63~+63 0 0 FIX
F65 0~3 2 0 *FIX
F66 0~3 2 2 FI
X
F67 0~3 2 2 FI
X
F68 0~3 0 0 FI
X
F69 0~3 3 3 FI
X
F70 0~3 3 3 FI
X
F71 0/1 0 0 FI
X
F72 0~2 0 0 FI
X
F73 0/1 0 0 FI
X
F74 0~3 0 0 FI
X
F75 0~3 0 0 FI
X
F76 0/1 0 0 FI
X
F77 0/1 0 0 FI
X
F78 0~15 8 8 FI
X
F79 0~15 8 8 FI
X
F80 0~7 3 1 *FIX
F81 0/1 0 0 FI
X
F82 0/1 0 0 FI
X
0: 11XX
(
AUTO
)
1: 0011
(
PAL-M
)
2: 0111
(
PAL-N
)
3: 0110
(
N358
)
4: 10XX
(
AUTO1
)
F84 0/1 1 1 FIX
F85 0/1 0 0 FIX
F86 0/1 1 0 *FIX
F87 -4~+4 0 0 FIX
F88 -4~+4 0 0 FI
X
F89 -4~+4 0 0 FI
X
F90 -4~+4 0 0 FI
X
F91 -4~+4 0 0 FIX
F92 0~3 0 1 *FIX
0: fix to 0
1: fix to 1
2: AVL in
SOUND MENU
F94 0 (0dB)/1(3dB) 0 1 *FIX
0: 10%
1: 30%
2: 50%
3: 70%
4: 90%
F96 0/1 0 0 FI
X
F97 0~3 0 0 FI
X
F98 0/1 0 0 FI
X
F99 0/1 0 0 FI
X
F100 0/1 0 0 FI
X
F101 0~255 70 70 FIX
F102 0~255 150 150 FI
X
F103 0~255 156 156 FI
X
F104 0~255 163 163 FI
X
F105 0~255 165 165 FI
X
F106 0~255 170 170 FI
X
F107 0~255 180 180 FI
X
F108 0~60 21 21 FI
X
3
*FIX
FIX
1
F83 3 FIX3
CONTRAST OFFSET
CONTRAST YUV OFFSET
BRIGHT OFFSET
BRIGHT AV2 OFFSET
BRIGHT YUV OFFSET
TRAP
TRAP-P
TRAP-N3
A
FC1-Gain-TV
A
FC1-Gain-AV
A
FC1-Gain-YUV
SIF-BPF-WIDE-HIGH
OM-DET
㧮㧿㧙㧳㨍㨕㨚
C-ANGLE
㨂㧙㧰㧸
MID2 OFFSET
MID3 OFFSET
㨁㧙㧰㧸
COL-SYSTEM
A
S-SPEED-DN
A
S-SPEED-UP
CR-PEDESTEL-ADJ
CB-PEDESTEL-ADJ
SIF-BPF-WIDE
SIF-BPF-WIDE-LOW
MID1 OFFSET
Pow-Storage
SIF45 GAIN DOWN
S-TRAP OFF
BASS OFFSET
F93 2
AU-ATT AMP
MEL2
MATRIX ADJ
SAP LEVEL
STEREO SENS
OSD LEVEL 3F95
TREBLE OFFSET
AVL LEVEL
R MTX UP
MEL4
MEL5
MEL6
Remark: * Initial Data different with Setting Data
S-St-Point
MEL3
SAP SENS
AVL OPTION
MER
MEL1

21G-FX10L
5 – 4
SETTING MODE (Second Stage)
DATA INITIAL
LENGTH DATA
OSD FIX/ADJ/AUTOSETTING DATAEEPROM ITEMS
ABCL G i
F109 0~60 60 60 FI
X
F110 0~60 7 7 FI
X
F111 0~60 40 40 FIX
F112 0~60 50 50 FIX
F113 0~60 60 60 FIX
F114 -30~+30 0 0 FIX
F115 -30~+30 0 0 FIX
F116 -30~+30 0 0 FIX
F117 -30~+30 0 0 FIX
F118 -30~+30 0 0 FI
X
F119 -30~+30 +10 +10 FIX
F120 -30~+30 -10 -10 FIX
F121 -30~+30 0 0 FIX
F122 -30~+30 +5 +5 FIX
F123 0(OFF)/1(ON) 0 0 FIX
F124 0(OFF)/1(ON) 0 0 FIX
F125 0(OFF)/1(ON) 0 0 FIX
F126 -10~+10 -10 -10 FIX
F127 -10~+10 0 0 FIX
F128 -10~+10 +5 +5 FIX
F129 -10~+10 -5 -5 FIX
F130 -10~+10 0 0 FIX
F131 -10~+10 +10 +10 FIX
F132 -10~+10 0 0 FIX
F133 -10~+10 0 0 FIX
F134 -10~+10 0 0 FIX
F135 -10~+10 0 0 FIX
F136 -10~+10 0 0 FIX
F137 -10~+10 0 0 FIX
F138 -10~+10 0 0 FIX
F139 -10~+10 0 0 FIX
F140 -10~+10 0 0 FIX
F141 -10~+10 0 0 FIX
F142 -10~+10 0 0 FIX
F143 -10~+10 0 0 FIX
F144 -10~+10 0 0 FIX
F145 -10~+10 0 0 FIX
F146 -10~+10 0 0 FIX
F147 0(OFF)/1(ON) 0 0 FIX
F148 0(OFF)/1(ON) 1 1 FIX
F149 0(OFF)/1(ON) 1 1 FIX
F150 0/1 1 1 FIX
F151 0(OFF)/1(ON) 1 1 FIX
F152 -15~0 0 0 FIX
F153 0/1 1 1 FIX
F154 0/1 0 0 FIX
F155 -16~+16 0 0 FIX
F156 0 ~ 8 0 1 *FIX
F157 0 ~ 7 0 0 FIX
F158 0 ~ 7 0 3 *FIX
F159
0: 5ms
1: 10ms
2: 15ms
3: 20ms
1 1 FIX
F160 0/1 0 0 FIX
CONT NEWS
CONT MUSIC
S-Step
S-Sp-Point
CONT MOVIE
BRIGHT NEWS
BRIGHT MUSIC
BRIGHT MOVIE
COL NEWS
COL MUSIC
COL MOVIE
SHARP NEWS
SHARP MUSIC
SHARP MOVIE
SURR NEWS
SURR MUSIC
SURR MOVIE
TREBLE NEWS
TREBLE MUSIC
TREBLE MOVIE
BASS NEWS
EQ MID1 NEWS
EQ MID1 MUSIC
EQ MID1 MOVIE
BASS MUSIC
BASS MOVIE
EQ BASS NEWS
EQ BASS MUSIC
EQ BASS MOVIE
H-BLK LEFT
EQ TRE MOVIE
S-BOOST NEWS
S-BOOST MUSIC
S-BOOST MOVIE
EQ MID3 MUSIC
EQ MID3 MOVIE
STRAP OFFSET
CORNER UP-LOW EN
H-STOP DELAY
BOW/ANGLE-ON/OFF
SHP-NR-OFFSET
RGB MUTE TIME
H-BLK RIGHT
V-FREE60
TAKEOFF TV
Remark: * Initial Data different with Setting Data
EQ TRE MUSIC
EQ MID2 NEWS
EQ MID2 MUSIC
EQ MID2 MOVIE
EQ MID3 NEWS
EQ TRE NEWS
SYS MUTE

21G-FX10L
5 – 5
INITIAL
DATA
0:ALPS
1 : MATSUSHITA
O02 FAO DIS/ENA 0/1 1 0
O03 * PON-CH DIS/ENA 0/1 0 1
O04 ANTENNA BOOSTER DIS/ENA 0/1 0 0
O05 AV DIS/ENA 0/1 1 1
0:AV1
1:AV2
O07 MTS DIS/ENA 0/1 1 0
0 : without COMPONENT
1 : COMPONENT (share with AV1)
2 : COMPONENT (individual)
0 : Without Sound Menu
1 : TONE
2 : EQUALIZER
3 : Without Sound Menu (GA8P)
O10 AUTO-OFF DIS/ENA 0/1 1 1
0 : Standby Mode
1:LastMemory
0:NoSetUp
1 : AUTO Set Up
O13 AV MODE DIS/ENA 0/1 1 0
O14 MP-IN DIS/ENA 0/1 0 0
O15 S-BOOSTER DIS/ENA 0/1 0 0
O16 FORCE-COL DIS/ENA 0/1 0 0
0 : ENGLISH
1 : SPANISH
2 : PORTUGUESE
0:CHٌ/ٖ, VOL+/-
1: / , /
0 : 7-bit volume table
1 : 8-bit volume table
0 : EZ Setup Same as GA6 Brazil
1:EZSetupSameasGA6LAG
O22 WHITE-OUT DIS/ENA 0/1 0 0
O23 H-SYNC JUDGE DIS/ENA 0/1 1 1
O24 CHSET COLOR DIS/ENA 0/1 0 0
O25 DEMO DIS/ENA 0/1 1 1
O26 FLAT DIS/ENA 0/1 1 1
0:NoAV
1:Rear
2:Front
3:Rear&Front
O28 SPEAKER DIS/ENA 0/1 1 0
0 : Old Vol-Table
1 : New Vol-Table
0:-105~0
1 : -60 ~ 0
2 : -30 ~ 0
0:-60~+60
1:-30~+30
* POWER ON BY CH-UP / DOWN KEY.
00/1 0
O30
O31
CONTRAST TABLE
BRIGHTNESS TABLE
1
0…2 0 0
0/1
0
0
1
3
0
1
1
1
0
1
0
3
0
0/1
SETUP-FLAGO12 1
O11 LAST POWER
0/1
0
0…2O08
0/1
Description Range
O01 LNA TUNER 0/1
O21 AUTO-JUDGEMENT 1
0/1O19 ARROW-KEY 1
O20 VOL-TABLE 0
O18 LANG-SEL 7Portuguese/French/Spanish 0…7
Setting Mode (Third stage)
O17 INIT-LANG
Data OPTION FUNCTION
O06
O09 TONE-CTRL
AV2
COMPONENT
3F/R-AVO27
O29 VOL-CURVE 0
Setting Data
0/1
0/1
0…3
00…2
1
1
0…3 1

21G-FX10L
5 – 6
PIF ADJUSTMENTCHECKING
NO
ADJUSTMENT POINT
ADJUSTMENT CONDITION/PROCEDUREWAVEFORM OR OTHERS
1RF-AGC (1) Receive the "US 10 CH HALF Color Bar" signal.*for Auto ADJ
TAKE OVERPOINT
Signal Strength: 56 ± 1dBμV (75 ohm open) 1)Receive "NTSC COLOUR BAR" signal
ADJUSTMENT (2) Connect the oscilloscopetoJA402(Tuner's AGC Terminal) as shown in signal strength :56±1dBμV(75ohmo
pen).
(I2C BUS CONTROL) figure 3-1.1) Go to service mode.
OSCILLOSCOPE 2) Go to servicedata V09 , press R/C to operate
(AUTO & MANUAL ADJ)
"Auto-AGC" key and confirm the OK display
on the screen
3)Ifappear red display with NG sign, increase data some
step and please repeat step 2.
BIAS BOX 4) Proceedstep4&5inmanual mode.
TVSET
Bias Box : about 4.5V
Fig. 3-1
(3) Call V09 inservicemode. Adjust the V09busdatatoobtain theTuner
outputpindrop 0.1Vbelow maximum voltage.
(4) Change the antenna inputsignal to 63 ~67dBμV, and makes
ure there
isnonoise.
(5)Turn uptheinput signal to 90~95dBμVto be sure that there isno cross
modulationbeat.
FOCUS ADJUSTMENT
NO ADJUSTMENT POIN
T
ADJUSTMENT CONDITION / PROCEDUR
E
WAVEFORM OR REMARK
S
1 FOCUS (1) Receive US4 CH LION HEAD Signal (NTSC 60 Hz).
(2) Press RESET to set Picture NORMAL condition.
(3) Adjust the focus control to get the bestfocusing.
ADJUSTMENT PRECAUTION : Make sure TV Set is in "NORMAL CONDITION" before switch to Service Mode for Adjustment.
Focusing Point(middle
of center andedgeof
monoscope pattern)
+
-
+
-
JA402
0.1V
H-VCO, VIF-VCO & S-TRAP fo ADJUSTMENT
NO ADJUSTMENT POINT
ADJUSTMENT CONDITION / PROCEDURE WAVEFORM OR OTHERS
1 H-VCO ADJ (Manual Adj)
(I2C BUS CONTROL) (1) In No signal (RASTER) condition.
(AUTO & MANUAL ADJ)
(2) Go to service mode, choose service data V25.
(3) Connect oscilloscope to IC801 pin13 (H-OUT),adjV25 until freq
become 15.735 ± 0.2KHz.
(Auto Adj)
(1) In No signal (RASTER) condition.
(2) Go to service mode.
(3) Choose service data V25,bypressingR/C"AUTO H-VCO" key, OSD will appear "OK"
at screen.
(4) If appear "NG" pls repeat step 3.
2 VIF-VCO ADJ (Manual Adj) *NOTE:
(I2C BUS CONTROL) (1) In No signal (RASTER) condition. This adjustment must be done after aging
(AUTO & MANUAL ADJ)
(2) Go to service mode, choose service data V14 at least 3 minutes.
(3) Connect oscilloscope to IC801 pin7 (AFT), adj V14 until voltage become
2.5 ± 0.5 V DC (Checking spec : 2.50 ± 1.5 V)
(Auto Adj)
(1) In No signal (RASTER) condition.
(2) Go to service mode, choose service data V14.
(3) Press the R/C "AUTO PIF-VCO" key, OSD will appear "OK" at screen.
(4) If appear "NG" pls repeat step 3.
3S-TRAP fo ADJ (Manual ADJ)
(I2C BUS CONTROL) (1) In No signal (RASTER) condition.
(AUTO & MANUAL ADJ)
(2) Go to service mode, choose service data V26.
(3) Connect oscilloscope to TP 801 or IC801 pin 30 , adj V26 until voltage become Min (below 5 V).
(Auto Adj)
(1) In No signal (RASTER) condition.
(2) Go to service mode, choose service data V26.
(3) Press the R/C "AUTO S-TRAP" key, OSD will appear "OK" at screen.
(4) If appear "NG" pls repeat step 3.

21G-FX10L
5 – 7
HORIZONTAL ,VERTICAL,DEFLECTION LOOP ADJUSTMENT (1)
NO
ADJUSTMENT POINT
ADJUSTMENT CONDITION / PROCEDUREWAVEFORM OR OTHERS
1V-SHIFT (1) Receive US4 CH LION HEAD Signal (NTSC 60 Hz).Figure AB
(I2C BUS CONTROL) (2) Choose the service data V07.
(3) Adjust V07 to align the center of the screen to the geometric center of CRT.
Note: B line (Monoscope middle line) must sameornearesthigherposition
to the A mark (Tubem
iddle mark),refer to the attach drawing.
OK OK NG
2V-SIZE (1) Receive US4 CH LIONHEADSignal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V10.
(to be done after V-shift adj)
(3) Adjust V10 bus data until the overscan become 10 ± 2.5%.
Caution 1: Pls aging TV more than 10 minutes before adjustment
3V-LINEARITY (1) Receive US4 CH LION HEAD Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the servicedataV29.
(3 )Already preset. (Adjust this unless the linearity is achieved.)
4VS CORRECTION (1) Receive US4 CH LION HEAD Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V27.
(3 )Already preset. (Adjust this unless the linearity is achieved.)
5 H-SHIFT (1) Receive US4 CH LION HEAD Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V08.
(3) Adjust the V08 bus data toh
ave a balance position to spec of A=B (as attach drawing).
AB
(4)IfcannotmakeittoA=B, adjust fromthebe
st point so that Aslightly smaller than B.
6 H-SIZE (1) Receive US4CHLIONHEA
D Signal (NTSC60Hz).
(I2C BUS CONTROL) (2) Choose the service data V35
(3) Adjust V35 bus data until the overscan becomes 10 ± 2.5 %.
7PARABOLA (1) Receive CrossHatch Pattern Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V31
Adjust the 2nd vertical line from the right end of the crosshatch pattern
so that the middle 4 blocks are straight.
(3) Make sure both left / right of 2nd vertical line at optimum point

21G-FX10L
5 – 8
HORIZONTAL ,VERTICAL,DEFLECTION LOOP ADJUSTMENT (2)
NO
ADJUSTMENT POINT
ADJUSTMENT CONDITION/PROCEDURE WAVEFORM OR OTHERS
8UPPER CORNER (1) Receive CrossHatch Pattern Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V37
(3) Adjust the 2nd upper vertical line from the right end of the crosshatch pattern
so that the upper line are straight.
(4) Make sure both left / right of 2nd vertical line at optimum point
9LOWER CORNER (1) Receive CrossHatch Pattern Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V39
(3) Adjust the 2nd lower vertical line from the right end of the crosshatch pattern
so that the bottom line arestraight.
(4) Make sure both left / right of 2nd vertical line at optimum point
10 BOW-ADJ (1) Receive CrossHatch Pattern Signal (NTSC 60 Hz).
(I2C BUS CONTROL)(2)Choose the service data V43 BOW ADJ
(3) Adjust the 2nd vertical line from the end of the crosshatch pattern until line is straight.
11 ANGLE ADJ (1) Receive CrossHatch Pattern Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V41
(3) Adjust the 2nd vertical line from the end of the crosshatch pattern line is straight
(4) Make sure both left / right of 2nd vertical line at optimum point
12 TRAPEZIUM (1) Receive CrossHatch Pattern Signal (NTSC 60 Hz).
(I2C BUS CONTROL) (2) Choose the service data V33
(3) Adjust the 2nd vertical line from therightendofthecrosshatch pattern
so that the D1 (center area of the second vertical line - edge of screen)
and D2 (top area of the second vertical line - edge of screen) are same.
(4) Make sure both left / right of 2nd vertical line at optimum point
13 FINAL INSPECTION OF (1) Receive CrossHatch Pattern Signal (NTSC 60Hz).
ADJUSTMENT (2) Please make sure picture distortion (overall picture quality) must be balance at optimum point
TOP / BOTTOM at LEFT / RIGHT corner. A1 A2
(3) If NG, please RE-ADJUST follow step 7 to 13 or adjust at NG position to get best picture quality A1 B1 B2
C1C2
D1 =D2
D2
D1
D2
D1
A1
B1
C1
A2
D1
B2
D2
C2
~
~
~
~
~
~
OVERALLPICTURE QUALITY MUST BE
BALANCE AT OPTIMUM POINT(LEFT
&R
IGHT )
H-BOW

21G-FX10L
5 – 9

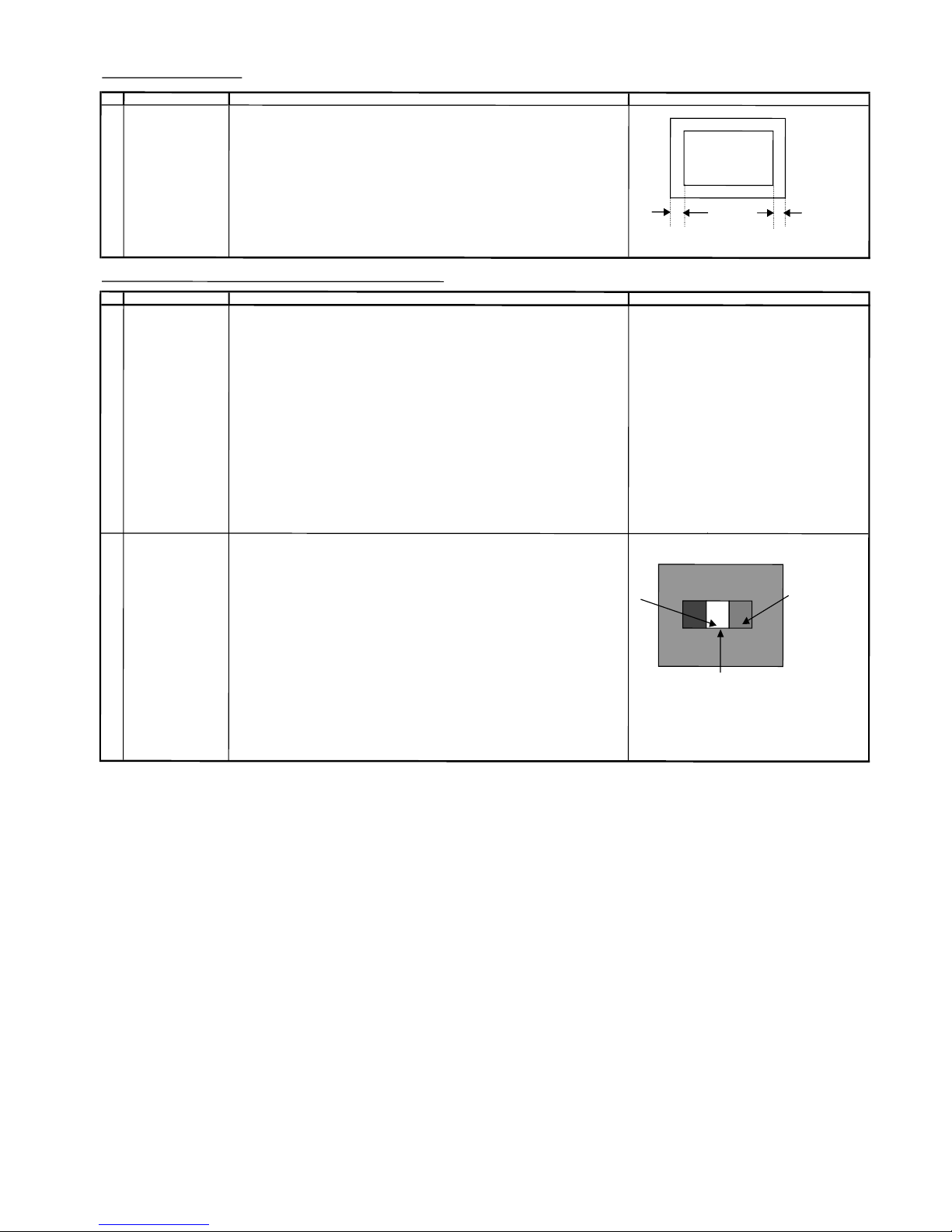

CLOSED CAPTION ADJUSTMENT
NO
ADJUSTMENT POINT
ADJUSTMENT CONDITION / PROCEDURE WAVEFORM OR OTHERS
1CLOSED CAPTION (1) Receive US4 CH LION HEAD Signal (NTSC 60 Hz)
SET UP (2) Go to service mode, choose service data V22.
(3) Adjust the V22 bus data tohaveab
alance position tos
pec ofA=B
(4) After the left and right symmetrical then V22 data reduce 5 step
AB

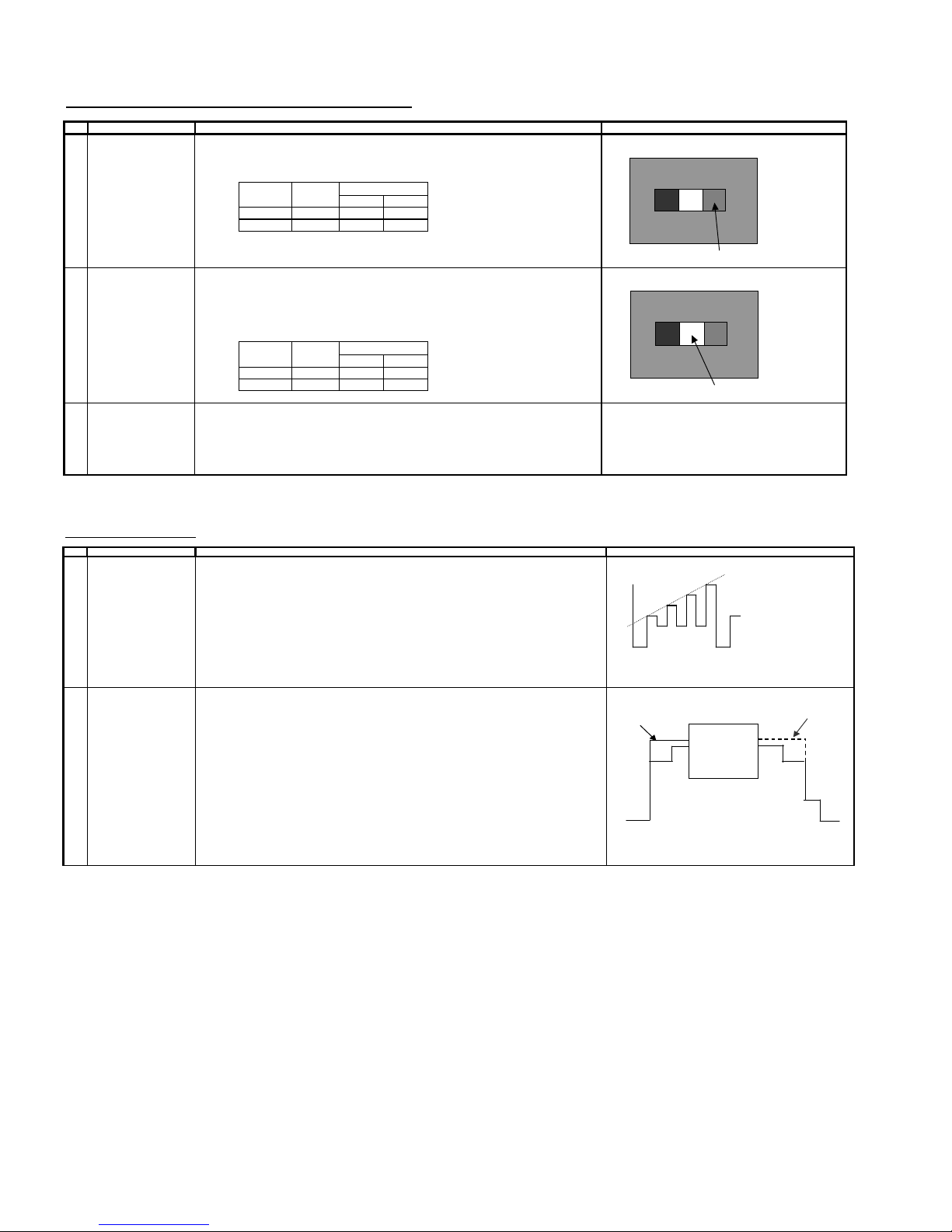

SCREEN, WHITE BALANCE, SUB-BRIGHTNESS & SUB-CONTRAST ADJUSTMENT(1)
NO
ADJUSTMENT POINT
ADJUSTMENTCONDITION / PROCEDURE WAVEFORM OR OTHERS
1
SCREEN
(1) Set the service data before adjustCRT cutoff as follows: NOTE:
ADJUSTMENT
a) V01 : 127
Servicedata
R/C key (Hex)
(I2C BUS CONTROL)
b) V04 :127 R-cutoff up A9
c) V15 :127R-cutoff down69
d) V16 : 127 G-cutoff upE9
e) V17:127 G-cutoff down 19
f) V18 : 64 B-cutoff up 99
g) V19 : 64 B-cutoff down 59
(2) Receive the window pattern or US4 CH LION HEADSignal (NTSC 60 Hz)
(3) Go to service mode, get in Y-mute byR/C and set V23 to "1"
(4)Adjustthe Screen so that cut-off line appear in low bright, then judge that whether
the cut-off data appear in Red or Green or Bluecolor, in this condition between V15 = R-CUTOFF,
V16=G-CUTOFF & V17= B-CUTOFF, fix the data of the colorappear in cut-off line and adj the
other two cut-off line sothatcu
t-off line color become white.
(5)Turn the screen VR of FBT so that cut-off linej
ust disappear and use R/C tosetV23 to "0".
Next disable the Y-Mute so that the picture appear in normal mode
2WHITE BALANCE ADJ(1)WHITE (HIGH BEAM)
(to be done after screen First use Minolta Color Analyzer CA100, let the gun pointat Dark White position
adj) (as drawing attach), Adj V04 until LUMINANCE Y become 5 cd/m2,thenlet thegun
(I2C BUS CONTROL) point at White position ( as drawing attach), Adj V01 until LUMINANCE Y
(CH 23 50IRE become: 150 cd/m2.WhiteDark
WINDOW PATTERN) Adj the V18(R DRIVE) , V19(B DRIVE) until the axis of color temperature become White
10700° X : 0.278 , Y : 0.280
(2) DARK WHITE (LOW BEAM)
Let the gun point at Dark White position, ifthe color temperature data shift away from
the data adjusted in Item 1 Screen adjustment,adjust V15,V16,V17.
Please fix thefirst colour appears in Screen adj item step (4) is fixed ,
adjtheother twos
othat to obtainthe similar axis as above*Note:Use RF CH2350IRE window pattern
** Repeat step 1 & 2 to get a regulated position
50% WHITE

21G-FX10L
5 – 10
SCREEN, WHITE BALANCE, SUB-BRIGHTNESS & SUB-CONTRAST ADJUSTMENT(2)
NO ADJUSTMENT POINT ADJUSTMENT CONDITION / PROCEDURE WAVEFORM OR OTHERS
3 SUB-BRIGHTNESS (1) In CH 23 50IRE window pattern signal condition.
(to be done after screen, (2) Using Minolta Color Analyzer CA-100, let the gun point atDark White position
white balance adj) (as attach drawing), adjust V04 Bus data until BRIGHTNESS Y =1.5cd/m2
(I2C BUS CONTROL)
Service Luminance
Mode (cd/m2) Upper Limit Lower Limit
Enable 1.5 +0.5 -0.5
Disable 1.5 +1.5 -0.5
4 SUB-CONTRAST (1) In CH 23 50IRE window pattern signal condition.
(to be done after screen, (2) Using Minolta Color Analyzer CA-100, let the gun point atWhite position
white balance adj, (as attach drawing), adjust V01 Bus data until BRIGHTNESS Y = 150cd/m2
sub-brightness adj)
(I2C BUS CONTROL) ** NOTE: Allowable Data for V01 >=90, even Y can't match the spec
Service Luminance
Mode (cd/m2) Upper Limit Lower Limit
Enable 150.0 +10 -10
Disable 150.0 +10 -10 White
5 BEAM CURRENT CHECK (1) Receive US 4 CH LION HEAD Signal (NTSC 60 Hz).
(2) Press R/C to set Picture NORMAL condition.
(3) Connect the DC miliammeter between TP 603 (+)&TP602(-)
(Full Scale: 3mA Range).
(4) Beam current must be within : 1000 ± 100μA
Tolarance (cd/m2)
US14
Tolarance (cd/m2)
Dark White
US14
NTSC CHROMA ADJUSTMENT
NO ADJUSTMENT POINT ADJUSTMENT CONDITION / PROCEDURE WAVEFORM OR REMARK
S
1 SUB-TINT (1) Receive the "US 10 CH HALF Color Bar" signal.
(2) Connect the oscilloscope to JA410 or TP853 BLUE-OUT
(I2C BUS CONTROL)
Range : 500mV/Div (AC) (Use Probe 10:1)
Sweep time : 10 sec/Div
(3) Select the service data V02 . On Y-mute using the R/C.
(4) Adjust the V02 (Sub tint) data to obtain the waveform as shown in Figure 1.1
(B-Amp Base (TP853) must be in stepping level)
*REMARK : PLEASE MAKE SURE USE RF SIGNAL DURING SUB TINT ADJUSTMENT
Fig 1-1
2 SUB COLOR (1) Receive the "US 10 CH HALF Color Bar" signal.
(2) Make the image normal with the remote controller.
(I2C BUS CONTROL) (3) Connect the oscilloscope to JA401 (TP851) RED-OUT.
(to be done after
sub tint adj) Range : 500mV/Div (AC) ( Use Probe 10:1)
Sweep time : 10 sec/Div
(4) Select the service data V03. Adjust the V03 (Sub color) data to obtain the waveform
adjustment shown in Fig. 1-2.
(5) Fig 1.2 waveforms shows that the 75% white & red portions of color bar at the same level
*REMARK : PLEASE MAKE SURE USE RF SIGNAL DURING SUB COLOUR ADJUSTMENT
Fig 1-2
WY
Cy G
100% WHITE
Mg RB

21G-FX10L
5 – 11
PROTECTOR OPERATION CHECKING
NO
ADJUSTMENT POINT
WAVEFORM OR OTHERS
1H, V PROTECTOR (1) Receive US 4 CH LION HEAD Signal (NTSC 60 Hz).
(2) Connect output of Bias Box to D602 cathode (C602 positive).
(3) Set voltage of Bias Box to 18V and make sure the protector is not working.
(4) Set voltage of Bias Box to 28.5V.Makes
ure the protector is functioned, horizontal oscilationstop
and picture disappear.
(5)PullouttheACcordatleast 4 second before plugging inagain(tomake sure ohm -COM has
been reset) for the set to recover from protector mode
2 OTHER PROTECTOR (1) Once finishrectified Electrolytic Capacitor short testingin+Bline,
check all possible damaged components on +B line.
(Use random selected set for inspection)
A/V INPUT & OUTPUT CHECKING
NO
ADJUSTMENT POINT
WAVEFORM OR OTHERS
1VIDEO AND AUDIO (1) Receive the "US 10 CH HALF Color Bar" signal.
OUTPUT CHECK (2) Terminate the Video output with a 75 ohm impedance.
(Atsignalissta
ndard Color Bar Y/C=1/1, 87.5% Mod.)
Make sure the outputisasspecified (1.0Vp-p±3dB).
(3) Terminate the Audio output with a 47K ohm impedance.
( 400 Hz 100 % Mod. 47 k ohm, VOL Max. )
(2.5 Vp-p±0.5Vp-p)
.
.
2 VIDEO AND AUDIO (1) Using the INPUT key on the remote controller, make sure that the modes change in order of
INPUT CHECK TV, INPUT1,INPUT2 & TV again and the video & audio output are according
to the input terminal for each mode.
(2) Video cross-talk INPUT to TV checking :
a) When connect INPUT1 input, check TV also
b) When connect INPUT2 input, checkTValso
3HEADPHONE (1) Receive"US4CHLION HEAD Signal ( NTSC 60 Hz )" signal.
CHECK (2) Maximum volume , and check the headphone output with 400Hz sound and no sound
output from speaker.
ADJUSTMENT CONDITION / PROCEDURE
ADJUSTMENT CONDITION / PROCEDURE
Set volume to max, make sure the O/P is as specified

21G-FX10L
5 – 12
FUNCTION OPERATION CHECKING (VIDEO & AUDIO) (1)
NO ADJUSTMENT POIN
T
WAVEFORM OR REMARK
S
1 PICTURE Key (1) Receive "US 4 CH LION HEAD Signal (NTSC 60 Hz)" signal.
(2) Press to Menu mode, then select Picture Mode and set to select CONTRAST.
(3) Press Volume Up/Down key to check whether the CONTRAST effect is OK or not.
2
COLOUR Key
(1) Receive the "US 10 CH HALF Color Bar" signal
(2) Press to Menu mode, then select Picture Mode and set to select COLOUR.
(3) Press Volume Up/Down key to check whether the COLOUR effect is OK or not.
3 BRIGHTNESS Key (1) Receive "US 4 CH LION HEAD Signal (NTSC 60 Hz)" signal.
(2) Press to Menu mode, then select Picture Mode and set to select BRIGHTNESS.
(3) Press Volume Up/Down key to check whether the BRIGHTNESS effect is OK or not
4
TINT Key
(1) Receive the "US 10 CH HALF Color Bar" signal
(2) Press to Menu mode, then select Picture Mode and select TINT.
(3) Press Volume Up/Down key to check TINT, UP for GREEN direction and
DOWN for RED direction whether is OK or not.
5
SHARPNESS Key
(1) Receive "US 4 CH LION HEAD Signal (NTSC 60 Hz)" signal.
(2) Press to Menu mode, then select Picture Mode and set to select SHARPNESS.
(3) Press Volume Up/Down key to check whether the SHARPNESS effect is OK or NOT.
6
(1) Once in Picture Mode , and the RESET Key is pressed.
all the setting will be present to normal setting.
7
COLOR TEMP
(1) Receive US4CHLIONHEADSig
nal ( NTSC 60 Hz ).
(2) Set FUNCTION to select WHITE TEMP.
(3) Press Volume Up/Down keytocheck WHITE TEMP Option, STANDARD.
NORMAL SETTING, WARM for more REDDISH direction changing, COOL for
more BLUISH direction changing.
ADJUSTMENT CONDITION / PROCEDUR
E
RESET KEY
PICTURE 60
COLOUR 0
BRIGHTNESS 0
TINT 0
SHARP 0
PICTURE NR OFF
COLOR TEMP Mid
*NOTE :
In RESET Mode,when press RESET key,
will appear RESET OSD and all setting set to normal.

21G-FX10L
5 – 13
CHECKING FUNCTION OPERATION(VIDEO & AUDIO)(3)
NO ADJUSTMENT POIN
T
ADJUSTMENT CONDITION /PROCEDUR
E
WAVEFORM OR REMARK
S
8 NOISE MUTE (1) Receive mono-tone signal.
CHECKING(2) Turnupth
evo
lume control to maximum,make sure the sound is
heardfrom the speakers. Then put the unit in no signal state.
(3)C
heck the sound mute is effective.
(4) Finally turn sound levelofCT
Vto minimum.
9OSD LANGUAGE (1) Check OSD LANGUAGE quantity and type for respectivemodel.
QUANTITYCH
ECK
MODEL QUANTITY ENGLISH SPANISH
21G-FX10L
2
OO
10 CLOSED CAPTION (1) Receive closed caption channel.
CHECKING (2) PressR
/C "CC" button, and the it will change from OFF to CC1 to CC2 to TEXT1 to TEXT2.
(3) Check theclosed caption to make sureitisworkingaccordingly.
SHOCK TEST CHECKING.
NO
ADJUSTMENT POINT
ADJUSTMENT CONDITION/PRO
CEDUR
E
WAVEFORM OR OTHER
S
1SHOCK TEST (1) Hit at the top of TV set fortwo time.
(2) CheckTVset not damage and TV operation operate correctly.
ROM CORRECTION CHECKING
NO
ADJUSTMENTPOINT
ADJUSTMENT CONDITION / PROCEDUR
E
WAVEFORM OR OTHER
S
(1) Go to SERVICE mode, press "MENU" key until the SERVICE mode display as in * OTHERS:
Figure 1 appeared.*
(2) Check the SOFTWARE VERSION status by monitoringthe screen, follow the model's setting.
Model CHK1 CHK2
21G-FX10L
NO NO
Figure 1
RH-IXC843WJZZQ (Software Ver. 1.35)
Micon Version
1SO
FTWARE VERSION
INFO
MASK:N1
SOFT:1.35
CHK1 :NO
CHK2 :NO
