Sharp 21LF-90RU User manual

1
21LF-90RU
SERVICE MANUAL
This document has been published to
be used for after sales service only.
AK-44 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
SHARP CORPORATION
CONTENTS
ELECTRICAL SPECIFICATIONS ........................................................................................ 3
IMPORTANT SERVICING NOTES ...................................................................................... 4
CONTROLS & TERMINALS ................................................................................................ 5
PRINTED WIRING BOARD LAYOUT ................................................................................. 6
PARTS LISTING ................................................................................................................... 7
HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 11
MODEL 21LF-90RU
SE0021LF90R00
Issued:22nd April 2005
PAL B/G / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
In order to service the model 21LF-90RU, refer to
the AK-44 Chassis Service Manual
(SE00AK44CHA00).

2
21LF-90RU
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
21LF-90RU
ELECTRICAL SPECIFICATIONS
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
AREA 21”
A 0.3
BC 1.0
DE 1.0
FGHJ 1.3
KLMN 1.2
F’G’H’J’ 1.2
STUV 1.1
•Picture Intermediate frequency
L’ ................................................ 33.9MHz
L, B/G, D/K .............................. 38.9MHz
•Sound Carrier Trap
L’ ................................................ 40.4MHz
L, D/K ......................................... 32.4MHz
B/G ............................................ 33.4MHz
•Adjacent Sound Carrier Trap
L’ ................................................ 32.4MHz
L, D/K, B/G ................................ 40.4MHz
•Adjacent Picture Carrier Trap
L’ ................................................ 41.9MHz
L, D/K ...................................... 30.9MHz
B/G ............................................ 31.9MHz
•Aerial Input Impedance
VHF/UHF ................. 75 ohm Unbalanced
•Tuning Ranges ..... 48.25MHz thru 855.25 MHz
VHF: S1 - S41 CH (Hyperband)
E2 - E12 / F2 - F10
UHF: E21 - E69
•Power Input .................... 220V-240 Volts AC 50 Hz
•Power Consumption
Normal Operation (Method IEC60107) .............. 62 W
Stand-by Operation .......................................... < 3 W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 4 W, 16 Ω
Internal Right Speaker ............................... 4 W, 16 Ω
•Speakers
Speaker elliptic (2 pcs) .......................... 50 x 120 mm

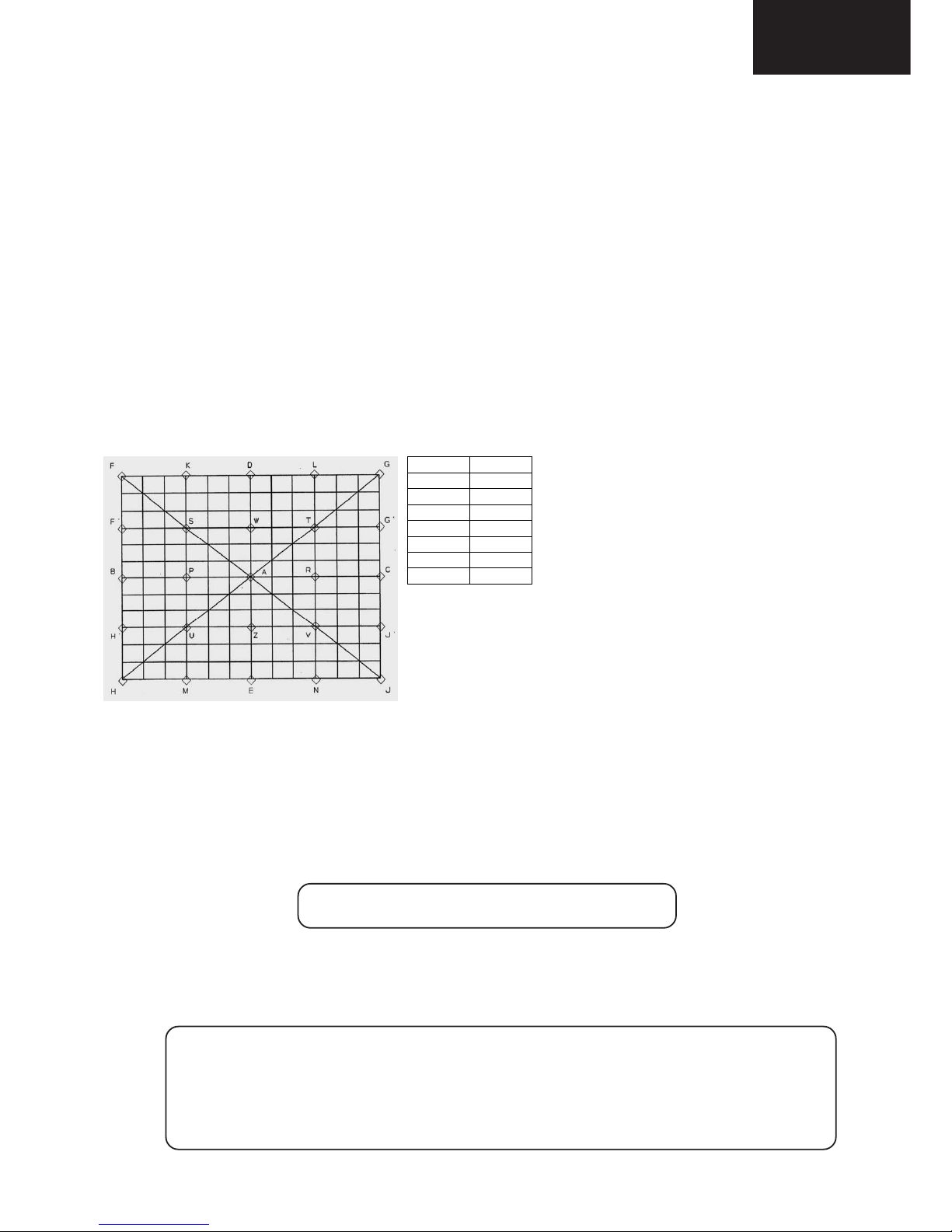

•Convergence (Maximum Misconvergence)
•White Level
Apply the rated voltage at the rated frequency to the TV set, while it is receiving full white pattern RF signal of 60
dB/µV from its RF input via the pattern generator.
Turn all picture controls to maximum value. Measure the colour temperatures at the center of the screen by
using the colour analyzer.
X=0.304 ± 0.015 Y=0.306 ± 0.015
mm

4
21LF-90RU
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 30.0 KV, (at a
instantaneous beam current of 1300 µA).
2. Ensure that during normal operation the EHT does not exceed 25.55 KV (at a beam current of 1000 µA).
This level has been preset in the factory. Always check that this level has not been exceeded after
carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

5
21LF-90RU

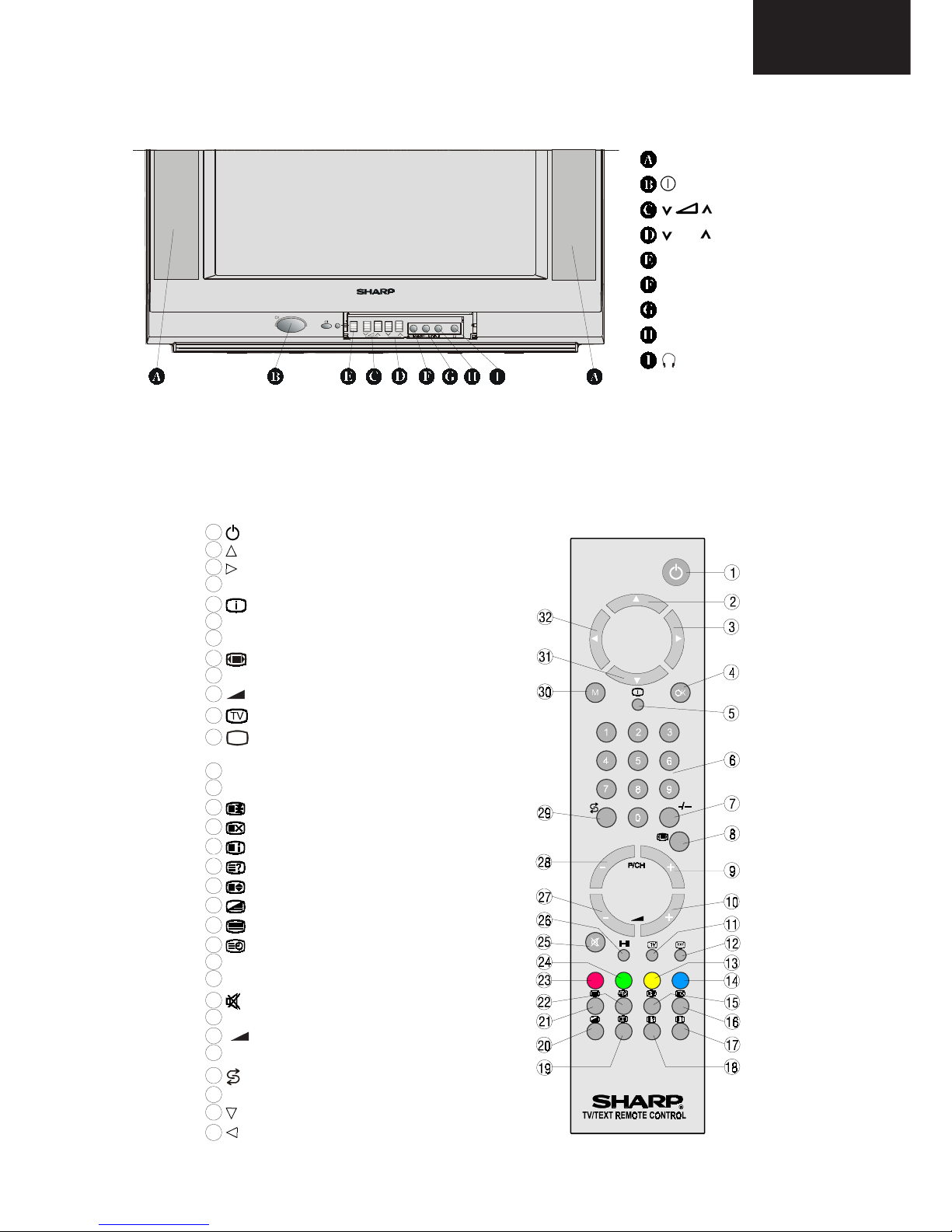

CONTROLS & TERMINALS
REMOTE CONTROL
1
= Stand By
2
= Cursor Up
3
= Cursor Right
4
OK = OK
5
= Info (Program Menu)
6
0 - 9 = Direct Program
7
-/-- = Double Digit
8
= Wide mode button
9
P/CH+ = Program +
10
+ = Volume +
11
= TV / Quit Menu
12
EXT
= EXT button
(SCART, F- AV, RGB)
13
Yellow =Feature Menu
14
Blue =Installation Menu
15
= Hold
16
= Update
17
= Index Page
18
= Reveal
19
= Expand
20
= Mix
21
= Teletext
22
= Time
23
Red = Sound Menu
24
Green = Picture Menu
25
= Mute
26
I-II =Mono/Stereo - Dual I-II
27
- = - Volume
28
- P/CH = -Program
29
= Flash back button
30
M= Menu
31
= Cursor Down
32
= Cursor Left
CH
MENU
Speakers (left + right)
=Power On / Off
=Volume -/+
CH = Program -/+
MENU =Menu
VIDEO = VCR
AUDIO L = Audio left
AUDIO R = Audio right
= Headphone 3,6 mm Ø

6
21LF-90RU

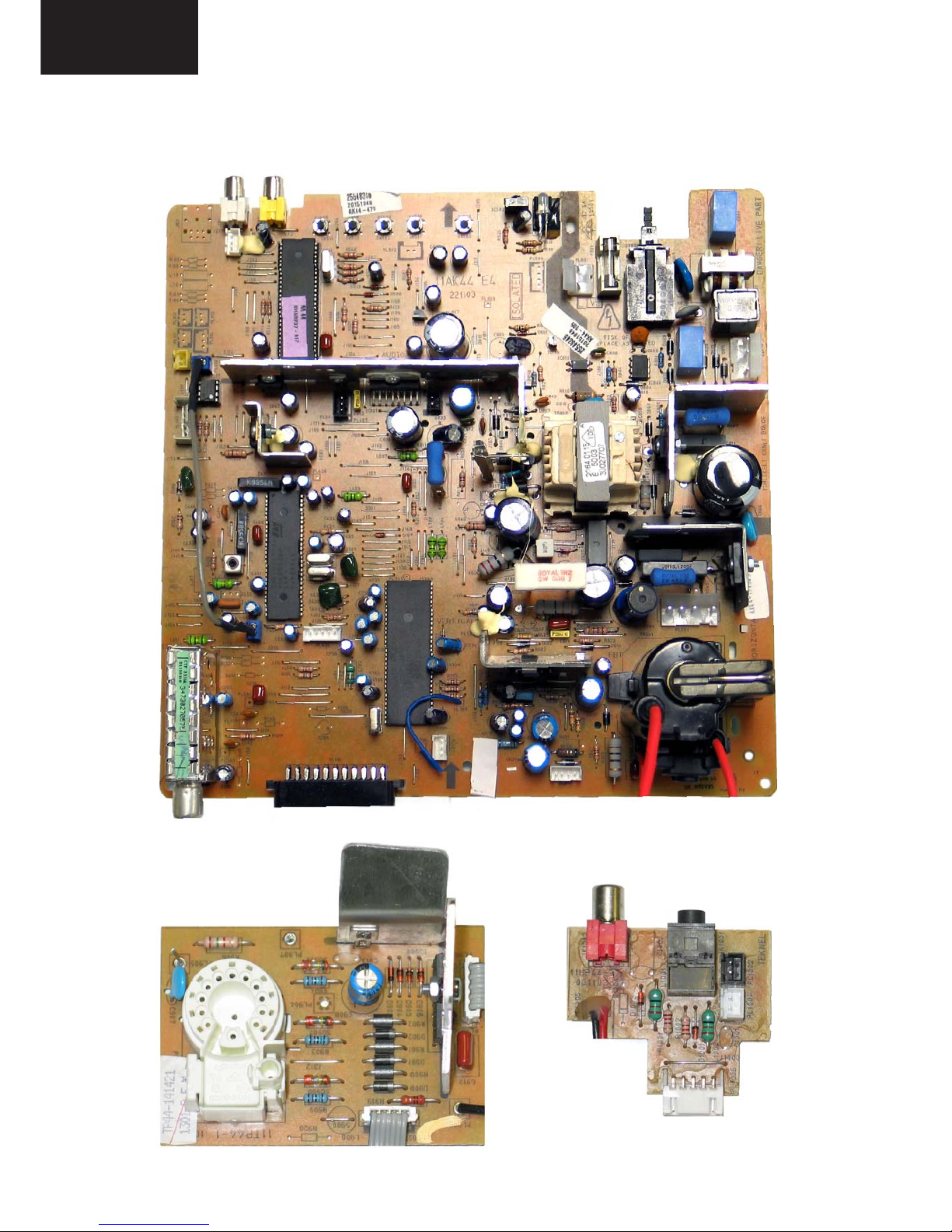

CHASSIS LAYOUT
Mother Unit
CRT Unit Headphone Unit

7
21LF-90RU
REF No. PARTS DESCRIPTION SN CODE EX CODE
D111 30009699 DIODE ZENER BZT55C12 12V SMD AA AB
D112 30003720 DIODE ZENER BZT55C5V6 5.6V SMD AA AB
D113 30009699 DIODE ZENER BZT55C12 12V SMD AA AB
D115 30009699 DIODE ZENER BZT55C12 12V SMD AA AB
D300 30001285 DIODE 1N4148 SMD AA AB
D301 30001285 DIODE 1N4148 SMD AA AB
D402 30012411 DIODE BA782 SMD ROHS AA AD
D405 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D407 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D408 30001285 DIODE 1N4148 SMD AA AB
D409 30030809 DIODE ZENER SMD BZT55B10V AA AA
D410 30030809 DIODE ZENER SMD BZT55B10V AA AA
D411 30030809 DIODE ZENER SMD BZT55B10V AA AA
D501 30001285 DIODE 1N4148 SMD AA AB
D505 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D506 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D509 30001279 LED RED/GREEN LTL293SJ AC AH
D512 30001285 DIODE 1N4148 SMD AA AB
D513 30007761 DIODE ZENER SMD BZT55C3V6 AA AB
D602 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D603 30001285 DIODE 1N4148 SMD AA AB
D608 30001318 DIODE BA159 1A/800V 20A AA AB
D609 30001318 DIODE BA159 1A/800V 20A AA AB
D610 30001318 DIODE BA159 1A/800V 20A AA AB
D611 30001285 DIODE 1N4148 SMD AA AB
D614 30001318 DIODE BA159 1A/800V 20A AA AB
D615 30001285 DIODE 1N4148 SMD AA AB
D616 30009699 DIODE ZENER BZT55C12 12V SMD AA AB
D617 30001285 DIODE 1N4148 SMD AA AB
D618 30001285 DIODE 1N4148 SMD AA AB
D619 30009699 DIODE ZENER BZT55C12 12V SMD AA AB
D620 30001349 DIODE ZENER 11V AA AB
D621 30001285 DIODE 1N4148 SMD AA AB
D622 30001285 DIODE 1N4148 SMD AA AB
D623 30001285 DIODE 1N4148 SMD AA AB
D700 30001285 DIODE 1N4148 SMD AA AB
D701 30001369 DIODE ZENER 3.6V ZPD AA AB
D800 30001318 DIODE BA159 1A/800V 20A AA AB
D801 30001347 DIODE ZENER 8.2V. AA AB
D802 30001318 DIODE BA159 1A/800V 20A AA AB
D803 30001315 DIODE BYD33D 1A/200V 20A AA AE
D804 30001318 DIODE BA159 1A/800V 20A AA AB
D805 30009366 DIODE UF5402 3A/200V 150A AB AF
D806 30001315 DIODE BYD33D 1A/200V 20A AA AE
D808 30007681 DIODE UF5407 3A/800V 150A AB AF
D809 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D810 20128663 HE.ASY.45-DIODE UF5402(U)(AK30A10) AA AE
D811 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D813 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D837 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D838 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D889 30001384 TR MCR22-6 AB AG
D890 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D891 30002583 JUMPER 0.6MM ROHS AA AB
D893 30001318 DIODE BA159 1A/800V 20A AA AB
D894 30001318 DIODE BA159 1A/800V 20A AA AB
D900 30001318 DIODE BA159 1A/800V 20A AA AB
D901 30001318 DIODE BA159 1A/800V 20A AA AB
D902 30001318 DIODE BA159 1A/800V 20A AA AB
D903 30001344 DIODE ZENER 6.2V 1/2W AA AB
D904 30001349 DIODE ZENER 11V AA AB
D905 30001349 DIODE ZENER 11V AA AB
D906 30001349 DIODE ZENER 11V AA AB
PACKAGED CIRCUITS
X100 30002852 XTAL REZ 455KHZ ROHS AA AD
X401 30001749 XTAL 4.433619 Series HC49U AC AK
X402 30015592 XTAL 3.579545 (WO/LOAD CAP) AB AG
X403 30000074 CAP MKT 100NF 63V J AA AC
X501 30002851 XTAL 4.000 30p HC49U AC AH
X700 30001756 XTAL 18.432 12p HC49U AE AP
COILS
L1001 30001996 FIXED COIL 22UH Q40 K AA AB
L1002 30001996 FIXED COIL 22UH Q40 K AA AB
L101 30013412 FERRITE SMD 1.5K/100MHz 500 mA(0805) AA AA
REF No. PARTS DESCRIPTION SN CODE EX CODE
3001763421" CRT TUBE SAFE EW FREE REALFLA BWCQ
30028644 21DEGCOIL&EARTH SAFE CB.WO/UL FLAT SHARP AG AR
TUNER
TU201 30009637 TUNER WSP (PLL) CTF5510A AR BC
INTEGRATED CIRCUITS
IC101 30018063 IC HT48RA0A OTP AF AR
IC118 30001506 IC TL431 AC AH
IC301 30011824 IC TDA7266 ROHS AF AR
IC403 30026922 IC STV2248H (SHRINK56) ROHS AR BC
IC500 20187664 IC 24C08 U01425110310121201 AB AF
IC501 20170086 PR.IC.36/44-SHARP 36_44_B31 AS BD
IC502 30001669 PREAMPLIFIER TFMS1380 AD AM
IC600 30015306 IC TDA8174AW AD AN
IC700 30013658 IC MSP3410G SDIP64 ROHS AS BD
IC800 30011968 IC SMPS MC44608 DIP8 AF AQ
IC801 30015087 IC SAFE OPTOCOUPLER TCET1102G AA AE
IC803 30001500 IC LM7808. AC AH
IC804 30001622 IC 7805 (1A) AB AF
IC806 30014346 IC 78L05 TO-92 (100mA) AA AE
IC900 30025172 IC TDA6107JF/N3 ROHS AF AQ
TRANSISTORS
Q100 30001453 TR BC337 AA AC
Q104 30001457 TR BC848B SMD AA AC
Q301 30001458 TR BC858B SMD AA AB
Q302 30001457 TR BC848B SMD AA AC
Q402 30001457 TR BC848B SMD AA AC
Q405 30001457 TR BC848B SMD AA AC
Q406 30001457 TR BC848B SMD AA AC
Q503 30001457 TR BC848B SMD AA AC
Q504 30001458 TR BC858B SMD AA AB
Q505 30001457 TR BC848B SMD AA AC
Q601 30013656 TR POWER STX112-AP AA AE
Q603 30001448 TR BU808DFI ROHS AF AQ
Q604 30001457 TR BC848B SMD AA AC
Q606 30001457 TR BC848B SMD AA AC
Q607 30001458 TR BC858B SMD AA AB
Q700 30001458 TR BC858B SMD AA AB
Q801 30001386 TR MTP6N60E (PLASTøK) AE AP
Q802 30001457 TR BC848B SMD AA AC
Q804 30001454 TR BC548B AA AC
DIODES
D100 30002733 LED INFRARED IR333 AA AC
D1001 30003722 DIODE ZENER ZPD15V AA AA
D1003 30003722 DIODE ZENER ZPD15V AA AA
D101 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D102 30025773 DIODE ZENER SMD BZT55B5V2 AA AA
D103 30025773 DIODE ZENER SMD BZT55B5V3 AA AA
D104 30009699 DIODE ZENER BZT55C12 12V SMD AA AB
D105 30025773 DIODE ZENER SMD BZT55B5V4 AA AA
D106 30001377 DIODE ZENER 33V UZT 33B AB AF
D107 30025773 DIODE ZENER SMD BZT55B5V5 AA AA
D108 30003720 DIODE ZENER BZT55C5V6 5.6V SMD AA AB
D109 30003720 DIODE ZENER BZT55C5V6 5.6V SMD AA AB
D110 30009699 DIODE ZENER BZT55C12 12V SMD AA AB
PICTURE TUBE
!
!
!
PARTS LISTING
REPLACEMENT PARTS
Replacement parts which have special safety characteristics are identified in
this manual. Electrical components having such features are identified by
in the Replacement Parts Listing.
The use of a substitute replacement part which does not have the same safety
characteristics as the factory recommended is not permitted.
Replacement parts not shown in this service manual may create shock fire, or
other hazards.
HOW TO ORDER REPLACEMENT PARTS
To have your order completed promptly and correctly please supply the follow-
ing information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. (*) 4. DESCRIPTION
5. CODE 6. QUANTITY
(*) When ordering any part, a “V” should be added before the Part No.
(*)

8
21LF-90RU
REF No. PARTS DESCRIPTION SN CODE EX CODE
L110 30013412 FERRITE SMD 1.5K/100MHz 500 mA(0805) AA AA
L111 30013412 FERRITE SMD 1.5K/100MHz 500 mA(0805) AA AA
L112 30013412 FERRITE SMD 1.5K/100MHz 500 mA(0805) AA AA
L113 30013412 FERRITE SMD 1.5K/100MHz 500 mA(0805) AA AA
L114 30013412 FERRITE SMD 1.5K/100MHz 500 mA(0805) AA AA
L117 30001734 JUMPER SMD (0805) AA AB
L201 30001979 FIXED COIL 1UH Q45 M-A AA AB
L210 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L211 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L401 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L402 30001992 FIXED COIL 10UH Q65 K-A AA AB
L403 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L404 30001990 FIXED COIL 6.8UH Q75 K AA AB
L405 30026042 ADJ.COIL VIF 44MHZ Q=64 C=39pF (AK36) AA AD
L406 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L407 30002002 FIXED COIL 47UH Q60 K AA AB
L603 30018501 LINEARITY COIL 100UH AB AG
L700 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L701 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L702 30001996 FIXED COIL 22UH Q40 K AA AB
L703 30001979 FIXED COIL 1UH Q45 M-A AA AB
L704 30001979 FIXED COIL 1UH Q45 M-A AA AB
L802 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L803 30000607 RES CF 1/4W 2.2R J. AA AB
L805 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L806 30001971 FERRITE SMD 600R/100MHz 200mA (805) AA AD
L807 30001992 FIXED COIL 10UH Q65 K-A AA AB
L808 30002583 JUMPER 0.6MM ROHS AA AB
L809 30001734 JUMPER SMD (0805) AA AB
L811 30001734 JUMPER SMD (0805) AA AB
CERAMIC FILTERS
Z401 30012545 FILTER SAW K9656M ROHS AG AR
Z402 30014261 FILTER SAW K3958M ROHS AF AR
Z404 30001724 FILTER SER TRAP TPS 5.5MHZ AB AF
TRANSFORMERS
TR601 30017788 TRF FBT SAFE 90ø (AK30,AK36 LAYER TYPE) AT BE
TR801 30002100 LINE FILTER SAFE 2*27MH AC AH
TR802 30027707 TRF SMPS SAFE AK44 RF 170-270V Audio=14V AF AQ
CAPACITORS
C100 30000352 CAP EL 100UF 16V M AA AB
C101 30012560 CAP SMD 100PF 50V J (0603) AA AB
C102 30012560 CAP SMD 100PF 50V J (0603) AA AB
C103 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C104 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C143 30012583 CAP SMD 1.5NF 50V K (0603) AA AA
C144 30012583 CAP SMD 1.5NF 50V K (0603) AA AA
C155 30012560 CAP SMD 100PF 50V J (0603) AA AB
C157 30012560 CAP SMD 100PF 50V J (0603) AA AB
C201 30000400 CAP EL 47UF 50V M AA AB
C202 30012985 JUMPER SMD 0606 AA AB
C205 30000371 CAP EL 22UF 50V M AA AB
C206 30012610 CAP SMD 10NF 50V J (0603) AA AB
C207 30012610 CAP SMD 10NF 50V J (0603) AA AB
C300 30000400 CAP EL 47UF 50V M AA AB
C302 30000092 CAP MKT 220NF 63V J AA AD
C305 30000092 CAP MKT 220NF 63V J AA AD
C404 30000225 CAP CER 220PF 50V J SL ROHS AA AB
C408 30012586 CAP SMD 22NF 50V K (0603) AA AB
C409 30000345 CAP EL 10UF 50V M AA AB
C410 30000384 CAP EL 2.2UF 50V M AA AB
C411 30000345 CAP EL 10UF 50V M AA AB
C412 30012586 CAP SMD 22NF 50V K (0603) AA AB
C413 30000362 CAP EL 1UF 50V M. AA AB
C414 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C415 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C416 30000362 CAP EL 1UF 50V M. AA AB
C417 30000362 CAP EL 1UF 50V M. AA AB
C418 30012586 CAP SMD 22NF 50V K (0603) AA AB
C419 30000413 CAP EL 4.7UF 50V M AA AB
C420 30000100 CAP MKT 330NF 63V J AA AD
C422 30000400 CAP EL 47UF 50V M AA AB
C423 30000400 CAP EL 47UF 50V M AA AB
C424 30000345 CAP EL 10UF 50V M AA AB
C425 30012586 CAP SMD 22NF 50V K (0603) AA AB
!
!
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
C426 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C427 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C429 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C431 30000362 CAP EL 1UF 50V M. AA AB
C432 30012586 CAP SMD 22NF 50V K (0603) AA AB
C433 30000345 CAP EL 10UF 50V M AA AB
C434 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C435 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C436 30000109 CAP MKT 470NF 63V J AA AD
C437 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C438 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C439 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C440 30000074 CAP MKT 100NF 63V J AA AC
C442 30000362 CAP EL 1UF 50V M. AA AB
C443 30000362 CAP EL 1UF 50V M. AA AB
C444 30000384 CAP EL 2.2UF 50V M AA AB
C446 30000345 CAP EL 10UF 50V M AA AB
C448 30012586 CAP SMD 22NF 50V K (0603) AA AB
C449 30012567 CAP SMD 220PF 50V J (0603) AA AB
C451 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C452 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C453 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C454 30012573 CAP SMD 47PF 50V J (0603) AA AB
C455 30012573 CAP SMD 47PF 50V J (0603) AA AB
C456 30012573 CAP SMD 47PF 50V J (0603) AA AB
C459 30012575 CAP SMD 4.7PF 50V C CH (0603) AA AA
C460 30000345 CAP EL 10UF 50V M AA AB
C502 30000396 CAP EL 47UF 16V M. AA AB
C504 30012586 CAP SMD 22NF 50V K (0603) AA AB
C505 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C510 30012586 CAP SMD 22NF 50V K (0603) AA AB
C511 30012566 CAP SMD 22PF 50V J (0603) AA AB
C513 30000371 CAP EL 22UF 50V M AA AB
C514 30012586 CAP SMD 22NF 50V K (0603) AA AB
C515 30012579 CAP SMD 82PF 50V J (0603) AA AB
C517 30012586 CAP SMD 22NF 50V K (0603) AA AB
C518 30012586 CAP SMD 22NF 50V K (0603) AA AB
C519 30000352 CAP EL 100UF 16V M AA AB
C520 30012560 CAP SMD 100PF 50V J (0603) AA AB
C521 30012562 CAP SMD 15PF 50V J (0603) AA AA
C522 30012562 CAP SMD 15PF 50V J (0603) AA AA
C523 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C524 30012985 JUMPER SMD 0604 AA AB
C525 30012566 CAP SMD 22PF 50V J (0603) AA AB
C530 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C531 30000384 CAP EL 2.2UF 50V M AA AB
C532 30012586 CAP SMD 22NF 50V K (0603) AA AB
C536 30000074 CAP MKT 100NF 63V J AA AC
C541 30000109 CAP MKT 470NF 63V J AA AD
C542 30000205 CAP CER 150PF 50V J SL ROHS AA AB
C543 30000205 CAP CER 150PF 50V J SL ROHS AA AB
C545 30012607 CAP SMD 150PF 50V J (0603) AA AA
C546 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C548 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C603 30000384 CAP EL 2.2UF 50V M AA AB
C604 30000400 CAP EL 47UF 50V M AA AB
C608 30000107 CAP MKT 47NF 250V J AA AD
C610 30018901 CAP EL 100UF 50V M 105° AA AB
C611 30000092 CAP MKT 220NF 63V J AA AD
C613 30000078 CAP MKT 1UF 100V M AB AF
C615 30000359 CAP EL 1000UF 16V M. AA AC
C616 30000400 CAP EL 47UF 50V M AA AB
C618 30007100 CAP MKP SAFE 10NF 1600Vdc / 1250Vpp %3.5 AA AE
C619 30000131 CAP MKP SAFE 100NF 250V J AA AB
C623 30029182 CAP EL 100UF 250V M W LONG LEAD AB AF
C624 30000350 CAP EL 10UF 250V M. AA AD
C627 30006750 CAP MKP 220NF 400V J AA AD
C628 30018380 CAP EL 3.3UF 160V M 105° AA AB
C631 30000410 CAP EL 470UF 50V M. AB AF
C632 30000100 CAP MKT 330NF 63V J AA AD
C634 30000409 CAP EL 470UF 25V M. AA AD
C635 30000100 CAP MKT 330NF 63V J AA AD
C636 30000400 CAP EL 47UF 50V M AA AB
C638 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C641 30000345 CAP EL 10UF 50V M AA AB
C642 30012609 CAP SMD 68NF 50V K (0603) AA AB
!
!

9
21LF-90RU
REF No. PARTS DESCRIPTION SN CODE EX CODE
C643 30000116 CAP MKT 68NF 63V J AA AC
C644 30000362 CAP EL 1UF 50V M. AA AB
C700 30012565 CAP SMD 1.8PF 50V J CH (0603) AA AA
C701 30012565 CAP SMD 1.8PF 50V J CH (0603) AA AA
C702 30012573 CAP SMD 47PF 50V J (0603) AA AB
C703 30012573 CAP SMD 47PF 50V J (0603) AA AB
C704 30012576 CAP SMD 56PF 50V J CH (0603) AA AA
C705 30000345 CAP EL 10UF 50V M AA AB
C706 30000345 CAP EL 10UF 50V M AA AB
C707 30012573 CAP SMD 47PF 50V J (0603) AA AB
C708 30012586 CAP SMD 22NF 50V K (0603) AA AB
C710 30012573 CAP SMD 47PF 50V J (0603) AA AB
C712 30000345 CAP EL 10UF 50V M AA AB
C713 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C714 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C716 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C719 30012586 CAP SMD 22NF 50V K (0603) AA AB
C720 30000345 CAP EL 10UF 50V M AA AB
C721 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C723 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C724 30000345 CAP EL 10UF 50V M AA AB
C729 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C730 30000393 CAP EL 3.3UF 50V M AA AB
C733 30000345 CAP EL 10UF 50V M AA AB
C734 30000345 CAP EL 10UF 50V M AA AB
C735 30012586 CAP SMD 22NF 50V K (0603) AA AB
C736 30000345 CAP EL 10UF 50V M AA AB
C737 30000371 CAP EL 22UF 50V M AA AB
C738 30000371 CAP EL 22UF 50V M AA AB
C741 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C742 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C748 30012560 CAP SMD 100PF 50V J (0603) AA AB
C801 30000094 CAP MKT SAFE 220NF 275V M AC AA AB
C802 30000094 CAP MKT SAFE 220NF 275V M AC AA AB
C803 30000433 CAP CER 1NF 1KV M B ROHS AA AB
C805 30018085 CAP VAR SAFE 510V K MFCN14D511 AA AD
C806 30000433 CAP CER 1NF 1KV M B ROHS AA AB
C808 30000295 CAP CER 100NF 50V Z F AA AB
C809 30000420 CAP EL 150UF 400V M. AF AQ
C810 30000387 CAP EL 33UF 50V M AA AB
C811 30000161 CAP MKP SAFE 47NF 630Vdc / 622Vpp J AB AE
C813 30000295 CAP CER 100NF 50V Z F AA AB
C816 30000440 CAP CER SAFE 2.2NF 4KV M ROHS AA AC
C817 30000198 CAP CER 120PF 500V J SL ROHS AA AB
C818 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C819 30012609 CAP SMD 68NF 50V K (0603) AA AB
C822 30007308 CAP CER 220PF 1KV K (PULSE) ROHS AA AD
C824 30009208 CAP CER 470PF 1KV K (PULSE) ROHS AA AC
C826 30029182 CAP EL 100UF 250V M W LONG LEAD AB AF
C827 30000411 CAP EL 4700UF 16V M AC AH
C828 30000295 CAP CER 100NF 50V Z F AA AB
C829 30000359 CAP EL 1000UF 16V M. AA AC
C830 30000382 CAP EL 2200UF 16V M AB AF
C832 30000295 CAP CER 100NF 50V Z F AA AB
C833 30000407 CAP EL 470UF 16V M. AA AC
C834 30000295 CAP CER 100NF 50V Z F AA AB
C836 30000431 CAP CER 100PF 1KV M AA AC
C838 30000352 CAP EL 100UF 16V M AA AB
C839 30000352 CAP EL 100UF 16V M AA AB
C840 30000352 CAP EL 100UF 16V M AA AB
C843 30000431 CAP CER 100PF 1KV M AA AC
C848 30000352 CAP EL 100UF 16V M AA AB
C849 30000352 CAP EL 100UF 16V M AA AB
C850 30000352 CAP EL 100UF 16V M AA AB
C855 30000407 CAP EL 470UF 16V M. AA AC
C857 30012573 CAP SMD 47PF 50V J (0603) AA AB
C859 30013533 CAP CER 100PF 1KV K (PULSE) ROHS AA AC
C862 30000367 CAP EL 1UF 250V M AA AB
C864 30000440 CAP CER SAFE 2.2NF 4KV M ROHS AA AC
C907 30000434 CAP CER 1NF 2KV K B ROHS AA AB
C908 30000415 CAP EL 4.7UF 250V M AA AC
C912 30000075 CAP MKT 100NF 250V K (DC) AA AD
RESISTORS
R100 30012510 RES SMD 1/16W 100R J (0603) AA AB
R1001 30000492 RES CF 1/4W 120R J. AA AA
!
!
!
!
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
R1002 30000492 RES CF 1/4W 120R J. AA AA
R101 30000489 RES SMD 1/10W 1R J (0805) AA AB
R103 30012509 RES SMD 1/16W 100K J (0603) AA AB
R105 30000792 RES CF 1/4W 75R J AA AB
R109 30012713 RES SMD 1/16W 75R J (0603) AA AB
R110 30012713 RES SMD 1/16W 75R J (0603) AA AB
R113 30012713 RES SMD 1/16W 75R J (0603) AA AB
R114 30012713 RES SMD 1/16W 75R J (0603) AA AB
R115 30012713 RES SMD 1/16W 75R J (0603) AA AB
R116 30012713 RES SMD 1/16W 75R J (0603) AA AB
R117 30012713 RES SMD 1/16W 75R J (0603) AA AB
R118 30012713 RES SMD 1/16W 75R J (0603) AA AB
R123 30012713 RES SMD 1/16W 75R J (0603) AA AB
R127 30000459 RES CF 1/4W 100R J. AA AB
R129 30012713 RES SMD 1/16W 75R J (0603) AA AB
R135 30012657 RES SMD 1/16W 1K J (0603) AA AB
R153 30012657 RES SMD 1/16W 1K J (0603) AA AB
R201 30012674 RES SMD 1/16W 27K J (0603) AA AB
R202 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R204 30000459 RES CF 1/4W 100R J. AA AB
R206 30000459 RES CF 1/4W 100R J. AA AB
R301 30000471 RES CF 1/4W 10K J. AA AB
R302 30000471 RES CF 1/4W 10K J. AA AB
R303 30012641 RES SMD 1/16W 10K J (0603) AA AB
R305 30012641 RES SMD 1/16W 10K J (0603) AA AB
R306 30012509 RES SMD 1/16W 100K J (0603) AA AB
R407 30000590 RES CF 1/4W 2.2K J. AA AB
R410 30000590 RES CF 1/4W 2.2K J. AA AB
R412 30012696 RES SMD 1/16W 47K J (0603) AA AB
R417 30012510 RES SMD 1/16W 100R J (0603) AA AB
R418 30012510 RES SMD 1/16W 100R J (0603) AA AB
R419 30012649 RES SMD 1/16W 150R J (0603) AA AB
R420 30000466 RES CF 1/4W 1K J. AA AB
R421 30012650 RES SMD 1/16W 15K J (0603) AA AB
R422 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R423 30012712 RES SMD 1/16W 8.2K J (0603) AA AB
R424 30000712 RES CF 1/4W 470R J AA AB
R425 30012668 RES SMD 1/16W 220R J (0603) AA AA
R426 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R427 30012674 RES SMD 1/16W 27K J (0603) AA AB
R428 30000792 RES CF 1/4W 75R J AA AB
R431 30012674 RES SMD 1/16W 27K J (0603) AA AB
R432 30012657 RES SMD 1/16W 1K J (0603) AA AB
R433 30012667 RES SMD 1/16W 220K J (0603) AA AB
R437 30000466 RES CF 1/4W 1K J. AA AB
R438 30000466 RES CF 1/4W 1K J. AA AB
R439 30012657 RES SMD 1/16W 1K J (0603) AA AB
R440 30012714 RES SMD 1/16W 820R J (0603) AA AA
R441 30012656 RES SMD 1/16W 18K J (0603) AA AB
R442 30000466 RES CF 1/4W 1K J. AA AB
R446 30012714 RES SMD 1/16W 820R J (0603) AA AA
R447 30012714 RES SMD 1/16W 820R J (0603) AA AA
R448 30012683 RES SMD 1/16W 330K J (0603) AA AB
R449 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R450 30000712 RES CF 1/4W 470R J AA AB
R455 30012665 RES SMD 1/16W 20K J (0603) AA AB
R458 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R459 30012510 RES SMD 1/16W 100R J (0603) AA AB
R460 30012510 RES SMD 1/16W 100R J (0603) AA AB
R461 30012510 RES SMD 1/16W 100R J (0603) AA AB
R463 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R464 30012665 RES SMD 1/16W 20K J (0603) AA AB
R465 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R467 30012641 RES SMD 1/16W 10K J (0603) AA AB
R468 30012641 RES SMD 1/16W 10K J (0603) AA AB
R469 30000670 RES CF 1/4W 330K J. AA AB
R470 30012683 RES SMD 1/16W 330K J (0603) AA AB
R474 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R475 30012510 RES SMD 1/16W 100R J (0603) AA AB
R476 30012707 RES SMD 1/16W 680R J (0603) AA AB
R477 30014022 RES SMD 1/16W 47R J (0603) AA AA
R502 30012695 RES SMD 1/16W 470R J (0603) AA AB
R503 30012707 RES SMD 1/16W 680R J (0603) AA AB
R504 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R505 30012673 RES SMD 1/16W 270R J (0603) AA AB
R506 30012506 RES SMD 1/16W 1.5K J (0603) AA AB

10
21LF-90RU
REF No. PARTS DESCRIPTION SN CODE EX CODE
R507 30000466 RES CF 1/4W 1K J. AA AB
R508 30000622 RES CF 1/4W 270R J AA AB
R509 30012641 RES SMD 1/16W 10K J (0603) AA AB
R510 30000737 RES CF 1/4W 5.1K J AA AB
R511 30012657 RES SMD 1/16W 1K J (0603) AA AB
R512 30012504 RES SMD 1/16W 1.2K J (0603) AA AB
R513 30000459 RES CF 1/4W 100R J. AA AB
R514 30000459 RES CF 1/4W 100R J. AA AB
R515 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R516 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R517 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R518 30000471 RES CF 1/4W 10K J. AA AB
R519 30012698 RES SMD 1/16W 5.6K J (0603) AA AB
R525 30000583 RES CF 1/4W 220R AA AB
R526 30012641 RES SMD 1/16W 10K J (0603) AA AB
R527 30000718 RES CF 1/4W 4.7K J. AA AB
R528 30012698 RES SMD 1/16W 5.6K J (0603) AA AB
R530 30012698 RES SMD 1/16W 5.6K J (0603) AA AB
R532 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R533 30012644 RES SMD 1/16W 12K J (0603) AA AB
R534 30000526 RES CF 1/4W 1.5K J AA AB
R535 30000718 RES CF 1/4W 4.7K J. AA AB
R536 30000471 RES CF 1/4W 10K J. AA AB
R537 30012641 RES SMD 1/16W 10K J (0603) AA AB
R545 30012644 RES SMD 1/16W 12K J (0603) AA AB
R546 30000560 RES CF 1/4W 1.8K J AA AB
R547 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R548 30012641 RES SMD 1/16W 10K J (0603) AA AB
R552 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R555 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R556 30012657 RES SMD 1/16W 1K J (0603) AA AB
R559 30000470 RES CF 1/2W 10K J AA AA
R560 30012669 RES SMD 1/16W 22K J (0603) AA AB
R561 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R562 30000471 RES CF 1/4W 10K J. AA AB
R564 30012641 RES SMD 1/16W 10K J (0603) AA AB
R565 30012641 RES SMD 1/16W 10K J (0603) AA AB
R601 30000752 RES CF 1/4W 56K J AA AB
R602 30000477 RES CF 1/4W 100K J. AA AB
R605 30000805 RES CF 1/4W 75K J AA AB
R612 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R613 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R618 30012508 RES SMD 1/16W 1.8K J (0603) AA AB
R619 30012705 RES SMD 1/16W 6.8K J (0603) AA AB
R623 30000607 RES CF 1/4W 2.2R J. AA AB
R624 30001120 RES MO 2W 22R J AA AB
R625 30000900 RES MF 1/4W 1.8K J AA AB
R627 30015173 RES MF 1/2W 2.7R F AA AA
R628 30002583 JUMPER 0.6MM ROHS AA AB
R630 30000828 RES CF 1/4W 8.2M J AA AB
R631 30000885 RES MF 1/4W 1.5K J AA AB
R633 30000650 RES CF 1/4W 33R J. AA AB
R634 30012641 RES SMD 1/16W 10K J (0603) AA AB
R637 30000621 RES CF 1/2W 270R J AA AB
R638 30000589 RES CF 1/2W 2.2K J AA AA
R639 30000718 RES CF 1/4W 4.7K J. AA AB
R640 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R641 30012649 RES SMD 1/16W 150R J (0603) AA AB
R645 30018904 RES MO 5W 4.7K J (RADIAL) AA AD
R646 30014941 RES CF 1/4W 16K J AA AA
R647 30000466 RES CF 1/4W 1K J. AA AB
R648 30014475 RES FUSE SAFE 1W 3.9R J AA AB
R649 30014941 RES CF 1/4W 16K J AA AA
R650 30000744 RES CF 1/4W 560R J AA AB
R654 30000458 RES CF 1/2W 100R J AA AB
R655 30000705 RES CF 1/2W 47R J. AA AB
R657 30012656 RES SMD 1/16W 18K J (0603) AA AB
R659 30001150 RES MO 2W 330R J AA AB
R660 30012669 RES SMD 1/16W 22K J (0603) AA AB
R661 30012674 RES SMD 1/16W 27K J (0603) AA AB
R662 30000712 RES CF 1/4W 470R J AA AB
R663 30000459 RES CF 1/4W 100R J. AA AB
R664 30007779 RES MO 5W 47R J(RADIAL) AA AC
R665 30012708 RES SMD 1/16W 68K J (0603) AA AA
R666 30001077 RES MO 2W 10R J AA AC
R667 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
R668 30012641 RES SMD 1/16W 10K J (0603) AA AB
R669 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R701 30000459 RES CF 1/4W 100R J. AA AB
R703 30000459 RES CF 1/4W 100R J. AA AB
R705 30000459 RES CF 1/4W 100R J. AA AB
R715 30012695 RES SMD 1/16W 470R J (0603) AA AB
R717 30012695 RES SMD 1/16W 470R J (0603) AA AB
R719 30012657 RES SMD 1/16W 1K J (0603) AA AB
R721 30012510 RES SMD 1/16W 100R J (0603) AA AB
R722 30012510 RES SMD 1/16W 100R J (0603) AA AB
R725 30012657 RES SMD 1/16W 1K J (0603) AA AB
R726 30012657 RES SMD 1/16W 1K J (0603) AA AB
R727 30012657 RES SMD 1/16W 1K J (0603) AA AB
R730 30012657 RES SMD 1/16W 1K J (0603) AA AB
R731 30012657 RES SMD 1/16W 1K J (0603) AA AB
R801 30000982 RES MF 1/4W 4.7K J AA AA
R803 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R804 30000504 RES CF 1/4W 120K J AA AB
R805 30000843 RES MF 1/4W 10R J AA AB
R806 30000982 RES MF 1/4W 4.7K J AA AA
R807 30001159 RES MO 1W 0.33R J AA AB
R809 30007784 RES MO 5W 33K J(RADIAL) AA AD
R810 30001257 RES MG SAFE 1/2W 4.7M J ROHS AA AD
R811 30000594 RES CF 1/4W 22K J. AA AB
R813 30000718 RES CF 1/4W 4.7K J. AA AB
R814 30000588 RES SMD 1/10W 220R J 0805 AA AB
R815 30000452 RES CF 1/4W 10R J. AA AB
R817 30001037 RES MF 1/4W 99K F AA AB
R818 30006463 RES MF 1/4W 2K F AA AA
R819 30000809 RES CF 1/2W 820R J AA AA
R821 30000470 RES CF 1/2W 10K J AA AA
R828 30001265 NTC SAFE MONITOR 10R/3A SCK-103 AA AB
R829 30000718 RES CF 1/4W 4.7K J. AA AB
R830 30012657 RES SMD 1/16W 1K J (0603) AA AB
R831 30012669 RES SMD 1/16W 22K J (0603) AA AB
R833 30012985 JUMPER SMD 0607 AA AB
R835 20153236 CN.ASY.44-RES WW 5W 5.6R J RAD+35006011 AB AF
R836 30001224 RES FUSE SAFE 1/2W 0.22R J AA AB
R838 30000631 RES SMD 1/10W 2.7K J 0805 AA AB
R900 30006712 FERRITE BEAD 3.5X4.7X0.8 AA AB
R901 30006712 FERRITE BEAD 3.5X4.7X0.9 AA AB
R902 30006712 FERRITE BEAD 3.5X4.7X0.10 AA AB
R903 30000885 RES MF 1/4W 1.5K J AA AB
R904 30000885 RES MF 1/4W 1.5K J AA AB
R905 30000885 RES MF 1/4W 1.5K J AA AB
R906 30000525 RES CF 1/2W 1.5K J AA AB
R919 30001212 RES FUSE SAFE 1/2W 1R J AA AA
MISCELLANEOUS PARTS
F801 30001731 FUSE SAFE 2.5A 250V 5*20MM AA AC
J100 30002583 JUMPER 0.6MM ROHS AA AB
J1000 30002583 JUMPER 0.6MM ROHS AA AB
J101 30002583 JUMPER 0.6MM ROHS AA AB
J102 30002583 JUMPER 0.6MM ROHS AA AB
J103 30002583 JUMPER 0.6MM ROHS AA AB
J104 30002583 JUMPER 0.6MM ROHS AA AB
J105 30002583 JUMPER 0.6MM ROHS AA AB
J106 30002583 JUMPER 0.6MM ROHS AA AB
J108 30002583 JUMPER 0.6MM ROHS AA AB
J109 30002583 JUMPER 0.6MM ROHS AA AB
J110 30002583 JUMPER 0.6MM ROHS AA AB
J111 30002583 JUMPER 0.6MM ROHS AA AB
J112 30002583 JUMPER 0.6MM ROHS AA AB
J113 30002583 JUMPER 0.6MM ROHS AA AB
J115 30002583 JUMPER 0.6MM ROHS AA AB
J116 30002583 JUMPER 0.6MM ROHS AA AB
J117 30002583 JUMPER 0.6MM ROHS AA AB
J118 30002583 JUMPER 0.6MM ROHS AA AB
J119 30002583 JUMPER 0.6MM ROHS AA AB
J120 30002583 JUMPER 0.6MM ROHS AA AB
J121 30002583 JUMPER 0.6MM ROHS AA AB
J122 30002583 JUMPER 0.6MM ROHS AA AB
J123 30002583 JUMPER 0.6MM ROHS AA AB
J124 30002583 JUMPER 0.6MM ROHS AA AB
J125 30002583 JUMPER 0.6MM ROHS AA AB
J126 30002583 JUMPER 0.6MM ROHS AA AB
!
!
!

11
21LF-90RU
How to update the Technical Information
appeared on this Service Manual
1. Web site: https://www.vestelservice.com
2. Select: Technical Support
3. Login: 101278
4. Password: SHPII278
By this access you can consult the latest schematic dia-
gram or request the Parts Listing of a concrete Produc-
tion Date / Serial Number.
By this way it can be also consulted the issued Techni-
cal Reports (Service Bulletins).
REF No. PARTS DESCRIPTION SN CODE EX CODE
J127 30002583 JUMPER 0.6MM ROHS AA AB
J128 30002583 JUMPER 0.6MM ROHS AA AB
J129 30002583 JUMPER 0.6MM ROHS AA AB
J130 30002583 JUMPER 0.6MM ROHS AA AB
J131 30002583 JUMPER 0.6MM ROHS AA AB
J132 30002583 JUMPER 0.6MM ROHS AA AB
J133 30002583 JUMPER 0.6MM ROHS AA AB
J134 30002583 JUMPER 0.6MM ROHS AA AB
J135 30002583 JUMPER 0.6MM ROHS AA AB
J136 30002583 JUMPER 0.6MM ROHS AA AB
J137 30002583 JUMPER 0.6MM ROHS AA AB
J138 30002583 JUMPER 0.6MM ROHS AA AB
J139 30002583 JUMPER 0.6MM ROHS AA AB
J140 30002583 JUMPER 0.6MM ROHS AA AB
J141 30002583 JUMPER 0.6MM ROHS AA AB
J142 30002583 JUMPER 0.6MM ROHS AA AB
J143 30002583 JUMPER 0.6MM ROHS AA AB
J144 30002583 JUMPER 0.6MM ROHS AA AB
J145 30002583 JUMPER 0.6MM ROHS AA AB
J146 30002583 JUMPER 0.6MM ROHS AA AB
J147 30002583 JUMPER 0.6MM ROHS AA AB
J148 30002583 JUMPER 0.6MM ROHS AA AB
J149 30002583 JUMPER 0.6MM ROHS AA AB
J150 30002583 JUMPER 0.6MM ROHS AA AB
J209 30002583 JUMPER 0.6MM ROHS AA AB
J210 30002583 JUMPER 0.6MM ROHS AA AB
J300 30012985 JUMPER SMD 0613 AA AB
J301 30012985 JUMPER SMD 0608 AA AB
J302 30012985 JUMPER SMD 0609 AA AB
J303 30012985 JUMPER SMD 0610 AA AB
J304 30012985 JUMPER SMD 0611 AA AB
J305 30012985 JUMPER SMD 0612 AA AB
J306 30001734 JUMPER SMD (0805) AA AB
J307 30012985 JUMPER SMD 0615 AA AB
J308 30012985 JUMPER SMD 0614 AA AB
J312 30002583 JUMPER 0.6MM ROHS AA AB
JK1 30027655 JACK RCA 1P WHITE SHARP (AK44) ROHS AA AC
JK100 30001900 JACK HEADPHONE HP01/2/3/4/5/6 AD AM
JK100 30027656 JACK RCA 1P RED SHARP (AK44) ROHS AA AC
JK2 30027654 JACK RCA 1P YELLOW SHARP (AK44) ROHS AA AC
NOT1 30009849 CABL 1P/70 SIS AA AB
PL100 30000283 CAP CER 1NF 50V K B ROHS AA AB
PL100 30001829 CONN HEADER 2P 2.5MM TOP WHT SD AA AB
PL100 30017953 CONN MALE 5P SIDE WHITE AA AA
PL100 30018405 CNAS 2P/250 SHL W/DC UL1533AWG24 AB AF
PL100 30018454 CONN HEADER 2P 2.5MM TOP BLACK AA AA
PL100 30027418 CONN HEADER 2P 2.5MM SIDE YELLOW SD ROHS AA AA
PL100 30027658 CNAS 2P+3P/300 W/C BLK&WHT UL1007AWG24 AB AF
PL101 30015053 SOCKET SCART NEW TYPE AB AF
PL105 30001830 CONN HEADER 2P 2.5MM TOP BLUE SD AA AB
PL107 30001835 CONN HEADER 3P 2.5MM TOP WHT SD AA AB
PL109 30015192 CONN HEADER 2P 2.5MM TOP YELLOW SD AA AA
PL110 30001830 CONN HEADER 2P 2.5MM TOP BLUE SD AA AB
PL110 30027659 CNAS 2P/150 W/DC SHL BLUE ROHS AC AH
PL115 30001835 CONN HEADER 3P 2.5MM TOP WHT SD AA AB
PL115 30002251 CNAS 3P/280 SHL W/DC UL2547AWG24 AB AF
PL301 30001829 CONN HEADER 2P 2.5MM TOP WHT SD AA AB
PL302 30018454 CONN HEADER 2P 2.5MM TOP BLACK AA AA
PL405 30006709 CONN HEADER 5P 2.5MM TOP WHT SD AA AB
PL407 30001836 CONN HEADER 3P 2.5MM TOP BLACK SD AA AB
PL501 30001783 CONN HEADER 5P 2.5MM TOP BD AA AC
PL503 30009085 CNAS 1P/350 DIS W/CLIPS AA AC
PL504 30019101 CABL 1P/350 DIS UL1672AWG22 AA AB
PL601 30001827 CONN HEADER 4P 5/7.5MM TOP WHT AA AD
PL602 30006660 CONN HEADER 4P 2.5MM TOP WHT SD AA AB
PL801 30001792 CONN HEADER 2P 7.5MM TOP WHT SAFE AA AC
PL802 30001795 CONN HEADER 3P 5/7.5MM TOP WHT AA AC
PL900 30016695 CNAS 5P/450 FLT W/C+CBLH UL2468AWG24 AB AE
PL902 30016694 CNAS 4P/450 FLT W/C+ BLH UL2468AWG24 AA AE
PL903 30001855 SOCKET CRT SAFE NARROWNECK W/GND AD AM
S105 30012985 JUMPER SMD 0616 AA AB
S106 30012985 JUMPER SMD 0617 AA AB
S107 30012985 JUMPER SMD 0618 AA AB
S405 30002583 JUMPER 0.6MM ROHS AA AB
S410 30012985 JUMPER SMD 0605 AA AB
S412 30012985 JUMPER SMD 0603 AA AB
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
S900 30002583 JUMPER 0.6MM ROHS AA AB
SG900 30000428 SPARK GAP 300V AB AG
SG901 30000428 SPARK GAP 300V AB AG
SG902 30000428 SPARK GAP 300V AB AG
SW506 30016022 SWITCH TACT VERTICAL T&R ROHS AA AB
SW507 30016022 SWITCH TACT VERTICAL T&R ROHS AA AB
SW508 30016022 SWITCH TACT VERTICAL T&R ROHS AA AB
SW509 30016022 SWITCH TACT VERTICAL T&R ROHS AA AB
SW510 30016022 SWITCH TACT VERTICAL T&R ROHS AA AB
SW801 30017848 SWITCH SAFE ON/OFF 4A/128A JVC(PANASONI) AC AH
TH800 30001268 THERMISTOR SAFE 3P AD AM
20013018 LBL.BCK.CVR.ASSY (TV) (WO/UL) AA AB
20069673 FIRE BARRIER (I)(NATURAL-V.0) (AK30) AA AC
20140383 BACK CVR.2163RF EKO2GRAY (AK44) AQ BA
20141200 SNOW BOX ASSY 2163 AN AZ
20141421 CRT B.ASSY.TP44-RF/SF (AK44) AQ BA
20143026 R/C 1548 SHARP (EKO2GRAY/I) (GRAY/S) AM AY
20146661 MD.ASY.HP44-STEREO (HP+FAV) (AK44) AE AP
20146997 CONTROL PAN.DOOR 2163RF SHARP SLV285S(P) AD AM
20151168 SPK.AS.2163 SHARP (R) (AK44) AM AX
20151169 SPK.AS.2163 SHARP (L) (AK44) AM AX
20151304 POWER CORD ASSY.(2.2MT W/FTZ)(LONGWELL) AD AM
20161431 FRONT2163AV3H W/H&J SLV285S/P/PW/S/2S/Mi AT BD
20188958 CHS.ASSY.44-512D315132231H BG BZ
20188959 LBL.BCK.CVR.SHARP 21LF90RU"AK44" AA AC
20188960 LBL.CART.BOX SHARP 21LF90RU AK44(SILV) AA AC
30016802 RES WW 5W 5.6R J RAD AA AD
30027134 SPEAKER 16R 4W F/R 50x120MM-21" SHARP AF AR
30027688 CNAS 2P/500 90° SPK DIS W/C+FER AWG24 AB AE
30027691 CNAS 2P/690 90° DIS W/BLK C+FER AWG24 AB AE
30028208 POWER CORD SAFE EURO 2.2M SHARP W/F ROHS AG AT
35000013 SPRING ON/OFF SWITCH AA AB
35000180 SCREW C ZN YSMB M3*6 AA AA
35000181 SCREW C ZN YSMB M3*8 AA AB
35000182 SCREW C ZN YSMB M3*10 AA AA
35005084 SCREW C ZN RYAKB 6x30 AA AB
35005418 SCREW P C ZN YSB 3.5x10 (KN1031 T35X10) AA AA
35008081 SCREW P C ZN YFMB 3*9.5 AA AA
35008812 SCREW P C ZN RYSB 3x10 AA AB
35008844 DOOR METAL SPRING (41x22.5) SHARP AA AC
35009300 SCREW P C ZN FYSB 4X16 (D:11) AA AB
35010702 SCREW P C ZN YSB SK 4x18.5 (BEYAZ) AA AA
40012331 RUBBER PAD (RC 1542) AD AL
40016817 LOGO SHARP (D.C.-SILVER)21"RF AC AH
40016859 RUBBER WASHER 2163RF (I) SHARP AA AB
40016871 DOOR SPACER (M10) AA AB
50043894 CONTROL STICKER STREO 2163RF SHARP AD AN
50048335 CARTON BOX SHARP SHARP (2163) AL AX
50060540 I/B SHARP 21LF90RU P/AK44/1548/E/RU AC AK
!
!
!
!
!

12
21LF-90RU
PRINTED BY: ON:
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any
form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
Technical information and Production:
Vestel Electronik AS
Technical information re-issued:
SHARP ELECTRONICA ESPAÑA S.A.
Service Manual Group
Engineering Dept.
Polígono Industrial Can Sant Joan
08190 Sant Cugat del Vallès
Barcelona
Spain
Think Ecology, please use
RECYCLED PAPER
