Sharp 19R-M100 User manual

1
19R-M100
COLOR TELEVISION
Chassis No. SN-010
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its
original condition and only parts identical to those specified should be used.
»ELECTRICAL SPECIFICATIONS .........................................................................................................1
»IMPORTANT SERVICE SAFETY PRECAUTION.................................................................................2
»LOCATION OF USER'S CONTROL .....................................................................................................4
»INSTALLATION AND SERVICE INSTRUCTIONS................................................................................5
»CHASSIS LAYOUT .............................................................................................................................11

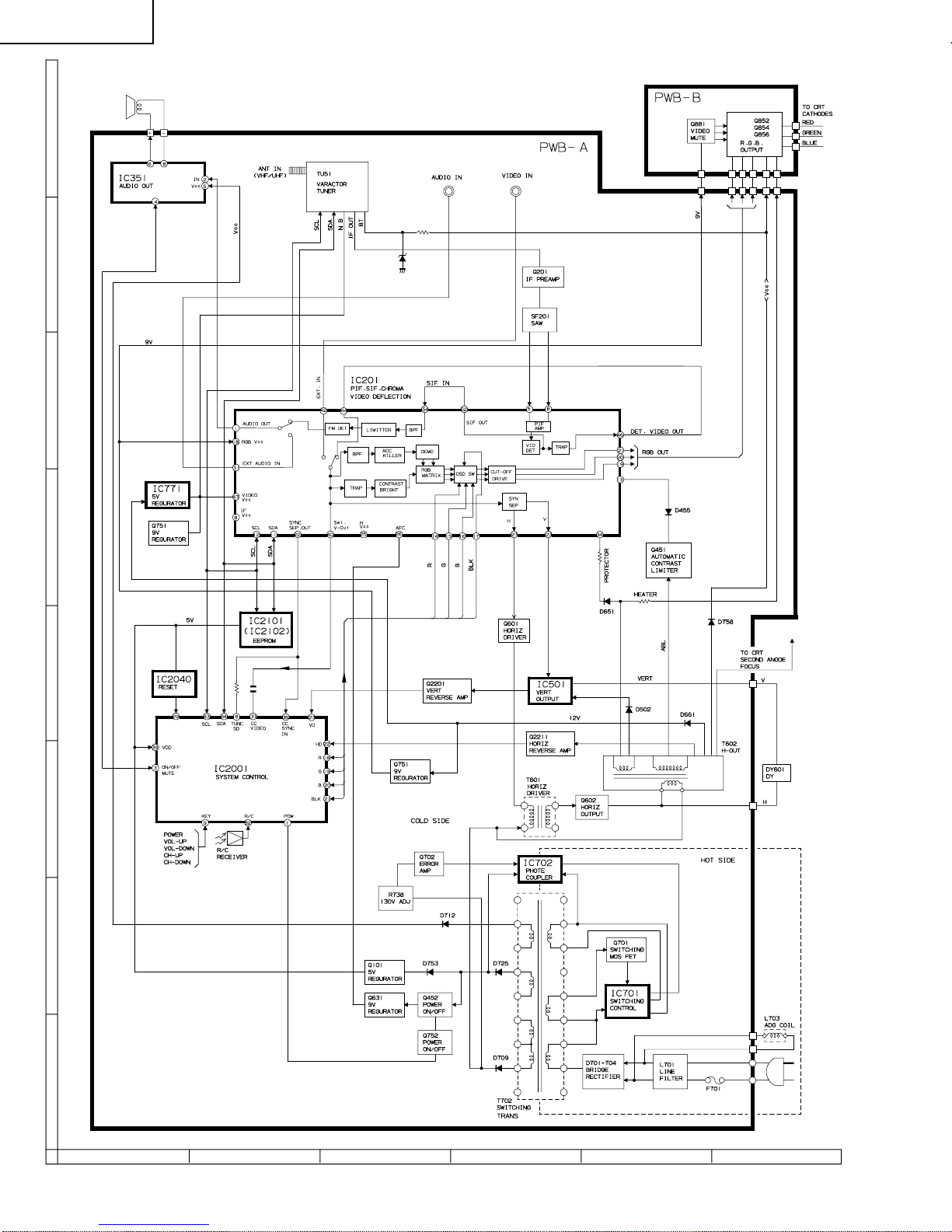

»BLOCK DIAGRAM..............................................................................................................................12

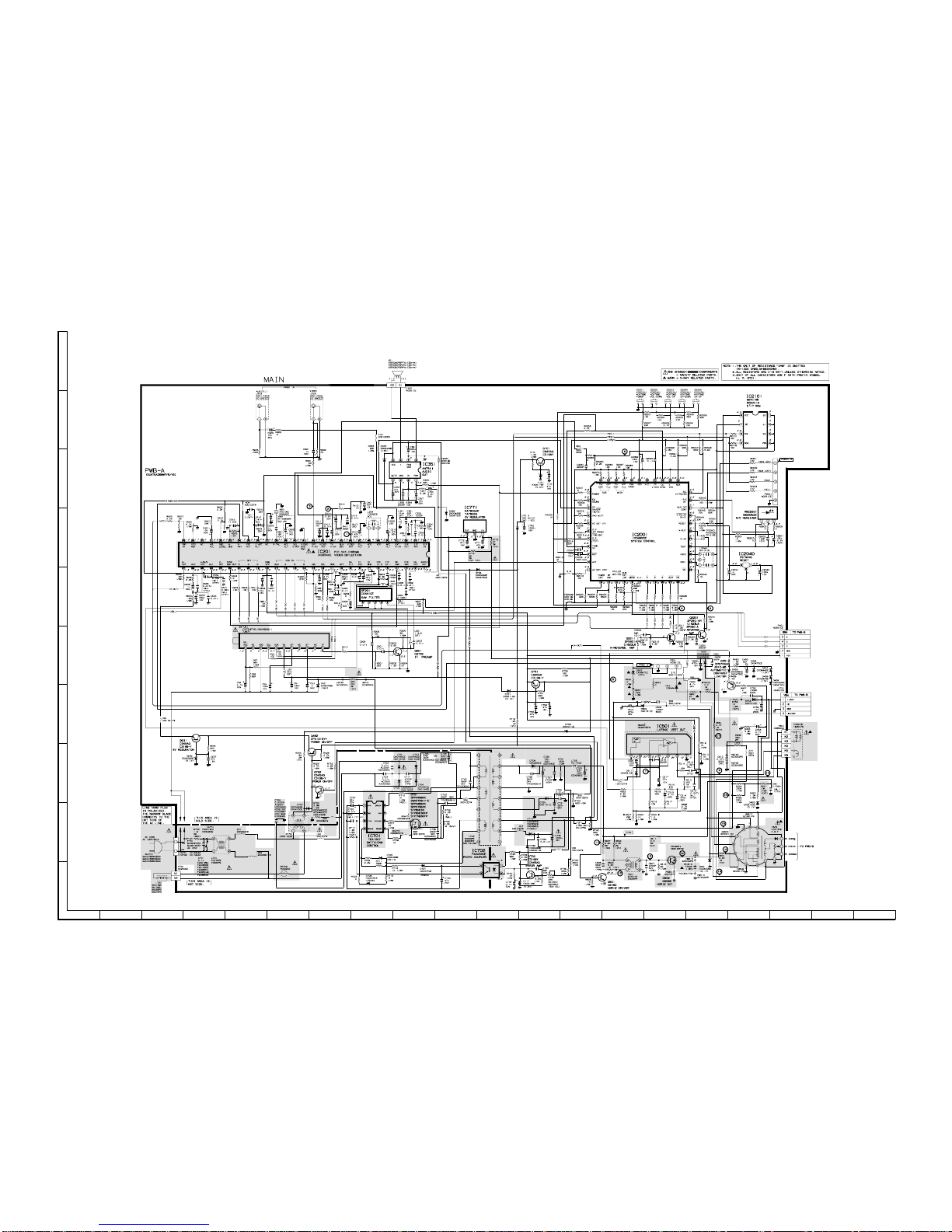

»SCHEMATIC DIAGRAMS...................................................................................................................13

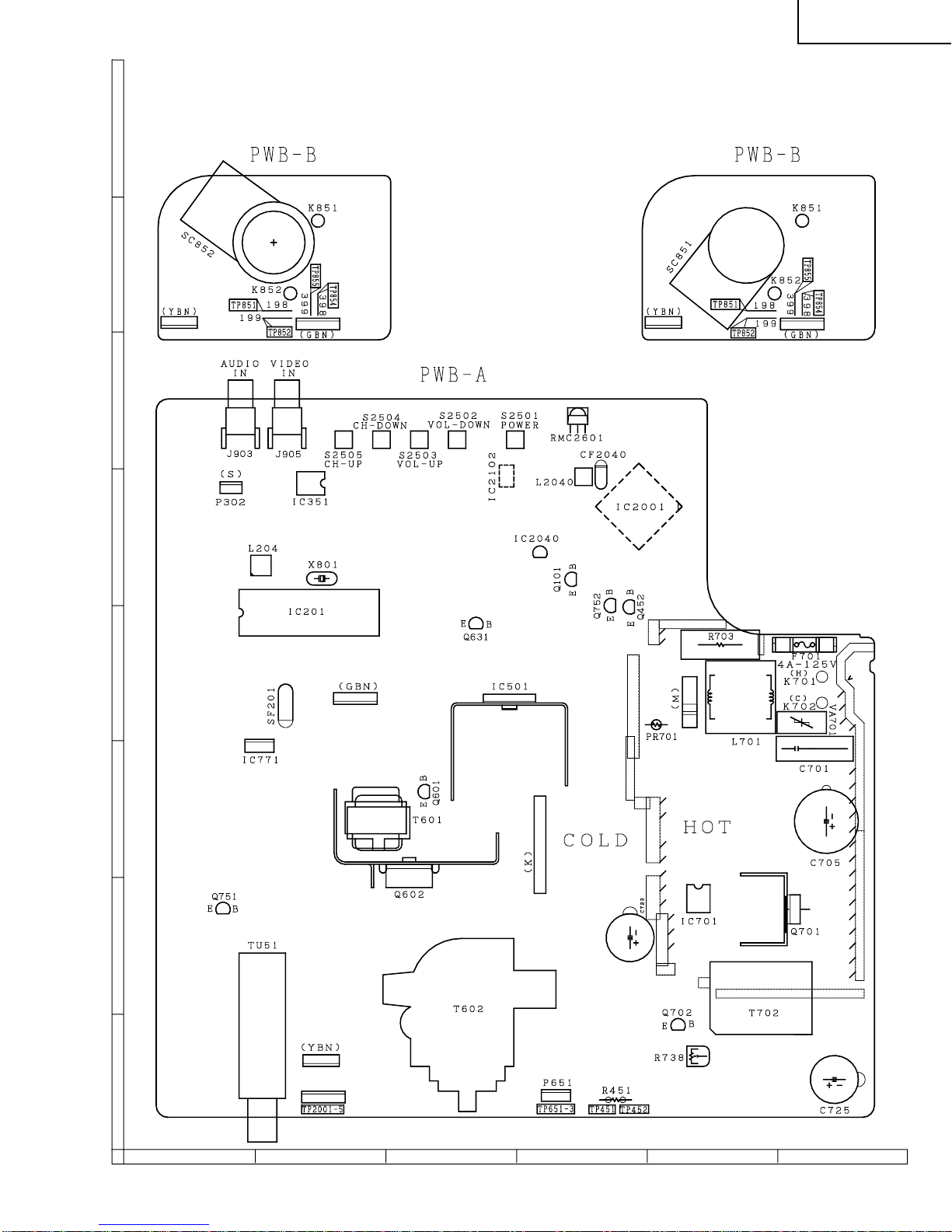

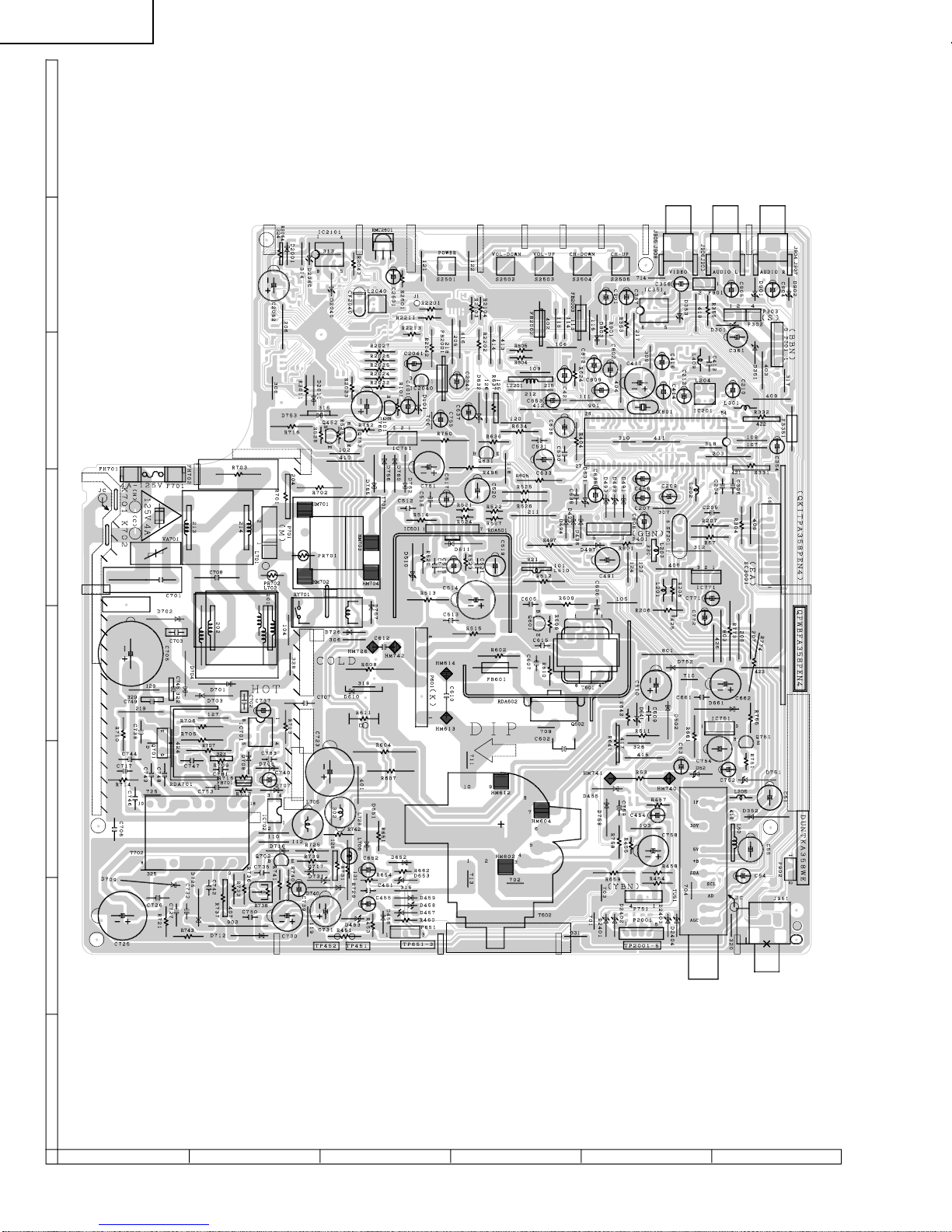

»PRINTED WIRING BOARD ASSEMBLIES ........................................................................................18
»REPLACEMENT PARTS LIST ............................................................................................................21
»PACKING OF THE SET ......................................................................................................................27
Page
SHARP CORPORATION This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
CONTENTS
SERVICE MANUAL
POWER INPUT.................................................... AC 120 V, 60 Hz
POWER RATING ................................................................... 69 W
PICTURE SIZE ........................................... 1,194cm2(185sq inch)
CONVERGENCE ............................................................. Magnetic
SWEEP DEFLECTION .................................................... Magnetic
FOCUS ............................................... Hi-Bi-Potential Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ..................................... 45.75 MHz
Sound IF Carrier Frequency...................................... 41.25 MHz
Color Sub-Carrier Frequency .................................... 42.17 MHz
(Nominal)
AUDIO POWER
OUTPUT RATING ..................................................... 1 W (RMS)
ELECTRICAL SPECIFICATIONS
SPEAKER
SIZE ...................................................................... 8 cm (Round)
VOICE COIL IMPEDANCE ............................ 32 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF.....................................................75 ohm Unbalanced
TUNING RANGES
VHF-Channels...............................................................2 thru 13
UHF-Channels ............................................................14 thru 69
CATV Channels...........................................................1 thru 125
(EIA, Channel Plan U.S.A.)
Specifications are subject to change without
prior notice.
MODEL 19R-M100 (SREC)
S11O219R-M100
POWERVOLCHVIDEOAUDIO
IN
MENU
1st. Edition

2
19R-M100
IMPORTANT SERVICE SAFETY PRECAUTION
ËService work should be performed only by qualified service technicians who are thoroughly
familiar with all safety checks and the servicing guidelines which follow:
4A 125V
SERVICING OF HIGHVOLTAGE SYSTEM
AND PICTURETUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic-
ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)
1. Picture tube in this receiver employs integral
implosion protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
X-RADIATION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation.
The only potential source of X-ray in current solid
state TV receivers is the picture tube. However, the
picture tube does not emit measurable X-Ray
radiation, if the high voltage is as specified in the
"High Voltage Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltageshould alwaysbekeptat the rated value
-no higher.Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltageregulator is operatingproperly
there is no possibility of an X-radiation problem.
Every time a color chassis is serviced, the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
notexceedthespecifiedvalueandthatitis regulating
correctly.
5. Do not use a picture tube other than that specified
ormakeunrecommended circuitmodifications to the
high voltage circuitry.
6. When troubleshooting andtakingtestmeasurements
onareceiverwith excessivehighvoltage,avoidbeing
unnecessarily close to the receiver.
Donot operate the receiverlongerthan is necessary
to locate the cause of excessive voltage.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.
4. Thechassis in this receiverhas twogroundsystems
whichare separatedbyinsulating material.The non-
isolated (hot) ground system is for the B+ voltage
regulatorcircuitand the horizontaloutputcircuit.The
isolatedgroundsystemisforthe low B+ DC voltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE 4A-
125V FUSE.

3
19R-M100
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased byusing replacementcomponents
rated for higher voltage, wattage and etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators and etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
»Plug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
»Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to earth ground.
»Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
For continued protection, replacement parts must be
identical to those used in the original circuit.The use of
substitutereplacementparts whichdonothavethe same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
BEFORE RETURNINGTHE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
»Connectthe resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon and etc.) and measure the AC voltage
drop across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Anycurrentmeasured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
1.5k ohm
10W
0.15µF
TEST PROBE
CONNECT TO
KNOWN EARTH
GROUND
TO EXPOSED
METAL PARTS

4
19R-M100
LOCATION OF USER'S CONTROL
TV
CH
–VOL +
POWER VIDEO IN AUDIO
CH
–
V
OL +
POWER
MENU
MENU
Infrared Transmitter Window
INPUT
Press →Switch to external video input
mode.
Press again →Switch to TV mode.
CHANNEL UP/DOWN
( ) Selects next higher channel.
( ) Selects next lower channel.
• Moves the “ ” mark of the MENU
screen.
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
DISPLAY
Press→Displaysreceiving channel for
four seconds.
Press again →Removes display.
• Temporarily displays receiving
channel when in Closed Caption
mode.
Basic Remote Control Functions
Front Panel
CHANNEL UP/DOWN
(
' ) Selects next higher channel.
(
"
) Selects next lower channel.
• Press both at the same time to
access the MAIN MENU screen.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
POWER
Press →On.
Press again →Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
• In menu mode, changes or selects
the TV adjustments.
MUTE
Press →Mutes sound.
Press again →Restores sound.
• CLOSED CAPTION appears when
sound is muted.
POWER
Press →On.
Press again →Off.
SENSOR AREA FOR
REMOTE CONTROL
VIDEO IN AUDIO IN TERMINALS
'
"
G1324SA

5
19R-M100
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIATION PROTECTOR CIRCUIT TEST
After service has been performed on the horizontal
deflection system, high voltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1. Apply 120V AC using a variac transformer for
accurate input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter toTP653 and make sure
that the voltmeter reads 21.4 ±1.5 V.
5. Apply external 27.2V DC at TP653 by using an
external DC supply, TV must be shut off.
6. To reset the protector, unplug the AC cord and make
ashort circuit betweenTP651 andTP652.Nowmake
sure that normal picture appears on the screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before
the set is returned to the customer.
HIGH VOLTAGE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with a strong air signal or a properly
tuned in test signal.
3. Enter the service mode and select the service
adjustment "S03" and Bus data "01" (Y-mute on).
4. The voltage should be approximately 26.0kV (at zero
beam).
If a correct reading cannot be obtained, check
circuitry for malfunctioning components. After the
voltage test, makeY-mute off to the normal mode.
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2)Before performing adjustments, the TV set must be on at least 15 minutes.

6
19R-M100
For adjustments of this model, the bus data is converted to various analog signals by the D/A converter circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage. Follow
the steps below whenever the service adjusment is required.
To enter the service mode and exit service mode.
While pressing the Vol-up and Ch-up buttons at the sametime, plug the AC cord into a wall socket.
Now, the TV set is switched on and enters the service mode.
To exit the service mode, turn the television off by pressing the power button.
1. Service mode.
Before putting unit into the service mode, check that customer adjustments are in the normal mode.Use the reset
function in the video adjustment menu to ensure customer control are in their proper (reset) position.
2. Service number selection.
In the service mode, you will see the window screen as window 1.There are 3 adjustment categories 2DEF,
3SIGNAL, 4FIX VALUE as show in Figure A.
Press CH UP/DOWN button for selection and enter by VOL UP orVOL DOWN.
Press CH UP/DOWN button to select the adjustment item and VOL UP/DOWN
to adjust the data number for each categories.
(OSD disturbance can be erased by R/C display key)
(Note: EEPROM – factory used only)
Figure A: ADJUSTMENT CATEGORIES
Window 2: DEF
DEF
RETURN
FIX VALUE
NEXT
RETURN
D01
D03
D05
RETURN
D02
D04
D06
Window 4: FIXVALUE
Window 1: ADJUSTMENT CATEGORIES
SERVICE MODE
DEF
SIGNAL
FIX VALUE
EEPROM
RETURN
Window 3: SIGNAL
SIGNAL S01
S13
RETURN
S02
S12
F01 F02
F13 F14
RETURN NEXT
F15 F16
F25 F26
RETURNPREVIOUS
PREVIOUS

7
19R-M100
Below are the adjustments ranges and initial values for FIX VALUE category.
FIX VALUE
F01 OPTION 1 00-FF B0 B0
F02 OPTION 2 00-FF 04 04
F03 E-SAVE 00-3F 23 2A
F04 TUNER SETUP 00, 01 00 00
F05 R-TONE RD 00-7F 19 03
F06 R-TONE BD 00-7F 00 7C
F07 B-TONE RD 00-7F 00 00
F08 B-TONE BD 00-7F 12 04
F09 FM LEVEL 00-1F 0C 0C
F10 AFC GAIN 00, 01 00 00
F11 G DRIVE 00, 0F 0F 0F
F12 FBT BLK SW 00, 01 01 01
F13 V COMP 00-07 07 07
F14 OSD CONT 00-07 02 01
F15 SHARPNESS 00-3F 19 19
F16 FLT SYS 00-03 00 00
F17 KILLER OP 00-07 04 02
F18 PRE SHOOT 00-03 03 00
F19 CORING 00-07 07 04
F20 DC REST 00-03 02 02
F21 BS START 00-03 01 01
F22 BS GAIN 00-03 01 01
F23 ABL START 00-07 00 00
F24 R/B ANGLE 00-0F 08 08
F25 H BLK R 00-07 04 03
F26 H BLK L 00-07 04 00
SERVICE
POSITION ADJUST ITEM DATA
RANGE
INITIAL VALUE
(Hex)
Table - A
Below are the ranges and initial values for each adjustment and in each categories.
DEF
D01 H-PHASE 00-1F 0C
D02 V-SIZE 00-7F 40
D03 V-POSITION 00-3F 20 Must be "20"
D04 CC-POSITION 00-FF 1A
D05 V-LINEARITY 00-1F 10 Must be "18"
D06 V-S-CORRECTION 00-1F 10 Must be "0C"
SERVICE
POSITION ADJUST ITEM DATA
RANGE
INITIAL VALUE
ADJUSTMENT CONTENTS
Table - B
SIGNAL
S01 RF AGC 00-3F 14
S02 VIDEO LEVEL 00-07 03
S03 Y-MUTE 00-03 00
"01":Y-MUTE, "02":V-STOP&Y-MUTE
"03":Activate color killer
S04 SUB BIAS 00-FF 40 Must be "30"
S05 R-BIAS 00-FF 00
S06 G-BIAS 00-FF 00
S07 B-BIAS 00-FF 00
S08 R-DRIVE 00-7F 40
S09 B-DRIVE 00-7F 40
S10 CONTRAST 00-7F 5A
S11 TINT 00-7F 40
S12 COLOR 00-7F 40
S13 BRIGHTNESS 00-7F 40
SERVICE
POSITION ADJUST ITEM DATA
RANGE
INITIAL VALUE
ADJUSTMENT CONTENTS
Note: Refer to the SERVICE ADJUSTMENT for each corresponding values.
Table - C

8
19R-M100
IC2001
IC2102
(IC2101) X
CRT X
IC201
Data is stored in IC2102 (IC2101).
Adjust items related to picture tube only.
Holdingdownboth theVol-up/Ch-downbuttonson theTV set at service mode formore than 2 seconds will automatically
write the above initial values into IC2102 (IC2101).
Table - D
The adjustment is needed to compensate for characteristics
of parts including IC201.
Holding down both the Vol-up/Ch-down buttons on the TV
set in the service mode for more than 2 seconds will
automatically write the above initial values into IC2102
(IC2101).
X
X
ADJUSTMENT
NECESSARY UNNECESSARY
PART REPLACED NOTES
R2101 R2102 R2103 R2104
If using ––
IC2101
If using ––
IC2102
Table - E

9
19R-M100
White Balance Adjustment
1. Receive a good local channel.
2. Selectthe service adjustment "S12" andset the data
value to "00" to set the color level to the minimun.
You may skip this step, if you selected a B/W picture
or monoscope.
3. Alternately adjust the service adjustment data of
"S08" and "S09" until a good grey scale with normal
white is obtained.
4. Select the service adjustment "S12" and reset data
to obtain normal color level.
Sub-Picture Adjustment
1. Receive a good local channel.
2. Make sure the customer picture control is set to
maximum.
3. Enter the service mode and select the service
adjustment "S10".
4. Adjust the data value to achieve normal contrast
range.
Sub-Tint Adjustment
1. Receive a good local channel.
2. Set thecustomertintcontroltothe center of it’s range.
3. Enter the service mode and select the service
adjustment "S11".
4. Adjust "S11" data valuetoobtain normal fresh tones.
Sub-Color Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position.
3. Enter the service mode and select the service
adjustment "S12".
4. Adjust "S12" data value to obtain normal color level.
Sub-Brightness Adjustment
1. Receive a good local channel.
2. Make sure the customer brightness control is set to
center position.
3. Enter the service mode and select the service
adjustment "S13".
4. Adjust "S13" data value to obtain normal brightness
level.
Figure B:WAVEFORM FOR SCREEN ADJUSTMENT
ËSERVICE ADJUSTMENT
RF AGC Adjustment
1. Receive a good local channel.
2. Enter the service mode signal category and select
the service adjustment "S01".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confirm that no noise or
beat appears.
Note:You have to exit the service mode first to
select another channel.
Video Level (TV DetVideo Level)
Adjustment
1. Receive a good local channel.
2. Enter the service mode signal category and select
the service adjustment "S02".
3. Set the data value to "02" first, then adjust the data
inranges02±2steptoobtainanormal contrast level.
Screen Adjustment
1. Connect to oscilloscope probe between TP855 and
ground of the CRT unit.
2. Receive a good local channel.
3. Enter the service mode Signal category and set the
service adjustment "S04" to step 30.Then select the
service adjustment "S12" and set the data value to
"00" to set the color level to the minimum level.
(recordthe original data first).Youmayskip thisstep,
if you selected a B/W picture or monoscope pattern.
Set also the "S05/S06/S07" data to minimum level.
4. Selectthe service adjustment "S03" andset the data
valueto "01" toturn off the luminance signal (Y-mute).
5. Select the service adjustment "S13" and adjust the
data value to obtain 2.35 volts as shown in Figure B.
6. Adjust the master screen control until the raster
darkens to the point where raster is barely seen.
7. Adjust the service adjustment "S05" red, "S06" green
and "S07" blue to obtain a good grey scale with
normal white at low brightness level.
8. Select the service a adjustment "S03"and reset data
to"00".Select the service adjustment "S12"andreset
data to obtain normal color level.
9. Remove probe and reset the master screen control
to obtain normal brightness range.
2.35Vdc
GND

10
19R-M100
Vertical-Size, V-Linearity and
V-S Correction Adjustments
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D02" for Vertical Size, "D05" for V-
Linearity and "D06" for V-S Correction Adjustment.
3. Set in order "D05" for V-Linearity, "D06" for V-S
Correction and set the data to get the best linearity.
4. Then adjust "D02" data until it become a proper
vertical size.
Horizontal Position Adjustment
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D01".
3. Adjust "D01" data value to center the picture.
Vertical-Phase Adjustment
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D03".
3. Adjust "D03" bus data to get the most acceptable
vertical position.
Note: The step range is 20 (032) ±10 steps.
Caption Position Adjustment (Horizontal)
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D04".
3. A black text box will appear on the screen. (see
Figure C. below)
4. Adjust "D04" data value to balance the text box
position in the center (A=B).
Figure C.
A B

11
19R-M100
654321
A
B
C
D
E
F
G
H
CHASSIS LAYOUT
ËMINI NECK ËNORMAL NECK

12
19R-M100
654321
A
B
C
D
E
F
G
H
BLOCK DIAGRAM

13
19R-M100
DESCRIPTION OF SCHEMATIC DIAGRAM
NOTES:
1. The unit of resistance "ohm" is omitted.
(K=k Ω =1000 Ω ,M=M Ω )
2. All resistors are 1/10 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted.
(P=pF= µµ F)
4. (G) indicates ± 2% tolerance may be used.
5. indicates line isolated ground.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltagesetat120V ACand allcontrolsset fornormal
picture unless otherwise indicated.
2. All voltages measured with 1000 µ V B & W or Color
signal.
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color.The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
å AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
' MARK= X-RAY RELATED PARTS.
This circuit diagram is a standard one, printed
circuits may be subject to change for product
improvement without prior notice.
WAVEFORMS
1.2
1160
1.4
1.0
25
220
105
1.0
47
150
95
0.9
4.6
133
105
5.0
0.7
220
5.0
33
1.7
2.1
39.0
0.7
1.0

1234567891011 12 13 14 15 16 17 18 19 20
A
B
C
D
E
F
G
H
I
J
MODEL 19R-M100 SCHEMATIC DIAGRAM: MAIN Unit
(MINI NECK / NORMAL NECK
14~15

16
19R-M100
654321
A
B
C
D
E
F
G
H
MODEL 19R-M100 SCHEMATIC DIAGRAM: CRT Unit
(MINI NECK)

17
19R-M100
654321
A
B
C
D
E
F
G
H
MODEL 19R-M100 SCHEMATIC DIAGRAM: CRT Unit
(NORMAL NECK)

18
19R-M100
654321
A
B
C
D
E
F
G
H
PWB-A: MAIN Unit (Wiring Side)
PRINTEDWIRING BOARD ASSEMBLIES

19
19R-M100
654321
A
B
C
D
E
F
G
H
PWB-A: MAIN Unit (Chip Parts Side)
❊❈❇✹
◗I✵✼
◗✻✸✽
◗I✵✽
❇✻✷✷
◗✺✹✷
◗✶✸✴✵ ◗✶✸✴✶ ◗✶✸✴✷ ◗✶✸✴✸
◗✹✸
◗✹✹
◗✹✺
◗I✶◗I✵
❊❈❇✶
◗I✵✺
◗✶✵✹
◗✶✴✵
◗✸✹✽
P✸✹✵
◗✸✹✺
◗✻✶✶
◗✻✵✵
◗✻✶✷
❇✻✴✽
❇✻✼✶
◗✻✴✼
◗✻✶✴
◗I✶✺
❇✻✵✴
◗I✶✵
◗✹✵✽◗✹✵✻
❇✹✵✺
◗✹✵✺
◗✹✵✼
◗I✶✴
◗✸✽✸
◗✸✽✵
◗✸✽✶
❇✸✽✶
P✸✽✵
◗✸✽✺
◗✸✺✶
◗I✽
❇✶✴✶
◗✶✵✺❇✶✴✷
P✶✴✵
❇✶✴✵
◗✶✴✷
◗✶✴✸
◗✶✴✶
◗✷✴✹
P✷✴✵
◗✷✴✼
◗✷✴✶
❇✷✴✸
❇✷✴✹
❇✷✴✵
◗✶✶✴
❇✷✴✶ ◗✷✴✵ ❇✷✴✷
❇✶✴✺❇✶✵✵
❇✶✵✸
◗✶✵✷
◗✶✴✼
❇✶✶✴
❇✶✵✷
◗✶✵✵
◗✸✵✶◗✸✵✷
◗✶✵✴◗✽✺✶
◗✸✵✵
◗✶✴✽
◗✽✺✵
◗✶✵✸
◗✶✵✶
❇✸✵✼
❇✸✵✶
◗✸✺✵
❇✶✴✼
❇✼✵✴
❇✼✴✵
❇✼✵✵
❇✼✴✻
◗I✶✸
◗✸✴✵ ◗✸✴✶
◗✺✹✹
◗✸✴✷◗I✵✴
◗✼✴✻
◗I✶✹
◗✺✶✷ ❇✺✶✴
◗✺✷✹
◗✸✶✸
◗✺✶✶
◗✸✽✷
❇✺✷✸
◗✼✴✶
◗I✶✶
◗✶✴✵✴
◗I✼
◗✶✴✵✶
❇✶✴✵✴ ◗✶✴✵✺ ◗✶✴✵✸
❊❈❇✷
◗✶✴✴✵
◗✶✴✴✽
◗✶✴✻✴
◗✶✴✺✼
◗✶✴✺✻
◗✶✴✺✺
❇✶✴✴✶
◗✶✴✻✶
◗✶✴✴✺
◗✶✴✴✶
◗✶✴✵✼
◗✶✴✺✷
◗✶✴✺✹
◗✶✴✵✻
❇✶✴✺✴
◗✶✴✺✶
P✶✴✺✴
◗✶✴✴✼
❇✶✴✴✵
❇✶✴✺✵
◗✶✴✺✴◗✶✴✺✵
❍❇✶✴✴✵
◗✶✴✸✼
◗✶✴✸✻
◗✶✴✶✴
❇✶✴✹✵◗✶✵✴✵
◗✶✴✶✽
◗✶✵✴✶
❇✶✺✴✶
◗✶✴✸✽
◗✶✴✸✹
◗✶✴✸✸
❇✶✴✶✵
❇✶✴✶✶
❇✶✴✶✷
❇✶✴✶✸
❇✶✴✶✹
◗✶✴✷✸
❊❈❇✸
❇✶✶✴✷
◗✶✴✶✼
◗✶✴✷✷
❇✶✴✶✺
◗✶✴✸✴
◗✶✶✴✷
◗✶✶✵✶
❇✶✶✴✵
P✶✶✵✵
P✶✶✴✵
❇✶✶✴✶
◗✶✴✸✵
❍❇✶✵✴✶
◗✶✴✶✶
◗✶✹✴✵
◗✶✹✴✻
◗✸✶✹
◗✶✹✴✼
◗✼✴✷
◗✶✹✴✽
◗✸✶✶
◗✸✶✵
◗✶✹✴✷ ◗✶✹✴✸
◗✼✴✼◗✼✵✴◗✼✴✽
◗I✵✸
◗✶✹✴✹
◗I✵✶◗I✵✵◗I✶✷
◗✶✹✴✺
◗I✵✷
◗✷✹✸
◗✷✹✻
❇✷✹✺
◗✽✴✶
P✸✴✵
◗✸✵✺
P✸✴✶
◗I✶✽
◗✸✵✸
❇✷✹✵
❇✸✵✻
◗✸✵✹
◗✸✶✷
◗I✻
❇✸✴✵
◗I✹
◗✽✶✹
◗✸✵✴
◗I✶✼
◗✽✴✺
◗I✸
◗✽✶✸
❊❈❇✺
◗I✶✻
◗✽✴✹
◗I✷

20
19R-M100
654321
A
B
C
D
E
F
G
H
PWB-B: CRT Unit (Chip Parts Side)
PWB-B: CRT Unit (Wiring Side)
◗✼✽✶ ❇✼✽✴
◗✼✺✽ ◗✼✺✼ ◗✼✺✻
✶
◗✼✹✷❇✼✹✵
◗✼✽✵
◗✼✺✵
◗✼✹✽
◗✼✽✴
◗✼✼✸
❇✼✹✶
◗✼✹✵
◗✼✼✺
◗✼✼✶
◗✼✼✵
❊❈❇✵

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code
21
19R-M100
PICTURETUBE
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual;electrical components having such features
areidentified byåand shadedareas in the Replacement PartsLists
and Schematic Diagrams.The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOWTO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF.NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call Toll-
Free; 1-800-BE-SHARP
★ MARK : SPARE PARTS-DELIVERY SECTION
'MARK : X- RAY RELATED PARTS
Ref. No. Part No. ★Description Code
(MINI NECK)
'åV101 VB48LRH93X/*S J Picture Tube CC
'åDY601 RCiLH0201PEZZ R DeflectionYoke AZ
åL703 RCiLG0078PEZZ R Degaussing Coil AM
or
RCiLG0014MEZZ
or
RCiLG0108GJZZ
or
RCiLG0099PEZZ
LHLDW0003PEKZ R Wire Holder, x4 AB
LHLDW1033PEZZ R Holder AA
PMAGF3045CEZZ J Purity Magnet AG
PSPAG0003PEZZ R Spacer, x3 AD
QEARCA002WJZZ X Grounding Strap
(NORMAL NECK)
'åV101 VB48KRD89X/4E J Picture Tube CB
'åDY601 RCiLHA032WJZZ X DeflectionYoke
åL703 RCiLG0078PEZZ R Degaussing Coil AM
or
RCiLG0014MEZZ
or
RCiLG0108GJZZ
or
RCiLG0099PEZZ
LHLDW0003PEKZ R Wire Holder, x4 AB
LHLDW1033PEZZ R Holder AA
PMAGF3046CEZZ J Purity Magnet AF
PSPAG0003PEZZ R Spacer, x3 AD
QEARCA002WJZZ X Grounding Strap
PRINTEDWIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
(MINI NECK)
PWB-A DUNTKA358WEY5 –MAIN Unit —
PWB-B DUNTKA359WEW4 –CRT Unit —
(NORMAL NECK)
PWB-A DUNTKA358WEY6 –MAIN Unit —
PWB-B DUNTKA359WEW5 –CRT Unit —
PWB-A: DUNTKA358WEY5 (MINI NECK)
PWB-A: DUNTKA358WEY6 (NORMAL NECK)
MAIN UNIT
TUNER
NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT INDEPENDENTLY.
åTU51 VTUVTST5UF740 X Vhf Tuner
or
VTUENV56D82-1
INTEGRATED CIRCUITS
'åIC201 RH-iX3354CEN1 J LA76843N AT
IC351 VHiAN7511//-1 J AN7511 AK
åIC501 VHiLA7840//-1 J LA7840 AR
åIC701 VHiTEA1507/-1 J TEA1507P/N1 AL
åIC702 RH-FX0034CEZZ J PC817 AE
IC771 VHiKA7805AP-1 J KIA7805API AE
or
VHiTA7805S/-1
IC2001 RH-iX3492CEZZQ J TMPA8700CPF AU
IC2040 VHiPST994C/-1+ X PST994C-T
IC2101 VHiM24C16B/-1 J M24C16-BN6 AG
or
VHiBR24C16-1
TRANSISTORS
Q101 VS2SC945AQ/-1+ J 2SC945AQ AB
or
VS2SC3198Y/-1
Q201 VS2SC2735//1EY J 2SC2735 AC
Q451 VS2PB709AR/-1Y J 2PB709AR AB
or
VS2SA812-M51E
Q452 VS2PA1015Y+-1+ J 2PA1015Y AC
Q601 VS2SC2482//-1+ J 2SC2482 AD
åQ602 VS2SD2586//1E J 2SD2586 AM
Q631 VS2SC945AQ/-1+ J 2SC945AQ AB
or
VS2SC3198-Y-1
åQ701 VSSPP04N60C-1 J SPP04N60C AH
or
VS2SK2708//1E
or
VSSPP07N60C-1
or
VSSTP6NC60+-1
or
VSSTP6NC60FP
or
VSSTP7NB60FP
Q702 VS2SC945AQ/-1+ J 2SC945AQ AB
or
VS2SC3198Y/-1
Q751 VS2SC945AQ/-1+ J 2SC945AQ AB
or
VS2SC3198-Y-1
Q752 VS2SC945AQ/-1+ J 2SC945AQ AB
or
VS2SC3198-Y-1
