Sharp LC-32FI3221K:LC-32FI3321K Technical manual

LC-32DI3221K
LC-32DI3221KW
LC-32DI3321K
LC-32HI3221K LC-32FI3221K
LC-32HI3221KW LC-32FI3321K
LC-32HI3321K LC-32FI3421K
LC-32HI3421K LC-32FI3521K
LC-32HI3521K
Quick Start Set Up Guide
For information on using the TV’s features, please refer to the operating Instructions.
Quick & easy guide for setting up your TV
What is included in the box
Using the remote control
Setting up the TV for the rst time - including attaching the stand
Connecting other devices to the Television
Need help setting up or using your TV?
Please contact the UK & ROI Helpline*
Telephone UK 0330 024 0803 or ROI 01443 3323
Online support at: www.umc-uk.co.uk
Email support at: [email protected]
*Calls to 0330 numbers are charged at standard call rates and are included as part of any bundled minutes with your
phone provider.
Calls to the ROI number are charged at the local call rate.
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
Bank Holidays - 10am to 4pm
Closed Christmas and New Years day
Model Numbers
LC-32HI3221K
LC-32HI3221KW
LC-32HI3321K
LC-32HI3421K
LC-32HI3521K
Trademark Sharp
Model ID LC-32HI3221K LC-32HI3521K
LC-32HI3221KW LC-32DI3221K
LC-32HI3321K LC-32DI3221KW
LC-32HI3421K LC-32DI3321K
LC-32FI3221K
LC-32FI3321K
LC-32FI3421K
LC-32FI3521K
Energy eciency class A+
Visible screen size (diagonal) 81 cm / 32 inches
On-mode power consumption 31.0 W
Annual energy consumption *1 45 kWh
Standby power consumption *2 <0.50 W
O mode power consumption n/a
Screen resolution 1366 (H) x 768 (V) 1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4
hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*2: When the TV is turned o with the remote control/standby button and no function is active.
Product che
Additional Technical Information
RF 75 ohm Antenna / Analog / DVB
Inputs 3 x HDMI, 2 x USB, 1 x SCART,
1 x RJ45 LAN/Ethernet, 1 x Mini Component/YPbPr, 1 x Mini Composite/
Video & L/R Audio shared for Composite/Video & Component/YPbPr
Sound Outputs 1 x Digital Optical Audio output, 1 x 3.5mm Headphone
Speaker* / Amplier Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption AC 220V ~ 240V; 50Hz
31/45/70W (home mode/standard/max)
(<0.5W in Standby)
AC 220V ~ 240V; 50Hz
31/45/80W (home mode/
standard/max)
(<0.5W in Standby)
Dimensions including stand (mm) 732W x 471H x 179D
Net weight (Kgs) 5.3 5.5
Wall Mounting VESA 200 x 200 (mm)
*Built-in Harman Kardon speaker systems (Full-range speaker and tweeter).
Harman Kardon is trademark of HARMAN International Industries, Incorporated, registered in the United States
and/or other countries.
LC-32FI3221K
LC-32FI3321K
LC-32FI3421K
LC-32FI3521K
LC-32DI3221K
LC-32DI3221KW
LC-32DI3321K
Win a
Soundbar
Register your manufacturers guarantee online
within 14 days of purchase at
www.registertoday.co.uk/sharp
and enter into a prize draw to
Terms and conditions apply. Online registration only.
stration only
.
SHA/QSW/0036
Technical Specication
Please save your box/packaging as you will need this in the event of warranty/service repair or support.
We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.
REMOTE CONTROL
1
4
2
3
STANDBY - Switch on TV when in standby or vice versa
MUTE - Mute the sound or vice versa
DTV - Switch to Freeview source
RADIO - Switch to radio whilst in Freeview source
USB - Switch to USB source
DVD - Switch to DVD source
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)
- To return to the previous channel viewed
VOL (+/-) - To increase / decrease the sound level
P.MODE - Scrolls through picture mode options
S.MODE - Scrolls through sound mode options
FAV - To display favourites menu
CH (+/-) - To increase or decrease the channel being watched
MENU - To display OSD menu
EXIT - To exit all menus
- Allows you to navigate the on-screen menus
and adjust the system settings to your preference
SOURCE - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current
programme
ASPECT - To switch the screen between the different picture
formats
SLEEP - Press repeatedly to cycle through the sleep options
AUDIO - To change the audio language (if available)
SUBTITLE - To switch the dialogue at the bottom of the screen
(on/off)
TEXT - To enter/exit Text
TEXT HOLD - Teletext mode - Hold current page which is
displayed (Analogue TV)
DISPLAY - To switch off the screen when listening to radio
TEXT/DVD ZOOM - Zoom function for Teletext and DVD
DVD MENU/RECORD - Access the DVD root menu and USB
record function
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback/Eject Disc
(To EJECT the disc press/hold the button for 4 seconds)
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
DVD SETUP/REC LIST - Opens up DVD Menu or Opens the list
of what has been previously recorded
GOTO - To go to a specific chapter
A-B - Press once to set point, press a second time to return
to point
ANGLE - Select different angle of DVD
REPEAT - To repeat playback
Key
3
2
1
For models with integrated DVD players.
For models with PVR Function.
For models with USB Playback.
4
( / / / / OK )
Accessories
Included with this TV are the following accessories
What is included in the box
1 x Operating Instructions
1 x Quick start guide
1 x TV
1 x Remote Control and 2 x AAA Batteries
1 x Stand installation pack
4 x
1 x L (left) 1 x R (right)
1 x Power Cable
Additional Accessories
Should you wish to connect older/analogue devices to your television, you can purchase the necessary
cables either from your retailer or at www.umc-uk.co.uk/cables
Mini Composite/AV Cable
Required if you wish to connect a device with
AV/Composite/CVBS output to the TV’s Mini AV Input
Mini YPbPr Cable
Required if you wish to connect a device with YPbPr/
Component output to the TV’s Mini YPbPr Input
wit
h YP
bPr/
Pr
Inpu
t
To receive Freeview channels, in particular Freeview HD channels, you will need a Digital TV aerial and be in a good Freeview
coverage area.
You can check coverage for your postcode at www.freeview.co.uk.
Please note that any Freeview HD channels found during tuning will be placed in channel positions above 100. For example,
101 (BBC1 HD) 102 (BBC2 HD) etc.
1 x RF Cable
Connecting Component/YPbPr - you will need both the Mini YPbPr Cable and the Mini Composite/AV Cable.
The YPbPr cable will be used exclusively for video (red/green/blue) and the AV cable will be used for audio (Red/White while
Yellow stays unconnected).
Connecting Composite/AV - Mini Composite/AV Cable will be enough for both video and sound.
SHA-QSW-0036 LC-32xI3x21K V3 print.indd 1SHA-QSW-0036 LC-32xI3x21K V3 print.indd 1 25/09/2018 09:09:2425/09/2018 09:09:24

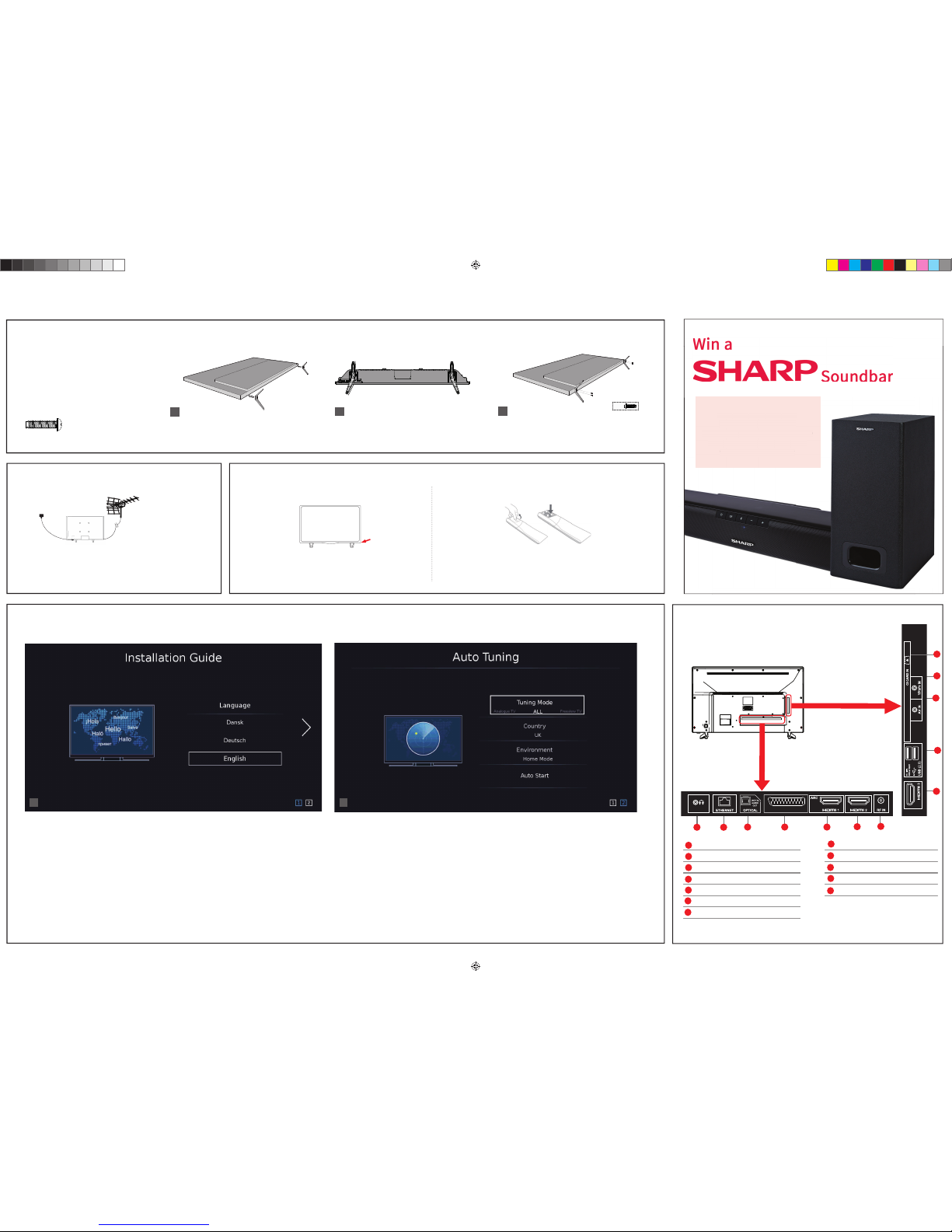

Screen 1
When you first turn on the set, you will be welcomed by the First Time Installation screen as shown above.
Language: Select your preferred on-screen display language. This will change the language in which the menus and associated
information is displayed in. When the setup has been completed, this can be changed by selecting Menu > Settings > Language.
4
Fitting the stand
Connecting your set
First time installation
1 2
Screen 2
Tuning Mode: Select what you wish to tune via TV’s built-in tuner. You can choose from Freeview TV, Analogue TV and ALL
(Freeview + Analogue). At the next step, the set will tune in selected option.
Country: Select the correct country in which the set will be used in. This will enable the TV to correctly install the functions ap-
plicable in the country of use.
Environment: Use this option to select either Home or Store mode.
HOME MODE is a power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel).
When in STORE MODE the picture will be brighter. An on-screen banner showing the sets functionality will appear on the screen
after 2 minutes.
Note: In Home Mode, the TV will switch itself to the standby mode after 4 hours in the event that the buttons on the remote
control or TV are not used.
Earphones Earphone input
LAN* Network connection
Digital audio Digital optical audio output
SCART SCART input
HDMI 1 (ARC) HDMI input
HDMI 2 HDMI input
RF in RF / TV aerial input
HDMI 3 HDMI input
USB x 2 USB port
AV in Audio/video input
YPbPr HD input (Ypbpr)
CI card in Common interface module
For the stand installation, there is one type of screw
provided as shown below.
To complete the stand installation you will require a
cross head screw driver.
Place the TV set on a flat and clean surface with the
panel facing downwards to avoid damage.
Setting up the TV set for the rst time
Connectivity
1) Connect the TV to your power socket.
2) If you wish to use the TV to receive Freeview/Saorview channels,
connect the RF input from the TV to your outdoor Digital TV aerial.
If you do not wish to receive Freeview/Saorview, skip this step.
1
2
1
Back/Shortest
Front/Longest
2
4 x
3
4
1
2
3
Outdoor Digital
TV Aerial
1.
2.
Used for attaching the stand
to the TV set (g.2)
4 x
TV panel must be facing downwards.
Place the TV set on a flat and clean surface with
the panel facing downwards to avoid damage.
When the stand feet are installed correctly the
stand feet will be longest at the front of the TV
and shortest at the back with the feet pointing
away from each other.
When the stand/feet are in the correct position, secure
the feet to the underside of the TV set using 4 screws
provided.
3Powering On the TV
Switch on the television by pressing
the TV control stick located on the
TV set.
TV control stick
Insert the batteries supplied into the
remote control and press the standby
button to power on the TV.
TV Control Stick Remote Control: Installing Batteries
Register your manufacturers
guarantee online within
14 days of purchase at
www.registertoday.co.uk/sharp
and enter into a prize draw to
win a Sharp Soundbar
guarantee
online
within
1
4 days o
f
purchase a
t
www.registertoday.co.uk
/
sharp
a
n
d
enter into a prize
d
raw to
win a S
h
arp Soun
db
ar
Terms and conditions apply. Online registration only.
ACD E FG
H
I
K
B
A
I
L
B
J
C
D
E
F
G
H
K
* The LAN/Ethernet port is used for Freeview HD services.
EARPHONE
SCART
J
L
