1
28LF-92EES
SERVICE MANUAL
This document has been published to
be used for after sales service only.
AK-45 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATIONS ........................................................................................ 3
IMPORTANT SERVICING NOTES ...................................................................................... 4
CONTROLS & TERMINALS ................................................................................................ 5
PRINTED WIRING BOARD LAYOUT ................................................................................. 7
PARTS LISTING ................................................................................................................... 8
HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 15
SHARP CORPORATION
SE0028LF92S00
Issued: 19th April 2004
In order to service the model 28LF-92EES, refer
to the AK-45 Chassis Service Manual
(SE00AK45CHA00).
MODEL 28LF-92EES

2
28LF-92EES
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
28LF-92EES
ELECTRICAL SPECIFICATIONS
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
•Picture Intermediate frequency
L’ ................................................ 33.9MHz
L, B/G, D/K,I .............................. 38.9MHz
•Sound Carrier Trap
L’ ................................................ 40.4MHz
L, D/K ......................................... 32.4MHz
B/G ............................................ 33.4MHz
I .................................................. 32.9MHz
•Adjacent Sound Carrier Trap
L’ ................................................ 32.4MHz
L, D/K, B/G ................................ 40.4MHz
I .................................................. 40.9MHz
•Adjacent Picture Carrier Trap
L’ ................................................ 41.9MHz
L, D/K, I ...................................... 30.9MHz
B/G ............................................ 31.9MHz
•Aerial Input Impedance
VHF/UHF ................. 75 ohm Unbalanced
•Tuning Ranges ..... 45.75MHz thru 855.25 MHz
VHF: IR A - J / S1 - S41 CH (Hiperband)
E2 - E12 / F2 - F10
UHF: I21 - I69 CH / E21 - E69
•White Level
Apply the rated voltage at the rated frequency to the TV set, while it is receiving full white pattern RF signal of 60
dB/µV from its RF input via the pattern generator.
Turn all picture controls to maximum value. Measure the colour temperatures at the center of the screen by
using the colour analyzer.
X=0.290 ± 0.015 Y=0.300 ± 0.015
•Power Input .................... 220V-240 Volts AC 50 Hz
•Power Consumption
Normal Operation (Method IEC60107) ............... 90 W
Stand-by Operation .......................................... < 4 W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 10 W, 7 Ω
Internal Right Speaker ............................... 10 W, 7 Ω
•Speakers
2 ways speaker elliptic (2 pcs) ............ 50 x 120 mm
•Convergence (Maximum Misconvergence)
MODEL DESTINATION (Operation Manual Languages)
28LF-92EES: Español, Português.
Admissible misconvergence in X - and Y - direction (mm)
Measuring points misconvergence
Centre 0 0.4
Corner points 1 ; 2 ; 3 ; 4 1.8
Medium points 9 ; 10 ; 11 ; 12 1.4
right, left 5 ; 6 1.2
top, bottom 7 ; 8 1.2
ch
H
1
9
7
10
2
506
4
12
8
11
3
V
v
Position of measuring points on the screen
Distance of measuring points (mm)
H ( 2h = H ) 270
V ( 2v = V ) 140
c 10
○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○ ○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○ ○○○ ○○○ ○○○○○○○○○○○○○○○○○○○

4
28LF-92EES
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 30 KV, (at a
instantaneous beam current of 1800 µA).
2. Ensure that during normal operation the EHT does not exceed 28,15 KV (at a beam current of 1800 µA).
This level has been preset in the factory. Always check that this level has not been exceeded after
carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

5
28LF-92EES
CONTROLS & TERMINALS
VIDEO
AUDIO L (L/S/G/I) = Audio left
AUDIO R (R/D/D/D) = Audio right
= Headphone 3,6 mm Ø
Speakers (left + right)
= ower On / Off
= Volume -/+
CH = rogram -/+
S-VIDEO
&+
&+ 69,'(2 9,'(2 /6*,

5'' '
$8',2
69,'(2 9,'(2 /6*,

5'''
$8',2
FRONT PANEL
REAR TV
RF Input
1. Aerial terminal
21-pin In/Out
2. 21-pin Audio/Video (RGB) (AV-1) With
PAL/SE AM/NTS Video Input
3. 21-pin Audio/Video (AV-2) With
PAL/SE AM/NTS Video Input
(;7
(;7


6
28LF-92EES

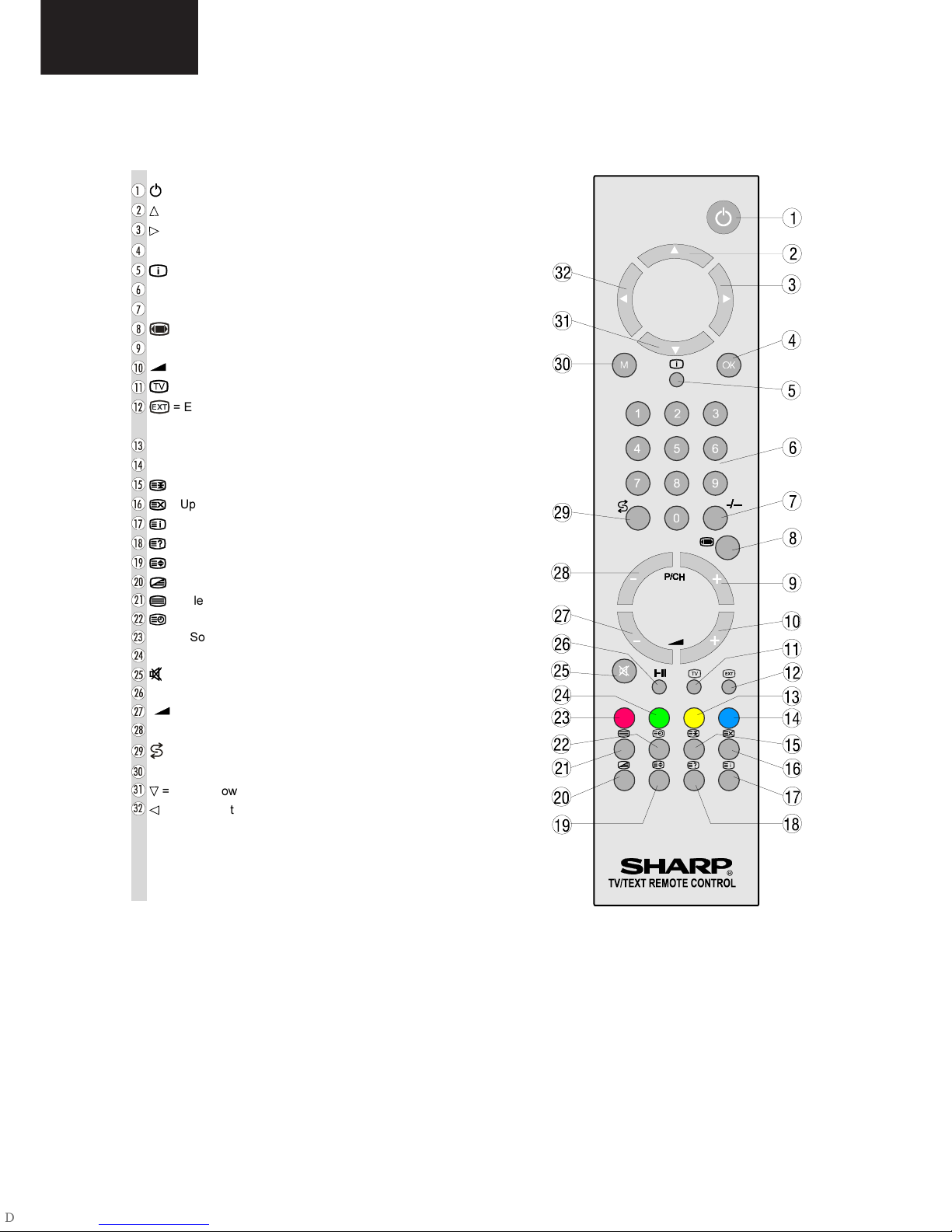

REMOTE CONTROL
 = Stand By
= Cursor Up
= Cursor Right
OK = OK
= Info ( rogram Menu)
0 - 9 = Direct rogram
-/-- = Double Digit
= Wide mode button
P/CH+ = rogram +
+ = Volume +
= TV / Quit Menu
(;7
= EXT button
(EXT-1, RGB, EXT-2, F-AV, SVHS)
Y llow = Feature Menu
Blu = Installation Menu
= Hold
 
= Update
= Index age
= Reveal
= Expand
= Mix

= Teletext
= Time

R d = Sound Menu
Gr n = icture Menu
= Mute
I-II = Mono/Stereo - Dual I-II
- = - Volume
- P/CH = - rogram
= Flash back button

M = Menu

= Cursor Down

= Cursor Left

7
28LF-92EES
CHASSIS LAYOUT
Mother Unit
CRT Unit Control Panel Unit

8
28LF-92EES
PARTS LISTING
REPLACEMENT PARTS
Replacement parts which have special safety characteristics are identified in
this manual. Electrical components having such features are identified by
in the Replacement Parts Listing.
The use of a substitute replacement part which does not have the same safety
characteristics as the factory recommended is not permitted.
Replacement parts not shown in this service manual may create shock fire, or
other hazards.
HOW TO ORDER REPLACEMENT PARTS
To have your order completed promptly and correctly please supply the follow-
ing information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. (*) 4. DESCRIPTION
5. CODE 6. QUANTITY
(*) When ordering any part, a “V” should be added before the Part No.
(*)
REF No. PARTS DESCRIPTION SN CODE EX CODE
Q203 30001457 TR BC848B SMD AA AC
Q208 30001457 TR BC848B SMD AA AC
Q216 30001457 TR BC848B SMD AA AC
Q218 30001458 TR BC858B SMD AA AB
Q220 30001457 TR BC848B SMD AA AC
Q221 30001457 TR BC848B SMD AA AC
Q222 30001457 TR BC848B SMD AA AC
Q223 30001457 TR BC848B SMD AA AC
Q3 30001453 TR BC337 AA AC
Q4 30001452 TR BC327 AA AC
Q500 30001457 TR BC848B SMD AA AC
Q501 30001457 TR BC848B SMD AA AC
Q502 30001457 TR BC848B SMD AA AC
Q503 30001457 TR BC848B SMD AA AC
Q504 30001457 TR BC848B SMD AA AC
Q505 30001458 TR BC858B SMD AA AB
Q508 30001457 TR BC848B SMD AA AC
Q511 30001457 TR BC848B SMD AA AC
Q513 30001458 TR BC858B SMD AA AB
Q600 30001429 TR BUK444-200A AD AM
Q601 30001435 TR NBJT BC639 1A/100V TO92 AA AB
Q602 30001441 TR BU2508AF AE AP
Q603 30001458 TR BC858B SMD AA AB
Q605 30001458 TR BC858B SMD AA AB
Q606 30001458 TR BC858B SMD AA AB
Q700 30001458 TR BC858B SMD AA AB
Q703 30001458 TR BC858B SMD AA AB
Q704 30001457 TR BC848B SMD AA AC
Q900 30001427 TR BF422 AA AE
Q901 30001458 TR BC858B SMD AA AB
Q902 30001458 TR BC858B SMD AA AB
Q903 30001458 TR BC858B SMD AA AB
Q904 30001458 TR BC858B SMD AA AB
Q905 30001458 TR BC858B SMD AA AB
Q906 30001452 TR BC327 AA AC
DIODES
D1 30009699 DIODE ZENER SMD BZT55C12 AA AB
D100 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D100 30001279 LED RED/GREEN LTL293SJ AC AH
D100 30002733 LED INFRARED IR333 AA AC
D101 20108354 DIODE BRIDGE GBU4M 4A/1000V 150A(FORMLU) AB AE
D101 30001371 DIODE ZENER 5.1V ZPD AA AB
D102 30001371 DIODE ZENER 5.1V ZPD AA AB
D103 30001318 DIODE BA159 1A/800V 20A AA AB
D103 30001371 DIODE ZENER 5.1V ZPD AA AB
D104 30001318 DIODE BA159 1A/800V 20A AA AB
D104 30001371 DIODE ZENER 5.1V ZPD AA AB
D105 30001318 DIODE BA159 1A/800V 20A AA AB
D105 30001371 DIODE ZENER 5.1V ZPD AA AB
D106 30001344 DIODE ZENER 6.2V 1/2W AA AB
D106 30001371 DIODE ZENER 5.1V ZPD AA AB
D107 30001371 DIODE ZENER 5.1V ZPD AA AB
D108 30001315 DIODE BYD33D 1A/200V 20A AA AE
D110 30001288 DIODE BYV27-200 2A/200V 50A AA AD
D111 30001323 DIODE BY299 2A/800V 70A AA AD
D112 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D113 30003720 DIODE ZENER BZT55C5V6 5.6V SMD AA AB
D114 30001285 DIODE 1N4148 SMD AA AB
D118 30009366 DIODE UF5402 3A/200V 150A AB AF
D119 30009366 DIODE UF5402 3A/200V 150A AB AF
D121 20092405 CN.ASY.37-DIODE UF5407+FERRITE BAR 5*8 AB AE
D125 30001285 DIODE 1N4148 SMD AA AB
D127 30001315 DIODE BYD33D 1A/200V 20A AA AE
D129 30001285 DIODE 1N4148 SMD AA AB
D130 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D131 30001318 DIODE BA159 1A/800V 20A AA AB
REF No. PARTS DESCRIPTION SN CODE EX CODE
. 30016948 28" CPT TUBE 16:9 50HZ REAL FLAT CK DF
. 30029092 28" 16:9 RF DEG COIL&EARTH CB. WO/UL S AL AX
TUNER
TU200 30009637 TUNER WSP (PLL) 38.9 MK2 - BATCH AR BC
INTEGRATED CIRCUITS
IC1 30001665 IC LM358N AA AE
IC100 30015087 IC SAFE OPTOCOUPLER TCET1102G AA AE
IC100 30001669 PREAMPLIFIER TFMS1380 AD AM
IC101 30001622 IC 7805 (1A) AB AF
IC101 30018063 IC HT48RA0A OTP AF AR
IC102 30001668 IC LM317T AC AH
IC103 30001668 IC LM317T AC AH
IC104 30001500 IC LM7808 AC AH
IC106 30011968 IC SMPS MC44608 DIP8 AF AQ
IC116 30001506 IC TL431 AC AH
IC200 30019492 IC VDP3134Y AP BA
IC201 30001619 IC VIDEO SWITCH TEA6415C DIP20 AM AY
IC206 30021083 IC TDA9886T/V3-SO24 AL AX
IC301 30016113 IC AAMP TDA7269A 2*14W MULTIWATT11 AH AV
IC500 20152368 PR.IC.45-SHARP 1.2.77-L.1 AS BD
IC502 20142752 IC 24C16 V054L5314A00000110812 AB AF
IC600 30007793 IC STV9379FA AK AW
IC601 30001506 IC TL431 AC AH
IC700 30013658 IC MSP3410G SDIP64 AS BD
IC704 30001518 IC TDA1308 AE AP
IC900 30018768 IC TDA6109 AK AW
IC901 30014346 IC 78L05 TO-92 (100mA) AA AE
IC902 30014346 IC 78L05 TO-92 (100mA) AA AE
TRANSISTORS
Q1 30001452 TR BC327 AA AC
Q100 30001453 TR BC337 AA AC
Q102 30001386 TR MTP6N60E (PLASTIC) AE AP
Q103 30001454 TR BC548B AA AC
Q106 30001454 TR BC548B AA AC
Q107 30001428 TR BF423 AA AC
Q108 30001457 TR BC848B SMD AA AC
Q109 30001457 TR BC848B SMD AA AC
Q110 30001384 TR MCR22-6 AB AG
Q112 30001458 TR BC858B SMD AA AB
Q113 30001457 TR BC848B SMD AA AC
Q114 30001457 TR BC848B SMD AA AC
Q2 30001453 TR BC337 AA AC
Q200 30001457 TR BC848B SMD AA AC
Q201 30001457 TR BC848B SMD AA AC
Q202 30001457 TR BC848B SMD AA AC
PICTURE TUBE

9
28LF-92EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
D132 30001285 DIODE 1N4148 SMD AA AB
D133 30003722 DIODE ZENER ZPD15V AA AA
D134 30001285 DIODE 1N4148 SMD AA AB
D2 30009699 DIODE ZENER SMD BZT55C12 AA AB
D200 30001285 DIODE 1N4148 SMD AA AB
D204 30001285 DIODE 1N4148 SMD AA AB
D205 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D206 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D207 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D208 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D209 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D212 30001285 DIODE 1N4148 SMD AA AB
D213 30012411 DIODE BA782 SMD AA AD
D214 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D215 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D216 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D217 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D218 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D219 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D220 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D221Y 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D222Y 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D506 30012412 DIODE ZENER 2.4V SMD AA AB
D601 30001377 DIODE ZENER 33V UZT 33B AB AF
D602 30001318 DIODE BA159 1A/800V 20A AA AB
D603 30001299 DIODE UF5404 3A/400V 150A AA AD
D604 30001299 DIODE UF5404 3A/400V 150A AA AD
D609 30001318 DIODE BA159 1A/800V 20A AA AB
D610 30001318 DIODE BA159 1A/800V 20A AA AB
D611 30007681 DIODE UF5407 3A/800V 150A AB AF
D612 30001285 DIODE 1N4148 SMD AA AB
D613 30001291 DIODE HER107 1A/800V 30A AA AB
D614 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D615 30001318 DIODE BA159 1A/800V 20A AA AB
D617 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D622 30001285 DIODE 1N4148 SMD AA AB
D623 30001285 DIODE 1N4148 SMD AA AB
D624 30001285 DIODE 1N4148 SMD AA AB
D625 30001320 DIODE GUC BY228 AB AF
D627 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D628 30001285 DIODE 1N4148 SMD AA AB
D701 30007761 DIODE ZENER SMD BZT55C3V6 AA AB
D702 30001285 DIODE 1N4148 SMD AA AB
D706 30001285 DIODE 1N4148 SMD AA AB
D902 30001318 DIODE BA159 1A/800V 20A AA AB
D903 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D904 30001318 DIODE BA159 1A/800V 20A AA AB
D905 30001318 DIODE BA159 1A/800V 20A AA AB
D907 30001318 DIODE BA159 1A/800V 20A AA AB
D908 30014353 DIODE BAT85 AA AC
D909 30001285 DIODE 1N4148 SMD AA AB
D910 30001285 DIODE 1N4148 SMD AA AB
PACKAGED CIRCUITS
X100 30002852 XTAL REZ 455KHZ AA AD
X200 30002851 XTAL 4MHZ L.C=30PF AC AH
X201 30008778 XTAL 20.25MHZ AB AF
X500 30006662 XTAL 6MHZ AC AH
X700 30001756 XTAL 18.432MHZ AE AP
COILS
L100 30001979 FIXED COIL 1UH Q45 M-A AA AB
L101 30018866 LINE FILTER SAFE 2X22MH 10mmX12.5mm AC AH
L101 30001979 FIXED COIL 1UH Q45 M-A AA AB
L102 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L103 30001992 FIXED COIL 10UH Q65 K-A AA AB
L107(NOT2) 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
REF No. PARTS DESCRIPTION SN CODE EX CODE
L203 30001996 FIXED COIL 22UH Q40 K AA AB
L206 30001979 FIXED COIL 1UH Q45 M-A AA AB
L207 30001979 FIXED COIL 1UH Q45 M-A AA AB
L212 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L213 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L214 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L215 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L216 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L217 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L218 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L220 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L227 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L232 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L236 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L239 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L247 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L251 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L252 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L263 30001979 FIXED COIL 1UH Q45 M-A AA AB
L264 30001979 FIXED COIL 1UH Q45 M-A AA AB
L265 30001979 FIXED COIL 1UH Q45 M-A AA AB
L266 30001987 FIXED COIL 4.7UH Q70 K-A AA AB
L500 30001992 FIXED COIL 10UH Q65 K-A AA AB
L501 30001992 FIXED COIL 10UH Q65 K-A AA AB
L502 30001992 FIXED COIL 10UH Q65 K-A AA AB
L503 30001992 FIXED COIL 10UH Q65 K-A AA AB
L504 30001992 FIXED COIL 10UH Q65 K-A AA AB
L505 30001992 FIXED COIL 10UH Q65 K-A AA AB
L506 30006770 FIXED COIL 0.22UH AA AB
L601 30002031 FIXED COIL INJECTION 15MH AD AL
L602 30002156 LINEARITY COIL 30UH 110' (AK19) AD AL
L603 30002829 FIXED COIL BRIDGE 1.5MH AD AL
L700 30001996 FIXED COIL 22UH Q40 K AA AB
L701 30001996 FIXED COIL 22UH Q40 K AA AB
L702 30001996 FIXED COIL 22UH Q40 K AA AB
L703 30001996 FIXED COIL 22UH Q40 K AA AB
L711 30001996 FIXED COIL 22UH Q40 K AA AB
L714 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L715 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L717 30001979 FIXED COIL 1UH Q45 M-A AA AB
L719 30001968 FERRITE BEAD (0805) BLM21B201S AA AE
CERAMIC FILTERS
Z200 30014261 FILTER SAW K3958M AF AR
Z201 30012545 FILTER SAW K9656M AG AR
TRANSFORMERS
TR100 30019432 TRF SMPS SAFE AK45 110° (170-270V) AG AS
TR600 30021290 TRF FBT SAFE 110° 50HZ LAYER AS BC
TR601 30002090 LINE DRIVER NEW TYPE AD AM
. 30015614 TRF PFC SAFE 0,9A 42 MH EP AL AX
CAPACITORS
C1 30000353 CAP EL 100UF 25V M AA AB
C100 30000190 CAP CER 100PF 50V J CH AA AB
C100 30000352 CAP EL 100UF 16V M AA AB
C101 30000190 CAP CER 100PF 50V J CH AA AB
C101 30012560 CAP SMD 100PF 50V J (0603) AA AB
C102 30000084 CAP MKT SAFE 150NF 275V M AC P=15 AC AG
C102 30000190 CAP CER 100PF 50V J CH AA AB
C102 30012560 CAP SMD 100PF 50V J (0603) AA AB
C103 30000094 CAP MKT SAFE 220NF 275V M AC AA AB
C103 30000190 CAP CER 100PF 50V J CH AA AB
C103 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C104 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C105 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C105 30000433 CAP CER 1NF 1KV M B AA AB

10
28LF-92EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
C106 30000371 CAP EL 22UF 50V M AA AB
C106 30000290 CAP CER 10NF 50V Z F AA AB
C107 30000420 CAP EL 150UF 400V M AF AQ
C107 30000290 CAP CER 10NF 50V Z F AA AB
C108 30000161 CAP MKP SAFE 47NF 630V J AB AE
C109 30000371 CAP EL 22UF 50V M AA AB
C111 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C113 30006940 CAP CER 2.7NF 1KV K B AA AB
C114 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C115 30000440 CAP CER SAFE 2.2NF 4KV M AA AC
C118 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C119 30000090 CAP MKT 22NF 100V J AA AB
C120 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C121 30012560 CAP SMD 100PF 50V J (0603) AA AB
C122 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C124 30000376 CAP EL 220UF 25V M AA AB
C126 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C127 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C129 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C130 30000436 CAP CER 10NF 1KV ZE AA AC
C133 30018259 CAP EL 4700UF 25V M AC AG
C134 30018259 CAP EL 4700UF 25V M AC AG
C135 30018259 CAP EL 4700UF 25V M AC AG
C137 30000367 CAP EL 1UF 250V M AA AB
C138 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C140 30000393 CAP EL 3.3UF 50V M AA AB
C141 30000359 CAP EL 1000UF 16V M AA AC
C142 30000387 CAP EL 33UF 50V M AA AB
C145 30000375 CAP EL 220UF 16V M AA AB
C146 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C147 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C148 30000360 CAP EL 1000UF 25V M AA AE
C149 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C150 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C152 30000375 CAP EL 220UF 16V M AA AB
C154 30000375 CAP EL 220UF 16V M AA AB
C155 30000375 CAP EL 220UF 16V M AA AB
C156 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C157 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C160 30000076 CAP MKT SAFE 100NF 275V M AC AB AE
C161 30000440 CAP CER SAFE 2.2NF 4KV M AA AC
C162 30007708 CAP CER 1NF 1KV K (PULSE) AA AD
C164 30000362 CAP EL 1UF 50V M AA AB
C165 30000362 CAP EL 1UF 50V M AA AB
C166 30000225 CAP CER 220PF 50V J SL AA AB
C168 30000161 CAP MKP SAFE 47NF 630V J AB AE
C170 30012566 CAP SMD 22PF 50V J (0603) AA AB
C171 30012590 CAP SMD 47NF 50V K (0603) AA AA
C172 30000313 CAP CER 22NF 50V Z F AA AB
C173 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C174 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C175 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C176 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C2 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C202 30012643 RES SMD 1/16W 120R J (0603) AA AA
C208 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C209 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C210 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C212 30000352 CAP EL 100UF 16V M AA AB
C213 30012609 CAP SMD 68NF 50V K (0603) AA AB
C214 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C215 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C217 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C218 30012610 CAP SMD 10NF 50V J (0603) AA AB
C222 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C225 30000109 CAP MKT 470NF 63V J AA AD
REF No. PARTS DESCRIPTION SN CODE EX CODE
C226 30000352 CAP EL 100UF 16V M AA AB
C227 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C229 30000345 CAP EL 10UF 50V M AA AB
C231 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C233 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C234 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C235 30012610 CAP SMD 10NF 50V J (0603) AA AB
C237 30012583 CAP SMD 1.5NF 50V K (0603) AA AA
C238 30012610 CAP SMD 10NF 50V J (0603) AA AB
C240 30012559 CAP SMD 10PF 50V D COG (0603) AA AA
C242 30012560 CAP SMD 100PF 50V J (0603) AA AB
C246 30012586 CAP SMD 22NF 50V K (0603) AA AB
C248 30012586 CAP SMD 22NF 50V K (0603) AA AB
C249 30012610 CAP SMD 10NF 50V J (0603) AA AB
C252 30000387 CAP EL 33UF 50V M AA AB
C253 30000345 CAP EL 10UF 50V M AA AB
C255 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C258 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C259 30000345 CAP EL 10UF 50V M AA AB
C260 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C261 30012588 CAP SMD 33NF 50V K (0603) AA AA
C262 30012610 CAP SMD 10NF 50V J (0603) AA AB
C263 30012588 CAP SMD 33NF 50V K (0603) AA AA
C264 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C265 30000109 CAP MKT 470NF 63V J AA AD
C266 30000109 CAP MKT 470NF 63V J AA AD
C267 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C268 30012590 CAP SMD 47NF 50V K (0603) AA AA
C269 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C270 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C271 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C273 30012590 CAP SMD 47NF 50V K (0603) AA AA
C274 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C275 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C276 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C277 30000345 CAP EL 10UF 50V M AA AB
C278 30012559 CAP SMD 10PF 50V D COG (0603) AA AA
C279 30012559 CAP SMD 10PF 50V D COG (0603) AA AA
C280 30000345 CAP EL 10UF 50V M AA AB
C282 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C283 30000345 CAP EL 10UF 50V M AA AB
C284 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C286 30000345 CAP EL 10UF 50V M AA AB
C287 30012607 CAP SMD 150PF 50V J (0603) AA AA
C288 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C289 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C290 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C292 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C293 30012607 CAP SMD 150PF 50V J (0603) AA AA
C296 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C3 30000353 CAP EL 100UF 25V M AA AB
C300 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C301 30012607 CAP SMD 150PF 50V J (0603) AA AA
C302 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C304 30012607 CAP SMD 150PF 50V J (0603) AA AA
C308 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C327 30000109 CAP MKT 470NF 63V J AA AD
C331 30012572 CAP SMD 390PF 50V J (0603) AA AA
C333 30012579 CAP SMD 82PF 50V J (0603) AA AB
C348 30000109 CAP MKT 470NF 63V J AA AD
C349 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C350 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C351 30000345 CAP EL 10UF 50V M AA AB
C352 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C353 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C355 30012603 CAP SMD 100NF 25V K R (0603) AA AB

11
28LF-92EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
C356 30000109 CAP MKT 470NF 63V J AA AD
C357 30000345 CAP EL 10UF 50V M AA AB
C358 30000345 CAP EL 10UF 50V M AA AB
C359 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C360 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C361 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C362 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C4 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C5 30000078 CAP MKT 1UF 100V M AB AF
C506 30000345 CAP EL 10UF 50V M AA AB
C507 30000393 CAP EL 3.3UF 50V M AA AB
C508 30000345 CAP EL 10UF 50V M AA AB
C509 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C510 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C511 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C514 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C515 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C516 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C517 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C518 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C519 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C520 30012573 CAP SMD 47PF 50V J (0603) AA AB
C521 30012573 CAP SMD 47PF 50V J (0603) AA AB
C522 30000345 CAP EL 10UF 50V M AA AB
C523 30000345 CAP EL 10UF 50V M AA AB
C524 30000345 CAP EL 10UF 50V M AA AB
C525 30000345 CAP EL 10UF 50V M AA AB
C527 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C530 30000375 CAP EL 220UF 16V M AA AB
C531 30000393 CAP EL 3.3UF 50V M AA AB
C537 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C601 30000351 CAP EL 10UF 350V M AA AE
C603 30000402 CAP EL 47UF 100V M AA AB
C604 30000075 CAP MKT 100NF 250V K (DC) AA AD
C605 30000406 CAP EL 47UF 250V M (HR) 105° AD AL
C607 30012610 CAP SMD 10NF 50V J (0603) AA AB
C608 30000409 CAP EL 470UF 25V M AA AD
C609 30000082 CAP MKT 15NF 63V J AA AB
C612 30000348 CAP EL 10UF 160V M AA AB
C613 30000360 CAP EL 1000UF 25V M AA AE
C614 30000360 CAP EL 1000UF 25V M AA AE
C616 30023448 CAP MKP 4.3NF 2KV J AA AD
C617 30000161 CAP MKP SAFE 47NF 630V J AB AE
C618 30000444 CAP CER 470PF 1KV KB AA AB
C619 30000367 CAP EL 1UF 250V M AA AB
C621 30000136 CAP MKP SAFE 12NF 2000V %3.5 AC AG
C622 30000137 CAP MKP 15NF 630V J AC AG
C623 30000162 CAP MKP SAFE 470NF 250V J AD AL
C624 30013003 CAP MKP SAFE 1UF 250V J P=15 AC AG
C628 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C630 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C631 30000296 CAP CER 100NF 100V Z F AA AB
C632 30000074 CAP MKT 100NF 63V J AA AC
C633 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C635 30012584 CAP SMD 1.8NF 50V K R (0603) AA AA
C636 30009208 CAP CER 470PF 1KV K (PULSE) AA AC
C637 30000332 CAP SMD 4.7NF 50V K (0805) AA AB
C638 30000092 CAP MKT 220NF 63V J AA AD
C643 30000092 CAP MKT 220NF 63V J AA AD
C644 30012591 CAP SMD 5.6NF 50V K (0603) AA AA
C645 30012591 CAP SMD 5.6NF 50V K (0603) AA AA
C646 30000296 CAP CER 100NF 100V Z F AA AB
C648 30000069 CAP MKT 1NF 100V J AA AC
C700 30000352 CAP EL 100UF 16V M AA AB
C701 30000345 CAP EL 10UF 50V M AA AB
C702 30012583 CAP SMD 1.5NF 50V K (0603) AA AA
REF No. PARTS DESCRIPTION SN CODE EX CODE
C706 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C707 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C708 30000407 CAP EL 470UF 16V M AA AC
C712 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C713 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C715 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C716 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C717 30000092 CAP MKT 220NF 63V J AA AD
C718 30000092 CAP MKT 220NF 63V J AA AD
C719 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C720 30000345 CAP EL 10UF 50V M AA AB
C721 30012576 CAP SMD 56PF 50V J CH (0603) AA AA
C722 30012576 CAP SMD 56PF 50V J CH (0603) AA AA
C724 30000345 CAP EL 10UF 50V M AA AB
C725 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C728 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C729 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C730 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C731 30012583 CAP SMD 1.5NF 50V K (0603) AA AA
C732 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C733 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C734 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C735 30000393 CAP EL 3.3UF 50V M AA AB
C736 30000345 CAP EL 10UF 50V M AA AB
C737 30000345 CAP EL 10UF 50V M AA AB
C738 30012576 CAP SMD 56PF 50V J CH (0603) AA AA
C739 30000345 CAP EL 10UF 50V M AA AB
C740 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C741 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C742 30012565 CAP SMD 1.8PF 50V J CH (0603) AA AA
C743 30012565 CAP SMD 1.8PF 50V J CH (0603) AA AA
C744 30000345 CAP EL 10UF 50V M AA AB
C745 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C746 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C747 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C748 30012583 CAP SMD 1.5NF 50V K (0603) AA AA
C749 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C750 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C751 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C754 30000352 CAP EL 100UF 16V M AA AB
C763 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C764 30012567 CAP SMD 220PF 50V J (0603) AA AB
C765 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C767 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C769 30000345 CAP EL 10UF 50V M AA AB
C771 30000345 CAP EL 10UF 50V M AA AB
C772 30000345 CAP EL 10UF 50V M AA AB
C774 30012567 CAP SMD 220PF 50V J (0603) AA AB
C775 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C776 30000352 CAP EL 100UF 16V M AA AB
C779 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C781 30012590 CAP SMD 47NF 50V K (0603) AA AA
C782 30000352 CAP EL 100UF 16V M AA AB
C783 30012590 CAP SMD 47NF 50V K (0603) AA AA
C784 30000362 CAP EL 1UF 50V M AA AB
C785 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C786 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C789 30000362 CAP EL 1UF 50V M AA AB
C791 30000362 CAP EL 1UF 50V M AA AB
C793 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C794 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C795 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C796 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C803 30012573 CAP SMD 47PF 50V J (0603) AA AB
C808 30000345 CAP EL 10UF 50V M AA AB
C809 30000409 CAP EL 470UF 25V M AA AD

12
28LF-92EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
C810 30012574 CAP SMD 470PF 50V J (0603) AA AA
C811 30012574 CAP SMD 470PF 50V J (0603) AA AA
C900 30000075 CAP MKT 100NF 250V K (DC) AA AD
C902 30000415 CAP EL 4.7UF 250V M AA AC
C904 30000287 CAP CER 10NF 50V K B AA AA
C905 30000350 CAP EL 10UF 250V M AA AD
C906 30000075 CAP MKT 100NF 250V K (DC) AA AD
C908 30000438 CAP CER 2.2NF 2KV AA AD
C909 30000359 CAP EL 1000UF 16V M AA AC
C910 30000294 CAP SMD 100NF 50V K (0805) AA AB
C913 30000294 CAP SMD 100NF 50V K (0805) AA AB
C914 30012577 CAP SMD 560PF 50V J (0603) AA AA
C915 30000407 CAP EL 470UF 16V M AA AC
C916 30000352 CAP EL 100UF 16V M AA AB
C918 30012577 CAP SMD 560PF 50V J (0603) AA AA
C919 30012577 CAP SMD 560PF 50V J (0603) AA AA
C920 30012577 CAP SMD 560PF 50V J (0603) AA AA
C921 30000294 CAP SMD 100NF 50V K (0805) AA AB
C931 30000075 CAP MKT 100NF 250V K (DC) AA AD
C932 30000367 CAP EL 1UF 250V M AA AB
C934 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C TUNER 30000285 CAP CER 1NF 100V KB AA AA
RESISTORS
R1 30012673 RES SMD 1/16W 270R J (0603) AA AB
R100 30000718 RES CF 1/4W 4.7K J AA AB
R100 30000689 RES CF 1/4W 3.9K J AA AB
R100 30012510 RES SMD 1/16W 100R J (0603) AA AB
R101 30000896 RES MF 1/4W 160K G AA AA
R101 30000526 RES CF 1/4W 1.5K J AA AB
R101 30000489 RES SMD 1/10W 1R J (0805) AA AB
R102 30000594 RES CF 1/4W 22K J AA AB
R103 30000770 RES CF 1/4W 680R J AA AB
R103 30012509 RES SMD 1/16W 100K J (0603) AA AB
R104 30000594 RES CF 1/4W 22K J AA AB
R105 30000982 RES MF 1/4W 4.7K J AA AA
R105 30000712 RES CF 1/4W 470R J AA AB
R106 30000593 RES SMD 1/10W 2.2K J (0805) AA AB
R106 30000712 RES CF 1/4W 470R J AA AB
R107 30000712 RES CF 1/4W 470R J AA AB
R108 30000452 RES CF 1/4W 10R J AA AB
R108 30000650 RES CF 1/4W 33R J AA AB
R109 30000650 RES CF 1/4W 33R J AA AB
R110 30012657 RES SMD 1/16W 1K J (0603) AA AB
R110 30000471 RES CF 1/4W 10K J AA AB
R111 30000808 RES CF 1/4W 82R J AA AB
R112 30012657 RES SMD 1/16W 1K J (0603) AA AB
R112 30000471 RES CF 1/4W 10K J AA AB
R113 30000808 RES CF 1/4W 82R J AA AB
R116 30001173 RES MO 1W 0.47R J AA AB
R117 30001257 RES MG SAFE 1/2W 4.7M J AA AD
R118 30000580 RES CF 1/4W 22R J AA AB
R119 30012641 RES SMD 1/16W 10K J (0603) AA AB
R122 30014022 RES SMD 1/16W 47R J (0603) AA AA
R126 30012641 RES SMD 1/16W 10K J (0603) AA AB
R127 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R129 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R130 30012641 RES SMD 1/16W 10K J (0603) AA AB
R131 30000886 RES MF 1/4W 1.5K F AA AB
R132 30000886 RES MF 1/4W 1.5K F AA AB
R133 30000880 RES MF 1/4W 130K F AA AA
R134 30000575 RES SMD 1/10W 2K J AA AB
R137 30000481 RES CF 1/4W 1M J AA AB
R138 30000660 RES CF 1/4W 3.3K J AA AB
R139 30000593 RES SMD 1/10W 2.2K J (0805) AA AB
R140 30001174 RES MO 2W 0.47R J AA AB
R141 30012641 RES SMD 1/16W 10K J (0603) AA AB
REF No. PARTS DESCRIPTION SN CODE EX CODE
R142 30012657 RES SMD 1/16W 1K J (0603) AA AB
R143 30020455 RES SMD 1/16W 1.5K F (0603) AA AA
R144 30000480 RES SMD 1/10W 100K J (0805) AA AB
R145 30020457 RES SMD 1/16W 910R F (0603) AA AA
R146 30012697 RES SMD 1/16W 5.1K J (0603) AA AA
R147 30020455 RES SMD 1/16W 1.5K F (0603) AA AA
R148 30020457 RES SMD 1/16W 910R F (0603) AA AA
R149 30012657 RES SMD 1/16W 1K J (0603) AA AB
R150 30000466 RES CF 1/4W 1K J AA AB
R151 30012641 RES SMD 1/16W 10K J (0603) AA AB
R152 30001224 RES FUSE SAFE 1/2W 0.22R J AA AB
R153 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R154 30012641 RES SMD 1/16W 10K J (0603) AA AB
R155 30012641 RES SMD 1/16W 10K J (0603) AA AB
R156 30012641 RES SMD 1/16W 10K J (0603) AA AB
R157 30012641 RES SMD 1/16W 10K J (0603) AA AB
R158 30012657 RES SMD 1/16W 1K J (0603) AA AB
R161 30012657 RES SMD 1/16W 1K J (0603) AA AB
R162 30000494 RES SMD 1/10W 120R J (0805) AA AA
R164 30000593 RES SMD 1/10W 2.2K J (0805) AA AB
R165 30001159 RES MO 1W 0.33R J AA AB
R166 30012641 RES SMD 1/16W 10K J (0603) AA AB
R167 30018085 CAP VAR SAFE 510V K MFCN14D511 AA AD
R168 30018085 CAP VAR SAFE 510V K MFCN14D511 AA AD
R2 30012641 RES SMD 1/16W 10K J (0603) AA AB
R200 30012713 RES SMD 1/16W 75R J (0603) AA AB
R201 30012713 RES SMD 1/16W 75R J (0603) AA AB
R202 30012713 RES SMD 1/16W 75R J (0603) AA AB
R203 30012713 RES SMD 1/16W 75R J (0603) AA AB
R204 30012713 RES SMD 1/16W 75R J (0603) AA AB
R205 30012713 RES SMD 1/16W 75R J (0603) AA AB
R206 30000459 RES CF 1/4W 100R J AA AB
R207 30000459 RES CF 1/4W 100R J AA AB
R208 30012510 RES SMD 1/16W 100R J (0603) AA AB
R209 30012510 RES SMD 1/16W 100R J (0603) AA AB
R210 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R211 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R215 30012713 RES SMD 1/16W 75R J (0603) AA AB
R217 30012641 RES SMD 1/16W 10K J (0603) AA AB
R219 30000792 RES CF 1/4W 75R J AA AB
R220 30012641 RES SMD 1/16W 10K J (0603) AA AB
R221 30000792 RES CF 1/4W 75R J AA AB
R222 30012641 RES SMD 1/16W 10K J (0603) AA AB
R230 30012641 RES SMD 1/16W 10K J (0603) AA AB
R231 30000792 RES CF 1/4W 75R J AA AB
R232 30012713 RES SMD 1/16W 75R J (0603) AA AB
R233 30012657 RES SMD 1/16W 1K J (0603) AA AB
R234 30012702 RES SMD 1/16W 560R J (0603) AA AA
R235 30000655 RES CF 1/4W 330R J AA AB
R236 30012713 RES SMD 1/16W 75R J (0603) AA AB
R237 30012641 RES SMD 1/16W 10K J (0603) AA AB
R238 30012641 RES SMD 1/16W 10K J (0603) AA AB
R239 30012713 RES SMD 1/16W 75R J (0603) AA AB
R241 30012510 RES SMD 1/16W 100R J (0603) AA AB
R242 30012696 RES SMD 1/16W 47K J (0603) AA AB
R247 30000500 RES CF 1/4W 12K J AA AB
R248 30012641 RES SMD 1/16W 10K J (0603) AA AB
R254 30012657 RES SMD 1/16W 1K J (0603) AA AB
R256 30012655 RES SMD 1/16W 180R J (0603) AA AA
R259 30000593 RES SMD 1/10W 2.2K J (0805) AA AB
R260 30012669 RES SMD 1/16W 22K J (0603) AA AB
R261 30012677 RES SMD 1/16W 3.3K J (0603) AA AA
R265 30000459 RES CF 1/4W 100R J AA AB
R266 30000459 RES CF 1/4W 100R J AA AB
R267 30012657 RES SMD 1/16W 1K J (0603) AA AB
R268 30012641 RES SMD 1/16W 10K J (0603) AA AB

13
28LF-92EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
R269 30012641 RES SMD 1/16W 10K J (0603) AA AB
R270 30012641 RES SMD 1/16W 10K J (0603) AA AB
R272 30012713 RES SMD 1/16W 75R J (0603) AA AB
R274 30012702 RES SMD 1/16W 560R J (0603) AA AA
R276 30000593 RES SMD 1/10W 2.2K J (0805) AA AB
R277 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R278 30012713 RES SMD 1/16W 75R J (0603) AA AB
R279 30012713 RES SMD 1/16W 75R J (0603) AA AB
R280 30012713 RES SMD 1/16W 75R J (0603) AA AB
R281 30012673 RES SMD 1/16W 270R J (0603) AA AB
R282 30012668 RES SMD 1/16W 220R J (0603) AA AA
R283 30012707 RES SMD 1/16W 680R J (0603) AA AB
R284 30012684 RES SMD 1/16W 330R J (0603) AA AA
R285 30012707 RES SMD 1/16W 680R J (0603) AA AB
R286 30012707 RES SMD 1/16W 680R J (0603) AA AB
R288 30000770 RES CF 1/4W 680R J AA AB
R289 30012707 RES SMD 1/16W 680R J (0603) AA AB
R299 30012510 RES SMD 1/16W 100R J (0603) AA AB
R308 30012641 RES SMD 1/16W 10K J (0603) AA AB
R310 30012713 RES SMD 1/16W 75R J (0603) AA AB
R316 30012641 RES SMD 1/16W 10K J (0603) AA AB
R317 30000792 RES CF 1/4W 75R J AA AB
R318 30012657 RES SMD 1/16W 1K J (0603) AA AB
R326 30000815 RES CF 1/4W 8.2K J AA AB
R327 30000480 RES SMD 1/10W 100K J (0805) AA AB
R330 30012657 RES SMD 1/16W 1K J (0603) AA AB
R334 30012713 RES SMD 1/16W 75R J (0603) AA AB
R336 30000466 RES CF 1/4W 1K J AA AB
R337 30000466 RES CF 1/4W 1K J AA AB
R338 30000466 RES CF 1/4W 1K J AA AB
R342 30012657 RES SMD 1/16W 1K J (0603) AA AB
R343 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R349 30012641 RES SMD 1/16W 10K J (0603) AA AB
R350 30012510 RES SMD 1/16W 100R J (0603) AA AB
R351 30012510 RES SMD 1/16W 100R J (0603) AA AB
R352 30012698 RES SMD 1/16W 5.6K J (0603) AA AB
R353 30012685 RES SMD 1/16W 33K J (0603) AA AA
R354 30012677 RES SMD 1/16W 3.3K J (0603) AA AA
R355 30012643 RES SMD 1/16W 120R J (0603) AA AA
R356 30012707 RES SMD 1/16W 680R J (0603) AA AB
R357 30012644 RES SMD 1/16W 12K J (0603) AA AB
R358 30012655 RES SMD 1/16W 180R J (0603) AA AA
R359 30012669 RES SMD 1/16W 22K J (0603) AA AB
R4 30012677 RES SMD 1/16W 3.3K J (0603) AA AA
R400 30012669 RES SMD 1/16W 22K J (0603) AA AB
R404 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R406 30012650 RES SMD 1/16W 15K J (0603) AA AB
R409 30012713 RES SMD 1/16W 75R J (0603) AA AB
R411 30012657 RES SMD 1/16W 1K J (0603) AA AB
R412 30012657 RES SMD 1/16W 1K J (0603) AA AB
R413 30012713 RES SMD 1/16W 75R J (0603) AA AB
R414 30012713 RES SMD 1/16W 75R J (0603) AA AB
R415 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R416 30012695 RES SMD 1/16W 470R J (0603) AA AB
R417 30012695 RES SMD 1/16W 470R J (0603) AA AB
R418 30012695 RES SMD 1/16W 470R J (0603) AA AB
R419 30012695 RES SMD 1/16W 470R J (0603) AA AB
R420 30012695 RES SMD 1/16W 470R J (0603) AA AB
R421 30012695 RES SMD 1/16W 470R J (0603) AA AB
R422 30012695 RES SMD 1/16W 470R J (0603) AA AB
R423 30012695 RES SMD 1/16W 470R J (0603) AA AB
R424 30012695 RES SMD 1/16W 470R J (0603) AA AB
R425 30012695 RES SMD 1/16W 470R J (0603) AA AB
R426 30012695 RES SMD 1/16W 470R J (0603) AA AB
R427 30012661 RES SMD 1/16W 2.4K J (0603) AA AA
R428 30012510 RES SMD 1/16W 100R J (0603) AA AB
REF No. PARTS DESCRIPTION SN CODE EX CODE
R429 30012510 RES SMD 1/16W 100R J (0603) AA AB
R430 30012510 RES SMD 1/16W 100R J (0603) AA AB
R5 30012642 RES SMD 1/16W 120K J (0603) AA AB
R503 30012510 RES SMD 1/16W 100R J (0603) AA AB
R504 30012510 RES SMD 1/16W 100R J (0603) AA AB
R505 30000471 RES CF 1/4W 10K J AA AB
R506 30000471 RES CF 1/4W 10K J AA AB
R507 30012696 RES SMD 1/16W 47K J (0603) AA AB
R508 30012696 RES SMD 1/16W 47K J (0603) AA AB
R509 30012696 RES SMD 1/16W 47K J (0603) AA AB
R510 30012696 RES SMD 1/16W 47K J (0603) AA AB
R512 30012668 RES SMD 1/16W 220R J (0603) AA AA
R513 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R516 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R518 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R519 30000466 RES CF 1/4W 1K J AA AB
R520 30012650 RES SMD 1/16W 15K J (0603) AA AB
R521 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R522 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R523 30012712 RES SMD 1/16W 8.2K J (0603) AA AB
R524 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R526 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R527 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R528 30012650 RES SMD 1/16W 15K J (0603) AA AB
R533 30012685 RES SMD 1/16W 33K J (0603) AA AA
R535 30012641 RES SMD 1/16W 10K J (0603) AA AB
R537 30000466 RES CF 1/4W 1K J AA AB
R538 30012508 RES SMD 1/16W 1.8K J (0603) AA AB
R539 30012508 RES SMD 1/16W 1.8K J (0603) AA AB
R540 30012508 RES SMD 1/16W 1.8K J (0603) AA AB
R541 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R548 30012641 RES SMD 1/16W 10K J (0603) AA AB
R549 30012657 RES SMD 1/16W 1K J (0603) AA AB
R550 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R553 30012695 RES SMD 1/16W 470R J (0603) AA AB
R554 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R555 30012506 RES SMD 1/16W 1.5K J (0603) AA AB
R556 30012703 RES SMD 1/16W 56K J (0603) AA AA
R561 30012982 RES SMD 1/16W 10R J 0603 AA AA
R564 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R565 30012510 RES SMD 1/16W 100R J (0603) AA AB
R566 30012641 RES SMD 1/16W 10K J (0603) AA AB
R567 30000459 RES CF 1/4W 100R J AA AB
R568 30000459 RES CF 1/4W 100R J AA AB
R571 30012657 RES SMD 1/16W 1K J (0603) AA AB
R582 30012641 RES SMD 1/16W 10K J (0603) AA AB
R583 30012641 RES SMD 1/16W 10K J (0603) AA AB
R585 30012641 RES SMD 1/16W 10K J (0603) AA AB
R586 30012641 RES SMD 1/16W 10K J (0603) AA AB
R587 30012641 RES SMD 1/16W 10K J (0603) AA AB
R588 30012697 RES SMD 1/16W 5.1K J (0603) AA AA
R589 30012641 RES SMD 1/16W 10K J (0603) AA AB
R590 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R591 30012711 RES SMD 1/16W 75K J (0603) AA AA
R6 30012673 RES SMD 1/16W 270R J (0603) AA AB
R600 30012510 RES SMD 1/16W 100R J (0603) AA AB
R601 30000470 RES CF 1/2W 10K J AA AA
R603 20147207 CN.ASY.45-R.F.1/2W0.47R+F.B.3.5X4.7X0.8 AA AB
R604 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB
R605 30000927 RES MF 1/4W 220K J AA AB
R607 30012695 RES SMD 1/16W 470R J (0603) AA AB
R608 30001100 RES MO 1W 150R J AA AB
R611 30001229 30001229 AA AC
R612 30000471 RES CF 1/4W 10K J AA AB
R613 30001234 RES FUSE 2W 33R J AA AC
R614 30001229 30001229 AA AC

14
28LF-92EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
R616 30018904 RES MO 5W 4.7k J AA AD
R618 30001229 RES FUSE SAFE 1W 2.2R J AA AC
R621 30012696 RES SMD 1/16W 47K J (0603) AA AB
R622 30012696 RES SMD 1/16W 47K J (0603) AA AB
R623 30012641 RES SMD 1/16W 10K J (0603) AA AB
R624 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R625 30000480 RES SMD 1/10W 100K J (0805) AA AB
R626 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R627 30000480 RES SMD 1/10W 100K J (0805) AA AB
R628 30012657 RES SMD 1/16W 1K J (0603) AA AB
R629 30012674 RES SMD 1/16W 27K J (0603) AA AB
R630 30000872 RES MF 1/4W 120K F AA AA
R631 30000872 RES MF 1/4W 120K F AA AA
R632 30014465 RES SMD 1/16W 2.7K F (603) AA AA
R636 30012641 RES SMD 1/16W 10K J (0603) AA AB
R637 30012657 RES SMD 1/16W 1K J (0603) AA AB
R638 30012674 RES SMD 1/16W 27K J (0603) AA AB
R639 30001162 RES MO 1W 390R J AA AB
R640 30001134 RES MO 2W 2.2R J AA AB
R641 30000965 RES MF 1/2W 0.33R J AA AA
R644 30000649 RES CF 1/2W 33R J AA AB
R645 30000580 RES CF 1/4W 22R J AA AB
R646 30012654 RES SMD 1/16W 180K J (0603) AA AA
R647 30012650 RES SMD 1/16W 15K J (0603) AA AB
R648 30012658 RES SMD 1/16W 1M J (0603) AA AA
R649 30001228 RES FUSE SAFE 1/2W 2.2R J AA AB
R650 30001082 RES MO 1/2W 1K J AA AB
R652 30000848 RES MF 1/4W 1K F AA AB
R653 30012509 RES SMD 1/16W 100K J (0603) AA AB
R654 30012708 RES SMD 1/16W 68K J (0603) AA AA
R655 30012674 RES SMD 1/16W 27K J (0603) AA AB
R656 30012641 RES SMD 1/16W 10K J (0603) AA AB
R657 30000466 RES CF 1/4W 1K J AA AB
R658 30000466 RES CF 1/4W 1K J AA AB
R7 30012657 RES SMD 1/16W 1K J (0603) AA AB
R700 30012695 RES SMD 1/16W 470R J (0603) AA AB
R701 30012695 RES SMD 1/16W 470R J (0603) AA AB
R702 30012657 RES SMD 1/16W 1K J (0603) AA AB
R703 30012510 RES SMD 1/16W 100R J (0603) AA AB
R704 30012510 RES SMD 1/16W 100R J (0603) AA AB
R705 30012510 RES SMD 1/16W 100R J (0603) AA AB
R710 30012657 RES SMD 1/16W 1K J (0603) AA AB
R713 30012510 RES SMD 1/16W 100R J (0603) AA AB
R714 30012510 RES SMD 1/16W 100R J (0603) AA AB
R715 30012657 RES SMD 1/16W 1K J (0603) AA AB
R718 30012657 RES SMD 1/16W 1K J (0603) AA AB
R719 30012657 RES SMD 1/16W 1K J (0603) AA AB
R723 30000459 RES CF 1/4W 100R J AA AB
R724 30012510 RES SMD 1/16W 100R J (0603) AA AB
R725 30012657 RES SMD 1/16W 1K J (0603) AA AB
R726 30012657 RES SMD 1/16W 1K J (0603) AA AB
R742 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R746 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R747 30012641 RES SMD 1/16W 10K J (0603) AA AB
R749 30012709 RES SMD 1/16W 7.5K J (0603) AA AA
R753 30014076 RES SMD 1/16W 4.7R J (0603) AA AA
R754 30012709 RES SMD 1/16W 7.5K J (0603) AA AA
R755 30014076 RES SMD 1/16W 4.7R J (0603) AA AA
R756 30012641 RES SMD 1/16W 10K J (0603) AA AB
R759 30012641 RES SMD 1/16W 10K J (0603) AA AB
R760 30012702 RES SMD 1/16W 560R J (0603) AA AA
R762 30012641 RES SMD 1/16W 10K J (0603) AA AB
R763 30012702 RES SMD 1/16W 560R J (0603) AA AA
R765 30012669 RES SMD 1/16W 22K J (0603) AA AB
R766 30012669 RES SMD 1/16W 22K J (0603) AA AB
R793 30012695 RES SMD 1/16W 470R J (0603) AA AB
REF No. PARTS DESCRIPTION SN CODE EX CODE
R794 30012695 RES SMD 1/16W 470R J (0603) AA AB
R815 30012644 RES SMD 1/16W 12K J (0603) AA AB
R817 30012641 RES SMD 1/16W 10K J (0603) AA AB
R818 30000723 RES CF 1/4W 47K J AA AB
R819 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R820 30012696 RES SMD 1/16W 47K J (0603) AA AB
R900 30000788 RES CF 1/4W 6.8M J AA AB
R901 30000459 RES CF 1/4W 100R J AA AB
R902 30000459 RES CF 1/4W 100R J AA AB
R903 30000459 RES CF 1/4W 100R J AA AB
R904 30000535 RES CF 1/2W 150K J AA AB
R905 30000477 RES CF 1/4W 100K J AA AB
R906 30000477 RES CF 1/4W 100K J AA AB
R907 30023197 RES CC 1W 1.5K K AA AD
R908 30023197 RES CC 1W 1.5K K AA AD
R909 30000477 RES CF 1/4W 100K J AA AB
R910 30023197 RES CC 1W 1.5K K AA AD
R911 30000466 RES CF 1/4W 1K J AA AB
R912 30000458 RES CF 1/2W 100R J AA AB
R913 30021483 RES CC 1W 2.2K K AA AD
R914 30000459 RES CF 1/4W 100R J AA AB
R915 30012649 RES SMD 1/16W 150R J (0603) AA AB
R916 30014128 RES SMD 1/16W 33R J (0603) AA AA
R917 30000583 RES CF 1/4W 220R J AA AB
R919 30012644 RES SMD 1/16W 12K J (0603) AA AB
R920 30012698 RES SMD 1/16W 5.6K J (0603) AA AB
R921 30012649 RES SMD 1/16W 150R J (0603) AA AB
R922 30014128 RES SMD 1/16W 33R J (0603) AA AA
R923 30000583 RES CF 1/4W 220R J AA AB
R925 30012649 RES SMD 1/16W 150R J (0603) AA AB
R926 30014128 RES SMD 1/16W 33R J (0603) AA AA
R927 30000583 RES CF 1/4W 220R J AA AB
R928 30012510 RES SMD 1/16W 100R J (0603) AA AB
R930 30000477 RES CF 1/4W 100K J AA AB
R931 30012667 RES SMD 1/16W 220K J (0603) AA AB
R932 30012707 RES SMD 1/16W 680R J (0603) AA AB
R933 30012707 RES SMD 1/16W 680R J (0603) AA AB
MISCELLANEOUS PARTS
. 20090585 CHASSIS FRAME 288X (AK37) AE AP
. 20140457 BACK COVER 2862W EKO2GRAY(I) AS BD
. 20141081 SNOW BOX ASSY 2862W RF AM AY
. 20140469 SNOW BOX TOP 2862W AD AN
. 20140470 SNOW BOX BOTTOM 2862W AD AN
. 20141084 SCR.ASSY.2862W W/SB AK45/52 AE AP
. 20108124 BACK DOOR AK45/52 (I) AC AH
. 35000212 SCREW S C ZNSY YSMB 2.9*13 AA AB
. 35000212 SCREW S C ZNSY YSMB 2.9*13 AA AB
. 35000217 SCREW S C SYF YFMB 3.5*9.5 AA AB
. 35004572 SCREW P C AgSYF YSB 4x20 AA AB
. 35005084 SCREW C ZN RYAKB 6x30 AA AB
. 35005418 SCREW P C ZN YSB 3.5x10 (KN1031 T35X10) AA AB
. 35009300 SCREW P C ZN FYSB 4X16 (D:11) AA AB
. 20142751 CHS.ASSY.45-317C21114121123G1129D BP CF
. 30018087 CNAS 2P/350 TRFPFC DIS W/C AA AE
. 35000217 SCREW S C SYF YFMB 3.5*9.5 AA AB
. 20140466 BRACKET CHS XX62-64W (I) V.0 AD AM
. 60000009 FR-HIPS NATR.V-0 AK AV
. 35005061 SCREW RB C SK ZN YFMB 2.9*9.5 AA AA
. 30007728 CABLE 1P R2.6 50 W/CLIPS AA AC
. 30009833 CABL 1P/100 SIS AA AB
. 30009833 CABL 1P/100 SIS AA AB
. 30019101 CABL 1P/350 DIS UL1672AWG22 AA AB
. 40006432 MOUNTING BUTTON (MB-10) AA AB
. 30009005 IC 24C16 AF AQ
. 30012631 CNAS 2P/760 DIS W/BL C+FER UL2547 AWG24 AB AG

15
28LF-92EES
How to update the Technical Information
appeared on this Service Manual
1. Web site: https://www.vestelservice.com
2. Select: Technical Support
3. Login: 101278
4. Password: SHPII278
By this access you can consult the latest schematic dia-
gram or request the Parts Listing of a concrete Produc-
tion Date / Serial Number.
By this way it can be also consulted the issued Techni-
cal Reports (Service Bulletins).
REF No. PARTS DESCRIPTION SN CODE EX CODE
PL708 30001762 CONN HEADER 2P 2.5MM(9.7MM) TOP AA AC
PL709 30001764 CONN HEADER 2P 2.5MM(9.7MM) TOP BLACK AA AC
PL711 30001836 CONN HEADER 3P 2.5MM TOP BLACK SD AA AB
PL901 30028447 SOCKET CRT SAFE NARROWNECK W/GND INCHANG AA AE
PL902 30010039 CONN HEADER 8P 2.5MM TOP WHT AA AB
PL902 30027546 CNAS 5P/350 SHL+3P/350 SIS RGB W/DC+FER AD AM
PL903 30001850 CONN HEADER 6P 2.5MM TOP WHT SD AA AC
PL903 30030432 CNAS 6P-4P/500+1P/850 SIS W/3C+FR UL1007 AA AC
PL905 35000135 TEST PIN 1.1MM AA AB
PL909 35000135 TEST PIN 1.1MM AA AB
S224 30000452 RES CF 1/4W 10R J AA AB
S225 30012982 RES SMD 1/16W 10R J 0603 AA AA
S226 30012982 RES SMD 1/16W 10R J 0603 AA AA
S227 30012982 RES SMD 1/16W 10R J 0603 AA AA
SG901 30000428 SPARK GAP 300V AB AG
SG902 30000428 SPARK GAP 300V AB AG
SG903 30000428 SPARK GAP 300V AB AG
SG904 30000428 SPARK GAP 300V AB AG
SG905 30021532 SPARK GAP 1500V AC AG
SW100 30002181 SWITCH TACT(4) AA AC
SW101 30002181 SWITCH TACT(4) AA AC
SW102 30002181 SWITCH TACT(4) AA AC
SW103 30002181 SWITCH TACT(4) AA AC
SW104 30017848 SWITCH SAFE ON/OFF 4A/128A JVC(PANASONI) AC AH
TH101 30001268 THERMISTOR 3P AD AM
REF No. PARTS DESCRIPTION SN CODE EX CODE
. 30027382 SPEAKER 7R 12W F/R 60x120MM-28&32" SHARP AE AP
. 40016872 SPEAKER BRACKET 286XW AA AE
. 20151304 POWER CORD ASSY.(2.4MT W/FTZ)(LONGWELL) AD AM
. 30028208 POWER CORD SAFE EURO 2.2M SHARP W/FILTER AG AT
. 20151924 MD.ASY.SB112-FAV+HP+SVHS 2862/3262 (AK45 AS BD
. 35000136 FUSE HOLDER TK79-A (GRAY) AA AD
. 20152358 FRONT 2862W W/H SLV285S(P)(PW/S) AT BE
. 20152375 CONTROL PANEL DOOR 2862W (SLV285S/P) AD AL
. 20152376 SPEAKER GRILL 2862W SLV285S(P) AF AQ
. 20004519 CABLE HOLDER CRT (I) AA AB
. 20140467 BRACKET BF 2862W (I) V.0 AA AD
. 60000009 FR-HIPS NATR.V-0 AK AV
. 35008849 DOOR METAL SPRING (30mmX20mmX0.5mm) AA AC
. 35008850 METAL WASHER XX6XW (SHARP) AA AB
. 40016871 DOOR SPACER (M10) AA AB
. 40016873 WASHER 2862W AA AB
. 20152713 LBL.BCK.CVR.SHARP 28LF92E(ES)AK45 AA AC
. 20147245 LBL.BCK.CVR.ASSY (TV) (WO/UL)SHARP AA AC
. 20143026 R/C 1548 SHARP (EKO2GRAY/I) (GRAY/S) AM AY
. 20142229 UKV.B.ASSY.UK12 (SMD) AE AQ
. 50043630 WARRANTY CARD SHARP (ESP) AB AF
. 50048412 I/B SHARP 28LF92E(ES) P/AK45/1548/ES/POR AC AK
. 20152717 LBL.CART.BOX SHARP 28LF92E(ES) AK45 AA AC
. 20153349 BUTTON ASSY 2862W/3262WRF (SLV285S(P) AC AK
. 35008861 SPRING ON/OFF SWITCH 1462 SHARP(SHARP) AA AA
. 35000010 EARTH SPRING (4CM) AA AB
. 20160076 CRT B.ASSY.TP45B-5-SI.FOC.(AK45)SHARP(RF AR BB
. 30015231 ROTATION COIL AK33 29" AE AQ
. 40016814 LOGO SHARP (D.C.-SILVER)28-32" AD AK
. 50043896 CONTROL STICKER 2862W AD AM
B-B 30009834 CABL 1P/60 SIS AA AB
D100 20060150 BRACKET LED 20 AA AD
F100 20000848 FUSE ASSY.TK79-A (2.5A) AA AD
J344 30001996 FIXED COIL 22UH Q40 K AA AB
JK100 30026584 TV JACK BOARD JXTI046 AG AS
JK101 30001902 JACK HEADPHONE STEREO WO/SW AC AH
NOT 30011742 CABL 1P/25 SIS AA AB
PL1 30001912 PIN F 5P/2.5MM (11.5MM) AA AD
PL100 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL100 30020822 CNAS 6P/450 FLT W/C+FER UL2468AWG24 AC AG
PL101 30001795 CONN HEADER 3P 5/7.5MM TOP WHT AA AC
PL101 30001838 CONN HEADER 3P 2.5MM TOP YELLOW SD AA AC
PL101 30020137 CNAS 600 FAV SVHS W/DC+FER AF AQ
PL102 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL102 30001830 CONN HEADER 2P 2.5MM TOP BLUE SD AA AB
PL102 30020137 CNAS 600 FAV SVHS W/DC+FER AA AB
PL103 30001839 CONN HEADER 3P 2.5MM TOP GREEN SD AA AC
PL103 30020137 CNAS 600 FAV SVHS W/DC+FER AA AB
PL104 30008726 CNAS 3P/550 FLT W/BLK C UL2468AWG24 AB AF
PL107 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL107 30014711 CNAS 2P/250 W/DC AB AF
PL108 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL2 30001829 CONN HEADER 2P 2.5MM TOP WHT SD AA AB
PL204 30010921 DOUBLE-DECK SCART SOCKET AD AM
PL206 30010039 CONN HEADER 8P 2.5MM TOP WHT AA AB
PL207 30001830 CONN HEADER 2P 2.5MM TOP BLUE SD AA AB
PL214 35000135 TEST PIN 1.1MM AA AB
PL500 30001783 CONN HEADER 5P 2.5MM TOP BD AA AC
PL502 30001784 CONN HEADER 6P 2.5MM TOP BD AA AC
PL509 20108005 MD.ASY.RT45-ROTATION (TILT) AK45 AD AM
PL602 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL602 30016483 CNAS 2P/600 HRZ DIS W/C UL1672AWG24 AA AE
PL603 30001829 CONN HEADER 2P 2.5MM TOP WHT SD AA AB
PL603 30019083 CNAS 2P/600 SIS W/C+FER UL1007AWG24 AB AF
PL604 30001850 CONN HEADER 6P 2.5MM TOP WHT SD AA AC
PL703 30001839 CONN HEADER 3P 2.5MM TOP GREEN SD AA AC

16
28LF-92EES
PRINTED BY: ON:
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any
form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
Technical information and Production:
Vestel Electronik AS
Technical information re-issued:
SHARP ELECTRONICA ESPAÑA S.A.
Service Manual Group
Engineering Dept.
Polígono Industrial Can Sant Joan
08190 Sant Cugat del Vallès
Barcelona
Spain
Think Ecology, please use
RECYCLED PAPER

1
AK - 45
CHASSIS
PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
SERVICE MANUAL
This document has been published to
be used for after sales service only.
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
CONTENTS
TABLE OF CONTENTS ....................................................................................................... 3
INTRODUCTION .................................................................................................................. 6
CIRCUIT DESCRIPTIONS ................................................................................................... 6
INTEGRATED CIRCUIT DESCRIPTIONS ....................................................................... 10
SERVICE MODE ADJUSTMENTS ...................................................................................... 23
BLOCK DIAGRAM ................................................................................................................ 61
CIRCUIT DIAGRAMS ..................................................................................................... 62
HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 73
SHARP CORPORATION
SE00AK45CHA00
Issued: 20th Jan. 2004
CHASSIS AK-45

2
AK - 45
CHASSIS
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
AK - 45
CHASSIS
TABLE OF CONTENTS
1.INTRODUCTION ..............................................................................................................................6
2.TUNER.................................................................................................................................................6
3.IF PART (TDA9885/86)..................................................................................................................6
4.VIDEO SWITCH TEA6415 ............................................................................................................7
5.MULTI STANDARD SOUND PROCESSOR...........................................................................7
6.SOUND OUTPUT STAGE WITH TDA7269A .........................................................................7
7.VERTICAL OUTPUT STAGE WITH STV9379FA .................................................................7
8.VIDEO OUTPUT AMPLIFIER TDA6108...................................................................................7
9.POWER SUPPLY (SMPS) ............................................................................................................8
10.MICROCONTROLLER SDA55XX ...........................................................................................8
10.1.General Features..........................................................................................................................8
10.2.External Crystal and Programmable Clock Speed ...................................................................8
10.3.Microcontroller Features .............................................................................................................8
10.4.Memory..........................................................................................................................................8
10.5.Display Features...........................................................................................................................8
10.6.Acquisition Features....................................................................................................................9
10.7.Ports ..............................................................................................................................................9
11.CLASS AB STEREO HEADPHONE DRIVER TDA1308 .................................................9
12.SAW FILTERS................................................................................................................................9
13.IC DESCRIPTIONS.....................................................................................................................10
13.1.LM317T....................................................................................................................................10
13.1.1.Description...........................................................................................................................10
13.1.2.Features................................................................................................................................10
13.2.TDA1308T...............................................................................................................................10
13.2.1.General Description ............................................................................................................10
13.2.2.Features................................................................................................................................10
13.2.3.Pinning..................................................................................................................................11
13.3.MSP34X0G (MSP3410G) ..................................................................................................11
13.3.1.Description...........................................................................................................................11
13.3.2.Features................................................................................................................................12
13.3.3.Pin connections...................................................................................................................12
13.4.VDP313xY ..............................................................................................................................13
13.4.1.Introduction..........................................................................................................................13
13.4.2.Features................................................................................................................................14
13.4.3.Pin Connections and short descriptions ..........................................................................14
13.5.TEA6415C ..............................................................................................................................15
13.5.1.General Description ............................................................................................................15
13.5.2.Features................................................................................................................................15
13.5.3.Pinning..................................................................................................................................16
13.6.STV9379FA............................................................................................................................16
13.6.1.Description...........................................................................................................................16
13.6.2.Features................................................................................................................................16
13.6.3.Pinning..................................................................................................................................16
13.7.TDA7269A ..............................................................................................................................17
13.7.1.Description...........................................................................................................................17
13.7.2.Features................................................................................................................................17
13.8.LM7800 (LM7805/LM7808)...............................................................................................17
13.8.1.Description...........................................................................................................................17
13.8.2.Features................................................................................................................................17
13.9.AT24C08 .................................................................................................................................17
13.9.1.Description...........................................................................................................................17
13.9.2.Features................................................................................................................................17
13.9.3.Pin Configurations ..............................................................................................................18

4
AK - 45
CHASSIS
13.10.SDA5555
...............................................................................................................................18
13.10.1.General definition ..............................................................................................................18
13.10.2.Features..............................................................................................................................18
13.11.MC44608
...............................................................................................................................19
13.11.1.Description.........................................................................................................................19
13.11.2.General Features ...............................................................................................................20
13.11.3.Pin Connections ................................................................................................................20
13.12.TCET1102G .........................................................................................................................21
13.12.1.Description.........................................................................................................................21
13.12.2.Applications .......................................................................................................................21
13.12.3.Features..............................................................................................................................21
13.13.TDA9885T ............................................................................................................................21
13.13.1.General Description ..........................................................................................................21
13.13.2.Features..............................................................................................................................21
13.13.3.Pinning................................................................................................................................22
13.14.PI5V330 .................................................................................................................................22
13.14.1.General Description ..............................................................................................................22
14.AK45 CHASSIS PRODUCTION SERVICE MODE ADJUSTMENTS .........................23
14.1.SERVICE MENU..........................................................................................................................23
14.2.ADJUST MENU ...........................................................................................................................23
14.3.OPTIONS MENU..........................................................................................................................35
Option 0. Video Processor Crystal Indication .............................................................................35
Option 1. (0x01) Video Processor Decoder Mode Register........................................................35
Option 2. (0x18) Video Processor Blanking Control...................................................................35
Option 3. (0x19) Video Processor Cathode Drive Level .............................................................36
Option 4. ..........................................................................................................................................36
Option 5. CTI Available, Mono AVL...............................................................................................36
Option 6. ..........................................................................................................................................36
Option 7. OPTIONHOTELACTIVE, PLL_VST, PIP Zoom Mode, PIP Position ...........................36
Option 8. IF Frequency...................................................................................................................37
Option 9. Standard Available.........................................................................................................37
Option 10. Scart, Combfilter, Teletext, Language .......................................................................38
Option 11. PLL Tuner Control 1 Byte............................................................................................38
Option 12. PLL Tuner Control 2 Low Byte ...................................................................................38
Option 13. PLL Tuner Control 2 Mid Byte ....................................................................................39
Option 14. PLL Tuner Control 2 High Byte ..................................................................................39
Option 15. PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte ..........................................39
Option 16. PLL Tuner VHF LOW – VHF HIGH Crossover High Byte .........................................39
Option 17. PLL Tuner VHF HIGH – UHF Crossover Low Byte ...................................................39
Option 18. PLL Tuner VHF HIGH – UHF Crossover High Byte...................................................39
Option 19. PIP PLL Tuner Control 1 Byte.....................................................................................40
Option 20. PIP PLL Tuner Control 2 Low Byte ............................................................................40
Option 21. PIP PLL Tuner Control 2 Mid Byte .............................................................................40
Option 22. PIP PLL Tuner Control 2 High Byte............................................................................40
Option 23. PIP PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte ...................................40
Option 24. PIP PLL Tuner VHF LOW – VHF HIGH Crossover High Byte...................................40
Option 25. PIP PLL Tuner VHF HIGH – UHF Crossover Low Byte.............................................41
Option 26. PIP PLL Tuner VHF HIGH – UHF Crossover High Byte............................................41
Option 27. Language Available 1 ..................................................................................................41
Option 28. Language Available 2 ..................................................................................................41
Option 29. Language Available 3 and Zoom Mode Available ....................................................41
Option 30. Country .........................................................................................................................42
Option 31. Prescaler MSP FM (AVL=OFF)....................................................................................42
Option 32. Prescaler MSP NICAM (AVL=OFF) .............................................................................42
Option 33. Prescaler MSP SCART (AVL=OFF) ............................................................................43
Option 34. Prescaler MSP I2S (AVL=OFF)....................................................................................43
Option 35. Not used........................................................................................................................43
Option 36. Not used........................................................................................................................43
Option 37. Reserved for USA ........................................................................................................43
Option 38. TV Teletext Mode Selection, Child Lock, Equalizer Country...................................43
