Sharp LC-32HT2U User manual

SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRE-
CAUTION ............................................................i
PRECAUTIONS A PRENDRE LORS DE
LA REPARATION ...............................................ii
PRECAUTIONS FOR USING LEAD-FREE
SOLDER ........................................................... iii
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS ......................................... 1-1
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL .................................. 2-1
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS ................................................ 3-1
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS ................... 4-1
CHAPTER 5. ADJUSTMENT
[1] ADJUSTMENT PROCEDURE ....................... 5-1
[2] HOW TO SWITCH BETWEEN HOTEL TV
MODE AND NORMAL MODE...................... 5-18
CHAPTER 6. TROUBLE SHOOTING TABLE
[1] TROUBLE SHOOTING TABLE...................... 6-1
CHAPTER 7. MAJOR IC INFORMATIONS
[1] MAJOR IC INFORMATIONS.......................... 7-1
CHAPTER 8. OVERALL WIRING/BLOCK DIAGRAM
[1] OVERALL WIRING DIAGRAM ......................8-1
[2] SYSTEM BLOCK DIAGRAM.........................8-3
CHAPTER 9. PRINTED WIRING BOARD ASSEM-
BLIES
[1] MAIN Unit ......................................................9-1
[2] IF Unit ............................................................9-9
[3] PPV Unit ...................................................... 9-11
[4] R/C, LED Unit ..............................................9-12
[5] KEY Unit ......................................................9-13
CHAPTER 10. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIA-
GRAM..........................................................10-1
[2] MAIN Unit ....................................................10-2
[3] IF Unit ........................................................10-46
[4] PPV Unit ....................................................10-50
[5] R/C, LED Unit ............................................10-52
[6] KEY Unit ....................................................10-53
Parts Guide
CONTENTS
TopPage
SERVICE MANUAL
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
In the interests of user-safety (Required by safety regulations in some countries) the set should
be restored to its original condition and only parts identical to those specified should be used.
No. S86V7LC32HT2U
LC-32HT2U
MODEL
LCD COLOR TELEVISION
LC-32HT2U

LC-32HT2U
i
LC-32HT2U Service Manual
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER (Fire &
Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.

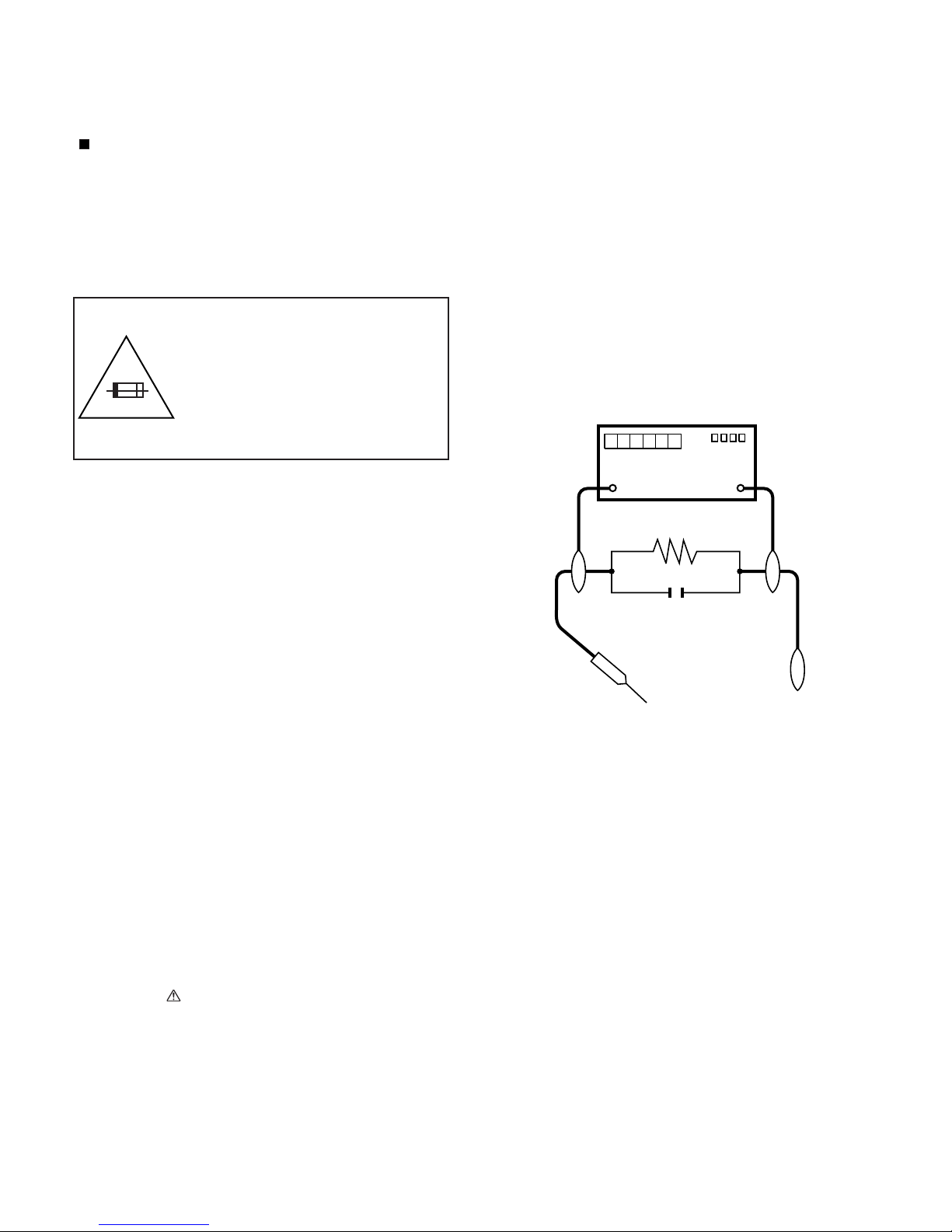

5. To be sure that no shock hazard exists, check for leakage current in
the following manner.
• Plug the AC cord directly into a 120 volt AC outlet.
• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-
leled by a 0.15µF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or elec-
trical ground connected to an earth ground.
• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-
sitivity or measure the AC voltage drop across the resistor.
• Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
SAFETY NOTICE
Many electrical and mechanical parts in LCD color television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " " and shaded areas in the Replacement Parts List
and Schematic Diagrams.
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
AV
CAUTION: FOR CONTINUED
PROTECTION AGAINST A RISK OF
FIRE REPLACE ONLY WITH SAME
TYPE FUSE.
F701 (125V 8A),
F4701, F5701 (250V 3A ~ 115
O
C)
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
0.15 µ F
TEST PROBE

LC-32HT2U
ii
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
De nombreuses pièces, électriques et mécaniques, dans les télévi-
seur ACL présentent des caractéristiques spéciales relatives à la sé-
curité, qui ne sont souvent pas évidentes à vue. Le degré de protec-
tion ne peut pas être nécessairement augmentée en utilisant des
pièces de remplacement étalonnées pour haute tension, puissance,
etc.
Les pièces de remplacement qui présentent ces caractéristiques sont
identifiées dans ce manuel; les pièces électriques qui présentent ces
particularités sont identifiées par la marque " " et hachurées dans la
liste des pièces de remplacement et les diagrammes schématiques.
Pour assurer la protection, ces pièces doivent être identiques à celles
utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas
les mêmes caractéristiques que les pièces recommandées par l'usine,
indiquées dans ce manuel, peut provoquer des électrocutions, incen-
dies, radiations X ou autres accidents.
AVERTISSEMENT
1.
2.
3.
4.
5.
•
•
•
•
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
AV
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux
conseils suivants.
N'entreprendre aucune modification de tout circuit. C'est danger-
eux.
Débrancher le récepteur avant toute réparation.
Inspecter tous les faisceaux de câbles pour s'assurer que les fils
ne soient pas pincés ou qu'un outil ne soit pas placé entre le châs-
sis et les autres pièces métalliques du récepteur.
Inspecter tous les dispositifs de protection comme les boutons de
commande non-métalliques, les isolants, le dos du coffret, les cou-
vercles ou blindages de réglage et de compartiment, les réseaux
de résistancecapacité, les isolateurs mécaniques, etc.
S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la
fuite de courant, de la facon suivante:
Brancher le cordon d'alimentation directem-ent à une prise de cou-
rant de 120V. (Ne pas utiliser de transformateur d'isolation pour
cet essai).
A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ
10 watts en parallèle avec un condensateur de 0.15µF en série
avec toutes les pièces métalliques exposées du coffret et une terre
connue comme une conduite électrique ou une prise de terre
branchée à la terre.
Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour
mesurer la chute de tension en travers de la résistance.
Toucher avec la sonde d'essai les pièces métalliques exposées qui
présentent une voie de retour au châssis (antenne, coffret métalli-
que, tête des vis, arbres de commande et des boutons, écusson,
etc.) et mesurer la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir inversé la
fiche du cordon d'alimentation. (Si nécessaire, une prise
d'adpatation non polarisée peut être utilisée dans le but de termin-
er ces vérifications.)
La tension de pointe mesurèe ne doit pas dépasser 0.75V (corre-
spondante au courant CA de pointe de 0.5mA).
Dans le cas contraire, il y a une possibilité de choc électrique qui
doit être supprimée avant de rendre le récepteur au client.
PRECAUTION:POURLAPRO-
TECTION CONTINUE CONTRE
LES RISQUES D'INCENDIE, RE-
MPLACER LE FUSIBLE
F701 (125V 8A),
F4701, F5701 (250V 3A ~ 115OC)
VERIFICATIONS CONTRE L'INCEN-DIE ET LE
CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer les vérifica-
tions suivantes.
DVM
ECHELLE CA
1.5k ohm
10W
0.15
µ F
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
AVIS POUR LA SECURITE

LC-32HT2U
iii
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-
age or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.
PARTS CODE PRICE
RANK
PART
DELIVERY DESCRIPTION
ZHNDAi123250E BL J φ0.3mm 250g (1roll)
ZHNDAi126500E BK J φ0.6mm 500g (1roll)
ZHNDAi12801KE BM J φ1.0mm 1kg (1roll)

LC-32HT2U
1 – 1
LC-32HT2U Service Manual
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS
TRANSPORT RJ-11
* Emergency alert messages via Cable are unreceivable.
As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
LCD panel
Number of dots
TV
Function
TV-standard
Receiving
Channel
VHF/UHF
CATV
Digital Terrestrial
Broadcast (8VSB)
Audio multiplex
Audio out
Terminals Rear INPUT 1
INPUT 2
INPUT 3
INPUT 4
INPUT 5
ANTENNA
DIGITAL AUDIO OUTPUT
OUTPUT
OSD language
Power Requirement
Power Consumption
Weight
Dimension
(W H D)
Operating temperature
3,147,264 dots (1366 768 3 dots)
American TV Standard ATSC/NTSC System
VHF 2-13ch, UHF 14-69ch
1-135ch (non-scrambled channel only)
2-69ch
BTSC System
10W 2
AV in, COMPONENT in
AV in, S-VIDEO in
HDMI in with HDCP
Audio in, HDMI in with HDCP
Audio in, DVI-I in with HDCP
75 Unbalance, F Type 1 (VHF/UHF/CATV/ATSC/QAM)
Optical Digital audio output 1 (PCM/Dolby Digital)
Audio out
English/French/Spanish
AC 120 V, 60 Hz
32°F to 104°F (0°C to 40°C)
Item Model: LC-32HT2U
32" Advanced Super View & BLACK TFT LCD
with stand
w/o stand
w/o stand
with stand
164 W
38.6 lbs./17.5 kg
43.0 lbs./19.5 kg
321/16 2541/64 1051/64 inch
Digital cable*
(64/256 QAM) 1-135ch (non-scrambled channel only)
321/16 239/32 457/64 inch
++ +

LC-32HT2U
2 – 1
LC-32HT2U Service Manual
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL
Part names
TV (Front) TV (Rear)
Part names
POWER button
Channel buttons ( /)
Volume buttons ( VOL
CH
/) INPUT button
OPC indicator*POWER indicator**
OPC sensor*
Remote control sensor
NOTE
* OPC: Optical Picture Control. ** for TV status indicator.
+
-
TRANSPORT terminal*
DVI terminal
(INPUT 5)
INPUT 2
terminals
AUDIO OUTPUT
terminals
HDMI terminal (INPUT 3) HDMI terminal (INPUT 4) Antenna/Cable in
INPUT 1 terminals
RS-232C terminal
DIGITAL AUDIO
OUTPUT
terminal
DVI AUDIO
terminal
(INPUT 5)
AUDIO input
terminals
(INPUT 4)
AC INPUT terminal
NOTE
* The TRANSPORT terminal is designed for hotel communication. Do not use it for other purposes.

LC-32HT2U
2 – 2
Quick Reference
Attaching the stand
Basic adjustment settings
Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal. Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
Short screws ( 4)
(Used in step 2)
Long screws ( 4)
(Usedinstep3)
Hex key
NOTE
To detach the stand, perform the steps in reverse order.
Hex key
Short screw
Soft cushion
Long screw
CAUTION
Attach the stand in the correct direction. Incorrect installation of the stand may result in the TV falling over. Be sure to follow the instructions.
Confirm the 8 screws supplied with the TV. Attach the two parts of the stand unit to each other using the 4 short screws and the hex key (supplied with the product) as shown.
Insert the stand into the opening on the bottom of the TV. Insert and tighten the 4 long screws into the 4 holes on the rear of the TV.
1 2
3
Setup
Audio
Option Power Control
Digital Setup
Menu items for TV/INPUT 1/INPUT 2
OPC Backlight Contrast Brightness Color Tint Sharpness Advanced
Color Temp. Black 3D-Y/C Monochrome Film Mode Range of OPC
Input Skip Input Label Parental CTRL Position Standby Mode Language Reset Reset
Reset
Treble Bass Balance Surround Audio Only Digital Noise Reduction Output Select Caption Setup Program Title Display No Signal Off No Operation Off Audio Setup Specification
Menu items for HDMI/DVI
OPC Backlight Contrast Brightness Color Tint Sharpness Advanced
Color Temp. Black Monochrome Film Mode Range of OPC
Input Skip Input Label Position Standby Mode Language Reset Reset
Reset
Treble Bass Balance Surround
Audio Only Digital Noise Reduction HDMI Setup Output Select
No Signal Off No Operation Off
Setup Power Control Option
Audio

LC-32HT2U
3 – 1
LC-32HT2U Service Manual

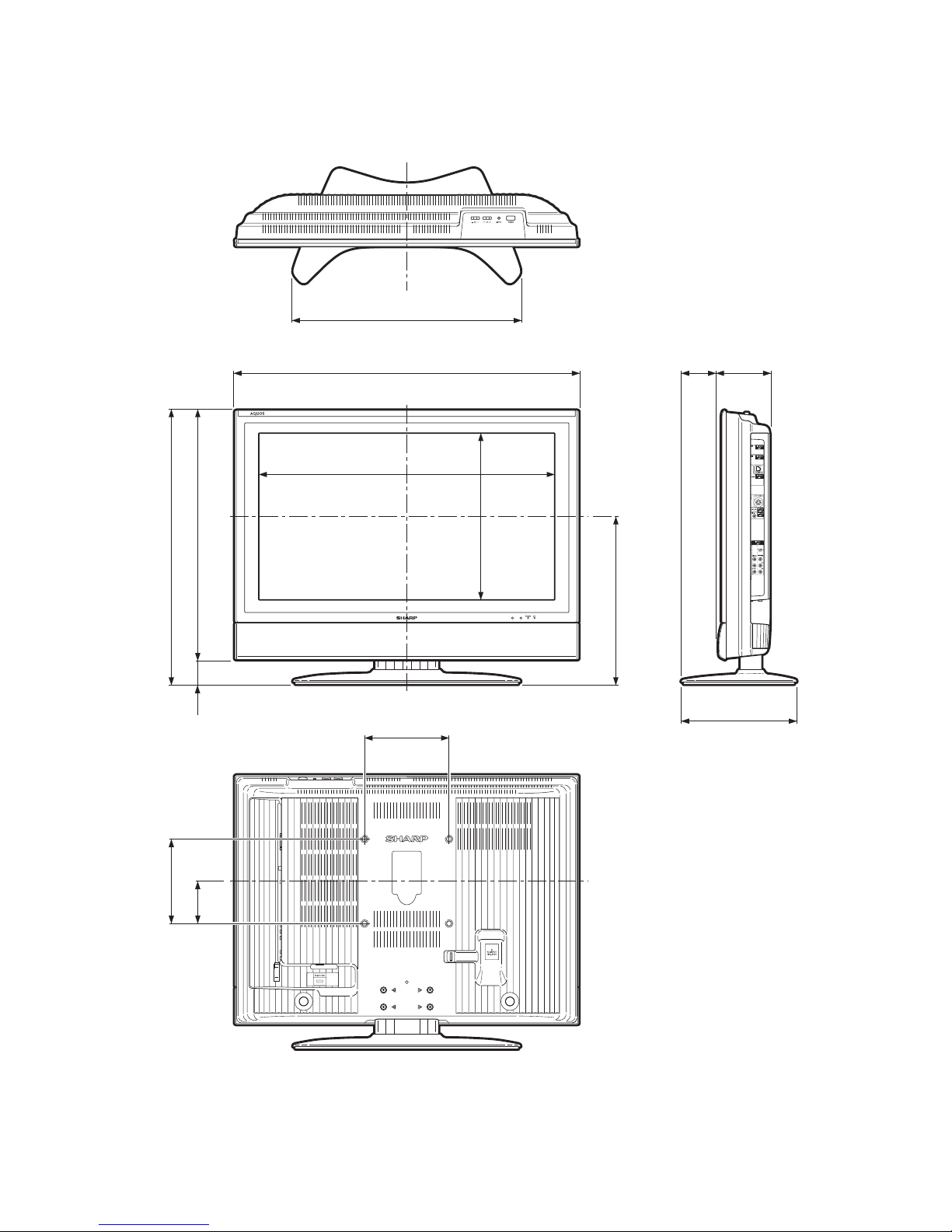

CHAPTER 3. DIMENSIONS
[1] DIMENSIONS
27
9
/
16
(700.0)
15
3
/
4
(400)
15
35
/
64
(394.6)
25
41
/
64
(651)
23
9
/
32
(591)
2
3
/
8
(60)
10
51
/
64
(274)
3
61
/
64
(100)
7
7
/
8
(200)
7
7
/
8
(200)
21
15
/
64
(539)
32
1
/
16
(814)
4
57
/
64
(124)
3
15
/
32
(88)
Unit: inch/(mm)

LC-32HT2U
4 – 1
LC-32HT2U Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
1. Remove the SD Card Cover .
2. Remove the 4 lock screws and detach the Stand Base Ass'y.
3. Remove the 9 lock screws, 3 lock screws and detach the Rear Cabinet.
SD-Card
Cover
Rear
Cabinet
Stand Base Ass'y
3
3
2
1

LC-32HT2U
4 – 2

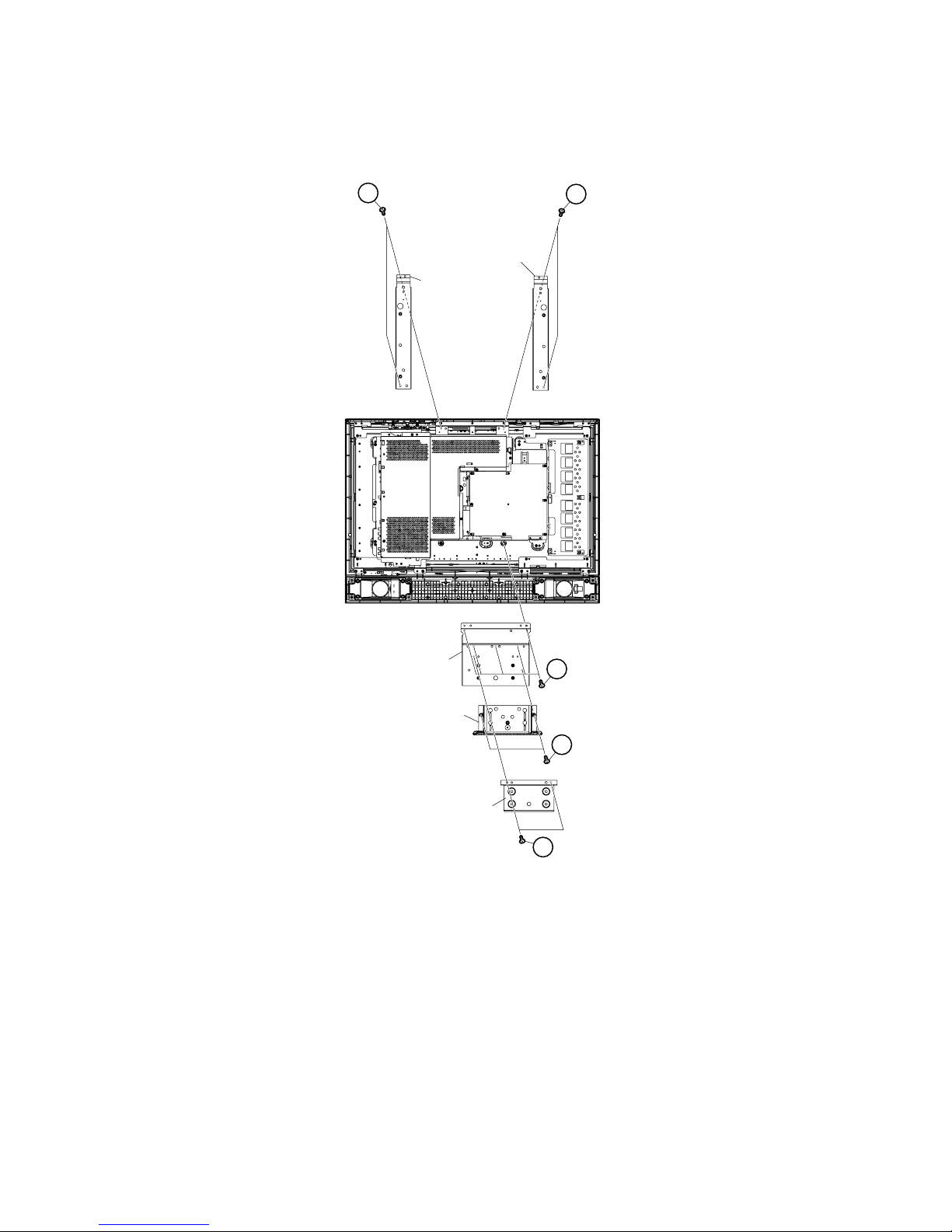

4. Remove the 2 lock screws and detach the Stand Assist Angle.
5. Remove the 4 lock screws and detach the Center Angle-L and R.
6. Remove the 3 lock screws and detach the Stand Cover.
7. Remove the 5 lock screws and detach the Stand Fix Angle.
Stand Assist Angle
Stand Cover
6
Stand Fix Angle 7
Center Angle-R
Center Angle-L
5
5
4

LC-32HT2U
4 – 3

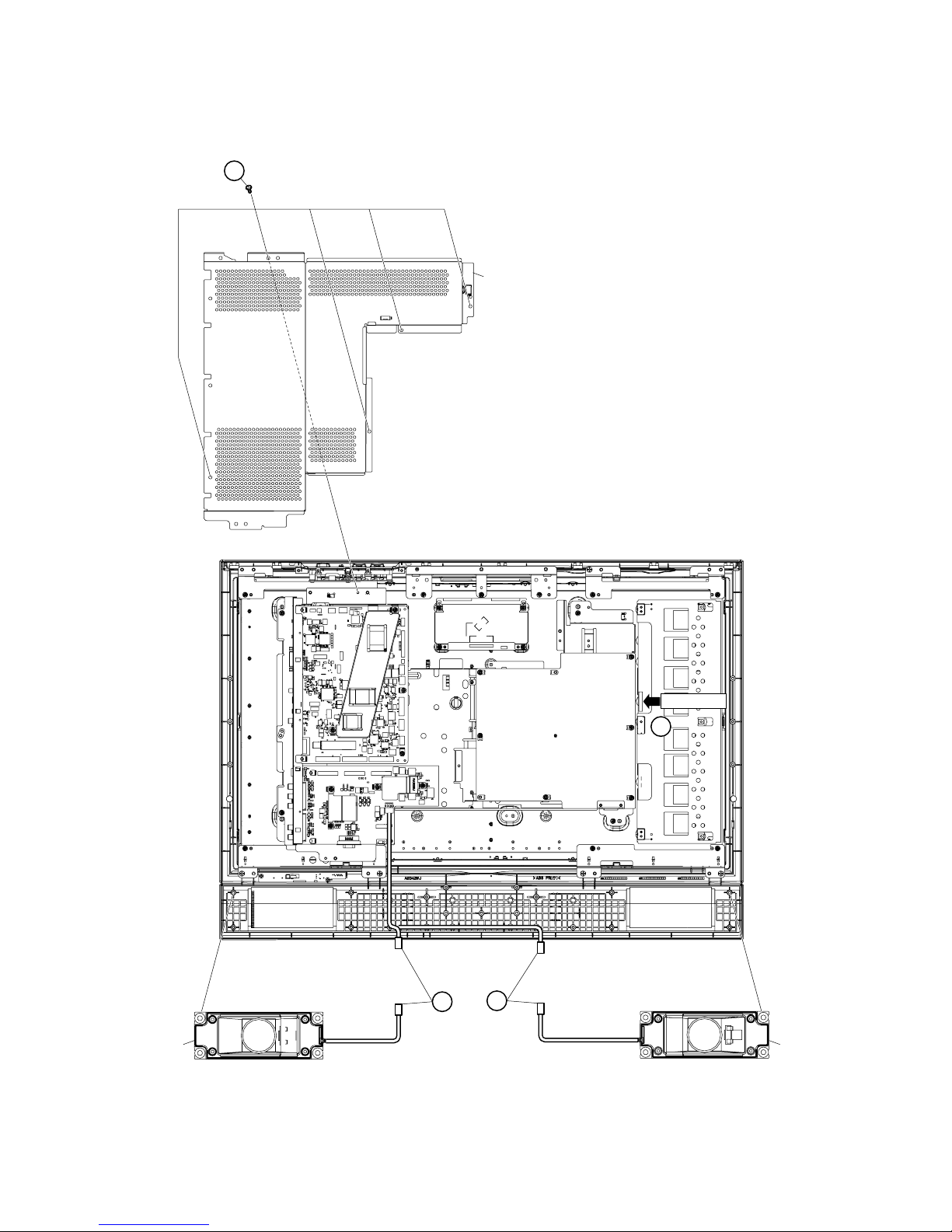

8. Disconnect the connectors and, and detach the Speaker L and R.
9. Disconnect the connector CN7501.
10.Remove the 5 lock screws and detach the MAIN Shield.
Main Shield
Speaker L
10
8
Speaker R
8
CN7501
9

LC-32HT2U
4 – 4

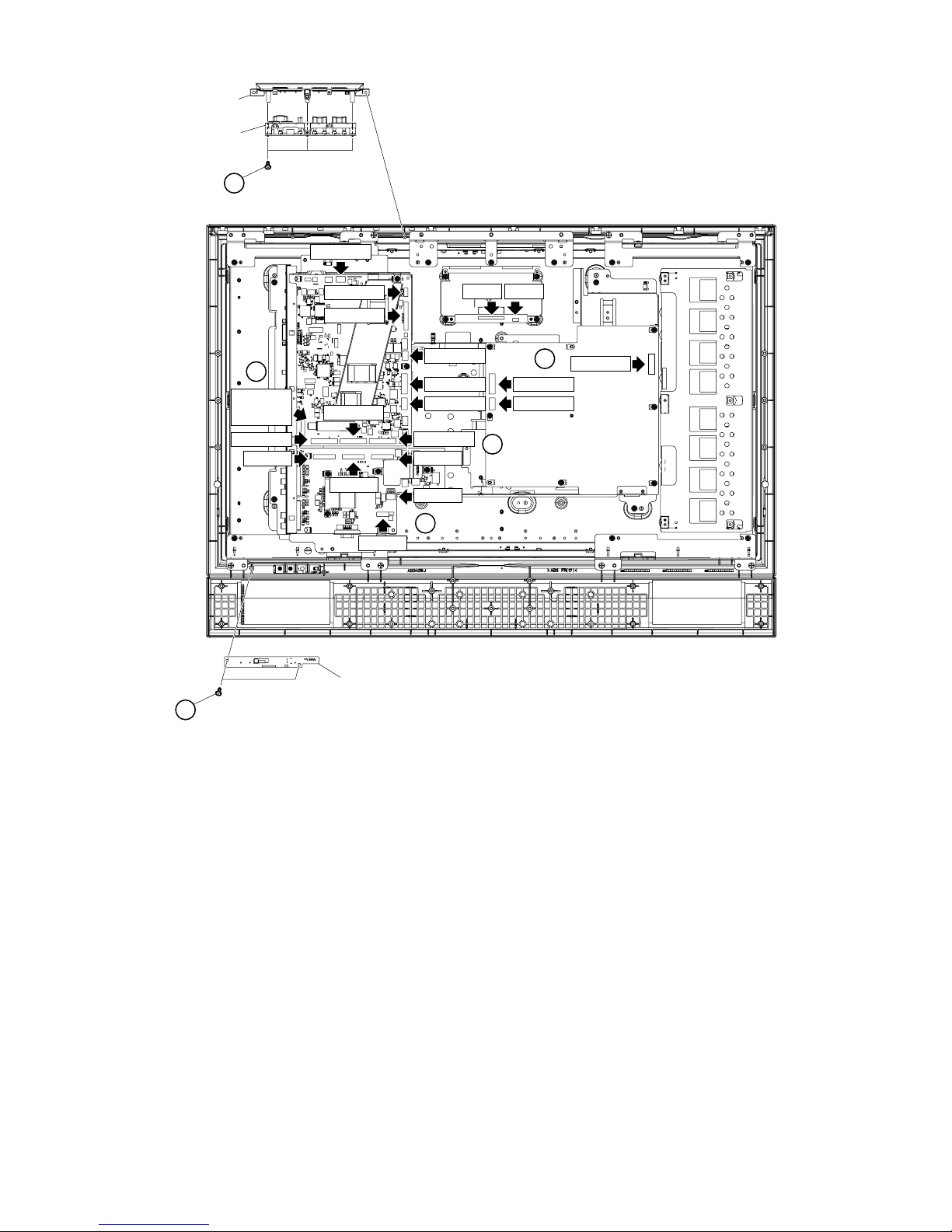

11.Disconnect the connectors, (P2002, P2601, P2602, P2603, P9701, P9702, SC1102, SC1101, SC1301, CN1, CN2, P2703, P502, CN5701,
CN5702, CN5703) and Remover the Coaxial Cable.
12.Remove the 2 lock screws and detach the R/C, LED Unit.
13.Remove the KEY Unit and Remove the 3 lock screws from the Top Cover Ass'y
CN1 CN2
P2704
SC502
SC501
R/C, LED Unit
12
Top Cover Ass`y
Key Unit
13
CN5701
CN5703
P2002
CN5702
SC1101
P9701
P2603
P2602
P2601
SC1102
P9702
P2703
SC1301
Coaxial
Cable
P502
11
11
11
11

LC-32HT2U
4 – 5

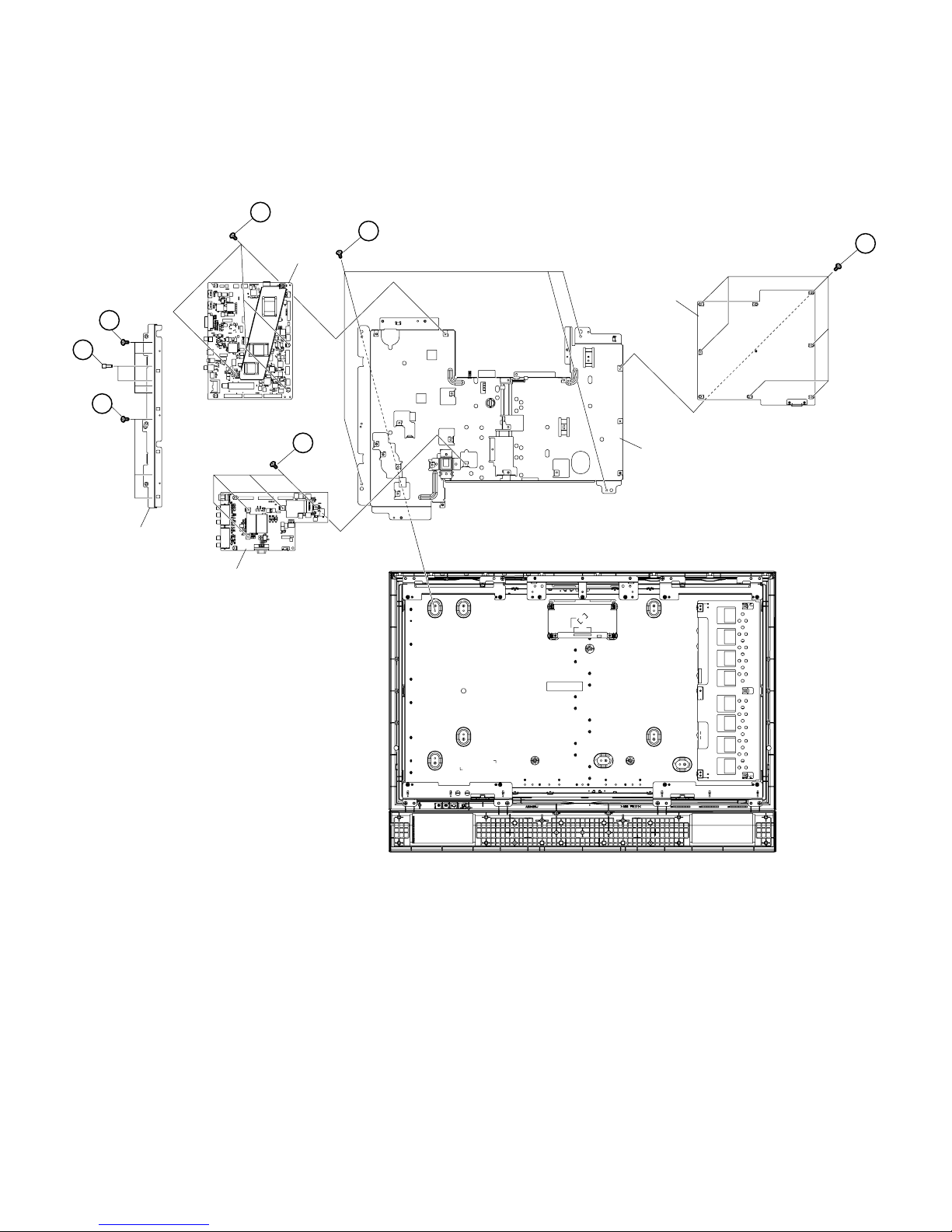

14.Remove the 4 lock screws and detach the PWB Ass'y.
15.Remove the 7 lock screws, 2 lock screws and detach the Jack Angle Long.
16.Remove the 4 lock screws and detach the IF Unit.
17.Remove the 6 lock screws and detach the POWER Supply Unit.
18.Remove the 5 lock screws and detach the MAIN Unit.
Jack Angle
Long
IF Unit
Chassis
Power Supply Unit
14
16
17
Main Unit
18
15
15
15

LC-32HT2U
4 – 6

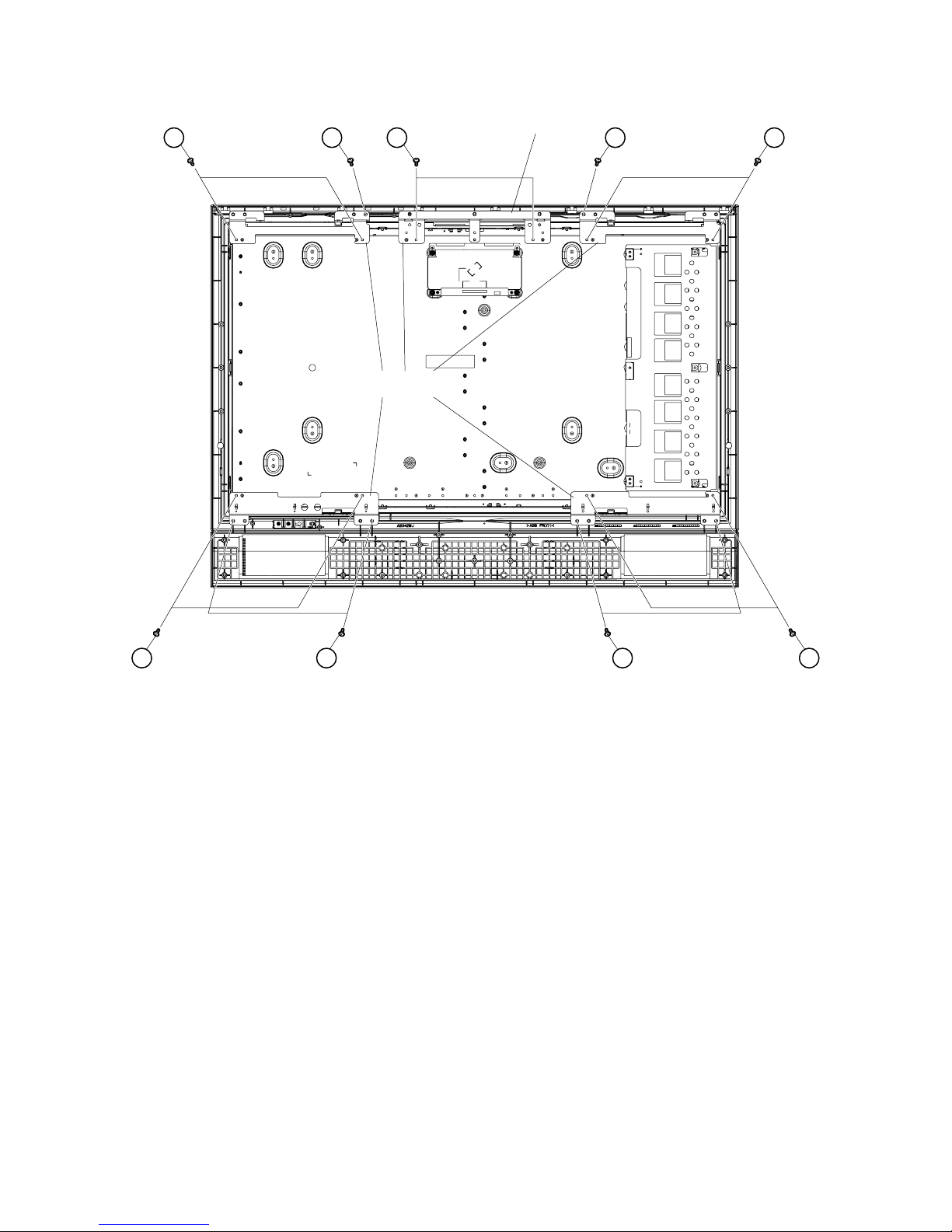

19.Remove the 6 lock screws.
20.Remove the 10 lock screws and detach the Center Assist Angle and Rug Angles and LCD Panel Module.
Rug Angle
Center Assist Angle
20 20 2019 19
20 2019 19

LC-32HT2U
5 – 1
LC-32HT2U Service Manual
CHAPTER 5. ADJUSTMENT
[1] ADJUSTMENT PROCEDURE
The adjustment values are set to the optimum conditions at the factory before shipping. If a value should become improper or an adjustment is
required due to part replacement, make an adjustment according to the following procedure.
1. After replacement of any PWB unit and/or IC for repair, please note the following.
• When replacing the following units, make sure to prepare the new units loaded with updated software.
MAIN Unit: DUNTKD640FM25
IF Unit: DUNTKD643FM25
2. Upgrading of each microprocessor software
2.1. Software version upgrade
The model employs the following software.
•Mainsoftware
• Monitor microprocessor software
The main software and the monitor microprocessor software can be upgraded by using a general-purpose SD memory card.
The followings are the procedures for upgrading, explained separately for each of the main software, the monitor microprocessor software.
2.2. Main software version upgrade
• SD memory card of 32MB or higher capacity
• PC running on Windows 98/98SE/ME/2000/XP operating system
• SD memory card reader/writer with USB connectivity.
• SD memory card formatting software
(Downloadable at http://panasonic.jp/support/audio/sd/download/sd_formatter_e.html)
To upgrade the main software, it is necessary to get ready the SD card for version upgrade before you start.
Follow the steps below and create the SD card for version upgrade.

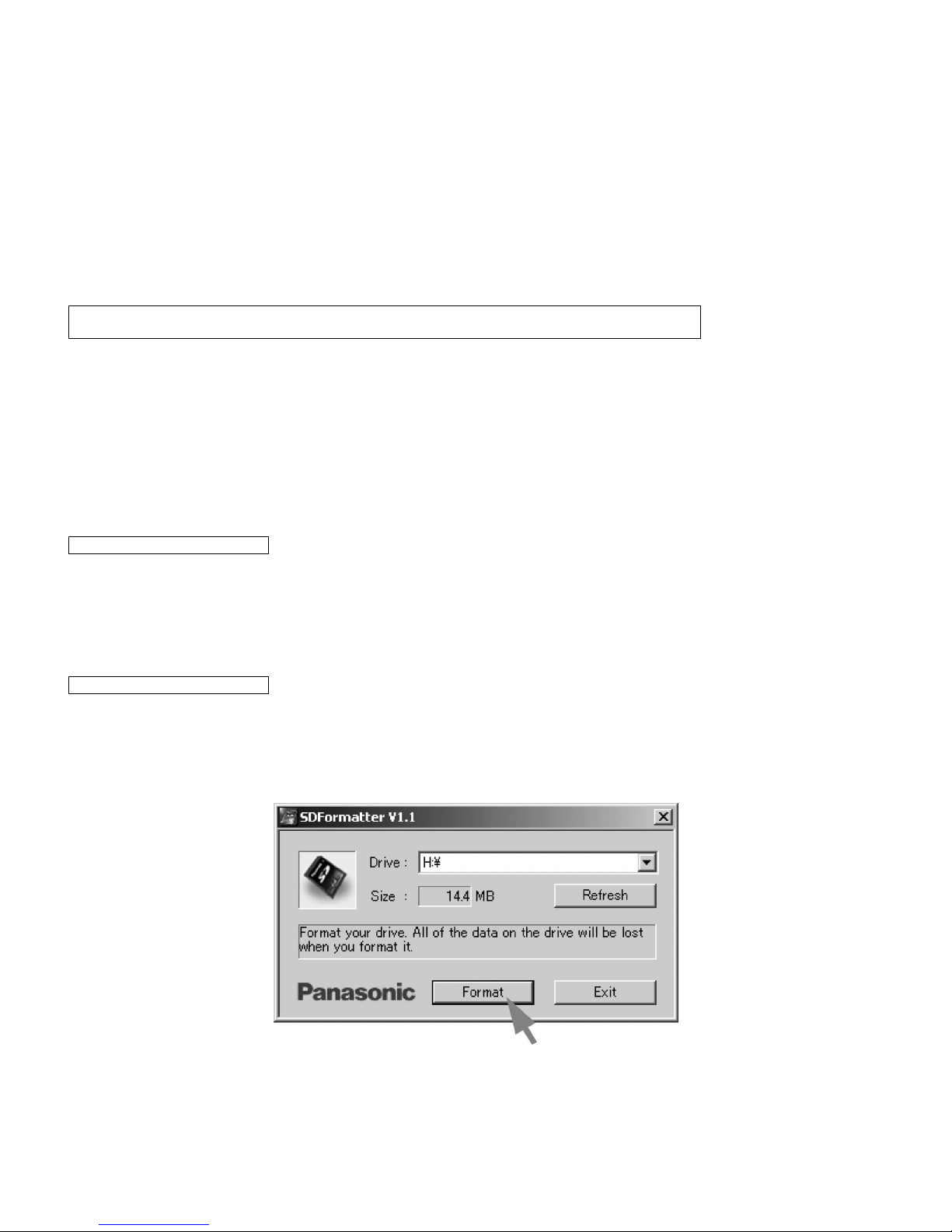

1. Insert the SD card into the SD card reader/writer. Start the SD card formatting software. Click [Format].
(When you have the drive options, select the drive where the SD card is inserted before you proceed.)
Caution: Never “POWER OFF” the unit when software upgrade is ongoing.
Otherwise the system may be damaged beyond recovery.
Get ready before you start
Preparations

LC-32HT2U
5 – 2
2. When the formatting is over, the following window appears. Click [OK].
3. Click [Exit] to finish the formatting.
NOTE: When you are done, take out the SD card once to make sure it is finished, and then insert it again.
4. Copy the binary image file D50UAxxx.SDC (named temporarily) for version upgrade to the root directory (folder) of the SD card drive.
NOTE: In the SD card drive, do not store other folders or unrelated files, or more than one binary image files for version upgrade.
Now the SD card for version upgrade is ready.
5. Shut off the AC power (i.e. unplug the AC cord).
6. Insert the SD card for version upgrade (prepared as above) into the service socket located lower side from center at terminals, above S-VIDEO
terminal in the rear of the unit, in a way that the cut corner of the SD card comes at the upper side.
NOTE: If the SD card is inserted in a wrong way, the card will go deep inside the unit beyond retrieval. Take due care to insert the SD card correctly.
7. Turn on the AC power (i.e. plug in the AC cord).
8. After the unit startup, the system upgrade screen as shown below appears within 20-40 seconds.
How to upgrade the software
SYSTEM UPGRADE
Program
EEPROM
12%
Part Init
U0601051OLD Version
NEW Version U0601241
M150

LC-32HT2U
5 – 3
9. Even a single failure in the process will trigger the upgrade failure screen as shown below. The word “NG” changes to red for the item failed.
NOTE: In the event of a failure, repeat the upgrading process. If the process repeatedly fails, it is likely that the hardware is troubled.
10.Upon completion of the whole process, the upgrade success screen as shown below appears. You can check the new software version on this
screen. The version information appears after the upgrade is complete.
11.Shut off the AC power to the unit (unplug the AC cord), and remove the SD card for version upgrade.
12.Now the software version upgrade is complete.
NOTE: When you are done with the software version upgrade, start the set, go to the top page of the adjustment process screen and check the main
software version information.
UPGRADE FAILURE
Program
EEPROM
NG
NG
24%
Part Init
U0601051OLD Version
NEW Version U0601241
UPGRADE SUCCESS
Program
EEPROM
NG
NG
100%
Part Init
U0601241Main Version

LC-32HT2U
5 – 4
2.3. Monitor microprocessor software version upgrade
NOTE: If “Monitor version” in the process menu is “2.00M”, the monitor microprocessor software can not be rewritten (because IC2002 has been
replaced with the mask type).
Get ready the same items as listed in the “Main software version upgrade”.
Create the SD card for monitor microprocessor software version upgrade in the same manner as explained in the “Main software version upgrade”.
Copy the binary image file M150Mxxx.SDC (named temporarily) for monitor microprocessor software version upgrade to the SD card drive.
1. Shut off the AC power to the unit (i.e. unplug the AC cord).
2. Insert the SD card for version upgrade (prepared as above) into the service socket located lower side from center at terminals, above S-VIDEO
terminal in the rear of the unit, in a way that the cut corner of the SD card comes at the upper side.
NOTE: If the SD card is inserted in a wrong way, the card will go deep inside the unit beyond retrieval. Take due care to insert the SD card correctly.
3. Turn on the AC power (i.e. plug in the AC cord).
CAUTION: The moment this operation is done, the upgrading of the monitor microprocessor software starts. While the upgrade is ongoing,
never power off the unit. Otherwise the upgrade will fail and the system may have a serious damage beyond recovery (inability
to start).
4. After the unit startup, the system upgrade screen as shown below appears within 10-30 seconds.
5. A failure in the process will trigger the upgrade failure screen. The word “NG” changes to red for the item failed.
NOTE: In the event of a failure, repeat the upgrading process. If the process repeatedly fails, it is likely that the hardware is troubled.
6. Upon completion of the whole process, the upgrade success screen as shown below appears.You can check the new software version on this
screen. The version information appears after the upgrade is complete.
7. Shut off the AC power to the unit (unplug the AC cord), and remove the SD card for version upgrade.
8. Now the software version upgrade is complete.
NOTE: When you are done with the software version upgrade, start the set, go to the top page of the adjustment process screen and check the mon-
itor microprocessor software version information.
Get ready before you begin
Preparation
How to upgrade the software
MONITOR UPGRADE
Program
NG
12%
1.00OLD Version
NEW Version 1.02
M150
UPGRADE SUCCESS
Program
NG
100%
0.98OLD Version
NEW Version 1.00

LC-32HT2U
5 – 5

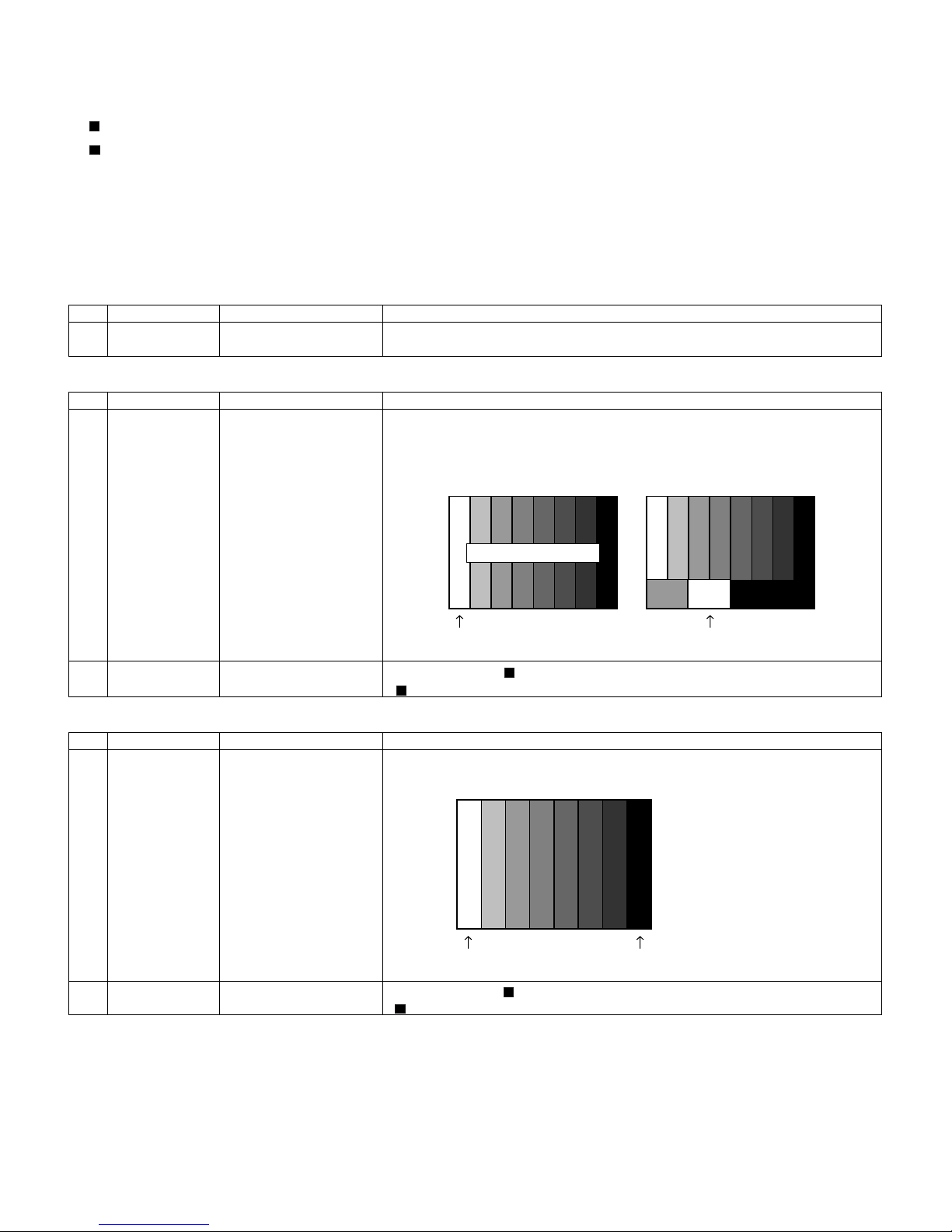

2.4. Video signal adjustment procedure
1) Image adjustment
1. Device check
Before adjustment, make sure that the adjusting device and signal source are set for the Sharp LCD US.
Signal generator level adjustment check (Adjustment to the specified level)
2. Entering the adjustment process mode
3. N358 composite signal / Tuner adjustment
4. Component 15K signal adjustment
•Composite signal : 0.714Vp-p ±0.02Vp-p (Pedestal to white level)
•15K component signal : Y level : 0.714Vp-p ±0.02Vp-p (Pedestal to white level)
PB, PR level : 0.7Vp-p ±0.02Vp-p
•33K component signal : Y level : 0.7Vp-p ±0.02Vp-p (Pedestal to white level)
PB, PR level : 0.7Vp-p ±0.02Vp-p
•DVI-I (Analog RGB) signal : RGB level : 0.7Vp-p ±0.02Vp-p (Pedestal to white level)
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment pro-
cess mode
Enter the process adjustment mode using the process adjustment remote control.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment N358 signal
US-10ch
Feed the N358 color bar signal (75% color saturation) to VIDEO 1 input.
Feed the RF signal (by use of US-10ch) to TUNER.
2 Auto adjustment
performance
Page 3 Bring the cursor on [ N358 ALL ADJ] and press [ENTER].
[ N358 ALL ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 480i signal Feed the 100% color bar signal to VIDEO 1 component input.
2 Auto adjustment
performance
Page 5 Bring the cursor on [ COMP 15K MAIN ADJ] and press [ENTER].
[ COMP 15K MAIN ADJ FINISH] appears when finished.
[Video input signal] [US-10CH]
100% white 100% white
75% color saturation
0% black
480i
100% color bar signal
100% white

LC-32HT2U
5 – 6
5. Component 33K signal adjustment
6. DVI-I (analog) signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 1080i signal Feed the 100% color bar signal to VIDEO 1 component input.
2 Auto adjustment
performance
Page 6 Bring the cursor on [ HDTV ADJ] and press [ENTER].
[ HDTV ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment DVI-I (analog)
signal: XGA
(1024 x 768) 60Hz
SYNC:
HV separate
Feed the XGA (100%) white 1/2 window to DVI-I (analog).
2 Auto adjustment
performance
Page 7 Bring the cursor on [ DVI ANALOG ADJ] and press [ENTER].
[ DVI ANALOG ADJ OK] appears when finished.
0% black
1080i
100% color bar signal
100% white
100% White
0% Black
1/4
1/4
1/2
1/4 1/4
1/2
