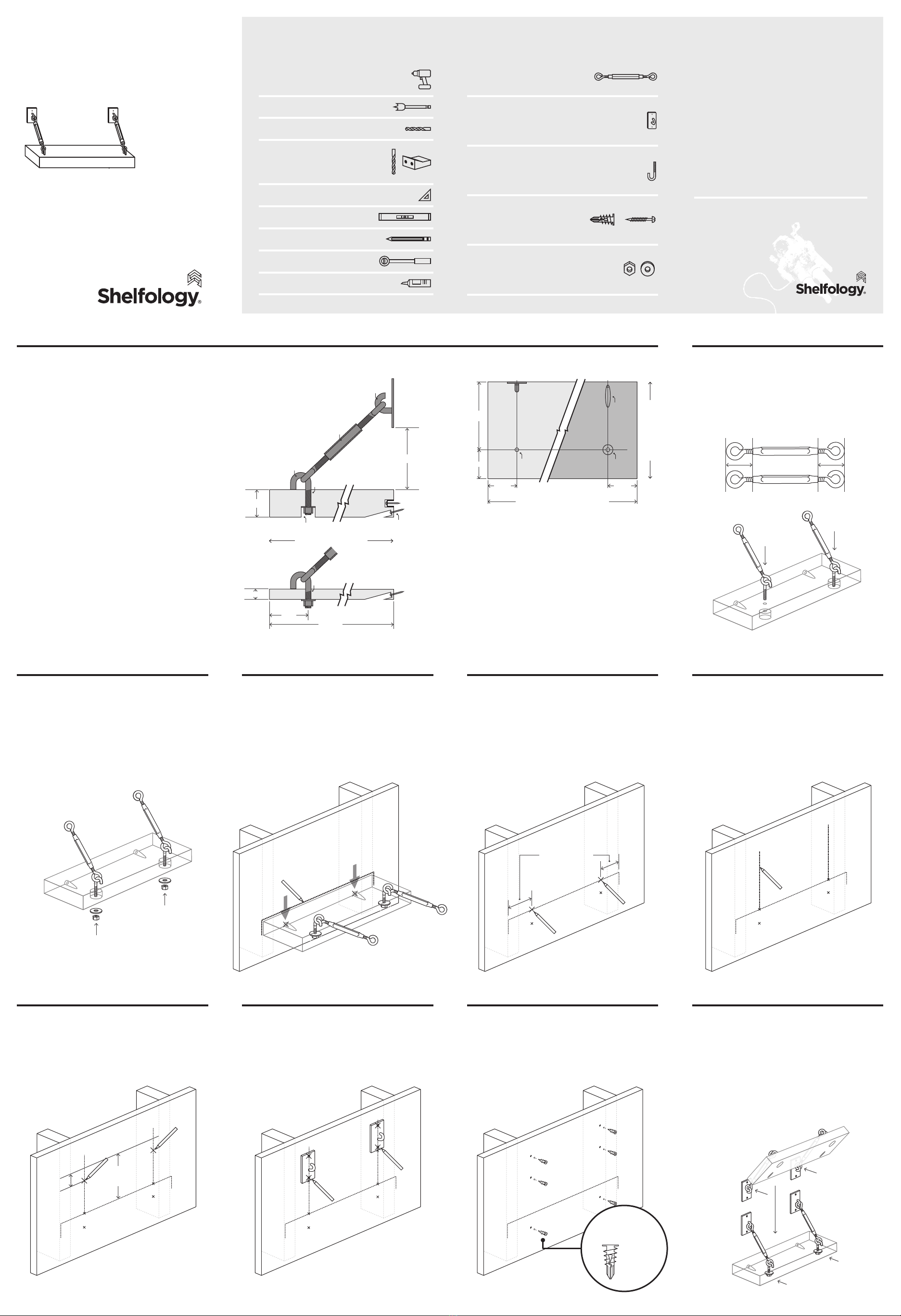

Hardware Installation Guide
Clark
Wood Preparation
A. Choose your preferred wood species and
dimensions. We recommend:
1"- 5" thick x 8½"-10½" D x up to 48" L for 4½" kit
1"- 5" thick x 10"-12" D x up to 48" L for 7½" kit
1"- 5" thick x 12½"-14½" D x up to 48" L for 10½" kit
B. For shelves longer than 48" add additional
turnbuckles.
Wood Drilling
A. Layout all holes.
B. Drill the 1" diameter holes (if thicker than 1").
C. Drill the ⁄" Diameter holes.
D. Drill pocket holes or cut dado for cleat.
E. Install hardware per installation guide.
Note: A ½" x ½" piece of c-channel aluminum, or
equivalent, may be used as a cleat.
1Twist the turnbuckle eyebolts until
exposed threads are symmetrical. Loop
turnbuckle through the J-bolt and push
threaded portion of J-bolt through the
shelf, yo.
5Using marks made in step 4, draw
vertical lines using square.
4Mark top edge equal to distance A
inward from edges of shelf.
2Fix washers and nut onto J-bolt and
tighten with socket wrench until just
barely snug. Overtightening the nut will
damage the wood!
3With help, hold shelf up to wall in
desired position and level with bullet
level. Lightly draw lines on top edge of
level shelf and ends of shelf, mark
pocket screw holes. Hold cleat and mark
holes if using cleat. Tip: Use blue
painters tape to draw on wall.
2x
Turnbuckle Body
2x
Wall Plate
2x
J Bolt
6x
Wall Fastener Set
2x
Nut and Washer Set
Drill
1” forschner/paddle bit
” drill bit
Pocket hole bit + jig OR
½” router dado bit for cleat
Square
Bullet level
Pencil
Socket wrench
Silicone glue
Tools You’ll Need What’s Included
WALL PLATE
TURNBUCKLE
JBOLT
" HOLE
" HOLE
DIST. B MINUS 2"
>1"
<1"
2"6"
6"18"
1" HOLE POCKET HOLE
OR CLEAT
WALL
FRONT
DIST.
A
DIST.
A
DIST. B
" HOLE 1" HOLE
16" 48", PER 2 TURNBUCKLES
TOP OF
SHELF
BOTTOM OF
SHELF
POCKET
HOLE
FRONT WALL
2"6"
9Attach shelf/turnbuckle bolts to wall
plate hooks and set onto cleat or loosely
fasten pockethole screws through shelf.
Using a bullet level, make the shelf level
front to back by twisting turnbuckles.
Tighten pockethole screws or secure
shelf to cleat with silicone glue.
8Install wall anchors if not mounting into
studs. Or install wall plates and cleat (if
using a cleat).
6Measure from shelf top equal to
distance B -2” then mark. 7Center wall plate on line with bottom
edge on mark, then mark screw holes.
Dist. A
2" Dist. B
Toggler® Anchors
Recommended
