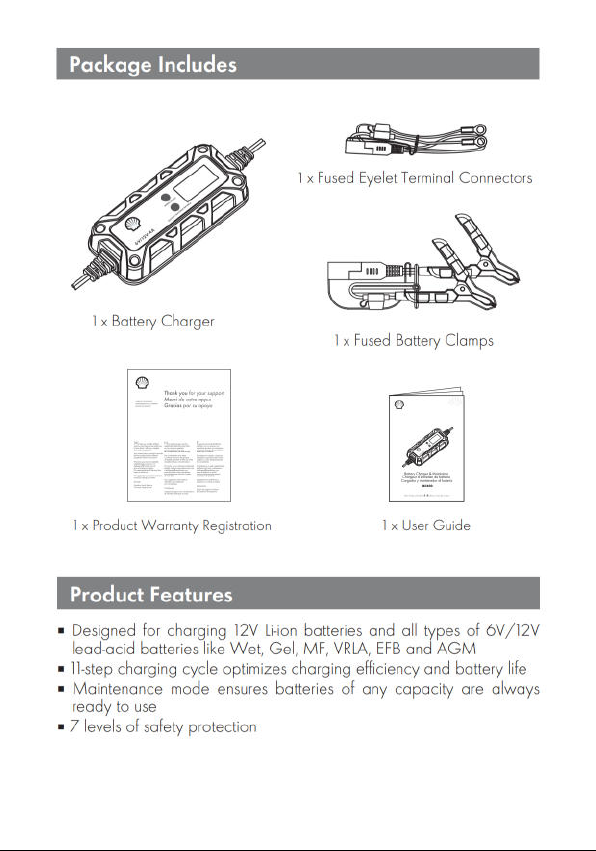

Shell SBC400 User manual

1. Connect the battery clamps or eyelet terminal connectors to the DC
connector of the battery charger.
2. Plug the charger into an outlet. The LCD display will turn on and
show “ON”.
3. Manual selection (For auto-selection, go to step 4)
Battery type selection
Press “BATTERY” to select LEAD ACID or AGM or LI-ION.
Charging rate selection
Press “MODE” to toggle to the appropriate charging rate. For
6V battery, always select 1A to prevent any damages to the battery.
4. Connect the black battery clamp or eyelet terminal connector to the
negative (NEG, N, −) battery terminal.
5. Connect the red battery clamp or eyelet terminal connector to the
positive (POS, P, +) battery terminal.
6. Auto-selection
The charger will automatically detect the battery voltage.
The charger has a memory function and will automatically
return to the last selected battery type and charging rate.
For first time use, the charger will set to LEAD ACID and 1A.
To change the battery type or voltage, follow the instruction
of Mode change.
7. The charger will now go through the pre-programmed charging
steps. The LCD display will display the charging information
and status. See Display Messages section for a complete
list of messages.
Operating Instructions
Note: This product is designed for charging 12V Li-ion batteries and all
types of 6V/12V lead-acid batteries like Wet, Gel, MF, VRLA, EFB and
AGM. It is suitable for charging 2 to 120 Ah batteries and for maintaining
batteries of any capacities.
1. Check the battery chemistry and voltage before charging it with our
product. The battery information can be found in the vehicle's
owner's manual.
2. Turn off the power loads such as headlamps, air-conditioning and
radio before charging the battery.
Charging the Vehicle
Before connecting to the battery
Charging setup

Operating Instructions
Mode change
Voltage selection
If the charger fails to detect a 12V battery, press and hold “MODE”
button for 3 seconds, the charging mode will be changed from 6V to 12V.
Battery type selection
Press and hold “BATTERY” button for 3 seconds.
If charging is in 6V mode, change from LEAD ACID to AGM.
If charging is in 12V mode, change from LEAD ACID to AGM or LI-ION.
8. When charging is finished and the battery is confirmed to be in good
condition, the display will show “FL”. The charger will go into the
maintenance step and will trickle charge the battery as needed. The
charger can be disconnected from the battery at any time.
9. When disconnecting the battery charger, unplug the charger from
the outlet first. Remove the black clamp and then the red clamp or
directly remove the eyelet terminal connectors.

Charging Steps
The charger is programmed with eleven smart charging steps. It will go
through some or all steps in order to extend your battery’s life and
maximize its performance.
Standby
The charger is ready to charge.
Qualification
The charger will check the battery condition, such as voltage,
state-of-charge and health, to determine whether the battery is good for
charging. If the battery is slightly sulfated, the charger will rejuvenate
and recover the battery. As a safety measure, charging process will
begin only if the battery is above 2V.
Soft Start
If the battery is at a very low state of charge, small charging voltage
and current will be applied in order to prepare the battery for the next
charging step.
Pulse
The battery undergoes the desulfation process to break down the
sulfate and to restore the battery capacity.
Recondition
This stage reactivates the battery for bulk charging after desulfation.
Bulk Charging 1
The battery is charged at a constant current of 4A. This stage will
charge the battery to approximately 75% of full charge.
Bulk Charging 2
The battery is charged at a constant current of 3A. This stage will
charge the battery to approximately 80% of full charge.
Bulk Charging 3
The battery is charged at a constant current of 2A or 1A if slow charging
rate is selected. This stage will charge the battery to approximately 85%
of full charge.
Absorption
The charger switches to constant voltage charging. Charging current is
gradually reduced allowing the battery to absorb more power until it
achieves the 100% charged state.
Operating Instructions

Select voltage manually by following the
instruction of mode change. Press and hold
“MODE” button for 3 seconds.
The LCD will display 12V.
Troubleshooting Table
Problem Possible Cause Solution
Cannot select voltage
LCD display does not turn on
Charger is not plugged into the
outlet properly.
Make sure the charger is plugged
into the outlet securely.
AC outlet is not supplying power.
“ER” shown on the
LCD display
Battery clamps are connected
to the wrong polarity.
Charger is connected to
a 24V battery.
Reconnect the clamps with correct polarity.
Disconnect the charger from the battery. The
charger works on 6V and 12V batteries only.
LCD display does not show
charging status
“ER” and Defective Battery
icons appears at the same time
“ER” icon and 6V/12V
appears at the same time
Fuse on the eyelet terminal
connectors may be blown. Replace the fuse with correct amperage.
Battery voltage does not hold and
drops quickly after fully charged.
Battery voltage rose too fast
The battery has high capacity and
is charging at a low rate. It takes
more than 72 hours to charge.
Use fast charging 4A to charge
high capacity battery.
The battery is defective.
Take the battery to the dealer.
Turn the switch on if the outlet is
connected to a switch.
Check for open fuse or circuit breaker.
Charger is normal and will recharge
the car battery.
Reconnect battery clamps to the battery.
Voltage is auto detected when the
charger is connected to the power
and the car battery.
Battery is over discharged which
leads to the auto voltage
detection to fail.
Battery clamps are loose or
not connected to the battery.
Charger does not detect a 12V
battery and charges at 6V
The voltage of the Lead Acid
battery is too low for standard
charging.
The voltage of the Li-ion battery
is too low for recharging.
Use Force Mode to charge the battery.
See instruction in the Charging Modes.
Battery is over-discharged.
Replace it with a new battery.
Defective Battery and
charging status icons appears
at the same time
Operating Instructions

Input: 100 - 120V ~ 60Hz 70W
Output: 12V 4A 12V 1A 6V 1A
Battery Type: 6V & 12V Lead-acid batteries including Wet, GEL, AGM,
VRLA and MF, and 12V Li-ion (LiFePO4) batteries.
Battery Capacity: 2-120 Ah; maintain all sizes
AC Cable Length: 70 in/180 cm
DC Cable Length: 60 in/152.4 cm
Operating Temperature: ‒10°C to 45°C/14°F-113°F
Storage Temperature: ‒20°C to 55°C/‒4°F-131°F
Product Dimensions: 6.76 x 3.06 x 1.54 in/171.7 x 77.7 x 39.1 mm
Product Weight: 1.08±0.04 lb/490±20 g
Accessories:
Cable with Clamps: 27 in/68.6 cm
Cable with Eyelet Terminals: 24 in/61 cm
Fuse in the Battery Clamps and Eyelet Terminal Connectors: 7.5A
The symbol indicates direct current (DC)
～ The symbol indicates alternating current (AC)
Specifications

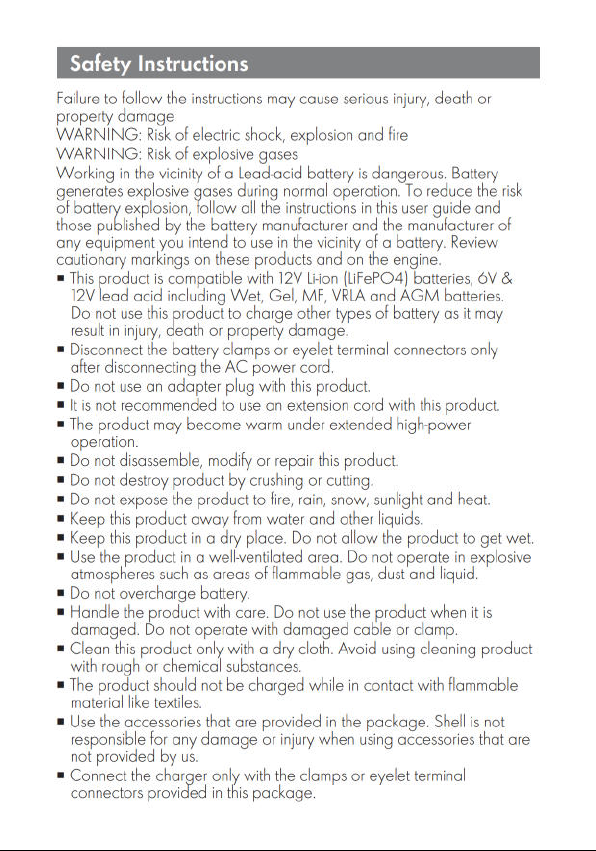

Failure to follow the instructions may cause serious injury, death or
property damage
WARNING: Risk of electric shock, explosion and fire
WARNING: Risk of explosive gases
Working in the vicinity of a Lead-acid battery is dangerous. Battery
generates explosive gases during normal operation. To reduce the risk
of battery explosion, follow all the instructions in this user guide and
those published by the battery manufacturer and the manufacturer of
any equipment you intend to use in the vicinity of a battery. Review
cautionary markings on these products and on the engine.
This product is compatible with 12V Li-ion (LiFePO4) batteries, 6V &
12V lead acid including Wet, Gel, MF, VRLA and AGM batteries.
Do not use this product to charge other types of battery as it may
result in injury, death or property damage.
Disconnect the battery clamps or eyelet terminal connectors only
after disconnecting the AC power cord.
Do not use an adapter plug with this product.
It is not recommended to use an extension cord with this product.
The product may become warm under extended high-power
operation.
Do not disassemble, modify or repair this product.
Do not destroy product by crushing or cutting.
Do not expose the product to fire, rain, snow, sunlight and heat.
Keep this product away from water and other liquids.
Keep this product in a dry place. Do not allow the product to get wet.
Use the product in a well-ventilated area. Do not operate in explosive
atmospheres such as areas of flammable gas, dust and liquid.
Do not overcharge battery.
Handle the product with care. Do not use the product when it is
damaged. Do not operate with damaged cable or clamp.
Clean this product only with a dry cloth. Avoid using cleaning product
with rough or chemical substances.
The product should not be charged while in contact with flammable
material like textiles.
Use the accessories that are provided in the package. Shell is not
responsible for any damage or injury when using accessories that are
not provided by us.
Connect the charger only with the clamps or eyelet terminal
connectors provided in this package.
Safety Instructions
Wear adequate eye protection and protective clothing when
working near a car battery.
Do not smoke or allow a spark or flame near the battery or engine.
Remove all metal objects such as rings, bracelets, and watches.
Have plenty of fresh water and soap nearby in case of battery acid
contact with eyes, skin or clothing.
If battery acid comes in contact with the skin or clothing, immediately
wash with soap and water. If the acid enters the eye, immediately
flush eye with running cold water for at least 10 minutes and seek
immediate medical attention.
Beware not to drop metal items on the battery. It might cause sparks
or short-circuit the battery.
Consider having someone nearby to come to your aid in case of
emergency.
Be very cautious not to drop metal tools onto the battery. It might
cause sparks or short-circuit the battery or other electrical part that
may cause explosion.
Incompatible or damaged car batteries may explode when used with
this product.
Personal Precautions
Do not disconnect the product from the outlet by pulling the cord.
Do not put cables on or near moving parts such as hoods, doors, fans
and belts.
Do not allow the clamps to touch each other.
Keep out of reach of children.

This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Please note that changes or modifications of this product is not
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Cautions
CONFORMS TO UL STD.1236
CERTIFIED TO CSA STD.
C22.2 No. 107.2
CONFORMS TO UL STD.1310
CERTIFIED TO CSA STD.
C22.2 No.223
CAN ICES-3(B)/NMB-3(B)
IP65
Made in China

Shell Five (5) Years Limited Warranty
Shell warrants that this product (the "Product") will be free from defects in
material and workmanship for a period of five (5) years from the date of
purchase (the "Warranty Period"). For defects reported during the
Warranty Period, Shell will, at its discretion, and subject to Shell’s product
support analysis, either repair or replace defective Product. Replacement
parts and products will be new or serviceably used, comparable in
function and performance to the original part and warranted for the
remainder of the original Warranty Period. SHELL’S LIABILITY HEREUN-
DER IS EXPRESSLY LIMITED TO REPLACEMENT OR REPAIR OF THE
PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, SHELL
SHALL NOT BE LIABLE TO ANY PURCHASER OF THE PRODUCT OR
ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, CONSEQUENTIAL
OR EXEMPLARY DAMAGES, INCLUDING BUT NOT LIMITED TO,
LOST PROFITS, PROPERTY DAMAGE OR PERSONAL INJURY RELATED
IN ANY WAY TO THE PRODUCT HOWSOEVER CAUSED, EVEN IF
SHELL HAD KNOWLEDGE OF THE POSSIBILITY OF SUCH DAMAG-
ES. THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS, IMPLIED, STATUTORY OR OTHERWISE,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
AND THOSE ARISING FROM COURSE OF DEALING, USAGE OR
TRADE PRACTICE. IN THE EVENT THAT ANY APPLICABLE LAWS
IMPOSE WARRANTIES, CONDITIONS OR OBLIGATIONS THAT
CANNOT BE EXCLUDED OR MODIFIED, THIS PARAGRAPH SHALL
APPLY TO THE GREATEST EXTENT ALLOWED BY SUCH LAWS.
This Limited Warranty is made solely for the benefit of the original purchas-
er of the Product from Shell or its approved reseller or distributor and is not
assignable or transferable. To make a warranty claim, the purchaser must:
(1) request and obtain a return merchandise authorization ("RMA")
number and return location information (the "Return Location") from Shell
Support by emailing [email protected] by calling
1.833.990.2624 ; and (2) send the Product, including RMA number and
receipt to the Return Location provided. DO NOT SEND IN PRODUCT
WITHOUT FIRST OBTAINING AN RMA FROM SHELL SUPPORT. THE
ORIGINAL PURCHASER IS RESPONSIBLE (AND MUST PREPAY) ALL
PACKAGING AND TRANSPORTATION COSTS TO SHIP PRODUCTS
FOR WARRANTY SERVICE. NOTWITHSTANDING THE ABOVE, THIS
LIMITED WARRANTY IS VOID AND DOES NOT APPLY TO
PRODUCTS THAT: (a) were misused, mishandled, subjected to abuse or
careless handling, accident, improperly stored, or operated under
conditions of extreme voltage, temperature, shock, or vibration beyond
Shell's recommendations for safe and effective use; (b) improperly
installed, operated or maintained; (c) are/were modified without the
express written consent of Shell; (d) have been disassembled, altered or
repaired by anyone other than Shell; (e) had defects which were
reported after the Warranty Period. THIS LIMITED WARRANTY DOES
NOT COVER: (1) normal wear and tear; (2) cosmetic damage that does
not affect functionality; or (3) Products where the Shell serial and/or lot
number is missing, altered, or defaced.

Shell Five (5) Years Limited Warranty
Shell warrants that this product (the "Product") will be free from defects in
material and workmanship for a period of five (5) years from the date of
purchase (the "Warranty Period"). For defects reported during the
Warranty Period, Shell will, at its discretion, and subject to Shell’s product
support analysis, either repair or replace defective Product. Replacement
parts and products will be new or serviceably used, comparable in
function and performance to the original part and warranted for the
remainder of the original Warranty Period. SHELL’S LIABILITY HEREUN-
DER IS EXPRESSLY LIMITED TO REPLACEMENT OR REPAIR OF THE
PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, SHELL
SHALL NOT BE LIABLE TO ANY PURCHASER OF THE PRODUCT OR
ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, CONSEQUENTIAL
OR EXEMPLARY DAMAGES, INCLUDING BUT NOT LIMITED TO,
LOST PROFITS, PROPERTY DAMAGE OR PERSONAL INJURY RELATED
IN ANY WAY TO THE PRODUCT HOWSOEVER CAUSED, EVEN IF
SHELL HAD KNOWLEDGE OF THE POSSIBILITY OF SUCH DAMAG-
ES. THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS, IMPLIED, STATUTORY OR OTHERWISE,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
AND THOSE ARISING FROM COURSE OF DEALING, USAGE OR
TRADE PRACTICE. IN THE EVENT THAT ANY APPLICABLE LAWS
IMPOSE WARRANTIES, CONDITIONS OR OBLIGATIONS THAT
CANNOT BE EXCLUDED OR MODIFIED, THIS PARAGRAPH SHALL
APPLY TO THE GREATEST EXTENT ALLOWED BY SUCH LAWS.
This Limited Warranty is made solely for the benefit of the original purchas-
er of the Product from Shell or its approved reseller or distributor and is not
assignable or transferable. To make a warranty claim, the purchaser must:
(1) request and obtain a return merchandise authorization ("RMA")
number and return location information (the "Return Location") from Shell
Support by emailing [email protected] by calling
1.833.990.2624 ; and (2) send the Product, including RMA number and
receipt to the Return Location provided. DO NOT SEND IN PRODUCT
WITHOUT FIRST OBTAINING AN RMA FROM SHELL SUPPORT. THE
ORIGINAL PURCHASER IS RESPONSIBLE (AND MUST PREPAY) ALL
PACKAGING AND TRANSPORTATION COSTS TO SHIP PRODUCTS
For any questions regarding your warranty or product contact
Shell Support at:
1-833-990-2624
Monday - Friday 9 am - 5 pm
Eastern Standard Time
Camelion North America Inc.
2572 Daniel-Johnson Blvd. | 2nd Floor
Laval, QC, H7T 2R3, Canada
[email protected]
FOR WARRANTY SERVICE. NOTWITHSTANDING THE ABOVE, THIS
LIMITED WARRANTY IS VOID AND DOES NOT APPLY TO
PRODUCTS THAT: (a) were misused, mishandled, subjected to abuse or
careless handling, accident, improperly stored, or operated under
conditions of extreme voltage, temperature, shock, or vibration beyond
Shell's recommendations for safe and effective use; (b) improperly
installed, operated or maintained; (c) are/were modified without the
express written consent of Shell; (d) have been disassembled, altered or
repaired by anyone other than Shell; (e) had defects which were
reported after the Warranty Period. THIS LIMITED WARRANTY DOES
NOT COVER: (1) normal wear and tear; (2) cosmetic damage that does
not affect functionality; or (3) Products where the Shell serial and/or lot
number is missing, altered, or defaced.

SH SBC400 IM ENG D10099R6
SBC400
Battery Charger & Maintainer
Printed in China
