Shengmilo MX01 User manual

1
www.shengmilo-bikes.com
MX01
Owner's Manual

2
About Manual
This manual contains details of the product, information on its operation and maintenance, and other helpful tips for owners. Read it carefully and familiarize yourself with the Shengmilo
MX01 before using it to ensure safe use, reduce the risk of damage and premature wear, and prevent accidents. Be sure to retain this manual as your convenient Shengmilo MX01
information source.
This manual contains many Warnings and Cautions concerning safe operation, and consequences if proper setup, operation and maintenance guidelines are not followed. All
information in this manual should be carefully reviewed.
The safety grade color of Caution is orange, and if
not avoided, may result in moderate or serious injury.
Users should also pay special attention to the information. Marks in this manual beginning with” NOTICE ”
The safety grade color of Warning is red, and if not
avoided will likely result in serious injury or death.
Because it is impossible to anticipate every situation or condition which can occur while riding, this manual makes no representations about the safe use of our bicycles under all conditions. There are
risks associated with the use of any bicycle which cannot be predicted or avoided, and which are the sole responsibility of the rider. You should keep this manual, along with any other documents that
were included with your bicycle, for future reference, however all content in this manual is subject to change or withdrawal without notice.
Visit www.shengmilo-bikes.com to download the latest version. Assembly and first adjustment of your Shengmilo MX01 require special tools and skills, and it is recommended that this be performed
by a trained bicycle mechanic if possible.

3
Contents
About Manual ................................................................................................................................................................................................................................. 2
Bike Specication ............................................................................................................................................................................................................................. 4
Bike Assembly Guide ..................................................................................................................................................................................................................... 7
Recommended Torque Values ........................................................................................................................................................................................................ 8
Assembly Instructions .....................................................................................................................................................................................................................9
Front Wheel Installation ................................................................................................................................................................................................................10
Safety Checklist ............................................................................................................................................................................................................................ 19
Safety Precautions .........................................................................................................................................................................................................................20
While Riding ................................................................................................................................................................................................................................. 20
Shengmilo E-Bike Use and Care .................................................................................................................................................................................................. 21
Basic Display Settings .................................................................................................................................................................................................................. 21
Battery Charging ........................................................................................................................................................................................................................... 24
Riding Limitations ........................................................................................................................................................................................................................ 29
Maintenance .................................................................................................................................................................................................................................. 30
Front Fork Maintenance ................................................................................................................................................................................................................30
Limited Warranty..........................................................................................................................................................................................................................31
WARRANTY WILL COVER...................................................................................................................................................................................................... 31
Parts & Components ..................................................................................................................................................................................................................... 32
Contact us ......................................................................................................................................................................................................................................33

4
Bike Specication
LCD Display Remote
Power Switch & Information
LCD Display
Shimano Shift Lever
Throttle
LED Light Switch
Saddle
Head Tube
LED Headlight
Front Suspension Fork /
Front Shock
Front Brake
Motor
Rear Shock
Rear Brake
Rear Derailleur
Controller
Battery

5
A - Total Length 76 in
B - Handlebar Height
43
in
C - Wheelbase
49
in
D - Min Seat Height
35
in
E - Max Seat Height
40
in
F - Chain Stay Length
21
in
G - Standover Height
16
i n
H - Wheel Diameter
29
i n
I - Head Tube Length
10
i n
J - Handlebar Length
27
i n

6
Battery
48 V 12 . 8 Ah lithium battery
Charger
48V 2.0 A smart charger
Range
40 – 45 m i l es (6 5 - 70 K M pe d a l as s i s t mo d e )
Controller
48/ 22A
Motor
1000W brushless gear motor
Display
3.5-inch waterproof LCD display
Total Payload
Capacity
400 lbs (180kg)
Weight
70.5 lb (32KG)
Recommende
d Rider
Heights
5′3″ ~ 6′4″ (165-200cm)
Pedal Assist
Intelligent
0~ 5 level pedal assist
Tires
26" x 4" CHAOYANG/CST fat tires
Throttle
Half twist throttle
Brake lever
Aluminum alloy comfort grip levers with
motor cutoff switch
Front Fork
Alloy front suspension fork with lockout and
adjustment
Kickstand
Heavy-duty aluminum
Pedal
Alloy pedals with reflectors
Freewheel
Shimano 7-speed gear shift system
Bike Frame
6061 Aluminum frame
Brake
Dual hydrauli disc brakes
Headlight
48V LED light
Chain
KMC chain
Saddle
SR saddle
Stem
Promax MA-400 SSABK
Seatpost
Diameter 3 0 . 9 mm length 3 0 0 mm
Crankset
1 7 0 mm forged alloy
Kickstand
Heavy-duty aluminum
Gearing
Shimano-14-28T BROWN/BK
Spokes
One whee l

7
Bike Assembly Guide
◆Preparation Checklist
NOTICE: Before assembling your bike, it’ s recommended to remove the battery for the reasons outlined below:
1 . Determine if there’ s battery drain or damage during shipping.
2 . Reduce the weight of the ebike to make it easier to maneuver the bike while assembling.
3 . Avoid battery damage during the assembly process.
Go to page 2 4 to learn about removing and charging the battery.
Headlight
Bike repair tool
Quick-release skewer
Keys(2x, identical)
Charger
Owner's manual
Wrench
Bike pump
Pedal
Zip
ties
Extra tools needed: (1 ) 1 0 mm Wrench (2 ) 8 mm Wrench
* Please go to our YouTube channel “ Shengmilo Ebike” to watch our assembly tutorial videos!

8
Recommended Torque Values
Hardware Location
Recommended Torque( NM)
Handlebar
12-18
Stem
12-18
Saddle
12-18
Front Wheel(For bikes with bolts on front wheel)
15-22
Rear wheel
30-38
Bottom Bracket Parts
30-50
Pedals
28-33
Disk Mounting Bolts
3-5
Disk Caliper Mount
6-8
Crank Bolts
32-36
Rear Derailleur Cable Pinch
3-5
Front Derailleur Clamp
3-6
Saddle Post Clamp
3-6
NOTICE: Using an impact driver to achieve the required torque is not recommended as it might cause damage. We suggest you use the wrench set we provided and extra tools to
manually adjust nuts and bolts.

9
Assembly Instructions
◆Handlebar Installation (4mm Hex Wrench )
Step 1: Loosen the bolts on your bike stem.
Step 2 : Tighten bolts to handlebar stem, but don’t tighten completely as you may want to further adjust the angle later to align more precisely. Test the
positioning,and adjust the handlebar to your preferred angle. After determining the best position, completely tighten all the bolts on the stem.
NOTICE: In addition to angle,
the height of the handlebar can be
adjusted by adding or removing the
headset spacers if needed. For those
without experience,we recommend
having a professional make such
adjustments for safety reasons.

10
◆Front Wheel Installation

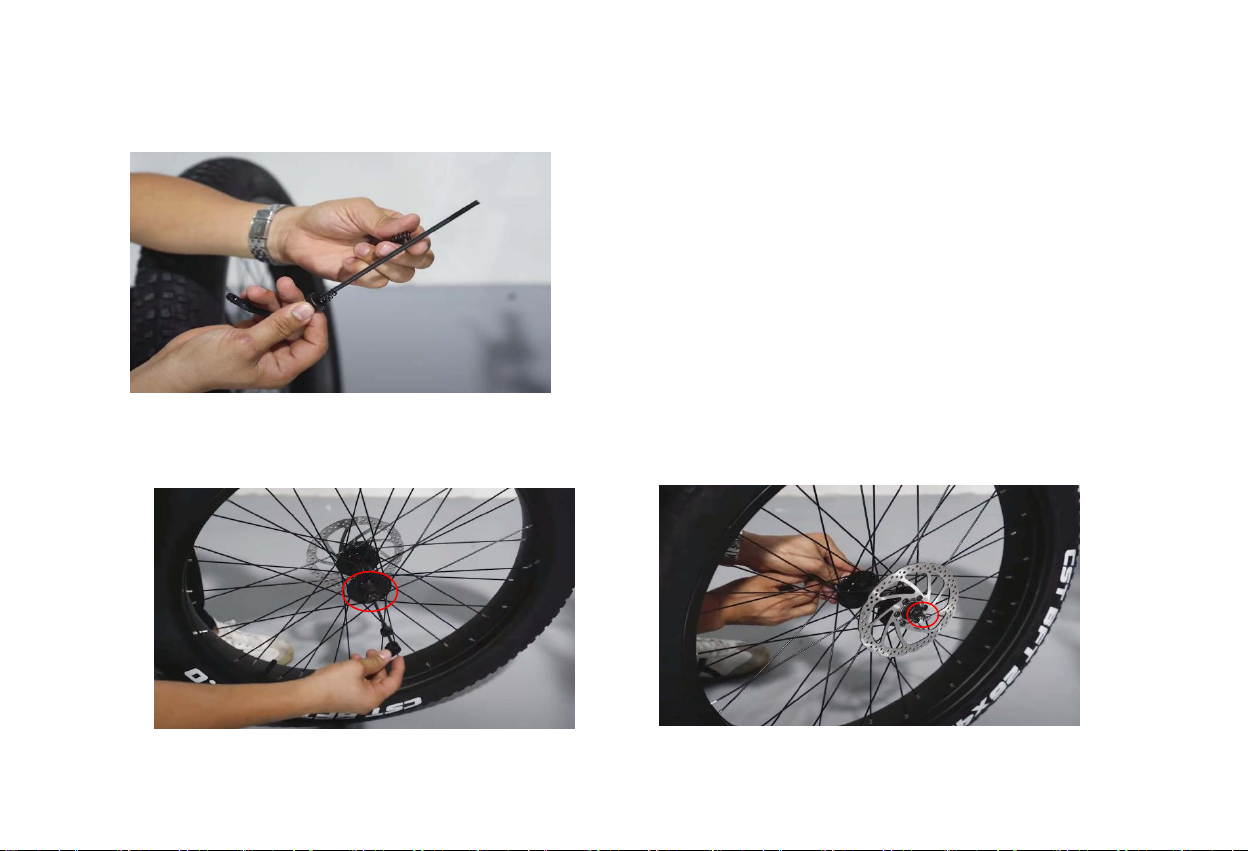

Step 1: Prepare your quick-release skewer for the next step by removing the thumb nut and one of the cone spring.
Step 2: Install the quick-release skewer starting from the brake rotor side of the wheel, inserting the quick-release skewer through the hub and then
replacing the second cone spring on the other side.Ensure both springs are pointed narrow-side-in towards the wheel hub.
cone spring

11
Step 3 : Tighten the thumb.
Step 4 : Align the fork dropouts with the axle of the wheel hub, making sure the dropouts are securely positioned on the axle. Also ensure the brake rotor is
properly inserted into the caliper.

12
Step 5 : Tighten the thumb nut until the quick-release lever is held in line with the axle, and then use your palm of your hand to close the quick-release lever.
Step 6 : Rotate the front wheel. Make sure the quick release skewer lever on the front wheel is fully closed, and check the wheel balance in Pedal- Only Mode.
If you notice the riding is imbalanced or the rotation of the front wheel makes noise, it means the bolts were not completely tightened or not aligned horizontally.

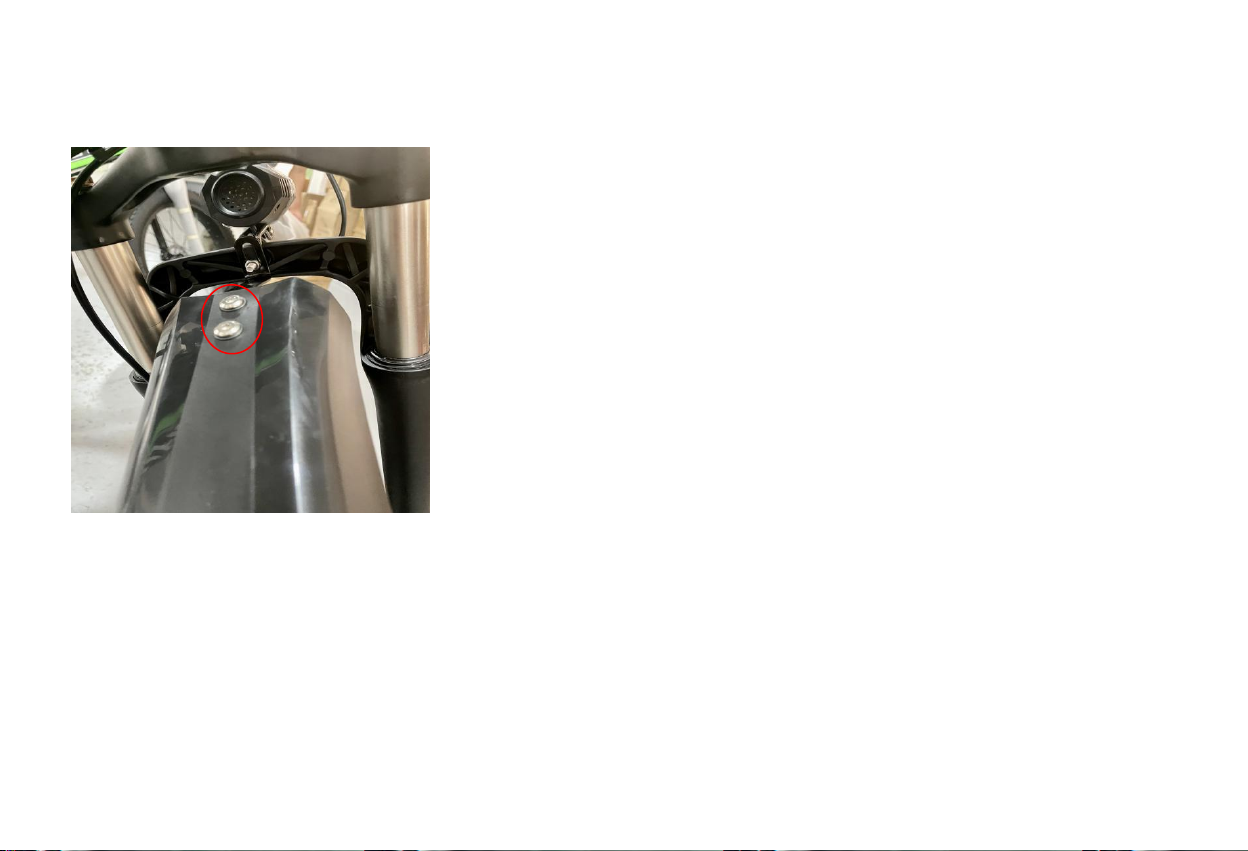

◆Headlight & Front Fender Installation
The headlights are attached with a bolt, and you'll need a PH1 wrench to tighten its nut.
Step 1 : Loosen the bolts on the headlight. Align the headlight bolt holes with the holes on the fork bracket, then re-thread the bolts through all holes and tighten the bolts with a PH1
wrench and 10mm bolt extractor retaining nut.

13
1. Loosen the bolts on the headlights with a PH1 wrench 2. Align the headlight bolt holes with the holes on the fork bracket
2. Set the nut to tighten the bolt PH1 wrench
NOTICE: The bolt extractors
can be found in the
Shengmilo folding hex key
set.

14
Step 2 : Pull one end of the fender brace until the loop at the end is centered in the bracket, reinsert the bolt through the loop at the end of the brace, and
tighten completely with a 4mm hex wrench and a 8mm bolt extractor holding the nut.

15
◆Seat Adjustment
Adjust the Seat Height:
Open the seatpost quick release lever. Adjust the seatpost height by sliding the seatpost up or down to a height appropriate for your leg length and preferred riding position. Do not extend the seatpost
beyond the minimum insertion marking etched onto the seatpost.
WARNING: Overextending the seatpost can cause it to break or come off your bike, putting you at very high risk of serious injury or death. Avoid this danger by
inserting your seatpost into the seat tube far enough that the minimum insertion point is no longer visible.

16
Adjust the Seat Angle:
Step 1 : Loosen the seat adjustment bolt beneath the seat. Move the seat backward or forward and tilt to adjust the angle within the limit markings etched on
the seat rail. Do not exceed the limit markings, to ensure the safety of yourself and the bike.
Step 2 : Tighten the seat adjustment bolt. Ensure the top and bottom of the seat rail clamp are aligned, so that the seat adjustment bolt will clamp the seat
rails together properly.
NOTICE: The seat angle has been preadjusted to factory safety standards. Please make note of original settings, and only adjust if necessary.

17
◆Rear Rack Installation (4mm Hex Wrench)
Step 1: There are a total of 2 bolts for installing the rear rack. In order to better identify them, we preinserted them in the proper place. Please remove them with a 4mm hex wrench.
Step 2: Align the holes on rear rack with the holes on seatstay. Replace and tighten the bolts with a 4mm hex wrench.

18
◆Pedals Installation (15mm wrench)
Make sure your pedals are installed on the correct side, as installing on the wrong side will damage the threads. Indicators for the right pedal (R) and the left pedal (L) can be found in two places:
the stickers on the plastic cover, and the bottom of the pedal threads.
Before you install the pedals, apply a small amount of waterproof grease onto the spindle. Start threading the pedal on by hand to ensure the pedal is going in perfectly straight, rotating in the
direction of the pointer shown on the crank. If it is not spinning smoothly, make doubly sure that you have the correct left or right pedal. After initial hand-tightening, finish tightening the pedals
with a standard 15mm wrench .

19
Safety Checklist
Safety Check
Basic Steps
Brakes
o Test front and rear brakes for proper function.
o Ensure brake pads are not overworn and are correctly positioned in relation to rims.
o Make sure brake control cables are lubricated, correctly adjusted and display no obvious wear.
o Check that brake control levers are lubricated and tightly secured to handlebars.
Wheels and Tires
o Inflate tires to within recommended limits displayed on sidewalls.
o Check for bulges or signs of excessive wear.
o Clean tires to ensure tread is exposed.
o Ensure rims run true and have no obvious wobbles or kinks.
o Check that all wheel spokes are tight and not broken.
o Check the wheel balance in Pedal Only Mode. If you notice the riding is imbalanced or the rotation of the front wheel makes noise, it means the bolts were not
completely tightened or not aligned horizontally.
Chain
o Check that chain is oiled, clean and runs smoothly.
o Use extra care in wet or dusty conditions.
Cranks and Pedals
o Securely tighten pedals to cranks.
o Ensure cranks are securely tightened and are not bent.
Derailleurs
o Check that derailleur(s) are adjusted and functioning properly.
o Ensure shift and brake levers are attached to handlebar securely.
o Check all brake and shift cables for proper lubrication..
Motor Drive
o Ensure hub motor is spinning smoothly and motor bearings are in good working order.
o Check that all power cables running to hub motor are secured and undamaged.
o Make sure hub motor axle bolts are secured and all torque arms and torque washers are in palce.
Battery Pack
oEnsure battery is charged before use.
o Check for any visible damage to battery pack.
o Lock battery securely to frame.

20
Safety Precautions
The following safety notes provide additional information on the safe operation of your Shengmilo MX01 and should be closely reviewed. Improper operation or failure to confirm correct installation,
compatibility, and maintenance of any component or accessory may result in serious injury or death.
◆Before Riding
• All users must read and understand this manual before first use. Additional manuals for components used on your bicycle may be provided and should also be read before use.
• Ensure you understand all instructions and safety notes/warnings.
• Follow the safety checklist on page 19 before first use and at regular intervals to ensure correct tightening and setup of your bicycle.
• Ensure the bike fits you properly before first use. Check local rules and regulations before riding.
• It is your responsibility to familiarize yourself with the laws and requirements of operation of this product in the area(s) where you ride.
◆While Riding
• Always wear an approved bicycle helmet whenever using this product and ensure that all helmet manufacturer instructions are used for fit and care of your helmet. Failure to wear a helmet when
riding may result in serious injury or death.
• Acceleration can be unexpectedly strong in pedal assist mode (Pedal Assist level 1-5), as when you pedal the motor assist will suddenly engage. Therefore, please pay careful attention when
riding. We suggest you use Pedal Only Mode (Pedal Assist level 0) when you need to ride at a slow speed to cross roads, at intersections, or when pedestrian traffic is present, in order to avoid
accidents caused by sudden acceleration.
• Make sure you securely close the quick-release lever of the front wheel, checking the wheel balance in Pedal Only Mode. If you notice the riding feels imbalanced, or the rotation of the front
wheel makes noise, it likely means the bolts were not completely tightened or didn’t align horizontally in the center.
• Off-road riding requires close attention and specific skills, and presents variable conditions and hazards which accompany the conditions.
• Wear appropriate safety gear and do not ride alone in remote areas.
