Schuchmann MOMO User manual

Instructions for use.
momo therapy bicycle. The bicycle for more balance.
momo therapy bicycle.

Many thanks.
Dear Customer
At this point we would like to thank you for placing your trust in our company and
for purchasing our product. We ask you to read through the Instructions for use carefully
prior to initial commissioning of the product, and to observe them. Please note that
guidelines and representations in these Instructions for use may deviate from your
product due to diering equipment. We reserve the right to make technical modifications.
Important information!
Ensure that these Instructions for use remain with the product.
Your schuchmann Team

2. Product description.
03 Contents.
1. Preparation. .................................................................................. 05
1.1 Delivery............................................................................................................................05
1.2 Safety measures prior to use ..............................................................................05
1.3 Safe disposal...............................................................................................................05
1.3.1 Packaging.............................................................................................................. 05
1.3.2 Product................................................................................................................... 05
1.4 Where to store the Instructions for use..........................................................05
2. Product description. ...................................................................... 06
2.1 General information.................................................................................................06
2.2 Handling and transport ........................................................................................06
2.3 Application areas, use according to the intended purpose .............06
2.3.1 Indications............................................................................................................ 06
2.3.2 Contraindications ............................................................................................07
2.4 Use not in accordance with the intended purpose / warning gui-
delines............................................................................................................................08
2.5 Equipment for basic model.................................................................................09
2.6 Product overview......................................................................................................09
2.7 Overview of equipment / accessories............................................................10
2.8 Drive possibilities ....................................................................................................... 16
2.9 Adjusting the stabilisers ......................................................................................... 17
2.10 The initial riding attempts................................................................................... 17
3. Settings. ....................................................................................... 18
3.1 Presettings ..................................................................................................................... 18

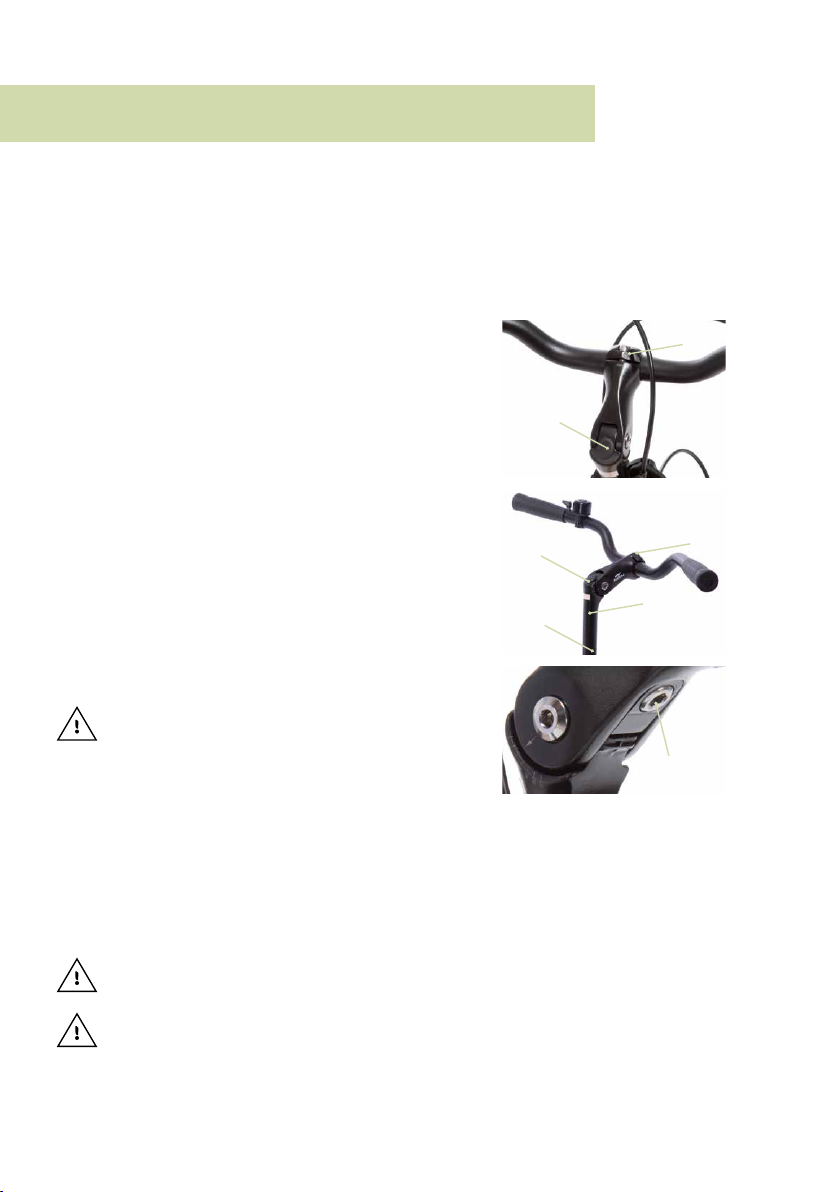

3.1.1 Handlebar adjustment .....................................................................................18
3.1.2 Saddle adjustment ............................................................................................19

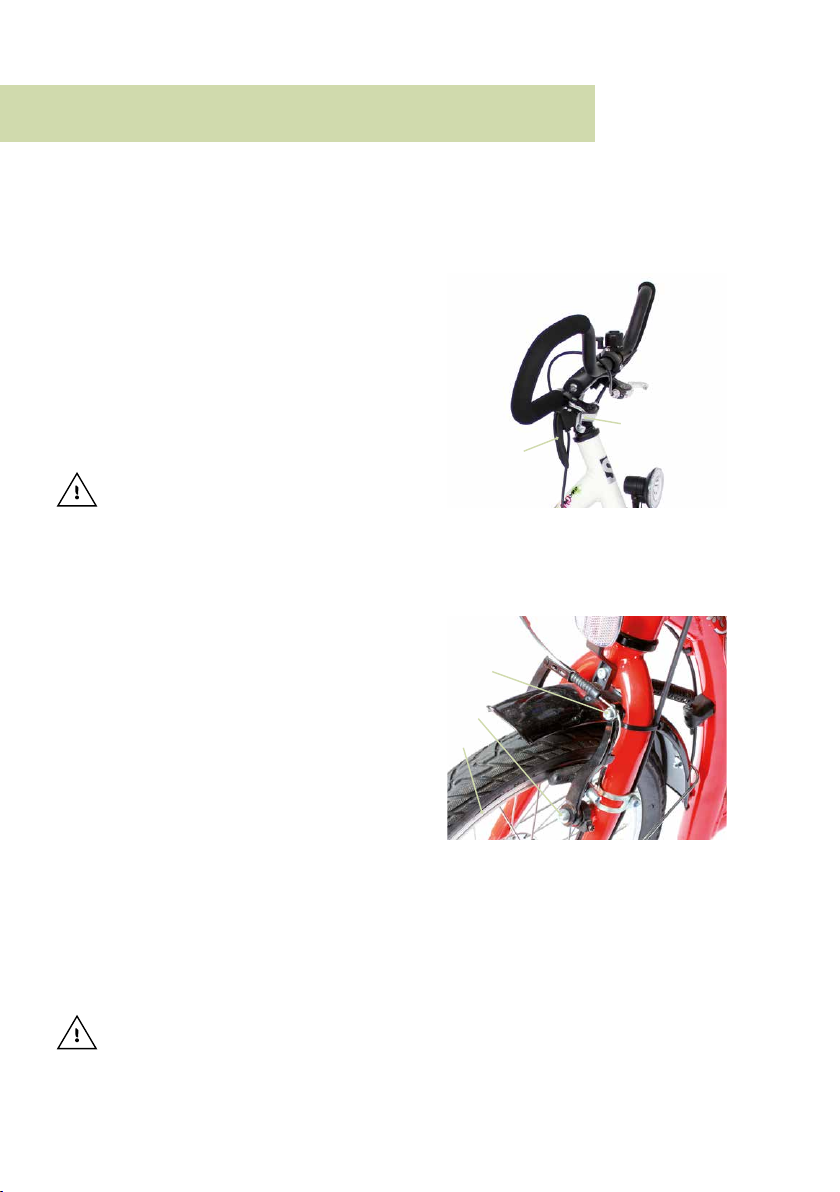

3.2 Brakes.............................................................................................................................20
3.2.1 Parking brake ...................................................................................................... 20
3.2.2 Round handlebars with brake lever ring ................................................21
3.2.3 Round handlebars with brake function ..................................................21
3.2.4 Drum brake in front wheel .............................................................................21
3.2.5 Backpedal brake................................................................................................21
3.3 Tyres and hoses......................................................................................................... 22
3.4 Chain tension............................................................................................................. 22
3.5 Light system / dynamo ......................................................................................... 22
4. Accessories. .................................................................................. 23
4.1 Dynamic back and pelvic guide pelotte pads ......................................... 23
4.1.1 Width adjustable back and pelvic guide pelotte pads.................23
4.2 Headrest....................................................................................................................... 23
4.3 Push bar........................................................................................................................ 24
4.4 Parking brake for accompanying escorts ................................................... 24
4.5 Steering for accompanying persons.............................................................. 24
4.6 Handlebar lock limiter ........................................................................................... 25
4.7 Holding bracket with mount............................................................................... 25
4.8 Universal adapter .................................................................................................... 26
4.9 Crank shortener (continuously adjustable) ................................................. 26

04 Contents.
4.10 Crank shortener...................................................................................................... 26
4.11 Special crank for knee contracture.................................................................27
5. Foot positioner. ............................................................................ 28
5.1 Exercise bike pedals ................................................................................................ 28
5.2 Foot positioning pedals........................................................................................ 28
5.3 Foot pans..................................................................................................................... 28
5.4 Foot pans with leg guidance............................................................................. 29
5.5 Foot pans with dynamic leg guidance......................................................... 29
6. Strap systems. .............................................................................. 30
6.1 Chest strap...................................................................................................................30
6.2 Positioning vest..........................................................................................................30
6.3 Groin harness, T-shaped....................................................................................... 31
6.4 4-point pelvic harness ........................................................................................... 31
6.5 Hand positioning aid............................................................................................... 31
7. Electric drives. .............................................................................. 32
7.1 E-drive ............................................................................................................................. 32
7.2 Light system................................................................................................................. 33
8. Cleaning and servicing. ................................................................. 34
8.1 Cleaning and disinfecting....................................................................................34
8.1.1 Cleaning..................................................................................................................34
8.1.2 Disinfection............................................................................................................34
8.1.3 Chain maintenance..........................................................................................35
8.2 Servicing / controls................................................................................................. 35
8.3 Maintenance .............................................................................................................. 35
8.3.1 Maintenance specifications.........................................................................35
8.3.2 Maintenance plan ............................................................................................36
8.4 Repairs........................................................................................................................... 37
8.5 Controls......................................................................................................................... 37
8.6 Storage ......................................................................................................................... 37
8.7 Spare parts..................................................................................................................38
8.8 Duration of use and re-use ................................................................................ 38
8.9 Error messages and troubleshooting ............................................................. 39
9. Technical data. .............................................................................. 43
9.1 Dimensions....................................................................................................................43
9.2 Tyre pressure................................................................................................................43
9.3 Torque information...................................................................................................43
9.4 E-drive............................................................................................................................44
9.5 Lighting system..........................................................................................................45
10. Guarantee. .................................................................................. 45
11. Identication. ............................................................................. 46
11.1 EU Declaration of Conformity ............................................................................46
11.2 Serial number / date of manufacture .......................................................... 47
11.3 Product version......................................................................................................... 47
11.4 Issue of the document.......................................................................................... 47
11.5 Name and address of the manufacturer, specialist dealer sup-
plying the product .................................................................................................. 47
04

05 1. Preparation.
1.1 Delivery
On receiving the product, please check it for completeness, lack of faults
and any transport damage. Inspect the goods in the presence of your
forwarder. Should transport damage have occurred, please arrange for
an inventory (determination of the faults) to be made in the presence of
the forwarder. Please send a complaint in writing to the specialist dealer
responsible.
1.2 Safety measures prior to use
The correct use of the product requires a detailed and careful instruction
of the user or the accompanying person. We ask you to read through the
Instructions for use carefully prior to initial commissioning of the product,
and to observe them. It is possible that product parts that get in contact
with the skin may heat up in the sun. Cover these areas or protect the
device from direct sunlight.
1.3 Safe disposal
In order to preserve and protect the environment to prevent environmental
pollution and to improve the recycling of raw materials, please note the
disposal instructions in points 1.3.1 and 1.3.2.
1.3.1 Packaging
The product packaging should be stored in case the product needs to be
transported again. If you need to return the product to us for repairs or
in the event of warranty claims, kindly use, if possible, the original carton
box so that the product is optimally packaged. Recycle the packaging
materials according to their type.
Do not leave packaging materials unattended, as they are a possible source of
danger.
1.3.2 Product
Separate the raw materials used in the product for recycling according to
their classification (see material information under Point 2.1). The electrical
components and the drive system battery must not be disposed of with
household waste. These must be returned to the designated public collec-
tion points or to your specialist dealer (see Point 9.5).
1.4 Where to store the Instructions for use
Please store these Instructions for use carefully and ensure that these
Instructions for use remain with the product in case of re-use.

06 2. Product description.
2.1 General information
All base frames are made of aluminium, which is non-corroding and pow-
der-coated. All other materials used are protected against corrosion
through the use of stainless steel, aluminium or plastic. All important parts,
such as the saddle, handlebars or also the pedals, can be individually
adapted to the individual requirements. Thanks to special accessories
the user can be positioned e.g. at the torso or in the calf area / foot area.
The tricycles generally have a brake hub / backpedal hub brake on the
rear wheel (except for those with a rigid sprocket) and an air pressure-
independent parking brake on the front wheel.
2.2 Handling and transport
The momo therapy bicycle. is not intended for carrying since it is equipped
with tyres. Should you have to carry the equipment due to obstacles,
ensure that all moving parts are tightened. Subsequently, stand in twos
on either side of the therapy bicycle, hold the frame from the left and
right and carry it to the desired location. In order to transport the therapy
bicycle, reduce all adjustments to their most compact size (saddle height,
handlebar height, remove accessories etc.).
2.3 Application areas, use according to the intended purpose
The momo therapy bicycle. is a medical product of risk class 1 and
is designed for children, youths and adults for outdoor use. The
momo therapy bicycle. permits users with disabilities (see indications) to
move independently. The physiotherapeutic treatment is supported and
the support and balance reactions as well as movement coordination
are trained. Any other use or use over and above this purpose shall be
considered not in accordance with the intended purpose.
2.3.1 Indications
The momo therapy bicycle. is suitable for users with considerable to fully pro-
nounced impairment of mobility/ walking with structural and/or functional
damage to the lower extremities (musculoskeletal/neuromusculoskeletal
movement disorders, e.g. neuromuscular diseases with reduced or increa-
sed muscle tone, ataxias, hemiplegia, contractures and malformations or
general developmental retardation) and impaired sense of balance.
Further indications are:
• Suciently preserved strength and gripping function of arms/hands
and suciently preserved strength and coordination function of legs
• if no commercially available bicycles, even with commercially available
support wheels, can be used due to functional deficits caused by the
illness
• ensuring mobility in outdoor areas and participation in community life
(integration into a group of people of the same age)
• the improvement of the support and balance reaction/movement coor-

07 2. Product description.
dination within the scope of physiotherapy treatment (regular physical
therapy measures)
2.3.2 Contraindications
In general, the indication should be accompanied by a doctor/orthopae-
dist. It should therefore be clarified prior to procurement whether contrain-
dications exist for the patient. Any danger to the user or others through the
use of a bicycle with support wheels should be excluded. In general, any
type of pain represents a contraindication.

08 2. Product description.
2.4 Use not in accordance with the intended purpose / warning guidelines
• Replace bent handlebars and handlebar stems immediately! Breakage
may occur in the event of continued use or repairs.
• Correct usage of the product requires precise and careful training of the
accompanying person.
• The vehicle may only be used on stable and flat ground.
• Please observe the "Technical data" in these instructions for use for the
maximum permitted patient weight.
• Always wear light-coloured and distinctive clothing!
• Always be ready to brake, in particular in steep terrain and sections
which are not easy to assess!
• Show consideration for other people who are walking or hiking!
• Do not hang loads on the handlebars; this compromises the travel
safety.
• Test the fastenings for the pedal cranks and pedals regularly!
• For your own safety, we recommend that you always use your vehicle
with a helmet. Please ensure in particular that the helmet is of good
quality. It should accord at least with the legal regulations or
recommendations (Standard: EN 1078 or ANS)!
• Check that the brakes, lights and bell function properly prior to
each journey!
• Ensure that your vehicle accords with the legal requirements!
• Only ride if the bicycle is in proper condition!
• Do not use headphones so that you can remain aware of warning
sounds.
• If you mount a push rod, it must only be used for guiding the therapy
bicycle. The push not is NOT suited for relocating the therapy bicycle
or for lifting or tilting!
• In wet conditions, the braking distance of your bicycle will become
longer. Therefore ensure to always set your speed in such a manner that
you can stop at any time.
• The therapy bicycle is not suitable for carrying a second person. The
consequences arising from such use, which is not in accordance with
the intended purpose, shall not fall within the scope of responsibility of
the manufacturer.
• The bicycle basket may only bear loads of up to 20 kg.
• When adjusting the therapy bicycle there is the risk of jamming or
crushing extremities.
• Users who have diculty reading must have someone read these
Instructions for use aloud so that they understand how to use the
standing exercise trainer.

09 2. Product description.2. Product description.
2.5 Equipment for basic model
• Aluminium frame with extra-low access point
• Rim brake with separate parking brake
• Angle adjustable handlebar stem
• Handlebar damper for stabilisation when moving straight on
• Drum brake in front wheel
• Stabiliser frame with dynamically-working stabilisers and adjustable
spring strength
• Luggage carrier
2.6 Product overview
The Fig. below is intended to show you the designation of the most
important components as well as the terms which you will find in these
Instructions for use.
Pedal
Dynamic back pelotte pad
incl. chest strap
Dynamic brake pelotte pad
incl. chest strap
Saddle
Luggage carrier
Stabiliser
frame
Stabiliser
Handlebars
Bell
Locking brake
Drum brake
Aluminium frame with
extra low access

10 2. Product description.

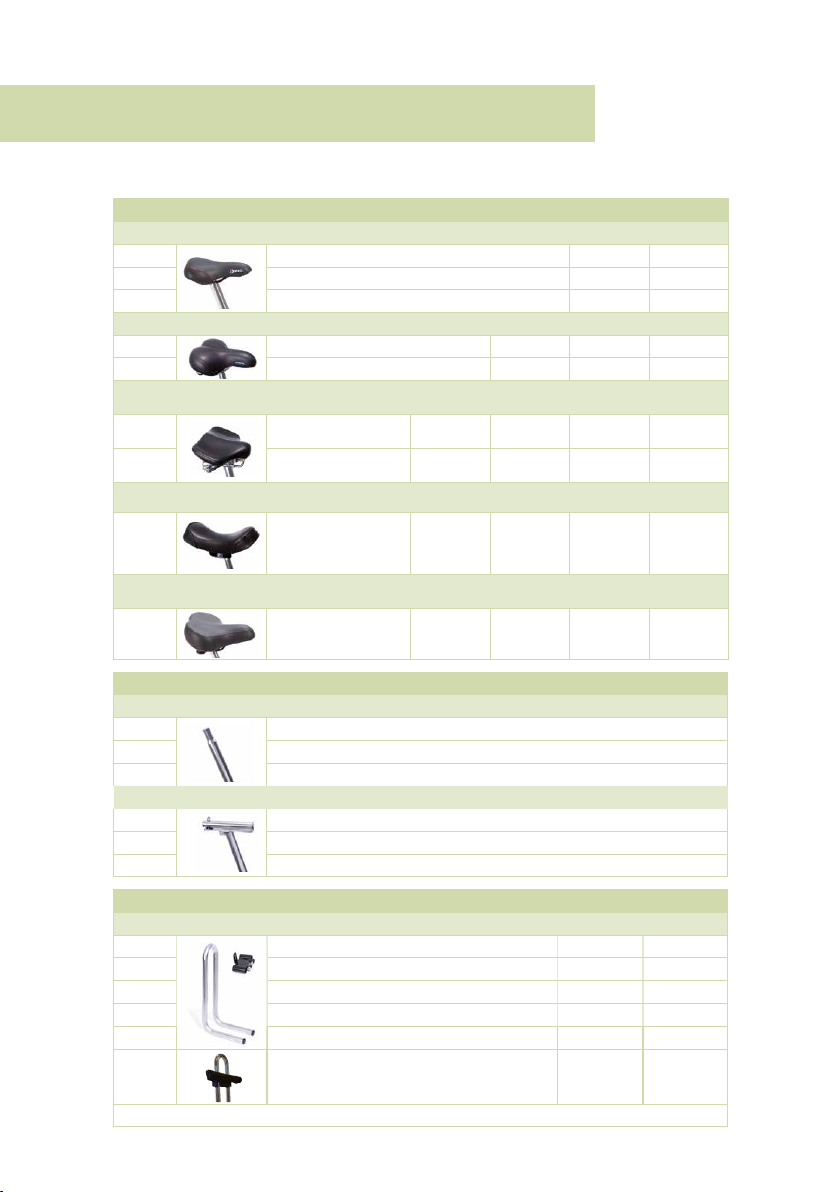

2.7 Overview of equipment / accessories
Saddle posts
Art. No. Saddle post
3701004 Standard saddle post Size 1 for 12"
3702 004 Standard saddle post Size 2 for 16"
3703004 Standard saddle post Size 3 for 20" - 26"
Art. No. T-saddle post
3701005 T-saddle post Size 1 for 12"
3702 005 T-saddle post Size 1 for 12"
3703005 T-saddle post Size 3 for 24" + 26"
Saddle
Art. No. Saddle Width Length
3701001 Standard saddle Size 1 15 cm 21 cm
3702 001 Standard saddle Size 2 15 cm 24 cm
3703001 Standard saddle Size 3 18 cm 26 cm
Art. No. Saddle Rear width Front width Length
3701024 Gel saddle Size 1 19 cm 4 cm 24 cm
3702 024 Gel saddle Size 2 24 cm 7 cm 27 cm
Art. No. Saddle Rear width Front width Rear length Length
total
3701003 Saddle seat with ischium
depressions Size 1 20.5 cm 4 cm 9.5 cm 14.5 cm
3702 003 Saddle seat with ischium
depressions Size 2 24 cm 4 cm 9.5 cm 14.5 cm
Art. No. Saddle Rear width Width in
centre Front width Length
3700 010
Unicycle saddle –
Banana-shaped
(Step length increases
by 2 cm)
11 cm 6 cm 8 cm 25 cm
Art. No. Saddle Rear width Front width Rear length Length
total
3700 023
Moped saddle (Inside
leg length increases
by 2 cm)
26 cm 9.5 cm 12 cm 25 cm
Holding bracket
Art. No. Holding bracket with mount Max. height* Depth
3701007 Holder bracket Size 1 20 cm 12 cm
3702 007 Holder bracket Size 2 30 cm 12 cm
3703007 Holder bracket Size 3 37 cm 12 cm
3704 007 Holder bracket Size 4 53 cm 12 cm
3709 007 Holder bracket, customer-made ___ cm ___ cm
3702 055 Universal bracket – for harnesses when not using
pelotte pads (width = 27.5 cm)
* Max. height: measured on a standard saddle up to the top edge of the back pelotte pad
