ZD120D/ ZD120E User Instruction Manual
Fourth Edition: October 2021
Version: V1.4
I
Product Information
Product model: ZD120E Series
Product name: Patient Monitor
Manufacturer
Shenzhen Hexin ZONDAN Medical Equipment Co., Ltd.
Registered/Production address:
Floor 14, Block D, Dianlian Technology Building, the Crossing between South Circle
Road and South Fuli Road ,Guangming District,518106 Shenzhen PEOPLE'S
REPUBLIC OF CHINA
Tel: [phone] Fax: [phone]
Edition
Fourth Edition: October 2021
Version: V1.4
MEDHealth supplies (Pty) Ltd
All Rights Reserved.
Distributor
MEDHealth Supplies (Pty) Ltd
Corner of Barbara and North Reef Road
Elandsfontein, Henville, 1429, Germiston, Johannesburg, Gauteng, South Africa
Reg No.: 2021/385832/07 Telephone: [phone]
E-mail: [e-mail]
Regulatory and Safety Specifications
Standard
The product is made under the ISO13485 quality system certified by TUV PS. The
product has passed the CE certification.
Declaration
The ZD120E Patient Monitor is a Class IIb device and complies with the requirements of
the Council Directive 93/42/EEC concerning medical devices and carries CE-marking
accordingly.
Authorized EU Representative
Shanghai International Holding Corp.GmbH (Europe)
Eiffestrasse 80, 20537 Hamburg, Germany
Tel: [phone] Fax: [phone]

ZD120E User Instruction Manual
Fourth Edition: October 2021
Version: V1.4
II
Explanation of Symbols
The following symbols appear on the monitor and packaging.
Table 1 Monitor and Packaging Symbols
Symbol
Description
Symbol
Description
Caution, consult
accompanying
documents
-2 0℃
5 5℃
Temperature limitations
Keep dry
10%
93%
Humidity limitations
22kPa
107.4kPa
Atmospheric pressure
limitations
Fragile, handle with care
Keep upright
Maximum stacking
Recovery
Power On
key
Recyclable
Record key
Waveform Freeze key
NIBP key
Patient Key
Charging LED
AC Power LED
Gas Output
CO2
CO2connector
ECG/RESP
ECG connector
NIBP
NIBP cuff hose connector
SpO2
SpO2probe connector
TEMP1
TEMP1 connector
IBP1
IBP1 transducer
cable connector
TEMP2
TEMP2 connector
IBP2
IBP2 transducer
cable connector
Gas input
USB port

ZD120D/ ZD120E User Instruction Manual
Fourth Edition: October 2021
Version: V1.4
III
Table 1 Monitor and Packaging Symbols (continue)
Symbol
Description
Symbol
Description
BF applied part: including F
applied part (float/insulation)
BF applied part:
including F applied part
(float/insulation) and
defibrillation-proof
function.
CF applied part: including F
applied part (float/insulation)
and defibrillation-proof
function.
Fuse
Ethernet port
Protective
grounding
Video output
Dangerous Voltage
Equipotential grounding
Manufacturer address
Date of manufacture
Configuration number
Serial Number
EU representatives
Batch code
Consult Instructions for
Use
Catalogue number
Compliance to WEEE
standard
Protective grade
Safety Standards
The following table describes the safety standards of the ZD120E Patient Monitor.
Table 2 Safety Standards
Parameter
Specification
Protection class
Class I, anti-shock, externally and internally powered
equipment, per IEC 60601-1
Degree of protection
Type CF and BF defibrillator-proof: per IEC 60601-1
Degree of noxious-liquid proof as IPX1
Anti-shock degree as combination of BF and CF applied part
According to the degree of safety of application in the presence of
a flammable anesthetic mixture with air or with oxygen or nitrous
oxide, the equipment is not suitable for use in the presence of a
flammable anesthetic mixture with air or with oxygen or nitrous
oxide

ZD120E User Instruction Manual
Fourth Edition: October 2021
Version: V1.4
IV
Table 2 Safety Standards (continue)
Parameter
Specification
Sterilization and disinfection
As recommended by manufacturer
Mode of operation
Continuous
Product Support and Warranty Information
The manufacturer warranties the ZD120E Patient Monitor for 12 months. Keep the
packing case for transport, storage, or maintenance.
The manufacturer is responsible for the safety, reliability, and performance of the monitor
when the:
•Product is assembled, upgraded, altered, or maintained by authorized service
representatives.
•Location where the product is placed is that of a typical hospital environment.
•Product is used according to this guide.
The manufacturer is not responsible for damage to the monitor when the:
•Damage is caused by:
–Improper operation.
–Improper connection of the monitor to other devices.
–Accidental impact.
–Water/liquid damage.
•Monitor is altered without written authorization from MEDHealth Supplies.
•Serial number of the monitor is removed or becomes illegible.
After-Sales Service
The South African call center can be reached during the following time: Monday–
Friday (except public holidays)
1. Contact your local MEDHealth representative.
2. For further support, contact MEDHealth’ Customer Service Department.
Customer Service Department of MEDHealth Supplies (Pty) Ltd, Corner of Barbara and
North Reef Road, Elandsfontein, Henville, 1429, Germiston, Johannesburg, Gauteng,
South Africa
E-mail: [e-mail]
Portal for technical support: www.medhealthsup.com
Tel: [phone]
Before calling for technical support, note the following information:
•Model and serial number of the monitor
•Monitor problem
The international call center can be reached during the following time: Monday–
Friday (except Chinese statutory holidays)
BJT 08:30–12:00, 13:30–18:00 (GMT+8)
Tel: [phone]/8037
Fax: [phone]

ZD120D/ ZD120E User Instruction Manual
Fourth Edition: October 2021
Version: V1.4
V
E-mail: [e-mail]
Service and support are available in Chinese and English only. Before calling for service,
note the following information:
•Model and serial number of the monitor
•Monitor problem
Safety Conventions
The manual uses the following conventions for Notes, Cautions, and Warnings.
Note —A Note calls attention to an important point in the text.
Caution A Caution calls attention to a condition or possible situation that could damage or
destroy the product or the user’s work.
Warning A Warning calls attention to a condition or possible situation that could cause injury
to the user and/or patient.
Safety Requirements
Note —The safety indications in this chapter apply to general monitor use. Safety
indications in other chapters apply to specific monitor measurements.
Follow the instructions in this user manual when using the monitor. However,
conventional medical practices always supersede this document. Significance of safety
requirements set forth here in this manual is not in order of reading sequence.
Warning The monitor is not for home use.
The monitor is only for use on one patient at a time. The monitor is not for
diagnostic or therapeutic use.
The monitor is not an apnea monitor. The respiration measurement does not
recognize obstructive and mixed apneas —it only indicates when a user-defined
time has elapsed since the last detected breath.
Anyone who connects to additional equipment to the signal input port or signal
output port configures a medical system and is therefore responsible to ensure that
the system complies with the requirements of standard IEC 60601-1. Never
permanently install equipment connected to the signal input or output ports. If in
doubt, contact MEDHealth Supplies.
To avoid mixture, clear all historical data of the last patient before monitoring a
new patient. Ensure that the patient monitor is in good working condition and is
placed in proper position before clinical use.
Never rely exclusively on the alarm system for patient monitoring. You must
periodically check that monitor alarms are working properly. The most reliable
method of patient monitoring combines close, personal surveillance along with the
correct operation of the monitor.
For pacemaker patients, rate meters may continue to count the pacemaker rate
during occurrences of cardiac arrest or come arrhythmia. Do not rely entirely upon

ZD120E User Instruction Manual
Fourth Edition: October 2021
Version: V1.4
VI
rate meter alarms. Keep pacemaker patients under close surveillance. See this
manual for disclosure of the pacemaker pulse rejection capability of this instrument.
Never use the monitor during MRIs or CT scans.
Never use cables with exposed conductors. Only use undamaged cables and
connectors to avoid personal injury.
Never simultaneously touch the patient and the input or output terminal of the
monitor.
The monitor can be used with electrosurgical devices. To avoid burns or death,
ensure that the electrosurgical circuitry is properly connected.
Ensure that the patient is not connected to any metal, the surface of any conductors,
or grounded parts of any devices when a defibrillator is in use. Never touch the
patient, table, or instruments during defibrillation.
Never use the monitor in an environment of anesthetic gases.
Disconnect the AC power supply and remove the battery before disassembling the
monitor.
Caution To avoid personal injury, only use accessories and parts produced or recommended
by the manufacturer. Otherwise, damage to the monitor can occur.
Position power cords and other cables to prevent tangling, patient contact, or
electrical interference.
Always use a three-wire receptacle in order to properly ground the monitor. Use the
monitor on battery power only if you suspect any problem with external grounding
or wiring.
Only connect the monitor to a power outlet with correct protective grounding. If no
grounded power is available, only use the monitor with internal batteries.
The battery will discharge over time when stored inside a monitor with no AC
power. Keep the monitor plugged in when storing it and perform a monthly check
of battery power.
If multiple devices are connected to a patient, the sum of the leakage currents may
cause a dangerous situation. Therefore, qualified service representatives should
always perform current leakage tests before setting up the connections. This
ensures that leakage is within limits and prevents personal injury and
environmental damage. If any question remains, consult the manufacturer for
correct usage.
The monitor must conform to the international standard IEC 60601-1-2 and other
applicable EMC standards. Interference takes place when electromagnetic energy is
extremely high. Ensure that any nearby instruments are also in compliance with
EMC standards. Never turn on or use portable communication devices like mobile
phones or portable dual-channel radios near a monitor.
Unknown electromagnetic interference could be caused by radio transmitters or
nearby televisions. Move patient monitors away from these devices or insert
shielding materials around the monitor.
Any devices connected to the monitor must comply with the IEC standard for that
device. For example, data processing devices must comply with IEC 60950 and
medical devices must conform to IEC 60601-1. The whole system must comply with
the most recent IEC 60601-1-1 standards.
To ensure monitor safety, all service parts and accessories must comply with IEC
60601 standards. The system configuration of the monitor must comply with IEC

ZD120D/ ZD120E User Instruction Manual
Fourth Edition: October 2021
Version: V1.4
VII
60601-1-1 medical electrical standards.
If patient data is lost, closely monitor the patient, or replace the monitor
immediately until the monitor restores normal function again.
Monitoring will be stopped while user configurations will be saved automatically
when the monitor is powered off.
To reduce the hazard of burns in high-frequency surgical neutral connections, the
leads and connectors must be located away from the surgical site. Keep cables away
from other devices.
Ensure that qualified service representatives annually calibrate and maintain the
monitor.
Periodically check all reusable accessories for damage. Replace and dispose of
damaged accessories. When necessary, according to your local hospital waste
disposal regulations.
ECG electrodes are disposable accessories. Always properly dispose of ECG
electrodes according to your local hospital waste disposal regulations.
Clean and sterilize the monitor and accessories according to local requirements.
Turn off the monitor and disconnect the power cords before cleaning or
sterilization.
Keep all monitor packing materials away from children or dispose of them in
accordance with your local environmental regulations.
Always properly dispose of the monitor and all accessories at the end of their
service life. Dispose of batteries according to your local regulations. Never
incinerate batteries or expose them to high temperatures.
Ensure that no water condenses into or on the monitor. Condensation can occur
from changes in temperature or exposure to humidity.

MHSZD120E User’s Manual
Version: 1.4 October 2021
1
Contents
Contents...................................................................................................................................... 1
Chapter 1 Overview ................................................................................................................... 6
1.1 Indications for Use ....................................................................................................................... 6
1.2 Intended Use.................................................................................................................................6
1.3 Configurations..............................................................................................................................7
Chapter 2 Basic Operation ......................................................................................................... 8
2.1 Before You Begin.........................................................................................................................8
2.1.1 Unpacking the Equipment .................................................................................................8
2.1.2 Setting up the Monitor....................................................................................................... 8
2.1.3 Networking Capabilities....................................................................................................8
2.1.4 Monitor Power Supply.......................................................................................................9
2.1.5 Inspecting the Monitor....................................................................................................... 9
2.1.6 Checking Your Monitor Software Release ........................................................................9
2.2 Product Description......................................................................................................................9
2.2.1 The Front Panel ...............................................................................................................10

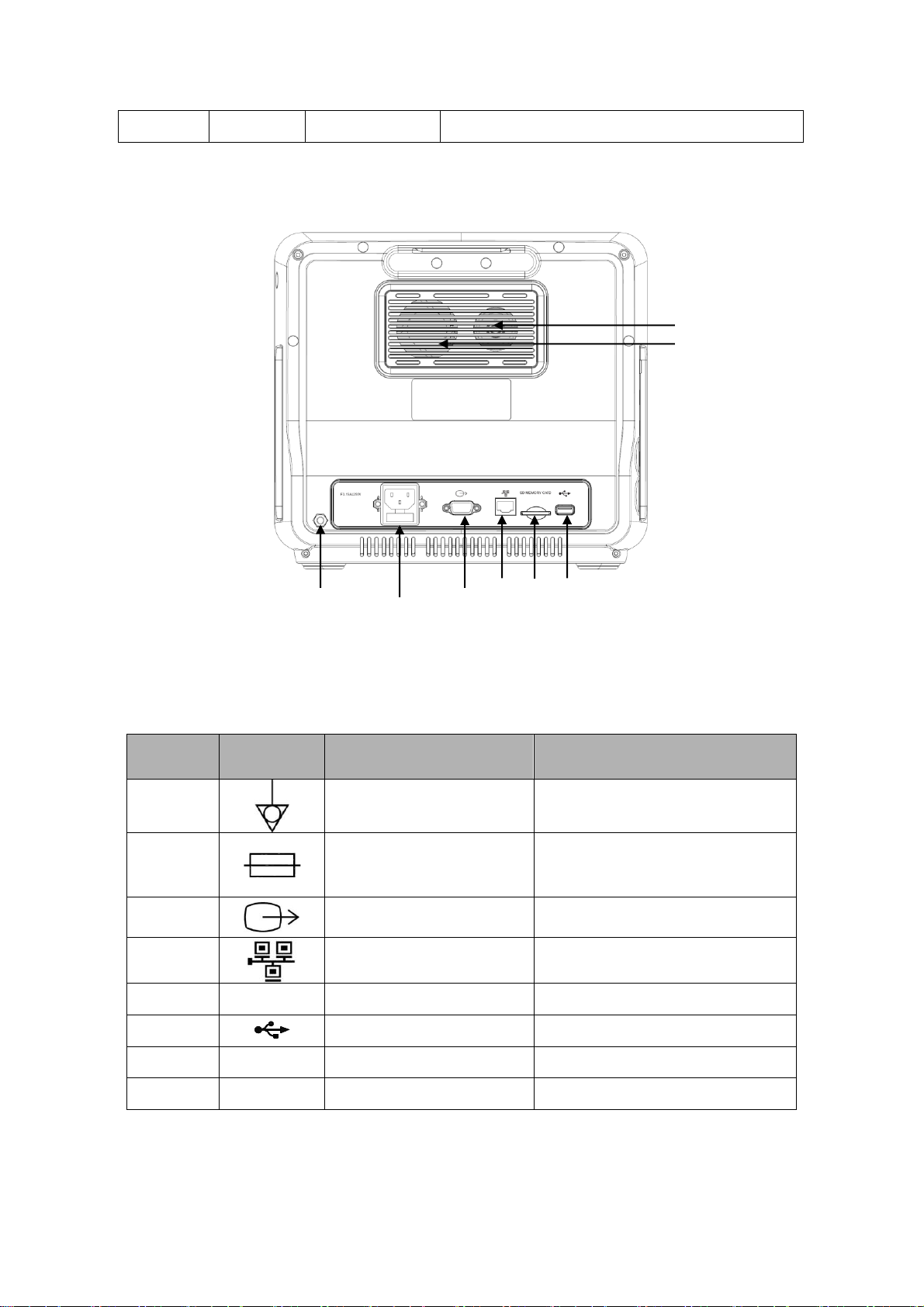

2.2.2 The Rear Panel................................................................................................................. 11

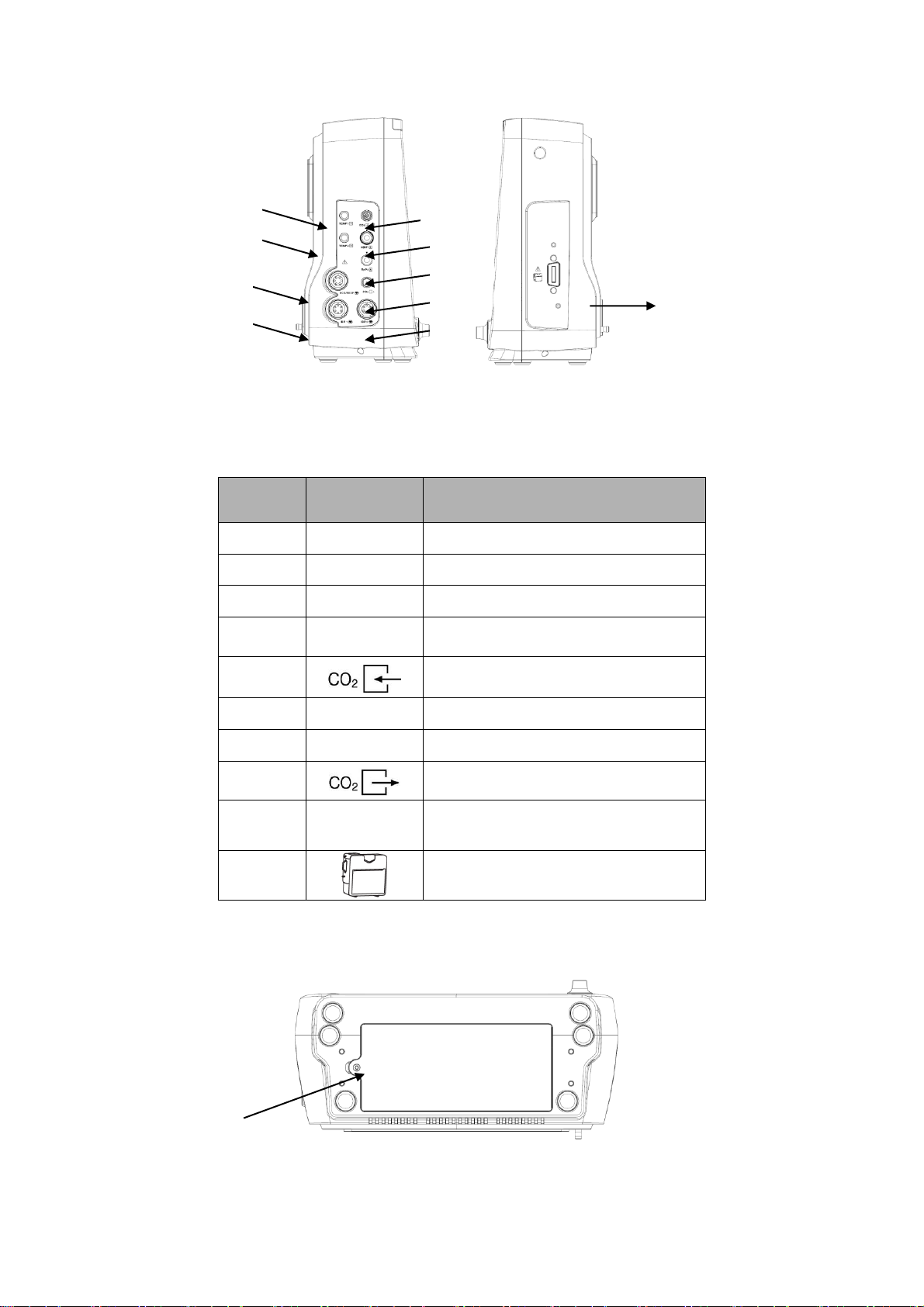

2.2.3 The Side Panels ............................................................................................................... 11
2.2.4 The Bottom Panel............................................................................................................12
2.3 Screen Display............................................................................................................................13
2.3.1 Icons on menu area..........................................................................................................14
2.4 Using the Monitor Menus...........................................................................................................14
2.4.1 Menu Setup...................................................................................................................... 14
2.4.2 Submenu..........................................................................................................................14
2.4.3 Exiting a menu................................................................................................................. 14
2.5 Configuring the Display.............................................................................................................14
2.5.1 Using the Big Number Screen......................................................................................... 14
2.5.2 Using the Dynamic Trend Screen.................................................................................... 15
2.5.3 Using Standard Mode......................................................................................................16
2.5.4 Displaying the OxyCRG Screen......................................................................................17
2.5.5 Displaying the Other Bed Screen (Optional)................................................................... 18
2.5.6 Using Standby Mode .......................................................................................................19
2.5.7 Changing the Waveform Speed .......................................................................................20
2.5.8 Changing the Waveform Color........................................................................................ 20
2.5.9 Freezing the Waveforms.................................................................................................. 21
2.6 Changing the Monitor Settings...................................................................................................21
2.6.1 Changing the Language...................................................................................................21
2.6.2 System Maintenance Menu..............................................................................................21
2.6.3 Changing the Date and Time ...........................................................................................21
2.7 Changing the Brightness.............................................................................................................22
2.8 Managing Patients...................................................................................................................... 22
Chapter 3 Alarms...................................................................................................................... 24
3.1 Alarm Types ............................................................................................................................... 24
3.2 Alarm Levels.............................................................................................................................. 24
3.3 Visual Alarms.............................................................................................................................24
3.3.1 Flashing LEDs.................................................................................................................24
3.3.2 Flashing Numeric Values.................................................................................................25
3.3.3 Alarm Messages ..............................................................................................................25
3.4 AudibleAlarms...........................................................................................................................25
3.4.1 Turning On/Off AudibleAlarms...................................................................................... 26
3.4.2 Silencing Alarms.............................................................................................................. 26

MHSZD120E User’s Manual
Version: 1.4 October 2021
2
3.4.3 Adjusting theAlarm Volume ...........................................................................................27
3.5 Setting Alarm Limits ..................................................................................................................27
3.5.1 Setting Individual Alarm Limits...................................................................................... 27
3.5.2 Restoring Default Alarm Limits ...................................................................................... 28
3.6 ReviewingAlarm Events............................................................................................................28
Chapter 4 Monitoring ECG...................................................................................................... 30
4.1 Placing the Electrodes................................................................................................................30
4.1.1 Changing a Lead Set........................................................................................................ 32
4.1.2 Lead Recommendations for Surgical Patients................................................................. 32
4.1.3 Connecting ECG Cables..................................................................................................33
4.2 The ECG Display .......................................................................................................................33
4.2.1 ECG Waveform and Numeric Pane.................................................................................33
4.2.2 Displaying Seven ECG Waveforms................................................................................. 34
4.3 Configuring the ECG Display....................................................................................................34
4.3.1 Changing the ECG Waveform Size .................................................................................34
4.3.2 Changing the ECG Waveform Speed............................................................................... 35
4.3.3 Changing the ECG Waveform Color...............................................................................35
4.4 Changing the Heart Rate Volume...............................................................................................35
4.5 Changing the ECG Mode...........................................................................................................36
4.6 Changing HR Alarm Settings..................................................................................................... 36
4.7 Monitoring Arrhythmia .............................................................................................................. 36
4.7.1 Turning Arrhythmia Analysis On and Off ....................................................................... 36
4.7.2 Choosing an ECG Lead forArrhythmia Monitoring....................................................... 36
4.7.3 The Arrhythmia Display .................................................................................................. 37
4.8 Changing Arrhythmia Alarm Settings ........................................................................................ 37
4.9 Safety Information......................................................................................................................37
Chapter 5 Monitoring Respiration............................................................................................ 39
5.1 Lead Placement for Monitoring Respiration .............................................................................. 39
5.1.1 Selecting a Respiration Lead........................................................................................... 39
5.2 The Respiration Display............................................................................................................. 39
5.3 Changing the Respiration Display.............................................................................................. 40
5.3.1 Changing the Respiration Waveform Size.......................................................................40
5.3.2 Changing the Respiration Waveform Speed.................................................................... 40
5.3.3 Changing the Color of the Respiration Waveform...........................................................40
5.4 Changing the Respiration Alarm Settings .................................................................................. 41
5.5 Changing the Apnea Alarm Settings...........................................................................................41
5.6 Safety Information......................................................................................................................41
Chapter 6 Monitoring SpO2...................................................................................................... 42
6.1 Selecting an SpO2Sensor...........................................................................................................42
6.2 Applying the Sensor...................................................................................................................42
6.3 Connecting SpO2Cables............................................................................................................42
6.4 Measuring SpO2......................................................................................................................... 43
6.5 Assessing Suspicious SpO2Readings ........................................................................................43
6.6 The SpO2Display....................................................................................................................... 43
6.7 Changing the SpO2Display........................................................................................................ 44
6.7.1 Changing the SpO2Waveform Speed.............................................................................. 44
6.7.2 Changing the Color of the SpO2Waveform..................................................................... 44
6.8 Configuring the SpO2Pulse Rate Display.................................................................................. 44
6.9 Changing the SpO2 Alarm Settings ............................................................................................44
6.10 Changing the PRAlarm Settings................................................................................................ 44
6.11 Safety Information...................................................................................................................... 45
Chapter 7 Monitoring NIBP..................................................................................................... 46
7.1 Connecting the NIBP Cuff and Hose..........................................................................................46

MHSZD120E User’s Manual
Version: 1.4 October 2021
3
7.2 Measurement Limitations...........................................................................................................47
7.3 The NIBP Display ......................................................................................................................47
7.4 Selecting the NIBP Measurement Modes................................................................................... 47
7.5 Selecting the NIBP Interval Time...............................................................................................48
7.6 Changing the NIBP Unit.............................................................................................................48
7.7 Viewing NIBP Measurement Data .............................................................................................49
7.8 Changing the NIBPAlarm Settings............................................................................................49
7.8.1 Changing the NIBPAlarm Record Settings.....................................................................49
7.9 Calibrating NIBP and Compensating Pressure........................................................................... 49
7.10 Safety Information......................................................................................................................49
Chapter 8 Monitoring Temperature.......................................................................................... 51
8.1 Selecting and Connecting Temperature Probes..........................................................................51
8.2 Influencing Factors.....................................................................................................................51
8.3 Monitoring Temperature............................................................................................................. 51
8.4 The Temperature Display ...........................................................................................................52
8.5 Changing the Temperature Unit..................................................................................................52
8.6 Changing the Temperature Alarm Settings................................................................................. 52
8.7 Safety Information......................................................................................................................52
Chapter 9 Monitoring CO2....................................................................................................... 53
9.1 Connecting the CO2Accessories................................................................................................ 53
9.2 Influencing Factors.....................................................................................................................54
9.3 Measuring Carbon Dioxide ........................................................................................................ 54
9.4 Other Setup.................................................................................................................................54
9.4.1 Setting up Gas balance.....................................................................................................54
9.4.2 Setup Period..................................................................................................................... 55
9.4.3 Setup O2compensation:...................................................................................................55
9.4.4 Setting up Humidity Compensation.................................................................................55
9.4.5 Default Setting................................................................................................................. 55
9.5 Removing Exhaust Gases from the System................................................................................56
9.6 The CO2Display ........................................................................................................................56
9.7 Changing the CO2Display ......................................................................................................... 56
9.7.1 Changing the CO2Waveform Speed................................................................................56
9.7.2 Changing the CO2Waveform Display Mode................................................................... 56
9.7.3 Changing the Color of the CO2 Waveform ...................................................................... 56
9.7.4 Changing the CO2Work Mode........................................................................................ 56
9.7.5 Changing the CO2Unit....................................................................................................57
9.7.6 Changing the CO2Alarm Settings................................................................................... 57
9.8 Safety Information......................................................................................................................57
Chapter 10 Monitoring Invasive Blood Pressure..................................................................... 58
10.1 Using the IBP ............................................................................................................................. 58
10.2 Selecting a Pressure Transducer................................................................................................. 58
10.3 Before Measuring Invasive Blood Pressure ............................................................................... 58
10.3.1 Connecting and Flushing the IBPTubing..................................................................... 58
10.3.2 Selecting a Pressure for Monitoring.............................................................................. 58
10.4 Zeroing the Pressure Transducer................................................................................................59
10.5 Measuring Invasive Blood Pressure........................................................................................... 59
10.6 The Invasive Blood Pressure Display......................................................................................... 59
10.7 Changing the Invasive Blood Pressure Waveform Display........................................................ 60
10.7.1 Changing the Invasive Blood Pressure Waveform Size................................................ 60
10.7.2 Changing the Invasive Blood Pressure Waveform Speed............................................. 60
10.7.3 Changing the Invasive Pressure Waveform Color.........................................................60
10.8 Changing the Invasive Blood Pressure Unit............................................................................... 60
10.9 Changing the IBPAlarm Settings............................................................................................... 61
10.10 Safety Information......................................................................................................................61

MHSZD120E User’s Manual
Version: 1.4 October 2021
4
Chapter 11 Review................................................................................................................... 62
11.1 Trend Table display .................................................................................................................... 62
11.2 Trend Graph display...................................................................................................................62
11.3 NIBP Review.............................................................................................................................. 62
11.4 Waveform Recall........................................................................................................................63
11.5 Alarm Recall (Physiological alarm)........................................................................................... 63
11.6 TechnicalAlarm Event Recall.................................................................................................... 64
Chapter 12 Drug Calculation.................................................................................................... 65
12.1 Calculating the Drug Concentration........................................................................................... 65
12.2 Calculating the Infusion Rate, Titration Rate and Medication Time.......................................... 65
12.3 Using the Titration Chart............................................................................................................ 66
Chapter 13 Recording （Optional）........................................................................................ 67
13.1 About the Recorder .................................................................................................................... 67
13.2 Loading the Recorder.................................................................................................................67
13.3 Recording...................................................................................................................................68
13.4 Selecting the Record Content..................................................................................................... 68
13.5 Recording Waveforms................................................................................................................ 68
13.6 Recorder Paper Guidelines.........................................................................................................68
Chapter 14 Cleaning and Care ................................................................................................. 70
14.1 General Guidelines.....................................................................................................................70
14.2 Cleaning the Accessories............................................................................................................ 71
14.2.1 Cleaning the Cables ......................................................................................................71
14.2.2 Cleaning the SpO2Sensor............................................................................................. 71
14.2.3 Cleaning the NIBP Cuff................................................................................................ 71
14.2.4 Cleaning the Temperature Probe................................................................................... 71
14.3 Disinfecting the Monitor............................................................................................................72
14.4 Sterilizing the Monitor ............................................................................................................... 72
Chapter 15 Maintaining the Battery......................................................................................... 73
15.1 Charging LED ............................................................................................................................ 73
15.2 Battery Indicators....................................................................................................................... 73
15.3 Installing and Changing the Battery........................................................................................... 73
15.4 Recharging the Battery............................................................................................................... 74
15.5 Optimizing the Battery............................................................................................................... 74
15.6 Disposing of a Battery................................................................................................................ 74
15.7 Safety Information......................................................................................................................74
Chapter 16 Maintenance and Troubleshooting......................................................................... 75
16.1 Inspecting the Equipment and Accessories ................................................................................ 75
16.2 Maintenance Tasks and Test Schedules......................................................................................75
16.3 Troubleshooting..........................................................................................................................75
16.4 Disposing of the Monitor............................................................................................................77
AAccessories ........................................................................................................................... 78
B Specifications........................................................................................................................ 79
B.1 ECG/ST/Arrhythmia Specifications...........................................................................................79
B.2 Respiration Specifications..........................................................................................................80
B.3 SpO2Specifications.................................................................................................................... 80
B.4 Temperature Specifications........................................................................................................81
B.5 Non-invasive Blood Pressure Specifications..............................................................................82
B.6 Carbon Dioxide Specifications...................................................................................................82
B.7 Invasive Blood Pressure Specifications......................................................................................83

MHSZD120E User’s Manual
Version: 1.4 October 2021
5
B.8 Power Specifications.................................................................................................................. 83
B.9 Display Specifications................................................................................................................84
B.10 Recorder Specifications..............................................................................................................84
B.11 Physical Specifications............................................................................................................... 84
B.12 Environmental Specifications.....................................................................................................85
B.13 Interface Specifications.............................................................................................................. 85
C Alarm.................................................................................................................................... 86
C.1 The physiological alarm information .........................................................................................86
C.2 The Technical alarm information................................................................................................87
D Glossary................................................................................................................................ 92
D.1 Terminology Definitions ............................................................................................................92
E Electromagnetic Compatibility............................................................................................. 95
E.1 Instructions for Use....................................................................................................................95
E.2 Guidance and Manufacturer's EMC Declaration........................................................................96
E.2.1 Electromagnetic Emissions for all Equipment and Systems............................................96
E.2.2 Electromagnetic Immunity for all Equipment and Systems ............................................ 96
E.2.3 Electromagnetic Immunity for Equipment and Systems not Life-Supporting.................97
E.2.4 Recommended Separation Distances for Equipment and Systems not Life-Supporting.98

MHSZD120E User’s Manual
Version: 1.4 October 2021
6
Chapter 1 Overview
The ZD120E Patient Monitor is used for monitoring, recording, and alarming of multiple
physiological parameters of adults, pediatrics, and neonates. The monitor stores data in
trend and event databases. You can view measurement trend graphs and alarming events
to help you identify changes in the patient's physiological condition. The ZD120E Patient
Monitor can be connected to the manufacturer Central Monitoring System for remote
monitoring.
The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR. In addition, the
monitor has options as CO2and IBP.
Figure 1-1 ZD120E Patient Monitor
This document is an integral part of the monitor and provides detailed instructions on
how to use and maintain it. Keep the document next to the monitor for reference. In
addition, read and keep any documents that come with any accessories, since these
contain important information not in this guide.
This guide describes all the monitor features and options. Your monitor may not have all
of them. What you see on the screen, how the menus appear and so forth, depends on the
way it has been configured for your hospital.
1.1 Indications for Use
The ZD120E Patient Monitor is for use by healthcare professionals whenever there is a
need for monitoring the physiological parameters of patients.
1.2 Intended Use
The ZD120E Patient Monitor is intended for monitoring, recording, and alarming of
multiple physiological parameters of adults, pediatrics, and neonates in healthcare
environments. Additionally, the monitor is for use in transport situations and for
connectivity to clinical networks.

MHSZD120E User’s Manual
Version: 1.4 October 2021
7
1.3 Configurations
The following table lists the available configurations, and the standard features as well as
optional features. In the table, a solid circle indicates this feature is standard, a half solid
half hollow indicates this feature is optional and a hollow circle indicates this feature is
unavailable.
Table list 1.1
Model
ECG
SpO2
TEMP
RESP
NIBP
IBP
CO2
Recorder
ZD120E
●
●
●
●
●
___
Note —● means standard configuration; means optional configuration; ○ means not available

MHSZD120E User’s Manual
Version: 1.4 October 2021
8
Chapter 2 Basic Operation
This chapter describes how to set up and begin using the ZD120E Patient Monitor.
2.1 Before You Begin
Before patient monitoring, ensure that the monitor is in good condition and used in the
proper environment.
2.1.1 Unpacking the Equipment
1. Unpack the equipment and ensure that you have the following:
–One patient monitor
–Set of accessories
If anything from the packing list is missing, immediately contact MEDHealth Supplies.
2. Keep the packing case for future transport or storage. If it is damaged,
immediately contact MEDHealth Supplies.
3. Examine the monitor for cleanliness and general physical condition. Ensure that:
–The housing is not cracked or broken.
–Power plugs and cords are in good condition and plug prongs are not bent.
–The accessory cables are intact.
Caution If the equipment, accessories, or their packaging show signs of damage, do not use
the equipment.
2.1.2 Setting up the Monitor
Place and use the monitor in an appropriate location that conforms to the environmental
specifications in the section, Environmental Specifications on page 84. Locate the
monitor in an area that:
•Is convenient for observation and operation.
•Is free from movement, dust, corrosive, or explosive gases.
•Has a five-centimeter space around to ensure good ventilation and smooth heat
dissipation.
You can put the monitor on a flat surface or mount it with the following mounting
accessories:
•Roll stand
•Wall mount
Warning Never attempt to open the monitor case. Only qualified personnel should service the
monitor.
Never block the monitor's air vent during operation.
2.1.3 Networking Capabilities
You can use the ZD120E Patient Monitor independently or with other ZONDAN
equipment to create a central monitoring system that allows remote monitoring. The
monitor communicates with the ZONDANZD100 Central Monitoring System via the
Ethernet ports on the back of the monitor.

MHSZD120E User’s Manual
Version: 1.4 October 2021
9
Network setup of the ZD120E Patient Monitor is not user configurable. Please contact
your service personnel.
2.1.4 Monitor Power Supply
You can power the monitor with either an AC power source or its internal battery. You
can switch back and forth between supplies without powering off the monitor.
When the monitor is connected to an AC power source, you can turn on and operate the
patient monitor.
When powered on, the monitor is in normal working condition. It can be used to measure
vital signs, communicate with the central monitoring system, and charge the battery.
When the monitor is in standby mode, the monitor battery is charging.
When AC power is lost, the battery powered monitor continues to run without
interruption on battery power. For more information on battery power, see Chapter 15,
maintaining the Battery.
2.1.5 Inspecting the Monitor
Before you start using the monitor, ensure that:
1. There is no damage to the monitor or the accessory. Before turning on the power,
check the monitor and all the cables, connectors and accessories and ensure that
the extension cables are correctly connected to the fittings.
2. AC power is in conformity with standards. Plug one end of the specified power
cord into an AC power supply with a protection-grounded wire. Plug the other
end into the power connector on the monitor. When the power cord is correctly
connected, the AC power LED is green. If the monitor is powered by battery,
verify that adequate power remains, and the battery power gauge is full.
3. The accessories are correctly connected. For further testing of individual
measurement alarms, perform the measurement on yourself (for example, SpO2)
or use a simulator. Adjust the alarm limits and ensure that you observe the
appropriate alarm behavior.
4. All settings like patient type, alarm limits and so on, are correct. Ensure that the
monitor is in good working condition and that all functions of the monitor meet
the technical requirements mentioned in this guide.
5. When you press the Power button on the front panel for 2 seconds, the main
screen appears.
2.1.6 Checking Your Monitor Software Release
To check the software release of the monitor:
1. Press the Main Screen Key on the front panel. Main menu appears.
2. Choose About... and press it. A Monitor Information window displays the
software release number with the format: V2.0.1(VX.X.X)
3. Click icon to return to the previous menu.
4. Repeat until you return to the monitoring screen.
2.2 Product Description
The monitor has a color TFT screen that displays waveforms, menus, alarm status and
physiological measurements.

MHSZD120E User’s Manual
Version: 1.4 October 2021
10
2.2.1 The Front Panel
Figure 2-1 Front Panel
The following table describes the controls on the monitor.
Table 2-1 Monitor Controls
Item
Number
Icon
Meaning
Description
1
Power button
Press and hold for two seconds to turn the monitor on
or off.
2
Power on LED
Steady green: the monitor is powered on. Off: the
monitor is powered off.
3
Charging LED
Steady green: the monitor is connecting with AC
power. Flash in yellow: the monitor is not connecting
with AC power.
4
Patient key
Press to display Patient Information menu.
5
Waveform
Freeze key
Press to freeze the waveforms when monitoring.
Press again to unfreeze the waveforms.
6
Silence Key
Press to pause or restore alarms.
7
Record key
Press to start or stop recording.
8
NIBP key
Press to start or stop an NIBP measurement.
9
Main Screen
Key
Pressing it will enter the main menu for monitor set
up.
10
--
Navigation wheel
When a menu is displayed, rotate, and press the
navigation wheel to select and change the settings.
3
2
11
9
8
7
6
5
1
4
10

MHSZD120E User’s Manual
Version: 1.4 October 2021
11
11
--
Alarm Led
See chapter 3, Alarms for more information.
2.2.2 The Rear Panel
The following figure shows the rear panel of the monitors.
Figure 2-2 Rear Panel
The following table describes each item on the rear panel.
Table 2-2 Rear Panel
Item
Number
Item
Name
Description
1
Equipotential grounding
Connects to the grounding
system
2
External AC power
connector
Fuse
Connects to an external AC
power supply
F3.15AL 250V fuse
3
VGA ports
connects the color VGA
display
4
Ethernet port
Standard network connector
5
--
SD MEMORY CARD
Data output (Reserved)
6
USB port
Used for software updates.
7
--
Speaker vent
The voice outlet of monitor
8
--
Blow vent
The thermo-vent of monitor
2.2.3 The Side Panels
The following figure shows the left and right-side panels of the ZD120E Patient Monitor.
8
7
1
4
5
6
2
3

MHSZD120E User’s Manual
Version: 1.4 October 2021
12
Figure 2-3 Side Panels
The following table describes the side panels.
Table 2-3 Side Panels
Item
Number
Item
Name
1
TEMP1
TEMP1 connector
2
TEMP2
TEMP2 connector
3
ECG/RESP
ECG connector
4
IBP1
IBP1 transducer cable connector
5
CO2input connector
6
NIBP
NIBP cuff hose connector
7
SpO2
SpO2probe connector
8
CO2output connector
9
IBP2
IBP2 transducer cable connector
10
Printer connector
2.2.4 The Bottom Panel
The following figure shows the bottom panel of the ZD120E Patient Monitor.
Figure 2-4 The Bottom Panel
Battery compartment door
10
1
2
3
4
5
6
7
8
9
