Introduction
UNPACKING AND INSTALLATION
Congratulations on Your Purchase!
Your new high fidelity receiver is designed to deliver
maximum enjoyment and years of trouble free service.
Please take a few moments to read this manual
thoroughly. It will explain the features and operation of
your unit and help ensure a trouble free installation.
Please unpack your unit carefully. We recommend that
you
save
the
carton
and
packing
material.
They
will
be
helpful if you ever need to move your unit and may be
required if you ever need to return it for service. Your unit
is designed to be placed in a horizontal position and it is
important to allow at least two inches of space behind
your unit for adequate ventilation and cabling
convenience.
To avoid damage, never place the unit near radiators, in
front
of
heating
vents,
in
direct
sunlight,
or
in
excessively
humid or dusty locations. Connect your complementary
components
as
illustrated
in
the
following
section.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
/\ maintenance (servicing) instructions in the
literature accompanying the appliance.
To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.
Caution : Do not block ventilation openings or stack
other equipment on the top.
FOR U.S.A.
m Note to CATV System Installer: This reminder is
provided to call the CATV system installer's attention
to Article 820-40 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that
the cable ground shall be connected to the
grounding system of the building, as close to the
point of cable entry as practical.
m FCC INFORMATION
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residentia!
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
* Reorient or relocate the receiving antenna.
« Increase the separation between the equipment
and receiver.
* Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
* Consuit the dealer or an experienced radio/TV
technician for help.
CAUTION: Any changes or modifications in
construction of this device which are not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
Caution regarding placement <
(Except for U.S.A and Canada)
To maintain proper ventilation, be sure /
to leave aspace around th unit (from
the largest outer dimensions including projetions)
equal to, or greater than, shown below.
Left and right panels: 10 cm
Rear panel: 10 cm
Top panel: 20 cm

READ THIS BEFORE OPERATING YOUR UNIT |
FOR U.S.A. AND CANADA ....ccsssosssssesinssrsseessseenees 120 V
FOR YOUR SAFETY
Units shipped to the U.S.A. and Canada are
designed for operation on 120 V AC only.
Safety precaution with use of a polarized AC plug.
However, some products may be supplied with a
nonpolarized plug.
CAUTION : To prevent electric shock, match wide
blade of plug to wide slot, fully insert.
ATTENTION : Pour eviter les choc electriques,
introduire la lame la plug large de la borne
correspondante de la prise et poussre jusqu’au fond.
FOR EUROPE AND AUSTRALIA ...1.110+ 230 V/240V
FOR YOUR SAFETY
Units shipped to Australia are designed for operation
on 240 V AC only.
To ensure safe operation, the three-pin plug
supplied must be inserted only into a standard three-
pin power point which is effectively earthed through
the normal household wiring. Extension cords used
with the equipment must be three-core and be
correctly wired to provide connection to earth.
Improper extension cords are a major cause of
fatalities. The fact that the equipment operates
satisfactorily does not imply that the power point is
earthed and that the installation is completely safe.
For your safety, if in any doubt about the effective
earthing of the power point, consult a qualified
electrician.
PAN-EUROPEAN UNIFIED VOLTAGE
All units are suitable for use on supplies 230-240 V
AC.

System Connections
* Do not connect the receiver to the wall AC outlet when plugging and unplugging connection cords.
Be sure to connect the white RCA pin cords to the L (left) and the red RCA pin cords to the R (right) jacks when making
connections.
* Change the position of the FM indoor antenna until you get the best reception of your favorite FM stations.
¢ A 75 Q outdoor FM antenna may be used to further improve the reception.
Disconnect the indoor antenna before replacing it with the outdoor one.
* Place the AM loop antenna as far as possible from the receiver, TV set, speaker cords and the AC input cord and set it toa
direction for the best reception.
¢ If the reception is poor with the AM loop antenna, an AM outdoor antenna can be used in place of the AM loop antenna.
Caution : When listing to AM broadcasts in a surround mode without an AM antenna, digital noise can be heard.
Should this happen, connect an AM antenna.
¢ Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the receiver.
+ If the electricity fails or the AC input cord is left unplugged for about 2 weeks, the memorized contents will be cleared.
Should this happen, memorize them again.
a @ CONNECTING ANTENNAS
ays se
(OUTDOOR ANTENNA) Come
@@-|@| @
@®@|-(O|@
e9 (@
FM
(INDOOR ANTENNA)
o>
‘a m@ CONNECTING VIDEO COMPONENTS
Video deck 1 SVIDEOIN
SUPPLIED ADAPTOR
@ CONNECTING AUDIO COMPONENTS
Tumtable with MM type cartridge
hi =| Dpleyer
!
!
t
Monitor TV et
SI
3
“TV or additional video component
SMIDEO OUT)
VIDEO OUT
* The TV jacks may also be connected to an additional vicleo -
component such as a cable TV tuner, a video deck or satellite
em.
* te the ned a to make connections to video
. components with S-VIDEO IN/OUT jacks. A signal input imto the
* The TAPE 2 MONITOR PLAY/REC jacks may also be connected to S-VIDEO jack will be output in only the S-VIDEO jack and a
the LINE OUTAN jacks of an optional graphic equalizer. signal itd ten normal VIDEO jack will be output in ortly the
normal j

m@ CONNECTING DIGITAL INPUTS
LD player with AC-3
DIGITAL RF OUT
Component with
COAXIAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
* A digital input should be connected to the components such as
LD player or DVD, etc. capable of outputing DTS Digital
Surround, Dolby Digital(AC-3), PCM or RF format digital signals.
« For details, refer to the operating instructions of the
component connected.
* When making the COAXIAL DIGITAL connection, be sure to
use a 75Q COAXIAL cord, not a conventional AUDIO cord.
@ CONNECTING SYSTEM CONTROL
Sherwood component
with DIGI LINK II or Ii
CD player
Tape deck
Graphic equalizer
* Connect this jack to the DIGI LINK jack of the external
Sherwood component that uses the DIGI LINK II or Ill remote
control system.
c
i
6
m@ CONNECTING SPEAKERS
Front right Front left
A
Rear right Rear left
¢ Never short circuit the + and — speaker cords.
¢ Be sure to connect speakers firmly and correctly
according to the channel (left and right) and the polarity
(+ and -).
* Be sure to use the speakers with the impedance of over
8Q.
¢ Always connect both rear speakers.
* For installing the speakers, refer to "Speaker placeme nt"
on page 15.

_
@
MAIN
IN
connections
@
AC
INPUT
CORD
Pre amplifier Plug this cord into a wall AC outlet
* When a separate pre amplifier is used for front channels,
connect these jacks to the pre amplifier and connect the front
speakers to this receiver.
r. @ PRE OUT connections
Front speakers
Power amplifier
Powered
Power amplifier Center speaker Subwoofer
Power amplifier
Rear speakers
¢ Use these jacks when adding additiona! amplifiers.
¢ Connect the PRE OUT jacks to the powered speakers or the power amplifiers
connected to speakers respectively.
¢ To emphasize the deep bass sounds, connect a powered subwoofer.
* When you do not use the front MAIN IN and PRE OUT jacks, always connect these
jacks with the supplied jumper plugs.
[
i L
SWITCHED AC OUTLETS
These outlets are switched on and
off by the STANDBY button on the
front panel or the POWER button on
the remote control. (Maximum total
capacity is 100W)
Standby mode — switched AC outlet on
Power on mode — switched AC outlet on

Front Panel Controls
POWER SWITCH
STANDBY BUTTON
REMOTE SENSOR
STANDBY INDICATOR
DIGITAL INPUT INDICATORS.
Racio 0
Galland PTY — SEARPH _DISPLAY|PTY SEI
es
=
t—_| | +9
OSD BUTTON/INDICATOR
VIDEO LABELS BUTTON
VCRi REC SELECTOR BUTTON
TAPE2 MONITOR BUTTON
INPUT SELECTOR / INDEX KNOB
MASTER VOLUME CONTROL KNOB
RONT AUX/
REAR TV SELECTOR BUTTON/INDICATOR
CENTER LEVEL UP/DOWN (+/ -) BUTTONS
ReEScEeNeer E BALANCE CONTROL KNOB !
‘ON/ PEAKER MODE BUTTON
INDICATOR TUNING UP/DOWN
SURROUND MODE (a/v) BUTTONS
BUTTON TREBLE CONTROL KNOB
DOLBY PRO LOGIC REAR LEVEL UP/DOWN (+/ -) BUTTONS
BUTTON MEMORY/ ENTER BUTTON
DOLBY DIGITAL BUTTON FM MODE BUTTON
DTS BUTTON/INDICATOR BASS CONTROL KNOB
RDS BUTTONS (R-945 RDS ONLY) BAND BUTTON
Refer to “Additional function for FREQUENCY DIRECT BUTTON
STEREO BUTTON
R-945 RDS Tuner Only" on page 21.
DIGITAL INPUT BUTTON
SPEAKER ON/OFF SWITCH
NUMERIC BUTTONS
@ FLUORESCENT DISPLAY
INPUT, FREQUENCY,PRESET, VOLUME LEVEL, OPERATING INFOMATIONS, etc
TP INDICATOR! Ta INDICATOR
EON INDICATOR PTY INDICATO
RT INDICATOR STEREO INDICATOR
RDS INDICATOR TAPE 2 MONITOR INDICATOR
CINEMA BASS INDICATOR
VCR1 RECORD
SOURCE DISPLAY
TUNED INDICATOR
AUTO INDICATOR
MEMORY INDICATOR
SLEEP INDICATOR
CHURCH INDICATOR
STADIUM INDICATOR
HALL INDICATOR
THEATER INDICATOR
D0 3 Stereo INDICATOR
O0 Pro Logic INDICATOR
OC AC-3 INDICATOR
MH Front AUX — panies
=O ®
S- VIDEO L-AUDIO-R VIDEO
,
'
1
'
: Additional video component
S-VIDEO OUT
VIDEO OUT
AUDIO OUT
*The front Aux jacks may be also connected to an
additional video component such as a camcorder’, a video
deck or a video game player, etc.
* Use the S-VIDEO jack to make connection to vicleo
component with the S-VIDEO out jack.
A signal input into the S-VIDEO jack will be output in only
the S-VIDEO jack and a signal input into the nornal VIDEO
jack will be output in only the normal VIDEO jack.

Universal Remote Control
Notes:For
enhanced
Universal
Remote
Programming
instructions
and
product
identification
codes,
please
refer
to
the
operating
manual
inclosed
with
this
Universal
Remote
Control.
This
remote
control
has 3
operating
modes
as
follows;
*
OSD
(On
Screen
Display)
mode:
Allows
you
to
look
at
information
about
basic
operation
of
this
receiver
on
your
monitor
TV and
to
operate
this
receiver by
moving
an
arrow
that appears on
the
screen
of
your
monitor TV.
* Sherwood mode: Allows you to operate this receiver, and other Sherwood components like cassette decks, CD players and
equalizers, etc. (To operate other Sherwood components, you should make the DIGI LINK connections
between them)
«
Non-Sherwood
mode:
Allows
you
to
operate
the
non-Sherwood
audio
and
video
components.
Notes:
¢ The set-up code for each component should be entered before operation.
For
set-up
codes(product
identification
codes),
please
refer
to
“Set-Up
Code
Tables”
in
the
operating
manual
of
this
remote
control.
+ Some operation buttons have different functions according to each operation mode.
¢ Be sure to set the remote control to the correct mode before operation.
DIGI LINK SYSTEM REMOTE CONTROLS |
¢
This
section
explains
the
basic
functions
for
Sherwood
or
OSD
mode.
For
non-Sherwood
mode,
refer
to
the
operating
manual
of
this
remote
control.
* All Sherwood components bearing the DIGI LINK (II or II) logo can be used with this remote control.
+ For system remote control operation, first make the DIGI LINK connections between Sherwood components.
¢
The
numbered
buttons
on
the
remote
control
have
different
functions
in
different
modes.
For
details,
refer
to
the
“FUNCTION TABLE of the NUMBERED BUTTONS” on next page.
LED
LAMP
L
1QUID
CRYSTAL
DISPLAY
DEVICE BUTTONS
To operate the desired component with this remote
control, first select the corresponding DEVICE button
PRESET SCAN BUTTON
POWER BUTTON +
VOLUME A/V(UP/DOWN)BUTTONS *
MUTE BUTTON
©@ © &©®©
NUMERIC(1~0)/CURSOR CONTROL( 4 »~, 4,» BUTTONS
For selecting preset stations or entering frequency directly in tuner mode.
For selecting a track or a disc in CD mode.
When selecting a disc, select disc No. (1~5)within 2
sec. after pressing DISC button.
For moving an arrow with the CURSOR CONTROL buttons
in the OSD mode.
SLEEP BUTTON
SYSTEM DISPLAY BUTTON
OSD BUTTON
TEST TONE BUTTON
DISC
BUTTON
(CD
CHANGER
Only)
ENTER
BUTTON
INPUT SELECTOR BUTTONS
In the standby mode, when pressing a input
selector button, the receiver is turned on automatically
and the desired input source is selected.
LIGHT BUTTON
activates the backlighting of the remote controi
for 5 sec. If any other button is pressed while
the backlighting is on, the reomote control will
remain backlit for an additional 5 sec.
EQUALIZER FUNCTIONS
T.MON-for monitoring the sound of recording or
(EQ.T) playback on tape deck
DISPLAY-for selecting equalize r display.
USER-for adjusting equalizer pattern as desired.
PRESET-for selecting equalizer pattern.
FILE-for selecting desired equalizer pattern in the
reset or in the user mode.
(Cosa)
erwe
HOME THEATER MASTER

gi
FUNCTION
TABLE
of
the
NUMBERED
BUTTONS.
Conponent control
selection buttons
Button symbols
~—
(for receiver)
DECKA
oO)
Bese
REPEAT
AC
«
YB
DECK
SELECTOR
A
@)
SUBWOOFER
LEVEL
UP
INTRO
SCAN
DECK
SELECTOR
B
:
=|
@
CENTER
LEVEL
UP
PAUSE
PAUSE
®
CENTER
LEVEL
DOWN
STOP
STOP
« (2 REAR LEVEL DOWN BACKWARD SKIP REWIND
©
»
REAR
LEVEL
UP
FORWARD
SKIP
FAST-FORWARD
@M
SURROUND
MODE
PLAY
FORWARD
PLAY
DELAY TIME = REVERSE PLAY
9)
DELAY
ADJUST
=:
RECORD
ADJUST
*
When
using
the
Sherwood
DIGI
LINKIIl
components,
by
pressing
PLAY,
etc.
on
CD
player
or
tape
dek,
CD
or
TAPE
2
MONITOR
is
selected
automatically
without
selecting
the
input
source
and
then
PLAY,
etc.
starts.
In
this
case,
to
listen
to
TAPE
1,
switch
off
the
TAPE
2
MONITOR
and
select
the
TAPE
1.
Notes:
¢
Some
functions
for
CD
player,
tape
deck
or
equalizer
may
not
be
available.
+
For
details
about
functions,
refer
to
the
operating
instructions
of
each
component.
¢
The
TV/OFF
and
the
CH
V
buttons
may
not
be
available
for
this
receiver.

Operations
Note:
Before
operating
this
receiver
with
the
supplied
remote
control,
refer
to
“Universal
Remote
Control”
on
page
8
for
details
about
operation.
|

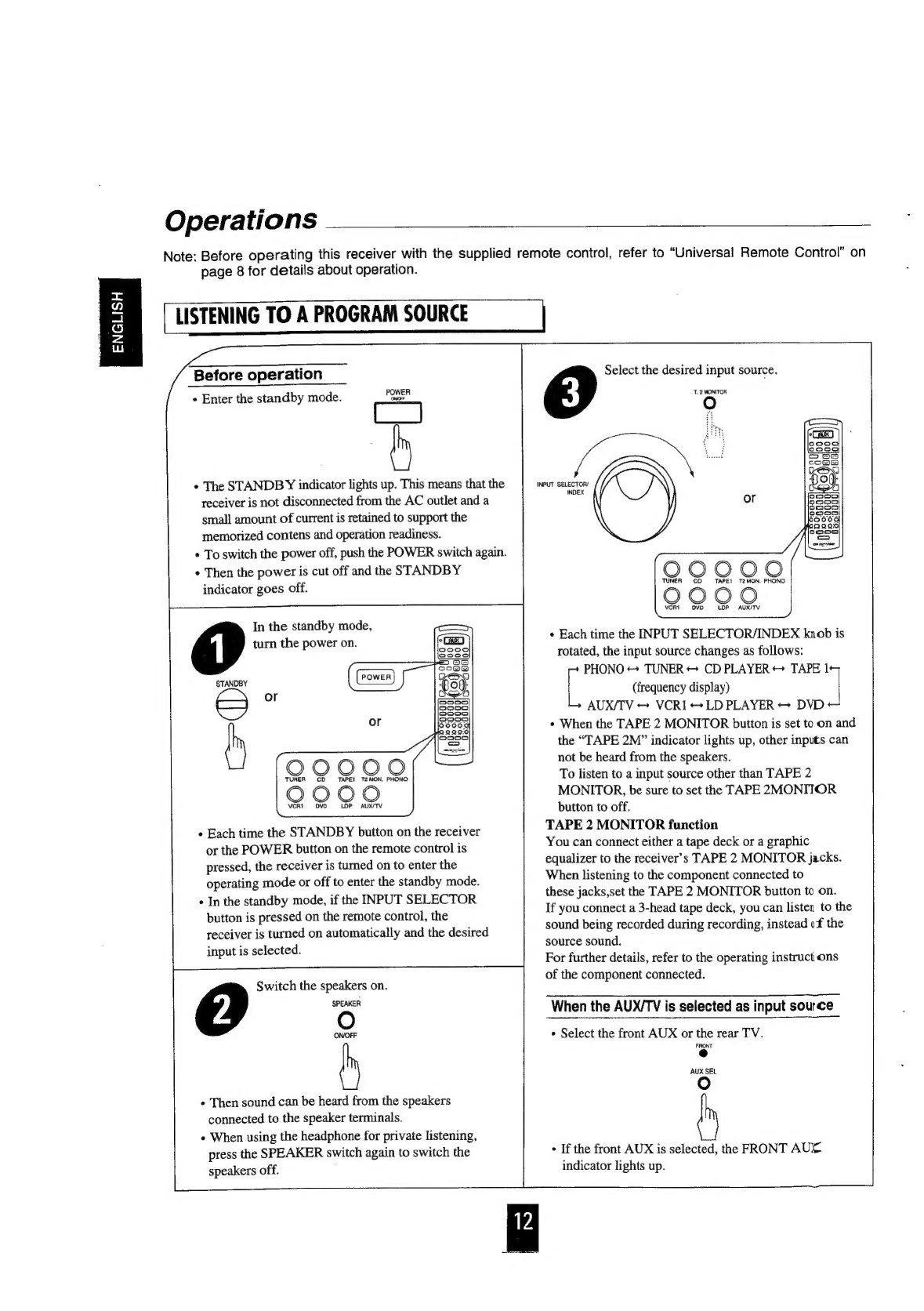

LISTENING
TO
A
PROGRAM
SOURCE
|
Before operation
¢ Enter the standby mode.
i=
it)
=
xo)
Zz
iu
Select the desired input source.
T. 2 MONITOR
INPUT SELECTOR!
INDEX
POWER
ONOFF
i
¢ The STANDBY indicator lights up. This means that the
receiver is not disconnected from the AC outlet and a
small amount of current is retained to support the
memorized contens and operation readiness.
* To switch the power off, push the POWER switch again.
* Then the power is cut off and the STANDBY
indicator goes off.
In the standby mode,
turn the power on.
STANDBY
a eas
i
¢ Each time the STANDBY button on the receiver
or the POWER button on the remote control is
pressed, the receiver is tumed on to enter the
operating mode or off to enter the standby mode.
¢ In the standby mode, if the INPUT SELECTOR
button is pressed on the remote control, the
receiver is turned on automatically and the desired
input is selected.
or
O0000
TUNER CD TAPE! T2MON. PHONO
00090
vCR1 ovo LOP = AUX/TV
+ Each time the INPUT SELECTOR/INDEX knob is
rotated, the input source changes as follows:
PHONO ++ TUNER © CD PLAYER «© TAPE 1
[ (frequency display) i
AUX/TV — VCRI LD PLAYER @ DVD
* When the TAPE 2 MONITOR button is set to on and
the “TAPE 2M” indicator lights up, other inputs can
not be heard from the speakers.
To listen to a input source other than TAPE 2
MONITOR, be sure to set the TAPE 2MONITOR
button to off.
TAPE 2 MONITOR function
You can connect either a tape deck or a graphic
equalizer to the receiver’s TAPE 2 MONITOR jacks.
When listening to the component connected to
these jacks,set the TAPE 2 MONITOR button to on.
If you connect a 3-head tape deck, you can listen to the
sound being recorded during recording, instead of the
source sound.
For further details, refer to the operating instruct ons
of the component connected.
TUNER CD TAPE! T2MON. PHONO
VCRI «DVD LDP AUX/TV
Switch the speakers on.
SPEAKER
When the AUX/TV is selected as input source
¢ Select the front AUX or the rear TV.
FRONT
AUX SEL
¢ Then sound can be heard from the speakers
connected to the speaker terminals.
* When using the headphone for private listening,
press the SPEAKER switch again to switch the
speakers off.
* If the front AUX is selected, the FRONT AUX
indicator lights up.

When CD, DVD, LDP or AUX/TV is
selected as input source
* Select the digital (or the analog) input connected as
desired. ; ’ .
¢ Each time this button is pressed,
DIGITAL . . .
INPUT the corresponding input is
selected as follows;
—In the DTS mode
rc OPTICAL COAXIAL
—In the Dolby Digital(AC-3) mode:Not available for CD
(RF:LDP only) — OPTICAL > COAXIAL—
* To play back the laser disc encoded the Dolby
Digital(AC-3) format in the Dolby Digital(AC-3)
mode, you should select the RF input as the desired
digital input. ~
—In the normal stereo or a surround mode other than the
DTS and Dolby Digital(AC-3) modes.
OPTICAL— COAXIAL — ANALOG
¢ When LDP as input source and the normal stereo mode
are selected respectively, the RF input should be
selected to play back the laser disc encoded the Dolby
Digital(AC-3) mode in the 2~CH downmix mode.
« When playing back Dolby Digital(AC-3) program
sources in the normal stereo mode, it enters the 2-CH
downmix mode automatically, not the normal stereo
opertion.(For details, refer to “Downmixing into 2
fornt channels” on page 18.)
Notes:
« When the selected optical or coaxial digital input is not
connected, the selected DIGITAL INPUT indicator is
flickering, mening no sound. (Refer to “Select the
desired surround mode” on page 15.)
¢ When the DTS or Dolby Digital(AC-3) mode is
selected, the component connected to the selected
digital input can be heard.
Adjust the stereo balance between the left and
the right channels.
BALANCE
o % 6
OECKA DECKS
* It is adjustable only when a powered subwoofer is
connected and the subwoofer is set to “YES” .(Refer
to “Adjusting the speaker settings” on page 16)
To encrease the bass sound.
CINEMA BASS:
t
¢ Press it again to cancel.
Operate the selected component for playback.
¢ When playing back the program sources
with surround sound, refer to “Enjoying
surround sound” on page 15.
Adjust the (overall) volume.
MASTER VOLUME
Note : Extreme settings at high volume may damage
your speakers.
To mute the sound.
¢ “MUTE” will flicker.
¢ To resume the previous sound level, press it agin.
To listen with the headphones.
PHONES.
* Ensure that the SPEAKER ON/OFF switch is et to off.

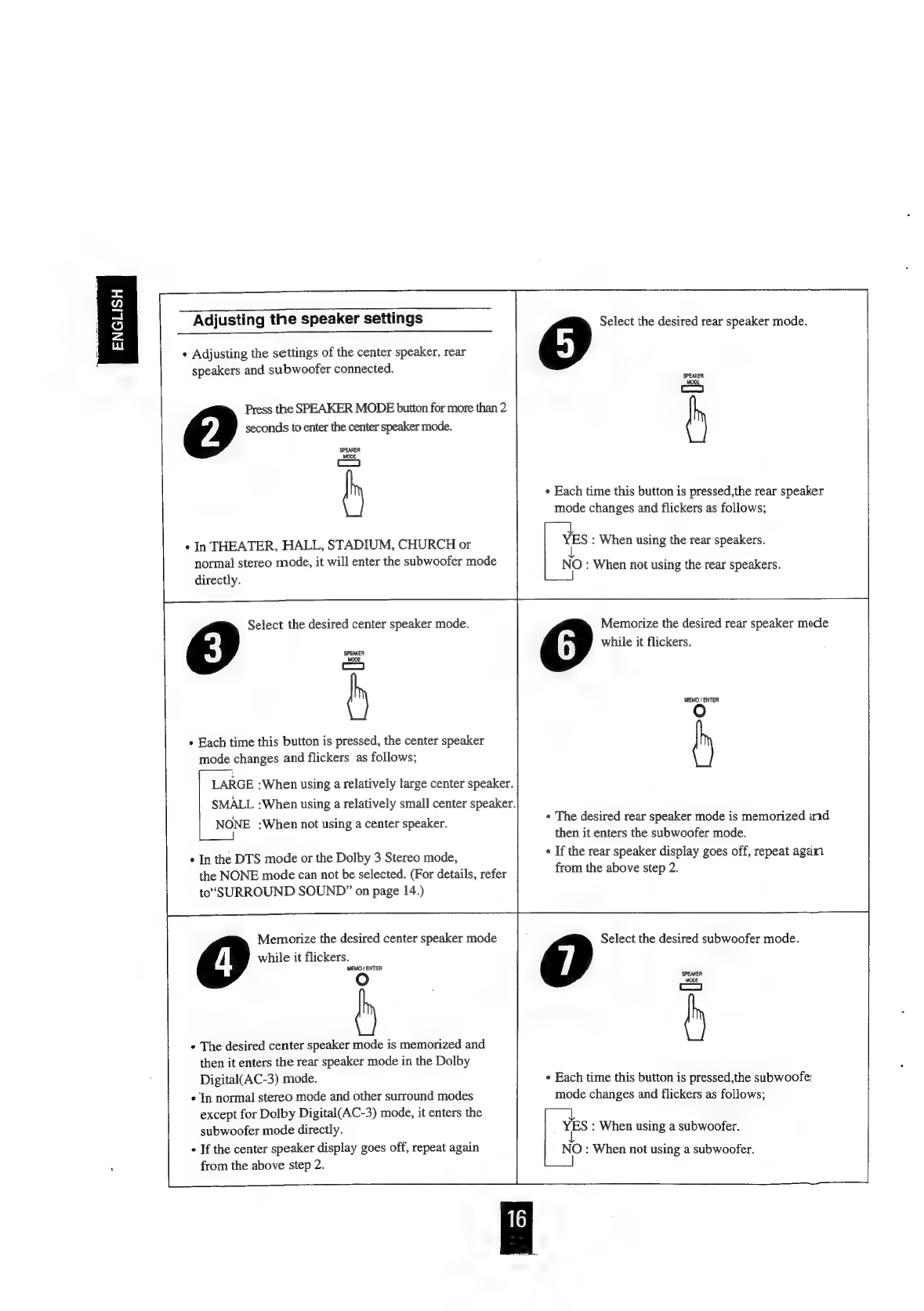

Adjusting the speaker settings
+ Adjusting the settings of the center speaker, rear
speakers and subwoofer connected.
Press the SPEAKER MODE button for more than 2
seconds to enter the center speaker mode.
‘SPEAKER
MODE
i
* In THEATER, HALL, STADIUM, CHURCH or
normal stereo mode, it will enter the subwoofer mode
directly.
Select the desired center speaker mode.
‘SPEAKER
MODE
Cc
0
+ Each time this button is pressed, the center speaker
mode changes and flickers as follows;
LARGE :When using a relatively large center speaker.
SMALL :When using a relatively small center speaker.
NONE :When not using a center speaker.
¢ In the DTS mode or the Dolby 3 Stereo mode,
the NONE mode can not be selected. (For details, refer
to“SURROUND SOUND” on page 14.)
Memorize the desired center speaker mode
while it flickers.
MEMO / ENTER
0
¢ The desired center speaker mode is memorized and
then it enters the rear speaker mode in the Dolby
Digital(AC-3) mode.
¢ In normal stereo mode and other surround modes
except for Dolby Digital(AC-3) mode, it enters the
subwoofer mode directly.
+ If the center speaker display goes off, repeat again
from the above step 2.
Select the desired rear speaker mode.
SPEAKER
¢ Each time this button is pressed,the rear speaker
mode changes and flickers as follows;
YES : When using the rear speakers.
NO: When not using the rear speakers.
Memorize the desired rear speaker mode
while it flickers.
MEMO / ENTER
f
* The desired rear speaker mode is memorized and
then it enters the subwoofer mode.
+ If the rear speaker display goes off, repeat agam
from the above step 2.
Select the desired subwoofer mode.
* Each time this button is pressed,the subwoofer
mode changes and flickers as follows;
YES : When using a subwoofer.
NO: When not using a subwoofer.

Memorize the desired subwoofer mode
while it flickers.
MEMO} ENTER
the above step 2.
Checking the speaker setting
SPEAKER
MOOE
co
« Each time this button is pressed briefly, the setting
of the center speaker, the rear speakers or the
subwoofer is displayed.
In
DTS,
Dolby
Digital(AC
-3),
Dolby
Pro
Logic
or
Dolby
3
Stereo
mode
Press the TEST TONE button to adjust the
volume level of each speaker.
¢ Test tone will be heard form each speaker for 2
seconds each as follows;
C FRONT L-> CENTER-FRONT R->REAR R-REAR L-*SUB “|
¢ The test tone will be heard from the subwoofer only
when subwoofer is set to “YES” in the DTS mode
and the Dolby Digital(AC-3) mode.
+ Test tone is not heard from rear speakers in Dolby 3
Stereo mode.
« Test tone is not heard from the speaker of which the
setting is adjusted to the NONE or the NO mode.
If
the
subwoofer
display
goes
off,
repeat
again
from
Adjust the volume levels of the speakers
until they all sound equally loud.
* The rear L and R volume levels are adjusted
respectively during the test tone function and all
together while enjoying surround sounds.
Cancel the test tone function.
¢ The delay time will be displayed for 5 seconds.
¢ In Dolby Digital(AC-3) mode, the correspondng
delay time will be flickering.
* The center delay time can be adjustable only in Dolby
Digital(AC-3) mode.
* The rear delay time can be adjustable only in Dolby
Digital(AC-3) and Dolby Pro Logic modes.

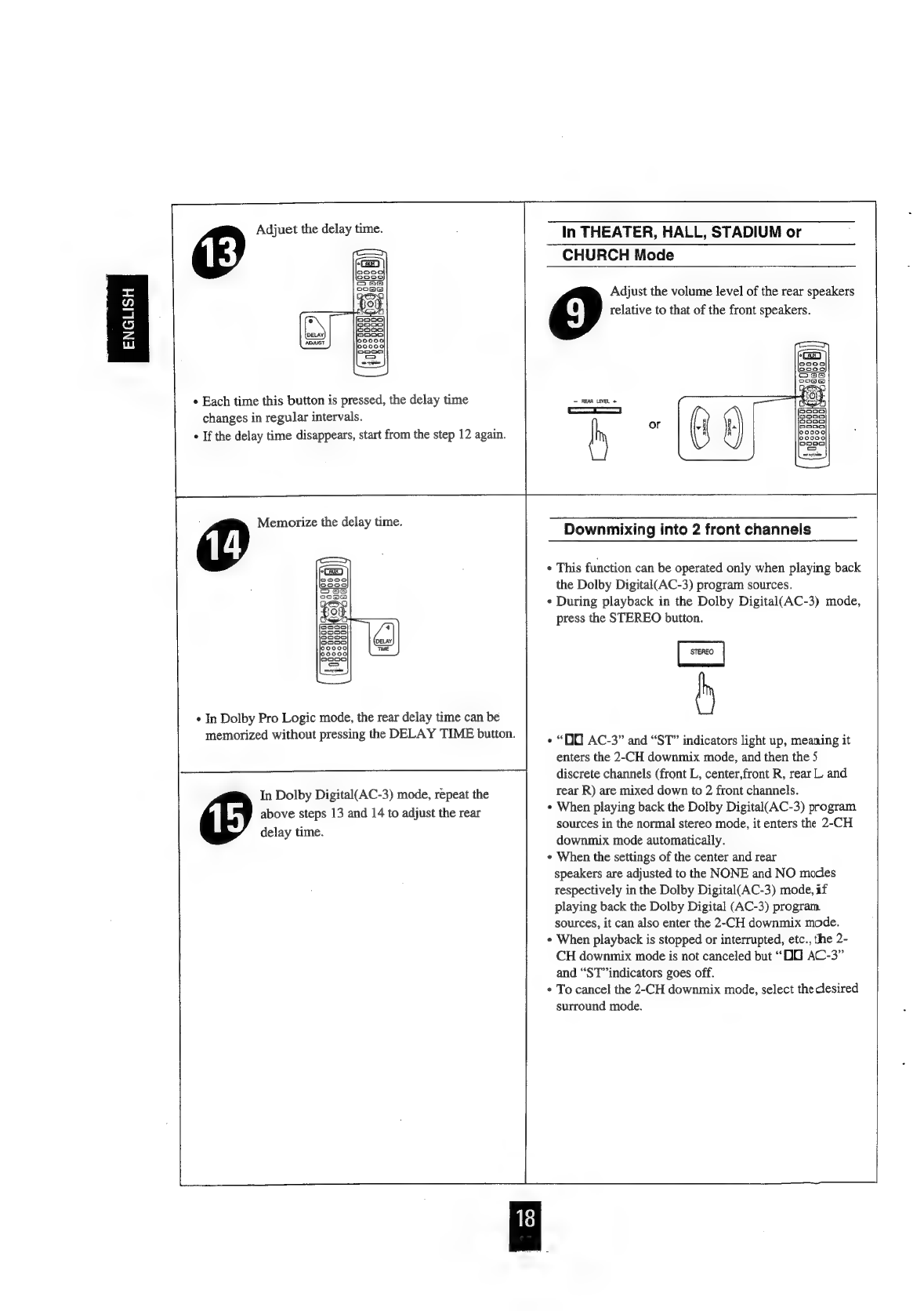

Adjuet the delay time.
Each time this button is pressed, the delay time
changes in regular intervals.
« If the delay time disappears, start from the step 12 again.
Memorize the delay time.
+ In Dolby Pro Logic mode, the rear delay time can be
memorized without pressing the DELAY TIME button.
In Dolby Digital(AC-3) mode, repeat the
above steps 13 and 14 to adjust the rear
delay time.
In THEATER, HALL, STADIUM or
CHURCH Mode
Adjust the volume level of the rear speakers
relative to that of the front speakers.
Downmixing into 2 front channels
* This function can be operated only when playing back
the Dolby Digital(AC-3) program sources.
¢ During playback in the Dolby Digital(AC-3) mode,
press the STEREO button.
i
¢ “D0 AC-3” and “ST” indicators light up, meaning it
enters the 2-CH downmix mode, and then the 5
discrete channels (front L, center,front R, rear L. and
rear R) are mixed down to 2 front channels.
* When playing back the Dolby Digital(AC-3) program
sources in the normal stereo mode, it enters the 2-CH
downmix mode automatically.
« When the settings of the center and rear
speakers are adjusted to the NONE and NO modes
respectively in the Dolby Digital(AC-3) mode, if
playing back the Dolby Digital (AC-3) program
sources, it can also enter the 2-CH downmix mode.
¢ When playback is stopped or interrupted, etc., the 2-
CH downmix mode is not canceled but “OO AC-3”
and “ST” indicators goes off.
* To cancel the 2-CH downmix mode, select the desired
surround mode.

LISTENING
TO
RADIO
BROADCASTS
Manual tunin
Select the tuner.
ao~
INPUT SELECTOR’
INDEX
¢ Manual tuning is useful when you already know the
frequency of the desired transmitter.
Press TUNING W or A repeatedly until
the right frequency has been reached.
Select the desired band.
BAND
Frequency direct tuning
Enter the frequency direct tuning made.
FREO.DIRECT
==}
FREQUENCY
+
Each
time
this
button
is
pressed,
the
band
is
changed
to
FM
or
AM.
«
When
pressing
the
BAND
button
without
selecting
the
TUNER,
the
tuner
will
be
selected
automatically.
Auto
tuning
Enter
the
frequency
within
7
second
fox
each digit.
Press TUNING YW or A for more than 0.5
second.
be
Examples)
iss
tinh
«
A
» FM 89.15MHz: O-O-O-O
+ FM 100.15 MHz: O-O-0-0
- AM 576 kHz: Q-O-O
- AM 1611 kHz: 0-O0-0-0O
*
Then
AUTO
appears
on
the
display.
The
tuner
will
+
In
EM
band,
If
“1”
is
pressed
on
the
first
digi,
“*
10”
now
search
until
a
station
of
sufficient
strength
has
is
entered.
been
found.
The
display
shows
the
tuned
¢
With
the
numeric
button
on
the
remote
contnl,
you
frequency
and
“TUNED”.
can
also
enter
the
frequency.
¢
If
the
station
found
is
not
the
desired
one,
simply
«
In
each
digit,
if
it
elapses
7
seconds,
press
thr
repeat
this
operation.
FREQUENCY
DIRECT
button
again
to
ente
the
¢
Weak
stations
are
skipped
during
auto
tuning.
frequency.

ENGLISH
Presetting radio stations
¢ You can store up to 30 preferred stations in the
memory.
Tune in the desired station with auto or
manual tuning, etc.
Listening to FM stereo broadcasts
» While listening to FM broadcasts.
FM MODE
i
Press the MEMORY/ENTER button.
MEMO / ENTER
i
* “MEMORY” is flickering for 5 seconds.
Examples)
¢ For “3”:
¢
For
“15”:
m-@
The station has now been stored in the memory
« A stored frequency is erased from the memory by
storing another frequency in its place.
¢ If “MEMORY” goes off, press the MEMORY/ENTER
button again to enter a preset number.
Enter a preset number (1~30).
* Each time this button is pressed, the FM mode
changes as follows;
Stereo mode : “ST” lights up
Mono mode : “ST” goes off a
« When FM stereo broadcasts are poor because of weak
broadcast signals, select the FM mono mode to reduce
the noise, then FM broadcasts are reproduced in
monaural sound
Scanning preset stations in sequence
¢ The receiver will start scanning the stations in the
preset sequence and each station is received for 5
Tuning to preset stations
Press the desired preset number.
Example)
¢ For “3”:
« When pressing the numeric buttons on the front
panel without selecting the TUNER, the tuner will be
selected automatically and the preset station will be
tuned in.
seconds.
At the desired station, press this button
again to stop scanning.
@ MEMORY BACKUP FUNCTION
The following items, set before the receiver is arned off,
are memorized.
¢ INPUT SELECTOR settings
° VCR 1 REC SELECTOR settings
¢ Surround mode settings
* Preset stations
¢ Video labels, etc.
Note:If the electricity fails or the AC input cord is
disconnected for about 2 weeks, they areal cleared.
So you should memorize them again.

Additional
Function
for
R-945
RDS
Tuner
Only
LISTENING
TO
RDS
BROADCASTS
(FM
only)
RDS(Radio
Data
System)
is
mefhod
for
sending
information
signals
together
with
the
transmitter
signals.
Your
tuner
is
capable
of
translating
these
signals
and
putting
the
information
on
the
display,
These
codes
contain
the
following
informations.
Program
service
name(PS),
A
list
of
Program
Types(PTY),
Traffic
Announcement(TA),
Clock
Time(CT),
Radio
Text(RT).
RDS search
¢ Use this function to automatically search and
receive the stations offering RDS services.
In the FM mode, select the RDS search mode.
SEARCH
i
« Each time this button is pressed, the search mode
changes as follows;
RDS SEARCH-TP SEARCH-PTY SEARCH~OFF
While displaying “RDS SEARCH”
i
¢ The tuner automatically searches stations offering
RDS services and the station name is displayed.
« If the station found is not the desired one, press the
TUNIG-or+again while the RDS indicator is
flickering.
« If no other RDS station is found, “NO RDS” is
dispayed.
¢ When “RDS SEARCH” is not displayed, repeat again
from the above step 1.
TP search
« Use this function to automaically search and receive
the stations broadcasting the traffic program.
In the FM mode, select the TP search mode.
SEARCH
¢ “TP SEARCH” is displayed.
While displaying “TP SEARCH”.
¢ The tuner automatically searches for stations
broadcasting the traffic program.
* “NO TRAFFIC” is displayed if the signal is too weak
or there are no stations broadcasting the traffic
program.
¢ When “TP SEARCH” is not displayed repeat again
from the above step 1.
PTY search
* Use this function to automatically search and receive
the stations broadcasting the desired program type.
In the FM mode, select the PTY seach mode.
SEARCH
¢ “PTY SEARCH” is displayed.
While displaying “PTY SEARCH”. select
the desired program type.
Pty SELECT
Each time this button is pressed, one of 17 dfferent
types of programs is selected. (NEWS, AFFAIRS,
INFORMATION, SPORT, EDUCATION, DRAMA,
CULTURE, SCIENCE, VARIED, POP MUSIC.
ROCK MUSIC, M.O.R. MUSIC, LIGHT MUSIC,
SERIOUS MUSIC, OTHER MUSIC, ALAIM,
UNDEFINED)
¢ When “PTY SEARCH” is not displayed, rejeat again
from the above step 1.
* The tuner automatically searches a station ofer#ng PTY
services.
+ In no station is found, “NO PROGRAM?” is|ispolayed.

EON
PTY
(EON:Enhanced
Other
EON
TA
Networks
information
ENGLISH
¢ Use this function to automatically search and receive
the traffic announcement while listening to traffic
¢ Use this function to automatically search and receive
program.
the desired program type while listening to a RDS
station.
In
the
TP
mode.
In
the
RDS
mode.
EONTA
h i
Traffic program is displayed and the TA indicator
lights up.
¢ If the preset station broadcasting traffic
announcement is found, it will be tuned in while
listening to traffic program.
¢ If the station stops broadcasting traffic
announcement, the tuner will find other stations
repeatedly.
¢ If no station is found, the previous traffic program
station will be tuned in.
« Press the EON TA button to cancel the EON TA
mode.
* Program type is displayed and the PTY indicator is
flickering.
Whlie the PTY indicator is flickering, select
the
desired
program
type.
DISPLAY
pry se.ect In the FM mode.
selected program type, it will be tuned in while
listening to a RDS station.
« If the station stops broadcasting the selscted program
type, the tuner will find other stations repeatedly.
¢ If no station is found, the previous RDS station will : . .
be tuned in ? + Each time this button is pressed, the display mode
changes as follows;
¢
If
one
of
the
preset
stations
is
broadcasting
the
fh
« When the PTY indicator goes off, repeat again from
the above step 1.
*
press
the
EON
PTY
button
to
cancel
the
EON
PTY
Program
Program!
|
Clock
Rado
mode.
i
Frequency
a
—|
Type
Time
|
|
Tet
e
PM) | |e} | Rh
+ If the signals are too weak or no RDS service is
available, “NO NAME DATA”, “NO PTY DATA”,
“NO TIME DATA” or “NO TEXT DATA” will be
displayed.

AUDIO RECORDING
¢
The
digital
signals
from
the
optical,
coaxial
or
RF
digital
input
can
be
heard
but
cannot
be
recorded.
Recording with TAPE 1
Select the desired input as recording source
except for TAPE] and TAPE 2 MONITOR.
(GN
INPUT SELECTOR’
INDEX
+
Be
sure
that
the
TAPE
2
MONITOR
indicator
goes
off.
Start recording on the tape deck connected to
TAPE 1.
Start play on the desired input.
Recording with TAPE 2 MONITOR
Select the desired input as recording source
except for TAPE 2 MONITOR.
Cc)
(eS
INPUT SELECTOR’
INDEX
TUNER CD TAPES
vVCA1 OVD LDP AUXI/TY
Set the TAPE 2 MONITOR button to on.
T.2MONITOR
,
Start recording on the tape deck comected to
TAPE 2 MONITOR.
Start play on the desired input.
¢ When the TAPE 1 is selected as recording sorce,
dubbing will start from TAPE 1 to TAPE 2
MONITOR.
* It is not possible to dub from TAPE 2 MONITOR to
TAPE 1.
¢ For tape 2 monitor function, refer to “TAPE ?
MONITOR function” on page 12.

RECORDING WITH VCR1I
* The digital signals from the optical, coaxial or RF digital input can be heard but cannot be recorded.
=
<2
a
we)
=
lu
Dubbing from video components to VCR 1 Listening to other audio inputs during
dubbing
Example) When dubbing from LD player to VCR 1
Example) When listening to CD during dubbing from
Select LDP as program source.
LDP to VCR 1.
(GSN
INPUT SELECTOR!
INDEX
Select CD as the program source being
enjoyed.
ao~
INPUT SELECTOR!
INDEX
: Tt cai Craw i & ee
f ObG i o£ oGPid € 3
PROGRAM SOURCE being enjoyed.
Select
LDP
as
recording
source.
BELECE
EDF
ae
TePOnUUIE
SOULS,
Oo VCR1 REC
(ny ~RECORDING
SOURCE
+ Each time this button is pressed, the recording
source changes as follows;
h
Start recording on the VCR 1.
hoe LDP— AUX— SOURCE =|
Start recording on the VCR 1. Start play on the LDP.
O
3
4
Oo
Start play on the LDP. Start play on the CDP.
*
The
audio
and
video
signals
from
LDP
will
be
+
The
audio
and
video
signals
from
LDP
willbe
dubbed onto the tape in VCR 1 and you can enjoy dubbed onto the tape in VCR 1 and you canListen
LDP on the TV set and from the speakers. to CD.
