SPS5-08C / SPS5-10C
Portable Air Conditioner
User’s Manual
Thanks for choosing this high quality portable air conditioner.
Please read the Manual carefully before operation. In case of any
problem, please contact professional maintenance personnel in time.

CONTENT
User Knowledge
Matters Needing Attention ..................................1
Important Safety Tips
Special Warning
Main Parts and Components
Control Panel and Remote Controller
Placement and Installation
Product Introduction
Product Operation
Operation Method
Clean and Maintenance
Common Failures and Diagnosis
Drainage Method
Maintenance
Intelligent Error Detection
Trouble-shooting
Machine Parts Parameters
Fuse Parameter
Machine Dimensions
.........................................3
...............................................6
...............................7
...................8
..................................9
............................................14
..............................................15
.................................................15
................................18
.............................................18
.............................................19
........................................19
Service Information.................................20

1

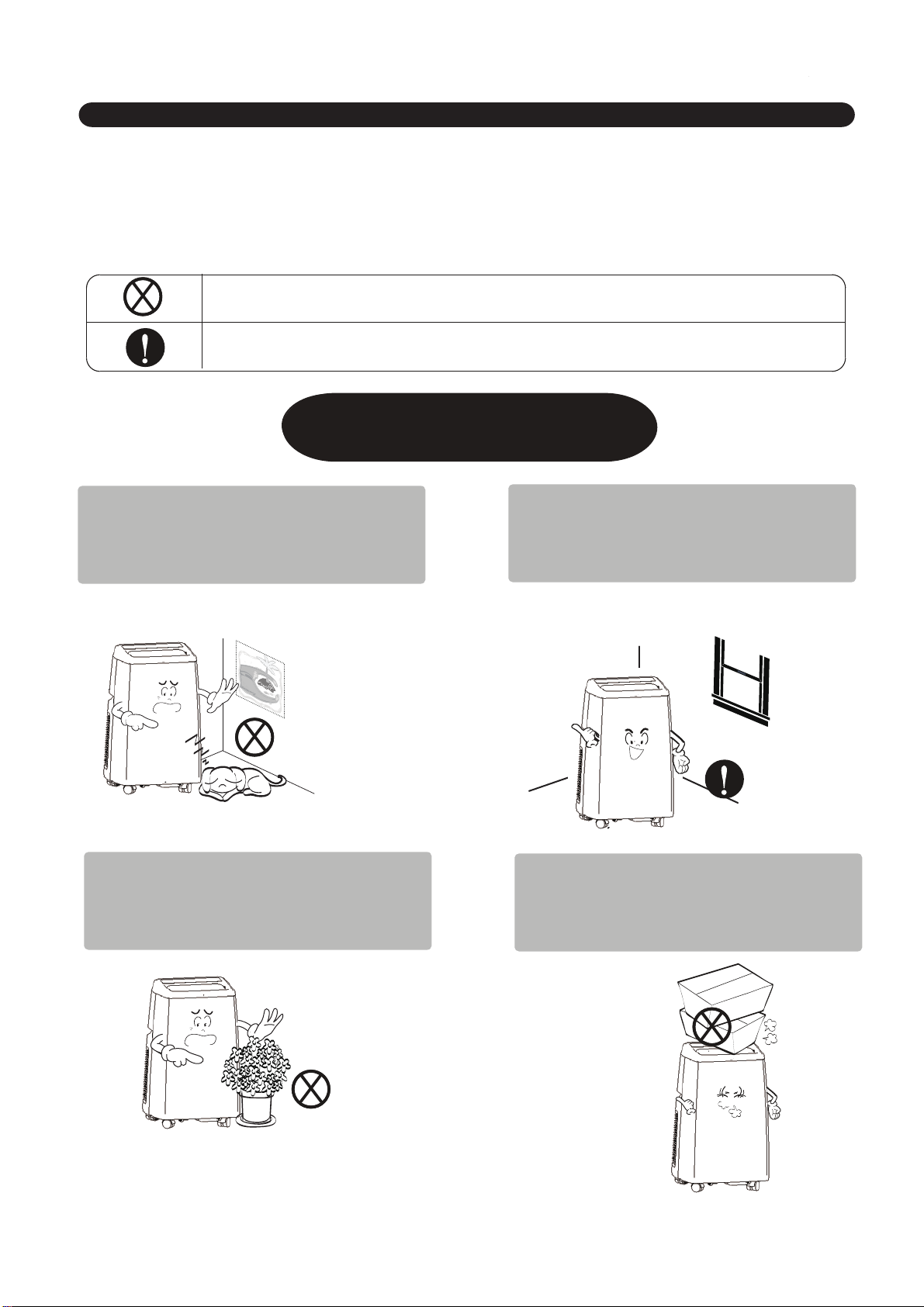

USER KNOWLEDGE
The meaning of this user manual is shown bellow.
MATTERS NEEDING ATTENTION
Please prohibit such operation for your health and safety with your family.
For the sake of health and safety of your family, you must do the following.
Do not stack items around the
machine so as not to impede the
air exchange.
This machine is for household use
only.
This machine is for indoor use only
Please place it in dry environment.
Do not place heavy objects on the
machine to avoid damage to the
machine.

2
稀释剂

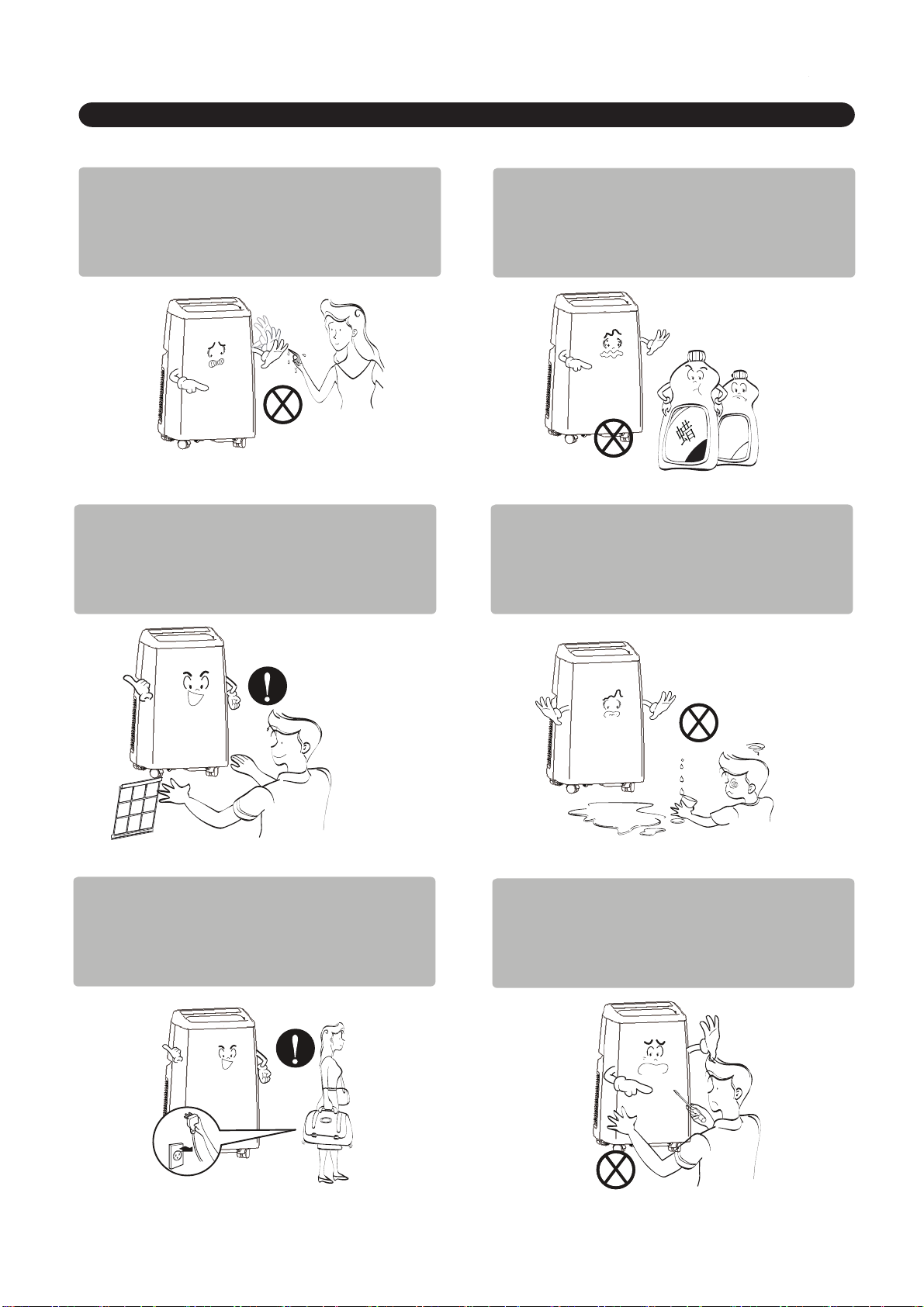

For your health, please don not drink
condensed water discharged from
machine.
Please unplug the power supply if
the machine is not used for a long
time.
Non professionals should not
disassemble or repair the machine
without authorization.
Do not operate the unit with wet hands
or in a humid environment.
Please wipe the machine with a soft
cloth. Do not use wax, thinner or
irritant detergent.
Please clean the filter regularly and
recommend cleaning once every
two weeks.

3

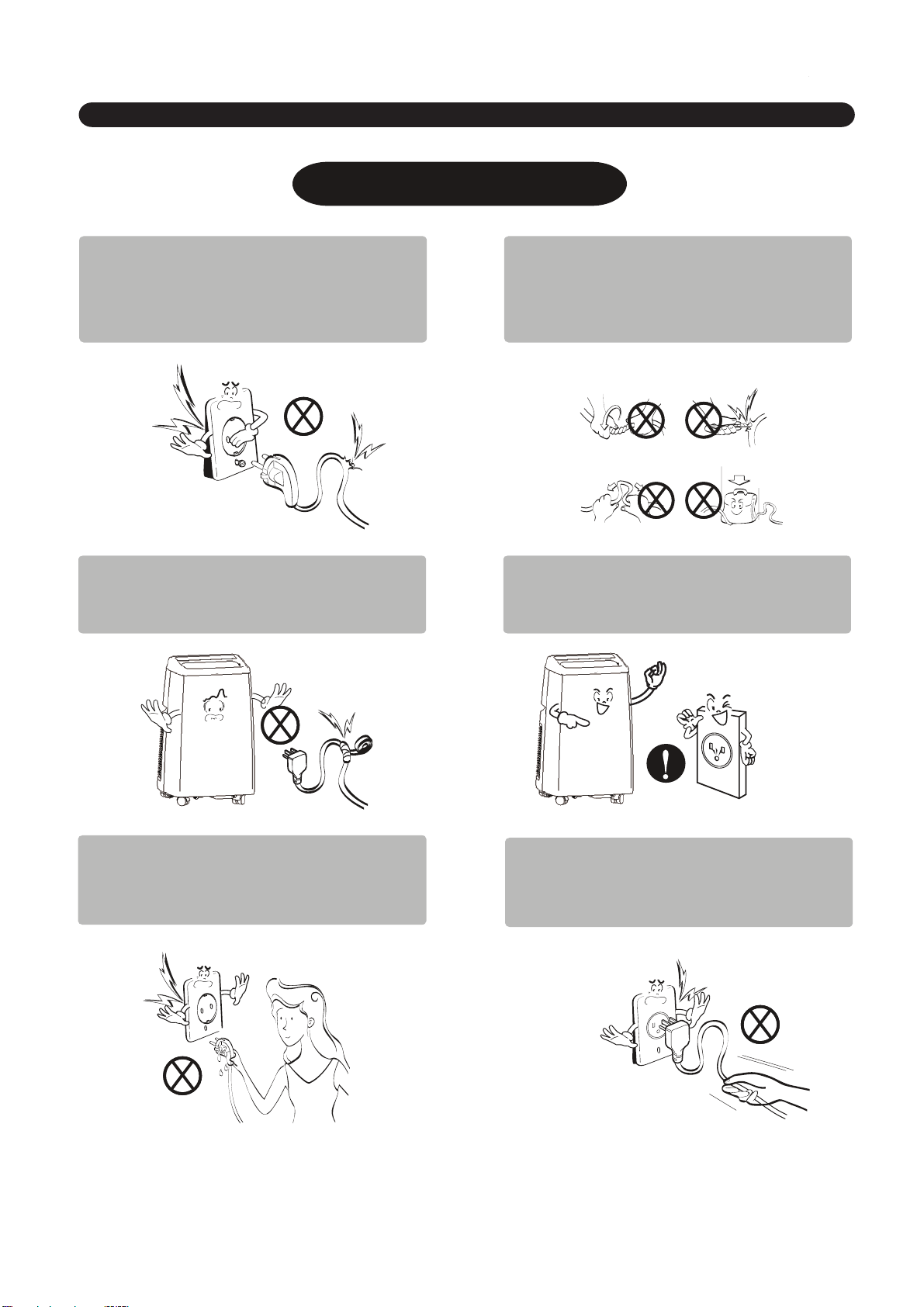

IMPORTANT SAFETY TIPS
Please not use damaged power
cord or power cord plug, do not
insert power cord into loose socket.
Do not damage or use damaged or
unknown type of power cord. Please
ensure that the voltage used meets the
requirements before use.
Do not modify or extend the power cord. It is recommended to use grounding
receptacles when running this unit.
Do not plug or unplug the power cord
with wet hands, this operation has the
risk of causing electric shock.
When pulling the power cord, please
pinch the plug and do not pull the
power cord.

4
Do not control the opening and closing
state of the machine by plugging the
power plug.
Please turn off the machine before you
pulling the plug.
Do not share a power outlet with multiple
high-power electrical appliances.
Please keep the machine away from the
heat source and avoid direct sunlight.
If the machine makes a strong noise,
smell or smoke, please turn off the
machine immediately and pull the plug
to check the cause.
Do not press heavy objects on the
power cord, so as to prevent the
power cord from being crushed and
cause electric shock.

5
Don’t insert your fingers or any hard
object to wind guide bar of the air outlet.
Do not let water enter the electrical
part of the machine.
If water enters the machine, shut it down
immediately and pull out the plug, then
contact the professional maintenance
personnel for repair.
If you need to wipe, clean, move the
machine or replace the machine parts,
please turn off the machine and unplug
the power plug first.
When the gas leak occurs, please open
the windows first, ensure the air
circulation, then run the machine.
The appliance user must be eight years
of age. Weak people, people with weak
sensory abilities or low psychological
quality must be supervised and used
when they understand the correct use
methods and harmfulness. Children are
prohibited from playing. Children must be
cleaned and maintained under supervision.

19.7in.
19.7in.
n.i7.91
6

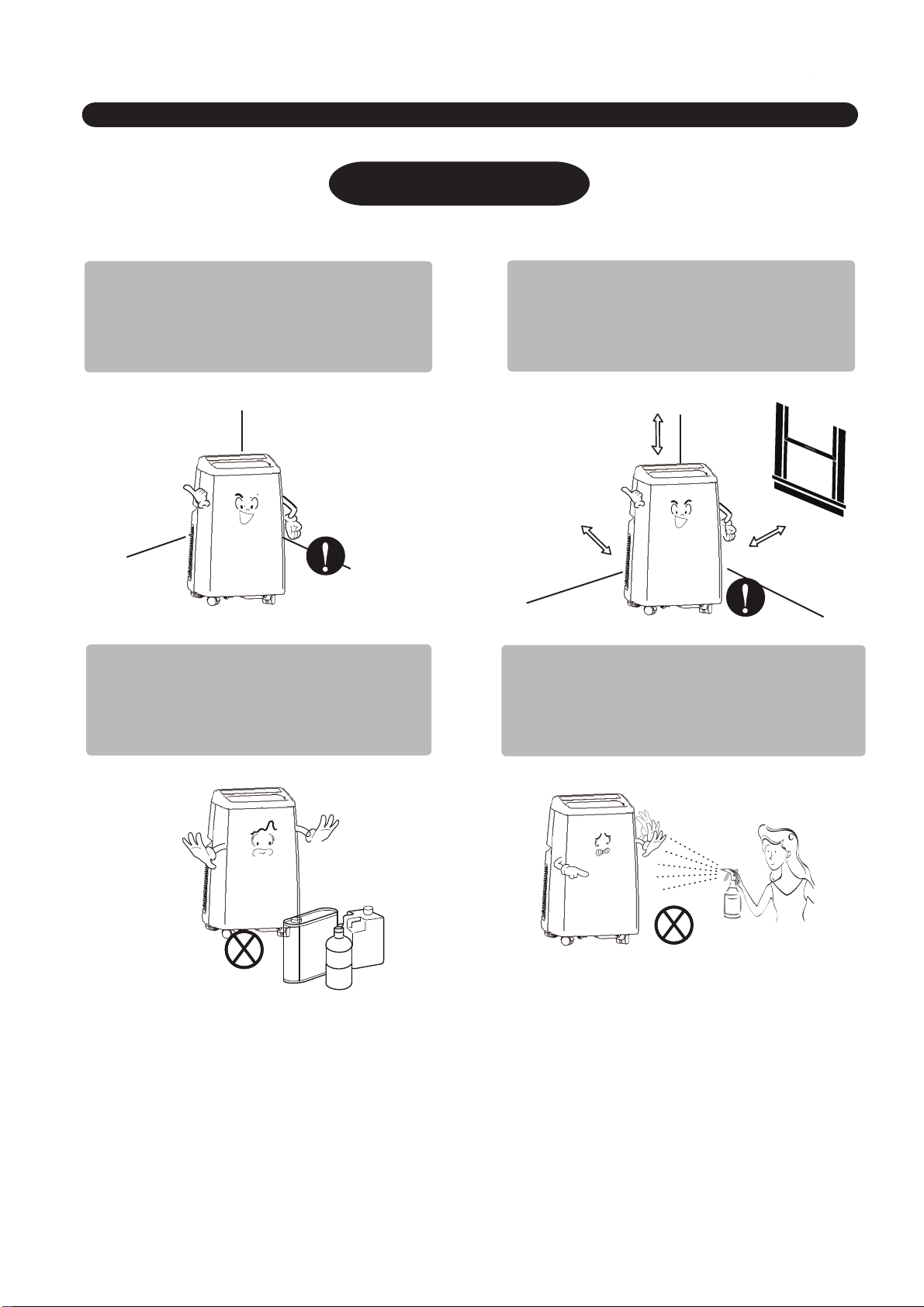

SPECIAL WARNING
Place the A/C on even ground and
install it vertically, so as to ensure
normal operation of the compressor.
The A/C should be at least 19.7in. away
from surrounding objects. Keep air inlet
and outlet smooth.
Don’t use the A/C beside gasoline or
any other inflammable liquid.
Don’t use spraying agent and other solvent
or flammable substances near the A/C;
otherwise, its plastic may deform and
electric parts may be damaged.

4
1
2
3
5
8
10
9
7
6
1
2
3
4
5
6
7
8
Drainage nozzle
9
10
11
12
11
7
PRODUCT INTRODUCTION
Handle
MAIN PARTS COMPONENTS
Air inlet (Down)
Control Panel
Air outlet louver
Castor
Remote controller
Air outlet(Up)
Hot air outlet
Air outlet grille
Exhaust duct assembly
Window sealing plate assembly
12

1
2
3
4
5
6
7
7
8
8
8

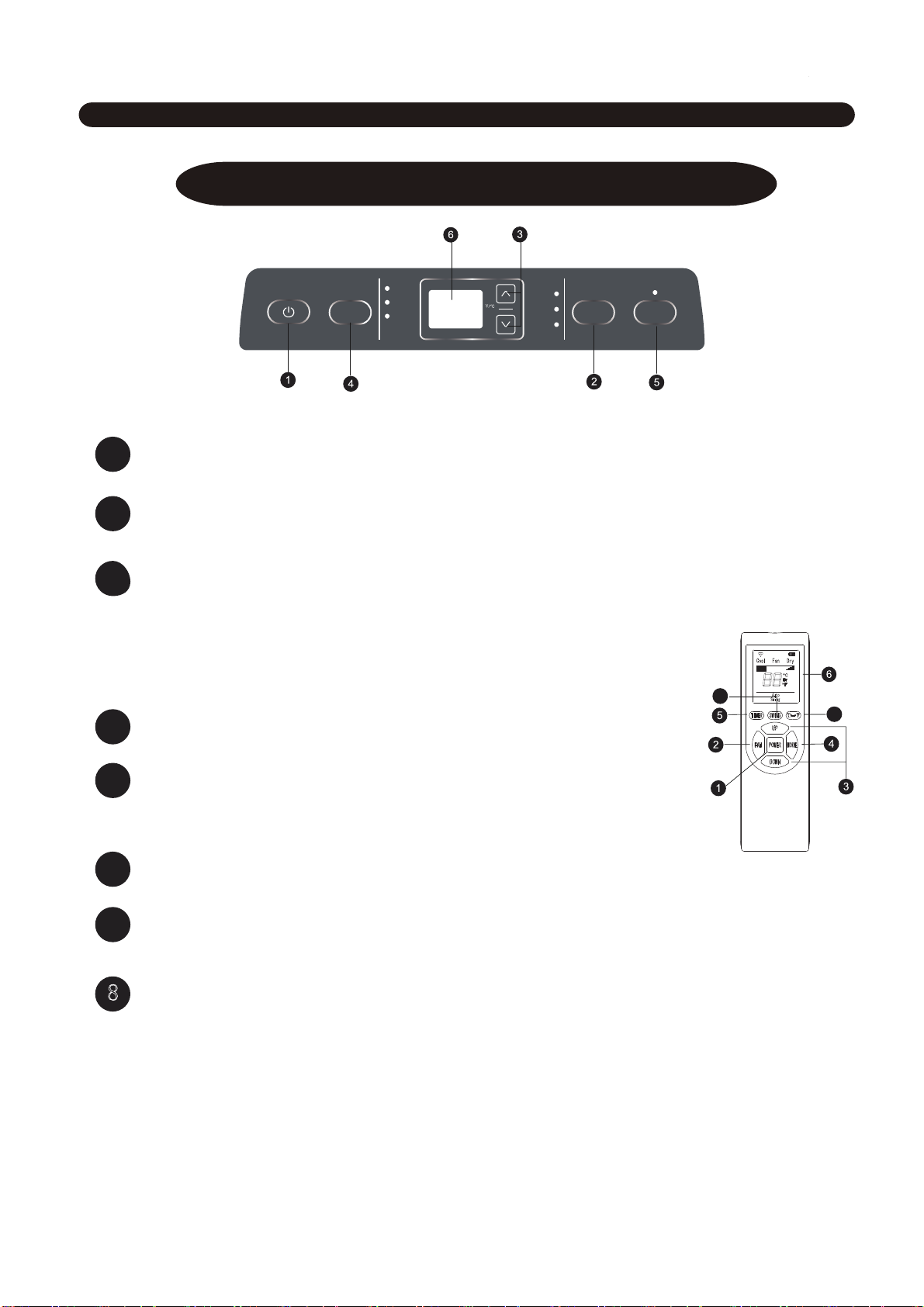

CONTROL PANEL AND REMOTE CONTROLLER
Power key
Press the key to turn ON/OFF the A/C.
Speed key
Press the key to choose high/middle/low speed.
Temperature/ time adjusting key
Press the key at cooling mode
to increase/reduce the setting temperature;
press it at timing mode to adjust timing ON/OFF
time; press Up and Down keys simultaneously to
switch Fahrenheit and Centigrade degree temperature.
Mode key
Press the key to choose cool,fan,dry.
Timer key
Press the key at standby mode to set ON time.
Press this key at ON mode to set OFF time.
Temperature/ time display window
This window displays the adjusted temperature and time.
Switch key
Press the key to switch ℃and ℉.
Swing key
Press this button or press the speed key and timing key
simultaneously to turn on / off the swinging function.
HR
Dry
Fan
Cool
Low
Mid
High
Mode Fan Timer

9
PRODUCT OPERATION
PLANCEMENT AND INSTALLATION
Placement
Place the machine on the horizontal floor
near the window.
In order to maintain good air circulation
and make the machine get the best
performance, there should be at least
space around it.
Installation
Exhaust duct assembly
Exhaust joint Exhaust pipe Flattened mouth
Window sealing plate assembly
Window sealing
plate
Window sealing
plate
Hand pull button
19.7in.
.

10
Locking
opening

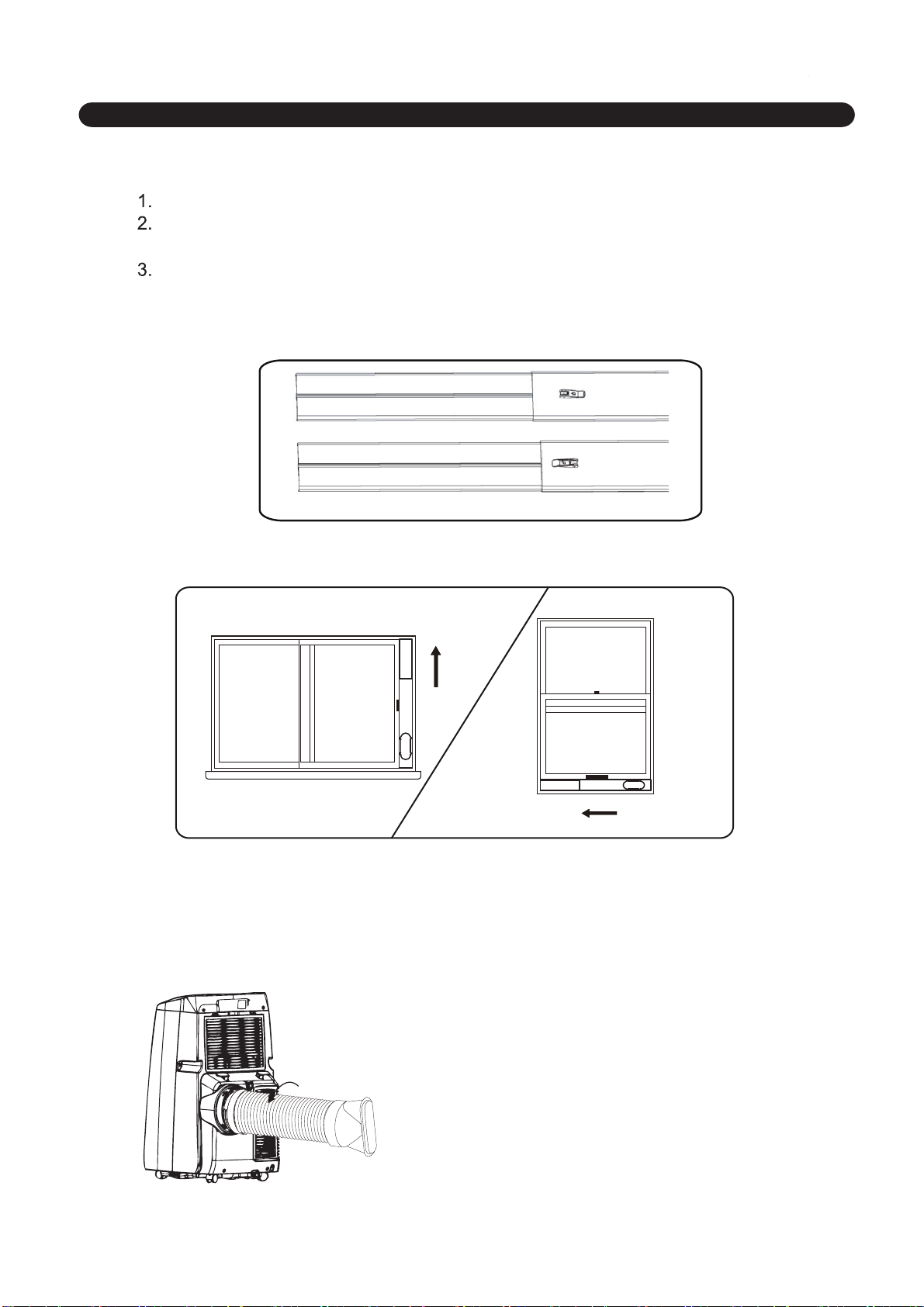

Step 1:
Measure window size;
Adjust the length of the window sealing plate to make it fit with the size of the
window.
When the length of the window sealplate is fixed, the length of the sealing plate
is fixed by hand pull button.
Step 2:
Install the fixed window seal on the window.
Step 3:
Swirl the exhaust pipe assembly (exhaust fitting end)
into the rear panel outlet (counterclockwise).

11
First insert
Small gap
Then slide locking.
Step 4:
Clip the exhaust pipe assembly (exhaust port end) into the window
seal panel assembly and screw it up.
Overall effect diagram after assembly

；
12
1
1
2
3
Incorrect installation
It’s important to keep the exhaust duct smooth. Incorrect installation will affect work of the A/C.
Prevent the exhaust duct from sharp bending.
Ensure air can flow smoothly in the duct.
Warning
The exhaust duct is designed especially for this model. Don’t replace or lengthen it;
otherwise, it will result in failure.
Notice:
Max. developed length of the exhaust duct is 59in. It’s better to shorten it
while use and keep it horizontal while installation.
REMOTE CONTROLLER
Please install the battery correctly before using the remote control.
The specific steps are as follows:
Slide the battery cover on the back of the remote control.
Notice:
The remote controller can only use AAA(DC1.5V) batteries.
Do not use rechargeable batteries or other types of batteries.
Replace two batteries when replacing batteries. Do not mix old and new batteries.
If the air conditioner is not used for a long time, please remove the battery in the remote control.
2
3
Insert 2*AAA（DC1.5V) new batteries and ensure that
batteries, and ensure that the battery electrodes are
installed correctly when inserted.
Fit the battery cover in place.

13
1
2
Warning:
Do not use batteries if there is any leakage.
Chemicals in batteries may cause burns or other health hazards. If the liquid flows to
the skin or clothes carelessly, please wash them with clean water immediately; if you
eat it carelessly, rinse your mouth with clear water immediately, and then go to the
hospital for further examination.

·
·
·
·
·
·
·
·
·
14
OPERATION METHOD
Cool mode
Fan mode
Dry mode
When the A/C enters cooling mode automatically or cooling mode is selected after
power ON, the cooling indicator lamp lights up.
Press Up/Down key to adjust setting temperature (60.8 F~ ~ 86 ) .
Press Speed key to choose High/Mid/Low speed.
When pressing mode key or choosing Fan mode by pressing the remote controller,
the wind indicator lamp lights up.
Press Speed key to choose High/Mid/Low speed.
Temperature can’t be set.
When pressing mode key or choosing dry mode by pressing the remote
controller, the dehumidification indicator lamp lights up.
Take off the water plug of the desiccant nozzle as shown on the right, insert the water
guide pipe, and put the other end of the water guide pipe into the water container
or drainage channel.
·
When entering the dry mode, the
the room temperature is greater than 63 F Thereafter
compressor is started if
the compressor is controlled according to the
following rules: when the room temperature is
less than 59 F, the compressor is turned off;
when the room temperature is raised to
more than 59 F, the compressor is restarted
(the compressor restart must satisfy the three-minute
delay protection function).
·In dry mode, the fan is defaulted to run at low speed,
and wind speed can’t be adjusted
Temperature can’t be set.
Use hint: when dry function is used, the exhaust pipe assemblyshould be
removed,otherwise it will cause that dehumidification effect is not
obvious and "FL" full of alarm display appears.
。F
。
。
。
。

1
1
3
2
4
5
2
3
·
·
15
Timer mode
CLEAN AND MAINTENANCE
CLEANING
In standby state, press the Timer key to set ON time. Press Up and Down keys to set
ON time (1~24H), and the timer indicator lamp lights up.
In ON state, pressure the timer key to set OFF time. Press Up and Down keys to set
OFF time (1~24H), and the timer indicator lamp lights up.
DRAINAGE METHOD
If the internal vessel is full of water, the display screen will display “FL”, and the compressor
stops working automatically. At this point, the water needs to be discharged. The specific
steps are as follows:
Unplug the power cord and take down the exhaust duct assembly.
Move the air conditioner to the right place.
Pull off the drain at the drain and drain the water inside
the machine.
Re plug the water plug.
Reinstall the exhaust duct assembly and start the machine.
MAINTENANCECE
I
Unplug before cleaning.
Wipe with soft semi-dry cloth. Don’t use chemical reagent,
such as benzene, alcohol and gasoline etc; otherwise
surface of the A/C and even the whole A/C will be damaged.
Prevent water from spattering in the A/C.

1
2
3
4
1
2
3
16
FILTER SCREEN
It is suggested to clean the filter every two weeks. If the indoor air quality is poor, the cleaning
frequency should be improved appropriately. Because the filter screen is blocked by dust, it will
reduce the efficiency of air conditioning. The specific cleaning steps are as follows:
According to the direction of the chart, the lower intake grille is first taken out and
the filter screen is removed.
Clean the filter with clean or warm water (about 104 F) which has been added with
neutral detergent, then put it in a cool place to dry.
The filter screen cleaned and dried will be re installed.
Restart the machine and run properly.
If the filter screen is not too dirty,
just use the vacuum cleaner to
absorb the dust.
If the filter is dirty, clean the filter with clear
water or warm water. The temperature
is about 104 F.
Notice:
Do not use water with excessive temperature (suitable temperature is about 104 F) or
irritant detergent (such as alcohol, gasoline, benzene, etc.) to clean the filter.
To avoid deformation of the filter, the cleaned filter should be kept away from the heat
source and put in dry air to dry naturally.
Do not run machines without filters.
。
。
。

17
2
1
2
3
4
5
6
7
1
2
3
4
SEASONAL CLEANING
If the A/C will not be used for a long time, Please follow these
steps to maintain it：
Pull out the water plug to drain.
Run the A/C in fan mode for 2H till the inside is dry.
Turn off the A/C and unplug.
Wash the filter screen and reassemble it.
Dismantle the exhaust duct and keep it properly.
Take the battery from the remote control.
Cover the A/C with a plastic bag and place it at a dry place.
If you haven't used it for a long time, please pay attention to the
following points when you use it again：
Confirm whether water plugs and filters are installed.
Check if the power cord is intact. If there is any damage, do not use it.
Reinstall the remote battery.
Reinstall the other components according to the installation instructions.

“ ”
E1
E2
E4
18
COMMON FAILURES AND DIAGNOSIS
INTELLIGENT ERROR DETECTION
Multi-functional defection
Error-detecting code
Error of the coil’s temperature sensor
Error of indoor temperature sensor
Anti-freezing protection: temperature of the coil is too low and the
whole A/C is off. When temperature excesses 46.4 F,the protection
is released and previous working state is recovered.
TROUBLE-SHOOTING
The following table lists the common faults and maintenance methods of this
series of portable A/C. When the machine is in abnormal operation, the following
table can be used for simple diagnosis and maintenance. If it still can not be solved,
please contact professional maintenance personnel.
TROUBLE CAUSE SOLUTION
The A/C
doesn’t work
No display
The display panel displays “FL”
Time OFF function is started
Reset circuit breaker on AC cord
Restart the A/C after power off and
draining, then it will become normal
The A/C can be restarted 3 minutes
after being turning off
The A/C
starts frequently
Direct sunlight
Doors and windows keep open;
there are lots of people or heat
source in room
Filter screen is very dirty
Air inlet or air outlet is blocked
Draw the curtain
Close doors and windows,
remove heat source
Clean or replace it
Remove the stem
Big noise of
the A/C The A/C is placed unevenly Place it at even and firm ground,
avoid shaking
The compressor
doesn’t work Its delay protection is started Wait for 3min, turn on after
temperature decreases
。
