Shinco SDZ1-30P User manual

Manual of dehumidifier
Model No. SDZ1-30P

Table of Contents
Safety Warning…...................................................................... 2
Frequent enquiries......................................................................3
Installation…...............................................................................4
Components................................................................................ 5
Control Panel..............................................................................6
Operation Methods.................................................................... 7
Drainage..................................................................................... 8-9
Maintenance............................................................................. 10
Troubleshooting........................................................................ 11
Technical Parameters.............................................................. 12
1

Safety Warning
For your safety, please read the following contents carefully
before using this dehumidifier:
Prohibition:
▲ Please do not place this dehumidifier close to heating devices (flame or heaters,
etc.).
▲ Please do not turn on or turn off this dehumidifier by plugging in or pulling out
the plug.
▲ Do not use insecticide spray or other flammable substances in the vicinity of this
dehumidifier.
▲ Do not scratch appearance of this dehumidifier with sharp matters.
▲ Do not splash oil or water into this dehumidifier.
▲ Do not clean this dehumidifier with water, please wipe it with subhumid soft
cloth.
▲ Do not wipe this dehumidifier with chemical solvents such as benzene, gasoline
and alcohol, etc. If this dehumidifier is indeed dirty, please wipe with neutral
detergent.
▲ Please do not incline this dehumidifier over 45°or place this dehumidifier
upside down.
2
Requirements:

Install this humidifier in smooth place to reduce vibration and noise.
 Do not place this dehumidifier in water or other liquids.

In order to prevent accidents, please do not use this dehumidifier if
wires or other connections are damaged.
 This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.cleaning and user maintenance shall
not be made by children without supervision.

When stop, reset or clean this dehumidifier, please cut off the power.
 Please use at the specified voltage.
 This dehumidifier can only be used indoor, please do not use for other purposes.

Please do not place heavy objects on this dehumidifier.
 Please empty water tank to prevent overflow and spill before restarting
this dehumidifier.

Please do not incline in case that the spilled water damages this dehumidifier.
 Please do not place waste rods and hard objects into the dehumidifier in case
that error and damage occur.
 If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.

When this dehumidifier is not used for long time, please unplug the electric cord.

Power supply of the Dehumidifier shall comply with the safety regulations
where it is used and ensure reliable grounding.

Frequent enquiries
3
Q: Why is less water stored in water tank of the
dehumidifier in winter?
In winter temperature is low and air is dry. In comparison with summer,
the dehumidification ability of the dehumidifier decreases remarkably,
this is not a fault.
Q: Why the dehumidifier
running suddenly？
cannot
run or stops
 This dehumidifier may be full of water or water tank is not installed properly,
drain the water in water tank, or re-install water tank in correct way.
 At the moment the dehumidifier may be in the
“
dehumidification mode”,
the ambient temperature is lower or higher (dehumidification cannot be
performed ）when the ambient temperature is ＜41℉or ＞90℉).
The ambient temperature for operation of the dehumidifier is 41 - 90 ℉,
and the relative humidity is 30%-80%. The optimal temperature for use is
61-90℉;
Q: Why is hot air blown out from air supply outlet?
 This dehumidifier extracts the air in the room, and the dehumidification unit
cools the air, the temperature decreases below the condensation point, the air
condenses into water drops, which falls into water tank finally, and the
dehumidified air is heated by the temperature returning unit. This can reduce
energy consumption and also accelerate dehumidification, therefore, hot air
is blown out, and this not a fault.

Installation
 Please drain the water from water tank before running.
 During running please do not open doors and windows as much as
possible since this can save energy resources.
 When the dehumidifier is installed, a certain space must be reserved
around this dehumidifier, the minimum distance above is 19.7in, and
the minimum distance in front/rear and left/right is 7.9in as
required, as shown in figure below.

When big noise is found during operation of this dehumidifier:
It is recommended inserting pads or damping rubber sheets, etc.
below this dehumidifier, this can reduce vibration and noise, and can
also reduce sinking of wood floor or carpet.
at least 19.7in
at least 7.9in
at least 7.9in
at least 7.9in
at least 7.9in
4

Filter frame
D
rain plug
Wrapping post
Castor

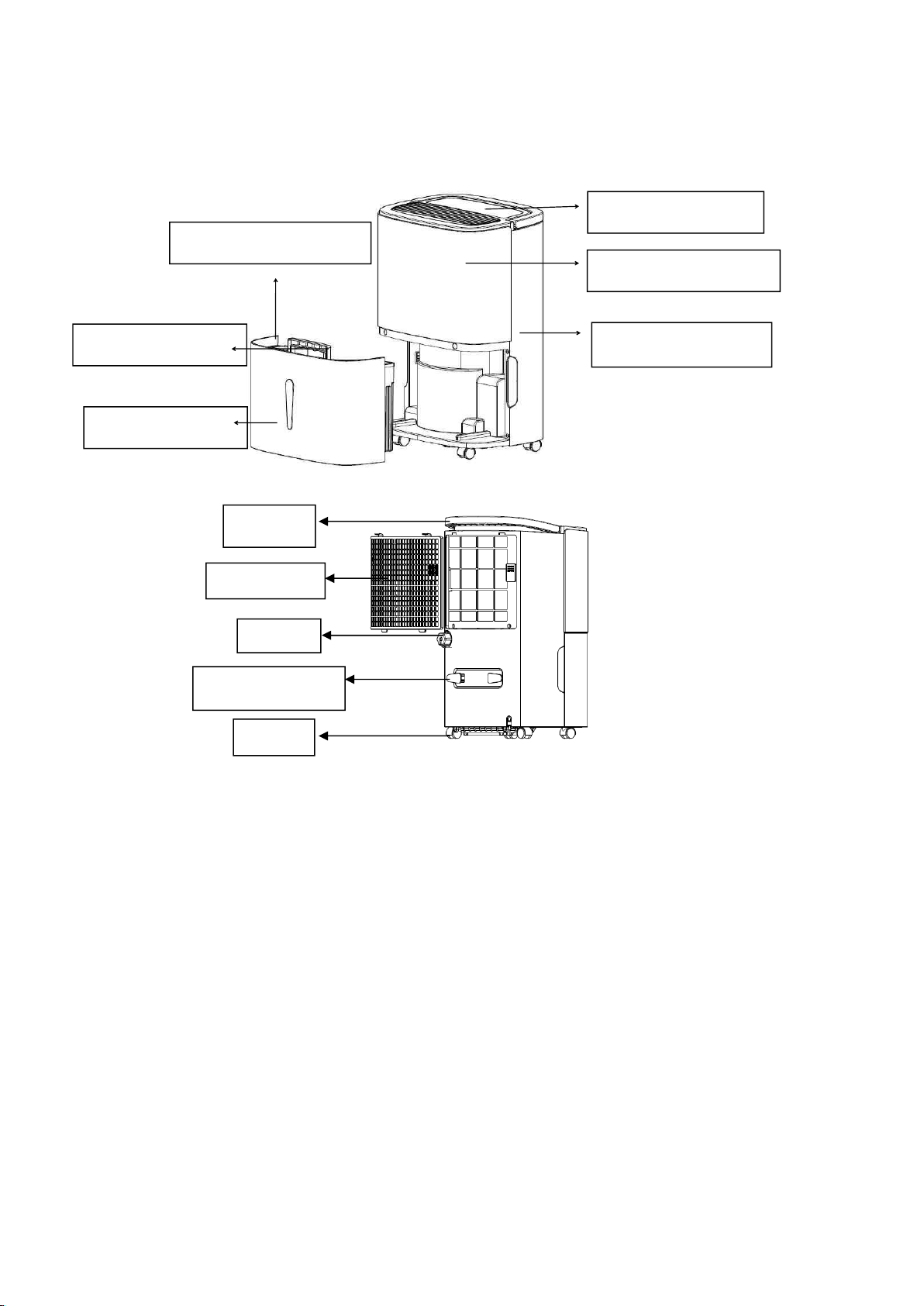

Components
Front side
Back side
5
Handle
Water tank
WBack panel ater tank handle
Water tank cover
Front panel
Control panel

Timer
24h timer setup, press this key to set on/off time of the dehumidifier, and the setting range
is 1-24h. If you cancel timer setup, press twice continuously after confirmation of setting
time.
Dry key in dehumidifier
Press this key start drying procedure in the dehumidifier
Air speed
In AUTO or CONTINUOUS mode air speed, HIGH and LOW can be circularly selected.
LED Display
In AUTO, CONTINUOUS AND DRYING modes,
etc., this figure displays room humidity. When
humidity is set in AUTO mode, this figure shows
the set humidity; and displays the set time in timer
state, % represents percentage ofhumidity.
Humidity setting
Once this key is pressed, the humidity is displayed circularly
in the range of 30%-35%-40%-45%-50%-55%-60%-65%-
70%-75%-80%, and the humidity setting is only valid in
AUTO mode.
Mode
D
Press this button 3s , the child lock function starts. Re-press 3s, cancel the function.
uring startup or timer startup press this key to select AUTO,
CONTINUOUS and DRYING modes, etc., and the indicator lamp
corresponding to the selected mode is on.
On/off key Press this key to turn on or turn off the dehumidifier.
6

Operating methods
Description of functions
Setting of timer off
 When the dehumidifier is running, press the [Timer key] to adjust time from 1h
to 24h, pressing the key once to increase the setting time by 1h, after the setting
time exceeds 24h, the figure returns to 1 to start cycle. The Timer key can also
be pressed all the time, the time increases and changes circularly, when the set
time expires, the dehumidifier turns off automatically. After the setting is
completed, if the Timer key does not act at all within 5s, the set time is
confirmed. In timer off state the key lamp on the [Timer key] is normally on.
Setting of timer on

When the dehumidifier is in standby state, the method for adjustment of setting
time by the [Timer key] is the same as timer off. After the setting is completed,
if the Timer key does not act at all within 5s, the set time is confirmed. In timer
on state the key lamp on the [Timer key] is normally on, and the set time is
displayed on controlpanel.
AUTO mode
 Select AUTO dehumidification, if the room humidity is high than the set
humidity or is between +5% or -5% of the set humidity , the compressor will
starts and the fan will run at the set speed. If the room humidity is lower than the
set humidity by -5%, then the compressor will stop but the fan will run at the set
speed. The default set humidity value is 50%.
CONTINUOUS mode


Select CONTINUOUS dehumidification, no matter how the relative humidity in
the room is, the compressor starts, the fan runs at high speed in default, and the
air speed can be regulated via the air speedkey.
DRYING function in dehumidifier
Press the Drying key in dehumidifier to start drying in the duhumidifier to
prevent inner unit mildew .
7

Drainage
1. Use of water tank
Attention: when the water tank is full of water, please empty it. Before
putting the water tank into the dehumidifier, please confirm whether the
floater rotates flexibly or not, and then push it in position with both hands.
8
When the water tank is full of water, the full water icon on LED
flashes (the compressor, fan and negative ion will stop running), the
BUZZER sounds for 10 times to remind the user till water is drained.

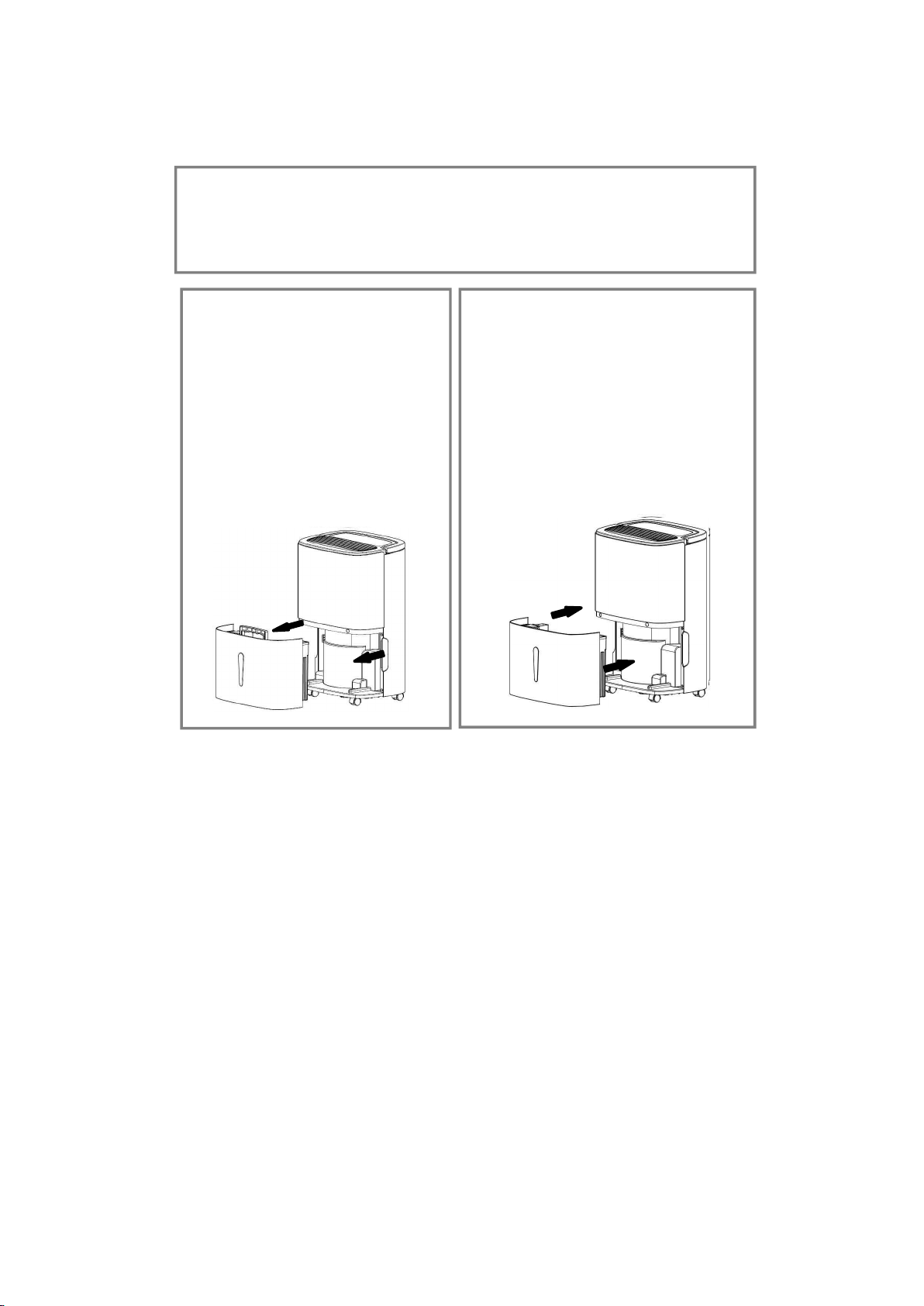

 Place
both
hands
respectively at the side of
t
he back cover side of th
e
d
epression, gently remov
e
t
he water tank and open th
e
t
ank cover on the right sid
e
o
f the body, then pour th
e
w
ater from the gap betwee
n
w
ater tank and the cover.
 Close the tank cover, and
rotating water tank handle down,then
put the water tank gently and put it
back in the right place to restart
dehumidifier.

2
2. Continuous drainage
If you do not want to drain water in the water tank frequently, you can
c
Two kind of pipe is optional . One is inner diameter 9mm ,which provided by
manufacturer. Another is standard screw thread garden drain pipe with outer
diameter of 1 1/16 inches and the pitch of 11.5TPI
onnect a drainage pipe on the back of this dehumidifier to drain water.

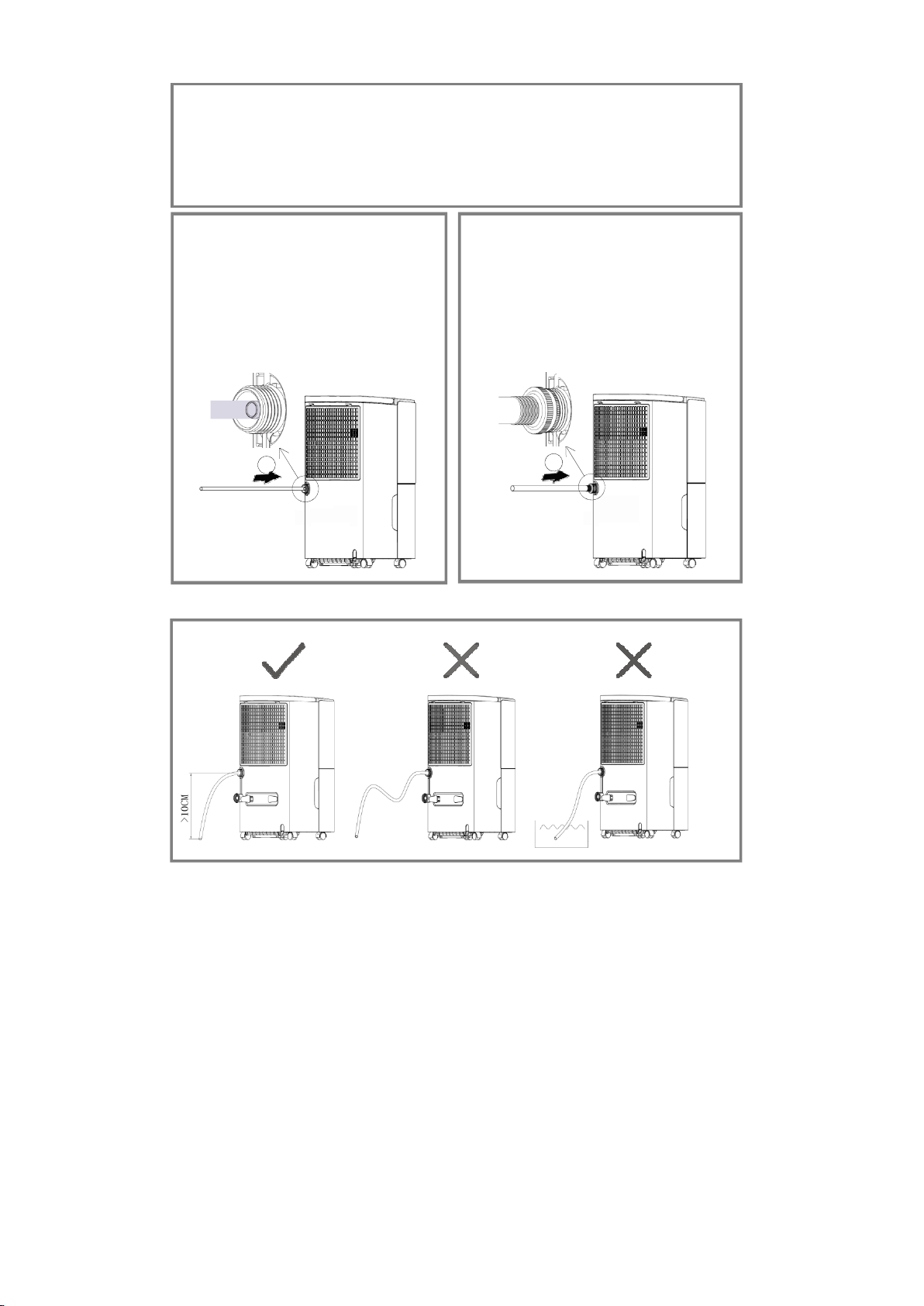

1. Find out the water outlet location on
the back of the unit:screw off the water
cap(counterclockwise),then insert the
9.0mm water hose to the drain,the
operation is completed,as shown in
figure 1.
2.Find out the water outlet location
on the back of the unit:screw off the
water cap(counterclockwise),then
connect garden drain pipe,the
operation is completed,as shown in
figure 2.
Attention: the level height of externally connected water pipe shall not be higher
than the water outlet, and the water pipe at rear-end shall transit smoothly,
otherwise, the leakage risk exists since drainage is not smooth.
9
1

Maintenance
10
Precautions:

Please disconnect power supply before maintenance or repair to prevent
electric shock.

If the dehumidifier is not used for long time, please disconnect power
supply.
Please do not clean the dehumidifier body with chemical solvents such as
alcohol, gasoline and benzene, etc.。

Please clean the water tank and its
cover with soft cloth dipped in
cold or warm water at regular
time to prevent mould inside the
dehumidifier.

Wipe the surface of the
dehumidifier slightly with wet
cloth, and do not use detergent
or abrasive in case the plastic
surface is damaged.

Clean the washable PP
strainer at lease once per
two weeks simply with
cold or warm water, do not
use chemical solvents or
hot water.

Troubleshooting
If the following problems occur to the dehumidifier, the following
solutions can be adopted.
Symptoms Possible reasons Solutions
The dehumidifier does not
run
Does power plug fall? Insert power plug into socket.
Is the water tank full of water? (the
water tank is full of water or is placed
at incorrect position)
Drain water from the water
tank, and then install the
water tank again.
The ambient temperature is lower
than 41
℉
or higher than 90
℉Normal phenomenon
The dehumidification
function is not effective
Is the room temperature or humidity
too low?
In dry season the
dehumidification ability will
reduce.
Are the air outlet and inlet blocked? Clean up the objects blocking
the air outlet and inlet.
Air is not blown out Is the air strainer blocked?
Clean the air strainer
according to the above
method.
Noise is abnormal during
operation
Is the dehumidifier placed improperly
so that it is inclined or unstable?
Please place the dehumidifier
in smooth place.
Is the air strainer blocked?
Clean the air strainer
according to the above
method.
There is “tittering” sound
The flowing sound of
refrigerant, which is a normal
phenomenon.
Water leaks
Connection of drainage pipe becomes
loose Fasten drainage pipe.
Drainage system is blocked Remove obstacles and
straighten out water pipe.
Frosting occurs
The ambient temperature is low, and
it is in the state waiting for defrost.
It is a normal phenomenon,
and the dehumidifier has the
automatic defrosting function.
Display code Instrustion
FL The water tank is full
E1 The coil sensor detects anomaly
E2 The room temperature sensor detects
anomaly
P1 The unit is in the defrosting state,normal
CL
LC
T
Child lock funtcion starts
he unit is in the internal drying state,normal
11

Technical Parameters
Model SDZ1-30P
Operating voltage 110-120V/60Hz
Dehumidification ability
Rated power 260W
Capacity of water tank 4 L
Net Weight 28.7lbs
Dimensions (in)
(HxWxD) 20.1x13.5x9.4
All data are for reference only, and are modified for improvement
of product functions or technology without notice.
12
60Pts(86oF/RH90%)
30Pts(80 oF/RH60%)
24Pts(65oF/RH60%)

Meaning of crossed –out wheeled dustbin: Do
not dispose of electrical appliances as unsorted
municipal waste, use separate collection
facilities. Contact your local government for
information regarding
the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can
leak into the groundwater and get into the food chain, damaging your health and well-
being.
When replacing old appliances with new ones, the retailer is legally obligated to take
back your old appliance for disposals at least free of charge
YOAU Electric Co., Ltd reserve rights to upgrade products without user notice.
TO OBTAIN WARRANTY SERVICE:
Sales support: [email protected]
Working Time : From 8:30AM to 5:00PM Monday through Friday Standard (Eastern) Time
Labor: 1 Year from the Date of Purchase.
Parts: 1 Year from the Date of Purchase.
WARRANTY PERIOD:
