OPERATOR’S MANUAL
DGW200MS/UK
Water-Cooled
4-Cycle Diesel Engine
DGW200MS/UK
X750803-4402
Table of Contents Page
1.Safety Guidelines
2.Specifications
3.Use
4.Parts
5.Equipment
5-1.Monitor Lamp
5-2. Idle Control
5-3. Circuit Breaker
5-4. Earth Leakage Circuit Breaker
and Grounding
5-5. Emergency Stop Switch
6.Initialization and Pre-check
6-1.Checking Engine Oil
6-2.Checking Coolant/Water
6-3.Checking Fuel
6-4.Checking Fuel, Engine Oil
and Water Leakage
6-5.Checking Battery
7.Operation
7-1.Start up
7-2.Stopping
7-3.Emergency Stopping
8.Welding Operation
8-1.Selection-Welding Cable
8-2.Polarity
8-3.Connection-Welding Cable
8-4.Duty Cycle
8-5.Welding
9.Generator Operation
9-1.Operation
9-2.Output Limitation
10.Simultaneous Use of Welding and
Generating
11.Checking and Maintenance
12.Long-term Storage
13.Troubleshooting
14.Engine Wiring Diagram
15.Generator Wiring Diagram
2
5
5
6
7
7
9
10
10
11
12
12
12
13
14
14
15
15
16
16
17
17
17
18
18
19
20
21
22
23
23
29
29
31
32
CAUTION: Do not operate the Generator/Welder, or any other appliance, before you
have read and understood the instructions for use.
SOUND PROOF DIESEL
ENGINE
GENERATOR/WELDER

- 1 -
Introduction
Thank you for purchasing Shindaiwa Sound Proof Diesel Engine Welder/Generator
This user manual has been created to ensure the safe operation of this
equipment. Therefore, the manufacturer of this equipment strongly recommends
that the user follow the instructions herein, to avoid unnecessary accidents and
repairs.
Please operate this equipment after thoroughly reviewing and understanding the
contents of this manual.
Please include this manual, if the equipment is to be on-sold or rented out.
Please store this manual near the equipment for easy reference.
■
■■
■Following convention will be used throughout the manual to indicate the
degree of cautions.
Danger Can cause serious injuries or death.
Caution Can cause minor injuries or damage to the equipment or
other properties.
<Caution> Other types of caution
Even some of the items noted in『 Caution 』may lead to serious injuries.
Please read all item and follow all the safety guidelines.
The following statement refers to the noise level data contained in the EC
Declaration of Conformity attached to this manual
“The figures quoted are emission levels and are not necessarily safe working levels.
Whilst there is a correlation between the emission and exposure levels, this cannot be used
reliably to determine weather or not further precautions are required. Factors that influence the
actual level of exposure of work-force include the characteristics of the work place, the other
source of noise etc. i.e. the number of machines and other adjacent processes, and the length of
time for which an operator is exposed to the noise. This information, however, will enable the user
of the machine to make a better evaluation of the hazard and risk”

- 2 -
1. Safety Guidelines
Danger: Suffocation from exhaust fumes
Exhaust fumes from the engine contain many elements harmful to humans. Do
not operate this equipment in poorly ventilated areas, such as inside a room or
in a tunnel.
Danger: Electric Shock
Close and lock all equipment doors during operation.
Do not touch the output terminals during operation.
Do not insert metal objects into the receptacles.
Do not touch wiring or electric parts inside the equipment during operation.
Ground every grounding terminal to the earth as set out in the manual.
Even though all the terminals of the loads have been grounded to the earth, the
canopy grounding terminal should be grounded to the earth.
Before connecting or disconnecting a plug from output receptacle, always turn
the circuit breaker to OFF position.
Before connecting or disconnecting a welding cable from output terminals, stop
the engine, and remove the engine key.
Before performing any equipment check or maintenance, stop the engine, and
remove the engine key. A person performing the maintenance should always
keep the key.
Danger: Burns
Do not open the radiator cap while operating this equipment or immediately after
stopping the equipment, to avoid the possibility of sustaining burns from hot
steam or water.
Danger: Injuries
Close and lock all equipment doors during operation of this equipment, to avoid
injuries by unintentionally touching cooling fan and fan belt.
Caution: Suffocation from exhaust fumes
Do not point the exhaust outlet toward pedestrians or building.
Caution: Suffocation from welding fumes
Be sure to wear a fume proof mask during operation, because welding fumes
contains poisonous gas and dust. Pay attention to the airflow direction and
sufficient ventilation also in order to prevent from inhaling the fumes.
Caution: Injuries to eyes and skin
Be sure to wear spark protection glasses, long-sleeve shirts, gloves, etc. in order
to protect eyes and skin from harmful sparks in welding.
Battery fluid contains diluted sulphuric acid. Avoid contact with eyes, skin or on
clothing. If the acid comes in contact, especially with eyes, flush with a lot of
water, and seek medical attention immediately.
Caution: Electric Shock
Do not throw water onto the equipment nor operate it in the rain.
This machine is rated to IP23.
Do not touch high-voltage wiring during operation.

- 3 -

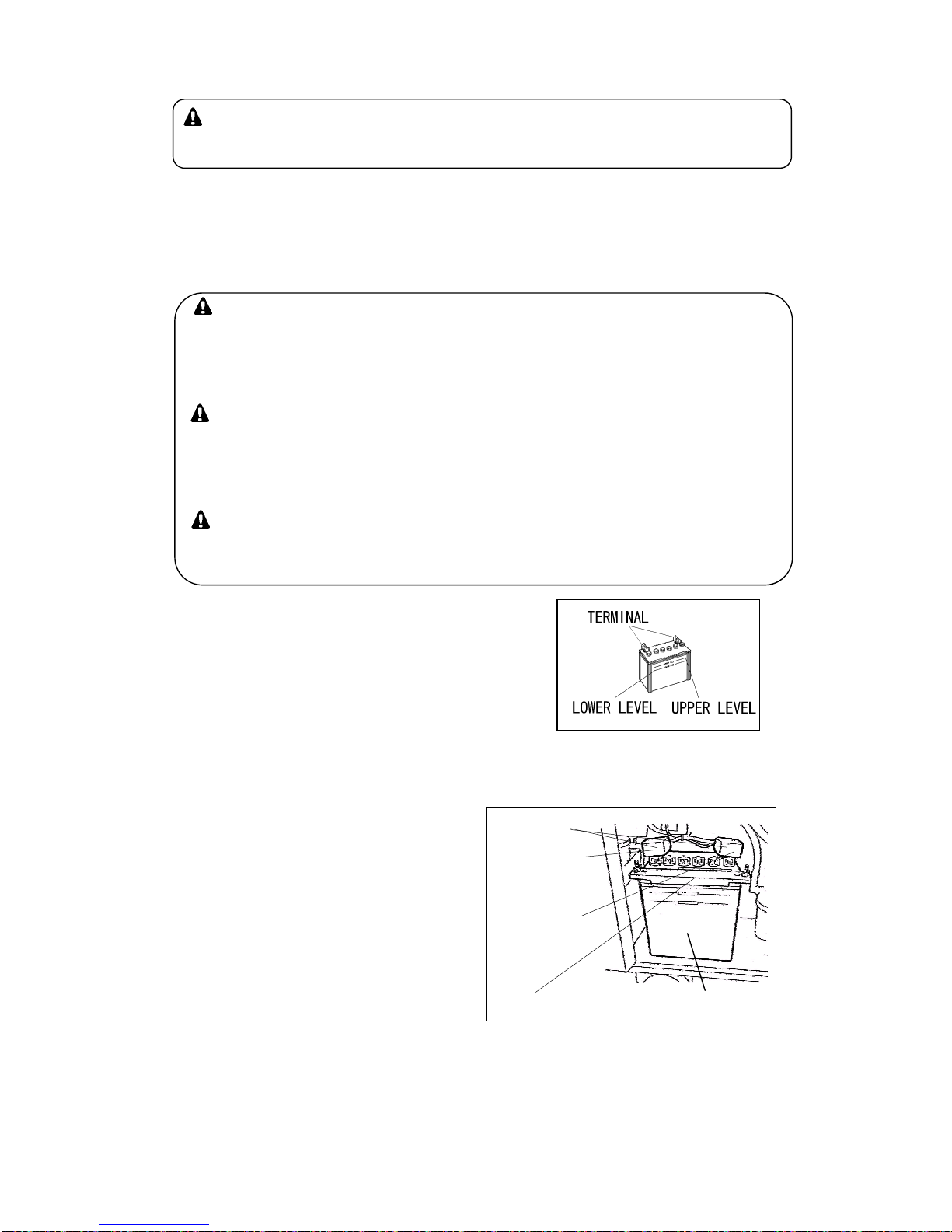

Caution : Explosion
Do not use the equipment or charge the battery, if the battery fluid level is lower
than the LOWER level.
The battery may emit combustible gas, so keep it away from fire and sparks.
Caution: Fire
The equipment uses Diesel fuel. When inspecting the equipment or refueling,
always stop the engine and keep away from fire. Always wait until the engine
cools down before refueling.
Always wipe any drip of fuel or lubrication oil. Do not use this equipment if a leak
is found. Repair the leak before use.
Temperature around muffler and exhaust can get extremely high. Keep any
inflammable items (such as fuel, gas, paint, etc.) away from the equipment.
Keep any inflammable items and combustible items away from the welding area,
as welding creates hot sparks.
Always operate this equipment on flat surface with at least 1 metre clearance
from all objects.
Do not connect AC output to any indoor wiring.
Always wait until the equipment cools down, before covering for storage.
Do not allow children near the equipment. Keep children at a safe distance from
the machine at all times.
Caution: Burns
Do not touch the engine and muffler during operation or immediately after
stopping the equipment, as the temperature will be extremely high.
When checking engine oil or changing oil, always stop the engine, and wait until
the engine cools down.
Be sure to wear leather gloves, apron, shoe covers, eye protection
glasses/mask, safety shoes, safety cap, and long sleeve shirts, to protect from
sparks.
Do not open the side panel during operation or immediately after stopping the
equipment, because some parts/components (flexible tube, resistors etc.) can
reach very high temperatures inside the equipment.
Caution: Injuries
When lifting the equipment, always use the top-mounted lifting lug. Do not lift
using the positioning handles.
Always use appropriate lifting gear and secure adequately during transportation.
Always place the equipment on a flat and stable surface, and fix the wheels
using the brake, to prevent equipment movement
When starting the engine, turn off all connected equipment and set the AC
output switch to the OFF position.
Do not move the equipment during operation.
When performing equipment checks and maintenance, always stop the engine.
Do not operate the equipment, if equipment is faulty or if there are missing parts.

- 4 -
■Location of Warning labels
When the warning labels become unreadable or damaged, place new labels on
the appropriate locations, as specified in the following figure.
When ordering the label, use the following part numbers.
①Fire (No. X505-004880)
②Suffocation from exhaust fumes (No. X505-006400)
③Hot surface (No. X505-006420)
④Positioning handle (No. X505-006430)
⑤Electric shock (No.X505-004930)
⑥Injury (No. X505-004940)
⑦Burns (No. X505-006410)

- 5 -
2. Specifications
Model DGW200MS/UK
Generating Method Rotating Field, SynchronousAC Generator
Welding Generator
Rated Current (A) 170 / 190
Duty Cycle (%) 50
Rated Speed (min
-1
) 3000 / 3600
No Load Voltage (V) MAX 80
Current Adj. Range (A) 60 – 180 / 50 - 200
Welding Rod (Ф) 2.0 - 4.0
AC Generator
Rated Frequency (Hz) 50 / 60
Rated Speed (min
-1
) 3000 / 3600
Phase 1-Phase
Rated Voltage (V) 110 CTE
Power Factor 1.0
Rated Current (A) 27.2 / 30.0
Rated Output (kVA) 3.0 / 3.3
Rating Continuous
Engine
Model Kubota Z482-B
Type Water-Cooled 4-Cycle Diesel Engine
Displacement (L) 0.479
Rated Output (kW/min
-1
) 7.8 / 3000 or 9.2 / 3600
Fuel ASTM No.2 Diesel Fuel or Equivalent
Lubricant Oil API Class CD or Higher
Lubrication Oil Volume (L) 2.05 (Effective 0.7)
Cooling Water Volume (L) 2.8 (Sub Tank Capacity 0.6 L included)
Starting Method Starter Motor
Battery 44B19L
Fuel Tank Capacity (L) 15
Dimension
Length (mm) 998
Width (mm) 603
Height (mm) 773
Dry Weight (kg) 222

- 6 -
3. Use
Arc Welding
Power Source for electric tools
Power Source for lights

Caution : Damage to the equipment or other properties
Consult with your dealer or authorized distributor when utilizing this equipment
around devises with microcomputer control or ultra-precision items, which are
very sensitive to voltage fluctuation.
Keep the equipment away from those devises to avoid influence from
electromagnetic noise.
Consult with hospital or medical equipment companies before using this
equipment on medical apparatus.
It is recommended you follow this instruction manual strictly, to avoid
unnecessary accidents, repairs, and damage.

- 7 -
4. Parts
MONITOR LAMP
STARTER SWITCH
CURRENT ADJUSTMENT DIAL
WELDING
OUTPUT
TERMINAL
LOWER 10A
FUSE
UPPER 40A
WHEELS
FUEL DRAIN PLUG
OIL DRAIN PLUG
COOLANT
SUB TANK
OIL PLUG
(OIL INLET)
AIR CLEANER
SIDE DOOR
FUEL LEVER
STRAINER
EMERGENCY
STOP
SWITCH
BATTERY
HOUR METER(OPTIONAL)
OIL GAUGE
WATER DRAIN PLUG
HANDLE
IDLE CONTROL
SWITCH
OUTPUT
RECEPTACLE
BONNET
GROUNDING
TERMINAL
EARTH LEAKAGE CIRCUIT BREAKER
(MAIN CIRCUIT BREAKER)
CIRCUIT
BREAKER
(30A/15A)

- 8 -
5. Equipment
5-1. Monitor Lamp
This equipment is fitted with Oil Pressure, Battery Charge and Water/Coolant
Temperature monitoring.

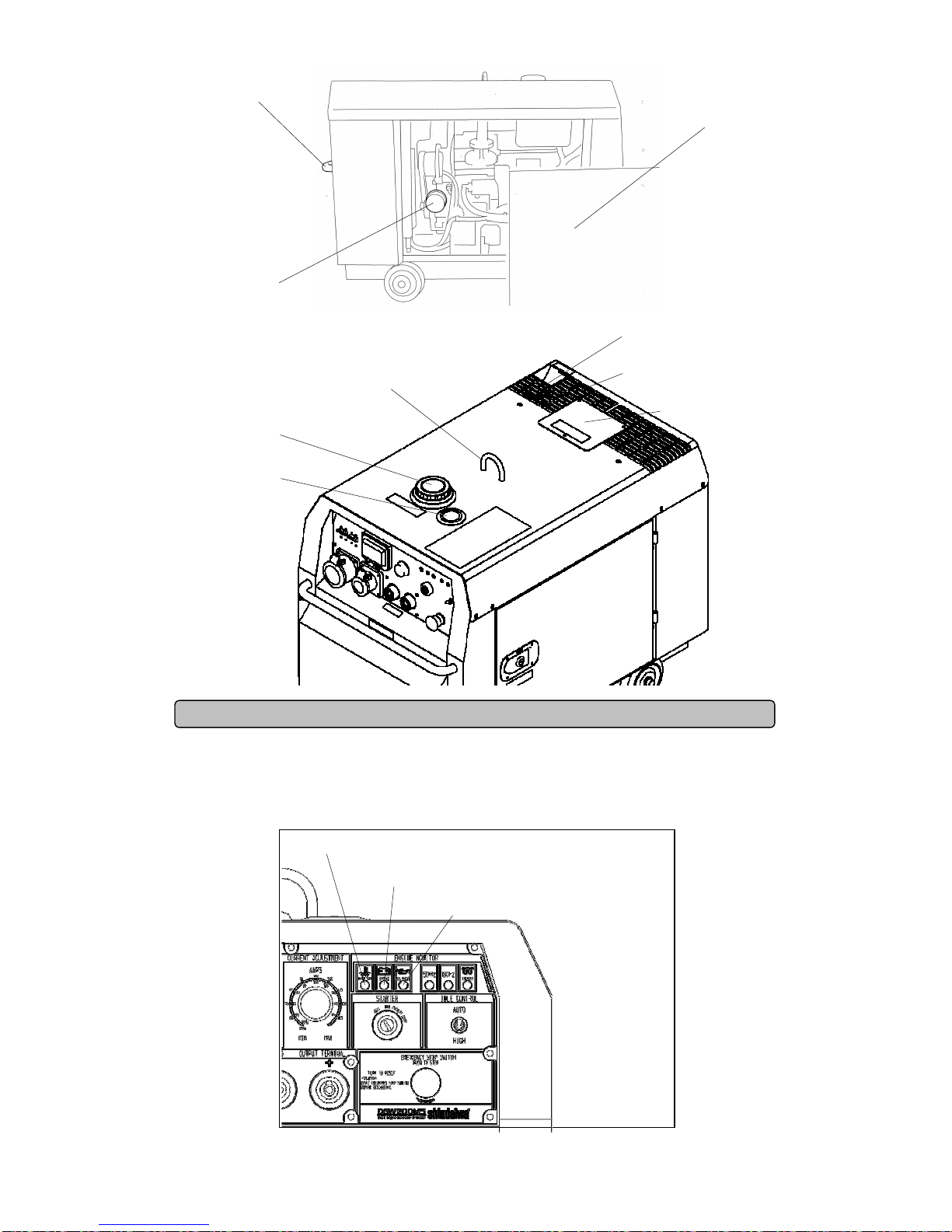

LIFTING EYE
FUEL INLET
MUFFLER
E HAUST PORT
TOP PLATE(RADIATOR CAP)
FUEL METER
SIDE COVER
OIL FILTER
HANDLE
OIL PRESSURE MONITOR LAMP
BATTERY CHARGE MONITOR LAMP
COOLANT/WATER TEMPERATURE MONITOR LAMP

- 9 -
When the machine is started by the starter switch from STOP to RUN under normal
condition, Oil Pressure and Battery Lamps will flash, and then the lamps will go OFF,
immediately after the engine starts.
When abnormality is detected either in water temperature or in oil pressure, the
corresponding monitor lamp will flash, and the automatic shutoff will engage.
When the automatic shutoff is engaged, turn the starter switch to STOP position, and
then restart the engine. In the event the automatic shutoff is engaged a second time,
check all parts of the corresponding alarm.
(1) Oil Pressure Monitor Lamp
Danger: Injuries
Close and lock all equipment doors during operating this equipment, to avoid
injuries by unintentionally touching cooling fan and fan belt.
Caution: Burns
Do not touch the engine and muffler during operation and immediately after
stopping the equipment, for the temperature can reach extremely high.
When checking engine oil, always stop the engine, and wait until the engine
cools down.
When the engine oil pressure drops during operation, the oil pressure monitor lamp
will flash, and the automatic shutoff will be engaged.
When this occurs, check the engine oil level, and replenish to the maximum level if
needed.
<Caution>
The engine oil sensor cannot detect the degradation of engine oil. Please check the
engine oil periodically, and change if needed.
(Refer to 『11. Checking Maintenance』)
(2) Battery Charge Monitor Lamp
When the battery is unable to be recharged during operation, the battery charge
monitor lamp will flash and the automatic shutoff will be engaged.
In the event this occurs, consult with the dealer or authorized distributor.
<Caution>
The battery charge monitor cannot detect the degradation of the battery nor the
battery fluid level. Check the battery fluid level periodically.
(Refer to 『6-5. Checking Battery』)

- 10 -
(3) Coolant/Water Temperature Monitor Lamp
Danger: Injuries
Close and lock all doors during operation of this equipment, to avoid injuries by
unintentionally touching cooling fan and fan belt.
Caution: Burns
Do not open the radiator cap while operating this equipment or immediately
after stopping the equipment, to avoid sustaining burns from hot steams
or water.
Do not touch the engine or muffler during operation or immediately after
stopping the equipment, as the temperature will be extremely high.
When the water temperature rises abnormally, the coolant/water temperature monitor
lamp will flash, and the automatic shutoff will be engaged.
If this occurs, check the coolant/water reservoir tank, and replenish if needed.
(Refer to 『6-2. Checking Coolant / Water 』)
If the water level is normal, there may be a possibility of overloading. Always use the
equipment within the rated duty cycle and output power.
<Caution>
In the event coolant/water level is too low to detect, the sensor does not monitor
temperature. Be sure to check the level in the sub tank before operation.
5-2. Idle Control
The Idle Control feature is to set the engine speed low automatically (after
approximately 8 seconds) for the purpose of reducing noise and fuel consumption,
whenever welding operation or generating operation is not performed.
The engine automatically moves to high speed when welding or electric supply starts.
Caution: Damage to the equipment or other property
Always turn the Idle Control switch to HIGH if the load incorporates
an electromagnetic switch.
<Caution>
If the load connected is less than 0.5amps the Idle Control feature may not function.
In this case, switch the idle control switch HIGH.
When welding operation or electric supply is used intermittently, turn the switch to
HIGH.
5-3. Circuit Breaker
Danger: Injuries
Be sure to turn off the power switch on the load when switching the circuit
breaker to ON.
In case the electric load exceeds the rated output (overload), the circuit breaker will
be activated in order to break the circuit. If the load trips during operation, check the
breaker first. If you find the breaker position is at OFF, reset it by the following
procedures.
①Turn off all the power switches in the loads.
②Return the breaker to ON.

- 11 -
<Caution>
Refer to 『9-2. Output Limitation 』and be careful not to use overloaded (over
current)
5-4. Earth Leakage Circuit Breaker and Grounding
Danger: Electric Shock
Ground the grounding terminal to the earth as set out in the manual.
Even though all the terminals of the loads have been grounded to the earth, the
canopy grounding terminal should be grounded to the earth.
Grounding should be made after the engine is stopped.
If the earth leakage relay activates, you should always find out and repair the
fault first.
The equipment is provided with an earth leakage relay in the Circuit Breaker to
detect any leakage due to faults like insulation failure of the load while the generator
is running.
The specifications of the earth leakage relay:
Rated Sensitive Current: 30mA (or below)
(Grounding resistance: 500Ωor below)
(1) Grounding Work
A qualified electrician should perform
the grounding work of the following
2 points(500Ωor below).
The Outer canopy of this equipment
(Canopy grounding terminal)
The earth point on the load
<Caution>
In the event you cannot ground the generator to the earth, consult with the
authorized distributor or our dealer.
(2) Operation Check
Before operating the equipment, check that the device
works correctly as shown in the following procedure.
① Start engine after turning the Idle Control Switch to
[HIGH].
② Lift the ELCB (lever) to [ON] position.
③ Push the test button. The device is found to be normal
when the ELCB (lever) trips to [OFF].
In the event you cannot complete all steps in the above procedure to the end, the
device is out of order. Consult with our authorized distributor or our dealer to repair.
(3) The Earth Leakage Relay has activated
Caution: Electric Shock / Injuries
Be sure to disconnect all the loads to the equipment when turning the breakers
ON again, after the earth leakage relay has activated.
TEST BUTTON
ELCB
GROUNDING
ROD
BONNET
GROUNDING
TERMINAL

- 12 -
When the earth leakage relay has activated, the ELCB (lever) turns to [OFF].
In the case, stop the engine promptly and find the leakage fault and repair.
After repairing, reset the ELCB (lever) to [ON].

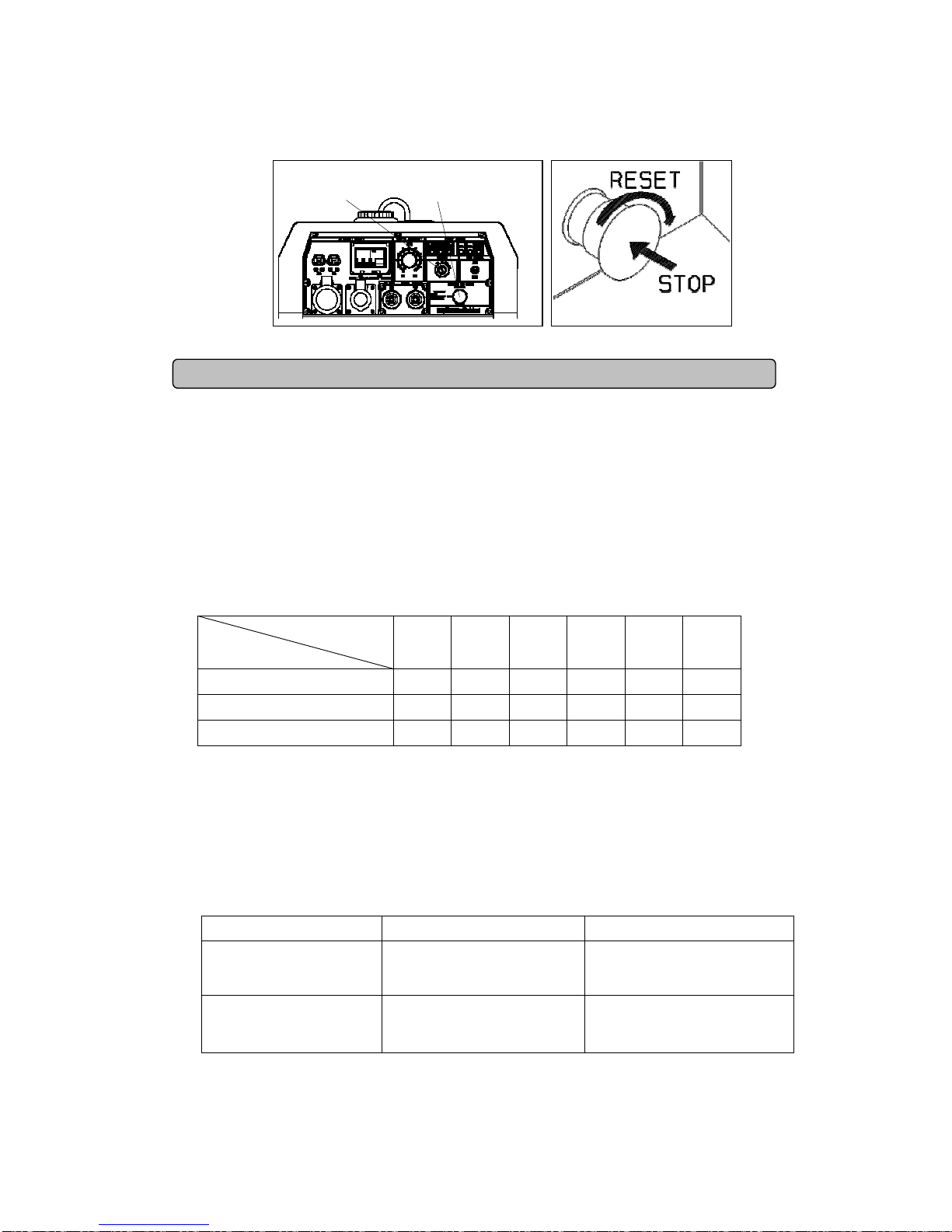

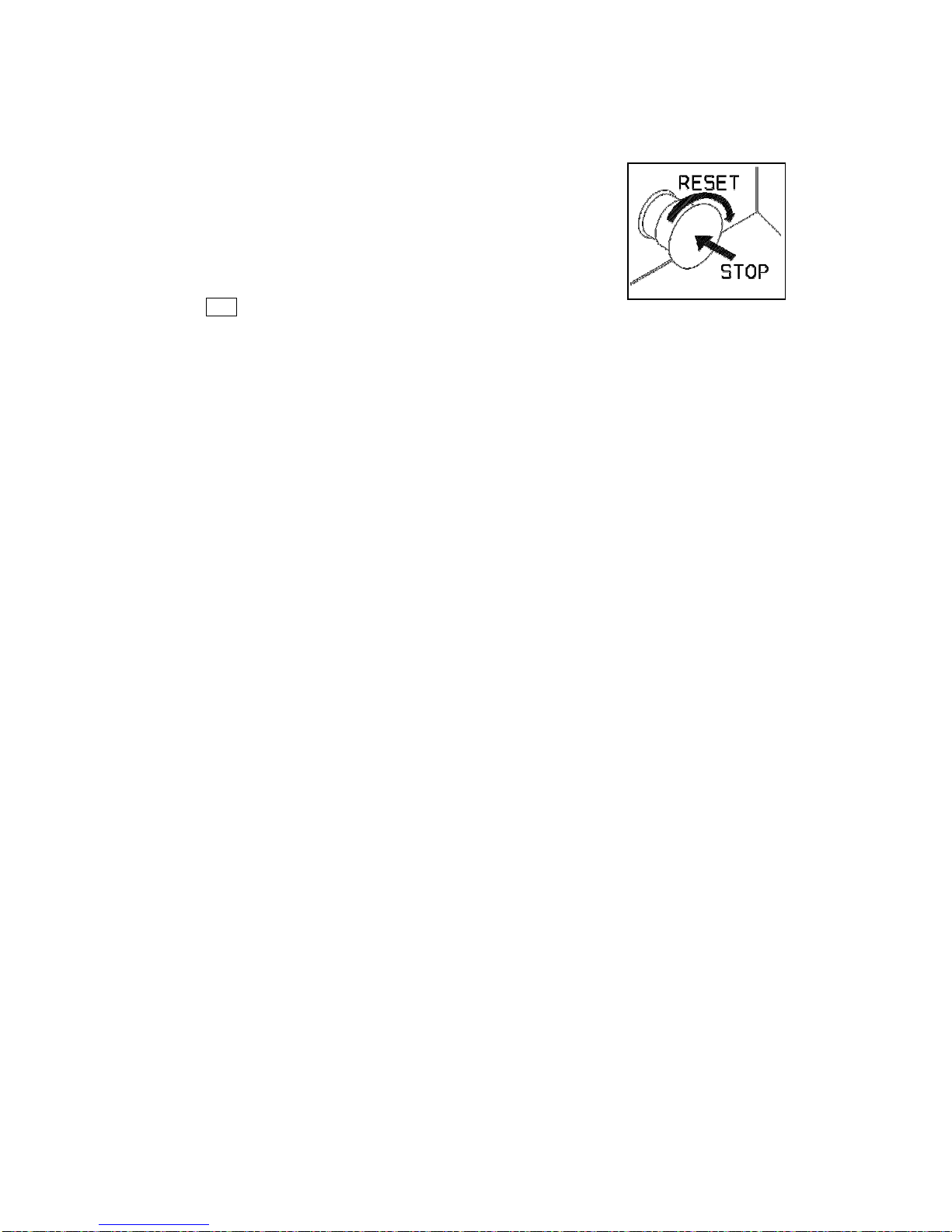

5-5. Emergency Stop Switch
The Emergency Stop Switch stops the engine in an
emergency. By pushing the switch, the engine stops.
Ensure you reset the Starter Switch to [STOP] and reset the
Emergency Stop Switch, turning clockwise after use.
<Caution>
Always stop the engine with starter Key unless in case of an emergency stop
switch.

- 13 -
6. Initialization and Pre-check
Caution : Fire・
・・
・Burns・
・・
・Injuries
When checking the engine, always stop the engine, and wait until the engine
cools down, before performing any checks.
6-1. Checking Engine Oil
When checking for engine oil, be sure to
keep the equipment level, and insert
the oil gauge all the way in.
Prior to starting the equipment, make
sure to fill the engine oil to the UPPER
line through the engine oil plug.
Oil Volume: about 2.0L (Total)
Effective Oil Volume: approx. 0.7L
(from the lower limit to higher limit)
<Caution>
If the equipment is not level, you cannot obtain an accurate oil level.
Do not overfill (over UPPER line) the engine oil. The excessive volume of engine oil
may damage the engine.
Selecting correct engine oil
Use engine oil for Diesel
engines of the correct viscosity, in
compliance with the ambient
temperature (Refer to the chart).
<Caution>
Use the API class CD or higher.
Viscosity and Temperature
Temperature Over +20℃+10～+20℃-10～+40℃
Viscosity SAE30 SAE20 SAE10W/30
6-2. Checking Coolant / Water
Danger: Injuries
Close and lock all equipment doors during operation of this equipment, to
avoid injuries by unintentionally touching cooling fan and fan belt.
Do not open the radiator cap while operating this equipment or immediately
after stopping the equipment, to avoid burns from hot steam or water.
Caution: Burns
Do not touch the engine or muffler during operation or immediately after
stopping the equipment, as the temperature will be extremely high.
OIL GAUGE
UPPER LIMIT (2L)
LOWER LIMIT
EFFECTIVE
OIL PLUG
(OIL INLET)

- 14 -
Check to see if the coolant/water level is between FULL and LOW levels in the sub
tank. If the coolant/water is below the LOW level, fill the tank and the radiator
accordingly.
(1) Filling to the Sub Tank
① Remove the sub tank cap.
② Fill up the sub tank to the FULL level.
③ Install the cap.
(2) Filling to the Radiator
① Remove the top plate.
② Remove the radiator cap.
③ Fill up the radiator up to the top.
④ Install the cap back and tighten.
⑤ Reinstall the top plate.
<Caution>
Use soft water.
If the ambient temperature is near freezing,
use Long Life Coolant(LLC)
(30% mixture LLC is filled when shipped
from factory)
Mixture ratio of the coolant should be 30%-45%,
depending on the ambient temperature.
Use the same LLC to the sub tank.
Replace LLC at every 2 year or 2,000 hours.
LLC Maximum Mixture Ratio
Lowest Ambient
Temperature -15℃-20℃-30℃
Max Mix. Ratio 30% 35% 45%
6-3. Checking Fuel
Caution: Fire
Always wipe away any drips of fuel. Do not use this equipment when a leak is
found. Repair the equipment before use.
Check for the fuel level in the tank.Add if necessary.
<Caution>
Use Diesel fuel, ASTM D975 No.2-D in the event
ambient temperature reaches as low as -5℃.
At temperature less than -7℃, No.2 D fuel
may pose operating problem. At colder
temperature, use No.1-D fuel (if available) or
use “winterized” No.2-D (a blend of No.1-D
and No.2-D).
Always use the fuel strainer.
Fill the fuel tank slightly less than the ring level.
SIDE DOOR
CAP
COOLANT
SUB TANK
TOP PLATE
RADIATOR CAP
RING
FUEL STRAINER
COOLANT
COOLANTCOOLANT
COOLANT

- 15 -
6-4. Checking Fuel, Engine Oil and Water Leakage
Caution: Fire
Do not use this equipment when a leak is found. Repair the equipment before
use.
Be sure to check any leakage for fuel, oil and coolant/water at the hose connections
by opening side doors. Whenever checking any fuel leakage, turn the fuel lever
[OPEN] and be sure to close the fuel lever if a leak is found.
6-5. Checking Battery
Caution: Injuries to eyes and skin
Battery fluid contains diluted sulphuric acid. Avoid contact with eyes, skin or
clothing. If the acid comes in contact, especially with eyes, flush with a lot of
water, and seek medical attention immediately.
Caution: Explosion
Do not use the equipment or charge the battery, when the battery fluid level
is lower than the LOWER level.
The battery may emit combustible gas, so keep it away from fire and sparks.
Caution: Fire
Battery may emit some combustible gas, so keep it away from fire and sparks.
①Check the fluid level. If the level is near or
lower than LOWER level, add distilled water
until the fluid level reaches UPPER level.
② Make sure that the battery cables are firmly
secured to the posts. Tighten the clamps
if necessary.
<Caution>
Use a hydrometer to check the battery fluid. If specific gravity falls below 1.23, the
battery requires recharging.
Replacing battery
①Remove the clamp and cable
from negative (-) post in the battery.
(Remove always negative side first)
② Remove the hold-down clamp from
the battery.
③ Remove the clamp and cable
from the positive (+) post on the battery.
④ Remove the battery from the seat.
※ Reinstall a new battery in the reverse order.
(Always install the cable to the positive (+) post first.)
<Caution>
Use the following battery.
44B19L
INS. CAP
+ TERMINAL
○
- TERMINAL
○
HOLD-DOWN CLAMP BATTERY

- 16 -
7. Operation
Danger: Suffocation from exhaust fume
Exhaust fume from the engine contains many elements harmful to humans.
Do not operate this equipment in poorly ventilated areas, such as a room
or in a tunnel.
Caution: Suffocation from exhaust fume
Do not point the exhaust outlets toward pedestrians or building.
Caution: Fire
Temperature around muffler and exhaust can get extremely high.
Keep any inflammable items (such as fuel, gas, paint, etc.) away from the
equipment.
Always operate this equipment on flat surface and, at least 1 metre clearance
from any objects (wall, box, etc.)
Caution: Injuries
Always place the equipment on flat and stable surface, to keep the equipment
from sliding. Be sure to lock the wheels for the wheeled models.
When starting the engine, turn off the connected equipment and set the circuit
breaker to OFF position.
7-1. Start up
① Turn the circuit breakers (MAIN CB, 15A, and 30A) to OFF.
② Turn the fuel lever to OPEN.
③ Turn the Idle Control switch to AUTO.
④ Ensure the Emergency Stop Switch is positioned to release.
⑤When the ambient temperature is below 5℃, turn the starter switch to
PREHEAT. The lamp goes off when preheating has finished in about 5
seconds.
⑥ Turn the starter switch to START and then the engine starts by the starter
motor.
⑦ Release the starter switch, as soon as the engine is started.
⑧ Keep the engine idling for around 5 minutes.
<Caution>
Do not turn the starter motor for more than 15 seconds successively.
If you need to restart, wait for 30 seconds or more before retry.
Once the engine has started, do not turn the starter switch to START.
STARTER SWITCH
IDLE CONTROL
SWITCH
PREHEAT LAMP
CURRENT ADJ. DIAL
OUTPUT RECEPTACLE
FUEL LEVER
OPEN
CLOSE
CIRCUIT
BREAKER
EMERGENCY
STOP SWITCH
ELCB
(MAIN CB)

- 17 -
Restart after stopping due to fuel shortage
This equipment is equipped with a self bleeding system. Therefore, even though the
engine stops due to low fuel, you can restart the engine easily by the following steps.
① Turn the starter switch to STOP.
② Fill the fuel.
③ Turn the Idle Control switch to AUTO.
④Turn the starter switch to RUN (Operation).
⑤ Turn the starter switch to START and drive the starter motor for about 10
seconds.
⑥ Release the starter switch, as soon as the engine is started.
⑦Wait for about 1 minute to bleed the air out of the system.
(The engine speed becomes stable when the air is extracted.)
<Caution>
Do not turn the starter motor for more than 15 seconds successively.
If you need to restart, wait for 30 seconds or more before retry.
Once the engine has started, do not turn the starter switch to START.
Keep the Idle Control switch at AUTO until the air is completely extracted (until
the engine speed becomes stable).
7-2. Stopping
①Push-down the breakers (MAIN CB, 15A, 30A) to OFF.
②Turn the Idle Control switch to AUTO.
③Keep the engine idling (cooling down) for about 5 minutes.
④Turn the starter switch to STOP.
⑤After the engine stops, turn the fuel lever to CLOSE.
<Caution>
If the engine does not stop in spite of turning the starter switch to STOP, turn
the fuel lever to CLOSE, the engine will stop in a few minutes.
In this case, consult with our authorized distributor or our dealer.
Do not attempt to turn to [STOP] position while actual welding or utilizingAC
power source, it may cause the serious damage on the unit.
7-3. Emergency Stopping
An Emergency Stop feature is incorporated in the equipment.
Push the Emergency Stop Switch in case of an emergency or equipment
abnormality during operation.
① Push the Emergency Stop Switch to stop engine in an emergency.
<Caution>
Be sure to return the Starter Switch to [STOP] after the engine stops.
Never hit the Emergency Stop Switch by any tools such as a hammer.
Never use the Emergency Stop Switch except in an emergency.
Turn the Fuel Lever on Fuel Strainer to [CLOSE] to stop in case the Emergency
Stop Switch does not function.
②Turn the Emergency Stop Switch to arrow mark (clockwise) to release.

- 18 -
<Caution>
Always stop the engine with starter Key unless you need to shut off using the
emergency stop button.
Be sure to re-start the engine after releasing the Emergency Stop feature.
8. Welding Operation
8-1. Selection – Welding Cable
Select the cable with correct gauge, based on the allowable amperage and distance,
per the table shown below.
The welding capacity is reduced if too small a gauge cable is used.
<Caution>
Welding cables should be used unwound.
When the welding cables are used wrapped the welding capacity is reduced.
Proper size of cable (Unit: mm2)
Return Length
Welding Current 20m 30m 40m 60m 80m 100m
200A 22 30 30 50 60 80
150A 22 22 22 38 50 60
100A or below 22 22 22 22 30 38
8-2. Polarity
There are two welding output terminals, 『＋
＋＋
＋』and 『－
－－
－』.
Select the polarity according to the operation, referring to the table below.
<Caution>
Follow the instructions of the welding rods, for the correct polarity.
Application Connection
Normal Polarity General Welding, such as
Construction Plus to the Earth (Material) Minus to holder (Rod)
Reverse Polarity Thin Plate, Build-Up
Welding,Stainless Steel Plus to holder (Rod) Minus to the Earth (Material)
EMERGENCY STOP
SWITCH
STARTER
SWITCH

- 19 -
8-3. Connection – Welding Cable
Danger: Electric Shock
Before connecting or disconnecting a welding cable from welding output
terminals, stop the engine, and remove the engine key. The person
performing this task should always keep the key.
① Stop the engine.
② Connect a welding cable to the
DINSE connectors, a welding rod
holder and a material holder.
<Caution>
Always fit the correct size DINSE
connectors.
( Recommended parts：DIX SK 35 or DIX SK 50 or DIX SK 70)
Ensure the welding cables connections are made correctly.
Be sure to connect the cable to welding output terminals securely. Otherwise,
welding output terminals may burn out by heat caused by poor connections.
Do not use a cable without the DINSE connectors. If you use a cable with the
insulation peeled off partly, to bind to an output terminal, the output terminal may
burn out by the heat caused by poor connections and a bare part of the cable may
touch the bonnet and short-circuit.
8-4. Duty Cycle
Duty cycle means the welding time ratio for 10 minutes. The duty cycle of the
equipment is 50%, namely, the welding time is 5 minutes or less in continuous 10
minutes. Be sure to take 5 minutes breaks after 5 minutes of welding.
<Caution>
The equipment may become damaged due to overheating, if welding for more than
5 successive minutes or a short break period.
This machine produces drooping characteristics to EN60974-1

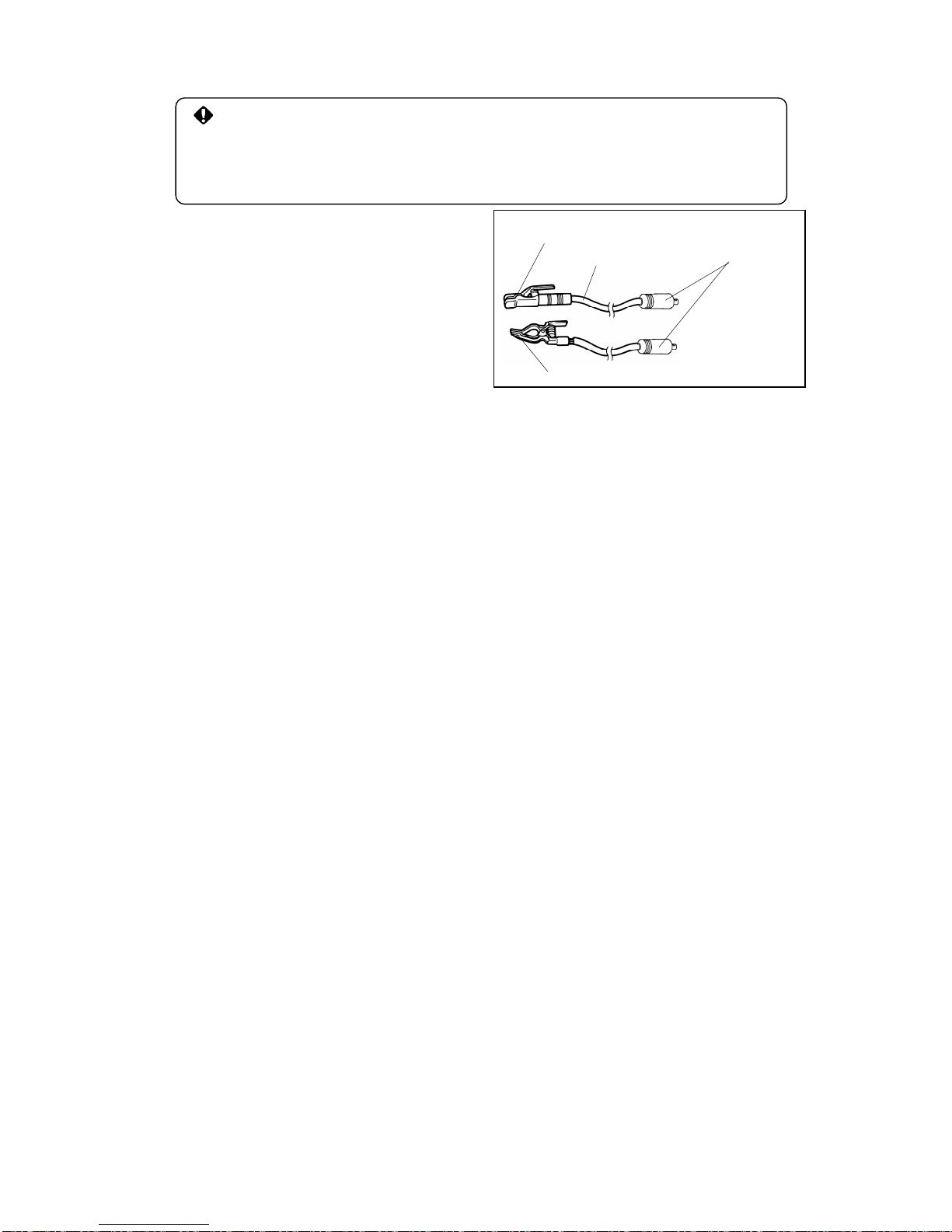

WELDING ROD HOLDER
WELDING CABLE
DIN
S
E
CONNECTORS
MATERIAL HOLDER
