Shindaiwa RS76 User manual

OWNER’S MANUAL
MODEL RS76
MODEL RS76MODEL RS76
MODEL RS76
MODEL
MODELMODEL
MODEL RS76S
RS76SRS76S
RS76S
COMMERCIAL BROADCAST SPREADER
COMMERCIAL BROADCAST SPREADERCOMMERCIAL BROADCAST SPREADER
COMMERCIAL BROADCAST SPREADER

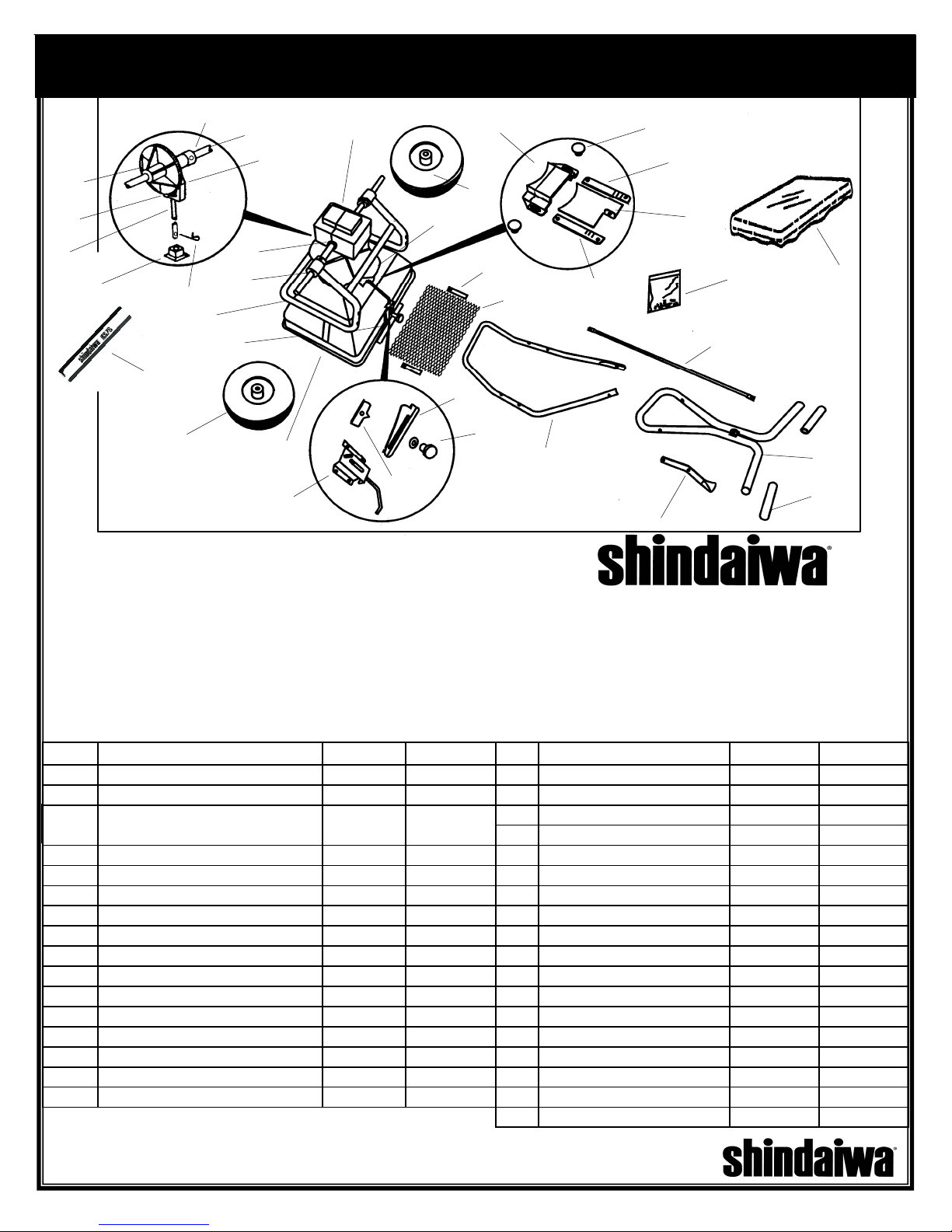

Parts List For
Parts List For Parts List For
Parts List For shindaiwa
shindaiwashindaiwa
shindaiwa Model RS76 & RS76S
Model RS76 & RS76SModel RS76 & RS76S
Model RS76 & RS76S
1. SPREADER MODEL NUMBER
2. SPREADER NAME
3. PART NUMBER
4. NAME OF PART AS SHOWN
*Parts included in hopper assembly
PART OF OUR SERVICE IS
PROVIDING REPLACEMENT PARTS.
Parts may be obtained through your
local distributor. Be sure to give:
23
22
21
18
25
26
27
31
20
30
28
4
29
4
17 32
14
3
4
B
6
33
4
A
13
10
8
9
7
15
12
11
16
19
1A
1
A
5
2
24
No. Description RS76 RS76S No Description RS76 RS76S
1Hopper Assembly 15574 15577 17 Impeller Shaft Bearing* 14312-1 14312-1
1A Hopper* 14604 14604 18 Drive Wheel 14856 14856
2 & 4 Discharge Chute & Shut Off 15144 15144 19 Impeller Shaft 15641 15641
Plate Guides * 20 Pinion Gear 14833 14833
3 Discharge Chute Knob (2) 14001 14001 21 Axle Gear 14832 14832
5Shutoff Plate* 13353 13353 22 Gear Cover (2) 14837 14837
6Handle Lever Ass’y 15513 15513 23 Gear Cover Clamps (3) 14868 14868
7Handle Grip (2) 14870 14870 24 Gear Support 14834 14834
8Upper Handle 15497 15498 25 Axle Collar w/ Set Scr. 14971 14971
9Control Tube 14916 14916 26 Axle 15518 15518
10 Screen Clips (2) 14022 14022 27 Axle Bearing (4) 14855 14855
11 Hopper Screen 14603 14603 28 Frame Assembly 15501 15502
12 Handle Brace/Leg 15507 15508 29 Impeller 14625 14625
13 Rate Plate* 15576 15576 30 Free Wheel 14857 14857
14 Rate Control Knob* 12704 12704 31 Agitator 14510 14510
15 Pointer* 12708 12708 32 Fastener Package 15579 15579
16 Spring Housing Assembly* 12702-2 12702-2 33 Hopper Cover 14606 14606
34 Hopper Label 16233 16232
34
400 Oakwood Road
Lake Zurich, IL. 60047
847 540-8400 Fax [phone]
www.shindaiwa. com
P / N 99922201054
