OWNER’S MANUAL
MODEL RS76
MODEL RS76MODEL RS76
MODEL RS76
MODEL
MODELMODEL
MODEL RS76S
RS76SRS76S
RS76S
COMMERCIAL BROADCAST SPREADER
COMMERCIAL BROADCAST SPREADERCOMMERCIAL BROADCAST SPREADER
COMMERCIAL BROADCAST SPREADER

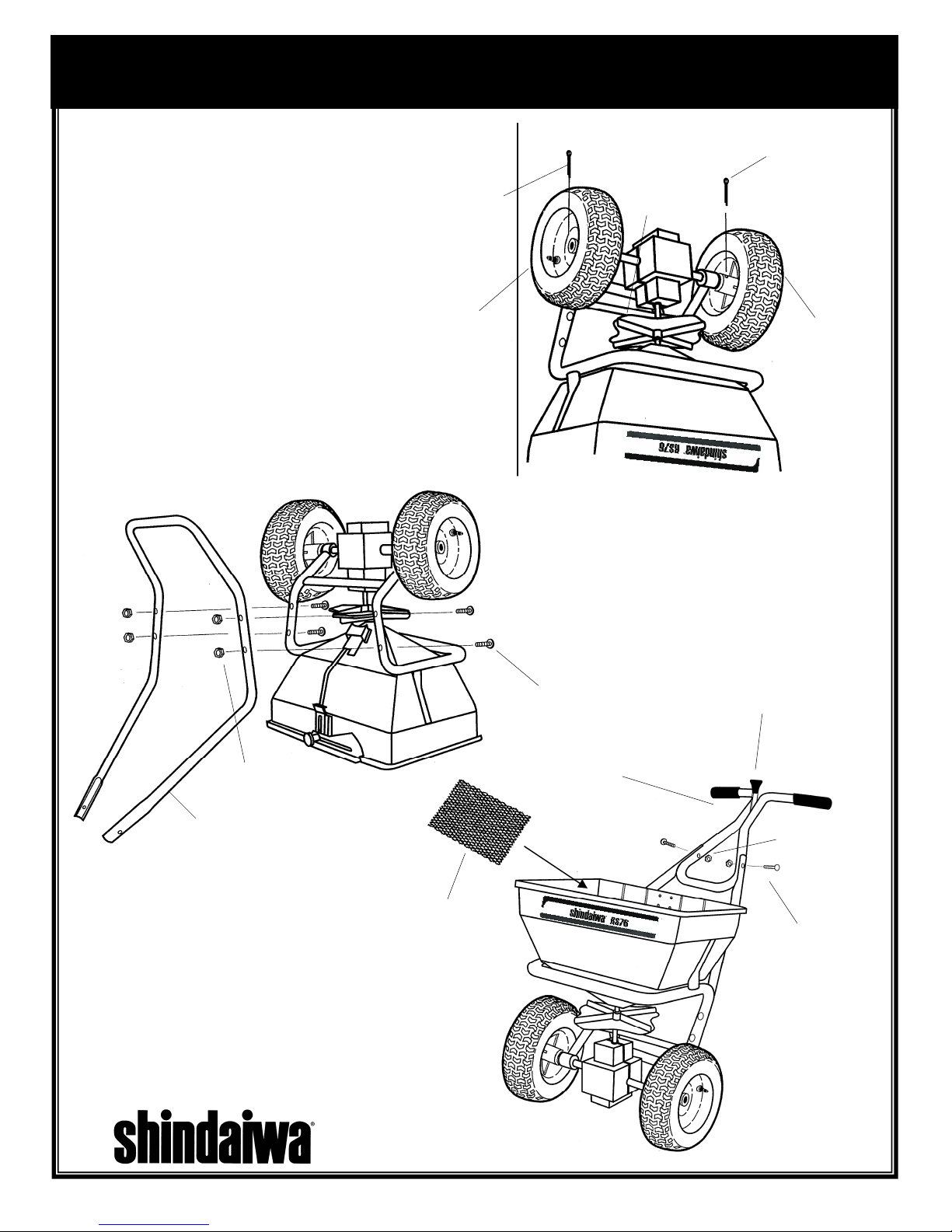

ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
1. Remove the spreader and
components from carton and
place hopper up-side down on
a padded surface as shown.
Slide drive and free wheel
onto axle as shown with the
longer portion of wheel hub
facing the frame. Secure free
wheel with (1) 1/8 dia. x 1 1/4”
cotter pin. Attach drive wheel
to axle with (1) 3/16 dia. x 2”
cotter pin.
3. Turn spreader upright on
wheels. Insert screen into
hopper sliding it under the
screen clips. Attach the upper
handle assembly to handle
brace with the handle lever
facing as shown. Secure with
(2) 1/4-20 x 1 1/2” carriage
bolts, and locknuts.
2. Attach leg/brace to frame as
shown using (4) 1/4-20 x 2 1/4”
carriage bolts and locknuts.
1/8 Dia. x
1 1/4” Cotter
Pin
3/16 Dia. x
2” Cotter Pin
Drive WheelFree Wheel
Handle Brace/
Leg
1/4-20 X 2 1/2”
Carriage Bolt
1/4-20 Locknut
NOTE POSITION OF
HANDLE LEVER
1/4-20 X 1 1/2”
Carriage Bolt
1/4-20 Locknut
Upper Handle
Assembly
Screen

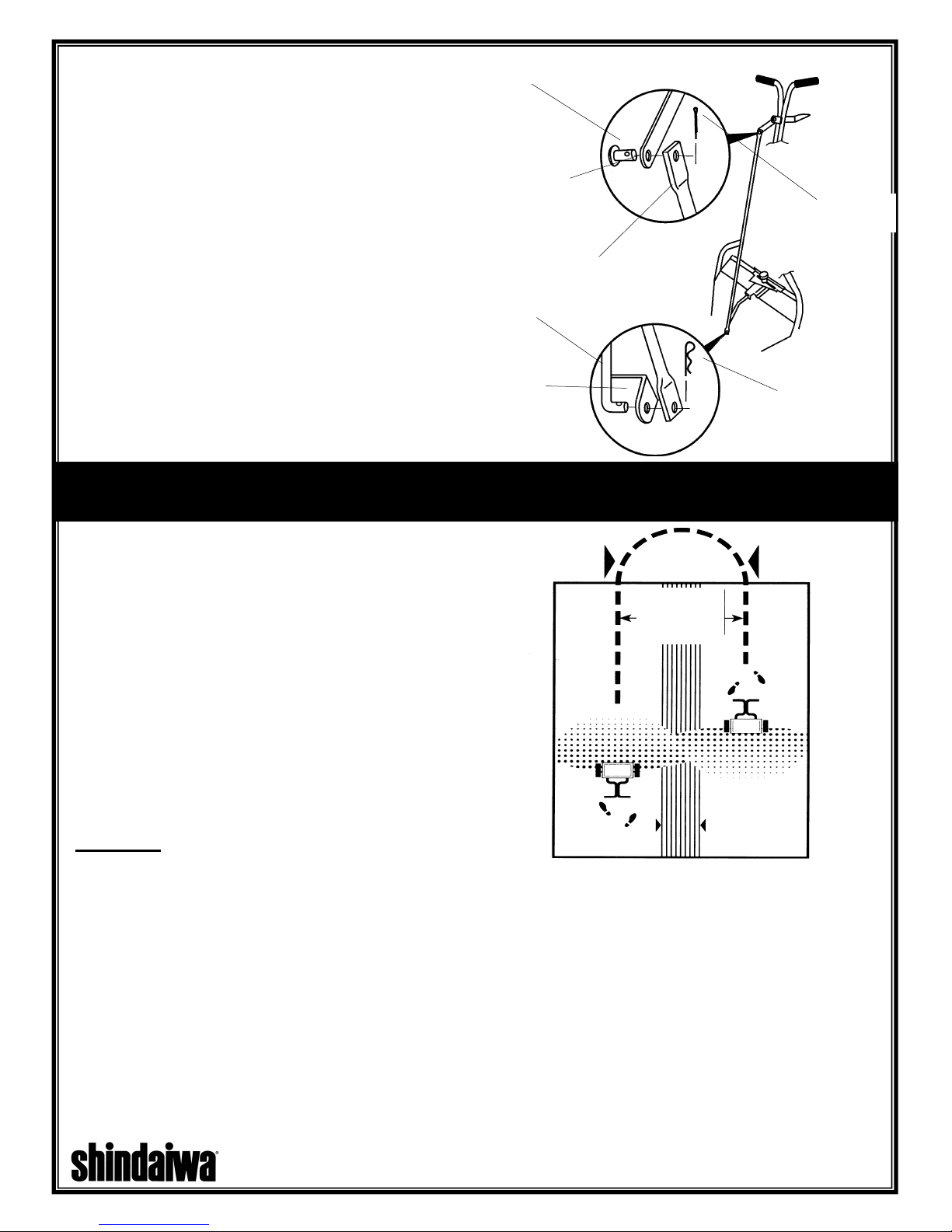

4. Install control tube to handle
lever with (1) 1/4 dia. clevis pin
and a 3/32” dia. cotter pin. Slip
opposite end of control tube over
lower control rod making sure
shutoff plate is between the lower
rod and the control tube. Secure
with a 3/32” dia. Hitch pin cotter.
Control Tube
1/4 Dia.
Clevis Pin
3/32” Dia.
Hitch Pin
Cotter
Lower Rod
Shutoff
Handle
Lever
1. Check the product package for the rate
setting, and recommended swath width. Loosen
rate control knob and slide rate plate to the
proper setting. The pattern is controlled by
loosening the two knobs on the discharge chute
and moving the chute closer or farther away
from the impeller (setting A, B, or C). See
“PATTERN ADJUSTMENT” for details.
2. Always fill the spreader on the driveway or
sidewalk-not on the lawn. Make sure screen is in
hopper and spreader is in the “OFF” position .
3. Start spreader moving before opening port.
Close before stopping. Always push spreader,
never pull.
4. Hold handle so top of spreader is level.
Tipping the spreader too far can cause uneven
spreading.
5. The settings and swath widths on the product
label are recommended starting points. Always
check the delivery rate and pattern on a small
area before treating a large area. Actual delivery
rate can vary due to weather conditions,
operating variables, and condition of the
product being applied. See “HOW TO
DETERMINE SPREADER SETTINGS AND
SPREAD WIDTH” for details.
OPERATION
OPERATIONOPERATION
OPERATION
USE SWATH WIDTH
ON PACKAGE OR
ADJUST PER
OPERATOR’S
WALKING SPEED
6. Push spreader at a normal walking speed -
2 1/2 m.p.h. (18 feet in 5 seconds). Apply
header strips around area to be treated.
Space trips across the area as shown. Keep
material off flower beds, sidewalks, etc.
7. When transporting spreader, make sure that
it is in the “OFF” position.
8. Empty spreader after each use. Return
leftover material to its original container.
OVERLAP
3/32” Dia.
Cotter Pin

PATTERN ADJUSTMENT
PATTERN ADJUSTMENTPATTERN ADJUSTMENT
PATTERN ADJUSTMENT
Normal spreading of materials
requires no adjustment (factory
setting “A”) unless stated on the
package. In those cases where the
spread pattern has shifted, the
pattern can be adjusted left and
right by loosening the two knobs on
the discharge chute and moving the
chute closer or farther away from
the impeller. Settings of “A, B, and
C” are provided as reference.
Knob
Discharge
Chute
Impeller
Knob
Discharge Chute
Settings
A simple visual pattern test can be made by
operating the spreader over a non-turf area
and evaluating the pattern. A more accurate
method is to place a row of common,
disposable, aluminum cake pans
approximately 1 foot on centers. Set the rate
plate at a middle setting and make 3 or 4
passes in the same direction as shown.
Pour the material collected from each pan
into individual bottles of the same size. Set
them side by side in order, and visually
inspect their volume. If the pattern is not
centered (example: volume in bottle #2 left
not equal to bottle #2 right), adjust the
discharge chute up or down as described in
“PATTERN ADJUSTMENT” section.
HOW TO DETERMINE SPREADER
HOW TO DETERMINE SPREADERHOW TO DETERMINE SPREADER
HOW TO DETERMINE SPREADER
SETTINGS AND SPREAD WIDTH
SETTINGS AND SPREAD WIDTHSETTINGS AND SPREAD WIDTH
SETTINGS AND SPREAD WIDTH
Two major factors should be considered when determining correct spreader settings of any product:
1. The product application rate, or the amount of material applied per 1,000 square feet.
2. The effective pattern width, or the actual width in which material is applied. Label settings are a
guide and can be affected by numerous factors.
EFFECTIVE PATTERN WIDTH
EFFECTIVE PATTERN WIDTHEFFECTIVE PATTERN WIDTH
EFFECTIVE PATTERN WIDTH
Once the pattern is uniform, the effective pattern width
can be determined. The effective pattern width is the
distance out from the spreader to a point where the
amount of material is 1/2 the average amount in the
center pans. This distance is multiplied by 2 to achieve
the total effective pattern width.

Knowing the effective pattern width (for
example, 10 feet), measure a distance equal
to 100 square feet (10’ x 10’ swath width).
Determine the product coverage in pounds /
100 sq. ft. by taking the weight of the product
and dividing it by the recommended square
foot coverage (add two zeroes to the weight
of the bag).
EXAMPLE: Product weight: 25 lbs.
sq. ft. coverage: 5,000 sq. ft.
2500 lbs. - 5,000 sq. ft.
= .5 lbs. / 100 sq. ft.
Weigh out 15 to 20 lbs. of material and
spread over the 100 sq. ft. area. Weigh
remaining material left in hopper and
adjust rate setting as required. Repeat
test until application rate is correct.
APPLICATION RATE
APPLICATION RATEAPPLICATION RATE
APPLICATION RATE
The following provides approximate shindaiwa RS76 & RS76S settings for those units listed.
Shindaiwa
RS76/RS76S
Setting
B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Prizelawn
PrizelawnPrizelawn
Prizelawn ®
®®
®
BF
BFBF
BF l
l l
l /
/ /
/ CBR
CBRCBR
CBR III
IIIIII
III
Setting
B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Prizelawn
PrizelawnPrizelawn
Prizelawn ®
®®
®
CBR II
Setting
— 2 — 2.5 — 3 3.5 — 4 — 4.5 5 5.5 6 6.5 7 8 9.5 10 11 12 13 14 15 —
Lesco
#029600
Setting
— B C D — E F — G H I — J K L — M N O — P Q R —
S
Scotts
R8A/SR-1
Setting
D E F G H I J K L M N O P Q R S T U — V W — X Y Z
Earthway
2200/2400
Setting
5 — — — 10 — — — — 15 — — — — 20 — — — — 25 — — — — 30
Spyker
76/78-2
Setting
— 3 — — — 4 — — 5 — — 6 — — 7 — — 8 — — — 9 — — 10
Scotts
SPEEDY
GREEN
— — — 2 — — 3 3.5 J 4.5 5 5.5 6 — 6.5 — 7 — 7.5 — 8 — 8.5 — 9
RATE SETTING CONVERSION
RATE SETTING CONVERSIONRATE SETTING CONVERSION
RATE SETTING CONVERSION

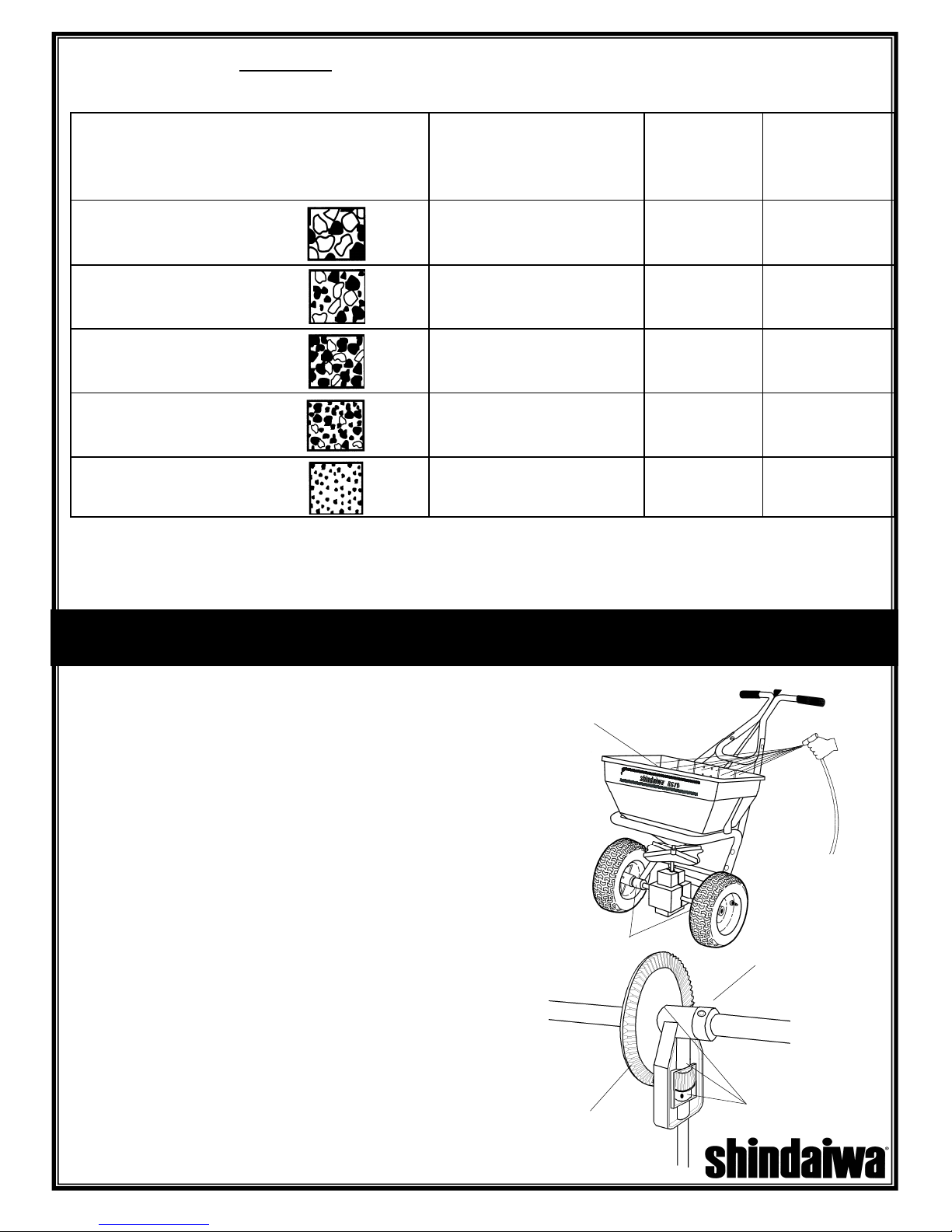

FERTILIZER
PARTICLE SIZE
BAG RATE
Pounds of fertilizer used
per 1,000 sq. ft. of
coverage
APPROX.
SETTING
SPREAD
WIDTH
(IN FEET)
Large, heavy
particles
5
10
15
M
O
Q
8
8
8
Medium- mixed
particles
5
10
15
L
N
O
8
8
8
Small particles
(nitrogen)
1
2
3
G
J
L
8
8
8
Mixed size particles
-some fines
5
10
15
M
O
P
6
6
6
Light weight
particles
5
10
15
J
L
O
4
To
6
The following provides approximate Shindaiwa RS76/RS76S settings when only the product weight, square
foot coverage, and visual inspection of the material is available.
The conversions should be used as guidelines for establishing proper rate settings for the particular product being applied. Steps for
obtaining the most accurate settings are outlined in the “How to Determine Spreader Settings and Spread Width” section of this manual.
These settings are approximate and may vary due to physical characteristics of the product. Walking speed, wear, condition of the turf
and humidity, may cause actual rate setting to deviate. No expressed nor implied warranty or guarantee is provided as to coverage or
uniformity indicated by these rate settings.
1. Never store unused material in spreader. Return
unused product to its original container.
2. Wash spreader thoroughly after each use and dry
completely in sun or heated area.
3. Grease axle bearings in frame. Oil the impeller shaft
bearing in hopper, pivot points on the shut-off plate
and the spring in the housing behind the rate plate.
4. Remove gear cover and wash gears thoroughly. Oil
all bearing areas and face of gear teeth. Lubricate gear
teeth with dry graphite. Re-install gear cover.
5. Gear mesh should be checked on a regular basis
during high use periods. Clearance between the axle
gear and pinion gear should be minimal but not tight. If
adjustment is necessary, loosen axle collar set screw
and hold gears together. Slide axle collar against the
gear support and tighten axle collar set screw. Spin
drive wheel. Gears should run freely and smoothly.
6. Impeller surface should be cleaned periodically to
remove build-up of product. Build-up can cause the
spread pattern to change.
7. Tire pressure should be 20-25 PSI.
MAINTENANCE
MAINTENANCEMAINTENANCE
MAINTENANCE
Grease
Oil Bearing In
Hopper
Axle Collar
Oil
Oil

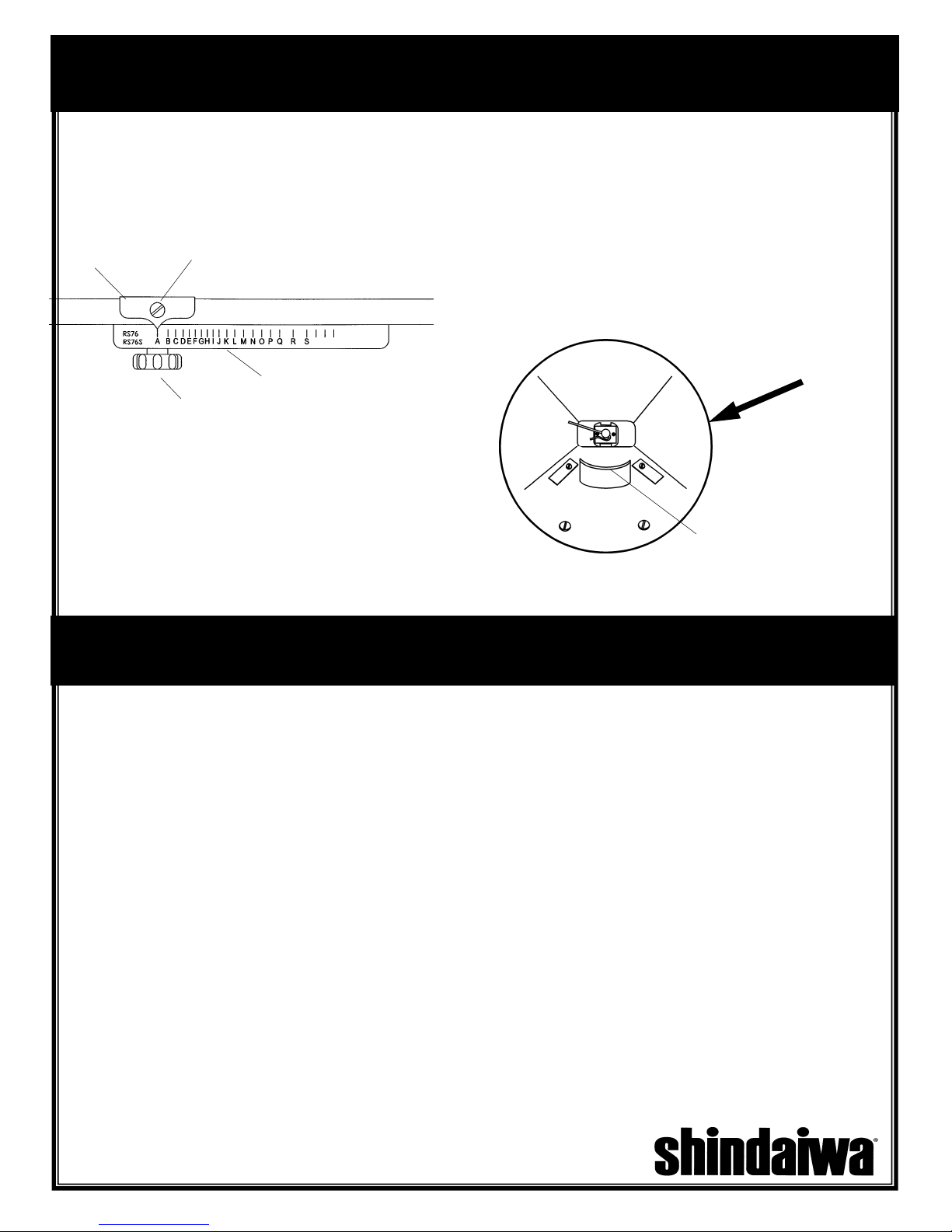

CALIBRATION INSTRUCTIONS
CALIBRATION INSTRUCTIONSCALIBRATION INSTRUCTIONS
CALIBRATION INSTRUCTIONS
The shindaiwa RS76/RS76S was factory calibrated, however, calibration should be checked
occasionally to assure optimum performance.
1. Pull the on/off lever to the “OFF” position.
Set the rate control plate to setting “A”.
3. Loosen the rate control knob and slide the rate
plate until the port is just opening. Loosen
pointer screw and move pointer until it aligns
with “A” on the rate plate. Retighten pointer
screw.
2. Flip on/off control lever to the “ON” position.
Check the port opening. It should be just open.
If adjustment is necessary, continue to step #3.
Rate Control Knob
Pointer
Rate Control Plate
Port is just open
Pointer Screw
VIEW IS
INSIDE OF
HOPPER
shindai a
shindai ashindai a
shindai a LIMITED WARRANTY
LIMITED WARRANTYLIMITED WARRANTY
LIMITED WARRANTY
Shindaiwa manufactures its products to superior quality standards of quality to ensure customers obtain the highest level of satisfaction. In keeping
with this goal, Shindaiwa warrants the unit to the original purchaser as follows:
Warranty Period
Two years from the delivery date to the original purchaser for consumer and commercial applications, 90 days for rental applications.
Warranty Administration
Within the covered warranty period, Shindaiwa will, at their option, repair or replace any defect in material or workmanship, without charge for parts or labor, if this product
is presented at an authorizes Shindaiwa dealer.
Warranty Exclusions and Limitations
Shindaiwa Inc. assumes no responsibility for damages, loss, or injury resulting from:
• Normal wear and tear.
• Misuse or neglect.
• Modification to or removal of original component parts.
The warranty is limited to the terms stated herein. Shindaiwa disclaims all liability for incidental or consequential damages. Some states do not allow
the exclusion of incidental or consequential damages, so these limitations may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.
Shindaiwa reserves the right to change the design or specifications of this product without obligation to modify previously manufactured products .
Owner’s Responsibilities
The owner of the unit must demonstrate reasonable care in the use, maintenance, and storage of this Shindaiwa product. If a warrantable failure
should occur, the owner must deliver the product to an authorized Shindaiwa servicing dealer for correction. All residual chemicals must be flushed
from tank prior to delivery.
Unidentified chemicals left in tank can pose a serious health threat to anyone servicing the unit and unaware of its presence!
To obtain warranty service, proof of purchase must be presented to the authorized Shindaiwa servicing dealer when the product is presented for re-
pairs.
Proof of purchase must include date of purchase and the name and address of the selling dealer.

Parts List For
Parts List For Parts List For
Parts List For shindaiwa
shindaiwashindaiwa
shindaiwa Model RS76 & RS76S
Model RS76 & RS76SModel RS76 & RS76S
Model RS76 & RS76S
1. SPREADER MODEL NUMBER
2. SPREADER NAME
3. PART NUMBER
4. NAME OF PART AS SHOWN
*Parts included in hopper assembly
PART OF OUR SERVICE IS
PROVIDING REPLACEMENT PARTS.
Parts may be obtained through your
local distributor. Be sure to give:
23
22
21
18
25
26
27
31
20
30
28
4
29
4
17 32
14
3
4
B
6
33
4
A
13
10
8
9
7
15
12
11
16
19
1A
1
A
5
2
24
No. Description RS76 RS76S No Description RS76 RS76S
1Hopper Assembly 15574 15577 17 Impeller Shaft Bearing* 14312-1 14312-1
1A Hopper* 14604 14604 18 Drive Wheel 14856 14856
2 & 4 Discharge Chute & Shut Off 15144 15144 19 Impeller Shaft 15641 15641
Plate Guides * 20 Pinion Gear 14833 14833
3 Discharge Chute Knob (2) 14001 14001 21 Axle Gear 14832 14832
5Shutoff Plate* 13353 13353 22 Gear Cover (2) 14837 14837
6Handle Lever Ass’y 15513 15513 23 Gear Cover Clamps (3) 14868 14868
7Handle Grip (2) 14870 14870 24 Gear Support 14834 14834
8Upper Handle 15497 15498 25 Axle Collar w/ Set Scr. 14971 14971
9Control Tube 14916 14916 26 Axle 15518 15518
10 Screen Clips (2) 14022 14022 27 Axle Bearing (4) 14855 14855
11 Hopper Screen 14603 14603 28 Frame Assembly 15501 15502
12 Handle Brace/Leg 15507 15508 29 Impeller 14625 14625
13 Rate Plate* 15576 15576 30 Free Wheel 14857 14857
14 Rate Control Knob* 12704 12704 31 Agitator 14510 14510
15 Pointer* 12708 12708 32 Fastener Package 15579 15579
16 Spring Housing Assembly* 12702-2 12702-2 33 Hopper Cover 14606 14606
34 Hopper Label 16233 16232
34
400 Oakwood Road
Lake Zurich, IL. 60047
847 540-8400 Fax [phone]
www.shindaiwa. com
P / N 99922201054
