Shinko SAAR User manual

RATIO TRANSMITTER SAAR (DC CURRENT)
RATIO TRANSMITTER SAVR (DC VOLTAGE)
INSTRUCTION MANUAL

2
Preface
Thank you for purchasing the Ratio Transmitter SAAR (DC current) and SAVR (DC voltage).
This manual contains instructions for the mounting, functions, operations and notes when
operating the SAAR or SAVR. To prevent accidents arising from the misuse of this instrument,
please ensure the operator receives this manual.
Notes
• This instrument should be used in accordance with the specifications described in the manual.
If it is not used according to the specifications, it may malfunction or cause a fire.
• Be sure to follow the warnings, cautions and notices. If they are not observed, serious injury
or malfunction may occur.
• Specifications of the SAAR and SAVR and the contents of this instruction manual are subject to
change without notice.
• Care has been taken to ensure that the contents of this instruction manual are correct, but if there
are any doubts, mistakes or questions, please inform our sales department.
• This instrument is designed to be installed on a DIN rail. If it is not, measures must be taken to
ensure that the operator does not touch power terminals or other high voltage sections.
• Any unauthorized transfer or copying of this document, in part or in whole, is prohibited.
• Shinko Technos CO., LTD. is not liable for any damage or secondary damage(s) incurred as a
result of using this product, including any indirect damage.
SAFETY PRECAUTIONS (Be sure to read these precautions before using our products.)
The safety precautions are classified into categories: “Warning” and “Caution”.
Depending on circumstances, procedures indicated by Caution may cause serious
results, so be sure to follow the directions for usage.
Warning
Warning
• To prevent an electric shock or fire, only Shinko or other qualified service personnel may
handle the inner assembly.
• To prevent an electric shock, fire or damage to the instrument, parts replacement may only
be undertaken by Shinko or other qualified service personnel.
Safety precautions
• To ensure safe and correct use, thoroughly read and understand this manual before using this
instrument.
• This instrument is intended to be used for industrial machinery, machine tools and measuring
equipment. Verify correct usage after consulting purpose of use with our agency or main office.
(Never use this instrument for medical purposes with which human lives are involved.)
• External protection devices such as protection equipment against excessive temperature rise, etc.
must be installed, as malfunction of this product could result in serious damage to the system or
injury to personnel. Also proper periodic maintenance is required.
• This instrument must be used under the conditions and environment described in this manual.
Shinko Technos Co., Ltd. does not accept liability for any injury, loss of life or damage occurring
due to the instrument being used under conditions not otherwise stated in this manual.
Caution with respect to Export Trade Control Ordinance
To avoid this instrument from being used as a component in, or as being utilized in the manufacture
of weapons of mass destruction (i.e. military applications, military equipment, etc.), please
investigate the end users and the final use of this instrument.
In the case of resale, ensure that this instrument is not illegally exported.
Caution
Procedures which may lead to dangerous conditions and
cause death or serious injury, if not carried out properly.
Procedures which may lead to dangerous conditions and cause
superficial to medium injury or physical damage or may
degrade or damage the product, if not carried out properly.

3
1
1. .I In ns st ta al ll la at ti io on np pr re ec ca au ut ti io on ns s
Caution
This instrument is intended to be used under the following environmental conditions
(IEC61010-1): Overvoltage category , Pollution degree 2
Ensure the mounting location corresponds to the following conditions:
• A minimum of dust, and an absence of corrosive gases
• No flammable, explosive gases
• No mechanical vibrations or shocks
• No exposure to direct sunlight, an ambient temperature of -5 to 55 (23 to 131 )
that does not change rapidly, and no icing
• An ambient non-condensing humidity of 35 to 85%RH
• No large capacity electromagnetic switches or cables through which large current is flowing
• No water, oil or chemicals or where the vapors of these substances can come into
direct contact with the unit
• When installing this unit within a control panel, take note that ambient temperature of
this unit must not exceed 55 (131 ). Otherwise the life of electronic components
(especially electrolytic capacitor) may be shortened.
Note: Avoid setting this instrument directly on or near flammable material even though
the case of this instrument is made of flame-resistant resin.
2
2. .W Wi ir ri in ng gp pr re ec ca au ut ti io on ns s
Caution
• Do not leave wire remnants in the instrument, because they could cause a fire or a malfunction.
• When wiring terminals, use ferrules with an insulation sleeve and crimping pliers made
by Phoenix Contact GMBH & CO. applicable to terminals.
• Tighten the terminal screw using the specified torque. If excessive force is applied to
the screw when tightening, the screw or case may be damaged.
• This instrument has no built-in power switch, circuit breaker or fuse. It is necessary to
install them near the instrument.
(Recommended fuse: Time-lag fuse, rated voltage 250V AC, rated current 2A)
• For wiring of AC power source, be sure to use exclusive terminals as described in this
manual. If AC power source is connected to incorrect terminals, the unit will burn out.
• For a 24V DC power source, do not confuse polarity when wiring.
• For DC voltage and current inputs, do not confuse polarity when wiring.
• Do not apply a commercial power source to the sensor which is connected to the input
terminal nor allow the power source to come into contact with the sensor.
• Keep the input/output wires and power line separate.
3
3. .O Op pe er ra at ti io on na an nd dm ma ai in nt te en na an nc ce ep pr re ec ca au ut ti io on ns s
Caution
• Do not touch live terminals. This may cause electric shock or problems in operation.
• Turn the power supply to the instrument OFF when retightening the terminal and
cleaning. Working or touching the terminal with the power switched ON may result in
severe injury or death due to Electric Shock.
• Use a soft, dry cloth when cleaning the instrument.
(Alcohol based substances may tarnish or deface the unit.)
• As the display section is vulnerable, do not strike or scratch it with a hard object or
press hard on it.

4

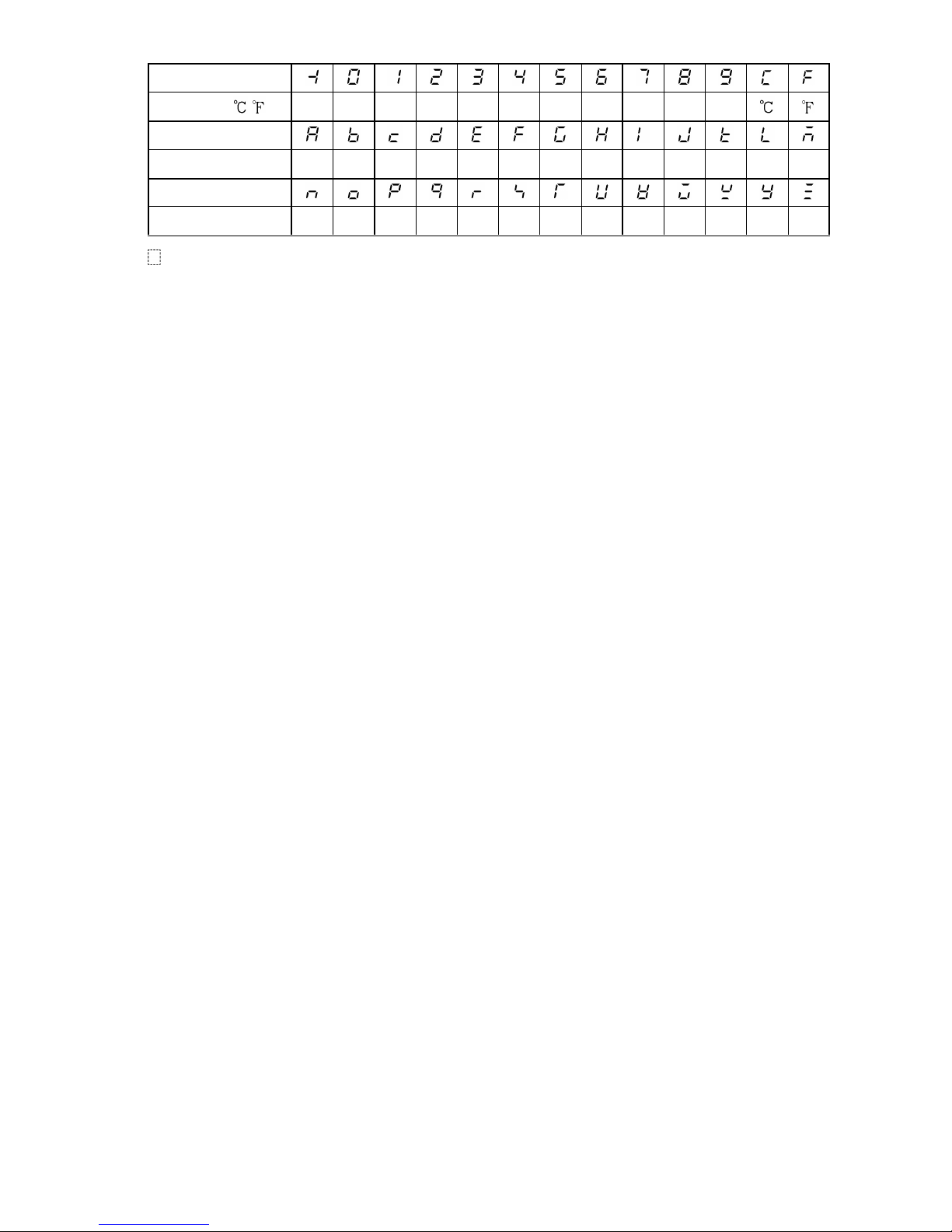

Characters used in this manual
Indication
Number, / -1 0 1 2 3 4 5 6 7 8 9
Indication
Alphabet A B C D E F G H I J K L M
Indication
Alphabet N O P Q R S T U V W X Y Z
means that no character is indicated (unlit) on the display.
--- CONTENTS ---
1. Model Page
1.1 Model ---------------------------------------------------------------------------- 5
1.2 How to read the model label ----------------------------------------------- 5
2. Name and functions of sections ----------------------------------- 5
3. Mounting
3.1 External dimensions (Scale: mm) ---------------------------------------- 6
3.2 Mounting and removal to/from the DIN rail ----------------------------- 6
4. Wiring
4.1 Recommended ferrules ----------------------------------------------------- 7
4.2 Terminal arrangement and circuit configuration ---------------------- 8
4.3 Wiring of terminals ----------------------------------------------------------- 8
4.3.1 Power source wiring ---------------------------------------------------- 8
4.3.2 Output wiring -------------------------------------------------------------- 8
4.3.3 Input wiring ---------------------------------------------------------------- 8
5. Operation flowchart ------------------------------------------------------- 9
6. Setup
6.1 Indication after power ON ------------------------------------------------- 10
6.2 Basic operation of setup --------------------------------------------------- 11
6.3 Setup of the unit ------------------------------------------------------------- 11
7. Adjustment
7.1 Basic operation of adjustment ------------------------------------------- 14
7.2 Adjustment -------------------------------------------------------------------- 14
8. Operation
8.1 Indication after power-on -------------------------------------------------- 15
8.2 Operation --------------------------------------------------------------------- 16
8.2.1 When using this unit as a signal conditioner -------------------- 16
8.2.2 When using the Reverse function ---------------------------------- 16
8.2.3 When using the 1st order lag filter function ---------------------- 16
8.2.4 Computing equation by ratio and bias setting ------------------- 17
9. Specifications -------------------------------------------------------------- 17
10. Troubleshooting
10.1 Indication -------------------------------------------------------------------- 19
10.2 Key operation -------------------------------------------------------------- 19
10.3 Operation -------------------------------------------------------------------- 19
11. Character table ------------------------------------------------------------- 20

5
1. Model
1.1 Model
(e.g.) SAAR-0 (DC current ratio transmitter), Supply voltage: 100 to 240V AC.
Default: Input : 4 to 20mA DC
Output: 4 to 20mA DC
SAVR-0 (DC voltage ratio transmitter), Supply voltage: 100 to 240V AC.
Default: Input : 1 to 5V DC
Output: 4 to 20mA DC

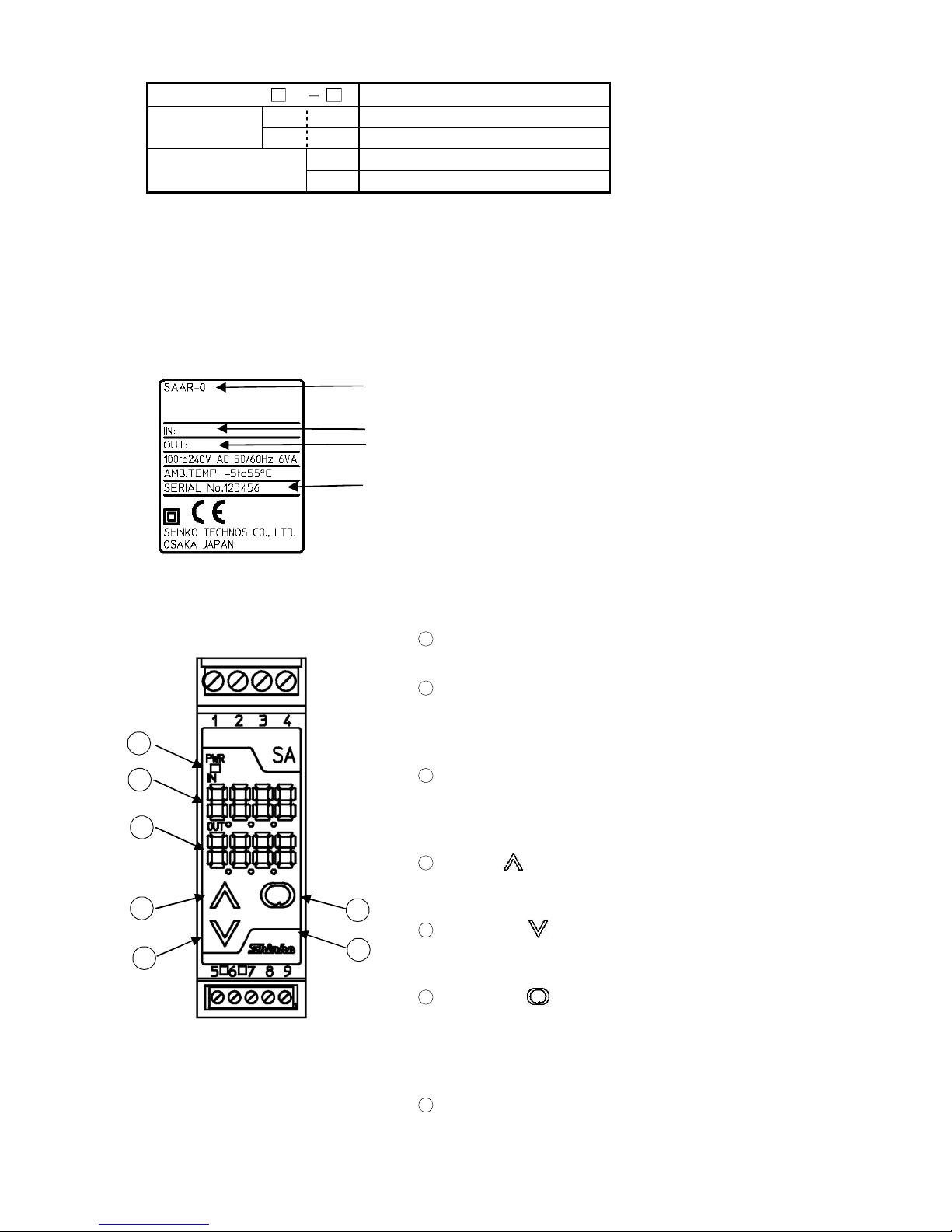

1.2 How to read the model label
The model label is attached to the left side of the case.
Model (e.g. SAAR-0)
Input (Enter a type selected during Input type selection.)
Output (Enter a type selected during Output type selection.)
Serial number
(Fig. 1.2-1)
2. Name and functions of sections
(Fig.2.1)
SA R Series name: SA
A DC current ratio transmitterSignal
conditioner V DC voltage ratio transmitter
0 100 to 240V AC
Power supply 1 24V AC/DC
1Power indicator (Green)
Lights when the power to the instrument is turned on.
2Input display (Red)
Indicates the input value during Run mode.
Indicates setting (or adjustment) characters in the
Setup and Adjustment mode.
3Output display (Green)
Indicates the output value (%) during Run mode.
Indicates the set (or adjusted) value in the Setup,
and Adjustment mode.
4Up key ( )
Increases the numeric value, or switches the
selection items.
5
Down key ( )
Decreases the numeric value, or switches the
selection items.
6Mode key ( )
Switches the setting mode, and registers the
set (or selected) value.
By holding down this key for approx. 3 seconds,
the unit proceeds to the Adjustment mode.
7Sub-mode key (Unmarked)
If the Mode key is pressed while holding down this
key, the unit proceeds to the Setup mode.
1
2
4
5
6
7
3

6
3. Mounting

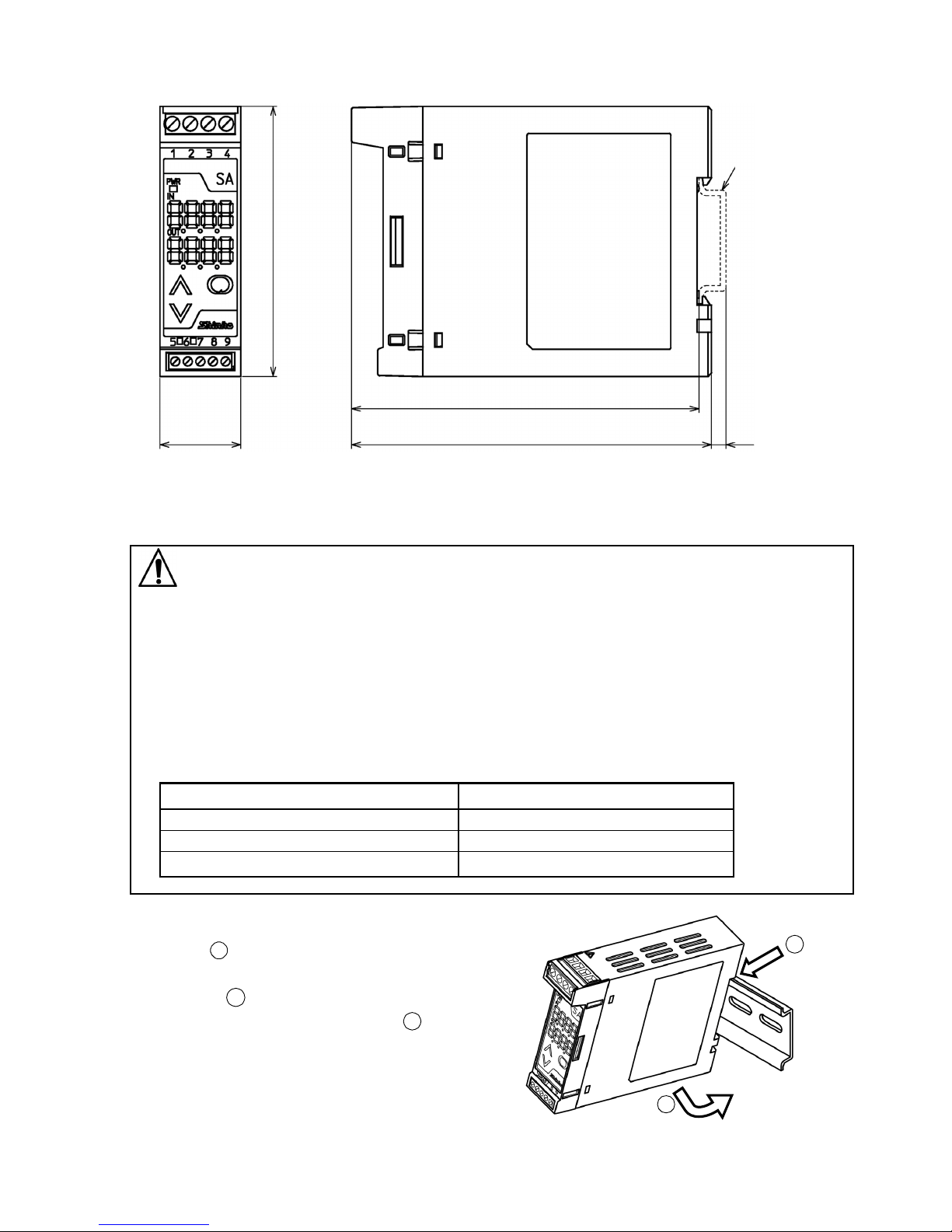

3.1 External dimensions (Scale: mm)
(Fig. 3.1-1)
3.2 Mounting and removal to/from the DIN rail
Caution
• Mount the DIN rail horizontally.
• To remove this instrument, a flat blade screwdriver is required for pulling down
the lever.
Never turn the screwdriver when inserting it into the release lever.
If excessive power is applied to the lever, it may break.
• Be sure to use commercially available fastening plates at both ends of the unit
if it is in a position susceptible to vibration or shock.
Recommended fastening plate
Manufacturer Model
Omron Corporation End plate PFP-M
IDEC Corporation Fastening plate BNL6
Panasonic Electric Works Co. Ltd. Fastening plate ATA4806
Mounting to the DIN rail (Fig. 3.2-1)
• Hook 1of the instrument on the
upper side of the DIN rail.
• Making 1part of the instrument
as a support, fit the lower part 2
of the instrument to the DIN rail.
The unit will be completely fixed to
the DIN rail when a “Click” sound is heard.
(Fig. 3.2-1)
22.5
97
100 4
DIN rail
75
1
2

7
Removal from the DIN rail (Fig.3.2-2)
• Insert a flat blade screwdriver
into the release lever ( 1).
• Remove the instrument from the
DIN rail by pulling down the lever (
2
).
(Fig. 3.2-2)
4. Wiring
Warning
Turn the power supply to the instrument off before wiring.
Working or touching the terminal with the power switched on may result in
severe injury or death due to Electric Shock.
Caution
• For 100 to 240V AC, if the AC power source is connected to incorrect terminals,
this instrument will burn out.
• For a 24V DC power source, do not confuse polarity when wiring.
4.1 Recommended ferrules
When using ferrules, use the following recommended ferrules and crimping pliers made by
Phoenix Contact GMBH &CO. See (Table 4.1-1).
Take note that screw size and tightening torque differ depending on the terminal number.
(Table 4.1-1)
Terminal
number
Terminal
screw
Ferrules with
insulation sleeve
Conductor
cross sections
Tightening
torque Crimping pliers
AI 0.25-8 YE 0.2 to 0.25mm2
AI 0.34-8 TQ 0.25 to 0.34mm2
AI 0.5-8 WH 0.34 to 0.5mm2
AI 0.75-8 GY 0.5 to 0.75mm2
AI 1.0-8 RD 0.75 to 1.0mm2
1 to 4 M2.6
AI 1.5-8 BK 1.0 to 1.5mm2
0.5 to 0.6N•m
AI 0.25-8 YE 0.2 to 0.25mm2
AI 0.34-8 TQ 0.25 to 0.34mm2
5 to 9 M2.0
AI 0.5-8 WH 0.34 to 0.5mm2
0.22 to 0.25N•m
CRIMPFOX
ZA 3
CRIMPFOX
UD 6
1
2
Release lever

8
Input
circuit CPU
1
2
3
4
+
-
+
7
8
9
5
6
Input Output
-
Power supply
Output
circuit
+
-
Insulation circuit
Power
circuit
Display/Setting key
circuit
CPU
1
2
3
4
7
8
9
5
6
0 to 5V DC
1 to 5V DC
0 to 10V DC
mV DC
0 to 1V DC
Insulation circuit
Output
circuit
Power
circuit
Display/Setting key
circuit
Input
circuit
Input
Output
+
+
Power supply
-
-
+
-
+
-

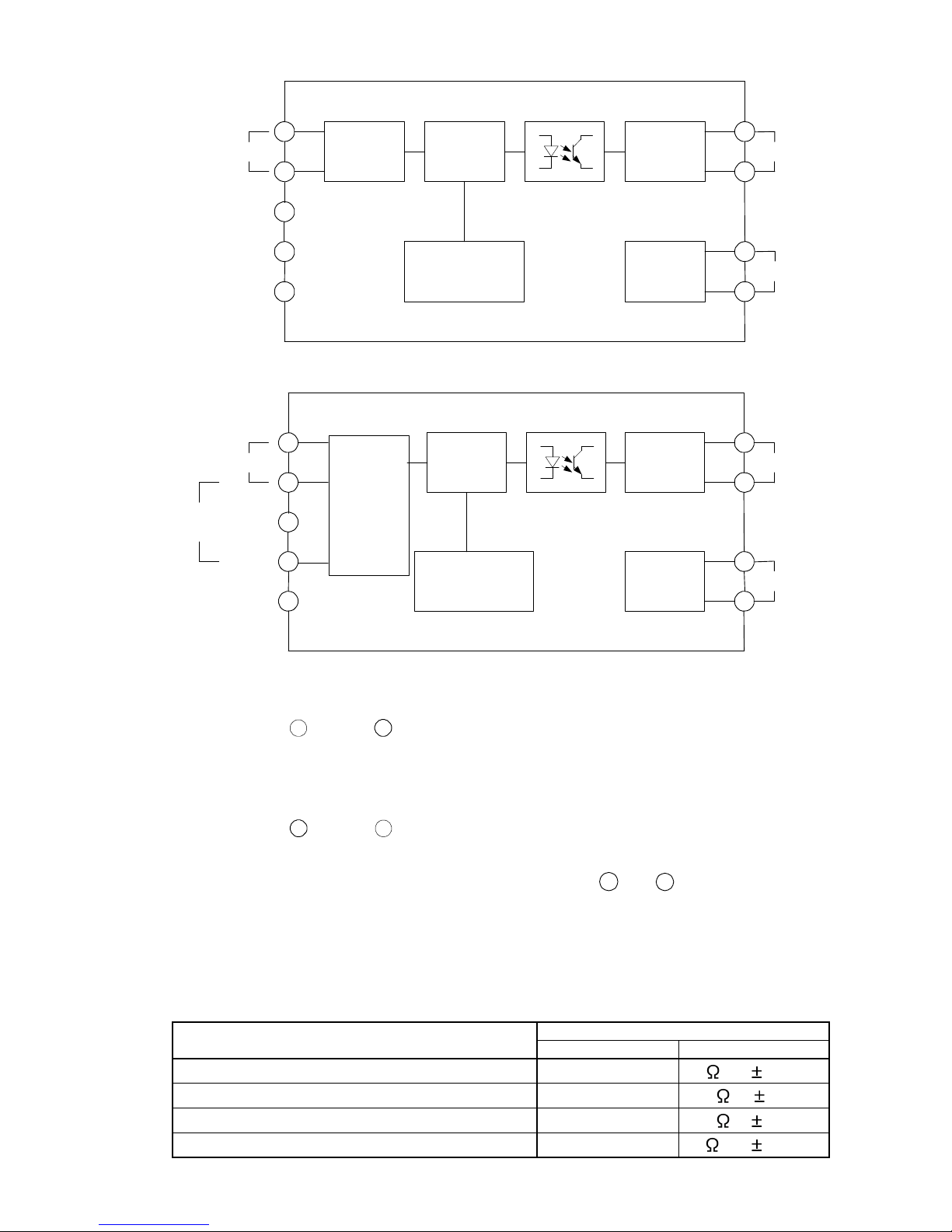

4.2 Terminal arrangement and circuit configuration
SAAR
(Fig. 4.2-1)
SAVR
(Fig. 4.2-2)
4.3 Wiring of terminals
4.3.1 Power source wiring
Use terminals 1(+) and 2(-) for the power supply to the instrument.
For 100 to 240V AC, if AC power source is connected to incorrect terminals, this unit will burn out.
For a 24V DC power source, do not confuse polarity when wiring.
4.3.2 Output wiring
Use terminals 3(+) and
4
(-) for the output wiring.
4.3.3 Input wiring
SAAR (DC current ratio transmitter): Use terminals 5(+), 6(-) for input wiring and
shunt resistor (sold separately) connection
(Table 4.3.3-1).
SAVR (DC voltage ratio transmitter): Terminals for wiring differs depending on the
input specifications.
Refer to (Fig. 4.2-2).
(Table 4.3.3-1)
Shunt resistor
Input Model Specification
4 to 20mA DC, 0 to 20mA DC, 0 to 16mA DC RES-S02-050 50 0.1%
2 to 10mA DC, 0 to 10mA DC RES-S02-100 100 0.1%
1 to 5mA DC RES-S02-200 200 0.1%
0 to 1mA DC RES-S02-01K 1k 0.1%

9
5. Operation flowchart
Power ON Warm-up indication (Approx. 3sec.)
Run mode
Input, Output display
The Input display indicates setting (adjustment)
characters, and the Output display indicates the
default value.
Key operation
• : This means that if the key is pressed, the
set value is saved, and the instrument proceeds to
the next setting item.
• Set the value with the or key, and register it
with the key.
Hold down the
key for approx. 3sec.
Press the key while holding
down the Sub-mode key.
Adjustment mode Setup mode
IN
OUT
Output zero
adjustment
IN
OUT
Set value lock IN
OUT
Sensor
correction
Press the key. Press the key. Press the key.
IN
OUT
Output span
adjustment
IN
OUT
Output type
Press the key.
IN
OUT
Input type
(SAAR)
Press the key.
IN
OUT
(SAVR) IN
OUT
Output
Normal/Reverse
Press the key. Press the key.
IN
OUT
Decimal point
place
IN
OUT
Display
selection
Press the key. Press the key.
IN
OUT
Output 0%
value
IN
OUT
Indication time
Press the key. Press the key.
IN
OUT
Output 100%
value
IN
OUT
Ratio
Press the key. Press the key.
IN
OUT
Filter time
constant
IN
OUT
Bias
Press the key. Press the key.
•
To return from
Adjustment to Run
mode, press the
key for approx. 3sec.
From any setting item
in Adjustment mode, it
is possible to return to
Run mode.

10
6. Setup
Setup should occur before using this unit, to set the Input type, Output 0% value, Output 100%
value, Output type, Ratio, Bias, etc. according to the users’ conditions.
If the users’ specifications are the same as the default value of the instrument, or if setup
has already been completed, it is not necessary to set up the instrument. Proceed to
Section “7. Adjustment”.
(Table 6-1)
Setting item Default value
Set value lock Unlock
SAAR 4 to 20mA DC (-1999 to 9999)Input type
SAVR 1 to 5V DC (-1999 to 9999)
Decimal point place No decimal point
Output 0% value -1999
Output 100% value 9999
Filter time constant 0.0 seconds
Sensor correction 0
Output type 4 to 20mA DC
Output Normal/Reverse Normal
Display selection Input/Output indication
Indication time 00.00 (Continuous)
Ratio 1.00 times
Bias 0%
6.1 Indication after power-on
After power-on, warm-up status below (Fig. 6.1-1) is indicated for approx. 3sec.
(Fig. 6.1-1)
After that, the unit switches to the Run mode as shown below.
(Fig. 6.1-2)
Lights after
power-on.
Indicates the input type.
SAAR: Indicates when default value is
4 to 20mA DC (-1999 to 9999).
SAVR: indicates when default value is
1 to 5V DC (-1999 to 9999).
Indicates the output type.
Indicates when default value is 4 to 20mA DC.
Indicates the input value.
Indicates the output value
in a percentage
form (%) corresponding to the input value.

11
6.2 Basic operation of setup
Setup is conducted in the Setup mode.
To enter the Setup mode, press the key while holding down the Sub-mode key in the
Run mode. (Fig. 6.2-1)
To set (select) each item, use the or key, and register the value with the key.
(Fig. 6.2-2)
(1) Run mode
(Fig. 6.2-1)
(2) Setup mode
(Fig. 6.2-2)
6.3 Setup of the unit
The following shows all setup items. Set up the unit referring to the explanation of each item.
Display Name, Function, Setting range Default value
Set value lock Unlock
IN
OUT
Locks the set values to prevent setting errors.
Selection item:
: Unlock
: Lock (None of the set values and adjusted values can be changed.)
Input type (SAAR) 4 to 20mA DC, -1999 to 9999
Selects the input type.
Selection item:
IN
OUT
: 4 to 20mA DC
: 0 to 20mA DC
: 0 to 16mA DC
: 2 to 10mA DC
: 0 to 10mA DC
: 1 to 5mA DC
: 0 to 1mA DC
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
To set (or select)
each item, use
these keys.
To proceed to each setting item and
to register the set (or selected) value,
please use this key.
To enter the Setup mode, press the
Mode ( ) key while holding down the
Sub-mode key in the Run mode.
Mode key
Sub-mode key (Unmarked)

12
Display Name, Function, Setting range Default value
Input type (SAVR) 1 to 5V DC, -1999 to 9999
Selects the input type.
Selection item:
IN
OUT
: 0 to 10mV DC
: -10 to 10mV DC
: 0 to 50mV DC
: 0 to 60mV DC
: 0 to 100mV DC
: 0 to 1V DC
: 0 to 5V DC
: 1 to 5V DC
: 0 to 10V DC
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
-1999 to 9999
Decimal point place No decimal point
IN
OUT
Selects the decimal point place.
Selection item: : No decimal point
: 1 digit after decimal point
: 2 digits after decimal point
: 3 digits after decimal point
Output 0% value -1999
IN
OUT
Sets the value (indicated on the Input display) at 0% output.
Setting range: -1999 to Output 100% value (The placement of the decimal
point follows the selection)
Output 100% value 9999
IN
OUT
Sets the value (indicated on the Input display) at 100% output.
Setting range: Output 0% value to 9999 (The placement of the decimal
point follows the selection)
Filter time constant 0.0 seconds
IN
OUT
Sets the filter time constant.
Reduces input fluctuation caused by noise.
Setting range: 0.0 to 10.0 seconds
Sensor correction 0
IN
OUT
Sets the sensor correction value.
Input value = Current input value + (Sensor correction value)
Setting range: -1000 to 1000 (The placement of the decimal point follows
the selection)
Output type 4 to 20mA DC
Selects the output type.
Selection item:
IN
OUT
: 4 to 20mA DC
: 0 to 20mA DC
: 0 to 12mA DC
: 0 to 10mA DC
: 1 to 5mA DC
: 0 to 1V DC
: 0 to 5V DC
: 1 to 5V DC
: 0 to 10V DC
Output Normal/Reverse Normal
IN
OUT
Selects either Normal mode (0.0 to 100.0%) or Reverse mode (100.0 to
0.0%) for output status.
Selection item: : Normal, : Reverse

13
Display Name, Function, Setting range Default value
Display selection Input/Output indication
IN
OUT
Selects an indication type on the display.
Selection item:
: Input/Output indication
: Input indication
: Output indication
: No indication (Only the power indicator is lit.)
Indication time 00.00 (Continuous)
IN
OUT
Sets the indication time of the display after the final key operation.
Not available if No indication (Only the power indicator is lit) is selected
during Display selection
After the indication time has elapsed, the displays go off (Only the power
indicator is lit.).
If power is turned on again, or if any of the keys , , and the
Sub-mode key is pressed while displays are unlit, the displays will light again.
Setting range:
00.00: Continuous indication
00.01 (1 second) to 60.00 (60 minutes) [Minute.Second]
Ratio 1.00 times
IN
OUT Sets the ratio.
For computing equation and input/output diagram, refer to Section 8.2.4.
(p.17)
Setting range: 0.10 to 4.00 times
Bias 0%
IN
OUT Set the bias.
For computing equation and input/output diagram, refer to Section 8.2.4.
(p.17)
Setting range: -100 to 100%

14
7. Adjustment
Performs the output zero and span adjustments.
Connect an mV generator to the input terminals of this instrument.
Connect a digital multimeter to output terminals.

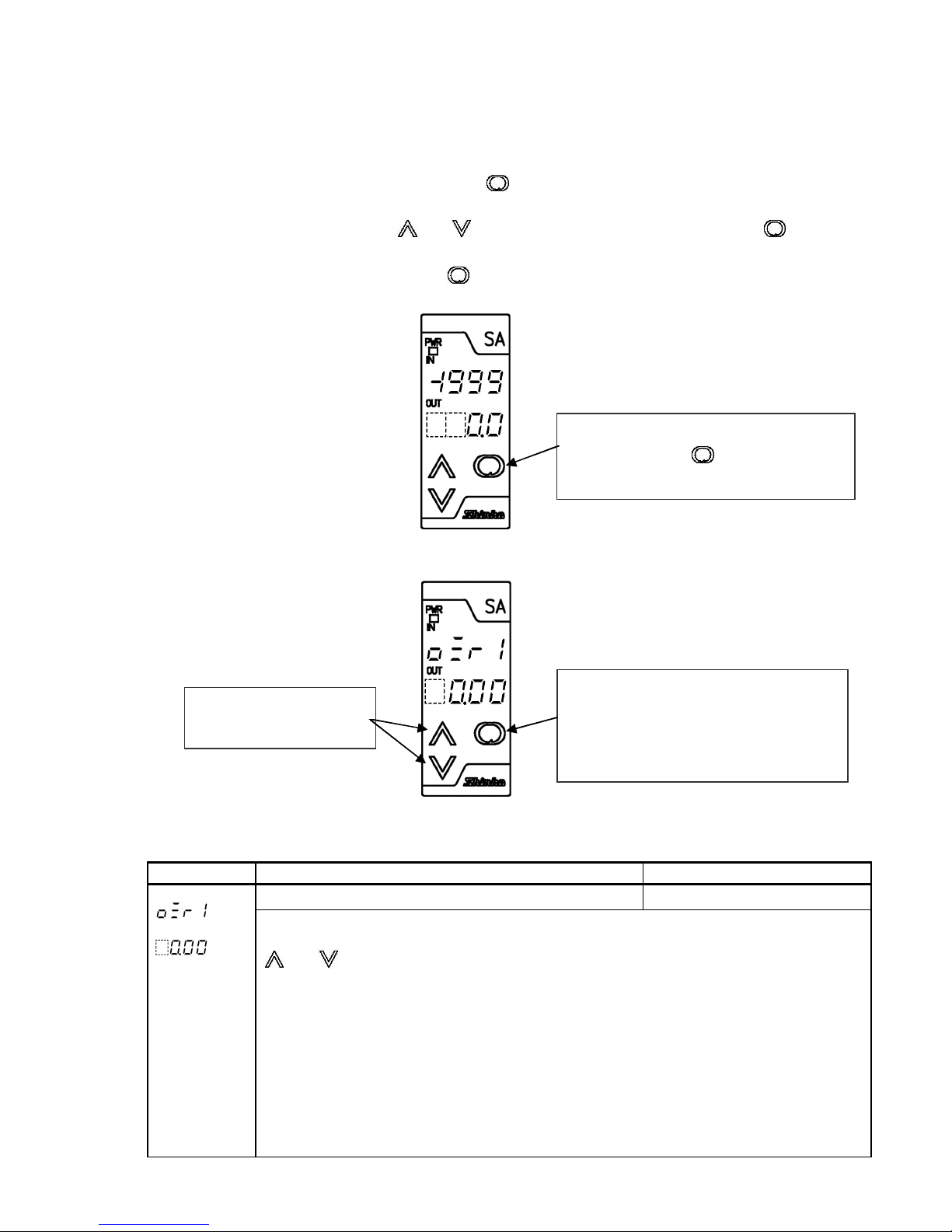

7.1 Basic operation of adjustment
Adjustment can be conducted in the Adjustment mode.
To enter Adjustment mode, hold down the key for approx. 3 seconds in the Run mode.
(Fig. 7.1-1)
For output adjustment, use the or key, and register the value with the key.
(Fig. 7.1-2)
To revert to the Run mode, press the key again for approximately 3 seconds.
(1) Run mode
(Fig. 7.1-1)
(2) Adjustment mode
(Fig. 7.1-2)
7.2 Adjustment
The following shows all adjustment items. Adjust values referring to explanation of each item below.
Display Name, Function, Setting range Default value
Output zero adjustment 0.00%
IN
OUT
Adjusts output zero.
Input the value corresponding to 0% output, then adjust the value with the
or key while viewing the output value (on the digital multimeter).
When the output range lower limit is zero, (even if zero adjustment results
in a negative value), the output value will not be negative.
Setting range: -5.00 to 5.00%
Effective range of adjustment differs depending on the output types.
4 to 20mA DC: -5 to 5% 0 to 1V DC : 0 to 5%
0 to 20mA DC: 0 to 5% 0 to 5V DC : 0 to 5%
0 to 12mA DC: 0 to 5% 1 to 5V DC : -5 to 5%
0 to 10mA DC: 0 to 5% 0 to 10V DC : 0 to 5%
1 to 5mA DC : -5 to 5%
Please use these
keys for adjustment.
To proceed to each item in the
Adjustment mode and to register
the adjusted value, please use
this key.
To enter Adjustment mode, please
hold down the key for approx.
3 seconds.

15

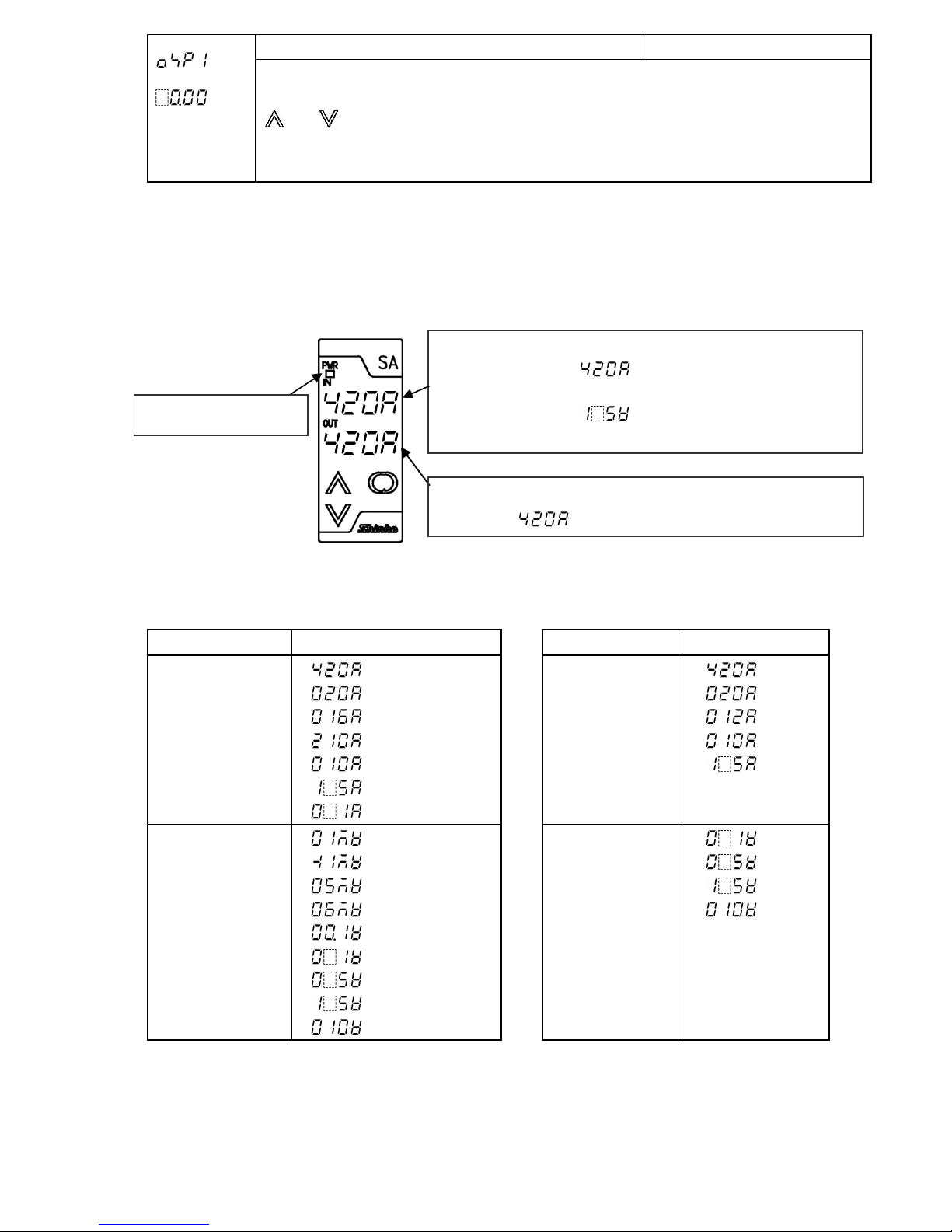

Output span adjustment 0.00%
IN
OUT Adjusts output span.
Input the value corresponding to 100% output, then adjust the value with the
or key while viewing the output value (on the digital multimeter).
Setting range: -5.00 to 5.00%
Effective range of adjustment is 95 to 105%.
8. Operation
8.1 Indication after power-on
After power-on, the following warm-up status is indicated for 3 seconds (Fig. 8.1-1).
(Fig. 8.1-1)
(Table 8.1-1) (Table 8.1-2)
Input Input display Output Output display
4 to 20mA DC
0 to 20mA DC
0 to 16mA DC
2 to 10mA DC
0 to 10mA DC
1 to 5mA DC
0 to 1mA DC
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
4 to 20mA DC
0 to 20mA DC
0 to 12mA DC
0 to 10mA DC
1 to 5mA DC
0 to 10mV DC
-10 to 10mV DC
0 to 50mV DC
0 to 60mV DC
0 to 100mV DC
0 to 1V DC
0 to 5V DC
1 to 5V DC
0 to 10V DC
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
: -1999 to 9999
0 to 1V DC
0 to 5V DC
1 to 5V DC
0 to 10V DC
Lights after power-on.
Indicates the input type. (Table 8.1-1)
SAAR: Indicates when default value is
4 to 20mA DC (-1999 to 9999).
SAVR: indicates when default value is
1 to 5V DC (-1999 to 9999).
Indicates the output type (Table 8.1-2).
Indicates
when default value i
s 4 to 20mA DC.

16
8.2 Operation
The unit enters the Run mode as shown in (Fig. 8.2-1). The input signal selected during
Input type selection is converted to the output selected during Output type selection.
(Fig. 8.2-1)
•Indication when input value is -2000 or less
For the indication of -2000 or less (up to –10% output), the input value and the minus (-)
sign are indicated alternately.
(e.g.) Indication of -2000 IN IN
•Indication when input value is 10000 or more
For the indication of 10000 or more (up to 110% output), the lower 4 digits of input value
are flashing.
(e.g.) Indication of 10020 IN
•Underrange, Overrange and Sensor burnout alarm indication
Even if any selection is made during the Display selection, the following indications appear.
Underrange : " " flashes on the Input display.
Overrange : " " flashes on the Input display.
•Indication time setting
If indication time is set, the displays will go off after the indication time has elapsed.
(Only the power indicator is lit.)
If power is turned on again, or if any of the keys , , and the Sub-mode key
is pressed while displays are unlit, the displays will light again.
8.2.1 When using this unit as a standard ratio transmitter
Set the filter time constant to 0.0 seconds, and
set the Output Normal/Reverse selection to “Normal”.
8.2.2 When using the Reverse function
This function reverses the output (100 to 0%)
that corresponds to the input (0 to 100%).
Set the Output Normal/Reverse selection to “Reverse”.
8.2.3 When using the first order lag filter function
The value is outputted by performing the first
order lag computation using the filter time
constant “T”. (Fig. 8.2.3-1)
Set the filter time constant to a random value
(0.0 to 10.0 seconds).
Indicates the input value.
Indicates the output value in
a
percentage form (%).
Output value corresponding to the input value is indicated
in a percentage form (%).
Flashes.
Time
T
Input
Output
Time
(Fig. 8.2.3-1)

17
8.2.4 Computing equation by ratio and bias setting
Computing equation
O = RI + B (Normal output) O: Output (%)
O = S - (RI + B) (Reverse output) R: Ratio setting (0.10 to 4.00 times)
I : Input (%)
B: Bias setting (-100 to 100%)
S: 100%
Input/Output diagram
Normal output
1
: R = 1.00 times B = 50%
2: R = 0.50 times B = 50%
3: R = 2.00 times B = 0%
4
: R = 1.00 times B = 0%
5: R = 0.50 times B = 0%
6: R = 1.00 times B = -50%
(Fig. 8.2.4-1)
Reverse output
1
: R = 1.00 times B = 50%
2: R = 0.50 times B = 50%
3: R = 2.00 times B = 0%
4: R = 1.00 times B = 0%
5
: R = 0.50 times B = 0%
6: R = 1.00 times B = -50%
(Fig. 8.2.4-2)
9. Specifications
Input specifications
SAAR (DC current ratio transmitter)
Input Shunt resistor
4 to 20mA DC
0 to 20mA DC
0 to 16mA DC
50
2 to 10mA DC
0 to 10mA DC 100
1 to 5mA DC 200
0 to 1mA DC 1k
Connect a shunt resistor (sold separately) between input terminals.
See (Table 4.3.3-1) on page 8.
Output
Output
Input
Input

18
SAVR (DC voltage ratio transmitter)
Input Input resistance Allowable signal
source resistance
0 to 10mV DC 20 or less
-10 to 10mV DC 40 or less
0 to 50mV DC
0 to 60mV DC
0 to 100mV DC
200 or less
0 to 1V DC 2k or less
0 to 5V DC
1 to 5V DC
0 to 10V DC
1M
1k or less
Output specifications
DC current
Output Allowable load
resistance
Zero adjustment
range
Span adjustment
range
4 to 20mA DC 700 or less -5 to 5% 95 to 105%
0 to 20mA DC 700 or less 0 to 5% 95 to 105%
0 to 12mA DC 1.2k or less 0 to 5% 95 to 105%
0 to 10mA DC 1.2k or less 0 to 5% 95 to 105%
1 to 5mA DC 2.4k or less -5 to 5% 95 to 105%
DC voltage
Output Allowable load
resistance
Zero adjustment
range
Span adjustment
range
0 to 1V DC 100 or more 0 to 5% 95 to 105%
0 to 5V DC 500 or more 0 to 5% 95 to 105%
1 to 5V DC 500 or more -5 to 5% 95 to 105%
0 to 10V DC 1k or more 0 to 5% 95 to 105%
When the output range lower limit is zero, (even if zero adjustment results
in a negative value), the output value will not be negative.
Performance
Accuracy Input : Within 0.1% (If Ratio is set to 1.00 times and bias is set to 0%)
Output: Within 0.1% (If Ratio is set to 1.00 times and bias is set to 0%)
Display accuracy Within Input accuracy 1 digit
Response time 0.5 seconds (typical) (0 90%)
Ratio setting 0.10 to 4.00 times
Bias setting -100 to 100%
Computing equation See Section 8.2.4. (p.17)
Temperature coefficient 0.015%/
Insulation resistance Input – Output – Power: 10M or more, at 500V DC
Dielectric strength Input – Output – Power: 2.0kV AC for 1 minute
General structure
Case Flame-resistant resin, Color: Light gray
Front panel Membrane sheet
Setting Setting by the front keypad
Display, indicator Input display : 7 segments Red LED display 4 digits
Character size: 7.4 x 4.0mm (H x W)
Output display : 7 segments Green LED display 4 digits
Character size: 7.4 x 4.0mm (H x W)
Power indicator: Green LED

19
Installation specifications
Power supply 100 to 240V AC 50/60Hz, 24V AC/DC 50/60Hz
Allowable voltage range 85 to 264V AC, 20 to 28V AC/DC
Power consumption Approx. 6VA
Ambient temperature -5 to 55 (23 to 131 )
Ambient humidity 35 to 85%RH (Non-condensing)
Weight Approx. 120g
Mounting DIN rail mounting
External dimensions W22.5 x H75 x D100mm
Attached function
•Power failure countermeasure:
The setting data is backed up in the non-volatile IC memory.
•Self-diagnosis:
The CPU is monitored by a watchdog timer, and if an abnormal status is found
on the CPU, the unit is switched to warm-up status with all outputs off.
10. Troubleshooting
10.1 Indication
Problem Presumed cause and solution
Input display is flashing
" " or " ".
• The sensor may be burnt out.
Change each sensor.
• Check whether the sensor is securely connected to the input
terminals of the instrument.
Ensure that the sensor terminals are securely connected
to the input terminals of the instrument.
• Check the input signal source.
The indication of the Input
display is irregular or
unstable.
• Check whether the sensor correcting value is suitable.
Set it to a suitable value.
• There may be equipment that interferes with or makes
noise near the unit.
Keep equipment that interferes with or makes noise
away from the unit.
10.2 Key operation
Problem Presumed cause and solution
Setting or adjustment is
not possible.
• “Lock” has been selected during Set value lock selection.
Select “Unlock”.
10.3 Operation
Problem Presumed cause and solution
Input value does not
change.
• The sensor may be out of order. Change the sensor.
• Check whether input and output wires are securely
connected to the Input/Output terminals of the instrument.
Ensure that input and output wires are securely connected
to the Input/Output terminals.
• Check whether the wiring of input and output is correct.
No output • Check whether Output 100% and Output 0% value have
been set to suitable values.
• Check whether Output type and Output Normal/Reverse have
been selected correctly during Output type and Output
Normal/Reverse selection.

SHINKO TECHNOS CO.,LTD.
OVERSEAS DIVISION
:
:
:
Reg. Office
URL
E-mail
2-5-1, Senbahigashi, Minoo, Osaka, Japan
http://www.shinko-technos.co.jp
[e-mail]
Tel :
Fax:
81-72-727-6100
81-72-727-7006
11. Character table
All setting items are indicated in the following tables, however, some items will not be
indicated depending on the specifications.
Setup mode
Display Setting item Default value Data
Set value lock Unlock
Input type (SAAR) 4 to 20mA DC (–1999 to 9999)
Input type (SAVR) 1 to 5V DC (–1999 to 9999)
Decimal point place No decimal point
Output 0% value -1999
Output 100% value 9999
Filter time constant 0.0 seconds
Sensor correction 0
Output type 4 to 20mA DC
Output Normal/Reverse Normal
Display selection Input/Output indication
Indication time 00.00 (Continuous)
Ratio 1.00 times
Bias 0%
Adjustment mode
Display Setting item Default value Data
Output zero adjustment 0.00%
Output span adjustment 0.00%
******* Inquiry *******
For any inquiry about this unit, please contact the vendor where you
purchased the unit or our agency after checking the following.
(e.g.)
• Model ........................………. SA R-
• Serial number ….................... No. xxxxxx
In addition to the above, please let us know the details of malfunction,
if any, and the operating conditions.
No.SA2E3 2010.01
