SHINPO SERW Quick start guide

SERW_ENGLISH 101
Smokeless Roaster
Operational Manual
ＳＥＲＷ
J21E1E1 J21E1E2
Thank you for purchasing SHINPO Smokeless Roaster.
●Before operating this product, please read and understand the instructions contained
in this manual.
●Keep this manual in a place where it can be reached for immediate references.
●If necessary, please contact your distributor from whom you have purchased the
product or us for clarification and/or further instructions
◆Parts Identification-Main Unit １
◆Parts identification-Parts & Accessories ２
◆Safety Precautions ３
◆Preparation before Use 7
◆Control Box 8
◆Daily Inspections & Maintenance 9
◆Safety Features 12
◆Specifications 13
◆Interval 14

SERW_ENGLISH 101
1
Parts Identification-Main Unit
Heat Volume Control
Table Top
Cabinet
Circuit Protector Main Switch Lump
Main Switch

SERW_ENGLISH 101
2
Parts Identification-Parts & Accessories
Heater Cover
Top Ring
Grill Holder
Heater
(Consumables)
Outer Casing
Heater Mount
Inner Casing
Grill Net
3D Filter

Safety Precautions SERW_101
3
Safety Precautions
We are providing these instructions with illustrations for clarity and easy understanding in order to avoid
any harm to the users or damage to the properties. Insure proper installation and servicing. Have the
product installed and grounded by a qualified technician. Please make sure to understand fully the
meaning of each illustration before you proceed further.
DANGER Failure to observe this instruction may result in a situation where death or serious injury (Note 1)
is imminent.
WARNING Failure to observe this instruction may result in a situation where death or serious injury (Note 1)
may occur.
Caution Failure to observe this instruction may result in a situation where injury (Note 2) to the user or
damage to the property (Note 3) may occur.
Note1: Serious injury means loss of eyesight, injury, burn (low/high temperature), electric shock, broken bone or poisoning
which require hospitalization or long term outpatient treatment.
Note2: Injury means injury, burn or electric shock which does not require hospitalization of long-term outpatient treatment.
Note3: Property damage means damage to buildings, livestock or pet animals.
The illustrations denote the following precautions:
General Prohibition
Fire Prohibited Contact
prohibited
Disassembly
Prohibited
General Caution
Must Do Unplug from Outlet
◆This product is designed for commercial use only, not for household use.
WARNING
Ventilation
▽ Make sure to keep an exhaust fan(s) and of appropriate capacity operating
while using the smokeless roaster.
▼ Failure to observe this may cause incomplete combustion due to reduce oxygen
in the surrounding area.
▼ It may also lower the quality of the air within your establishment.

Safety Precautions SERW_101
4
WARNING
Power Source
▽Do not use other than the power source specified for this product.
▼Failure to observe this may result in a risk of fire or explosion.
Fire Prevention
▽ Do not place flammables, except food items to be cooked, near
the heating surface.
▽ Do not use any flammable substance such as gasoline, benzine
or spray.
▼Failure to observe these may result in a risk of fire or burn.
▽Never place any burning matter such as meat vegetable or
cigarette into the smoke intake holes.
▽ Do not use this roaster when it is not clean.
▽ Do not use this roaster without an appropriate amount of water
in the Drain Pan.
▼Failure to observe these may result in a risk of fire.

Safety Precautions SERW_101
5
WARNING
Emergencies
▽ In an emergency such as earthquake or fire, immediately stop the use
of this product. Before you use the product again, contact your
distributor or us for inspection and, if necessary, repair.
▼ Failure to observe these may result in a risk of explosion or fire.
▽ In an electric storm, shut the power off at the circuit breaker or unplug
the power cord.
▼ Lightning often causes a reverse current of electricity, which may damage the product.
Proper Use
▽ Do not use this product for other than heating and cooking of food.
▼ Failure to observe this may result in a risk of accident.
▽ Do not sit, stand or place a heavy object on this
roaster.
▼Failure to observe this may result in a damage to the roaster or
accident.
▽ Place or install this roaster on a level and secure surface only.
▼ Failure to observe this may result in a risk of fire or burn.
Removable & Replaceable Parts
▽ Use only original parts or those approved by us.
▼ Failure to observe this may result in incomplete combustion or a damage to the product.

Safety Precautions SERW_101
6
WARNING
Disassembling
▽ Do not disassemble this roaster, removable parts excepted. (See P.2 for the list of removable
parts)
▼ Failure to observe this may result in a damage to the
product, electric shock or injury.
Prevention of Burn
▽ Do not touch the heating surface or smoke holes
▼ The heating surface and smoke holes get
extremely hot. Touching these parts may cause a
severe burn.
▽ Do not touch any of the heated parts of the product immediately
after use.
▼ Make sure that all the heated parts have cooled down to prevent a
burn.
▽ Do not place seasoning containers or tableware near the heating
surface.
▼ Any object placed near the heating surface may get hot enough to
cause a burn.
▽ Do not use food items that may crack or burst open while burning
or being heated. (Make necessary preparations with food items
with high water content such as squid to reduce the risk.)
▼ Failure to observe this may result in a risk of burn.

SERW_ENGLISH 101
7
Inner Casing
Preparation before Use
◆Refer to P.1~2 to set up the parts.
1. Set the Grease Filter o the bottom of the Outer Casing.
2. Mount the Inner Casing onto the Outer Casing.
3. Place the Heater Mount onto the Inner Casing.
4. Pour the water into the Heater Mount.
▼Appropriate amount is approximately 2.5 litters.
5. Set the Heater onto the Heater Mount.
6. Place the Heater Cover.
7. Mount the Top Ring onto the Drain Pan
▼The Top Ring is designed to fit the inside the Drain Pan.
▼Rotate the Top Ring a couple of times and make sure the Top Ring is sitting squarely and level
on the Drain Pan.
▼If the Top Ring is not sitting squarely or tilted, smoke from cooking may not discharged
properly or food may not cooked evenly.
8. Place the Grill Net using provided by us.
▼Use Grill Net provided by us.
Heater Cover

SERW_ENGLISH 101
8

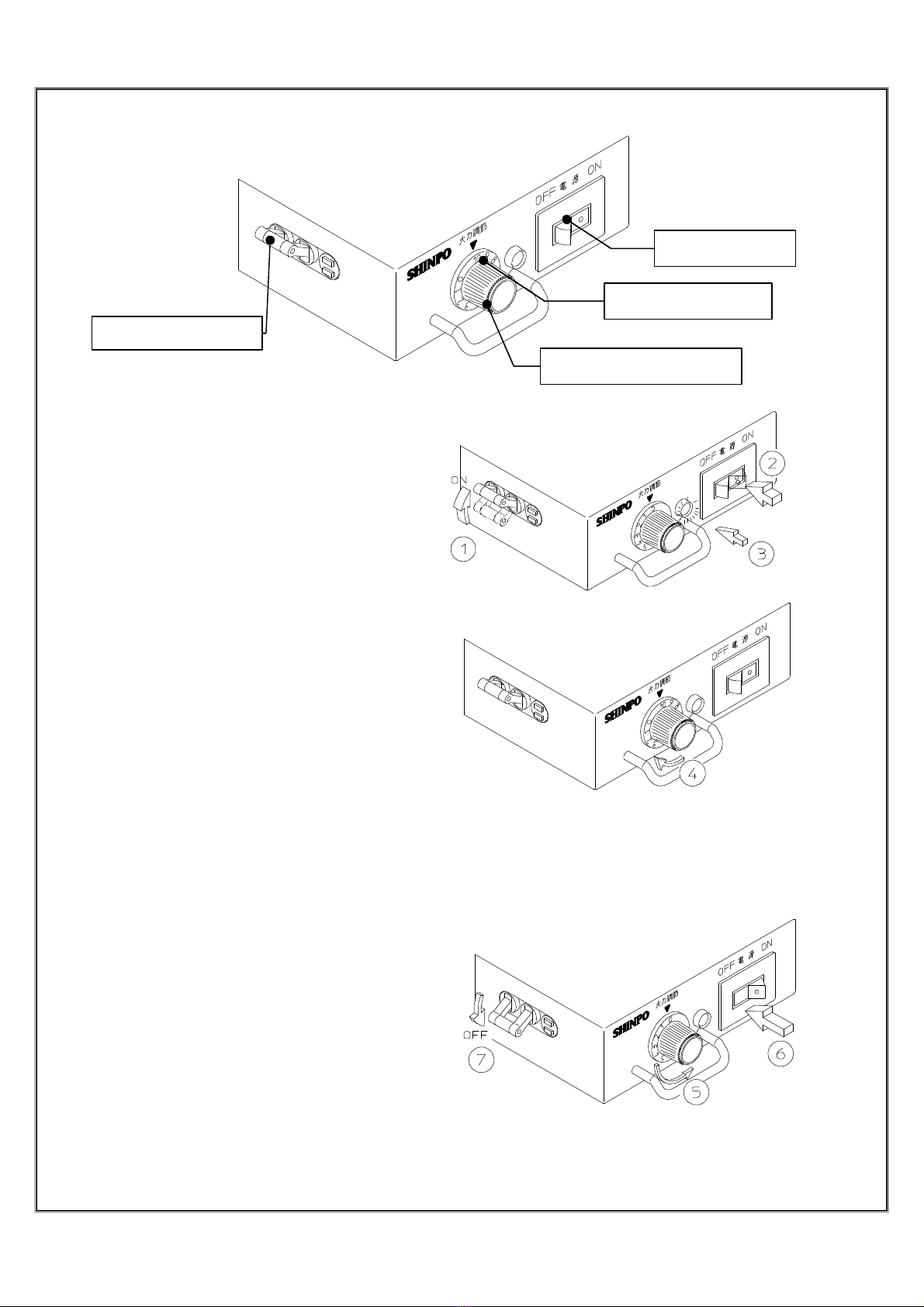

Control Box
③After 5 minutes later, start the cooking.
※Normally set the Heat Volume Control at position [8].
※Please be careful, even if the Heat Volume Control position is [0], the Heater is hot.
④After the operation, make sure to turn
off the Main Switch.
(Main Power Lump will go off.)
①Turn [ON] the Circuit Protector, and turn
[ON] the Main Switch. Main Power
Lump will turn on.
②Turn [ON] the Heat Volume Control to
position [10], and heat up the heater. It
will take about 5 minutes to heat up.
Heat Volume Control
Main Power Lump
Main Switch
Circuit Protector

SERW_ENGLISH 101
9
Daily Inspections & Maintenance
▼For safe operation of this product, make sure to carry out daily inspections and maintenance.
▼Make sure to turn off the power, check the Exhaust Fan is not operating and allow the appliance
to cool down before you attempt any inspections or maintenance.
◆Inspections
①Is every part or component clean?
②Is any part or component damaged or marred?
③Is any part or component rusted or corroded?
④Is every part of the Roaster in order?
◆Maintenance
①Clean the Top Ring after use with a piece of cloth. Make sure to clean the back side too.
②Clean the Heater Mount and Inner Casing at the close of the business.
③Clean the Outer Casing at the close of the business.
④Clean the Heater at least once a day.
※Refer to next page for Heater cleaning.
⑤Clean and wash off the Grease Filter using the dishwasher
once a week. Make sure the Grease Filter is completely dry
before use.

SERW_ENGLISH 101
10
◆Heater Cleaning
①Turn the Heat Volume Control to position [10], and burn the dirty oil.
②Turn off the Switch, and after 5 minutes spray water with sprayer.

SERW_ENGLISH 101
11
③Then brush the heater with brush.

SERW_ENGLISH 101
12
Safety Features
▽Overheating Detector
Water is not present in the Drain Pan・Parts are soiled with grease and burner flames are being sucked into
the exhaust duct. ・Exhaust Fan is not operating properly. ・The exhaust air volume is low due to filter
clogging, etc. ・Clogged Burner Holes force gas to flow backward and burn at the Gas intake.
▼If you hear warning sound, the switch of power turns OFF immediately and stop cooking.
▼The appliance has cooled down for a minutes, and then warning sound stops.
▼After cleaning and checking, heating using a heater again
▽Overcurrent Prevention Device
▼To prevent overcurrent, it makes Circuit protector turns off automatically.
▽Electrical leakage Device
▼In case of an electrical leakage, prevent electrical shock automatically.
Stop method of the warning sound and Caution.
In the case of stopping the warning sound, the switch of the power turns OFF and discontinues use
immediately.
Make sure to turn the Alarm Switch on again when normal operating conditions are restored (all the
causes for overheating have been removed and the appliance has cooled down to an acceptable level).
Ready for use, the switch of the power turns ON.
If the circuit protector turns off power, it turns on power after push the reset button.
Allow the appliance to cool down before you attempt to service the appliance.
If the directions above do not solve your problem(s), please contact your distributor or our
Service Center. Do not attempt to disassemble or repair the roaster unless you are properly
trained and licensed to do so. Disassembling or repairing by untrained individual may result
in a risk of appliances malfunction, injury or electric shock.

SERW_ENGLISH 101
13
Specifications
Model SERW
Product Smokeless Roaster
Power Source 200V（Single Phase）
Power
Consumption 2kW
Safety Feature Overheat Warning Device ・Overcurrent Prevention Device ・Electrical leakage Device

SERW_ENGLISH 101
14
Interval
▽The appliances must be installed as below.
Unit: mm
Roaster
Roaster
Side
Face
over
over
over
over
