Shinybow USA SB-2810 User manual

Supplied Accessories
Check that you have the following components in your converter pack ;
(1) 1 Instruction Manual
(2) 1 SB-2810 / SB-2809 booster
(3) 1 AC Adaptor : 12VDC,@300mA
Safeguards and Precautions
A. Keep this unit away from fire, extremely hot areas, water or moisture of any Kind.
B. Do not place this unit on any support that is not firm, level and strong.
C. Do not service the unit yourself. Opening the unit's housing will void the warranty.
D. Servicing must be by Shinybow or by an authorized technician.
C. Illegal duplication of copyrighted material is strictly prohibited by Federal Laws.
Introduction
Before you make any connections
Make sure the Video Player to be connected to the video monitors are functioning
according to their respective operation manuals before connecting them.
Always connect the Booster to the video monitors at a time and make sure each
works just as it did before it was connected.

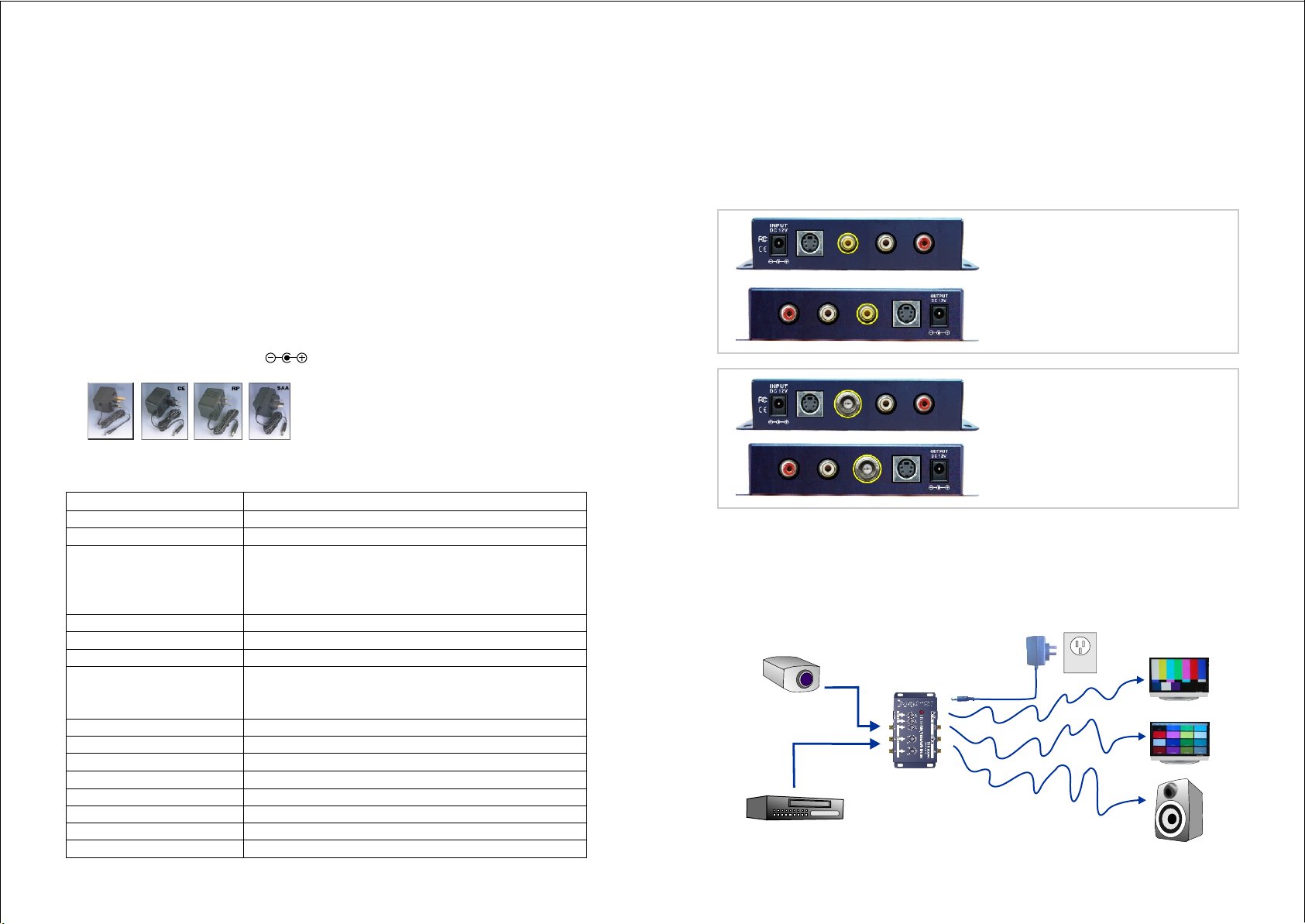

Typical Hookup and Operation
Europe CE Middle Asia Australia SAA
UK BS/CE
UK
AC/DC Adaptor Types : CE/UL/SAA/BS
Input
DC12V
AC POWER
OUTLET
APPLICATION S: SDTV / HDTV / Plasma MonitorsAPPLICATION S: SDTV / HDTV / Plasma Monitors
Congratulations on your purchase of one of the most innovative S-Video/Composite
Video/Stereo Audio Signals extend to Video monitor booster on the market Today.
SB-2810 video use by RCA connectors and SB-2811 video use by BNC connectors.
There are support one by one extend signal booster. This product provide video
amplify range from +0db~+6db. And monitor display output quality that are identical
to the video source S-video, composite video and Stereo Audio quality signals. He is
useful for extend the S-video/composite video/audio signals from the DVD, Video CD,
VCR, CCD security video or others AV video/audio devices up to 300ft ~1000ft long
distance video display monitors.
Booster amplify Range : +0db~+6dbBooster amplify Range : +0db~+6db
S-Video/Audio
Composite Video
Sources
Front: SB-2810 (Video RCA connectors)
Input : S-Video/Composite/Audio
Power Input : DC 12V, @300mA
Rear : SB-2810 (Video RCA connectors)
Output : S-Video/Composite/Audio
Power output : DC12V, @300mA
S-Video-TV
Extension : 300~1000ft
BOOSTERBOOSTER
DDHIGH V
Specifications
Input
Video Bandwidth
>250MHz, G=+2,
Small Signal Bandwidth(-3db)
440Mhz, G=+1, 250MHz, G=+2,
Setting time
10ns to 0.1%, 2V Step, G=+2
Low Distortion (SFDR)
-66 dBc @ 20MHz, Second Harmonic
Power Consumed
250mA Maximum
Power Source
DC 12 Volts, @300mA~500mA.
Size (L,W,H)
4.09 in x 2.83 in x 1.00 in (104mm x 72mm x 25mm)
Net Weight (Unit only)
1.00 lbs. (0.60kg) Approx.
In/Out Terminal
SB-2810 use RCA connectors, SB-2809 use BNC female connectors.
SB-2810 (RCA), SB-2809 (BNC)
Model Number
I/O port number
1x input to 1x output
S-Video(Y/C), Composite Video and Stereo Audio
Type of Signals
S-Video : Y +1Vpp, 75
W
0.01%, RL=150
0.1dB to 75 Mhz
Gain Flatness
Differential Gain Error
-75 dBc @ 20MHz, Third Harmonic
Third Order Intercept(3IP)
26 dBm @ 70MHz, G=+10
W
0.01%, RL=150
Differential Phase Error
W
Front : SB-2809 (Video BNC connectors)
Input : S-Video/Composite/Audio
Power Input : DC 12V, @300mA
Rear : SB-2809 (Video BNC connectors)
Output : S-Video/Composite/Audio
Power output : DC12V, @300mA
CCD
DVD
C +0.3Vpp, 75
W
Video : Composite Video +1Vpp, 75
W
Audio : Stereo Audio, +1 Vpp, 47K
W
Video-TV

This manual suits for next models
