Shinybow USA SB-6335T User manual

SB-6335T
HDMI HDBaseT™ TRANSMITTER up to 330 Feet
(2-way IR, RS-232, HDMI)
INSTRUCTION MANUAL

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualier service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally, or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

CONTENTS
TABLE OF CONTENTS ....................................................1
PACKAGE CONTENTS .................................................. 1
FEATURES & SPECIFICATIONS ..................................... 2
TYPICAL HOOKUP & OPERATION ................................ 3
IR EXTENDER ................................................................ 4
RACK MOUNT ............................................................... 6
INTRODUCTION
Congratulations on your purchase of one of the most innovative
HDMI 1.4a over single category cable Transmitter with RS-232
on the market today. SB-6335T HDBaseT™ Transmitter can
transmit the HDMI signal, IR Remote signals input or output
and RS-232 I/O series interface to the other size HDBaseT™
Receiver (SB-6335R) via single category LAN cable for the long
distance Maximum 328 feet (100M). Transmitter use the single
CAT6, CAT6a or CAT7 (UTP/FTP) category cable via RJ-45
8P8C female socket. The LAN cable support the 568a or 568b
LAN color specication table. This product provide higher full HD
HDMI 1.4a, HDTV Resolution supports 480i/p, 720p,1080i/p or
High 4K2K quality that are identical to the source high quality
full HDMI 1.4 signals. The Transmitter is useful for sending the
HDMI digital Video & digital multi-channel audio format signals,
IR remote in or IR remote out, RS-232 series in and RS-232
series out. Controls signals via single category cable transmit to
the HDBaseT™ Receiver.
PACKAGE CONTENTS
Check that you have the following components;
• SB-6335T HDBaseT™ Transmitter console
• Users Guide
• AC/DC Adapter: 12VDC/2A (universal power switch 50/60Hz,
100~240VAC)
1
HDBaseT™ with Ethernet 100M EXTENDER Series
Thank you for purchasing the SB-6335T HDBaseT™ with RS-232 Transmitter. You will nd this unit easy to install and highly
reliable but it is essential that you read this manual thoroughly before attempting to use Extender.
TABLE OF CONTENTS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update
or to keep current the information contained in this document.
We reserve the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise — without express written permission and consent
© Copyright 2015. All Rights Reserved.
Version 2.0 AUG 2015
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.
CONFORMANCE TEST REPORT
FOR EN 61000-6-1 / EN 61000-6-3
REPORT NUMBER: 09-07-MAS-282-18-R
FOR FCC 47 CFR/Part 15 Subpart B
REPORT NUMBER: 09-07-MAS-282-19-R
Model Number: SB-6335T
Comment Number : SB-6215, SB-6215R, SB-6215RE, SB-6220R SB-6220RE,
SB-6240R, SB-6240RE, SB-6335, SB-6335R, SB-6320, SB-6320R
Input: HDMI ((with DVI -Audio)
Output: HDBaseT™ via CAT6/6a/7 Cable
Power Input: +DC12V , 2A

FEATURES
• HDBaseT™ Transmitter Extend the HDMI over single CAT5e/6/6a category 100M LAN cable
• Transmits signals HDMI, IR in/out and RS-232 I/O series interface
• Single category cable via using the CAT6, CAT6a and CAT7 (UTP or FTP) cable
• Supports link speeds of up to 3.4 Gbps, HDMI 1.4, full HD 4K2K signal, HDCP compliant
• Supports Digital RGB 36bits, HDMI digital video TMDS, digital multi-channel audio format
• Extends higher quality full HD DVI video WUXGA 1920x1200 resolution
• Supports High Denition worldwide range resolution 480p, 720p 1080i/1080p-60Hz and 4K2K
• Extends long distances 328 feet (100M) between HDBaseT™ Transmitter and Receiver
• Supports wall mount install total 10 pcs. into one 19 inch 4U Rack mountable
• Power input via DC with Low power consumes (Full load 750mA)
• Power supply using universal power switch 50/60Hz,100~240VAC
SPECIFICATIONS
• Type of Extender: HDBaseT™ Transmitter for HDMI over single category 100M Cable
• Input Signals: HDMI with Digital Video(TMDS)/Audio 0.5~1.0vPP, DDC 5Vpp
• HDBaseT™ Supports: HDMI 1.4 Standard, DVI and HDCP Compliant
• Video Support: HDMI and DVI TMDS format for 1920x1200 resolution up to 3.4 Gbps Digital RGB 36bits deep color, 3D 1.4a HDMI format
• Audio I/O Support: Multi-channel Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-
ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
• Extend Distance: Up to 328 feet (100M) via (UTP or FTP CAT6 100M cable)
• Cable Support: CAT6, CAT6a, CAT7 use UTP or FTP category cable
• Supports HDMI Resolutions: 480p, 720p 1080i/1080p@60Hz or 4K2K@24Hz
• Scan Rate Accepted: Support HDMI full HD Resolutions; Frequency 24Hz to 60Hz
• Control: 1x IR in, 1x IR out and 1x RS-232 I/O series interface
• IR Infrared Frequency: 38Khz
• Safety Approvals: CE, FCC, VCCI, REACH & WEEE
• Dimensions (LxWxH): 5.12 x 3.14 x 1.14 in (130x80x29mm)
• Wall Mount: Wall mount pack (p/n:VM-1inch-L80MM)
• Rack Mount : Total 10 pcs install into 19 inch 4U Rack mountable
• Shipping Weight: 0.375 kgs / 0.825 lb
• Power Consumption: Max. 750mA. (Full load 1080p-60Hz signal with use DC12V input)
• Power Supply: Power Input +12VDC, 2A, (Universal Type 50/60Hz, 100~240 VAC)
As product improvements are continuous, specications are subject to change and without notice.
PACKAGE CONTENTS
• SB-100 set (IR Receiver Extender assy plug)
• SB-100C cable (IR Receiver Cable)
• SB-101 set (IR Transmitter Extender assy plug)
• SB-101C cable (IR Transmitter Cable)
• 1 inch High Wall mount pack (Part # WM-1INCH-L80MM)
• CAT6 Category cable distance 328 feet (100 M), (P/N: UTP6-100)
2
FEATURES & SPECIFICATIONS

3
TYPICAL HOOKUP AND OPERATION

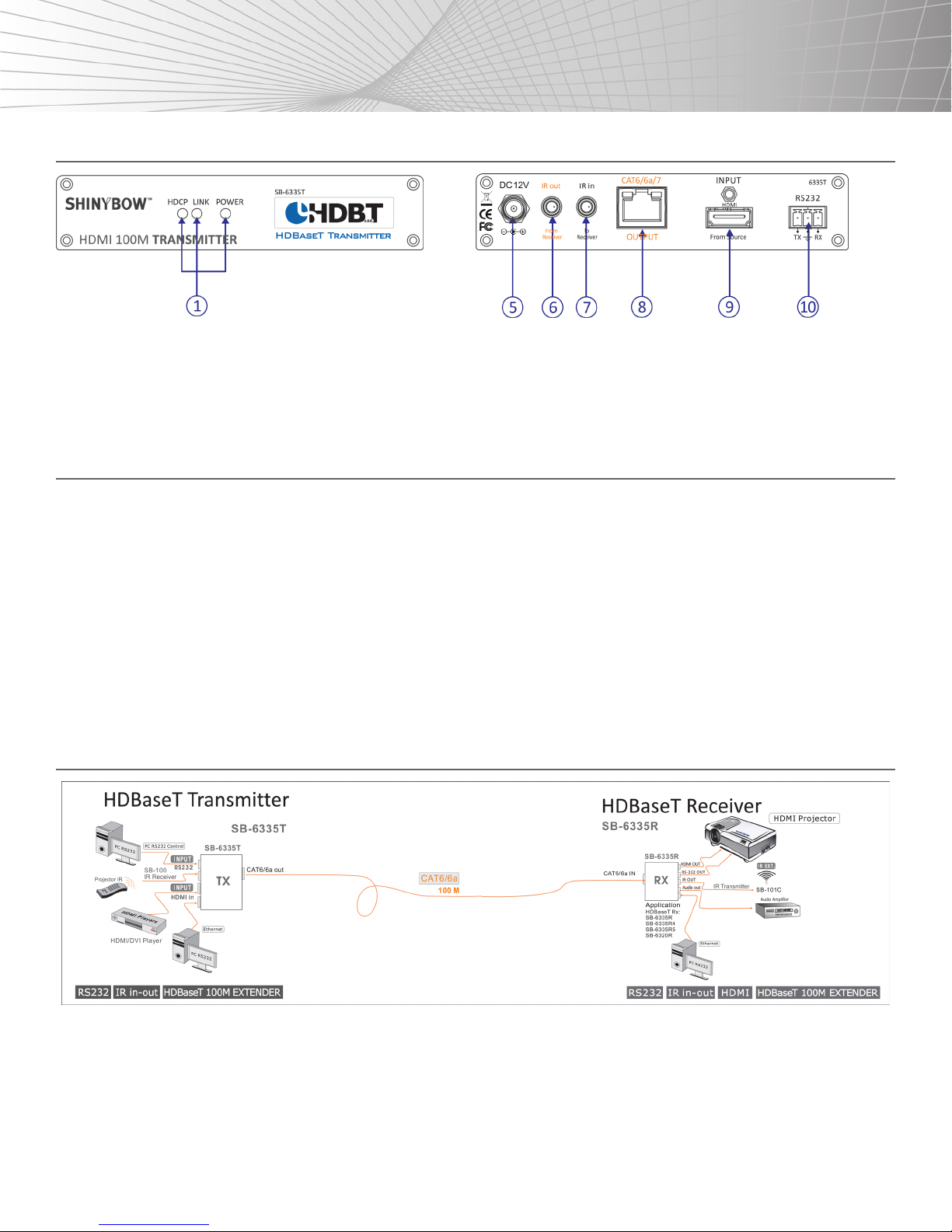

SB-6335T FRONT SB-6335T BACK
1. STATUS VIA LED SHOW OUT : POWER, LINK & HDCP
Safeguards and Precautions
A. Keep this unit away from re, extremely hot areas, water or moisture of any kind.
B. Do not place this unit on any support that is not rm, level and strong.
C. Do not service the unit yourself. Opening the unit’s housing will void the warranty.
D. Servicing must be by Shinybow or by an authorized technician.
C. Illegal duplication of copyrighted material is strictly prohibited by Federal Laws.
INSTALLING DIAGRAM
5. DC INPUT : DC12V, 2A
6. IR IN : Sending IR Signal To HDBaseT™Receiver
7. IR OUT : Receive IR signal from HDBaseT™Transmitter
8. RJ-45 OUT : HDBaseT™signal output to HDBaseT™Receiver
9. HDMI IN : HDMI signal input from HDMI source device
10. RS-232 I/O : RS-232 I/O series interface via HDBaseT™

Note:
The External IR jack has voltage on the “Ring” portion of a 3-conductor plug. You must use a 3-conductor plug (aka: stereo plug).
Using a 2-conductor plug will short out the power supply. Always make connections with the switcher power off.
*** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. ***
SB-100 IR Receiver Set
IR Receiver cable 6ft (2M)
SB-100C IR Receiver Cable
1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100)
2. SB-100C IR 2M Receiver
Switcher IR EXT. In Cable (2C) IR Receiver (SB-100C)
Pin configuration for IR 984 feet (300M) Extender Receiver such as SB-100 compatible
VCC (Ring)
Signal (center)
GND (Sleeve)
Tip Ring
Sleeve
Tip: Signal
Ring :VCC
Sleeve: GND
Ring
Tip (center)
Sleeve
SB-100 IR Receiver Set
Pin configuration for IR Receiver 6 feet (2M) cable such as SB-100C compatible
IR Receiver cable 6ft (2M)
SB-100C IR Receiver Cable
Signal (center)
GND (Sleeve)
Tip Ring
Sleeve
Tip: Signal
Ring: NC
Sleeve: GND
Ring
Tip (center)
Sleeve
The SB-100 IR Receiver is required when using the port “ALL in” Jack.
The SB-100C IR Receiver will not function on the port “ALL in” Jack.
SB-100C Maximum Distance ~ 6 feet (2M)
IN P UT
DC 1 2V
R o H S /9 5 /E C
IR EXT .
RS -232
R S -2 32 IR E X T. i n
SB-100
IR Rx
POWE R
INPU T - 1
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
HDMI MATRIX SW IT CHE R
ONOFF
INPUT -2
INPUT -3
INPUT-4
SW IR
Distance: Max.(2M)
IR PN#: SW-XXXX
Control Switch SB-XXXX
SB-100 Maximum Distance ~ 984 feet (300M)
IN P UT
DC 1 2V
R o H S /9 5 /E C
IR EXT .
RS -232
R S -2 32 IR E X T. i n
SB-100
IR Rx
POWE R
INPU T - 1
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
HDMI MATRIX SW IT CHE R
ONOFF
INPUT -2
INPUT -3
INPUT-4
SW IR
Distance: Max.300M
IR PN#: SW-XXXX
Control Switch SB-XXXX
SB-100 Receiver and SB-101 Transmitter The DISTANCE maximum ~ 984 feet (300M)
SB-100 Receiver and SB-101C Transmitter The DISTANCE maximum ~ 984 feet (300M)
IR EXTENDER
4
IR EXTENDER

PIN CONFIGURATION:
SB-101 and SB-101C Transmitter Pin configuration
1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101)
SB-101 Maximum Distance ~ 984 feet (300M)
SB-101C Maximum Distance ~ 6 feet (2M)
SB-101 IR Transmitter Set
R o H S /95 /E C
DC 1 2V
IR out
From
Receiver
IR in
To
Receiver
CAT6/6a/7
OUTPUT
SB-101 Maximum Distance ~ 984 feet (300M)
SB-101
IR Tx
SB-101C Transmitter Cable
IR Transmitter cable 6ft (2M)
SB-101C Maximum Distance ~ 6 feet (2M)
R o H S /95 /E C
DC 1 2V
IR out
From
Receiver
IR in
To
Receiver
CAT6/6a/7
OUTPUT
SB-101C
IR Tx
SB-101 IR Transmitter Set
Note:
The External IR jack has voltage on the “Ring” portion of a 3-conductor plug. You must use a 3-conductor plug (aka: stereo plug).
Using a 2-conductor plug will short out the power supply. Always make connections with the switcher power off.
*** When you plug the External IR extender into the switcher, the front panel IR transmitter remains active. ***
IR Transmitter cable 6ft (2M)
SB-101C Transmitter Cable
2. SB-101C IR 2M Transmitter
Device Cable (3C) IR Transmitter (SB-101C)
VCC (Ring)
Signal (center)
GND (Sleeve)
Tip Ring
Sleeve
Tip: Signal
Ring :VCC
Sleeve: GND
Ring
Tip (center)
Sleeve
Signal (center)
GND (Sleeve)
Tip Ring
Sleeve
Tip: Signal
Ring: NC
Sleeve: GND
Ring
Tip (center)
Sleeve
IR EXTENDER
5
IR EXTENDER

6
RACK MOUNT
SB-6069

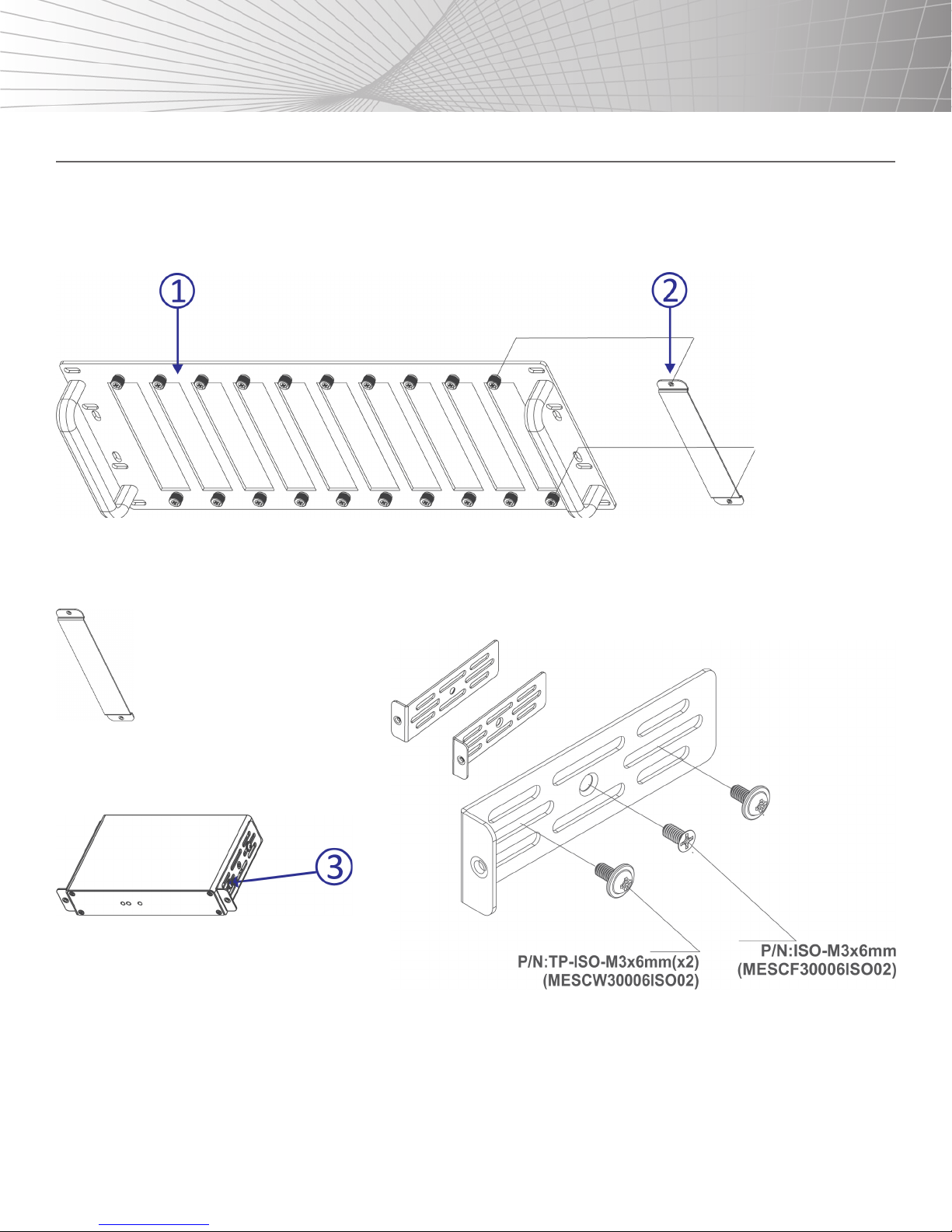

SB-6335T/SB-6335R 19 INCH 4U-10 UNITS RACK MOUNT
Model No. : #4U-10p-L130MM
SB-6335T/SB-6335R 4U Ear mount pairs
Parts No.: MEER6069ER13000
Model No. : #4U-10p-L130MM-COV
SB-6335T/SB-6335R 4U Ear mount pairs
Parts No.: MEER6069ER11000
Model No. : #4U-10p-L80MM-EAR
SB-6335T/SB-6335R 4U Ear mount pairs
Parts No.: MEER6320ER11001

7
RACK MOUNT
SB-6069
Complete 19 inch 4U rack mount
Install (10 units) Application : SB-6335T/SB-6335R
SB-6335T/SB-6335R : Wall mount accessories
Model No. : #WM-1INCH-L80MM
SB-6335T/SB-6335R Wall mount pairs
Parts No.: MEER6320ER11000

8
LIMITED WARRANTY
PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED
BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your
agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA,
Inc. at the return address set forth on the Product’s packing label at your expense. SHINYBOWUSA, Inc. may modify these Terms and Conditions at anytime,
without notice to you.
RESTRICTIONS ON USE OF THE PRODUCT
It is your responsibility to read and understand the installation and operation instructions, both verbal and in writing, provided to you with respect to the Product.
You are authorized to use the Product solely in connection with such instructions. Any use of the Product not in accordance with such instructions shall void any
warranty pertaining to the Product. Any and all damages that may occur in the use of the Product that is not strictly in accordance with such instructions shall be
borne by you and you agree to indemnify and hold harmless SHINYBOWUSA, Inc. from and against any such damage.
The Product is protected by certain intellectual property rights owned by or licensed to SHINYBOWUSA. Any intellectual property rights pertaining to the Product
are licensed to you by SHINYBOWUSA, Inc. and/or its afliates, including any manufacturers or distributors of the Product (collectively, “SHINYBOWUSA”) for your
personal use only, provided that you do not change or delete any proprietary notices that may be provided with respect to the Product.
The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by SHINYBOWUSA for your personal use only.
SHINYBOWUSA does not transfer either the title or the intellectual property rights to the Product and SHINYBOWUSA retains full and complete title to the
intellectual property rights therein. All trademarks and logos are owned by SHINYBOWUSA or its licensors and providers of the Product, and you may not copy or
use them in any manner without the prior written consent of SHINYBOWUSA, which consent may be withheld at the sole discretion of SHINYBOWUSA.
The functionality and usability of the Product is controlled by SHINYBOWUSA, Inc. from its ofces within the State of Texas, United States of America. SHINYBOWUSA
makes no representation that materials pertaining to the Product are appropriate or available for use in other locations other than the shipping address you provided
with respect thereto. You are advised that the Product may be subject to U.S. export controls.
Disclaimers and Limitation of Liability
SHINYBOWUSA may change or modify the Product at any time, from time to time.
THE PRODUCT IS PROVIDED “AS IS” AND WITHOUT WARRANTIES OF ANY KIND EITHER EXPRESS OR IMPLIED. SHINYBOWUSA DOES NOT WARRANT
OR MAKEANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE PRODUCT’S CORRECTNESS, ACCURACY, RELIABILITY,
OR OTHERWISE.
SHINYBOWUSA has no duty or policy to update any information or statements pertaining to the Product and, therefore, such information or statements should
not be relied upon as being current as of the date you use the Product. Moreover, any portion of the materials pertaining to the Product may include technical
inaccuracies or typographical errors. Changes may be made from time to time without notice with respect to the Product.
TO THE FULLEST EXTENT PERMISSIBLE PURSUANT TO APPLICABLE LAW, SHINYBOWUSA DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT.
SHINYBOWUSA DOES NOT WARRANT THE ACCURACY, COMPLETENESS OR USEFULNESS OF ANY INFORMATION WITH RESPECT TO THE PRODUCT.
SHINYBOWUSA DOES NOT WARRANTTHAT THE FUNCTIONS PERTAINING TO THE PRODUCT WILL BE ERROR-FREE, THAT DEFECTS WITH RESPECT TO
THE PRODUCT WILL BE CORRECTED, OR THAT THE MATERIALS PERTAINING THERETO ARE FREE OF DEFECTS OR OTHER HARMFUL COMPONENTS.
SHINYBOWUSA WILL USE ITS REASONABLE EFFORTS TO CORRECT ANY DEFECTS IN THE PRODUCT UPON TIMELY WRITTEN NOTICE FROM YOU
NOT TO EXCEED 10 BUSINESS DAYS AFTER RECEIPT BY YOU OF THE PRODUCT, BUT YOU (AND NOT SHINYBOWUSA) ASSUME THE ENTIRE COST
OF ALL NECESSARY SERVICING, REPAIR AND CORRECTION THAT WAS CAUSED BY YOU UNLESS OTHERWISE AGREED TO IN A SEPARATE WRITING
BY SHINYBOWUSA.
UNDER NO CIRCUMSTANCES, INCLUDING, BUT NOT LIMITED TO, NEGLIGENCE, SHALL SHINYBOWUSA BE LIABLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES THAT RESULT FROM THE USE OF, OR THE INABILITY TO USE THE PRODUCT IN ACCORDANCE WITH ITS SPECIFICATIONS,
EVEN IF SHINYBOWUSA OR ITS REPRESENTATIVES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL
SHINYBOWUSA’S TOTAL LIABILITY TO YOU FROM ALL DAMAGES, LOSSES, AND CAUSES OF ACTION (WHETHER IN CONTRACT, OR OTHERWISE)
EXCEED THE AMOUNT YOU PAID TO SHINYBOWUSA, IF ANY, FOR THE PRODUCT.
END OF DOCUMENT

THIS PAGE IS INTENTIONALLYLEFT BLANK.

122 Rose Ln. Suite 303 | Frisco, Texas 75034
1-877-SHINY-USA
1-877-744-6987
1-972-377-2508
[email protected]
www.shinybowusa.com
