Show Tec LED Par 56 Short V2 42421-01 User manual

LED Par 56 Short V2
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 42421-01
MANUAL
ENGLISH

1
Ordercode: 42421-01
LED Par 56 Short
Table of contents
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Rigging ............................................................................................................................................................................4
Connection with the mains.........................................................................................................................................5
Return Procedure..........................................................................................................................................................6
Claims..............................................................................................................................................................................6
Description of the device.................................................................................................................................................7
Frontside..........................................................................................................................................................................7
Backside .........................................................................................................................................................................8
Installation...........................................................................................................................................................................8
Set Up and Operation .......................................................................................................................................................8
Color frame retaining clip ...........................................................................................................................................9
Control Modes...............................................................................................................................................................9
One LED Par 56 Short (Auto Mode)........................................................................................................................9
One LED Par 56 Short (Sound-controlled) ...........................................................................................................10
One LED Par 56 Short (Static colors).....................................................................................................................10
Multiple LED Pars (DMX Control) ...........................................................................................................................11
DMX Address Quick Reference chart.....................................................................................................................13
Fixture Linking...............................................................................................................................................................14
Data Cabling...............................................................................................................................................................14
DMX Channels .............................................................................................................................................................15
6 channels .................................................................................................................................................................15
Maintenance....................................................................................................................................................................16
Troubleshooting ...............................................................................................................................................................16
No Light.........................................................................................................................................................................16
No Response to DMX..................................................................................................................................................16
Product Specifications....................................................................................................................................................18

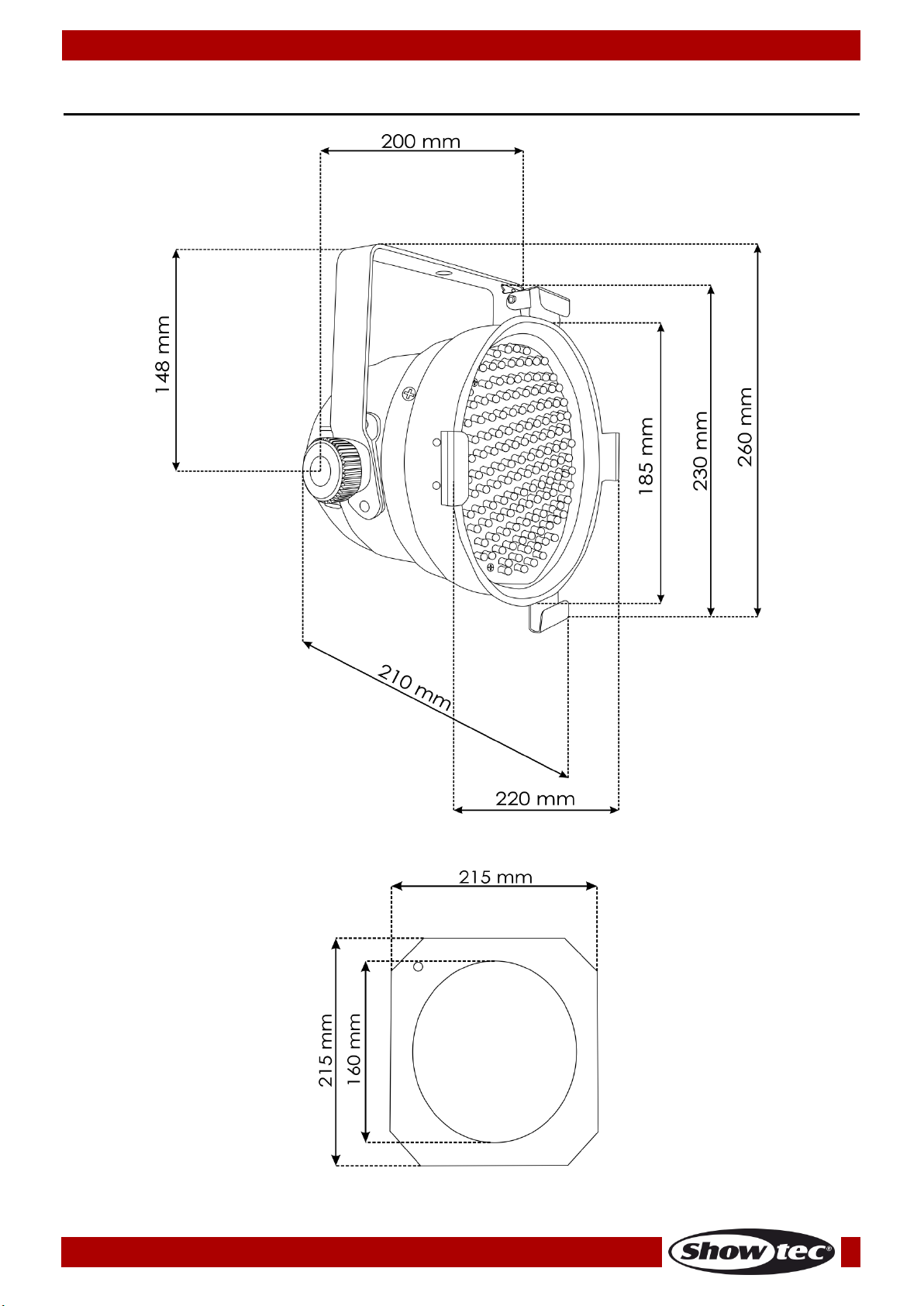

Dimensions........................................................................................................................................................................19
Notes ..................................................................................................................................................................................20

2
Ordercode: 42421-01
LED Par 56 Short
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Showtec LED Par 56 Short with 0,5m power cable
1 x color frame
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual

3
Ordercode: 42421-01
LED Par 56 Short
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
•Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
•Never place any material over the lens.
•Never look directly into the light source.
•Never leave any cables lying around.
•Do not connect this device to a dimmerpack.
•Do not switch the device on and off in short intervals, as this will reduce the device’s life.
•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
•Do not shake the device. Avoid brute force when installing or operating the device.
•Only use the device indoors, avoid contact with water or other liquids.
•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
•Only operate the device after having familiarized with its functions.
•Avoid flames and do not put close to flammable liquids or gases.
•Always keep the case closed while operating.
•Always allow a free air space of at least 50 cm around the unit for ventilation.
•Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
•Make sure that the device is not exposed to extreme heat, moisture or dust.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
•If the lens is obviously damaged, it has to be replaced.
•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
•For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit
running unattended.
•Never attempt to bypass the thermostatic switch or fuses.
•For replacement use fuses of same type and rating only.

4
Ordercode: 42421-01
LED Par 56 Short
•The user is responsible for correct positioning and operating of the LED Par 56 Short. The manufacturer
will not accept liability for damages caused by the misuse or incorrect installation of this device.
•This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.
Operating Determinations
•This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
•The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
•The maximum ambient temperature ta= 40°C must never be exceeded.
•The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
•If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
•If the Parcan is lowered from the ceiling or high joists, professional trussing systems have to be used.
•Use a clamp to mount the Parcan, with the mounting bracket, to the trussing system.
•The Parcan must never be fixed swinging freely in the room.
•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
•When rigging, derigging or servicing the Parcan, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.

5
Ordercode: 42421-01
LED Par 56 Short
The LED Par 56 Short can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!

6
Ordercode: 42421-01
LED Par 56 Short
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.

7
Ordercode: 42421-01
LED Par 56 Short
Description of the device
Features
The LED Par 56 Short is a LED parcan fixture, with high output and great effects.
Compact size
Never change lamps again!
Sound Control
Low power consumption, long lifetime
Input voltage: 240V-50Hz (CE)
Power consumption: 20W
DMX channels: 6
DMX Addressing via dipswitches
Light source: 151 LEDs (51 Red, 49 Green, 51 Blue)
Control modes: Stand alone, Auto Mode, Sound-controlled and DMX-512
Control protocol: DMX-512
Dimmer: 0-100%
Strobe: 0-20Hz
Working temperature: -10°C ~ 40°C
Connections: 3-pin DMX IN and OUT
Dimensions: 210 x 200 x 260 mm (LxWxH)
Weight: 0,78 kg
Duty cycle: Colormixing 8 hours / Full on: 2 hours.
Not suited for continuous use!

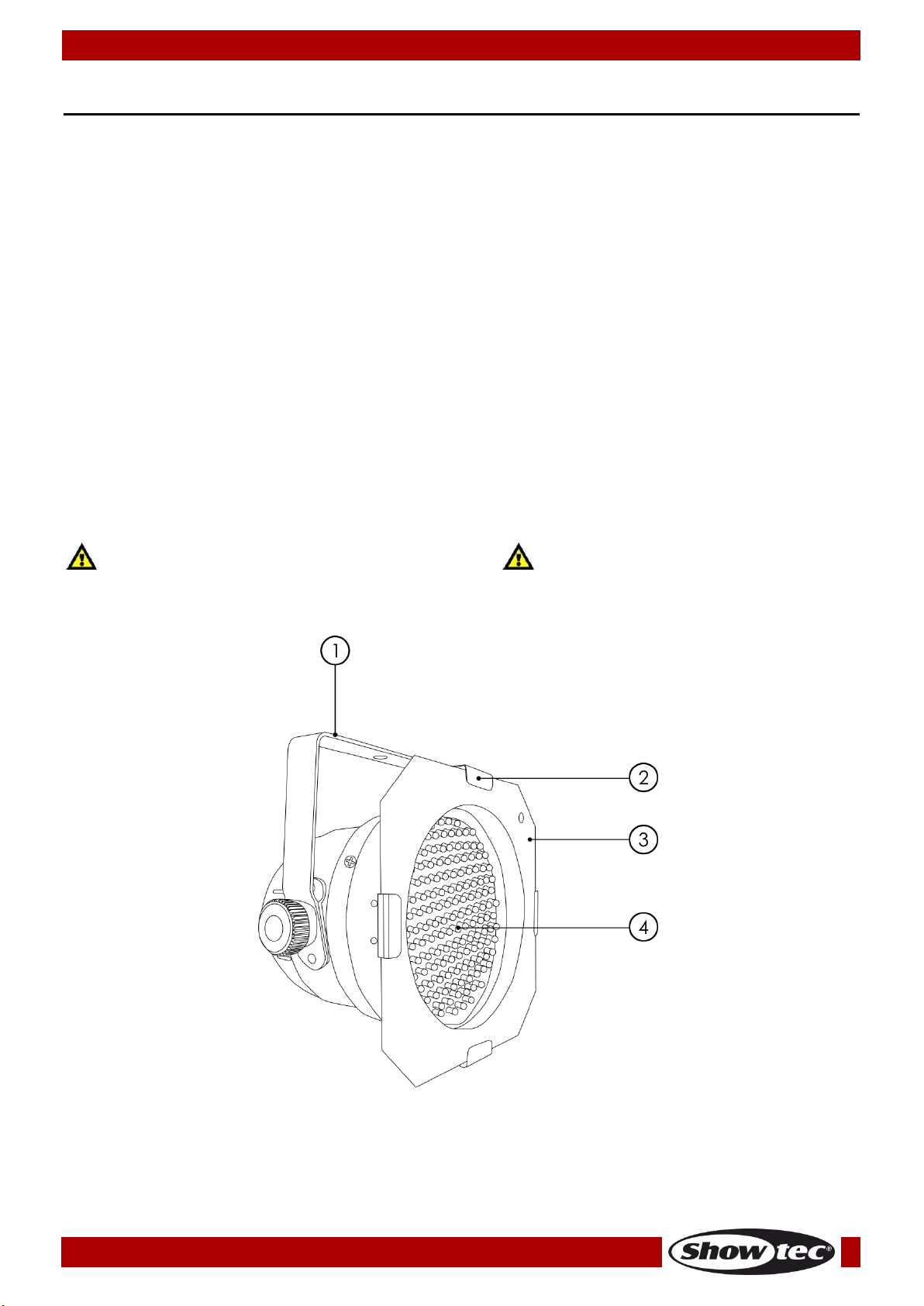

Frontside
Fig. 01
01) Mounting bracket with adjustment screw
02) Color frame retaining clip
03) Color frame
04) 151 LEDs (51 Red, 49 Green, 51 Blue)

8
Ordercode: 42421-01
LED Par 56 Short
Backside
Fig. 02
05) Mode LED (LED will blink in DMX-mode, in other modes it will light up)
06) DMX Dipswitches
07) 3-pin DMX signal connector IN
08) Ground/Earth connection
09) Power cable
10) 3-pin DMX signal connector OUT
11) Audio Sensitivity
Installation
Remove all packing materials from the LED Par 56 Short. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.

9
Ordercode: 42421-01
LED Par 56 Short
Color frame retaining clip
01) Press and hold down the color frame retaining clip.
02) Insert the color frame into the bracket.
03) Release the color frame retaining clip in order to secure the color frame in position.
Fig. 03
Control Modes
There are 4 modes:
•Auto Mode
•Sound-controlled
•Static Colors Mode
•DMX-512 (6CH)
One LED Par 56 Short (Auto Mode)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the LED Par 56 Short is not connected with a DMX cable, it functions as a stand-alone device.
05) When dipswitch #9 and #10 are turned on, the LED Par is in AUTO Mix Color Mode.
06) Dipswitches #1 - #7 control the changing speed.

10
Ordercode: 42421-01
LED Par 56 Short
One LED Par 56 Short (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When dipswitch #10 is turned on, the par will automatically change its color to the beat of the
music.
05) Turn on the music. If the device is set to sound-control, then the LED Par 56 Short will react to the
beat of the music.
06) With the sensitivity control you can adjust its music-sensitivity.
One LED Par 56 Short (Static colors)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the LED Par 56 Short is not connected with a DMX cable, it functions as a stand-alone device.
05) When dipswitches #8, #9 and #10 are turned on, the LED Par is in Static colors mode.
Dip Switches #1 and #2 control the brightness of the Red LEDs.
Dip Switches #3 and #4 control the brightness of the Green LEDs.
Dip Switches #5 and #6 control the brightness of the Blue LEDs.
Brightness grades, example RED :
00 Dipswitch Setting:
= 0%
10 Dipswitch Setting
= 25%
01 Dipswitch Setting
= 50%
11 Dipswitch Setting
= 100%

11
Ordercode: 42421-01
LED Par 56 Short
Multiple LED Pars (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) When all dipswitches are turned off, the LED Par is in DMX Mode.
04) Use a 3-pin XLR cable to connect the LED Pars and other devices.
05) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
Multiple LED Pars DMX Set Up
Fig. 04
Note : Link all cables before connecting electric power

12
Ordercode: 42421-01
LED Par 56 Short
Example
Dipswitches #1 - #9 control the DMX Addresses.
DMX products must have their own "address" to receive DMX signals. Addresses on the controller are set
by flipping the appropriate DMX dipswitches. You need to know that DMX address settings are the sum of
the dip switch values. A standard DMX address for a Showtec LED Par 56, which has 6 channels is as
follow:
LED Par 56
Address Value
DMX Dip Switches "ON"
Unit 5
25
#1 , #4, #5
Switch
Value
#1
1
#4
8
#5
16
+
Total sum
25
Explanation: Since each unit has 6 channels, each address advances 6 values (See Address Value
above).Once address values are determined, add DMX dipswitch values to obtain the appropriate
address (DMX Dip Switches "ON") for each unit. Flip appropriate DMX dipswitches on each unit.
Example:
01) If you want to give a LED par DMX address 133, you first have to find the number 133 in the DMX
Chart. (See page 13)
02) Then look at the left side (Dip Switches #1-#5) horizontally from 133.
In the Table you’ll see #1=ON, #2=OFF, #3=ON, #4=OFF, #5=OFF.
03) Finally look at the upper side of the table (Dip Switches #6-#9) vertically from 133.
In the Table you’ll see #6=OFF, #7=OFF, #8=ON, #9=OFF.

13
Ordercode: 42421-01
LED Par 56 Short
DMX Address Quick Reference chart

14
Ordercode: 42421-01
LED Par 56 Short
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller. The
combined number of channels required by all the fixtures on a serial data link determines the number of
fixtures the data link can support.
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
•DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
•DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
•DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
•DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.

15
Ordercode: 42421-01
LED Par 56 Short
DMX Channels
6 channels
Channel 1 –Red
0-255
Gradual adjustment Red, from 0-100%
Channel 2 –Green
0-255
Gradual adjustment Green, from 0-100%
Channel 3 –Blue
0-255
Gradual adjustment Blue, from 0-100%
Channel 4 –Macro colors
0-7
No function
8-255
Gradual adjustment colors, from 0-100%
Channel 5 –Program Speed CH6 must be set between 32-223
0-255
Slow to fast
Channel 5 –Strobe CH1, CH2, CH3 or CH4 must be set between 0-255 or CH6 between 0-31
0-15
No function
16-255
Strobe flash frequency, from slow to fast
Channel 6 –Built-in programs
0-31
No function
32-63
Slow fade in to full beam then out (CH1, CH2 and/or CH3 must be set between 1-255)
64-95
Full beam to slow fade out (CH1, CH2 and/or CH3 must be set between 1-255)
96-127
Slow fade in to full beam to slow fade out
(CH1, CH2 and/or CH3 must be set between 1-255)
128-159
Continuous flow of colors
160-191
3 color jump
192-223
7 color jump
224-255
Sound-controlled

16
Ordercode: 42421-01
LED Par 56 Short
Maintenance
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The LED Par 56 Short requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-
output very quickly.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Suspect three potential problem areas as: the power supply, the LEDs, the internal fuse.
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The LEDs. Return the LED Par to your Showtec dealer.
03) The internal fuse. Return the LED Par to your Showtec dealer.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the LED Par, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.

17
Ordercode: 42421-01
LED Par 56 Short
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
•Check if power is switched on and
cables are plugged in
Internal fuse blown
•Return the Par 56 to your Showtec
dealer
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
•Connect controller.
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
•Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
•Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
•Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
•Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
•Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
•Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
•Have the defective fixture
serviced by a qualified technician
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
•Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
No light or LEDs
cuts out
intermittently
Fixture is too hot
•Allow the fixture to cool down
•Clean the fan
•Turn up the air conditioning
LEDs damaged
•Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
•Disconnect fixture. Check settings
and correct if necessary

18
Ordercode: 42421-01
LED Par 56 Short
Product Specifications
Model:
Showtec LED Par 56 Short
Input Voltage:
240V-50Hz (CE)
Power consumption:
20W
DMX linking:
30pcs
Dimensions:
210 x 200 x 260 mm (LxWxH)
Weight:
0,78 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
6 Channels
Signal input:
3-pin XLR IN
Signal output:
3-pin XLR OUT
Electro-mechanical effects:
LED Quantity:
151 LEDs (51 Red, 49 Green, 51 Blue)
Color mixing:
RGB
Control protocol:
DMX-512
Dimmer:
0-100%
Strobe:
0-20Hz
DMX-control:
via standard DMX-controller
DMX Addressing
Dipswitches
Control:
Stand alone, Auto Mode, Sound-controlled and DMX-512
Connections:
3-pin DMX IN/OUT
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: [email protected]

19
Ordercode: 42421-01
LED Par 56 Short
Dimensions
