Ek Showpro ledpro132 User manual

LED PROFILE SPOT - VARIABLE WHITE

LEDPRO132

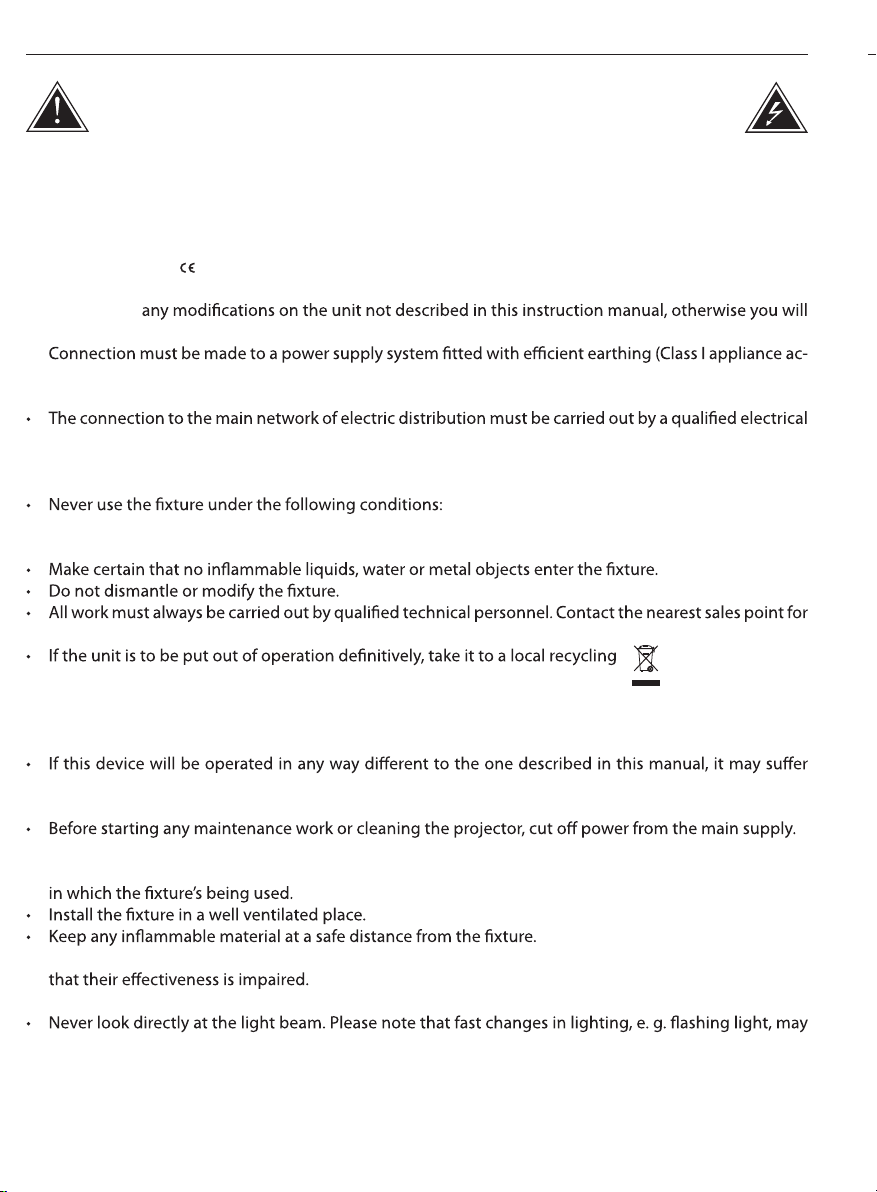

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there-

fore marked with .

• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.

Never make

risk an electric shock.

•

cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units

from indirect contact and/or shorting to earth by using appropriately sized residual current devices.

installer. Check that the main frequency and voltage correspond to those for which the unit is designed

as given on the electrical data label.

• This unit is not for home use, only professional applications.

- in places subject to vibrations or bumps;

- in places with a temperature of over 40 °C.

an inspection or contact the manufacturer directly.

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Always additionally secure the projector with the safety rope.When carrying out any work, always com-

ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

• Do not touch the product’s housing when operating because it may be very hot.

WARNING! Before carrying out any operations with the unit, carefully read this instruction

manual and keep it with cure for future reference. It contains important information about

the installation, usage and maintenance of the unit.

Beam Angle: 26°

Luminance (lux)

Distance (m)

Full

PHOTOMETRICS

42390

4710

1695

865

10m

423

3 5 7 10

1998

8514

4806

990

1791

42390

222

946

534

110

199

4710

340

192

1695

173

865

9.9

423

ALL

colors

meters

30960 3440 1238 631 309L

Packing content EPROFILE VW

TABLE OF CONTENTS Safety

General instructions

Warnings and installation precautions

General information

Introduction

Features

Specications

Maintenance

Cleaning the unit

Fuse replacement

• Mounting bracket

• Warranty card

• User manual

Overview

Dimensions

Operation

Trouble shooting

Display menu functions

DMX functions

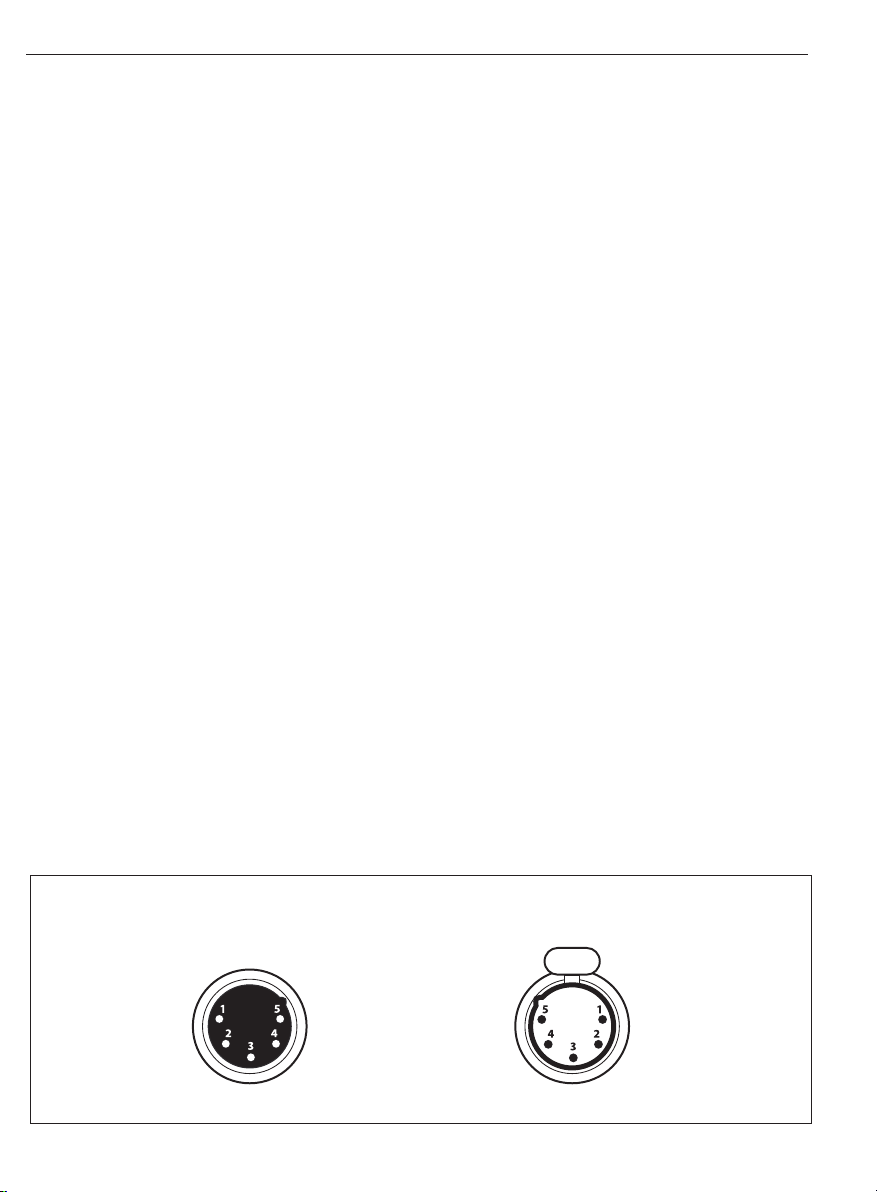

DMX pin diagram

Menu Function Chart

DMX Function Chart

Photometrics

• Power cord

DMX CHARTS

17CH Function Value Percent/Setting

1 Dimmer 000-255 0~100%

2 Dimmer Fine 000-255 0~100%

3 Red 000-255 0~100%

4 Red Fine 000-255 0~100%

5 Orange 000-255 0~100%

6 Orange Fine 000-255 0~100%

7 Green 000-255 0~100%

8 Green Fine 000-255 0~100%

9 Royal Blue 000-255 0~100%

10 Royal Blue Fine 000-255 0~100%

11 Blue 000-255 0~100%

12 Blue Fine 000-255 0~100%

13 Lime 000-255 0~100%

14 Lime Fine 000-255 0~100%

000-010 No Function

011-255 Strobe slow to fast

Color

Temperature

000-000 0

001-255 -25~25

17 HUE

Refer to 3CH CHART

15 Strobe

INTRODUCTION

The EPROFILE VW is a variable white LED prole.

FEATURES

- 250W LED with exquisite color rendering (up to CRI 92)

- Innovative six-color mixable LED light source

- Variable white color temp presets from 2800K ~ 8000K

- Adjustable +/- green hue ne tuning

- Independent control of discrete source colors (red, orange, green, royal blue, blue, lime)

- Higher output than traditional 750W ellipsoidal reector spotlights

- Flawless dimming with consistent color temperature throughout the dimming curve

- Flicker-free output with selectable PWM frequencies for worry-free video

- Crisp gobo image projection, even at close range

- Extremely at eld projection

- Quiet operation suitable for studio use (two selectable fan modes)

- Power linking (PowerCon In/Out)

- Rugged die-cast body and low-maintenance design

- Master/Slave mode, Auto Shows

- Manual control via onboard menu

- 16-bit dimming with selection of four dimming curves

- DMX control

- Available xed lens tubes: 14° - 19° - 26° - 36° - 50° (not included)

- Available zoom lens tubes: 15°-30° or 25°-50° (not included)

SPECIFICATIONS

Light Source: 250W COB 2800K ~ 8000K (up to CRI 92)

Beam Angle: 14° - 19° - 26° - 36° - 50°

Output: 1695 LUX @ 5 meters @ 26°

Color Temps: 2800K ~ 8000K

Focus: Manual

Strobe: 0-30 Hz

Dimming: 4 dimming curve modes

Control: DMX

DMX Channels: 3 / 5 / 6 / 8 / 11 / 15 / 17

Built-in Programs: Yes

Display: OLED function menu with 4 touch buttons

Mains: 100V-240V, 50/60 Hz

Consumption: 252W

Power connections: PowerCon In/Out

Data connections: 3- or 5-pin XLR In/Out for DMX

Housing: Diecast aluminium

Finish: Matte black or white

IP rating: IP20

Cooling: Active (variable speed fan)

Operating temperature: -20°C to 40°C

Max. Housing: 60°C

Dimensions: 596 x 287 x 551 mm

Weight: 7.8 KG

DMX CHARTS

11CH Function Value Percent/Setting

1 Dimmer 000-255 0~100%

2 Red 000-255 0~100%

3 Orange 000-255 0~100%

4 Green 000-255 0~100%

5 Royal Blue 000-255 0~100%

6 Blue 000-255 0~100%

7 Lime 000-255 0~100%

000-010 No Function

011-255 Strobe slow to fast

9Color

Temperature

000-000 0

001-255 -25~25

000-051 No function

052-101 Dimmer speed mode o (Hold 3S override menu and change)

102-152 Dimmer speed mode1 (Hold 3S override menu and change)

153-203 Dimmer speed mode2 (Hold 3S override menu and change)

204-255 Dimmer speed mode3 (Hold 3S override menu and change)

10 HUE

11 Dimmer Speed

Mode

8 Strobe

Refer to 3CH CHART

15CH Function Value Percent/Setting

1 Dimmer 000-255 0~100%

2 Dimmer Fine 000-255 0~100%

3 Red 000-255 0~100%

4 Red Fine 000-255 0~100%

5 Orange 000-255 0~100%

6 Orange Fine 000-255 0~100%

7 Green 000-255 0~100%

8 Green Fine 000-255 0~100%

9 Royal Blue 000-255 0~100%

10 Royal Blue Fine 000-255 0~100%

11 Blue 000-255 0~100%

12 Blue Fine 000-255 0~100%

13 Lime 000-255 0~100%

14 Lime Fine 000-255 0~100%

000-010 No Function

011-255 Strobe slow to fast

15 Strobe

MAINTENANCE

MAINTENANCE AND CLEANING THE UNIT

• Make sure the area below the installation place is free from unwanted persons during setup.

• All screws used for installing the device and any of its parts should be tightly fastened and should not

be corroded.

deformation.

• The main cables must be in impeccable condition and should be replaced immediately even when a

small problem is detected.

• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or

other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the

main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe

the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might

penetrate the unit and cause damage to it.

TROUBLESHOOTING

Problems Possible causes Checks and remedies

Fixture does not light up

• No mains supply

• Dimmer fader set to 0

• Faulty LED

• Faulty LED board

• Check the power supply voltage

• Increase the value of the dimmer channels

• Replace the LED board

General low light intensity • Dirty lens assembly

• Misaligned lens assembly

•

• Install lens assembly properly

Fixture does not power up

• No power

• Loose or damaged power cord

• Faulty internal power supply

• Check for power on power outlet

• Check power cord

• Replace internal power supply

Contact an authorized service center in case of technical problems or not reported in the table can not be

resolved by the procedure given in the table.

FUSE REPLACEMENT

1. Disconnect this product from the power outlet.

2. Using a screwdriver, unscrew the fuse holder cap from the housing.

3. Remove the blown fuse and replace with a good fuse of the same type and rat-

ing (250V/T3.15A).

4. Screw the fuse holder cap back in place and reconnect power.

DMX CHARTS

5CH Function Value Percent/Setting

1 Dimmer 000-255 0~100%

2 Dimmer Fine 000-255 0~100%

Color

Temperature

000-000 0

001-255 -25~25

000-010 No Function

011-255 Strobe slow to fast

4HUE

5 Strobe

Refer to 3CH CHART

6CH Function Value Percent/Setting

1 Red 000-255 0~100%

2 Orange 000-255 0~100%

3 Green 000-255 0~100%

4 Royal Blue 000-255 0~100%

5 Blue 000-255 0~100%

6 Lime 000-255 0~100%

8CH Function Value Percent/Setting

1 Dimmer 000-255 0~100%

2 Red 000-255 0~100%

3 Orange 000-255 0~100%

4 Green 000-255 0~100%

5 Royal Blue 000-255 0~100%

6 Blue 000-255 0~100%

7 Lime 000-255 0~100%

000-010 No Function

011-255 Strobe slow to fast

8 Strobe

OVERVIEW

Barrel

rotation

knob

Mounting

bracket

Framing

shutter (x 4)

Gobo

holder

slot

Lens tube

(sold separately)

Focus

knob

Bracket

tightening

knob

PowerCon In & Out DMX In & Out

Menu display

navigation

buttons

Accessory

holder

slot

Handle

DMX CHARTS

3CH Function Value Percent/Setting

1 Dimmer 000-255 0~100%

000-005 2800

006-013 2800K - 2900K

013-020 2900K - 3000K

020-027 3000K - 3100K

027-034 3100K - 3200K

034-041 3200K - 3300K

041-048 3300K - 3400K

048-055 3400K - 3500K

055-062 3500K - 3600K

062-069 3600K - 3700K

069-076 3700K - 3800K

076-083 3800K - 3900K

083-090 3900K - 4000K

090-097 4000K - 4100K

097-104 4100K - 4200K

104-111 4200K - 4300K

111-118 4300K - 4400K

118-125 4400K - 4500K

125-132 4500K - 4600K

132-139 4600K - 4700K

139-146 4700K - 4800K

146-153 4800K - 4900K

153-160 4900K - 5000K

160-167 5000K - 5100K

167-174 5100K - 5200K

174-181 5200K - 5300K

181-188 5300K - 5400K

188-195 5400K - 5500K

195-202 5500K - 5600K

202-209 5600K - 5700K

209-216 5700K - 6000K

216-223 6000K - 6500K

223-230 6500K - 6000K

230-237 7000K - 7500K

237-244 7500K - 8000K

244-255 8000K

000-000 0

001-255 -25~25

2Color

Temperature

3HUE

DIMENSIONS

595.5

287.7

551

ENTER

DOWN

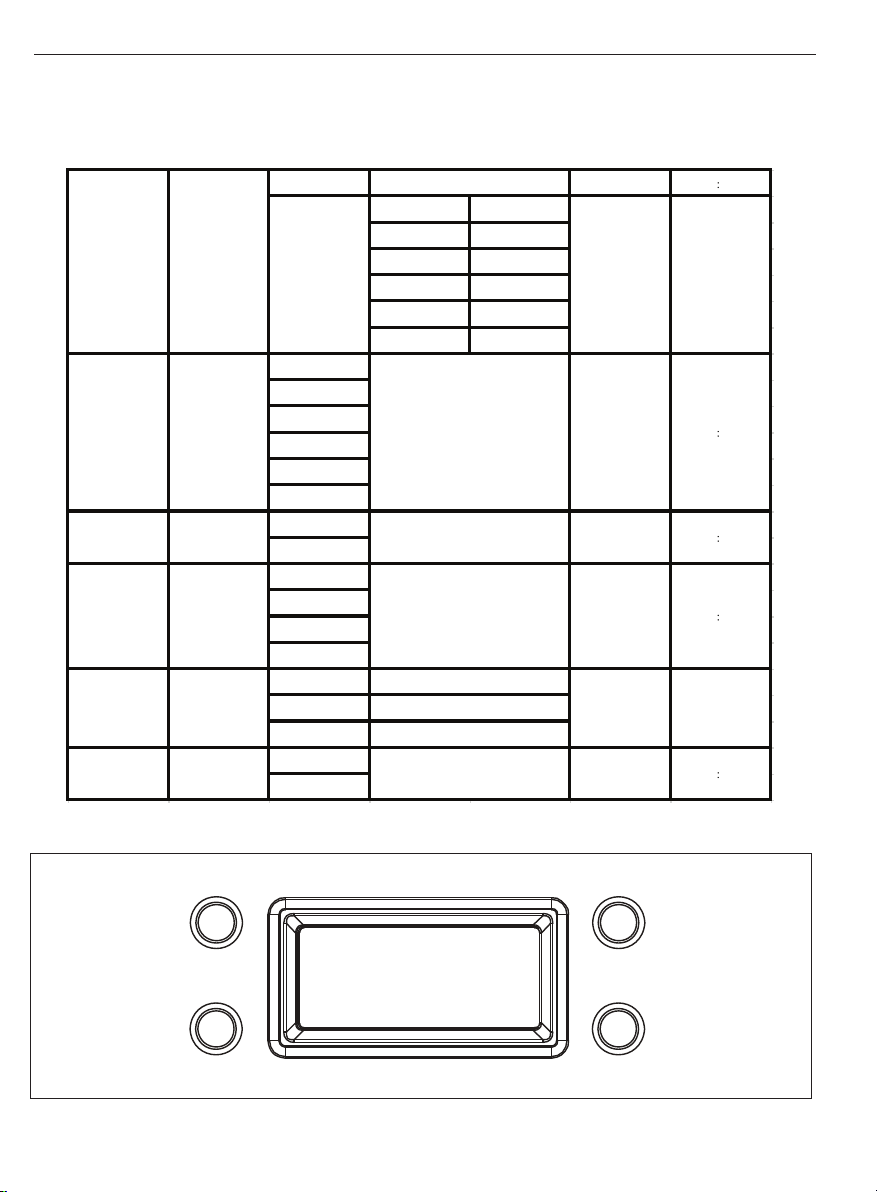

MENU FUNCTIONS (cont’d)

O Default O

Red <125-255>

Orange <125-255>

Green <125-255>

Royal Blue <125-255>

Blue <125-255>

Lime <125-255>

600Hz

1200 Hz

2000 Hz

4000 Hz

6000 Hz

25KHz

Auto

10S

20S

30S

Fixture Hours

Version

UID:

Yes

10 Reset Factory Default No

9 Information

9999H

V1.0

21A40138****

7 Fan Mode Default Auto

8 Back Light Default On

ALL=255

6LED Frequency Default 1200Hz

5 White Balance

anual

OPERATION

DISPLAY MENU FUNCTIONS

- DMX Address: Assign DMX starting address to the EPROFILE VW

- DMX Mode: Select either 3-. 5-, 6- or 8-, 11-, 15- or 17-channel mode

- Color Temperature: Select from 36 dierent white temperatures (2800K ~ 8000K)

- Hue Adjust -25% / +25 % submenu

- Manual Color Mixer: Manually set ROGBBL values to create custom colors

- Master/Slave: Set the EPROFILE VW to function either as a master or slave when linking multiple units

- Dimmer Mode: Select the preferred dimming curve (1 = fast, 2 = medium, 3 = slow)

- White Balance: Adjust ROGBBL values related to set white balance

- LED Frequency: Select the preferred frequency (for achieving icker-free video playback)

- Fan Mode: Select either variable speed (Auto) or always on (High)

- Back Light: Set display to darken after 10, 20 or 30 seconds, or set to always on (On)

- Information: View operating hours, sofware version and device ID

- Factory Reset: Reset to default values

DMX FUNCTIONS

- 3-Channel Mode: Master dimming from 0 ~ 100%, Color temperature presets, Hue

- 5-Channel Mode: Adds 16-bit (ne) dimming + strobe functions

- 6-Channel Mode: Individual Red, Orange, Green, Royal Blue, Blue, Lime channel control

- 8-Channel Mode: Individual Red, Orange, Green, Royal Blue, Blue, Lime channel control

+ Master Dimmer

+ Strobe function

- 11-Channel Mode: Adds Color temperature presets + Hue + Dimming curve selection

- 15-Channel Mode: 16-bit (ne) master + individual color dimming control + strobe function

- 17-Channel Mode: Adds Color temperature presets + Hue

DMX PIN DIAGRAM

DMX - OUTPUT

XLR socket

DMX - INPUT

XLR plug

Pin1 : GND - Shield

Pin2 : - Negative

Pin3 : + Positive

Pin4 : N/C

Pin5 : N/C

MENU FUNCTIONS

NO. Main Menu Menu level 2 Menu level4 Remark

1 DMX Address <001> Default 001

3Ch

5Ch

6Ch

8Ch

11Ch

15Ch

17Ch

Dimmer<0-100>

Hue<-25~25>

Red <0-255>

Orange <0-255>

Green <0-255>

Royal Blue <0-255>

Blue <0-255>

Lime <0-255>

Master

Slave

O

Dimmer 1

Dimmer 2

Dimmer 3

4 Dimmer Mode Default 0

Default all=255

3 Master/Slave Default Slave

6000K

6500K

7000K

7500K

8000K

anual Color

ixer

……

5300K

5400K

5500K

5600K

5700K3 Static

olor

emperature

2800K

Default 2800K

2900K

3000K

3100K

3200K

……

Menu level 3

2 DMX Channel Default 11Ch
