Show Tec Indigo 4500 LED User manual

Indigo 4500 LED
ORDERCODE 41382

Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Indigo 4500 LED brings excitement to any venue. Whether you want simple plug-&-play
action or a sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
4
4
5
5
6
6
7
7
7
7
7
7
8
8
9
9
10
10
10
11
12
12
12
12
12
13
13
13
13
13
13
14
14
14
14
14
15
15
16
16
17
17
19
21
21
22
22
23
24
25
25
25
26
27
Showtec
Showtec Indigo 4500 LED™Product Guide
Warning.................................................................................…...……………..…………………………..…………….…………….
Safety-instructions…………………………………………………………………………………………………………………….
Operating Determinations.………………………………………………………………………………………………………….
Rigging.………………………………………………………………………………………………………………………………….
Return Procedure………………………………………………………………………………………….......................................
Claims……………………………………………………………………………............................................................................
Description...............................................................................…...………………………………………….………………………..
Features and Overview ………………………………...….……………….………….……….……….…………………….…….
Backside…………………………………………………...…...….……………….…………………...…………………….………..
Installation...............................................................................…...…………………………………………………………..……..…
Set Up and Operation.....................................................................……..…………………………………………………………...
Control Modes…………………………………………………………………………………………………….……..…………….
One Indigo (Built-in Programs)…..………………………………………….……………….…………..…..……………….
One Indigo (Sound Control)………………………………………………………..…………………….……..……………
Multiple Indigo‟s (Master/Slave control).……………………………………………….…………….....…………………
Multiple Indigo‟s (DMX control)……………………………………………………………….…..………..………………..

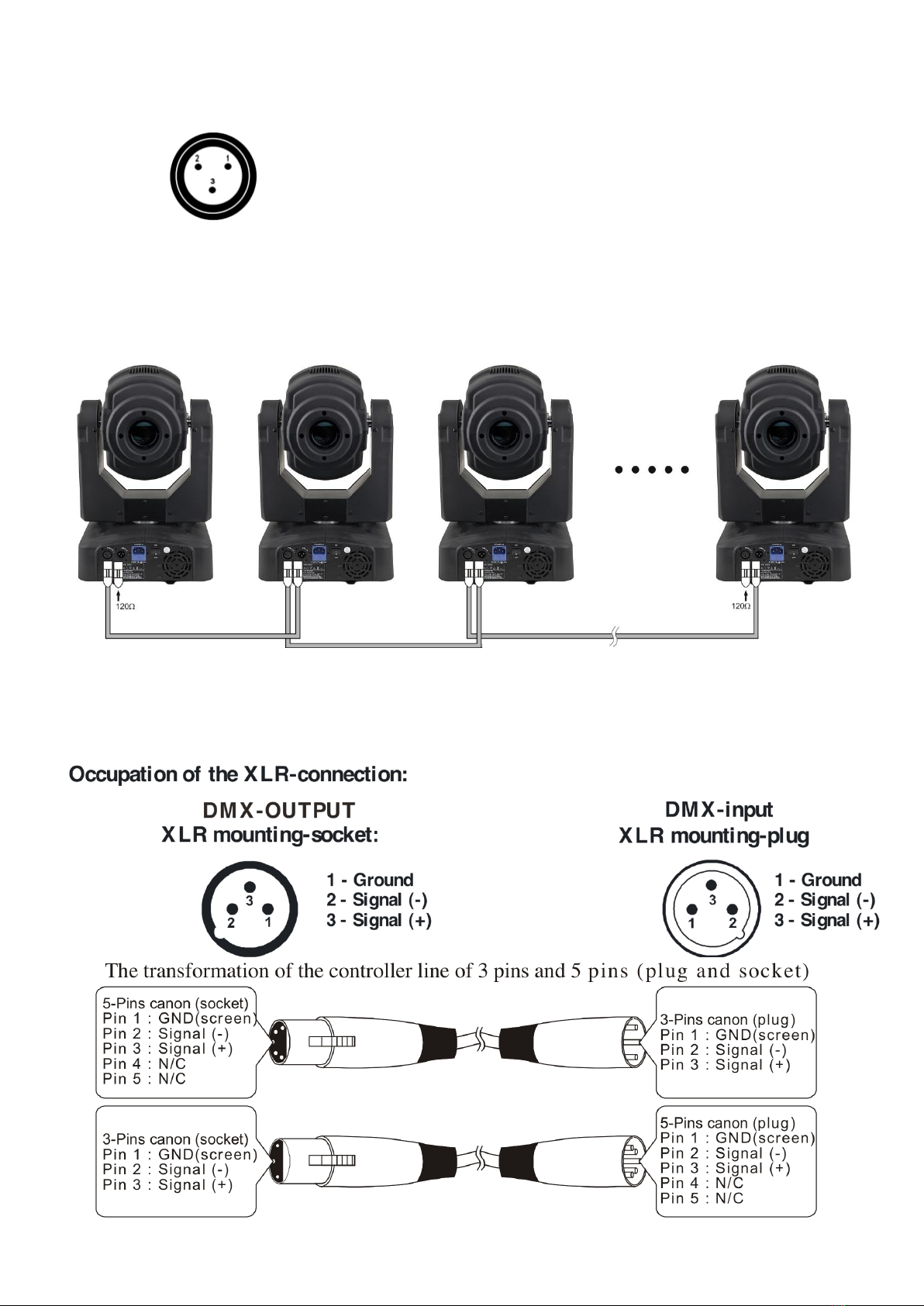

Fixture Linking…………………............……..……………………………………..…………………..…………..…………………
Data Cabling……………….........……..……………………………………………..………………………….…………………...
Control Panel….............……....................................………………………………………………………….……………….…..
Control Mode........................................……………………………………………………………………….…………………….
DMX addressing...................................………………………………………………………………………….………………….

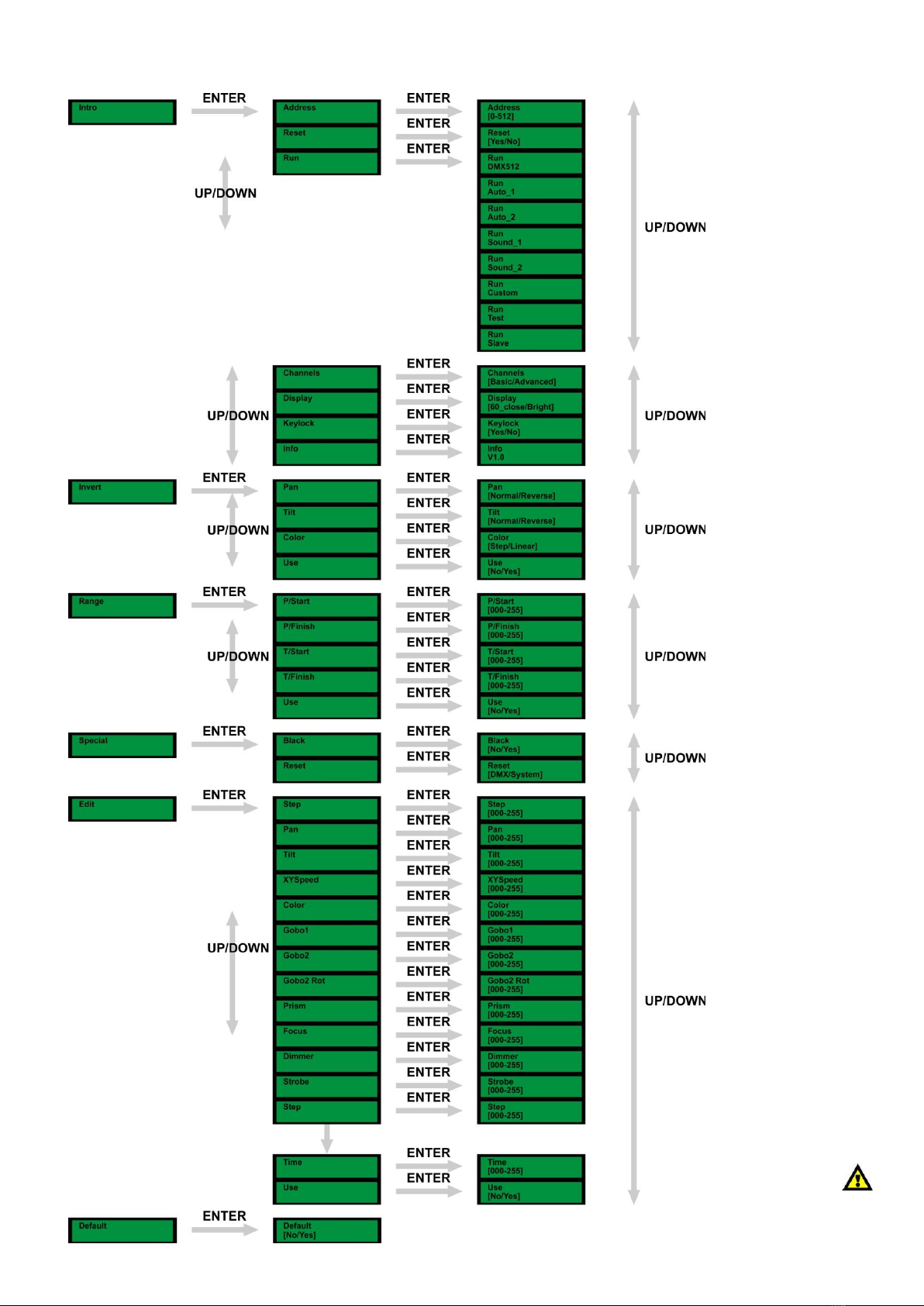

MENU OVERVIEW ……..……………………………………..…………………………………….…….……….…........................

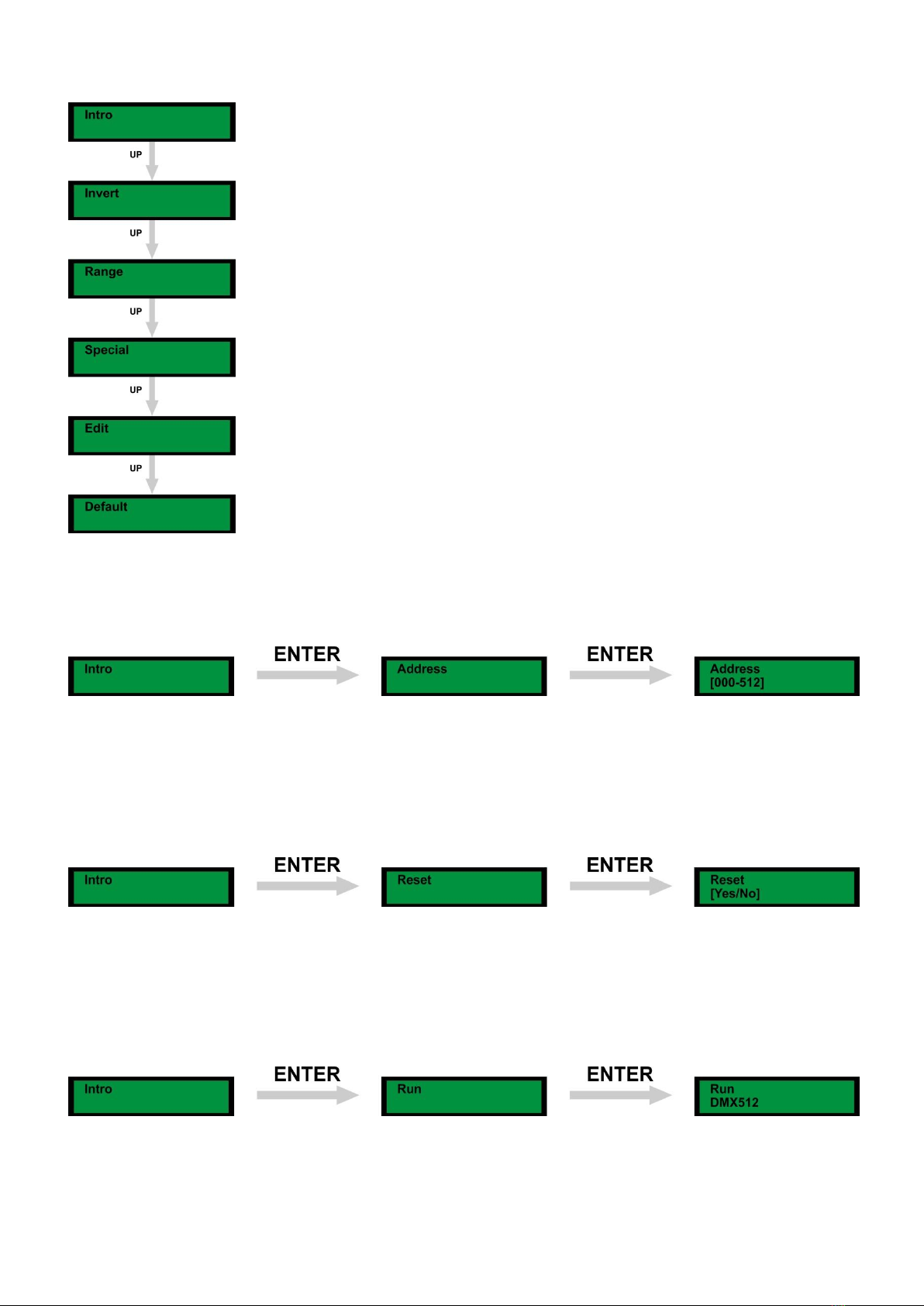

Main Menu Options.……………………………………..…………………………………….…….………………………...
1. Intro.… ……………………………..…………………………………….…….…………………………………………….
DMX Addressing.… ……………………………..…………………………………….…….……………………………
Reset……………………………..…………………………………….…….……………………………………………..
DMX Active……………………..…………………………………….…….……………………………………………..
Built-in Programs Mode………....…………………………………….…….……………………………………………
Built-in Programs (Auto_1 + Auto_2) …………………………….…….……………………………………………...
Sound-controlled (Sound_1 + Sound_2) …………………………….…….…………………………………………
Custom Mode…………………………….…….…………………………………………………………………………
Run Test…………………………….…….…………………………………………………………………………………
Slave Mode…………………………….…….……………………………………………………………………………
Channels Advanced/Basic Mode……………………….…….……………………………………………………..
Display Mode……………………….…….………………………………………………………………..……………..
Keylock Mode……………………….…….………………………………………………………………..……………..
Info version……………………….…….………………………………………………………………………………….
2. Invert……………………….…….…………………………………………………………………………………………….
3. Range…………………….…….………………………………………………………………………………………………
4. Special…………………….…….…………………………………………………………………………………………….
5. Edit……………….…….………………………………………………………………………………….……………………
6. Default……………….…….……………………………………………………………………..……………………………
DMX Channels………………………………………………………………………………...……………………………………….
14 Channels (ADVANCED) ……………………………………………………...…………………………………………...
11 Channels (BASIC)…….…………………………………………………………………………….……………………….
Channel settings…………………………..…………………………………………………………………………………………..
Beam Angle............................................................................…...…………………………………………………..……………….
Maintenance...................................................................................………..………….…….……………………..………………..
Replacing the Fuse........................................................................…………………….………………………………………...
Replacing a Gobo from the Rotating Gobo-wheel …..............................…….……….……………………………………
Gobo Orientation...............................................................…………………….…………………………………………………
Colorwheel, Static Gobowheel and Rotating Gobowheel………………………………………..………………………..
Troubleshooting............................................................................………………….………………….……………………………..
No Light, No Movement - All Products............................................………………….………………………………………..
No Response to DMX ....................................................................………………….…………………………………………..
Product Specifications.................................................................……………….…….…………………………………………….

2
WARNING
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• Showtec Indigo 4500 LED with Volex IEC powercable 1,75m
• 2 brackets for truss mounting
•Safety cable
•User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved
under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place
care in providing for lower operational temperatures. This may include climatic-environmental and the
reduction of overall projection intensity.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!

3
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.
Always hold the fixture at the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the device‟s life.
Do not touch the device‟s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only
handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due
to cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Movinghead must be installed out of the reach of children. Never leave the
unit running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Indigo. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(meant especially for epileptics) !

4
OPERATING DETERMINATIONS
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light-output and the illuminated surface must be more than 1 meter.
• The maximum ambient temperature ta= 45°C must never be exceeded.
•If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
•Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash
etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the projector is lowered from the ceiling or high joists, professional trussing systems have to be
used.
Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
The projector must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net
or safety-cable.
When rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Indigo can be placed on a flat stage floor or mounted to any kind of truss by a clamp.
Mounting a clamp to the underside of the Indigo moving head
Improper installation can cause serious damage to people and property !

5
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NUL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer‟s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
1) Your name
2) Your address
3) Your phone number
4) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

6
Description of the device
Features
The Showtec Indigo 4500 LED is a moving-head with high output and great effects.
• DMX Channels: 11 or 14
• DMX-control via standard DMX-controller
• Music Control
• Automatic Pan/Tilt correction
• Rotating Gobowheel with 7 rotating interchangeable gobos (2 glass, 5 metal) and open
• Static Gobowheel with 9 static gobos and open with Gobo Shake Function
• Colourwheel with 8 vivid colours and white
• Built in Automatic Programs
• Built in Sound activated programs
• Built in Macros via DMX
• 3 facet, rotating prism
• User selectable pan/tilt ranges
• Pan/Tilt movement blackout
• Reverse Pan/Tilt movement
• Cooling system: Low Noise Fan
• Beam Angle Vertical Spread: 15,78º degrees
• Beam Angle Horizontal Spread: 17º degrees
• Shutter: 0-20Hz
• Dimmer: 0-100% electronic dimmer
• Focus: Electronic focus
• Housing: Flame-retardant plastic
• Fuse 3,15 A / 250V
• Pan 0º -- 540º
• Tilt 0º -- 270º
• Control: DMX-512, Master/Slave, Sound
• User selectable Basic (11CH) or Advanced (14CH) operating modes
• Light Source: 1 x White LED (60W)
• Output; 4500+ Lux @ 2m
Overview 1
Fig. 1
2
1) Lens
2) Menu Buttons + LCD Display

7
Backside
Fig. 2
3 4 5 6
3) DMX signal connector (OUT) 3-pin
4) DMX signal connector (IN) 3-pin
5) IEC power connector + Fuse 3,15A 250V
6) On/Off
Installation
Remove all packing materials from the Indigo 4500 LED. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be music-controlled by its built-in
microphone.
Control Modes
There are 4 modes: • Stand-alone (built-in programs)
• Sound-controlled
• Master/Slave
• DMX512 (14 Channels ADVANCED or 11 channel BASIC)
One Indigo (Built-in Programs)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. When the Indigo is not connected by a DMX-cable, it functions as a stand-alone device.
Please see page 13 for more information about the built-in programs.
One Indigo (Sound-control)
1.Plug the end of the electric mains power cord into a proper electric power supply socket.
2. Turn on the music. If the device is set to sound-control, then the Indigo will react to the beat of the
music. Please see page 13 for more information about the sound-control options.

8
Multiple Indigo’s (Master/Slave control)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the Indigo.
The pins:
1. Earth
2. Signal -
3. Signal +
3. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out"
socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on page 13 (Built-in Programs,
or Music control). This means on the master device you can set your desired operation Mode
and all slave devices will react the same as the master device.
Multiple Indigo’s (Master/Slave control)
Fig. 3
Multiple Indigo’s (DMX Control)
1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable.
3. Use a 3-p XLR cable to connect the Indigo‟s and other devices.

9
4. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first unit.
Do not supply power before the whole system is set up and connected properly.
Multiple Indigo’s DMX Set Up
Fig. 4
Note : Link all cables before connecting electric power
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of Indigo„s on a DMX data link: 30 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio Certified DMX Data Cables
• DAP Audio cable for allround use. bal. XLR/M 3 p. > XLR/F 3 p.
Ordercode FL01150 (1,5m.), FL013 (3m.), FL016 (6m.), FL0110 (10m.), FL0115 (15m.), FL0120 (20m.).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.).

10
The Indigo 4500 LED can be operated with a controller in control mode or without the controller in stand-
alone mode.
Control Panel
Fig. 5
A. LCD Display D. Down Button
B. MENU button E. Up Button
C. ENTER Button
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Indigo will respond to the controller.
Please note when you use the controller, the unit has 14 channels.
When using multiple Indigo‟s, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Indigo‟s should be 1(001); the DMX address of the second Indigo
should be 1+14=15 (015); the DMX address of the third Indigo should be 15+14=29 (029), etc.
Please, be sure that you don‟t have any overlapping channels in order to control each Indigo correctly.
If two or more Indigo‟s are addressed similarly, they will work similarly.
For address settings, please refer to the instructions under ”Addressing‟.
Controlling:
After having addressed all Indigo fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Indigo will automatically detect whether DMX 512 data is received or not. If
there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
The problem may be:
- The XLR cable from the controller is not connected with the input of the Indigo.
- The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It‟s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.

11
Menu Overview
You first have to create a step
and press enter. Then Time and
Use will appear

12
Main Menu Options
1.
2.
3.
4.
5.
6.
1. Intro
DMX Addressing
With this menu you can set the DMX address.
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Address menu.
3) Press enter to open this menu. You can choose 512 different DMX addresses.
Use the Up / Down buttons to select the required address from 000 - 512.
4) Once you have set the desired DMX address, press the enter button to store your DMX address.
Reset
With this menu you can reset the device.
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Reset menu.
3) Press enter to open this menu. You can choose Yes or No mode.
Use the Up / Down buttons to select one.
4) Once you have set Yes, the device will reset and it will take 15 seconds to reset.
DMX Active
With this menu you able to control the device by DMX.
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Run menu.
3) Press enter to open this menu. Scroll through the menu until the display shows DMX512.
4) Once you have set DMX control, press the enter button to store your setting. The device will be DMX
Controlled.

13
Built-in Programs Mode
With this menu you can select 5 different Programs when using the Indigo.
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Run menu.
3) Press enter to open this menu. Scroll through the menu until the display shows Auto_1, Auto_2, Sound_1,
Sound_2 or Custom. You have 5 options to control the device as a stand-alone device.
4) Once you have chosen your desired mode, press the enter button to store your setting. The device will
start the built-in program.
Built-in Programs (Auto_1 + Auto_2)
The device will play its built-in stand-alone programs.
Sound-controlled (Sound_1 + Sound_2)
The device will play its built-in stand-alone sound-controlled programs. The device is now sound-
controlled and will react to the music.
Custom Mode
For a custom program to run, you have to enter some values first.
For more information, please see Edit menu.
Run Test
With this menu you are able to test the device.
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Run menu.
3) Press enter to open this menu. Scroll through the menu until the display shows TEST.
4) When you press ENTER, the display will blink once and the device will start an internal test.
Slave Mode
With this menu you are able to set the device as a slave device.
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Run menu.
3) Press enter to open this menu. Scroll through the menu until the display shows Slave.
4) When you press ENTER, the display will blink once and the device will be in slave mode.

14
Channels Advanced/Basic Mode
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Channels menu.
3) Press enter to open this menu. You can choose Basic (11CH) or Advanced (14CH) mode.
Use the Up / Down buttons to select one.
4) Once you have set the desired mode, press the enter button to store your setting.
Display Mode
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Display menu.
3) Press enter to open this menu. You can choose 60_close or Bright mode.
Use the Up / Down buttons to select one.
4) Once you have set the desired mode, press the enter button to store your setting.
Keylock Mode
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Keylock menu.
3) Press enter to open this menu. Use the Up / Down buttons to select Yes or No.
4) Once you have set Yes, press the enter button to lock the device.
5) It will now take 30 seconds before the device locks itself. When you turn the device off and then on,
It‟s also locked.
NOTE: In the event that the device is locked, please use the factory password below.
Factory Password: UP > DOWN > UP > DOWN
Then press ENTER to unlock the device.
Info version
1) Press Menu, until the display shows: Intro
2) Press Enter and use the Up/Down buttons to go to the Info menu.
3) Press enter to see your Indigo version number.
2. Invert
1) Press Menu, until the display shows: Invert
2) Press Enter and use the Up/Down buttons to scroll through the options: Pan, Tilt, Color,Use.
3) Press enter to open this menu. Use the Up / Down buttons to select one of the options.
4) Once you have set the desired mode, press the enter button to store your setting.

15
3. Range
1) Press Menu, until the display shows: Range
2) Press Enter and use the Up/Down buttons to scroll through: P/Start, P/Finish, T/Start,T/Finish,Use.
3) Press enter to open this menu. Use the Up / Down buttons to set the desired value.
4) Once you have set the desired mode, press the enter button to store your setting.
4. Special
1) Press Menu, until the display shows: Special
2) Press Enter and use the Up/Down buttons to choose: Black or Reset.
3) Press enter to open this menu. Use the Up / Down buttons to set the desired setting.
4) Once you have set the desired mode, press the enter button to store your setting.

16
5. Edit
You first have to create a Step and press enter. Then Time and Use Menu will appear
1) Press Menu, until the display shows: Edit
2) Press Enter and use the Up/Down buttons to scroll through the options: Step, Pan, Tilt,XYSpeed, Color,
Gobo1, Gobo2, Gobo2 Rot, Prism, Focus, Dimmer, Strobe, Time, Use.
3) Press enter to open this menu. Use the Up / Down buttons to set the desired setting.
4) Once you have set the desired mode, press the enter button to store your setting.
Note: If you want to circulate the created steps, please set the last step as 0.
For example, when you have 3 steps, the setting should be:
Step 1 Time = 4 Use = Yes
Step 2 Time = 5 Use = Yes
Step 3 Time = 0 Use = Yes
6. Default
1) Press Menu, until the display shows: Default
2) Press Enter and use the Up/Down buttons to choose: Yes or No.
3) If you use Yes, the device will return to the factory default setting.

17
DMX Protocol 14 Channels (Advanced )
Channel 1 - Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 - Pan fine 16 bit
Channel 3 - Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 4 - Tilt fine 16 bit
Channel 5 –PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 –Colourwheel
Linear color change following the movement of the slider. Between 153 - 255, the color-wheel rotates
continuously the so-called “Rainbow” effect.
0-16
Open / White
17-33
Red
34-50
Yellow
51-67
Magenta
68-84
Green
85-101
Orange
102-118
Blue
119-135
Light Blue
136-152
Light Green
153-255
Backwards (CCW) rainbow effect from slow to fast
Channel 7 –Static Gobo-wheel + Gobo Shake
0-9
Open / White
10-19
Metal Gobo 1
20-29
Metal Gobo 2
30-39
Metal Gobo 3
40-49
Metal Gobo 4
50-59
Metal Gobo 5
60-69
Metal Gobo 6
70-79
Metal Gobo 7
80-89
Metal Gobo 8
90-99
Metal Gobo 9
100-114
Gobo Shake 9 from slow to fast
115-129
Gobo Shake 8 from slow to fast
130-144
Gobo Shake 7 from slow to fast
145-159
Gobo Shake 6 from slow to fast
160-174
Gobo Shake 5 from slow to fast
175-189
Gobo Shake 4 from slow to fast
190-204
Gobo Shake 3 from slow to fast
205-219
Gobo Shake 2 from slow to fast
220-234
Gobo Shake 1 from slow to fast
235-255
Backwards (CCW) gobo-wheel rotation from slow to fast

18
Channel 8 –Rotating Gobo-wheel + Gobo Shake
0-9
Open / White
10-19
Metal Gobo 1
20-29
Metal Gobo 2
30-39
Metal Gobo 3
40-49
Metal Gobo 4
50-59
Metal Gobo 5
60-69
Glass Gobo 6
70-79
Glass Gobo 7
80-99
Gobo Shake 7 from slow to fast
100-119
Gobo Shake 6 from slow to fast
120-139
Gobo Shake 5 from slow to fast
140-159
Gobo Shake 4 from slow to fast
160-179
Gobo Shake 3 from slow to fast
180-199
Gobo Shake 2 from slow to fast
200-219
Gobo Shake 1 from slow to fast
220-255
Forwards (CW) gobo-wheel rotation from slow to fast
Channel 9 –Rotation Gobo
0-60
Gobo-indexing
61-158
Forwards (CW) gobo rotation from slow to fast
159-255
Backwards (CCW) gobo rotation from slow to fast
Channel 10 –Prism rotating control
0-4
No Prism
5-127
Backwards (CCW) rotation from slow to fast
128-132
No Prism
133-255
Forwards (CW) rotation from slow to fast
Channel 11 –Focus
0-255
Continuous adjustment from near to far
Channel 12 –Dimmer intensity
0-255
From black to brightest
Channel 13 –Shutter / Strobe (Dimmer must be open )
0-31
Close
32-63
Shutter open
64-95
Strobe effect, from slow to fast (0-20 flashes/sec.)
96-127
Shutter open
128-159
Pulse-effect, in sequences from slow to fast
160-191
Shutter open
192-223
Random strobe effect, from slow to fast
224-255
Shutter open
Channel 14 –Channel Functions
When you have entered one of the functions between 20-39, you must first
disable this function, before the device will operate normally.
0-19
No Function
20-39
Blackout during Pan/Tilt movement
40-59
Disabled blackout during Pan/Tilt movement
60-79
Auto 1 (activated after 3 seconds)
80-99
Auto 2 (activated after 3 seconds)
100-119
Sound 1 (activated after 3 seconds)
120-139
Sound 2 (activated after 3 seconds)
140-159
Custom
160-179
Test (activated after 3 seconds)
180-199
No Function
200-219
Reset (activated after 3 seconds)
220-255
No Function
