Light Sky FLY DRAGON F1700WB -P User manual

F1700WB-P
Please read these user manual carefully before use!
E-mail:
n
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China

Contents
1. Safety information............ . .............. .............. .............. . .............. .............. . .............. .....2
2. Technical information...................................................................................................4
3. Attachment and body size.........................................................................................7
4. Installation and connecting.......................................................................................8
5. Control panel..............................................................................................................11
6. Menu setting...............................................................................................................12
7. Channel function.........................................................................................................18
8. Circuit connecting diagram.......................................................................................20
9. Cleaning and maintenances.......................................................................................21
10.Troubeshooting..........................................................................................................21
11.Duty exonerative and copyright protection........ .............. . .............. .............. . ........24
Congratulations on choosing our company product! We thank you for your custom.
◆Please note that this product, as all the others in the rich my company range, has
been designed and made with total quality to ensure excellent performance and
best meet your expectations and requirements.
◆Carefully read this user manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in this
manual to ensure the fitting is installed, used and serviced correctly and safely.
◆My company disclaims all liability for damage to the fitting or to other property or
persons deriving from installation, use and maintenance that have not been carried
out in conformity with this user manual, which must always accompany the fitting.
◆My company reserves the right to modify the characteristics stated in this user
manual at any time and without prior notice.

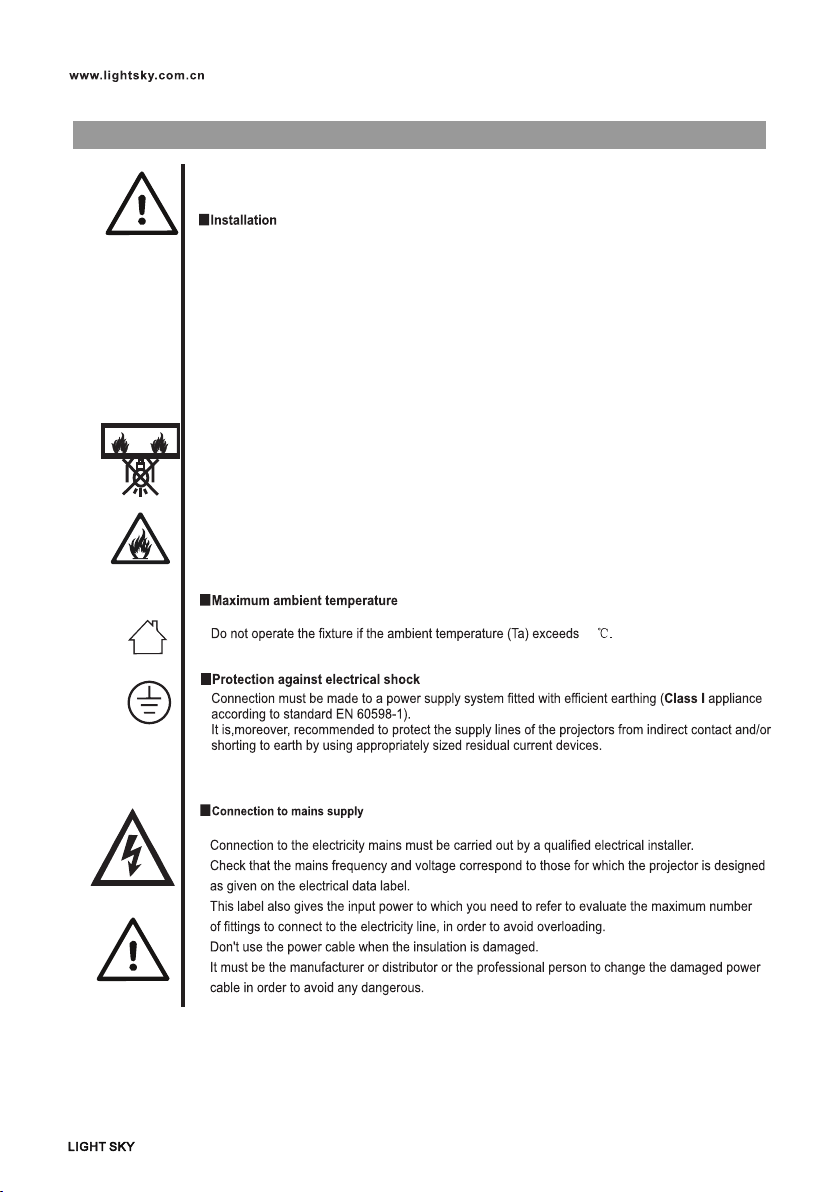

SAFETY INFORMATION
2
Ensure a minimum clearance of 0.2m around the cooling fans and ventilation.
Please do not install the fixture onto combustible surface.
The double insulation between the LV power supply and the control conductor on the fixture.
The fixture is intended for indoor application.
ta40℃
40
Do not expose the front glass to sunlight or other strong light source from any angle.
Lenses can focus the sun's rays inside the fixture, creating a potential fire hazard.
■Mounting surface and fire protection
Keep all combustible materials at least 20 cm away from the fixture.
■This lighting fixture is for professional use only - it is not for household use.
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be prgperly hooked onto the fitting and secured to the framework.
When suspending the fixture, ensure that the supporting structure and all hardware used
can hold at least 10 times the weight of all the devices they support.
。

3
The products referred to in this manual conform to the European Community Directives to which
they are subject:
Low Voltage 2014/35/EU
Electromagnetic Compatibility 2014/30/EU
Protection against explosion
The protection screen, lens or uv screen on the lamp can be damaged to the degree of failure
if visible damage, such as a crack or deep mark, should be replaced。

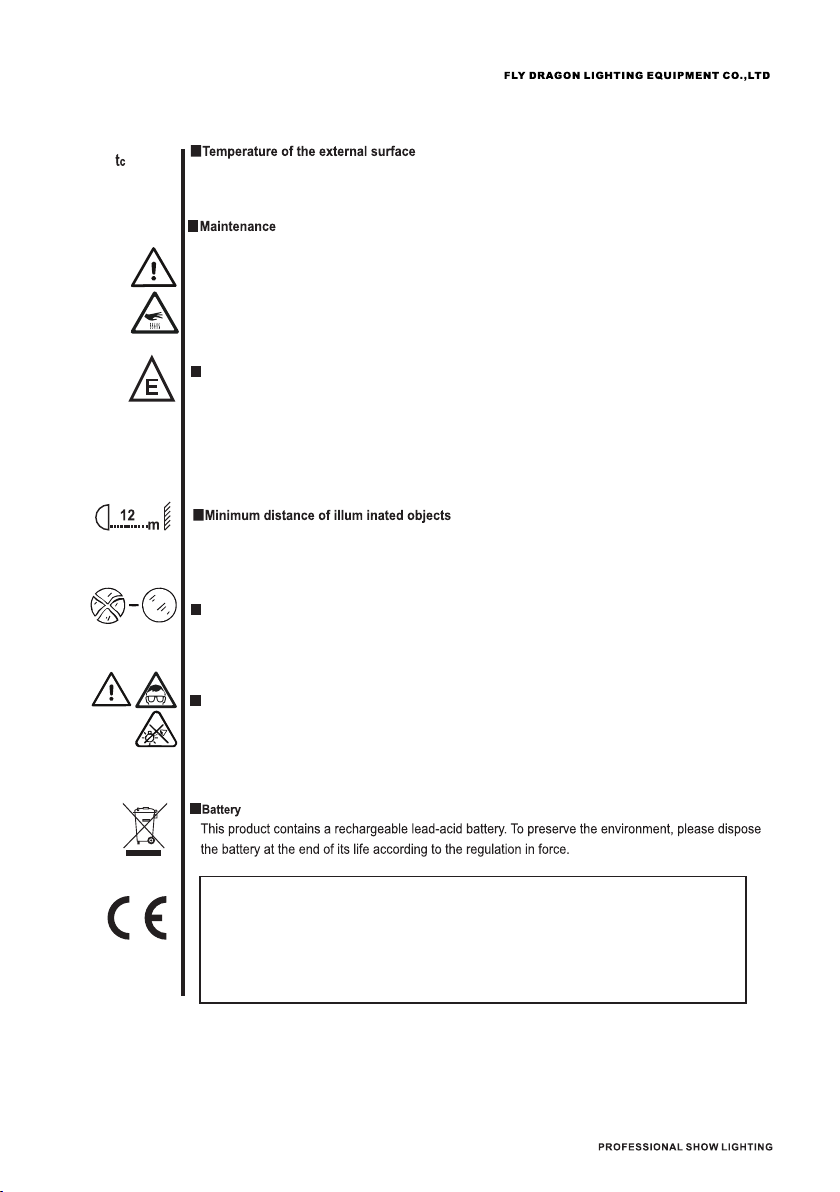

Lamp
The maximun temperature that can be reached on the external surface of the fitting,
in a thermally steady state,is 120℃。
120℃
Never look directly into the light source. You risk injury to your retina, which may induce blindness.
Do not look at LEDs with magnifiers, telescopes, binoculars or similar optical instruments that may
concentrate the light output.
Protection optical radiation
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
After this time the likelihood of the lamp exploding is virtually nill.
The fitting is designed to hold in any splinters produced by a lamp exploding.
The lenses must be mounted and, if visibly Damaged, they have to be replaced with genuine spares.
When the luminaire projects an object, the minimum distance of the luminaire to
the flammable object is 12 meters.
The fitting mounts a high-pressure lamp that needs an external .
Immediately replace the lamp if damaged or deformed by heat.
The light source in this fixture shall be replaced by the manufacturer or its service agent or
similar qualification.
Always disconnect from mains before replacing the lamp.

● Power supplies available ：
- -V～ 50/60Hz 11A 198 264
● Power ：
- 2000W PF≥0.98
● L amp ：
- Light source ： SRAM lok-it HTI 1700PS O
- Lamp power ：1700W
- A verage life ：750H
-Color T emperature ：

2700K-6500K,Linear CTO adjustment.
● Luminous flux output ：37000 LM
● Zoom Range：4°- 45°
● CRI ：Ra ≥ 90
● Ballast ：Electrical ballast 。
● Reflector ：
- Double Reflector Cup design,German optical
coating process.
● Color mixing system ：
- CMY infinite color mixing system, linear color
mixing function .
● Framing Shutter s ystem ：
-8 facet & 4 blades framing shutters modules,
framing shutter sys tem can be rotated 9 0°.
● Frost ：
- 1° and 20 ° can be combined.
● Dimming ：
-16 it, 0-100% linear dimming. B
● Iris ：
- 5-100% linear adjustment aperture, with macro
function, the speed is adjustable.
● Lens ：
- Diameter 200 mm φ large aperture optical lens set.
● S trobe ：
-1-9Hz synchronization, pulse, random stroboscopic.
● C ontrol Mode ：
DMX512, RDM, Art-Net,Wireless DMX512(optional).
● X/Y Travel 540°/270°：
● X/Y Resolution 2.11°/1 05°： .
● X/Y Speed 2.5S/1.5S：
● Channel ：tandard 32CH
S
● ： IP set
-built-in long-life battery, can set address without
power connection.
● ： Software upgrade
-Upgrade via USB interface.
●： Display Menu
-The display panel adopts a 2.8-inch color LCD
screen, which is used in both Chinese and English
languages to facilitate quick operation and browse
menus.
-Display board can record device’s using time , show
device’s temperature, channel data and software version .
● Working Mode ：
-Silent , Standard, High brightness three modes.
● Features ：
-Remote Control Lamp switch On/Off, automatically
reduce the lamp power when the Shutter is Off.
● Temperature control ：
-Intelligent temperature control, can automatically adjus
the speed of the cooling fan and overheat protection.
● ： Error alarm
-Automatic alarming for fixture error.
●： Structure
-plastic cover parts are made of engineering plastic PA66
+ GF,with fire-proof, noise reduction, impact resistance,
high temperature resistance, anti-aging characteristics.
● The vertical direction of the use of hidden locking
device,convenient transportation and maintenance.
●：IP22 IP RATE
●Lighting Size ：503X 4X878MM32
● ：960X570X395MM Box Size
：41kg ，：46kg N.W. G.W.
● Flycase Size ：(1PCS)
765X610X970MM
41kg 85.5kg N.W.： ，G.W.：
4
TECHNICAL INFORMATION

5
1
CMY color mixing system
CMYCTO

2

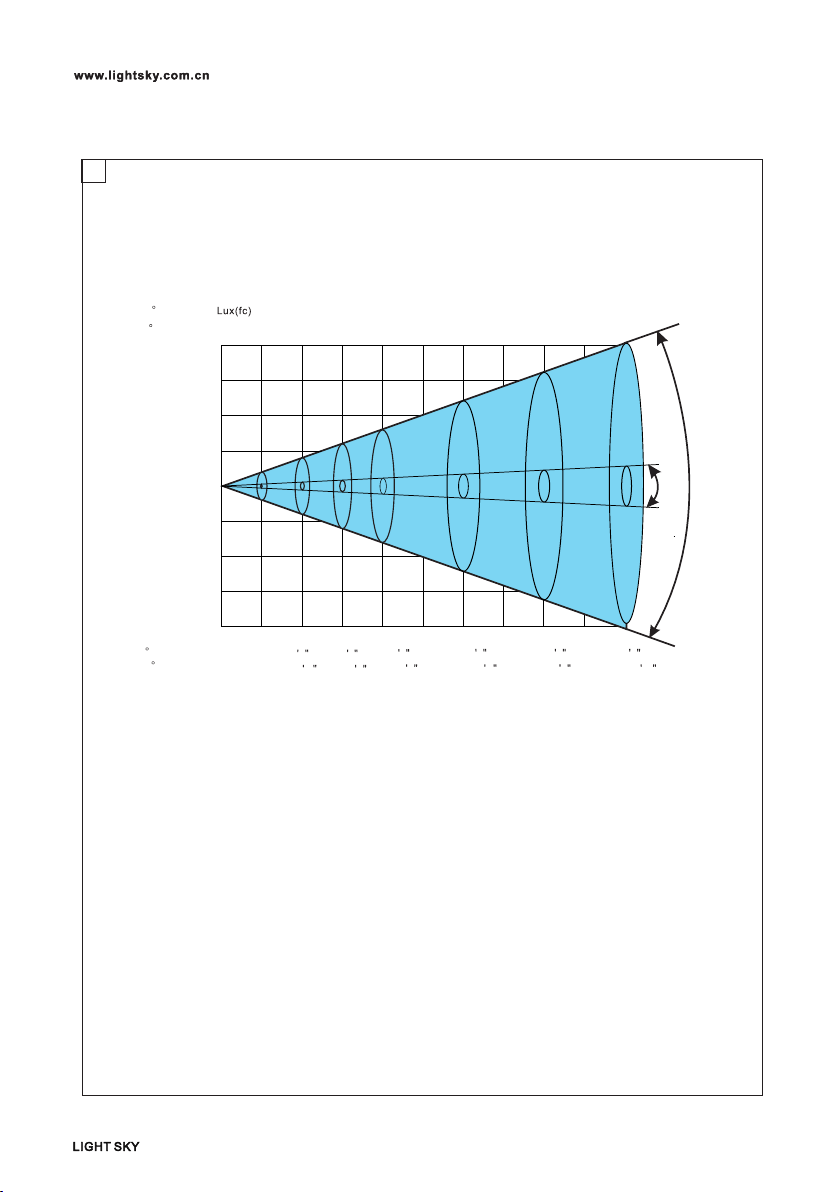

distance, spot diameter and illumination diagram（Beam model）
6
4 highlights
45 highlights
76090(7071) 32800(3048) 18100(1682) 8830(820) 4850(451) 2970(276)
1770(164) 720(67) 420(39) 205(19) 130(12) 112(10)
10 15 20 40
Distance m
45 diameter m(ft in)
4 diameter m(ft in)
0
0.8(2 7 )
7.6(24 11 )
1.3(4 3 )
12.4(40 8 )
1.7(5 7 )
16.5(54 1 )
3.5(11 8 )
33(108 3 )
0
30 50
4°45°
2.5(8 2 )
24.8(81 4 )
4.1(13 5 )
41.4(135 10 )
5
10
15
20
5
10
15
20

ATTACHMENT AND BODY SIZE
7

Installing the projector- Fig. 3
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted.
This must be securely fixed to the support structure of the projector and then connected to the base handle.
8
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
When suspending the fixture, ensure that the supporting structure and all hardware used can
hold at least 10 times the weight of all the devices they support.
INSTALLATION AND CONNECTING
Safety rope

9
POWER IN
N(White/Blue)
(Green/Yellow Green)
L(Black/Brown)
● After doing the above operation and making sure all the devices had been
installed with natural operate, press the power switch to check whether every
-thing is working normally.
● connection to the eiectricty mains must be carried out by a qualified electrical
installer.
or
L
N
black
blue
brown
yellow-green
white
green
Conductor Symbol
live
neutral
ground(earth)
Wire Color
(EU models)
Wire Color
(US models)
Wire color-coding and power connections：

10
DMX - output
1 - Shield
2 - Signal (-)
- Signal (+)
- Not connected
- Not connected
3
1
2
3
DMX-input
- Shield
- Signal (-)
- Signal (+)
- Not connected
- Not connected
4
5
4
5
DMX512 in
out in out in signal end
● Please use the round 3 or 5-pin X LR plugs &sockets offered by menu facture to connect the first
projector's output to the second projector' input and connect the second projector's output to the
third projector's input. And in the same way for the rest,eventually connect the last projector's output,
all the projectors are together.
●The projectors's control signal output or input by using the 3 or 5-pin X LR pug and socket.If need to
lengthen the communication cable,please make sure the both side of 3 or 5-pin plug is one to one
(one to one,two to two,three to three).Otherwise, the communication cable will be interrupted.The
communicate cable is 2-cord screened cable 75Ω resistance with each core is at least a 0.5mm diameter.
(Caution:All the inside leading wire of 3 or 5-pin XLR plug couldn't touch each other or plinth).
●Recommend to use the DMX signal terminator for the installation to avoid the electronic noise dama -ge
the digital control signal.Simply speaking, DM X terminator is an X LR connector with a 120Ω 1/2W resistor
connected across pin 2 and 3.Which is then plugged into the output socket on the last projec -tor in the
hain.Refer to the connection.

CONTROL PANEL
11
Display
Up arrowhead : page up
Down arrowhead : page down
Left arrowhead : reduce
Right arrowhead : increase
Enter : OK function
Exit : in the choice screen
DMX:
001 DMX Address Information Personal Manual control
Service Language Reversal
UP
DOWN
LEFT RIGHT
ENTER
● Press the switch.The projector starts resetting the effects.
At the same time,the following information scrolls on the display
（please refer to the actual material)
Lamp
7

12
Main menu Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu
DMX
SETTING →
Address → 1-512
Channel mode → Standard（32）
Input mode → DMX 512
DMX State →Blackout
Hold
Info →
Fixture times →
Power on time 0 - 99999H
Lamp on time 0 - 99999H
All time 0 - 99999H
Temperatures → Lamp TEMP
Fan speed →
Head fan 1
Head fan 2
Lamp fan 1
Lamp fan 2
Lamp fan 3
Lamp fan 4
Framing fan
Power fan
Fan voltage
Head fan 1
Head fan 2
Lamp fan 1
Lamp fan 2
Lamp fan 3
Lamp fan 4
Framing fan
Power fan
RDM info →
UID:0x3888XXXXXXXX
Manufactory Label：LIGHT SKY
Device Label：F1700WB-P
DMX live
→
1.Pan
→
0 - 255
2.Pan fine 0 - 255
3.Tilt 0 - 255
4.Tilt Fine 0 - 255
5.P/T speed 0 - 255
6.Functions 0 - 255
7.Strobe 0 - 255
8.Dimmer 0 - 255
9.Dimmer fine 0 - 255
10.Cyan 0 - 255

13
Mainmenu Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu
Info →
DMX live → →
11.Magenta 0 - 255
12.Yellow 0 - 255
13.CTO 0 - 255
14.Blade UP1 0 - 255
15.Blade UP2 0 - 255
16.Blade DW1 0 - 255
17.Blade DW2 0 - 255
18.Blade LF1 0 - 255
19.Blade LF2 0 - 255
20.Blade RF1 0 - 255
21.Blade RF2 0 - 255
22.Framing Rot. 0 - 255
23.Framing Mac. 0 - 255
24.Framing Mac.Z. 0 - 255
25.Zoom 0 - 255
26.Focus 0 - 255
27.Focus fine 0 - 255
28.Auto Fin. 0 - 255
29.Auto Dis. 0 - 255
30.Iris / 30 0 - 255
31.Frost1 0 - 255
32.Frost2 0 - 255
Display VX.XXX
Pan/Tilt VX.XXX
Color module VX.XXX
Framing module VX.XXX
Zoom module VX.XXX
FanDrv VX.XXX
Ballast info →
Input voltage XXXV
Output voltage XXXV
Input current XXXA
Output Power XXXW
Internal.T XXX℃
External.T XXX℃
Pan/Tilt →
PT swap
→
OFF
ON
Pan invert OFF
ON
Tilt invert OFF
ON
Person →
Ru n ni n g st a te →
Er r or
OK
Fa u lt

14
Person →
Power mode →
1200W mode
1400W mode
1700W mode
Display →
Language English
chinese
Backlight time
Always
Auto (30S)
Intensity 0 - 100
Rotation
Normal
Rotate 180
Auto
Manual →Manual Control →
1.Pan
→
0 - 255
2.Pan fine 0 - 255
3.Tilt 0 - 255
4.Tilt Fine 0 - 255
5.P/T speed 0 - 255
6.Functions 0 - 255
7.Strobe 0 - 255
8.Dimmer 0 - 255
9.Dimmer fine 0 - 255
10.Cyan 0 - 255
11.Magenta 0 - 255
12.Yellow 0 - 255
13.CTO 0 - 255
14.Blade UP1 0 - 255
15.Blade UP2 0 - 255
16.Blade DW1 0 - 255
17.Blade DW2 0 - 255
18.Blade LF1 0 - 255
19.Blade LF2 0 - 255
20.Blade RF1 0 - 255
21.Blade RF2 0 - 255
22.Framing Rot. 0 - 255
23.Framing Mac.
→
0 - 255
24.Framing Mac.Z 0 - 255
25.Zoom 0 - 255
26.Focus 0 - 255
27.Focus fine 0 - 255
28.Auto Fin. 0 - 255
29.Auto Dis. 0 - 255
30.Iris 0 - 255
31.Frost 0 - 255
32.Frost 0 - 255
Mainmenu Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu

15
Manual →
Lamp Switch →OFF
ON
Reset →
Pan/Tilt reset
Dimmer reset
Color reset
Framing reset
Focus reset
Total reset
Test →
Test
all
→
Test pan/tilt
Test effects
Service →
Fixture state →
Memory IC
→
OK/ Reset Error
Angle Sensor
Pan Encodeer
Pan Drive IC
Tilt Encoder
Tilt Drive IC
Pan
Tilt
Cyan
Magenta
Yellow
→
CTO
Zoom
Focus
Framing Rot.
Adjust →
Pan
→
0 - 255
Tilt 0 - 255
Strobe 1 0 - 255
Strobe 2 0 - 255
Cyan 0 - 255
Magenta 0 - 255
Yellow 0 - 255
Mainmenu Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu
Test
Test
Test
/
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /
OK/ Reset Error /

16
CTO 0 - 255
Blade UP1 0 - 255
Service
→
Adjust →
Blade UP2
→
0 - 255
Blade DW1 0 - 255
Blade DW2 0 - 255
Blade LF1 0 - 255
Blade LF2 0 - 255
Blade RF1 0 - 255
Blade RF2 0 - 255
Framing Rot 0 - 255
Zoom 0 - 255
Focus 0 - 255
Iris 0 - 255
Frost 1 0 - 255
Frost 2 0 - 255
Factory
→ Factory Reset Password
→
YES / NO
Reset timers
Reset power on
timers
→
YES/ NO
Reset lamp timers YES/ NO
Reset all timers YES/ NO
→
Developer
Correlate lamp
Manual Fan Vol
Manual Power
Manual OR DMX
Update Simple update →
Display
Pan/Tilt
Color module
Framing module
Zoom module
Mainmenu Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu
Password
→
Password
→
Password
→

17
Update
Simple update →
FANDRV
ALL
Whole update →
Display
Pan/Tilt
Color module
Framing module
Zoom module
FANDRV
ALL
Service →Factory →
Mainmenu Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu
Password
→

18
CHANNEL FUNCTION
Channel Value Percentage Function
1 0-255 0-100 Pan/水平
2 0-255 0-100 Pan Fine/水平微调
3 0-255 0-100 Tilt/垂直
4 0-255 0-100 Tilt fine/垂直微调
5 0-255 0-100 Pan/Tilt speed
6
Function /功能
0-9 Reserved (0=default )/保留（0 = 默认值）
10-14 RESET ALL/所有功能复位
15-19 RESET DIMMER SHUTTER /调光频闪复位
20-24 RESET COLOR/COLOR 复位
25-29 RESET FRAMING /切割模组复位
30-34 RESET PT/水平垂直轴复位
35-39 RESET ZOOM/调焦缩放复位
40-44 LAMP ON/开灯泡
45-49 LAMP OFF/关灯泡
50-54 Always /背光常亮
55-59 Auto (30S)/背光自动(30S)
60-64 POWER MODE 1200W/功率模式1200W
65-69 POWER MODE 1400W/功率模式1400W
70-74 POWER MODE 1700W/功率模式1700W
75-255 Reserved /保留
7
Shutter / strobe /频闪
0 - 31 Shutter closed /关闭频闪
32 - 63 Shutter open (32=default ) /打开频闪（32 = 默认值）
64 - 95 Strobe -effect from slow to fast /同步频闪 （由慢至快）
96 - 127 Shutter open /打开频闪
128 - 143 Opening pulse in sequences from slow to fast/脉冲开
启（由慢至快）
144 - 159 Closing pulse in sequences from fast to slow /脉冲关
闭（由快至慢）
160 - 191 Shutter open/频闪 开
192 - 223 Random strobe-effect from slow to fast /随机频闪效果
（由慢至快）
224 - 255 Shutter open /频闪开启
8 0 - 255 0-100 Dimmer /调光
9 0 - 255 0-100 Dimmer fine/调光微调
10 0 - 255 0-100 Cyan/青色
11 0 - 255 0-100 Magenta /品红色
12 0 - 255 0-100 Yellow /黄色
13 0 - 255 0-100 CTO/降色温
14 0 - 255 0-100 Blade UP1/叶片上1
15 0 - 255 0-100 Blade UP2/叶片上2
16 0 - 255 0-100 Blade DW1/叶片下1
17 0 - 255 0-100 Blade DW2/叶片下2
18 0 - 255 0-100 Blade LF1/叶片左1
Note

19
19 0 - 255 0-100 Blade LF2
20 0 - 255 0-100 Blade RF1
21 0 - 255 0-100 Blade RF2
22 0 - 255 0-100 Framing Rot
23
Framing Mac
0 -- 10 No function
11 -- 20 Square
21 -- 30 Rectangle
31 -- 40 Regular triangle
41 -- 50 Iisosceles trapezoid
51 -- 60 Sector
61 -- 70 Semicircle
71 -- 255 Parallelogram
24 0 - 255 0-100 Framing Mac. Zoom
25 0 - 255 0-100 Zoom
26 0 - 255 0-100 Focus
27 0 - 255 0-100 Focus Fine
28 0-255 0-100 Auto Fin.
29
Auto Dis
0 - 9 No function
10 -- 19 10M
20 -- 29 15M
30 -- 39 20M
40 -- 49 30M
50 -- 59 40M
60 -- 255 50M
30
Iris
0 - 127 Maximum to minimum aperture
128 - 159 Slow in and fast out from slow to fast
160 - 191 Fast in and slow out from slow to fast
192 - 255 Slow in Slow out from slow to fast
31
Frost1
0 - 127 Minimum atomization to maximum atomization
128 - 159 Slow in and fast out from slow to fast
160 - 191 Fast in and slow out from slow to fast
192 - 255 Slow in Slow out from slow to fast
32
Frost2
0 - 127 Minimum atomization to maximum atomization
128 - 159 Slow in and fast out from slow to fast
160 - 191 Fast in and slow out from slow to fast
192 - 255 Slow in Slow out from slow to fast
Channel Value Percentage Function
Note
