Showven Creeper AQ User manual

V1.0
Creeper AQ Low Fog Generator
USER MANUAL
Showven Technologies Co.,Ltd.
Creeper AQ
Creeper AQ PLUS

1
Creeper AQ Low Fog Generator
USER MANUAL
★ Please read this manual carefully before operating this product.
★ Warranty card attached in the manual, please keep it well.
Safety Considerations
》Unauthorized repair are prohibited, it may cause serious incident.
》Make sure power supply in consistent with the rated voltage of the equipment, and the socket must well grounded.
Unplug and turn off the machine when not use.
》CREEPER AQ series machine can be used both indoor and outdoor, with better effect for indoor use. Please try to
keep the machine dry.
》Not use the machine in high temperature.
》Installed in well ventilated area, ensure at least 50cm space around the machine, cover of the nozzle is forbidden.
》For adult use only, keep it away from children, fire, inflammable and explosive articles.
》If the machine fails to work, please stop operation and unplug the machine. Check fog fluid bottle, water tank, fuse,
power connection etc. carefully, if can’t solve the problem, please contact SHOWVEN or your local SHOWVEN
partner for advise.
》Suggest use SHOWVEN original FX-M fog fluid, other fluid may lead to clog or malfunction.
》In case of eye contact of fog fluid, please wash it with clean water. If fluid is swallowed immediately look for medical
advice.
》Please do NOT adding any other material such as grease, pigment, gas etc to the fluid bottle or water tank.
》The device shall not be altered and applied to other use purpose.
Foreword
Thanks for choosing SHOWVEN CREEPER AQ series low fog generator. Please read following manual carefully and
completely before operating this product. Operate according to instructions is very important for safety, and can
elongate the service life of the machine.

2
Functional Characteristics
\ Molded enclosure, lighter, durable as well as rustless.
\ Multi-optimized air supply system, ensure farther and more uniform fog output.
\ 40 heads atomizers, thicker fog output. (CREEPER AQ is 30 heads)
\ Weather proof design
\ Abrasion-resistant silent caster
\ Latest rapid heating technology, 1-2min heating up time
\ Adjustable fog density, moisture and fan speed, versatile application to meet different requirements
\ Low-water sensor
\ Patented fog leakage prevention technology, no fog leakage even refill the machine when it is working
\ User friendly LCD control panel
\ 3.3L fluid tank, support 2h continuous output.
\ Advanced auto water refill system
Technical Specifications
\ Model Creeper AQ PLUS Creeper AQ
\ Dimension 950×500×540mm 805×390×480mm
\ Package size 1170×555×475mm 945×445×435mm
\ Voltage AC200-240V, 50-60Hz AC200-240V, 50-60Hz
AC100-120V, 50-60Hz AC100-120V, 50-60Hz
\ Work Power 2500W 2000W
\ Heat-up Time Appr. 1-2min Appr. 1-2min
\ Fluid Tank Capacity 3.3L 3.3L
\ Water Tank Capacity 35L 24L
\ DMX-512 YES YES
\ Remote control YES YES
\ Output Adjustable 1-100 1-100
\ Max. Fog Output 20,000 cfm/min 15000 cfm/min
\ Max. Coverage Appr. 400㎡Appr. 300㎡
\ Max. Fluid Consumption. Appr. 32ml/min Appr. 32ml/min
\ Max. Water Consumption Appr. 500ml/min Appr. 375ml/min
\ Continuous Output YES YES
\ Fully loaded Output Time 100+ min 100+ min
\ Consumable FX-M Fog Fluid, Water FX-M Fog Fluid, Water
\ Net Weight 48kg 35kg
\ Gross Weight 55kg 38kg

3

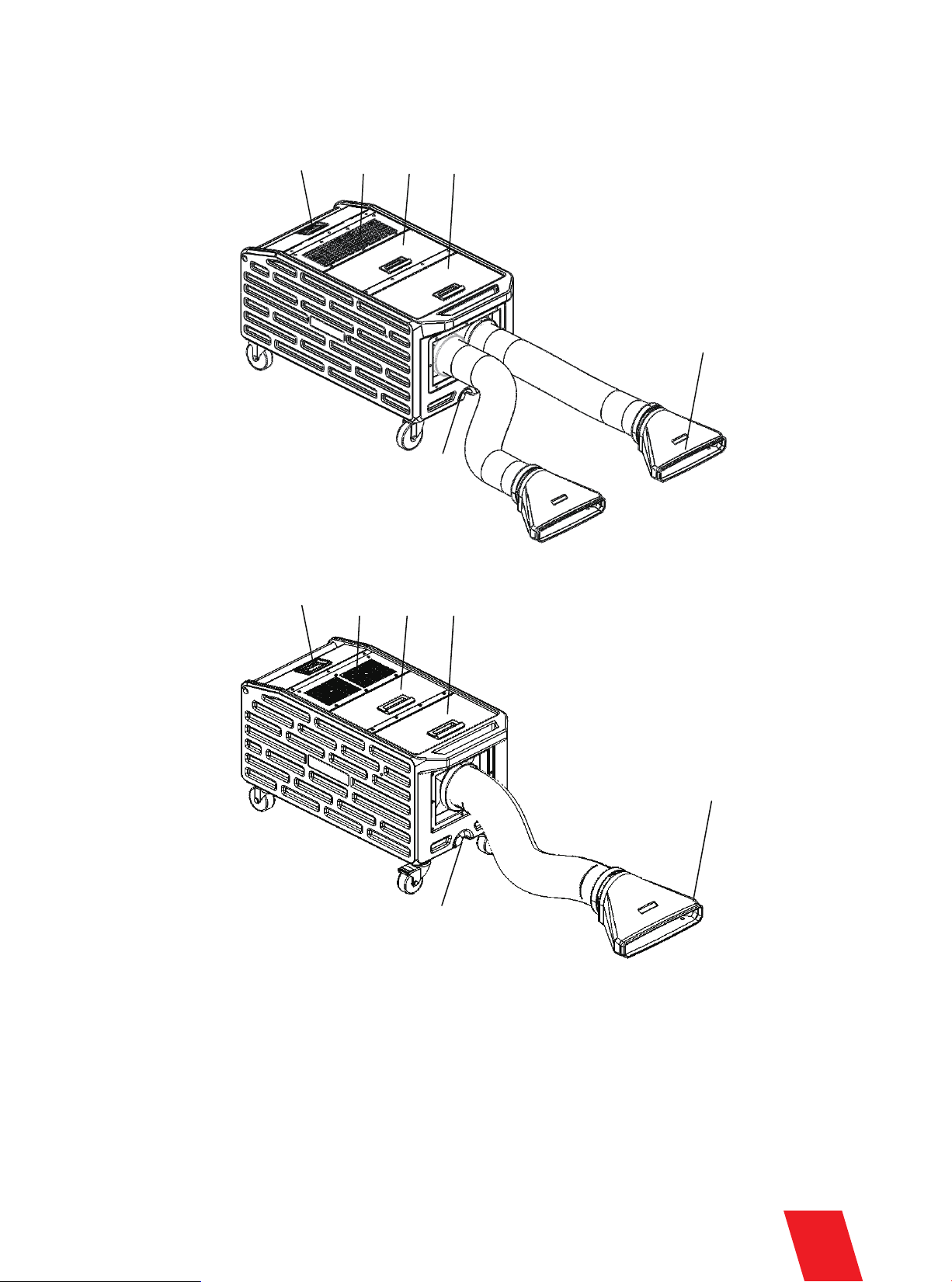

①Drain
②Fog Output Head
③Water Tank
④Fluid Tank
⑤Fan
⑥Control Panel
Product Overview
Creeper AQ
Creeper AQ PLUS
⑥⑤④ ③
②
①
⑥⑤④ ③
②
①

4
①Power Socket
②5-Pin DMX IN/OUT
③3-Pin DMX IN/OUT
④Power ON/OFF
⑤ Fuse
⑥LCD Control Panel
a）LED display area
MENU: switch through setup menu；
+: Parameter up; multiplex “TIMER” (smoke output time)
-: Parameters down; multiplex “VOLUME” (smoke output start)
ENTER: confirm and save parameters (screen will blink once when save successfully); multiplex “STOP”.
NOTE: Screen will switch to main interface automatically if not press any button in long time.
Control Panel Overview
LCD Control Panel Operation
Creeper AQCreeper AQ PLUS

5
b）Main Interface
First Line: DMX address and Fan Speed, “:” blinks when there is DMX in signal.
Second Line: Shows machine core temperature and Fog Volume. The machine ready for operate when tempera
ture value close to 100%.
d）Setting Menu
Press “MENU” switch through setup menu.
c）Error Information
Error information Explanation
E2 Temp. Sensor Temp. Sensor Malfunction
E3 Water Sensor I Low water level of Inner Water Tank, system is pumping water to inner water tank or
liquid level sensor malfunction.
E4 Water Sensor O Low water level of Outer Water Tank, need to feeding the water tank or liquid level
sensor malfunction
E5 K Temp. Over Circuit board malfunction
E6 Heat Fail Heater broken or circuit board malfunction.
Items Value
DMX Address 1~512
Interval Set
Duration Set
5-600
5-600
Fog Volume Output 1-100%
Fan Speed
Wireless Set
语言(Language)
Manual Drainage
1-100%
ON / OFF
中文/English
ON / OFF
Wireless function set
Language switch
Drainage ON/OFF, when need to drain the
water in outer water tank, please turn it on,
water in outer tank will pump into inner tank,
and drain.
Explanation
DMX address setup
Set fog output interval
Set fog output duration
Fog output volume setup
Fan speed setup
DMX: 1 FAN: 20
T: 100% FOG: 80%

6
Operation
DMX Control
①Check the machine and accessories, ensure it is in good status. Place the machine on a flat surface, tilting may result
in inaccurate water level alarm.
②Fill the liquid tank with FX-M Pro medium fog fluid. Please use original fog fluid from SHOWVEN, Warranty will be
void if any other type fog fluid is used.
③Connect the machine to suitable rated power supply. Please ensure power supply meets the requirement. Always
connect the machine to a protected circuit and ensure it is properly grounded.
④Turn on the machine, it heat up automatically, and shows “WARMING UP” on LCD screen.
⑤Fill the outer water tank with pure water until there is alarm of water shortage on LCD screen (E3, E4). Operator
can also connect the machine to water supply with G1/6 pipe connector, machine will refill it automatically.
⑥Once the machine has reached operating temperature, temp., fog output and fan speed will show on the screen,
please adjustable it accordingly.
⑦Press “+”to start making fog, press “ENTER”to stop.
⑧To turn off the machine, please POWER OFF and unplug the power cable.
⑨For transportation please drain the machine.
2 channel mode
Channel Function
First Channel（CH1）Fog output: DMX VALUE 6-255, fog output from 1-100.As volume increase, the
denser the fog, the longer for dissipate.
Second Channel（CH2）Fan speed: DMX VALUE 6-255, fan speed from 1-100. As volume decrease, the
better the fog stick to the ground but spread slower.
3 channel mode
Channel Function
First Channel（CH1）Fog output: DMX VALUE 6-255, fog output from 1-100
Second Channel（CH2）
Third Channel（CH3）Ultrasonic atomizer QTY manual control:（0~127）atomizer QTY is 3（CREEPER AQ
is 2）（128~255）atomizer QTY is 4（CREEPER AQ is 3）
Fan speed: DMX VALUE 6-255, fan speed from 1-100

7
Wireless Control
Wireless control is used to remote control the machine. Before use the wireless function please make sure machine
was ready, wireless status was ON, and no DMX cable connection.
Remote controller:
【A】Fog output START
【B】Fog output STOP
Remote control is optional configuration.
Product Package
1.Creeper AQ or Creeper AQ PLUS Low Fog Generator x 1unit
2.Power Cable x 1 piece
3.User Manual x 1 piece
4.Fog Vent and Head x 1 piece (Creeper AQ) or 2 pcs (Creeper AQ PLUS)
Possible reason for fluid spill and block of atomizer
For healthy and best status of machine, please do use SHOWVEN original fog fluid.
A. Fluid spill: heat can’t effectively transmit to fog fluid, leads to insufficient atomization of the fog fluid in the heating
pipe.
Possible reason 1: Use low quality fog fluid. The impurities in low quality fog fluid easily adhere to the pipe inner wall,
which blocks temp. transmission, leads to insufficient atomization.
Possible reason 2: Use inappropriate fog fluid. For different types of fog fluid, the atomization temperature is different.
B. Heating aluminum pipe clog: early symptom for heating aluminum pipe clog is fog fluid spill caused by insufficient
atomization. Use other brand fluid or not make regular maintenance for a long time will definitely leads to pipe clog.
C. Solution for above problem: Use SHOWVEN original fog fluid. Make regular maintenance (every 1-2 month). Use
35% vinegar with 65% distilled water to wash the pump and pipe system by running the machine 10-15 times.

8
Tel:
Warranty Instructions
Warranty Card
★ Below situations NOT included in warranty service:
★ Invoice and warranty card are necessary when applying for maintenance service from
SHOWVEN.
▲ Sincere thanks for your choosing CREEPER AQ series low fog generator, you will receive quality service from us.
▲ The product warranty period is one year. If there are any quality problems within 7 days after shipping out from our
factory, we can exchange a brand new same model machine for you.
▲ We will offer free of charge maintenance service for machines which with hardware malfunction (except for the
instrument damage caused by human factors)in warranty period. Please don't repair machine without factory
permission.
1. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human
factors;
2. Disassemble, modify or repair products without Showven’s permission;
3. Damage caused by external reasons (lightning strike, power supply etc);
4. Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Product Name:
Purchase Date:
Address:
Problem Feedback:
Maintenance Detail:
Service Engineer:
Actual Problem:
Serial No.
Service Date:

Showven Technologies Co., Ltd.
Add: BuildingB1,ChangshaECenterNo.18,XiangtaiRoad,LiuyangEconomicDevelopment
Zone,ChangshaCity,410300,HunanProvince,P.R.China.
Tel: [phone]
Web: www.showven.cn
E-mail: [email protected]
