Shure Microflex MX405 User manual

MX405 MX410 MX415
Gooseneck Microphones and Accessories
The Shure miniature gooseneck microphones, MX405, MX410 and MX415, user guide.
Version: 5 (2019-J)

Shure Incorporated
2/25
Table of Contents
MX405 MX410 MX415Gooseneck Microphones and Ac
cessories 3
General Description 3
Features 3
Model Variations 3
Snap-Fit Windscreen 8
Interchangeable Cartridges 9
MX400SMP Surface Mount Preamp 9
Accessories 10
Installation 11
MX400SMP Pin Assignments 12
DIP Switches 12
LED Logic 13
MX400DP Desktop Base 14
Installation 15
Cable 15
MX400DP DIP Switches 16
Local Mute Control 17
Logic Mute Control (Automatic Mixing) 18
Specifications 19
Certifications 25

Shure Incorporated
3/25
•
•
•
•
•
MX405 MX410 MX415
Gooseneck Microphones and Accessories
General Description
Shure MX405, MX410, and MX415 miniature gooseneck microphones are suitable for boardrooms and other sites where aes
thetics are important. Permanently mount them at conference tables or lecterns using the MX400SMP surface mount, or use
the MX400DP moveable desktop base, which includes a configurable mute button with logic output. Also compatible with the
MX890 wireless desktop base and the ULXD8 wireless base.
Features
Low profile, aesthetic design
Choice of bi-color indicator or light ring
Wide dynamic range and smooth frequency response
RF filtering with CommShield technology
Logic input for external LED control
Model Variations
These gooseneck microphones are available in different lengths with a cardioid, supercardioid, or mini-shotgun cartridge and

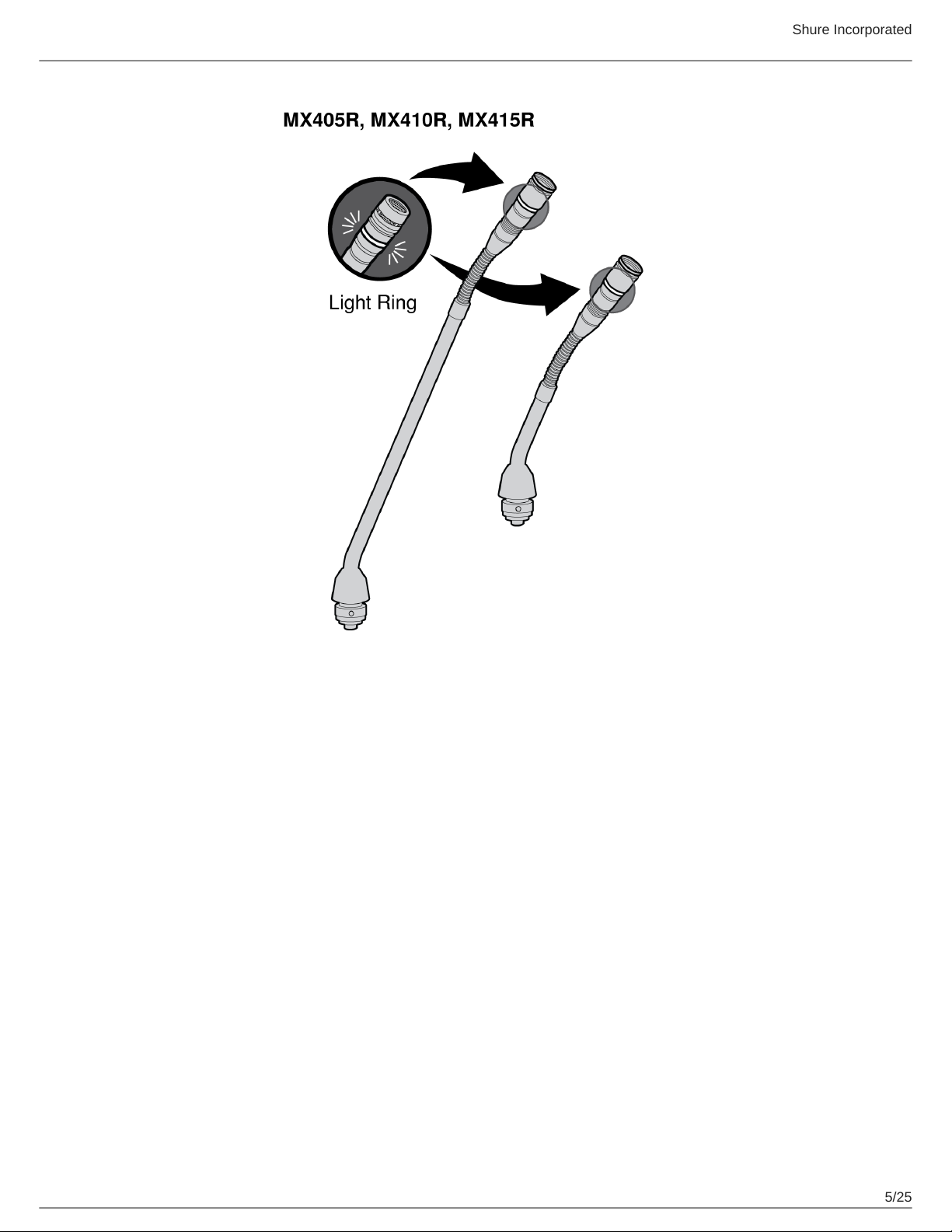

either a bi-color LED status indicator or a light ring. The 10 and 15 inch models are also available with a dualflex neck.
®

Shure Incorporated
4/25

Shure Incorporated
5/25

Shure Incorporated
6/25

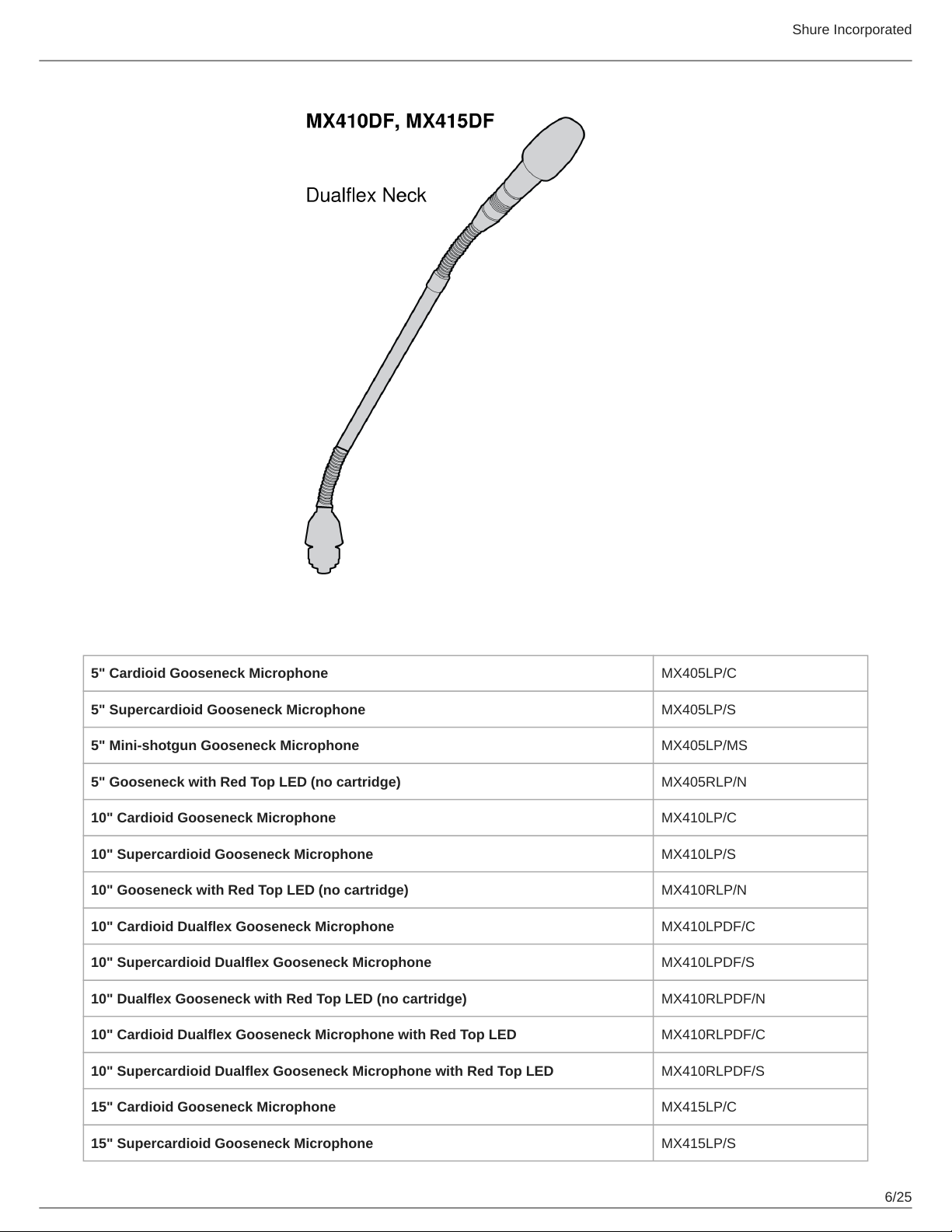

Gooseneck Microphones
5" Cardioid Gooseneck Microphone MX405LP/C
5" Supercardioid Gooseneck Microphone MX405LP/S
5" Mini-shotgun Gooseneck Microphone MX405LP/MS
5" Gooseneck with Red Top LED (no cartridge) MX405RLP/N
10" Cardioid Gooseneck Microphone MX410LP/C
10" Supercardioid Gooseneck Microphone MX410LP/S
10" Gooseneck with Red Top LED (no cartridge) MX410RLP/N
10" Cardioid Dualflex Gooseneck Microphone MX410LPDF/C
10" Supercardioid Dualflex Gooseneck Microphone MX410LPDF/S
10" Dualflex Gooseneck with Red Top LED (no cartridge) MX410RLPDF/N
10" Cardioid Dualflex Gooseneck Microphone with Red Top LED MX410RLPDF/C
10" Supercardioid Dualflex Gooseneck Microphone with Red Top LED MX410RLPDF/S
15" Cardioid Gooseneck Microphone MX415LP/C
15" Supercardioid Gooseneck Microphone MX415LP/S

Shure Incorporated
7/25
•
•
•
15" Gooseneck with Red Top LED (no cartridge) MX415RLP/N
15" Cardioid Dualflex Gooseneck Microphone MX415LPDF/C
15" Supercardioid Dualflex Gooseneck Microphone MX415LPDF/S
15" Dualflex Gooseneck with Red Top LED (no cartridge) MX415RLPDF/N
15" Cardioid Dualflex Gooseneck Microphone with Red Top LED MX415RLPDF/C
15" Supercardioid Dualflex Gooseneck Microphone with Red Top LED MX415RLPDF/S
5" White Gooseneck Microphone (no cartridge) MX405WLP/N
5" White Gooseneck Microphone with Red Top LED (no cartridge) MX405WRLP/N
10" White Gooseneck Microphone (no cartridge) MX410WLP/N
10" White Gooseneck Microphone with Red Top LED (no cartridge) MX410WRLP/N
15" White Gooseneck Microphone (no cartridge) MX415WLP/N
15" White Gooseneck Microphone with Red Top LED (no cartridge) MX415WRLP/N
10" White Dualflex Gooseneck Microphone (no cartridge) MX410WLPDF/N
10" White Dualflex Gooseneck Microphone with Red Top LED (no cartridge) MX410WRLPDF/N
15" White Dualflex Gooseneck Microphone (no cartridge) MX415WLPDF/N
15" White Dualflex Gooseneck Microphone with Red Top LED (no cartridge) MX415WRLPDF/N
Coverage and Placement
Cardioid: One microphone for one or two people.
Supercardioid: One microphone for each person.
Mini-shotgun: One microphone for each person.
Cardioid
Supercardioid

Shure Incorporated
8/25
•
•
•
Mini-shotgun
Mic Placement
Snap-Fit Windscreen
Snap into the groove below the cartridge.
To remove, spread the gap with a screwdriver or thumbnail.
Provides 30 dB of "pop" protection.

Shure Incorporated
9/25
Interchangeable Cartridges
Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.
Cartridge Polar Patterns
MX400SMP Surface Mount Preamp
Permanent mount for conference tables or lecterns. Includes LED logic input.

Shure Incorporated
10/25
Accessories
Furnished Accessories
MX400SMP Surface Mount Kit

Shure Incorporated
11/25
Installation
Note: Over tightening the wing nut reduces shock isolation.
Caution: To prevent bending pins, line up key with notch and seat connector fully before twisting to lock.

Shure Incorporated
12/25

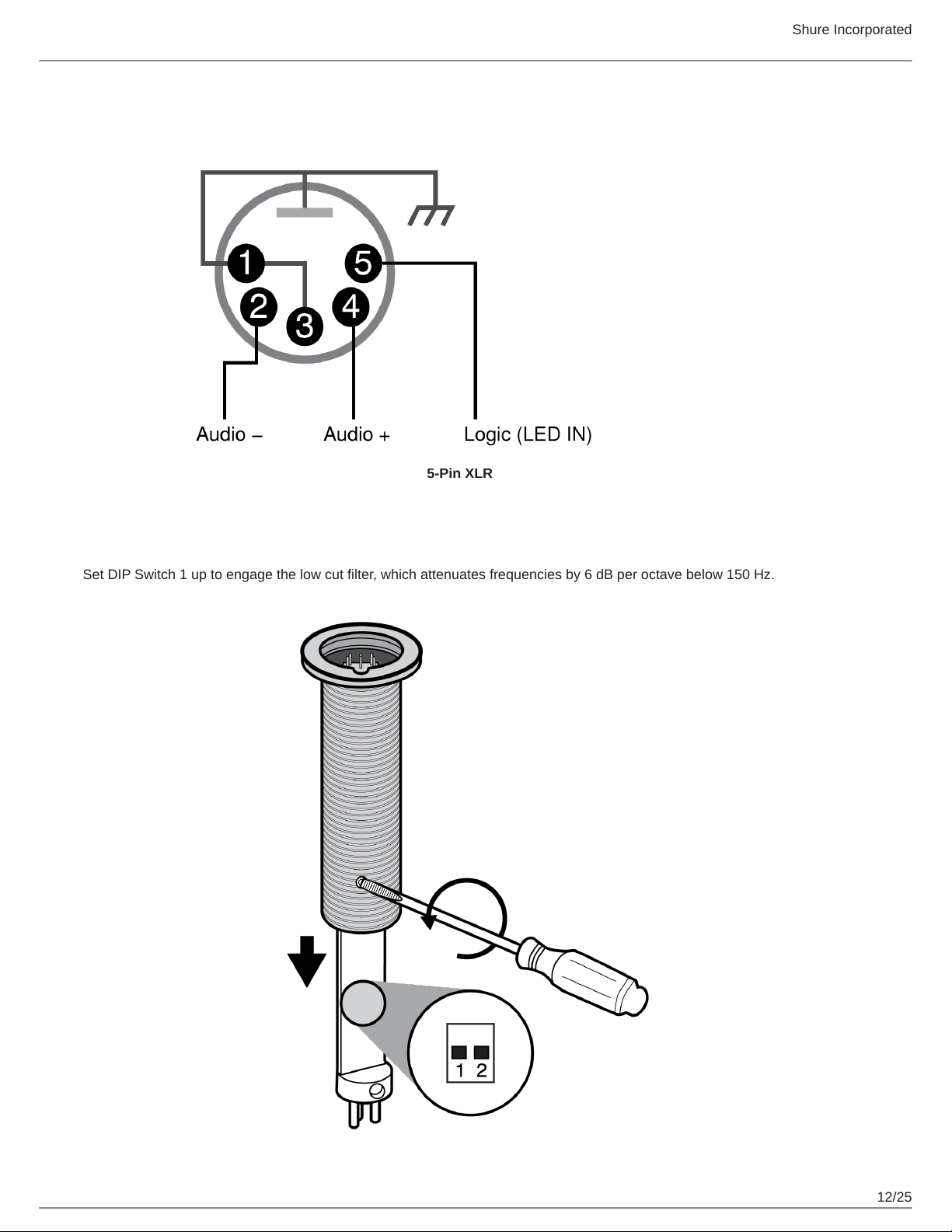

MX400SMP Pin Assignments
5-Pin XLR
DIP Switches
Set DIP Switch 1 up to engage the low cut filter, which attenuates frequencies by 6 dB per octave below 150 Hz.

Shure Incorporated
13/25
Switch Down (default) Up
1Full frequency response Low cut filter
2LED steady LED flashes
LED Logic
To operate the LED indicator, use the included 5-pin XLR connector to wire the microphone to an automatic mixer or other logic
device.
Note: Connect the LED IN to the gate output to illuminate the LED when the channel is gated on.
Do not use the relay ports on Crestron and AMX devices. Use the I/O logic ports instead.
The LED logic may not function when connecting to devices that do not have internal "pull-up resistor" logic circuits, such as
ClearOne DSP products. External pullup resistor circuits can be added for each microphone. Visit www.shure.com/FAQ for de
tailed instructions.
Logic Connection
Connection to device with internal "pull-up resistor" logic circuit
MX405, 410, 415
Logic LOW (0 V) Logic HIGH (+5 V)

Shure Incorporated
14/25
MX405, 410, 415
Green Red
MX405R, 410R, 415R
Logic LOW (0 V) Logic HIGH (+5V)
Red Off/flashing
MX400DP Desktop Base
The MX400DP moveable desktop base includes a configurable mute button with logic output.
MX400DP Desktop Base

Shure Incorporated
15/25
Installation
Caution: To prevent bending pins, line up key with notch and seat connector fully before twisting to lock.
Cable
The 20 ft. attached cable is terminated with a 3-pin XLR connector. For logic applications, open the XLR connector to access
the three unterminated logic conductors.
Wire Color Function
Red Audio +
Black Audio −
White SWITCH OUT
Orange LED IN
Green Logic Ground
Shield Mic Common Ground

Shure Incorporated
16/25

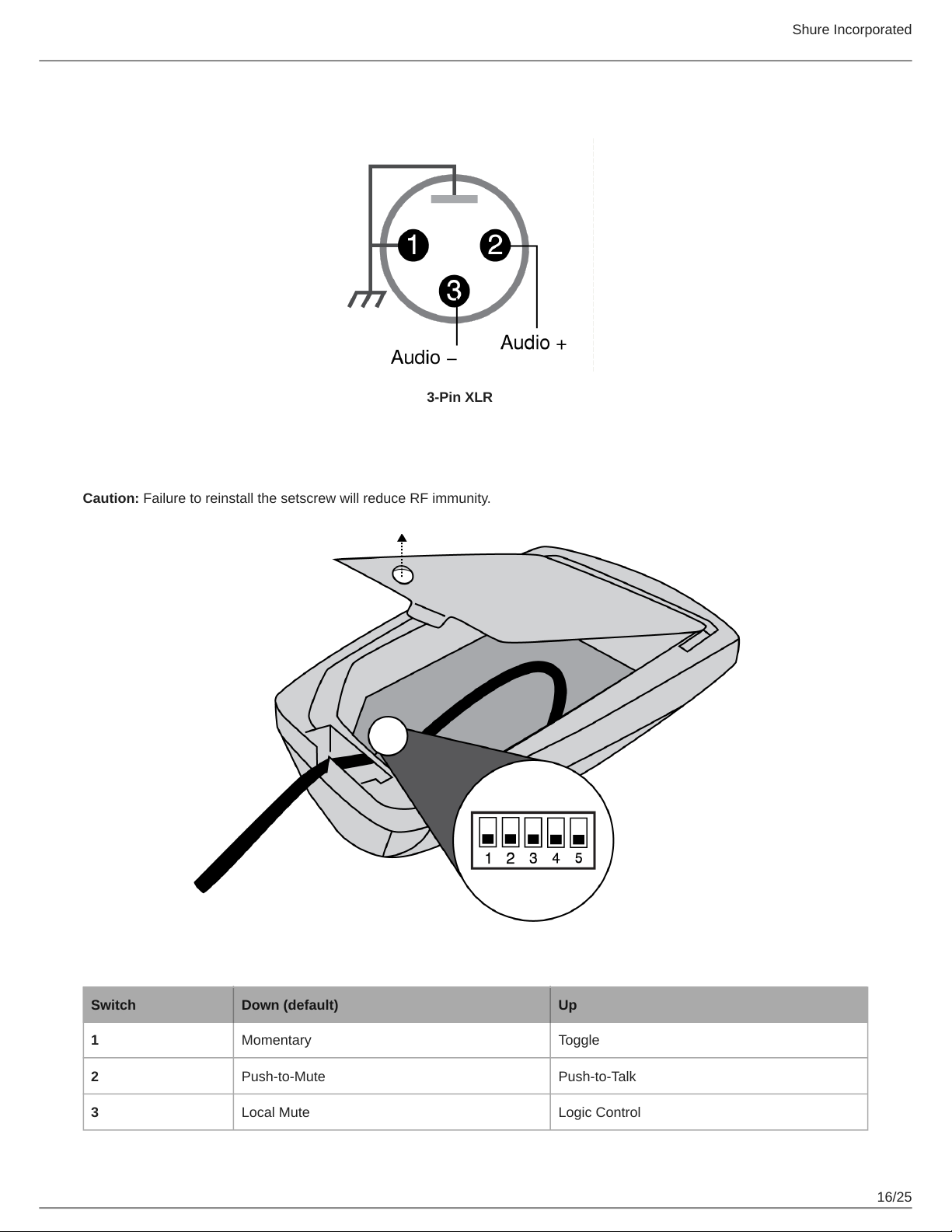

MX400DP Pin Assignments
3-Pin XLR
MX400DP DIP Switches
Caution: Failure to reinstall the setscrew will reduce RF immunity.
Switch Down (default) Up
1Momentary Toggle
2Push-to-Mute Push-to-Talk
3Local Mute Logic Control

Shure Incorporated
17/25

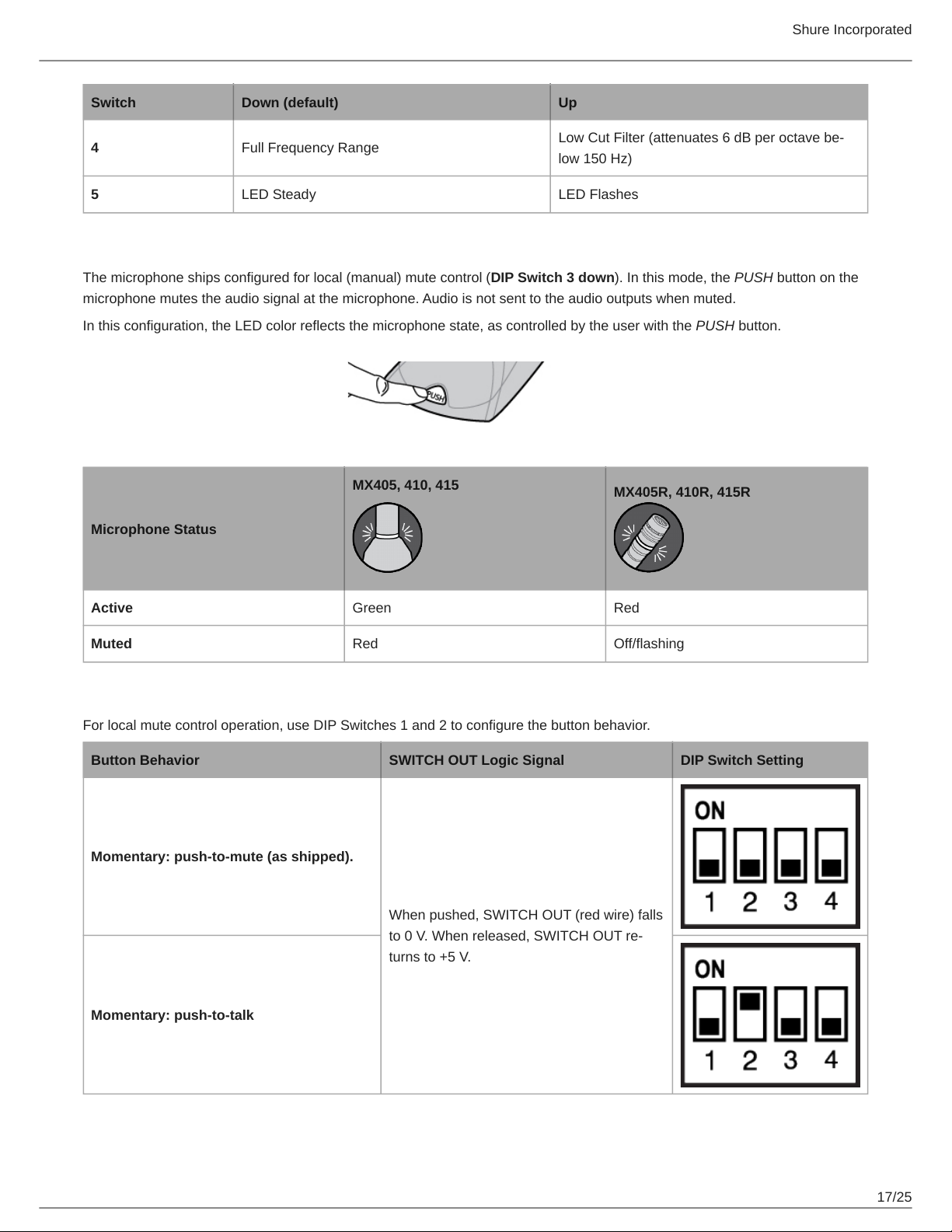

Switch Down (default) Up
4Full Frequency Range Low Cut Filter (attenuates 6 dB per octave be
low 150 Hz)
5LED Steady LED Flashes
Local Mute Control
The microphone ships configured for local (manual) mute control (DIP Switch 3 down). In this mode, the PUSH button on the
microphone mutes the audio signal at the microphone. Audio is not sent to the audio outputs when muted.
In this configuration, the LED color reflects the microphone state, as controlled by the user with the PUSH button.
Microphone Status
MX405, 410, 415 MX405R, 410R, 415R
Active Green Red
Muted Red Off/flashing
Button Configuration
For local mute control operation, use DIP Switches 1 and 2 to configure the button behavior.
Button Behavior SWITCH OUT Logic Signal DIP Switch Setting
Momentary: push-to-mute (as shipped).
When pushed, SWITCH OUT (red wire) falls
to 0 V. When released, SWITCH OUT re
turns to +5 V.
Momentary: push-to-talk

Shure Incorporated
18/25

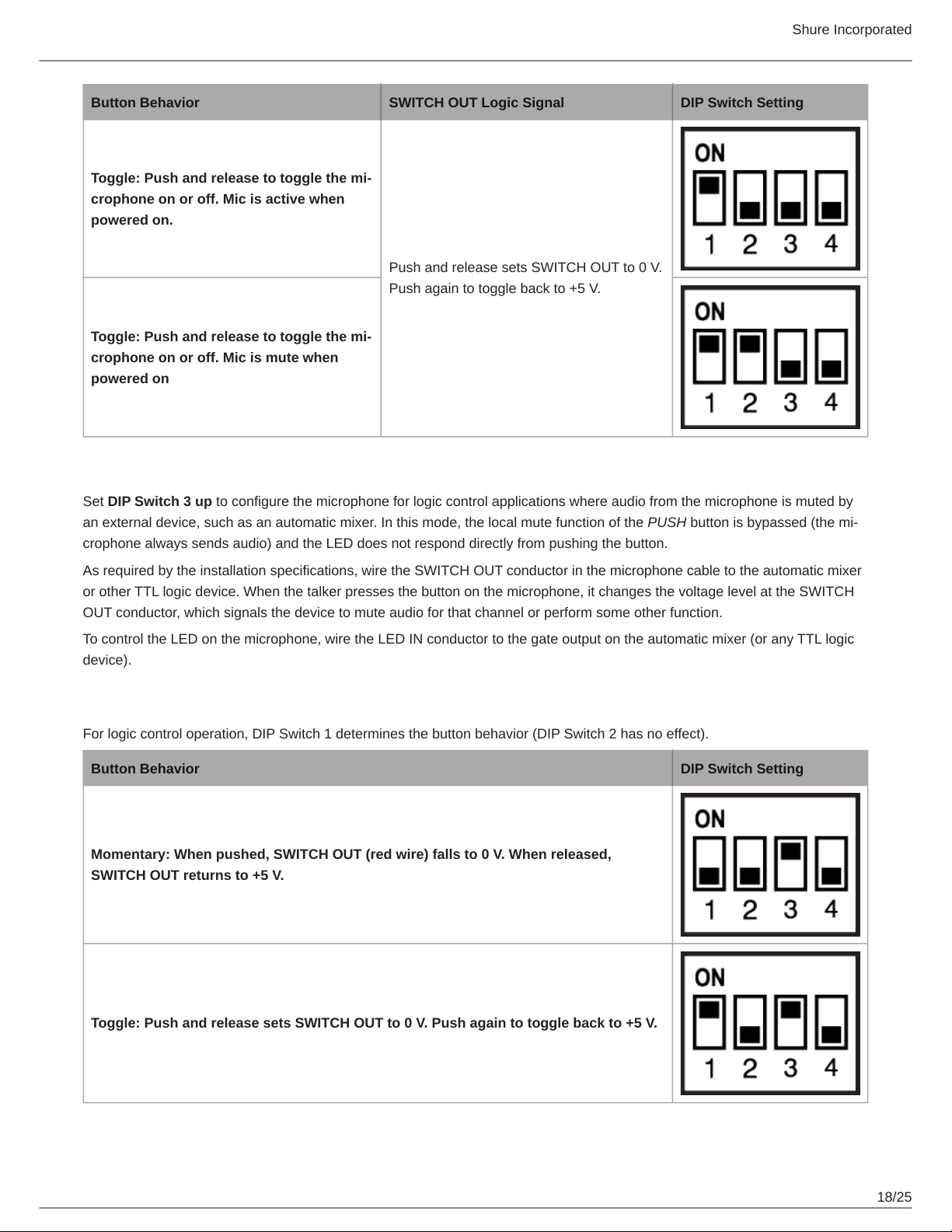

Button Behavior SWITCH OUT Logic Signal DIP Switch Setting
Toggle: Push and release to toggle the mi
crophone on or off. Mic is active when
powered on.
Push and release sets SWITCH OUT to 0 V.
Push again to toggle back to +5 V.
Toggle: Push and release to toggle the mi
crophone on or off. Mic is mute when
powered on
Logic Mute Control (Automatic Mixing)
Set DIP Switch 3 up to configure the microphone for logic control applications where audio from the microphone is muted by
an external device, such as an automatic mixer. In this mode, the local mute function of the PUSH button is bypassed (the mi
crophone always sends audio) and the LED does not respond directly from pushing the button.
As required by the installation specifications, wire the SWITCH OUT conductor in the microphone cable to the automatic mixer
or other TTL logic device. When the talker presses the button on the microphone, it changes the voltage level at the SWITCH
OUT conductor, which signals the device to mute audio for that channel or perform some other function.
To control the LED on the microphone, wire the LED IN conductor to the gate output on the automatic mixer (or any TTL logic
device).
Button Configuration
For logic control operation, DIP Switch 1 determines the button behavior (DIP Switch 2 has no effect).
Button Behavior DIP Switch Setting
Momentary: When pushed, SWITCH OUT (red wire) falls to 0 V. When released,
SWITCH OUT returns to +5 V.
Toggle: Push and release sets SWITCH OUT to 0 V. Push again to toggle back to +5 V.

Shure Incorporated
19/25
•
•

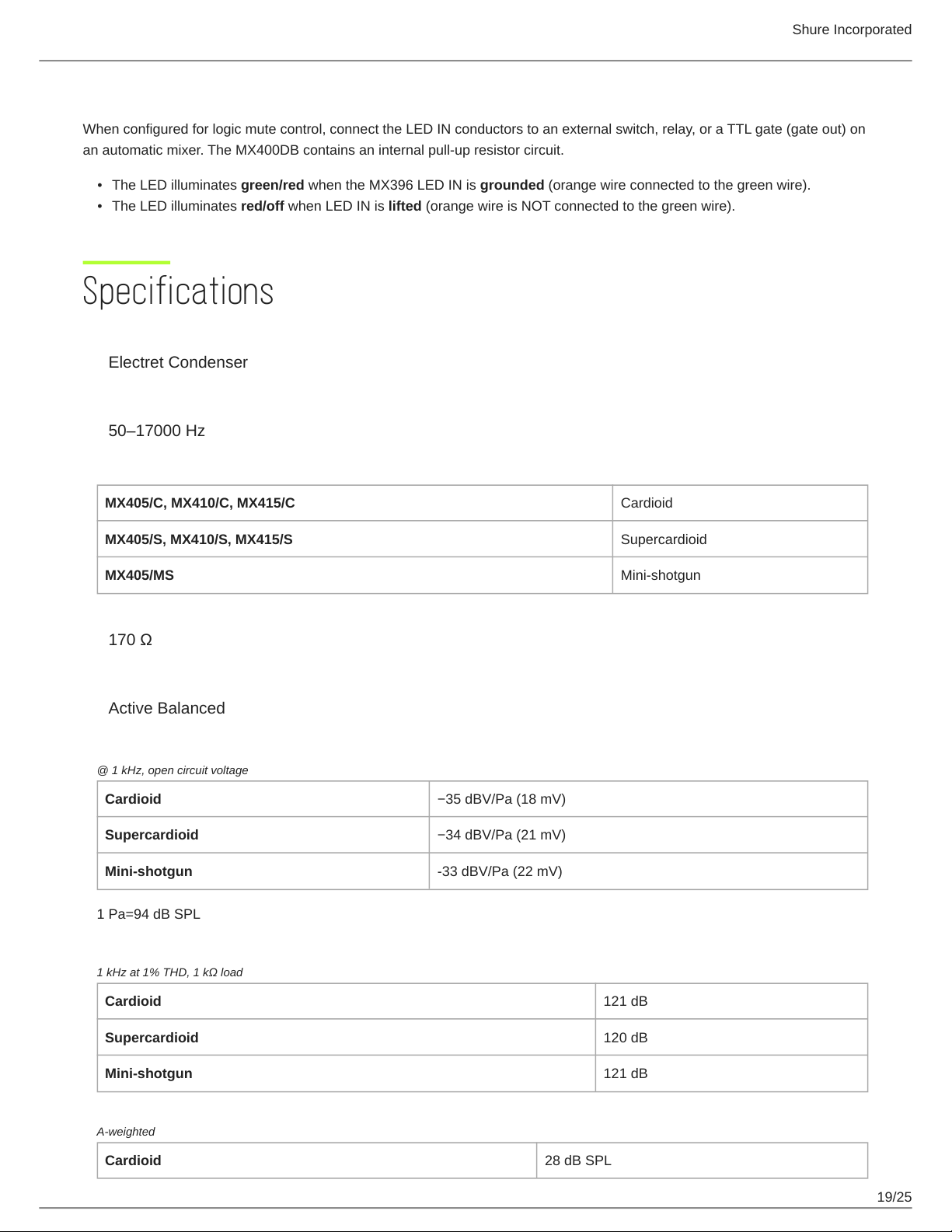

Controlling the LED Using Logic LED IN
When configured for logic mute control, connect the LED IN conductors to an external switch, relay, or a TTL gate (gate out) on
an automatic mixer. The MX400DB contains an internal pull-up resistor circuit.
The LED illuminates green/red when the MX396 LED IN is grounded (orange wire connected to the green wire).
The LED illuminates red/off when LED IN is lifted (orange wire is NOT connected to the green wire).
Specifications
Type
Electret Condenser
Frequency Response
50–17000 Hz
Polar Pattern
MX405/C, MX410/C, MX415/C Cardioid
MX405/S, MX410/S, MX415/S Supercardioid
MX405/MS Mini-shotgun
Output Impedance
170 Ω
Output Configuration
Active Balanced
Sensitivity
@ 1 kHz, open circuit voltage
Cardioid −35 dBV/Pa (18 mV)
Supercardioid −34 dBV/Pa (21 mV)
Mini-shotgun -33 dBV/Pa (22 mV)
1 Pa=94 dB SPL
Maximum SPL
1 kHz at 1% THD, 1 kΩ load
Cardioid 121 dB
Supercardioid 120 dB
Mini-shotgun 121 dB
Self Noise
A-weighted
Cardioid 28 dB SPL

Shure Incorporated
20/25

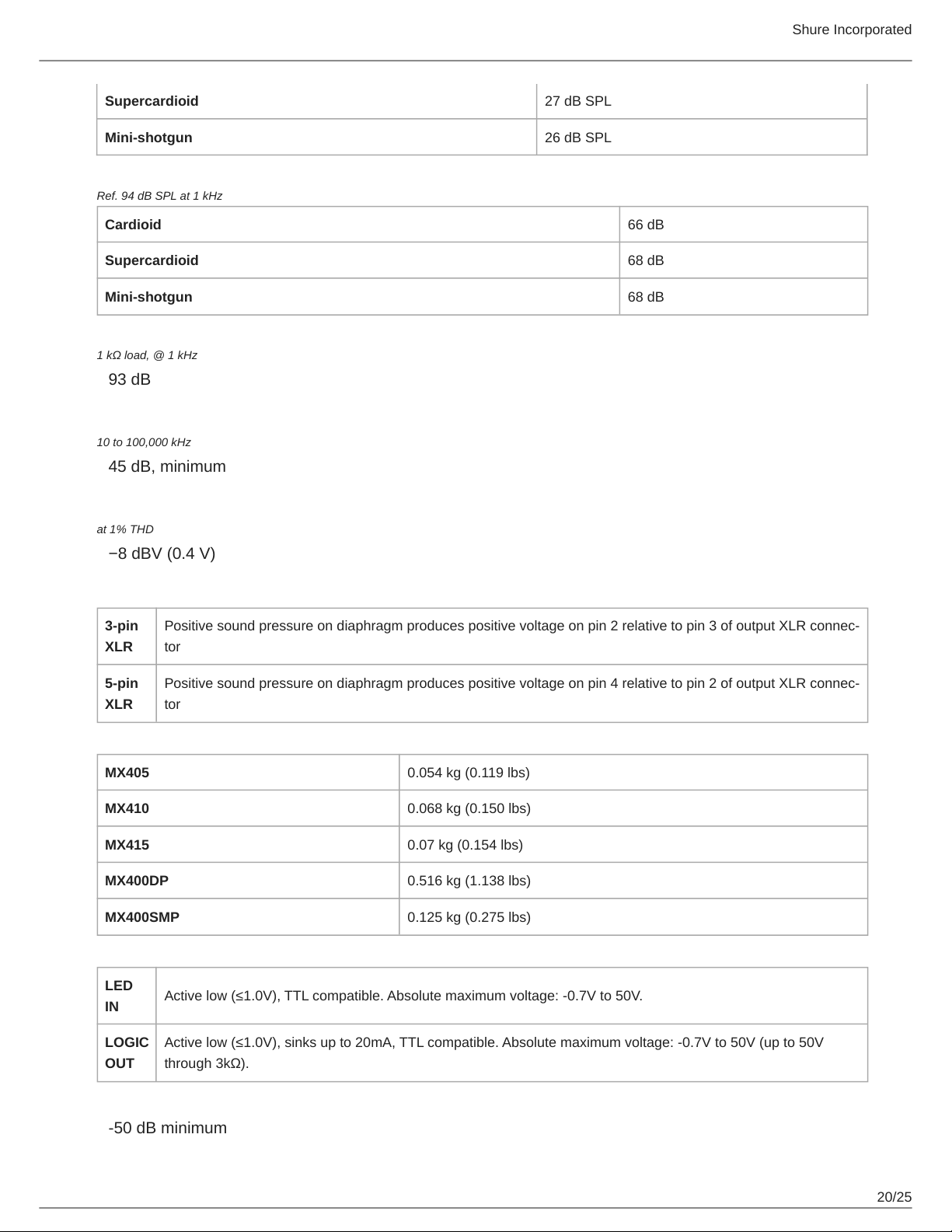

Supercardioid 27 dB SPL
Mini-shotgun 26 dB SPL
Signal-to-Noise Ratio
Ref. 94 dB SPL at 1 kHz
Cardioid 66 dB
Supercardioid 68 dB
Mini-shotgun 68 dB
Dynamic Range
1 kΩ load, @ 1 kHz
93 dB
Common Mode Rejection
10 to 100,000 kHz
45 dB, minimum
Clipping Level
at 1% THD
−8 dBV (0.4 V)
Polarity
3-pin
XLR
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connec
tor
5-pin
XLR
Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connec
tor
Weight
MX405 0.054 kg (0.119 lbs)
MX410 0.068 kg (0.150 lbs)
MX415 0.07 kg (0.154 lbs)
MX400DP 0.516 kg (1.138 lbs)
MX400SMP 0.125 kg (0.275 lbs)
Logic Connections
LED
IN Active low (≤1.0V), TTL compatible. Absolute maximum voltage: 0.7V to 50V.
LOGIC
OUT
Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: 0.7V to 50V (up to 50V
through 3kΩ).
Mute Switch Attenuation
-50 dB minimum
