UAPF-X1 -- In-Line Passive RF Filter
General Description
The Shure UAPF-X1 attenuates frequencies out-
side the X1 band. Use only with Shure X1 band
wireless products. Requires remote mounting of
antennas.
Features
•Filters out extraneous RF signals
•Integrated threaded adapter mounts easily to
microphone stands or the supplied surface-
mount bracket
•Passively passes power (12Vdc) for use with
UA870 active antenna
•Shure quality, ruggedness, and reliability
Installation
1. Attach the antenna to either end—the filter functions in both directions.

Shure Incorporated
2/4

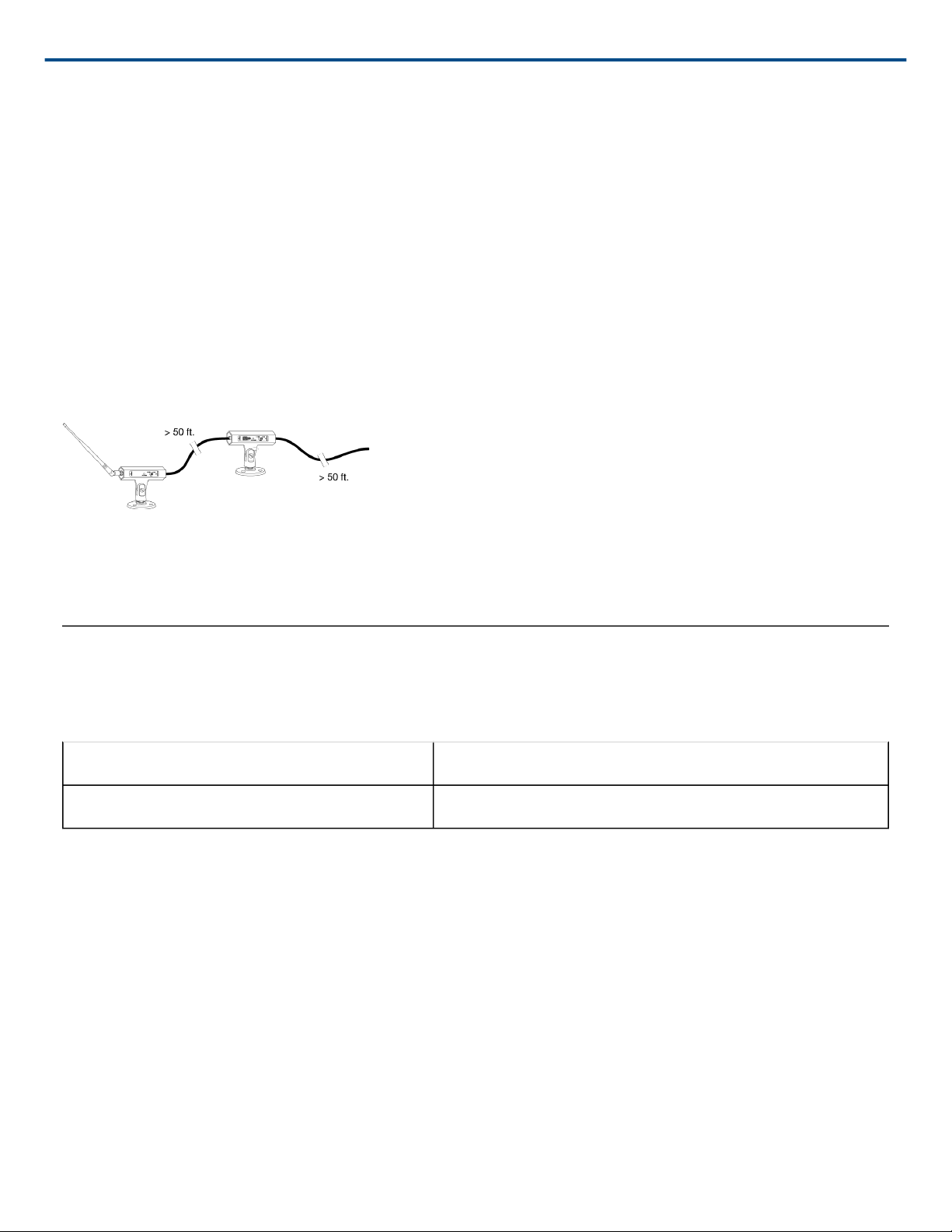

2. Use low-loss coaxial cable (sold separately) to connect to the receiver (or antenna distribution system), as
shown.
Note: The UAPF should be placed before any inline amplifier, such as the Shure UA830.
Cable Maintenance
To maintain top performance for UA825, UA850 or UA8100 antenna cables:
•Avoid sharp bends or kinks in the cables.
•Do not deform cables with makeshift clamps, such as bending a nail over the cable.
•Do not use in permanent outdoor installations.
•Do not expose to extreme moisture.

Shure Incorporated
3/4
Caution: Use only Shure antenna accessories to ensure the best operation. Do not use splitters, combiners, or
antennas that provide a DC ground. If necessary, use a BNC DC block device, such as the JFW Industries Model
50DB-002.
For setup tips and more information on wireless accessories, visit http://www.shure.com/WirelessAccessoryWizard
Antenna Placement
Use the following guidelines when mounting antennas:
•Antennas and receivers must be from the same band.
•Mount antennas at least one wavelength (two feet) apart.
•Position antennas so there is nothing obstructing a line of sight to the transmitter (including the audience).
•Keep antennas away from large metal objects.
Important: Important: Always perform a “walk around” test to verify coverage before using a wireless system dur
ing a speech or performance. Experiment with antenna placement to find the optimum location. If necessary, mark
“trouble spots” and ask presenters or performers to avoid those areas.
Specifications
RF Frequency Range
3 dB 36 MHz
20 dB 49 MHz
Stop-Band Attenuation
>30 dB dB (32 to 36 dB, typical)
Insertion Loss
3.25 dB, typical
VSWR in Passband
Input and output: 2.0, typical

Shure Incorporated
4/4
Connector
Input and output: Female, BNC-type
Case
Aluminum die-casting, black painted
Dimensions
Without Mounting Stand: 67 mm x 32 mm x 112 mm (H x W x D)
With Mounting Stand: 108 mm x 32 mm x 112 mm (H x W x D)
Net Weight
Without Mounting Stand: 0.28 kg (9.8 oz.)
With Mounting Stand: 0.42 kg (14.8 oz.)
