AD610 ShowLink Access Point
The AD610 ShowLink access point enables real-time remote control of all ShowLink-enabled Axient™ transmit
ters, including both digital and analog models. The access point allows comprehensive management of transmitter
parameters from the receiver or Wireless Workbench 6 using 2.4 GHz wireless network communication. All para
meter changes occur without interruption to the performer.
Multiple access points can extend the operational range or increase the number of transmitters supported on the
ShowLink network. The access point also features true diversity antenna inputs.
Features
•Real-time wireless remote control of up to 24 transmitters per ShowLink access point
•New RF design and true diversity antenna scheme for improved link performance
• Easy transmitter authentication—Recognizes linked transmitters upon IR sync
• Provides coverage area approximately the same as the transmitter’s range
•Automatic hand-offs between multiple access points extend operating range
®

Shure Incorporated
3/13
• Automated channel selection—Independently scans 2.4 GHz frequency range and determines best channel for
use
• Automatic frequency agility—Moves a ShowLink network to the best available 2.4 GHz channel in the event of
signal degradation
•Wireless Workbench 6 software supports networked control of all device functions and provides a ShowLink
plot for viewing 2.4 GHz signal levels
•Receives power via Power over Ethernet (PoE) network connection or from an external power supply
• Versatile mounting options—Fits microphone stand adapters and has builtin ¼"20 and M6 x 1.0 threading for
installation
•Backwards compatible with Axient analog transmitters and receiver
ShowLink Access Point Overview

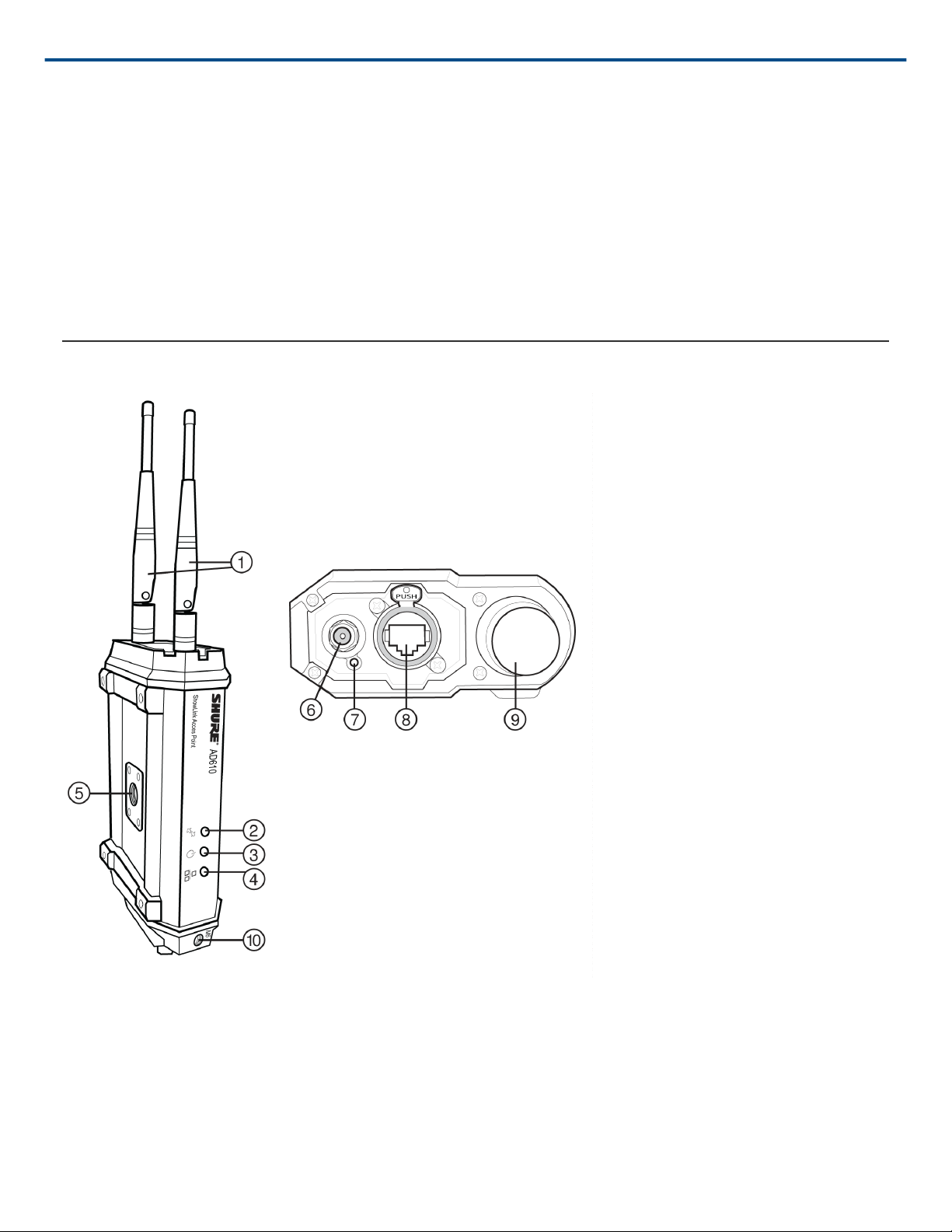

①ShowLink 2.4 GHz detachable antennas
For 2.4 GHz signals
②ShowLink Data Status LED (blue)
•ON Steady: Linked, no data transmission
•Flashing: Transmitting data. Rate of flashing indicates level of activity

Shure Incorporated
4/13
③Power Status LED (green/amber/red)
•Steady Green: Power ON, power source = PoE
•Steady Amber: Power ON, power source = external power supply
•Red Flashing: Response to remote ID flash command
④Ethernet Status LED (green)
•ON Steady: Ethernet connected, no traffic
•ON Flashing: Ethernet connected, flashing corresponds to volume of data traffic
⑤¼"-20 threaded mounting point
Use to wall-mount the access point
⑥External power supply connector
Connection point for external power supply
⑦Reset button
Press to restore factory settings
⑧Ethernet port
For network connection and Class 1 PoE
⑨Scanning antenna for channel agility
Scans the 2.4 GHz spectrum for the best frequency
⑩M6 x 1.0 threaded mounting point
Use to mount access point to safety cable
Furnished Accessories
Wireless Microphone Clip WA371
5/8" to 3/8" Thread Adapter 31A1856
Shielded 25 foot Ethernet cable for ShowLink access point, RJ45-to-EtherCon
connector
95A15104
Power Supply PS43
Note: Model availability depends on region. See your local Shure dealer or distributor for details.

Shure Incorporated
5/13
Optional Accessories
Directional 2.4 GHz patch antenna AXT644 (available depending on regional regulations)
ShowLink Basics
ShowLink Channels and 2.4 GHz Spectrum
ShowLink channels that enable remote control of Axient transmitters operate in the 2.40 to 2.484 GHz portion of
the RF spectrum in accordance with the IEEE 802.15.4 protocol. Devices that share the 2.4 GHz spectrum, includ
ing Wi-Fi, are manufactured to efficiently share the spectrum and cause minimal interference. Both ShowLink and
WiFi use "listen before talk" technology to transmit short message packets only when needed to conserve band
width. Available spectrum, low interference, and global availability make the 2.4 GHz spectrum an ideal choice for
hosting ShowLink channels.
Within the 2.4 GHz spectrum, 16 channels are available for ShowLink communication. To ensure reliable commu
nication, the access point contains an internal scanning radio that analyzes the 2.4 GHz spectrum hundreds of
times per second. If interference is detected, the access point uses channel agility to automatically switch to a
clear channel within the spectrum. All transmitters associated with the access point will continue to communicate
uninterrupted on the new ShowLink channel. If ShowLink goes offline for any reason, audio transmission will not
be interrupted.
Coverage Area
The coverage area of the access point is approximately the same as the transmitter’s range. Use the ShowLink
Test feature in the receiver menu to map the boundaries of the coverage area. Multiple access points can be used
to increase the coverage area or to expand coverage to multiple rooms.
Transmitter Capacity
A single access point supports up to 24 ShowLink-enabled Axient transmitters, including both Axient and Axient
Digital models. Any transmitter within range of an active access point with available capacity will be automatically
controlled by that access point. When multiple access points are used to increase transmitter capacity or to in
crease coverage area, transmitter control is automatically divided between each access point. All changes in con
trol between access points occur seamlessly and automatically, without requiring user intervention.
Transmitter Control
An access point with available capacity will automatically control linked transmitters that are within the coverage
area. Multiple access points automatically selfmanage to divide transmitter control and maintain coverage. Transi
tions between access point control do not affect the transmission of the audio channel.

Shure Incorporated
6/13
2.4 GHz Channel Agility to Avoid Interference
When interference is present from WiFi or other devices sharing the spectrum, builtin channel agility automatical
ly switches the access point and all controlled transmitters to a clear channel. Channel agility is able to avoid inter
ference from most devices that operate in the 2.4 GHz spectrum, such as Wi-Fi or cell phones.
ShowLink Icon
The ShowLink icon appears on the home screens of a linked transmitter and receiver to indicate that the transmit
ter is within range of an access point making remote control possible. If the transmitter is beyond the range of the
access point, or if the receiver is offline, the icon will disappear, indicating a loss of ShowLink control.
Power
The access point is powered through Power Over Ethernet (PoE)-enabled network ports. If PoE is not available,
use an external power supply.
Power Over Ethernet
The Shure Ethernet switch and Axient rack components offer network ports with Power over Ethernet (PoE). The
network port powers the access point as long as the host component is powered on.
1. Insert a Cat 5 Ethernet cable into the Ethernet port located on the body of the access point.
2. The Ethernet PoE connection supplies power for the access point.
External Power Supply (Optional)
If Power over Ethernet (PoE) is not available, power the access point using an external power supply.
1. Connect the power supply to the external power supply jack.
2. Tighten the locking ring to secure the plug.
3. Plug the power supply AC line cord into an AC power source.
4. Connect a Cat 5 Ethernet cable to the access point to provide a network connection.

Shure Incorporated
7/13
Networking
Networking the access point using a DHCPenabled router automatically assigns an IP address, simplifying net
work setup. The network connection allows the access point to share data with networked components and en
ables wireless control of the transmitters. To manually assign an IP address to the access point, use Wireless
Workbench 6.
Reset Option
Pressing the reset button located on the bottom of the housing restores the access point to the following settings:
•IP Address Mode = DHCP
•Channel Agility = Enabled
•Device ID = AD610
•Device Association Tables will be cleared
Positioning the Access Point
• Provide a clear line of sight between the access point and transmitters. Mount the access point on a micro
phone stand or wall to elevate above obstructions.
•Position the antennas vertically for optimal performance. The swivel joint on each antenna allows a wide range
of positioning to maintain a vertical alignment.
•If possible, move access point farther from other 2.4 GHz devices.
•This product is intended to be mounted with a ¼"-20 threaded insert and installed by a qualified person with
suitable mounting means as appropriate for wall surface chosen.

Shure Incorporated
8/13
Microphone Stand Mount
Horizontal Mount
Wall Mount

Shure Incorporated
9/13
Control and Configure the Access Point with Wireless Work
bench 6
Wireless Workbench 6 adds the following configuration and networking options for the access point:
•Edit Device ID
•View connected transmitters
•View transmitter capacity
•Disable channel agility for troubleshooting
•Set IP Address Mode: DHCP or Manual
•Set IP Address: Edit in Manual Address Mode
•View and set subnet mask
•View MAC address
Tip: The text color of the Device ID for each transmitter in the Connected list indicates Link Quality:
•Green = Excellent
•Yellow = Good
•Red = Marginal
Hovering the cursor over the Device ID displays Link Quality ranked from 5 to 1.
Setting Power Levels
To adjust the power level, use Wireless Workbench. In locations with many competing 2.4 GHz sources, operating
at a higher power level improves ShowLink performance and may extend range.
•Normal (default) = Operates at 8 dBm
•High = Operates at 18 dBm
1. Open the Properties panel for the access point in Wireless Workbench.
2. Click the Settings arrow, and select Network.
3. Choose a power level and click Apply.
Note:
•Always check regional regulations before operating in the high power setting.
•Due to regulations, Channel 26 can only operate in the normal power setting.
Specifications
Antenna Type
2 Omnidirectional 2.4 GHz
Capacity
24 Axient ShowLink Transmitters (AXT or ADX Models)

Shure Incorporated
10/13
Mounting Type
WA371 Mic Clip or 1/4-20 thread mount
Operating Temperature Range
-18°C (0°F) to 60°C (140°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Dimensions
190 mm x 102 mm x 47 mm (7.48 in. x 4 in. x 1.85 in.) H x W x D, without antennas
Weight
464 g (16.3 oz.), without antennas
Housing
Extruded Aluminum
Power Requirements
Power over Ethernet (PoE) Class 1 36 to 57 V DC/V AC
External Power Supply (if PoE is unavailable) 15 V DC (600 mA), double insulated
Ingress Protection Rating
IPX3
ShowLink
Network Type
IEEE 802.15.4
Frequency Range
2.40 to 2.4835 GHz (16 channels)
RF Output Power
10 dBm ERP / 20 dBm ERP (dependent on applicable country regulations)
Working Range
Under typical conditions 150 m (500 ft)
Line of Sight, outdoors for a single system 500 m (1600 ft)

Shure Incorporated
11/13
Note: Actual range depends on RF signal absorption, reflection and interference.
Antenna Connection
Connectors
2 SMA (Shell=Ground, Center=Signal)
Impedance
50 Ω
Scanning Radio
Scanner RF Sensitivity
-106 dBm, typical (integrated antenna)
Networking
Network Interface
Ethernet 10/100 Mbps
Network Addressing Capability
DHCP or Manual IP address (configurable using Wireless Workbench)
Certifications
Meets essential requirements of the following European Directives:
•WEEE Directive 2002/96/EC, as amended by 2008/34/EC
•RoHS Directive 2011/65/EU
Note: Please follow your regional recycling scheme for batteries and electronic waste
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
Hereby, Shure Incorporated declares that the radio equipment is in compliance with Directive 2014/53/EU. The full
text of the EU declaration of conformity is available at the following internet address: http://www.shure.com/europe/
compliance (http://www.shure.com/europe/compliance)
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany

Shure Incorporated
12/13
Phone: [phone]
Fax: [phone]
Email: [email protected]
Meets requirements of the following standards:
EN 300 328
EN 301 489 Parts 1 and 17
IEC60950
Certified under FCC Part 15.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including in
terference that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation of this device is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must accept any inter
ference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de li
cence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscepti
ble d'en compromettre le fonctionnement.
Certified by IC in Canada under RSS-247.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with
the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
FCC ID: DD4AD610. IC: 616A-AD610.
This device operates on a noprotection nointerference basis. Should the user seek to obtain protection from oth
er radio services operating in the same TV bands, a radio licence is required. Please consult Industry Canada's
document CPC-2-1-28, Optional Licensing for Low-Power Radio Apparatus in the TV Bands, for details.
Transmitters must be installed to provide a minimum separation distance of 20 cm from all persons.
Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other
cable types may degrade EMC performance.
Important Product Information
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national
authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could
void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s re

Shure Incorporated
13/13
sponsibility, and licensability depends on the user’s classification and application, and on the selected frequency.
Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licens
ing, and before choosing and ordering frequencies.
Information to the user
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm
ful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
運用に際しての注意
この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で使用されている移
動体識別用の構内無線局（免許を要する無線局）及び特定小電力無線局（免許を要しない無線局）並びにアマチュ
ア無線局（免許を要する無線局）が運用されています。
1. この機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマ チュア無線局
が運用されていないことを確認して下さい。
2. 万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、 速やかに使
用周波数を変更するか又は電波の発射を停止した上、下記連絡先にご連絡頂き、混 信回避のための処置等（例
えば、パーティションの設置など）についてご相談して下さい。
3. その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して有害な電波干渉の事
例が発生した場合など何かお困りのことが起きたときは、保証書に記載の販売代 理店または購入店へお問い合
わせください。代理店および販売店情報はShure 日本語ウェブサイト http://www.shure.co.jp (http://
www.shure.co.jp) でもご覧いただけます。
現品表示記号について
現品表示記号は、以下のことを表しています。 この無線機器は2.4GHz 帯の電波を使用し、変調方式は「 DS 」方式、
想定与干渉距離は40m です。 2,400MHz ～2,483.5MHz の全帯域を使用し、移動体識別装置の帯域を回避すること
はできません 。
