MANUAL for INSTALLATION,
RUNNING and MAINTENANCE
Patio-heaters:
models ALIENTE E/M and SOLFLAME E/M
models ALOR M and SOLEIL M
(manual start-up)
SIABS S.r.l. – ITALY Phone [phone] E-mail [email protected]
via Del Lavoro, 7 Fax [phone] Web page www.siabs.com
20010 – Casorezzo (MILAN)
made in
IT
Y!

Manual_UK_K_K_rev. 1_10_2013 pag. 2
CONTENT
General instruction 3 and 4
For Your safety 5
Warranty terms 5
CE declaration of conformity 5
Labels 6
. plate with technical data 6
. packing label 6
Technical data 7 and
. patio-heaters KALIENTE M & E 7
. patio-heaters KALOR M & E 8
Dimensions 9
MINIMUM distance of installation 10
Installation 11 and 12
. room ventilation 11
. notices 11
. description of patio-heaters 12
. get ready to working – suggestions 12
Put in operation and First Start-up 13 – 17
. position of heater, handling and gas bottle positioning
13 and 14
. suggested gas bottle 14
. start-up 15 – 17
Safety devices 1
Maintenance 19 and 20
. ordinary maintenance 1
. replacement of the glass pipe, patio-heater KALIENTE 1
. nozzle replacement 20
Trouble shooting
21 – 23
. KALIENTE Manual 21
. KALIENTE Electronic 22
. KALOR Manual and Electronic 23
Suggested spare-parts list
24
Service sheet 25
CE certificate 26
Decommissioning and disposal (norms for user) 27
NOTE
-ALIENTE (with glass tube and flame)
-ALOR (with burner in metallic fiber)

Manual_UK_K_K_rev. 1_10_2013 pag. 3
GENERAL INSTRUCTIONS for INSTALLER,
USER and MAINTENANCE PERSONNEL
Thank you for your preference and trust granted! SIABS is pleased to have You among
his Customers; our appliances are designed and manufactured to the most modern and
rational processing systems and we do think you will appreciate the pleasant comfort and their
use will be fully satisfactory.
To keep appliances perfectly working and safe, time passing, WE INVITE YOU to READ and
FOLLOW the instructions of this handbook and commit all installation and maintenance
(ordinary and extraordinary) operations only to skilled personnel, with specific
technical skills in the field of components of heating, preferably to SIABS authorized Service
Centre.
For the INSTALLER:
-read carefully the warnings in the manual before performing any operation as
they provide important information concerning the safety of installation, use and the
necessary maintenance operations to be performed
-this manual is integral and essential part of the product and must be delivered to the
user; retain it carefully for further consultations
-in case of non-compliance with the following instructions, the warranty
covering the product(s) will be null and void
-BEFORE THE INSTALLATION, verify that local gas distribution (type of gas and
pressure) and appliance settings are compatible
-appliance must be installed only in premises with adequate ventilation
-installation should be done in accordance with the Regulations in force in the
country of destination, to the state of art, following instructions by the Manufacturer
-the appliance must be used solely for the use for which it was designed: any other use
is considered improper and therefore dangerous
-incorrect installation can cause damage to people, animals and things; the
Manufacturer doesn’t accept any contractual and extra-contractual liability in tort and
contract for damages caused by errors in installation and use

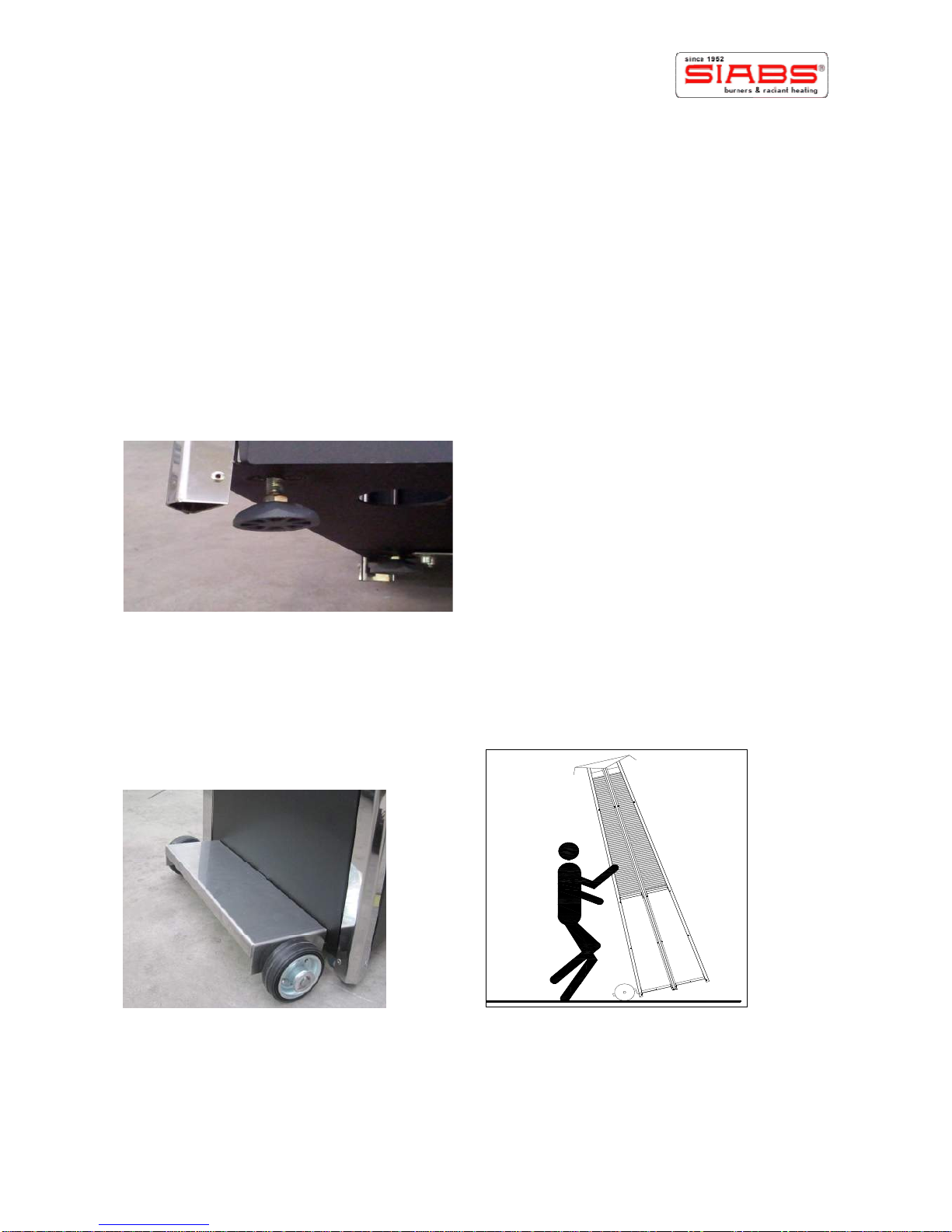

-we suggest to make use only of SIABS device for transport / handling (optional),
named “kit for transport”
-transport / handling MUST take place only when patio-heater is cold (safety of
people and protection of its components), TAKING CARE TO SECURE THE GLASS
TUBE (model KALIENTE) WITH CLAMPS
-use only original accessories and modification kits
-after you have removed all items from packing box, make sure that all components
have been included and their integrity, in case of doubt not use the appliance and
contact the Manufacturer; elements of packaging are potentially dangerous: therefore
should not be left within the reach of children and must be disposed according to
regulations in force
-before any cleaning or maintenance operation, wait until the appliance is cold,
disconnect it from the electricity supply and bring the fuel shut-off valve in the
closed position
-FOR NO REASON you can change the working parameters set in the factory (nozzle or
air intake)

Manual_UK_K_K_rev. 1_10_2013 pag. 4
For the USER and OWNER of the patio-heaters:
-this manual is integral and essential part of the product and must be delivered to the
user; retain it carefully for further consultations
-in case of non-compliance with the following instructions, the warranty
covering the product(s) will be null and void
-the appliance must be used solely for the use for which it was designed: any other use
is considered improper and therefore dangerous
-incorrect installation can cause damage to people, animals and things; the
Manufacturer doesn’t accept any contractual and extra-contractual liability in tort and
contract for damages caused by errors in installation and use
-we suggest to make use only of SIABS device for transport / handling (optional),
named “kit for transport”
-AFTER EACH USE, turn off the tap on the gas bottle
-transport / handling MUST take place only when patio-heater is cold (safety of
people and protection of its components), TAKING CARE TO SECURE THE GLASS
TUBE (model KALIENTE) WITH CLAMPS
-DO NOT LEAVE CHILDREN UNATTENDED close to the patio-heater: some
components are warm
-we recommend to replace the gas bottle in a well ventilated area, far from heat sources
-use only original accessories and modification kits
-every time the gas bottle is replaced, check that gasket of gas regulator is in
correct position and works as requested
-you should check periodically the flexible gas pipe to check for any anomalies and
replace it according to the expiring date stamped on it
-before any cleaning or maintenance operation, wait until the appliance is cold,
disconnect it from the electricity supply and bring the fuel shut-off valve in the
closed position
-in case of failure and/or malfunction of the appliance, turn it off refraining from any
attempt to repair or direct intervention; contact SIABS authorized Service Centre
-contact the producer in case of change of gas nozzle; i.e. from LPG to natural gas (or
vice versa)
-when you decide to stop using the appliance, for DISPOSAL or RESALE, you will have
to render harmless all parties which can be a source of potential danger; the technical
manual is integral and essential part of the product: it must be preserved and
accompany the appliance in case of property change, so that it can be
consulted by the new user and / or maintenance staff
N.B. – BATTERIES to be used
Patio-heaters with ELECTRONIC start-up
•for remote control of patio-heaters KALIENTE E & SOLFLAME E = model AAA
•for gas group of patio-heaters KALIENTE E & SOLFLAME E = model type Torch
Patio-heaters with MANUAL start-up
•for gas group of patio-heaters KALIENTE M & SOLEIL M = model AA
note – they are inside the piezo starter

Manual_UK_K_K_rev. 1_10_2013 pag. 5
FOR YOUR SAFETY
IMPORTANT: appliances MUST NOT be used in domestic environments. This appliance
will be devoted only to the use for which it was expressly provided, all other uses will be
considered improper and therefore dangerous.
IMPORTANT: appliances MUST NOT be used in ambient with flammable materials,
liquids or vapours: non-compliance with these requirements may be cause of death, injury
to persons or damage to things.
Warranty
SIABS guarantees its products, whether installed by authorized personnel, for a period of 24
months from the invoice date. The warranty does not cover the components supplied by third
parties, these are subject to the conditions of the original warranty.
The guarantee is only the free supply on Ex-Works basis, of parts with manufacturing or
workmanship defects.
The guarantee does not cover problems due to carelessness, incorrect setting, misuse of the
appliance or fortuitous accidents, and not dependent on imperfection processing or defective
materials, and those due to dismantling or changes without prior authorization from SIABS.
The correct functioning of the appliances depends on a proper installation and start-up. Failure
to comply with these rules immediately involves the decay of the guarantee, and therefore of
responsibility by the manufacturer.
CE declaration of CONFORMITY
SIABS S.r.l. patio-heaters, models:
•ALIENTE M – SOLFLAME M
•ALIENTE E – SOLFLAME E
•ALOR M – SOLEIL M
comply with communitarian directives referring to gas heaters for out-door installation
EN 14543:2005+A1:2007.
N.B. – all components of SIABS patio-heaters are CE certificated
PLATE LABEL
In case of gas smell: DO NOT operate the heating plant, vent the ambient,
DO NOT start apparatus or electric switches; contact the installer and gas
supply company and follow scrupulously their instruction

Manual_UK_K_K_rev. 1_10_2013 pag. 6

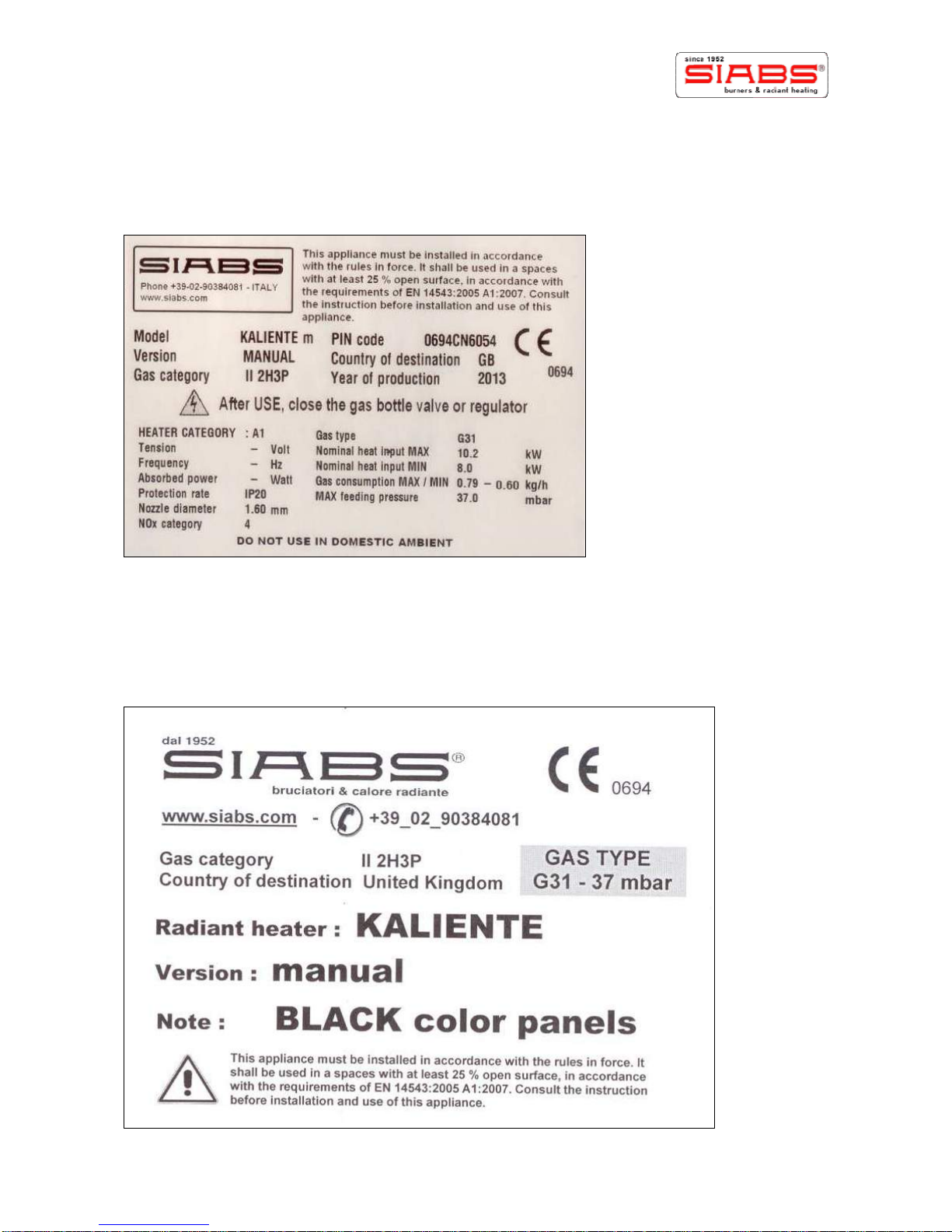

On each unit you will find a plate with technical data – do not remove – placed inside the gas
bottle compartment, on the burner cover.
Apparatus type A1,
Plate label (example: patio-heater KALIENTE Electronic, gas type G31 propane)
Essential features of the appliance are given on the packing label, outside on the packing box.

Manual_UK_K_K_rev. 1_10_2013 pag. 7
TECHNICAL DATA,
patio-heaters ALIENTE E / M – SOLFLAME E/M
Country
Category
Gas
Pressure
Gas
Pressure
AT
II 2H3B/P
G20
20 mbar
G30 / G31
50 mbar
BE
II 2E+,I3+
G20 / G25
20 / 25 mbar
G30 / G31
28-30 / 37 mbar
DE
II 2ELL3B/P
G20 / G25
20 mbar
G30 / G31
50 mbar
DK, SE, FI
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
ES, GB, GR
II 2H3P
G20
20 mbar
G31
37 mbar
FR
II 2E+,I3+
G20 / G25
20 / 25 mbar
G30 / G31
28-30 / 37 mbar
IE, PT
II 2H3P
G20
20 mbar
G31
37 mbar
IS
I 3P
G31
30 mbar
IT
II 2H3+
G20
20 mbar
G30 / G31
28-30 / 37 mbar
LU
II 2E3P
G20
20 mbar
G31
37 mbar
NL
I 2L3B/P
G20
25 mbar
G30 / G31
37 mbar
NO
II 2H3B/P
G20
20 mbar
G30 / G31
50 mbar
CY, MT
I 3B/P
G30 / G31
30 mbar
EE, LT, LV
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
EE, LT, LV
II 2H3P
G20
20 mbar
G31
37 mbar
CZ
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
SK, SI, BG
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
SK, SI
II 2H3P
G20
20 mbar
G31
37 mbar
RO, C*
II 2H3+
G20 / G25
20 / 25 mbar
G30 / G31
28-30 / 37 mbar
HU
II 2H3B/P
G20
25 mbar
G30 / G31
30 mbar
PL
II 2E3B/P
G20
20 mbar
G30 / G31
37 mbar
PL
II 2E3P
G20
20 mbar
G31
37 mbar
CH
II 2H3+
G20
20 mbar
G30 / G31
28-30 / 37 mbar
HR
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
TR
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
•Gas G30-G31 at 2 /30/37 mbar gas nozzle 1.6 mm Category A1
Heating power MAX 10.2 kW consumption 0.7 kg/h
Power MIN 8.0 kW consumption 0.60 kg/h
•Gas G30-G31 at 50 mbar gas nozzle 1.6 mm Category A1
Heating power MAX 10.2 kW consumption 0.7 kg/h
Power MIN 8.0 kW consumption 0.60 kg/h
N.B. – 1.6mm gas diaphragm is compulsory
•Gas G20 at 20 mbar gas nozzle 2.5 mm Category A1
Heating power MAX 10.2 kW consumption 0. 8 m³/h
Power MIN 6.0 kW consumption 0.5 m3/h
•Gas G25 at 25 mbar gas nozzle 2.5 mm Category A1
Heating power MAX 10.2 kW consumption 1.03 m³/h
Power MIN 6.0 kW consumption 0.60 m3/h
•Gas G20 at 25 mbar gas nozzle 2.3 mm Category A1
Heating power MAX 10.2 kW consumption 0. 8 m³/h
Power MIN 6.0 kW consumption 0.62 m³/h
•NOx class = 4

Manual_UK_K_K_rev. 1_10_2013 pag. 8
•Weight = approx. 30 kg
TECHNICAL DATA,
patio-heaters ALOR M – SOLEIL M
Country
Category
Gas
Pressure
Gas
Pressure
AT
II 2H3B/P
G20
20 mbar
G30 / G31
50 mbar
BE
II 2E+,I3+
G20 / G25
20 / 25 mbar
G30 / G31
28-30 / 37 mbar
DE
II 2ELL3B/P
G20 / G25
20 mbar
G30 / G31
50 mbar
DK, SE, FI
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
ES, GB, GR
II 2H3P
G20
20 mbar
G31
37 mbar
FR
II 2E+,I3+
G20 / G25
20 / 25 mbar
G30 / G31
28-30 / 37 mbar
IE, PT
II 2H3P
G20
20 mbar
G31
37 mbar
IS
I 3P
G31
30 mbar
IT
II 2H3+
G20
20 mbar
G30 / G31
28-30 / 37 mbar
LU
II 2E3P
G20
20 mbar
G31
37 mbar
NL
I 2L3B/P
G20
25 mbar
G30 / G31
37 mbar
NO
II 2H3B/P
G20
20 mbar
G30 / G31
50 mbar
CY, MT
I 3B/P
G30 / G31
30 mbar
EE, LT, LV
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
EE, LT, LV
II 2H3P
G20
20 mbar
G31
37 mbar
CZ
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
SK, SI, BG
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
SK, SI
II 2H3P
G20
20 mbar
G31
37 mbar
RO, C*
II 2H3+
G20 / G25
20 / 25 mbar
G30 / G31
28-30 / 37 mbar
HU
II 2H3B/P
G20
25 mbar
G30 / G31
30 mbar
PL
II 2E3B/P
G20
20 mbar
G30 / G31
37 mbar
PL
II 2E3P
G20
20 mbar
G31
37 mbar
CH
II 2H3+
G20
20 mbar
G30 / G31
28-30 / 37 mbar
HR
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
TR
II 2H3B/P
G20
20 mbar
G30 / G31
30 mbar
•Gas G30-G31 at 2 /30/37 mbar gas nozzle 1.5 mm Category A1
Heating power MAX 10.2 kW consumption 0.7 kg/h
Power MIN 8.0 kW consumption 0.60 kg/h
•Gas G30-G31 at 50 mbar gas nozzle 1.5 mm Category A1
Heating power MAX 10.2 kW consumption 0.7 kg/h
Power MIN 8.0 kW consumption 0.60 kg/h
•Gas G20 at 20 mbar gas nozzle 2.6 mm Category A1
Heating power MAX 10.5 kW consumption 0. 5 m³/h
Power MIN 6.5 kW consumption 0.61 m³//h
•Gas G25 at 25 mbar gas nozzle 2.6 mm Category A1
Heating power MAX 10.5 kW consumption 1.075 m³/h
Power MIN 6.5 kW consumption 0.65 m³/h
•Gas G20 at 25 mbar gas nozzle 2.3 mm Category A1
Heating power MAX 10.5 kW consumption 0. 2 m³/h
Power MIN 6.5 kW consumption 0.62 m³//h
•NOx class = 4
•Weight = approx. 30 kg

Manual_UK_K_K_rev. 1_10_2013 pag.
OVERALL DIMENSIONS,
patio-heaters
ALIENTE & ALOR & SOLFLAME & SOLEIL
NOTE – we recommend to make use of the 4 adjustable feet, to ensure always optimal vertical
position, and avoid floor / surface damage.
MINIMUM distance of installation,

Manual_UK_K_K_rev. 1_10_2013 pag. 10
patio-heaters
ALIENTE & ALOR & SOLFLAME & SOLEIL

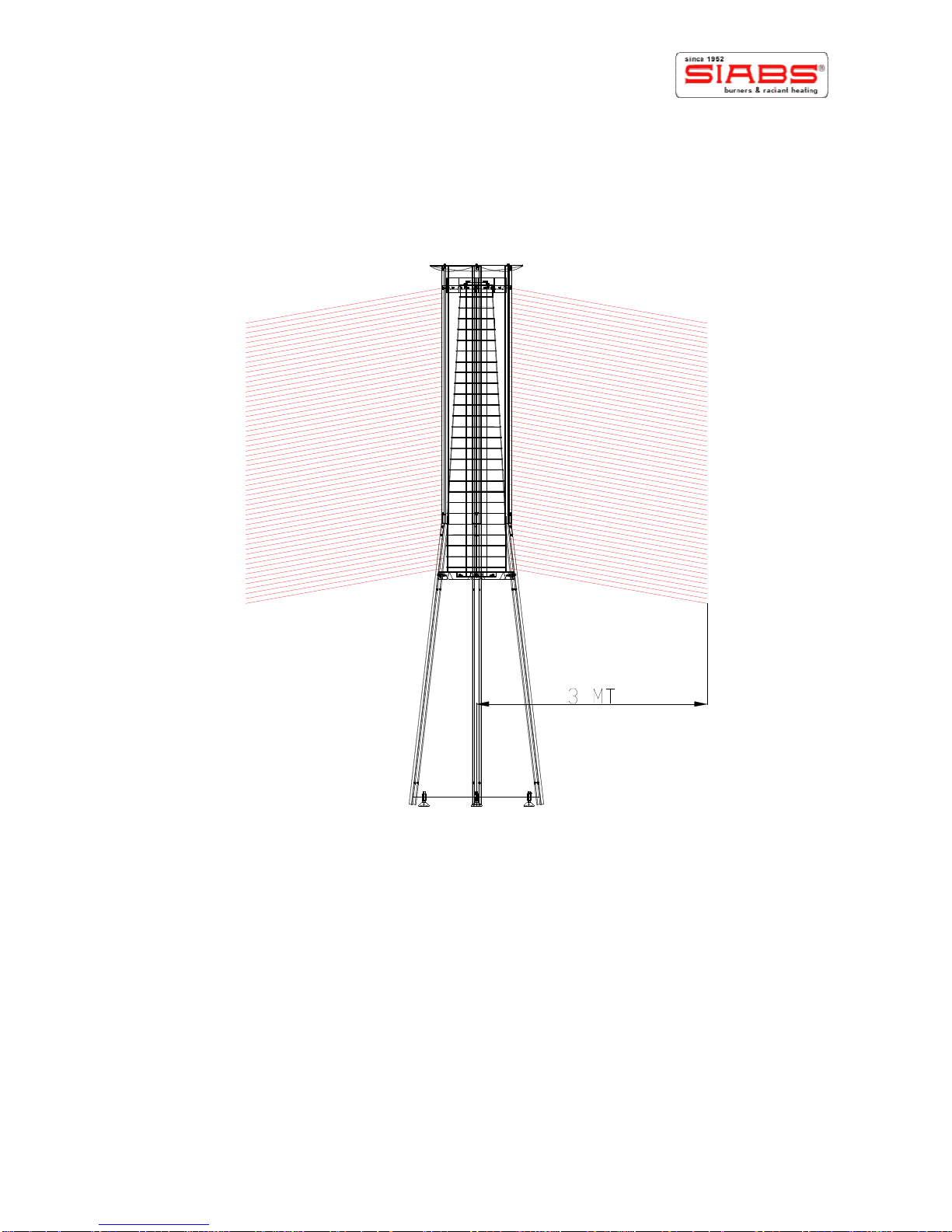

By minimum distance of installation we mean the distance to be kept between the patio-heater
and any component potentially flammable. We recommend to keep at least 0.5 mt
between the cover / top of the patio-heaters and the ceiling. The best comfort is at a
distance of approx. 3 mt.

Manual_UK_K_K_rev. 1_10_2013 pag. 11
INSTALLATION,
patio-heaters
ALIENTE & ALOR & SOLFLAME & SOLEIL
ROOM VENTILATION
NOTICES
SIABS patio-heater is a product with modern aesthetics, designed to give comfort in all spaces
which need complete or partial heating.
SIABS patio-heaters must be installed in partly protected areas: it is not designed to be
subject to direct action of atmospheric agents (snow, raining, hail). We strongly advise
against the installation in direct contact with atmospheric agents.
Patio
-
heaters must be installed in spaces
with at least 25 % open surface

Manual_UK_K_K_rev. 1_10_2013 pag. 12
DESCRIPTION of PATIO-HEATERS
SIABS patio-heaters are designed and built with attention to detail, a lot of attention to
reliability and giving importance to design: they have a reflecting steel structure, panels of
bottle compartment can be customized with different colors, safety grids on all sides, high
efficiency and long life, burner made in metallic fiber, heating element with flame and safety
glass (model KALIENTE), adjustable feet.
Installation is easy and in no time the heaters are ready for operation: you just have to place
and connect the gas cylinder after removing the front panel (with slot).
All heaters are controlled and calibrated to the correct pressure values (depending on the type
of gas and the country of destination), and then tested in the company by SIABS personal. On
each heater you will find a technical data plate (see page 6 of this manual), according to
norms, to which the installer has to refer for any future action.
SIABS patio-heaters are certified and approved for use with natural gas or LPG; the burner has
been subjected to strict tests (with gas operating limits) in the laboratories of our approval
authority KIWA Gastec – Italy.
GET READY TO WORKING – SUGGESTIONS
Below you will find IMPORTANT suggestions:
SIABS patio-heaters can be supplied:
- fully pre-assembled: you have only to provide the gas bottle and the pressure
reduction kit (flexible pipe + pressure reducer, different from country to country)
- to be assembled on site: burner is fully mounted and tested in our factory,
all other components are easy to be assembled, following specific instruction
pay particular attention during unloading and all handling operations of the heater
due to the fragility of the glass tube (model KALIENTE)
open the carton in a horizontal position on a stable surface or on the floor, then lifting
the product with the help of a second person (weight approx. 45 kg)
cut the clamp that fixes the glass tube (model KALIENTE) before start-up
verify that the feed pipe and the gas coupling installed are in compliance with the
regulations in force in the country of use
in case of gas smell while patio-heater is running, switch off it immediately and
verify any gas leaks before using it again: you can use soapy water or equivalent
when replacing the LPG gas bottle, you can use soapy water or equivalent to check
connections and fittings for leaks
IMPORTANT: at the first ignition is likely to happen a delay in turning the pilot flame;
the situation is normal, and due to the fact that the circuit has gas inside air to be
disposed of; the inconvenience will disappear with two or three ignitions. To avoid any
darting flames, let about 2 minutes between each ignition procedure and the next. This
situation could be repeated when replacing a gas bottle: proceed as above.

Manual_UK_K_K_rev. 1_10_2013 pag. 13
transport / handling MUST take place only when patio-heater is cold (safety of
people and protection of its components), TAKING CARE TO SECURE THE GLASS
TUBE (model KALIENTE) WITH CLAMPS
PUT in OPERATION and FIRST START-UP
POSITIONING of HEATER, HANDLING and GAS BOTTLE POSITIONING
POSITIONING of HEATER: with heater in vertical position, set the adjustable feet (Picture 1)
placed in the lower part of gas bottle compartment, to avoid the swing of the unit.
Picture 1
HANDLING: for all movements of the patio-heater, for secure and easier handling we
recommend to use only SIABS device for transport / handling (optional), named “kit for
transport”, fixing it to the lower part of gas bottle compartment (Picture 2), with n. 4 M8 bolts,
included in the supplied. Secure with M8 bolts the “kit for transport” on the base plate
supporting the gas bottle, tilt the heater toward you as in the picture (Picture 3), resting a foot
on the "kit of transport." Weight of unit is approx. 40 kg.
Picture 2 Picture 3

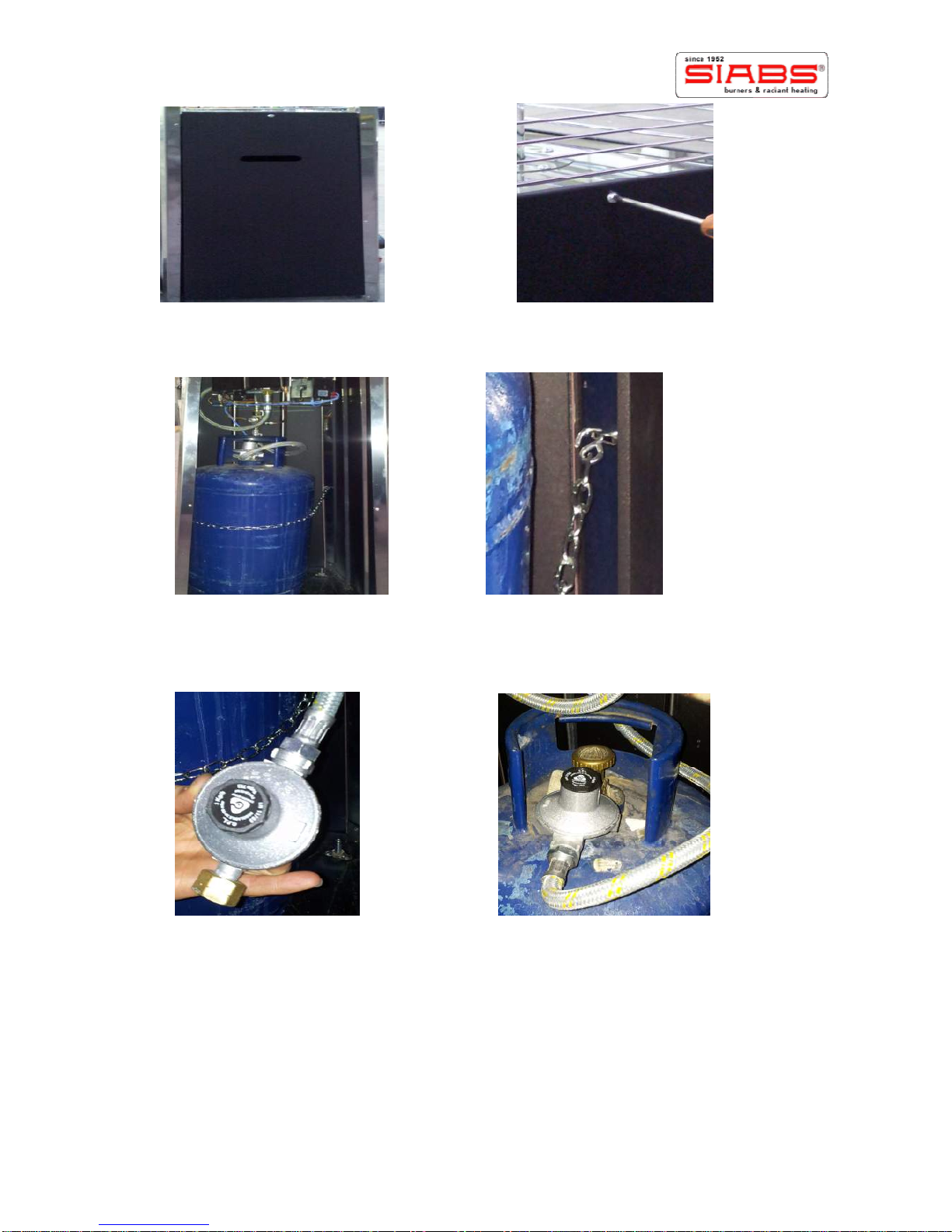

OPENING of GAS BOTTLE COMPARTMENT: using a cross screwdriver, remove the front
cover (the one with the slot, Picture 4) by unscrewing top and bottom bolted connections
(Picture 5).

Manual_UK_K_K_rev. 1_10_2013 pag. 14
Picture 4 Picture 5
GAS BOTTLE POSITIONING: place the gas bottle inside the compartment, and secure it with
the chain (Picture 6).
Picture 6 Picture 6
Then, connect the pressure reducer (supplied) on tap of gas bottle, using a M25 spanner
(Picture 7). Tighten with a fixed spanner the fitting of the pressure reducer on tap of gas bottle
and slowly open the tap of the gas bottle (Picture 8).
Picture 7 Picture 8
check with soapy water or equivalent mater
ial
losses on the connection

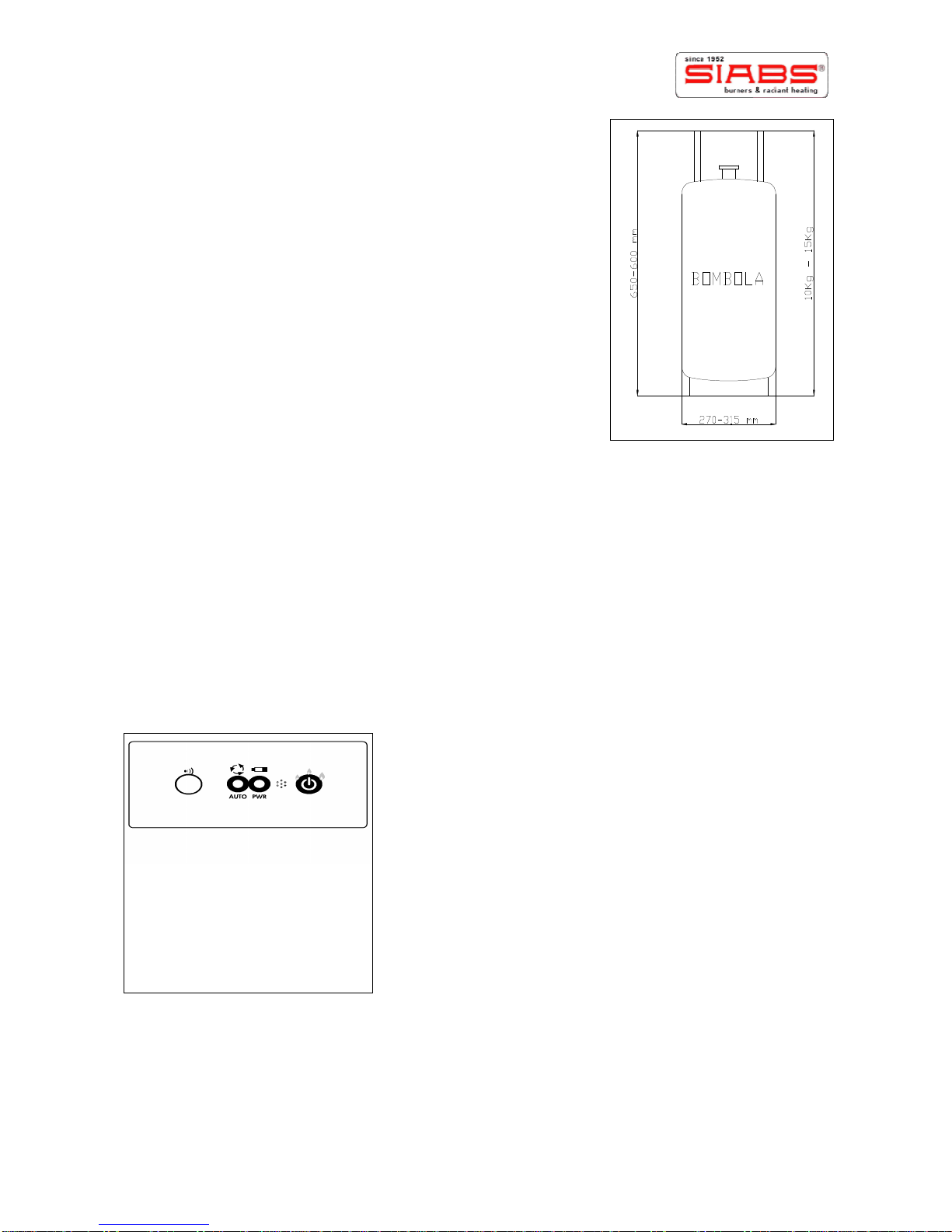

LPG suggested GAS BOTTLE
LPG is delivered to users in portable containers (bottles)
to be replaced with new at the time of exhaustion. Gas
bottles respond to a series of rules issued by the bodies
that determine the materials and testing. SIABS patio-
heaters are suitable for use of 10 – 15 kg LPG bottles.

Manual_UK_K_K_rev. 1_10_2013 pag. 15
START-UP

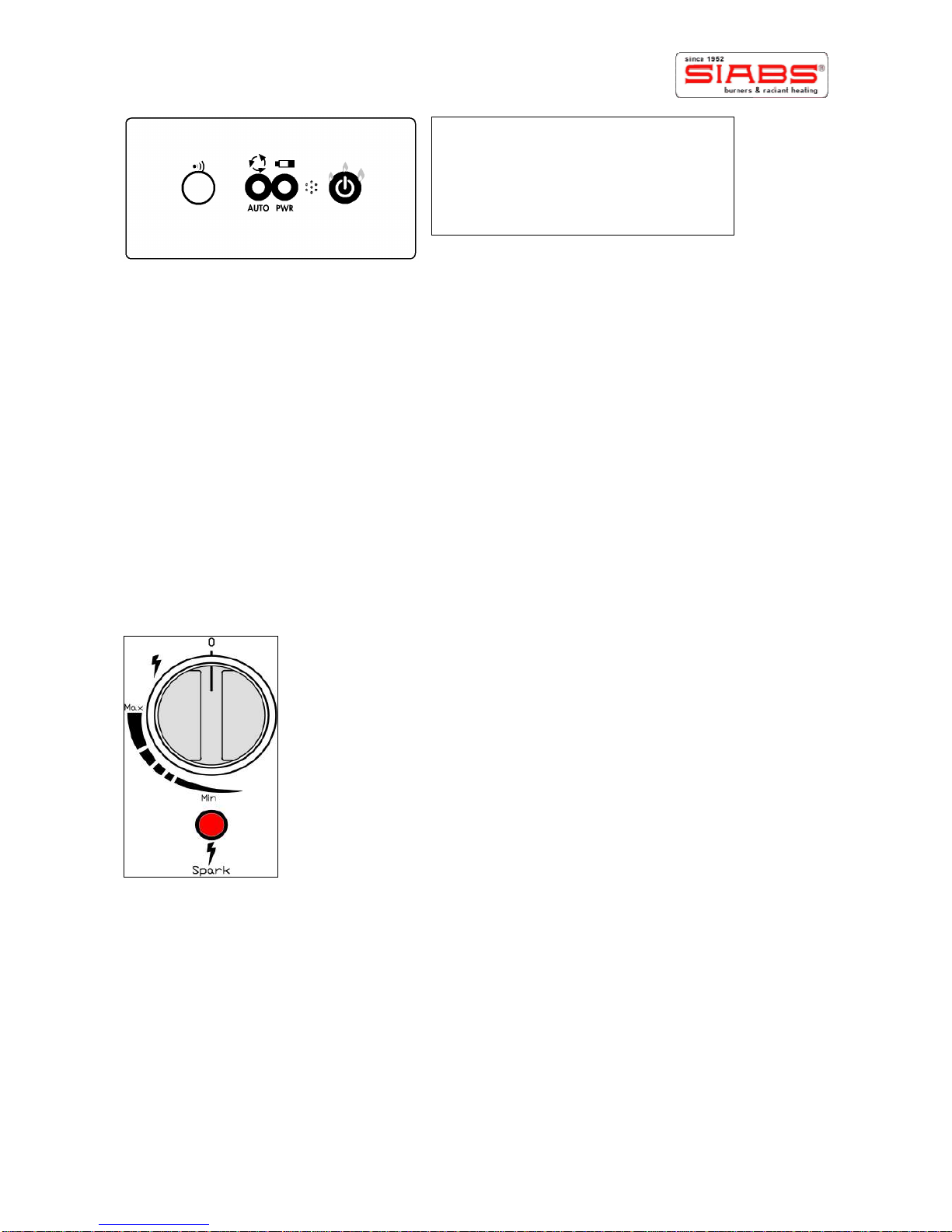

Carried out the above steps successfully, you can turn on the power to the heater.
ELECTRONIC VERSION patio-heater model KALIENTE E/SOLFLAME E: press the
POWER button on the remote control, after a few seconds the ignition device (pilot), by
the detection electrode, will give positive input for total opening of the gas valve, and then
turning on the heater takes place; one remote can manage more heaters (on, off, level of
power).
To switch off, press the POWER button again (Picture ) on the remote control.
In case of REMOTE CONTROL FAULT: patio-heaters in the electronic version can run even if
the remote control has trouble; work directly from the control unit placed inside the gas bottle
compartment, as in the picture

Manual_UK_K_K_rev. 1_10_2013 pag. 16
Picture 10
N.B. – BATTERIES for Patio-heaters with ELECTRONIC start-up
•for remote control of patio-heaters KALIENTE E & SOLFLAME E = model AAA
•for gas group of patio-heaters KALIENTE E & SOLFLAME E = model type Torch
MANUAL VERSION patio-heater model KALIENTE M / SOLFLAME M:
•press and turn counter-clockwise about 15 ° the gas valve / knob
•holding the knob in position, press the red start-up button located under the knob,
until ignition of the pilot device (Picture 11)
•with pilot flame on, leave the ignition red button while pushing and keeping in
place and knob for 10 ÷ 20 seconds
•leave the knob and verify that the pilot device stays on, repeat the operation if the
pilot device goes out
Picture 11
NOTE – to switch off, turn the knob to position 0 = ZERO (Picture 11).
MANUAL VERSION patio-heater model KALOR M / SOLEIL M
•press and turn counter-clockwise the gas valve / knob, till maximum position
•holding the knob in position, press the red start-up button located under the knob,
until start-up of the burner
•with burner running, leave the ignition red button while pushing and keeping in
place and knob for 10 ÷ 20 seconds
•leave the knob and verify that burner keeps working; repeat the operation in case of
burner stop
NOTE – to switch off, turn the knob to position 0 = ZERO (Picture 11).
START
-
UP BUTTON
PUSH once – MAX FLAME
PUSH 2 times – MED FLAME
PUSH 3 times – MIN FLAME
PUSH 4 times – OFF

Manual_UK_K_K_rev. 1_10_2013 pag. 17
N.B. – BATTERIES for Patio-heaters with MANUAL start-up
•for gas group of patio-heaters KALIENTE-SOLFLAME M & KALOR-SOLEIL M =
model AA
note – they are inside the piezo starter
POSSIBILITY of ADJUST POWER: all SIABS patio-heaters, offer the possibility to adjust the
heating power (max-min-med) reducing it by approx. 20%, in case you want to enjoy a
different level of comfort or fit it to different external temperatures.
MANUAL version, with pilot device on, turn the knob towards MIN or MAX as on the plate
(Picture 11) until you get the require comfort level.
ELECTRONIC version with remote control, the intensity can be adjusted using the buttons
(- and +) on the remote control, placed under the POWER button (Picture 12).
Picture 12
BUTTON +
PUSH 3 times – MAX FLAME
PUSH 2 times – MED FLAME
PUSH once – MIN FLAME
BUTTON -
PUSH 3 times – MIN FLAME
PUSH 2 times – MED FLAME
PUSH once – MAX FLAME

Manual_UK_K_K_rev. 1_10_2013 pag. 18
SAFETY DEVICES
on PATIO-HEATERS
N.B. – SIABS patio-heaters are delivered ready for operation, already set according to the
type of gas and the country of destination, and equipped with a pressure reducer: does not
require additional settings, or other accessories; shall not be permitted any change
in burner pressure running: guarantee will not be valid anymore. We are at your
disposal for any questions or requests.
If the pilot flame keeps going out, see system faults (pages 1 to 22 – TROUBLE SHOOTING)
and follow the instructions; if for any reason the heater turns off, the thermocouple placed on
the pilot ensures safety: thermocouple acts quickly on the valve to avoid any leakage of gas.
The thermocouple placed on the ignition pilot detects the flame, and locks the gas circuit if the
heater turns off due to lack of gas or accidentally; plus, there is also a mechanical device
called ANTI TILT (anti rollover), that automatically stops gas leakage by turning off the burner,
when the heater is tilted or occurs an accidental rollover. In this type of heaters that safety is
a key and expressly required by law.
To turn on the heater again, we must repeat the normal start-up procedure (see page 15 -
START-UP). For cases of accidental switching off or empty gas bottle, repeat the ignition
procedure, letting few minutes from the previous year.
N.B. – avoid consecutive ignition attempts: if the heater has problems in this regard,
check that all the operations required above are fulfilled and executed in a positive way; then,
in case of negative result, contact the manufacturer.

Manual_UK_K_K_rev. 1_10_2013 pag. 1
MAINTENANCE
A correct use, plus proper and regular maintenance are essential to ensure a better
performance and greater durability.
Ordinary maintenance
At least once a year, before the season of use, it is strongly advisable to:
•replace gas tube, in case it is damaged or validity expired
•replace the worn parts, which are part of the patio-heaters
•replace of remote control batteries or piezo starter
•replace of batteries of gas group (electronic version)
•cleaning of patio-heaters with a wet soft cloth, not flammable or corrosive solvents
Depending on the quality of gas used, it may cause blackening of the tubular glass (model
KALIENTE E & M) due to the components added to the mixture of propane gas and dirt in
general; for cleaning the inside of the glass tube, it can be used a wet soft cloth,
restoring the starting transparency.
Replacement of the glass pipe, patio-heater KALIENTE/SOLFLAME
If it should become necessary to replace the glass tube (blackening important after a few
years, or accidental breakage), proceed as follows:
- wait until the patio-heater is cold, in all its parts
- remove upper cap (4 hex screws 8mm self-tapping)
- remove 1 of the side nets (4 or 6 star screws with nut passers-7mm)
- remove the upper glass support, _l¯ shaped, (1 star screw) or the white fibre gasket
- remove the broken glass tube – PAY ATTENTION
remove 1 side panel, and hold the burner group by hand
- remove (4 star screws) the plate supporting the glass pipe, stainless steel made
- remove the lower guide (white fibre gasket), if any
then:
- position the lower guide (white fibre gasket)
- mount (4 star screws) the plate supporting the glass pipe, inox made
- position the upper guide (white fibre gasket)
- place the new glass tube
- re-install the side net
- re-install upper cap
- mount side panel
Before making any maintenance, make sure that both the gas and the
power supply have been excluded, and that the apparatus is cold. For all
routine and / or extraordinary maintenance, contact only professionally qualified
staff, or rather a Technical Assistance Centre authorized by SIABS

Manual_UK_K_K_rev. 1_10_2013 pag. 20
Transport / handling MUST take place only when patio-heater is cold (safety of people
and protection of its components), TAKING CARE TO SECURE THE GLASS TUBE (model
KALIENTE - SOLFLAME) WITH CLAMPS
Nozzle replacement
In case there is the need to change the type of gas, different from that the heater has been
tested, it is necessary to require SIABS the correct conversion kit specifying the
appliance model, serial number (inside the gas bottle compartment, Picture 13) and the
new gas type. The operation must be performed by qualified personnel, preferably SIABS
service center, in accordance with the regulations in force.
Picture 13
IMPORTANT: if you change the gas nozzle to change type of gas (e.g. from LPG to natural
gas) it is COMPULSORY to change the PRESSURE STABILIZER – only for manual start-
up version – and to change the plate label with technical data and place one with the
new data, then repeat the checks at pages 13 and 14 "PUT in OPERATION and FIRST START-
UP"
Patio-heater KALIENTE-SOLFLAME: to replace the gas nozzle remove two panels of the gas
bottle compartment, remove the cover plate of the burner unit (Picture 14) and unscrew the
brass gas nozzle with M13 key (Picture 15). Place the new nozzle and tighten with the
spanner, fix the cover plate of the burner.
Picture 14 Picture 15
Patio-heater KALOR-SOLEIL: to replace the gas nozzle remove one of the protection grids,
remove the perforated screen and unscrew the brass gas nozzle with M13 key (Picture 16).
Mount the new nozzle and tighten with the spanner, position the perforated screen and the
protection grid.
