Bromo Heat BHR41000BZ User manual

1
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
5016039
Assembly Instruction
& User's Manual
87IN Height LP Patio Heater
ITEM NO. 13684811
ANSI 83.26-2014
CSA 2.37-2014
Bromo Heat
Premium Round Patio Heater
BHR41000BZ – Bronze
BHR41000WH – White

Please read and understand this entire manual before attempting to assemble, operate or install the product.
This manual contains important information about the assembly, operation and maintenance of this patio heater.
General safety information is presented in these first few pages and is also located throughout the manual.
Keep this manual for future reference and to educate new users of this product. This manual should be read
in conjunction with the labeling on the product. Safety precautions are essential when any mechanical or pro-
pane-fueled equipment is involved. These precautions are necessary when using, storing and servicing this
item. Using this equipment with the respect and caution demanded will reduce the possibilities of personal
injury or property damage. The following symbols shown below are used extensively throughout this manual.
Always heed these precautions, as they are essential when using any mechanical or fueled equipment.
SAFETY INFORMATION
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided will result in
death or serious injury.
WARNING
WARNING indicates an imminently hazardous
situation which, if not avoided will result in
death or serious injury.
DANGER
Failure to comply with the precautions and
instructions provided with this heater can
result in death, serious bodily injury and
property loss or damage from hazards of fire,
explosion, burn, asphyxiation and/or carbon
monoxide poisoning. Only persons who can
understand and follow the instructions should
use or service this heater.
• EXPLOSION - FIRE HAZARD
•Keep solid combustibles, such as building
materials, paper or cardboard, a safe distance
away from the heater as recommended by the
instructions.
•Provide adequate clearances around air
openings into the combustion chamber.
•Never use the heater in spaces which do or
may contain volatile or airborne combustibles,
or products such as gasoline, solvents, paint
thinner, dust particles or unknown chemicals.
•During operation, this product can be a source
of ignition. Keep heater area clear and free
from combustible materials, gasoline, paint
thinner, cleaning solvents and other flammable
vapors and liquids. Do not use heater in areas
with high dust content. Minimum heater clear-
ances from combustible materials: 3 feet from
the sides & 3 feet from the top.
DANGER
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department
WARNING
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance. An LP-cylinder not
connected for use shall not be stored in the
vicinity of this or any other appliance.
WARNING
Certain materials or items, when stored under
the heater, will be subjected to radiant heat and
could be seriously damaged.
CAUTION
CAUTION indicates an imminently hazardous
situation which, if not avoided, may result
in minor or moderate personal injury, or
property damage.
WARNING
BURN HAZARD
• Never leave heater unattended
when hot or in use.
•Keep out of reach of children.

DANGER
• CARBON MONOXIDE HAZARD
•This heater is a combustion appliance.
All combustion appliances produce carbon
monoxide (CO) during the combustion
process. This product is designed to produce
extremely minute, non-hazardous amounts of
CO if used and maintained in accordance with
all warnings and instructions. Do not block air
flow into or out of the heater.
•Carbon Monoxide (CO) poisoning produces
flu-like symptoms, watery eyes, headaches,
dizziness, fatigue and possibly death. You
can’t see it and you can’t smell it. It’s an
invisible killer. If these symptoms are present
during operation of this product, get fresh air
immediately!
•For outdoor use only.
•Never use inside house, or other unventilated
or enclosed areas.
•This heater consumes air (oxygen). Do not
use in unventilated or enclosed areas to avoid
endangering your life.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation and maintenance instructions
thoroughly before installing or servicing
this equipment.
DANGER
• EXPLOSION - FIRE HAZARD
•Never store propane near high heat, open
flames, direct sunlight, other ignition sources
or where temperatures exceed 120 degrees
F (49°C).
•Propane vapors are heavier than air and can
accumulate in low places. If you smell gas,
leave the area immediately.
•Never install or remove the propane cylinder
•This heater is red hot during use and can
ignite flammables that are too close to the
burner. Keep flammables at least 3 feet from
sides & 3 feet from top. Keep gasoline and
other flammable liquids and vapors well
away from heater.
•Store the propane cylinder outdoors in
a well-ventilated space out of reach of
children. Never store the propane cylinder
in an enclosed area (house, garage etc.). If
heater is to be stored indoors, disconnect
the propane cylinder for outdoor storage.
WARNING
We cannot foresee every use which may be
made of our heaters.
Check with your local fire safety authority if
you have questions about heater use.
Other standards govern the use of fuel gases
and heat producing products for specific uses.
Your local authorities can advise you about
these.
If no local codes exist, follow National Fuel
Gas Code, ANSI Z223.1. In Canada, installation
must conform to local codes. If no local codes
exist, follow the current National standards of
CANADA CAN/CGA-B 149.2.
WARNING
California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the
State of California to cause cancer, birth defects
and other reproductive harm.
CAUTION
SERVICE SAFETY
• Keep all connections and fittings clean. Make
sure propane cylinder valve outlet is clean.
•During set up, check all connections and
fittings for leaks using soapy water. Never use
a flame.
•Use as a heating appliance only. Never alter in
any way or use with any device.

WARNING
• For outdoor use
ONLY.
• An amply ventilated
area must have a
minimum of 25 %
of the surface area
open.
• The surface area is
the sum of the walls
surface.
W A L L
48"
4'
48"
4'
CEILING
WARNING
• This product is fueled by propane gas.
Propane gas is invisible, odorless and
flammable. An odorant is normally added to
help detect leaks and can be described as a
“rotten egg” smell. The odorant can fade over
time so leaking gas is not always
detectable by smell alone.
•Propane gas is heavier than air and
leaking propane will sink to the lowest
level possible. It can ignite by ignition sources
including matches, lighters, sparks or open
flames of any kind many feet away from the
original leak. Use only propane gas set up for
vapor withdrawal.
•Store or use propane gas in compliance with
local ordinances and codes or with ANS/NFPA
58. Turn off propane when not in use.
WARNING
• Alert children and adults to the hazards
of high surface temperatures. Stay away
from these surfaces to avoid burning skin
or igniting clothing.
•Carefully supervise young children when in the
vicinity of the heater.
•Do not hang clothing or any other flammable
materials from the heater, or place on or near
the heater.
•Replace any guard or protective device
removed for servicing the appliance prior
to placing back in service.
•Installation and repair should be done by a
qualified service person. The heater should
be inspected before use and annually by
a qualified service person. More frequent
cleaning may be required as necessary. It
is imperative that the control compartment,
burners and circulating air passageway of
the appliance be kept clean.
CAUTION
SERVICE SAFETY
• Keep all connections and fittings clean. Make
sure propane cylinder valve outlet is clean.
•During set up, check all connections and
fittings for leaks using soapy water. Never use
a flame.
•Use as a heating appliance only. Never alter in
any way or use with any device.
WARNING: For Outdoor Use Only
1
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
5016039
Assembly Instruction
& User's Manual
87IN Height LP Patio Heater
ITEM NO. 13684811
DANGER CARBON MONOXIDE
HAZARD
This appliance can produce
carbon monoxide which has
no odor.
Using it in an enclosed space
can kill you.
Never use this appliance in
an enclosed space such as
a camper, tent, car or home.
WARNING
Spiders and insects can nest in
burner or orifices. This dangerous
condition can damage heater and
render it unsafe for use.
Clean burner holes by using a
heavy-duty pipe cleaner.
Compressed air may help clear
away smaller particles.

A
AA
B
C
D
E
F
G
K
J
I
H
L
Hi
Lo
Pilot
Igniter
PART DESCRIPTION QUANTITY
AA Reflector Cover 1
A Reflector 1
B Emitter 1
C Support 3
D Protective Guard 3
E Ruby Quartz Glass Tube 1
F Burner Ignition Plate 1
G Control Box Casing 1
H Gas Hose & Regulator 1
I Back Panel 1
J Front Door Panel 1
K Wheel Kit 1
L Base Plate 1
Parts List
AAA Alkaline
Battery
Qty. 1
QQ
MM
Screw M8 x 15 mm
Qty. 16
DD
Wrench
Qty. 1
OO
Bolt M10 x 15mm
Qty. 2
EE
Nut M8
Qty. 11
HH
PP
Philips screwdriver
Qty. 1
RR
Ceramic Rope with Attachment Clips
Qty. 2
FF
Screw M8 x 30 mm
Qty. 1
XX
Screw M6 x 12 mm
Qty. 8
Screw M8 x 10 mm
Qty. 12
ADDITIONAL REQUIRED HARDWARE
• Adjustable opening wrench (2) 20 cm (8") long
• Slip joint pliers 23 cm (9") long
• Philips screwdriver w/ medium blade
• Spray bottle of soap solution for leakage test
Standard Plumber’s
Teon Tape
(Not Included)
TT
YY
90º Metal Bracket
Qty. 8
PACKAGE CONTENTS
INCLUDED HARDWARE

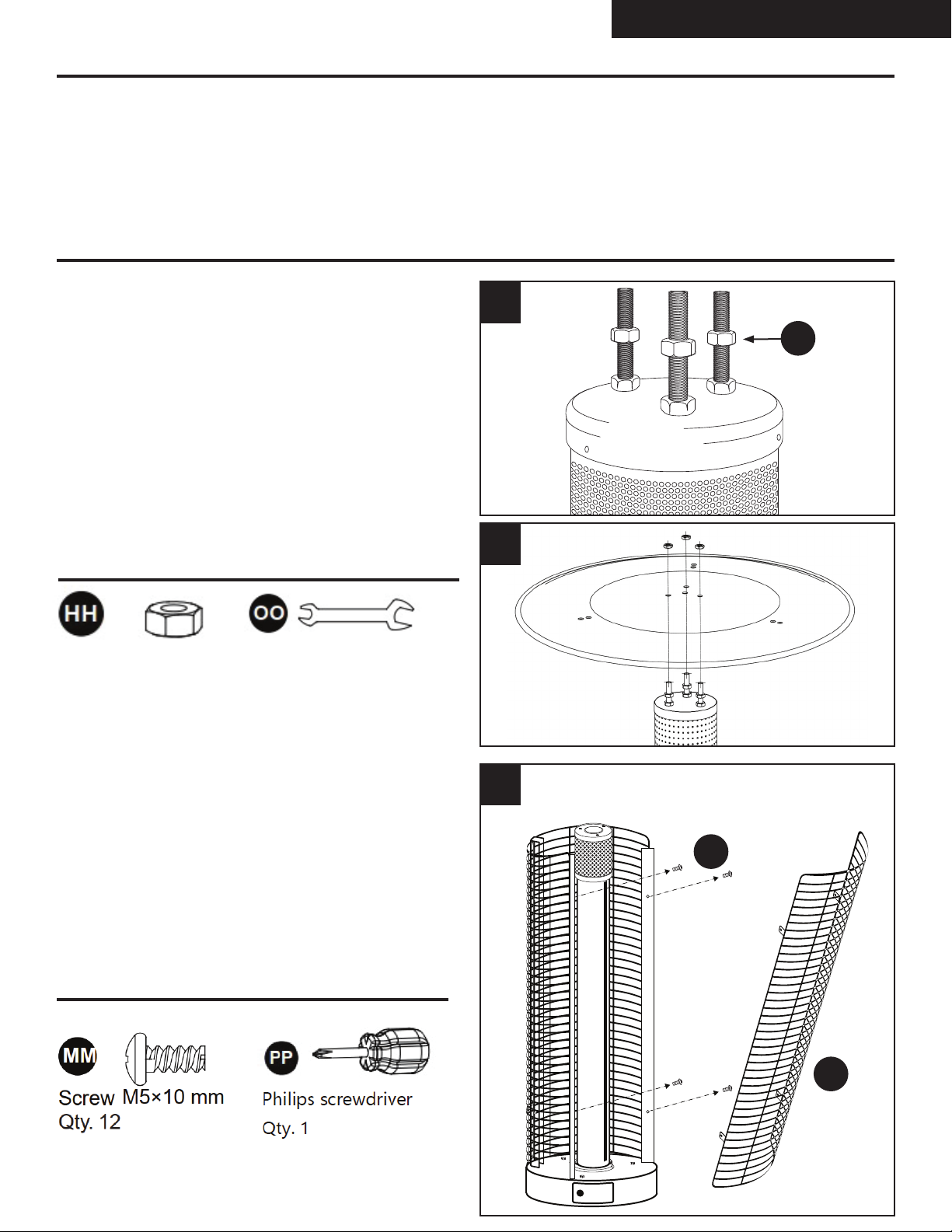

1. REFLECTOR ASSEMBLY:
First please ensure all transit protection
(foam, cardboard, bubble wrap, etc.) is
removed. Carefully put the ruby quartz glass
tube aside after removing the bubble wrap
and foam material.
Verify 2 nuts M8 (HH) installed on each stem.
Unscrew top nut on each stem to desired height
as shown, but do not remove all the way (fig. 1-A).
Place reflector over stems as shown (fig. 1-B)
and hand tighten 1 M8 nut (HH) per stem.
2. GUARD REMOVAL:
Remove one protective steel guard by
unscrewing 4pcs M5x10mm as show in fig 2.
Nut M8 Qty 6
(Already assembled)
Nut M8 Qty 3
Wrench Qty 1
Assembly Instructions
1-B
1-A
2
MM
HH
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated Assembly Time: 45 minutes
Tools Required for Assembly (not included):
Phillips screwdriver w/medium blade. Leak Detection Solution.
PREPARATION
Remove one guard only,
remove by unscrewing 4 pieces M5 x 10mm
D

3. Install reflector to support with M8 screws
(Qty. 6)

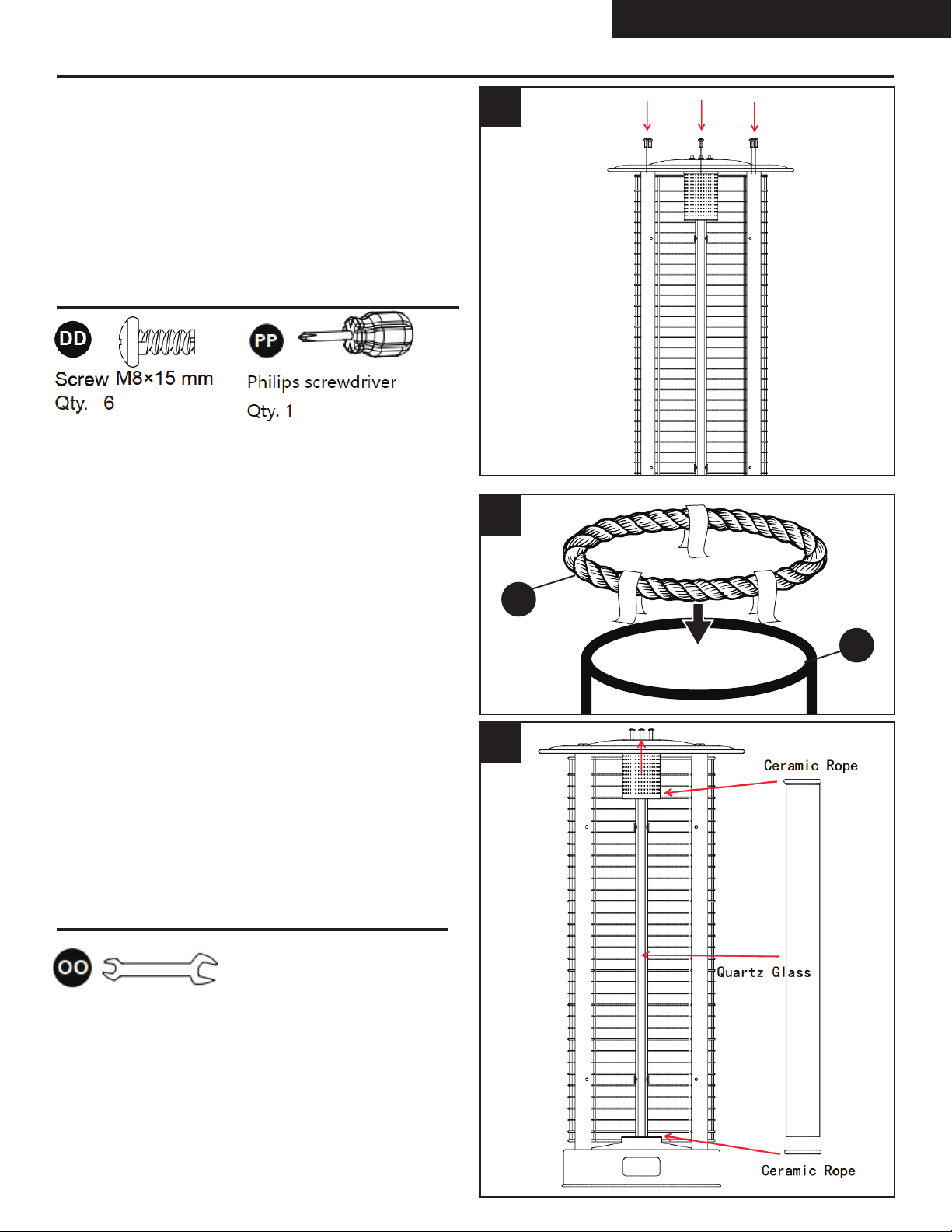

4. Attach the ceramic rope with clips (RR)
around the top of the Ruby Quartz Glass Tube,
(E). and attach clips to glass. (fig 4-A)
Then place 1 pc of ceramic rope into glass
tube holder at bottom.
Then place the Glass tube with both pieces of
ceramic rope into glass tube holder at bottom.
(fig. 4-B)
Assembly Instructions
3
4-B
4-A
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
Wrench Qty 1
RR
E

ASSEMBLY INSTRUCTIONS
6.Tighten the Nut M8 on the reflector.Then
use Bolt M8 to tighten the small hat on top of
the reflector.
6
ortionTop p
panelsmBotto
kitWheel
plateBase
Hardware Used
2
Top View
Nut M8
Qty.
3
Bolt M8×30 mm
Qty.
1
Wrench
Qty. 1
Philips screwdriver
Qty. 1
9
Assembly Instructions
Note: Before installation, please wear gloves,
press the lower seat of the glass tube, let it
loose, then install the glass tube!
5. Loosen the top nut M8 x3 under the
reflector in clockwise direction. Then lift the
emitter by one hand and place the glass tube
inside. Gently pull downward on the emitter,
and tighten the nut M8 x3 under the reflector
in a counterclockwise direction.
6. Tighten the nuts M8 x3 (HH) on the reflector.
These were hand tightened from step 1.
Use bolt M8 (FF) to attach reflector cover (AA)
on top of the reflector as shown in fig 6.
(from step 1)
x3
AA
AA
Reflector Cover
Qty. 1

Hardware Used
DD x 5
x 1
PP Philips
screwdriver
Screw M8×15 mm
Hardware Used
DD x 5
x 1
PP Philips
screwdriver
Screw M8×15 mm
7
philips screwdriver.
designated 90 degree metal brackets with a
installing (5) M8×15 screws through the
and connect them together by securely

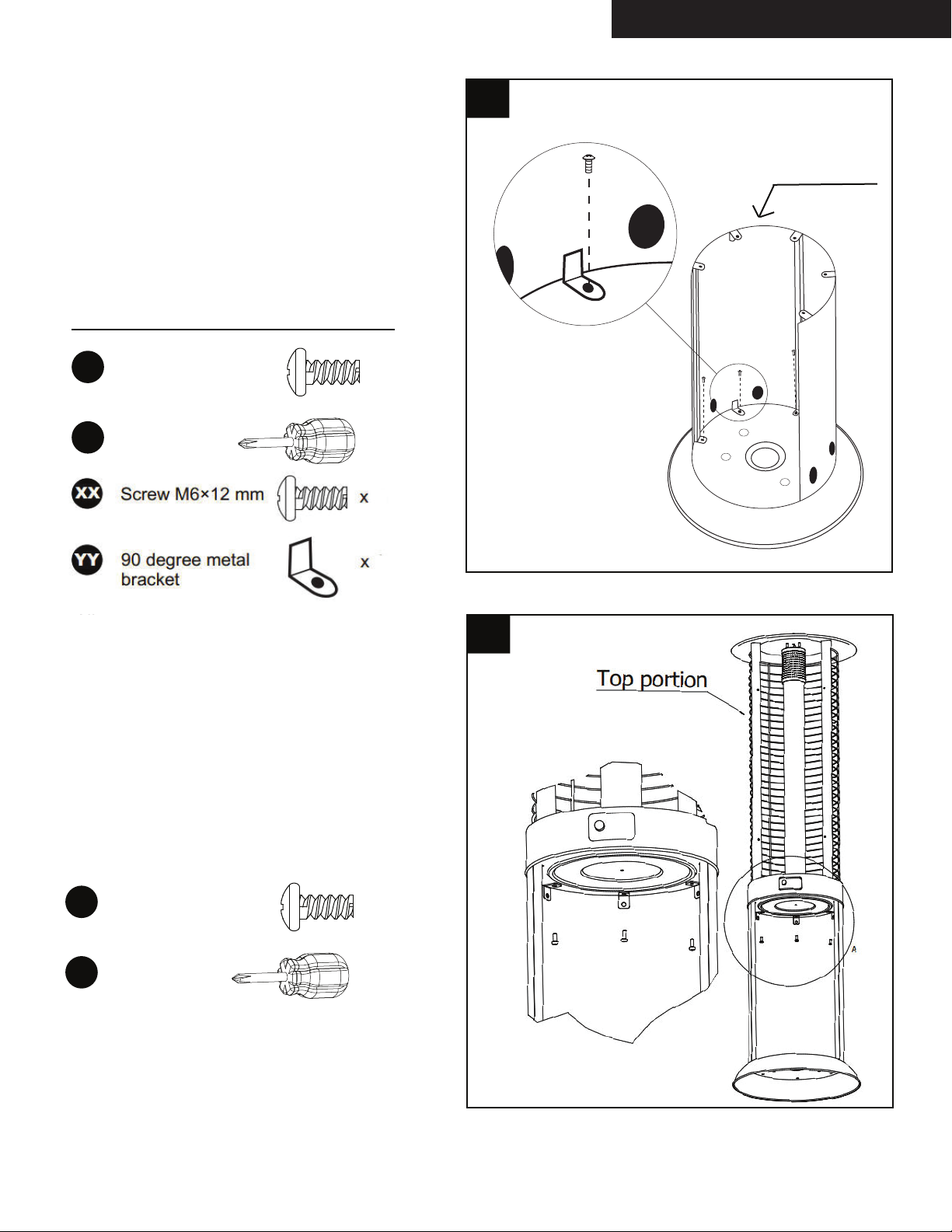

7. Align bottom panel on top of base plate
ASSEMBLY INSTRUCTIONS
8
philips screwdriver.
designated 90 degree metal brackets with a
installing (5) M8×15 screws through the
and connect them together by securely
8. Align top portion on top of bottom panel
10
Bottom panel
Assembly Instructions
8. Align top portion on top of bottom panel
and connect them together by securely
installing (5) M8x15 (DD) screws through the
designated 90 degree metal brackets with
a philips screwdriver.
Note: These 4 metal brackets are included with
the hardware and must be installed into the
back panel using the M6x12mm screws (XX).
Hardware Used
DD x 5
x 1
PP Philips
screwdriver
Screw M8×15 mm
Hardware Used
DD x 5
x 1
PP Philips
screwdriver
Screw M8×15 mm
7
philips screwdriver.
designated 90 degree metal brackets with a
installing (5) M8×15 screws through the
and connect them together by securely
7. Align bottom panel on top of base plate
ASSEMBLY INSTRUCTIONS
8
philips screwdriver.
designated 90 degree metal brackets with a
installing (5) M8×15 screws through the
and connect them together by securely
8. Align top portion on top of bottom panel
10
Bottom panel
Assembly Instructions
Note:These 4 metal brackets are included with
the hardware and must be installed into the
back panel using the M6x12mm screws.
8
8
Assembly Instructions
8. Align top portion on top of bottom panel
and connect them together by securely
installing (5) M8x15 (DD) screws through the
designated 90 degree metal brackets with
a philips screwdriver.
Note: These 4 metal brackets are included with
the hardware and must be installed into the
back panel using the M6x12mm screws (XX).

Assembly Instructions
ASSEMBLY INSTRUCTIONS
Hardware Used
MM
MM
D
x 12
x 1
PP Philips
screwdriver
Screw M5×10 mm
9
10
any high temperature surfaces, or it may melt
WARNING! Ensure the hose does not contact
10. Install regulator to the heater.
.
secure it with all (12) of the M5×10 screws
in to their original support slots accordingly.
hanging it on the upper support slots.Next tightly
9 .Re-install the protective steel guard(D) by
and leak, causing a fire.
11

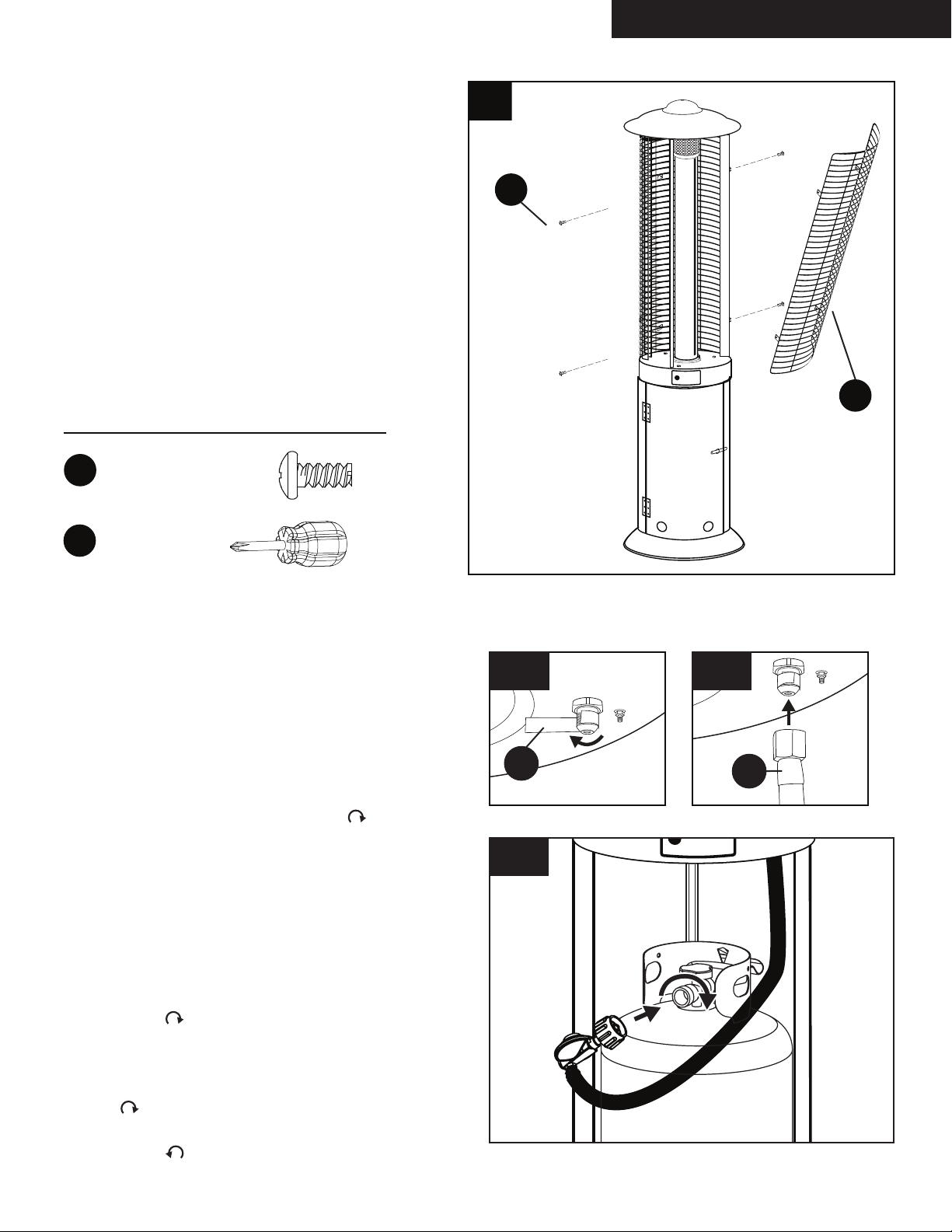

10. Wrap gas intake with Standard
Plumber’s Teflon Tape (TT) in clockwise
direction (fig. 10-A).
Then connect gas hose (H) (fig. 10-B)
The knob on the LP tank must be closed.
Make sure that the knob is turned clockwise
to a full stop. The cylinder supply sysem must
be arranged for vapor withdrawl. Check that
the control knob on the control unit is turned
off. Hold old the regulator in one hand and
insert the nipple into the valve outlet. Be sure
the nipple is centered in the valve outlet. The
coupling nut connects to the large outside
threads on the valve outlet. Hand-tighten the
coupling nut clockwise until it comes to a full
stop. Firmly tighten by hand only. (fig. 10-C)
To Disconnect: Fully close the tank by
turning clockwise until the regulator
assembly detaches clockwise. Turn the
coupling nut counterclockwise.
10-A 10-B
10-C
H
TT

Assembly Instructions
ASSEMBLY INSTRUCTIONS
Standard 20 lb. tank
11
handling code, B149.2.
lation Code, CSA B149.1, or propane storage and
ANSI Z223.1/NFPA54, natural gas and propane Instal-
the absence of local codes,with national fuel gas code,
The installation must conform with local codes, or in
assembly supplied with the appliance must be used.
full input rating. The pressure regulator and hose
required input rating for a heater at ratings less than
adjustment. The minimum hourly of 16,000 Btu/hr is
supply pressure: 5 psi is required for purpose of input
supply pressure: 250 psi. The minimum inlet gas
or any other enclosed area. The maximum inlet gas
installed and must not be stored in a building, garage
disconnected cylinder must have dust caps tightly
well-ventilated area out of the reach of children. A
appliance. A cylinder must be stored outdoors in a
the cylinder is disconnected and removed from the
Storage of an appliance indoors is permissible only if
department should have this book.
Propane Installation Code. Your local library or fire
ANSI/NFPA 58 or CSA B149.1, Natural Gas and
storage and handling of liquefied petroleum gas,
supply system. See chapter 12 of the standard for
Use this heater only with a propane vapor withdrawal
standard 20 lb. propane cylinder only.
propane gas and cylinder are sold separately.Use a

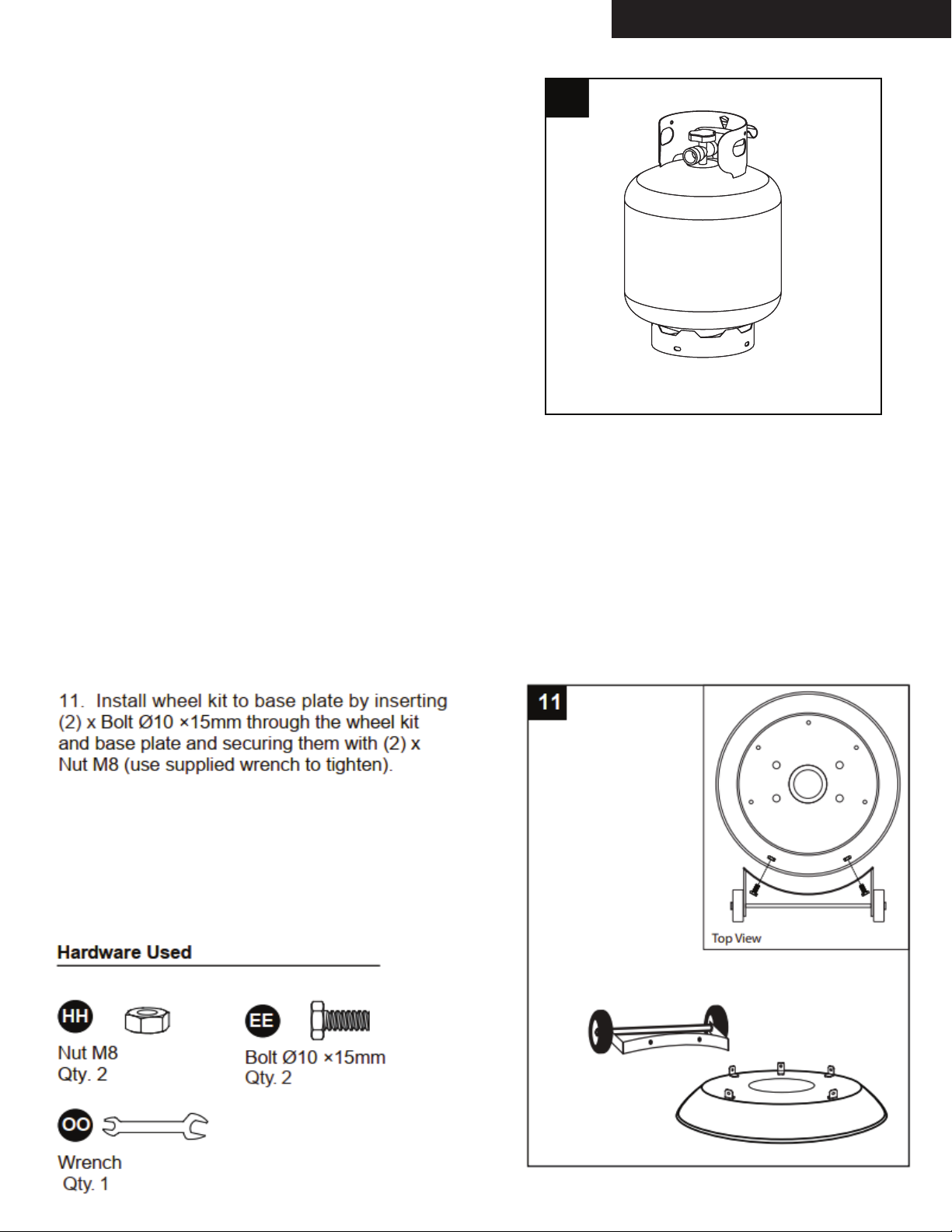

11. Connect hose and regulator to cylinder.The
12
1
12
ASSEMBLY INSTRUCTIONS
Standard 20 lb. tank
11
handling code, B149.2.
lation Code, CSA B149.1, or propane storage and
ANSI Z223.1/NFPA54, natural gas and propane Instal-
the absence of local codes,with national fuel gas code,
The installation must conform with local codes, or in
assembly supplied with the appliance must be used.
full input rating. The pressure regulator and hose
required input rating for a heater at ratings less than
adjustment. The minimum hourly of 16,000 Btu/hr is
supply pressure: 5 psi is required for purpose of input
supply pressure: 250 psi. The minimum inlet gas
or any other enclosed area. The maximum inlet gas
installed and must not be stored in a building, garage
disconnected cylinder must have dust caps tightly
well-ventilated area out of the reach of children. A
appliance. A cylinder must be stored outdoors in a
the cylinder is disconnected and removed from the
Storage of an appliance indoors is permissible only if
department should have this book.
Propane Installation Code. Your local library or fire
ANSI/NFPA 58 or CSA B149.1, Natural Gas and
storage and handling of liquefied petroleum gas,
supply system. See chapter 12 of the standard for
Use this heater only with a propane vapor withdrawal
standard 20 lb. propane cylinder only.
propane gas and cylinder are sold separately.Use a
11. Connect hose and regulator to cylinder.The
12
1
12

OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
Operation Instructions
OPERATION INSTRUCTIONS
DANGER
&$5%210212;,'(+$=$5'
)RURXWGRRUXVHRQO\1HYHUXVHLQVLGHKRXVHRURWKHU
XQYHQWLODWHGRUHQFORVHGDUHDV7KLVKHDWHUFRQVXPHVDLU
R[\JHQ'RQRWXVHLQXQYHQWLODWHGRUHQFORVHGDUHDVWR
DYRLGHQGDQJHULQJ\RXUOLIH
Figure 1
,JQLWHU 9DULDEOH
FRQWURONQRE
Figure 2
gas lines before proceeding.
Note: For initial start or after any cylinder change, hold control knob in for 2 minutes to purge air from
3XVKFRQWURONQRELQDQGURWDWHcounter-clockwiseuntil it stopsFigure 1)
7XUQWKHFRQWURONQREWRWKH³2))´SRVLWLRQ)XOO\RSHQ/3F\OLQGHUYDOYH
be lit before main burner can be started.

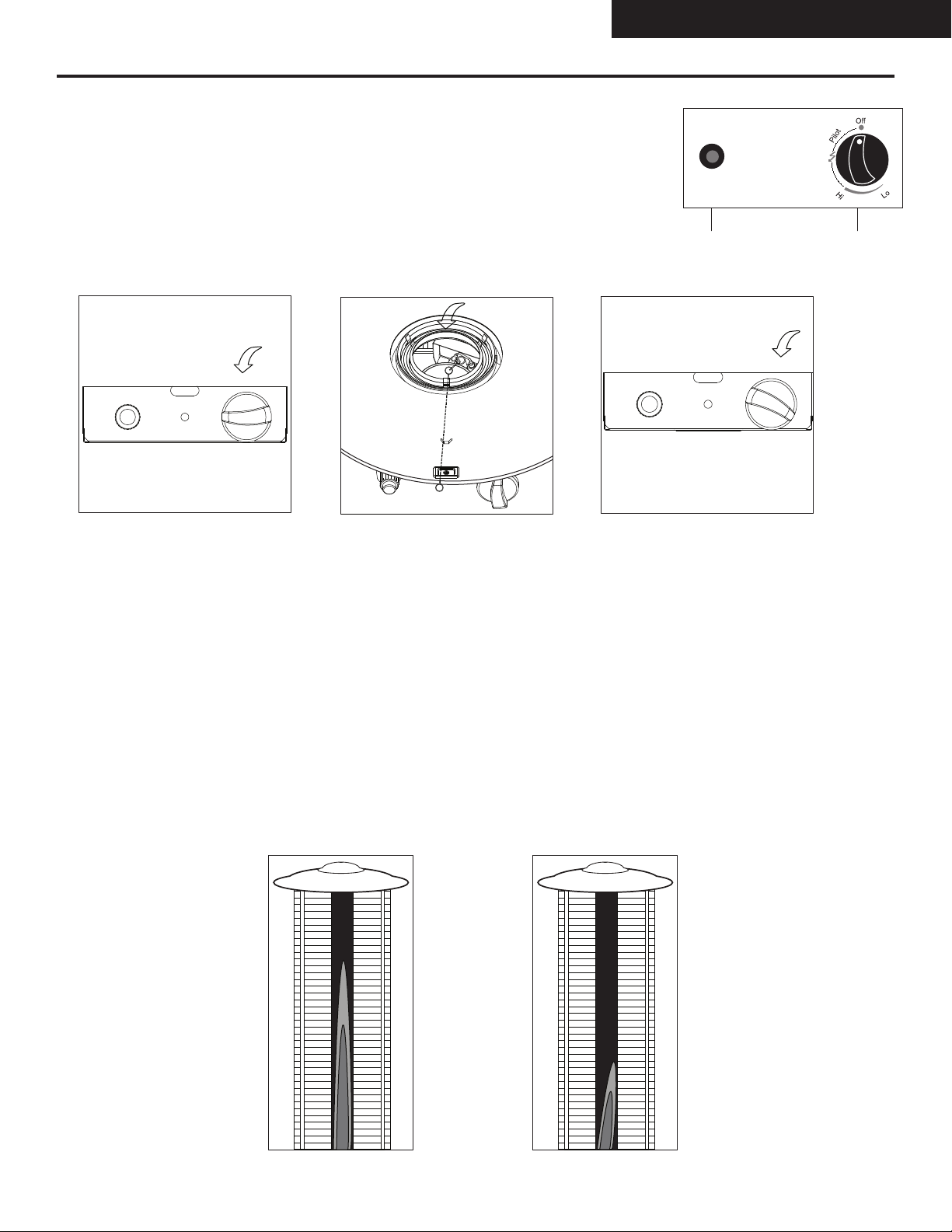

Note: This heater is equipped with a pilot light that allows for safer startups and shutdowns. Pilot must
/LJKWLQJ
UHSODFHPHQWKRVHDVVHPEO\VSHFLILHGE\PDQXIDFWXUHU
VKRXOGEHOHDNWHVWHG,IWKHKRVHOHDNVLWPXVWEHUHSODFHGSULRUWRRSHUDWLRQ2QO\XVHWKH
,QVSHFWWKHKRVHDVVHPEO\IRUHYLGHQFHRIH[FHVVLYHDEUDVLRQFXWVRUZHDU6XVSHFWHGDUHDV
DQQXDOO\,IUHOLJKWLQJDKRWKHDWHUDOZD\VZDLWDWOHDVWPLQXWHV
+HDWHUVKRXOGEHWKRURXJKO\LQVSHFWHGEHIRUHHDFKXVHDQGE\DTXDOLILHGVHUYLFHSHUVRQDWOHDVW
%HIRUH/LJKWLQJ
VHUYLFLQJLVUHSODFHGDQGIDVWHQHGSULRUWRVWDUWLQJ
%HVXUHWKHF\OLQGHUFRYHULVFOHDURIGHEULV%HVXUHDQ\FRPSRQHQWUHPRYHGGXULQJDVVHPEO\RU
WKHUHDUHQROHDNV
(QVXUHWKDWWKHUHLVQRREVWUXFWLRQWRDLUYHQWLODWLRQ%HVXUHDOOJDVFRQQHFWLRQVDUHWLJKWDQG
YDSRUVRUOLTXLGV
0DNHVXUHVXUURXQGLQJDUHDVDUHIUHHRIFRPEXVWLEOHPDWHULDOVJDVROLQHDQGRWKHUIODPPDEOH
JDUDJHRUDQ\RWKHUHQFORVHGDUHD
<RXUKHDWHUZDVGHVLJQHGDQGDSSURYHGIRURXWGRRUXVHRQO\'R127XVHLWLQVLGHDEXLOGLQJ
%HIRUH7XUQLQJ*DV6XSSO\21
in this manual and all assembly is complete and leak checks have been performed.
Caution: Do not attempt to operate until you have read and understand all General Safety Information
13
OPERATION INSTRUCTIONS
DANGER
&$5%210212;,'(+$=$5'
)RURXWGRRUXVHRQO\1HYHUXVHLQVLGHKRXVHRURWKHU
XQYHQWLODWHGRUHQFORVHGDUHDV7KLVKHDWHUFRQVXPHVDLU
R[\JHQ'RQRWXVHLQXQYHQWLODWHGRUHQFORVHGDUHDVWR
DYRLGHQGDQJHULQJ\RXUOLIH
Figure 1
,JQLWHU 9DULDEOH
FRQWURONQRE
Figure 2
gas lines before proceeding.
Note: For initial start or after any cylinder change, hold control knob in for 2 minutes to purge air from
3XVKFRQWURONQRELQDQGURWDWHcounter-clockwiseuntil it stopsFigure 1)
7XUQWKHFRQWURONQREWRWKH³2))´SRVLWLRQ)XOO\RSHQ/3F\OLQGHUYDOYH
be lit before main burner can be started.
Note: This heater is equipped with a pilot light that allows for safer startups and shutdowns. Pilot must
/LJKWLQJ
UHSODFHPHQWKRVHDVVHPEO\VSHFLILHGE\PDQXIDFWXUHU
VKRXOGEHOHDNWHVWHG,IWKHKRVHOHDNVLWPXVWEHUHSODFHGSULRUWRRSHUDWLRQ2QO\XVHWKH
,QVSHFWWKHKRVHDVVHPEO\IRUHYLGHQFHRIH[FHVVLYHDEUDVLRQFXWVRUZHDU6XVSHFWHGDUHDV
DQQXDOO\,IUHOLJKWLQJDKRWKHDWHUDOZD\VZDLWDWOHDVWPLQXWHV
+HDWHUVKRXOGEHWKRURXJKO\LQVSHFWHGEHIRUHHDFKXVHDQGE\DTXDOLILHGVHUYLFHSHUVRQDWOHDVW
%HIRUH/LJKWLQJ
VHUYLFLQJLVUHSODFHGDQGIDVWHQHGSULRUWRVWDUWLQJ
%HVXUHWKHF\OLQGHUFRYHULVFOHDURIGHEULV%HVXUHDQ\FRPSRQHQWUHPRYHGGXULQJDVVHPEO\RU
WKHUHDUHQROHDNV
(QVXUHWKDWWKHUHLVQRREVWUXFWLRQWRDLUYHQWLODWLRQ%HVXUHDOOJDVFRQQHFWLRQVDUHWLJKWDQG
YDSRUVRUOLTXLGV
0DNHVXUHVXUURXQGLQJDUHDVDUHIUHHRIFRPEXVWLEOHPDWHULDOVJDVROLQHDQGRWKHUIODPPDEOH
JDUDJHRUDQ\RWKHUHQFORVHGDUHD
<RXUKHDWHUZDVGHVLJQHGDQGDSSURYHGIRURXWGRRUXVHRQO\'R127XVHLWLQVLGHDEXLOGLQJ
%HIRUH7XUQLQJ*DV6XSSO\21
in this manual and all assembly is complete and leak checks have been performed.
Caution: Do not attempt to operate until you have read and understand all General Safety Information
13
12. Unscrew the switch button, insert AAA
alkaline battery, tighten the switch button.
Hardware Used
AAA Alkaline Battery x 1
QQ
QQ
1
12
AAA Alkaline Battery 1.5 V

OPERATION INSTRUCTIONS
8. Push in and turn the control knob to the “HIGH”, then release
control knob. If you want a lower temperature, push in the control knob
and turn counterclockwise to the “LOW” (Figure 5).
Note: If pilot fails to remain lit, all valves should be closed and a waiting
period of at least 5 minutes should pass before attempting to light.
If you experience any ignition problem please consult “Troubleshooting” on page 18.
Caution: Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor from the burning
of oils used in manufacturing will appear. Both smoke and odor will dissipate after approximately 30
minutes. The heater should NOT produce thick black smoke.
Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner,
turn the control knob to the PILOT position. Then, turn the knob to the level of heat desired.
Figure 3 Figure 4 Figure 5
Igniter Variable
control knob
Normal Abnormal
-Repeat step 6.
through the glass tube to light the pilot (Figure 4).
-As you are depressing the control knob, place long stem lighter
-Push in control knob and turn counterclockwise to “PILOT” (Figure 3).
If after repeating steps 4 to 6 unit does not light, then7.
If the pilot does not stay lit, repeat steps 4 to 6.6.
Once the pilot is lit, continue to depress the control knob for 30 seconds.5.
Push the igniter button until pilot flame is visible throughthe glass tube.4.
abnormal condition.
Contrarily it is
stable and bright.
position.The flame is
tube under Low
1/3 height of glass
the height of flame is
tube under Hi position.
2/3 height of glass
the height of flameis
In Normal condition,
Note:
14
OPERATION INSTRUCTIONS
Operation Instructions

OPERATION INSTRUCTIONS
Operation Instructions
OPERATION INSTRUCTIONS
Shut Down:
1. Turn control knob clockwise to PILOT. (Normally, burner will make a slight popping sound when
extinguished.) Burner will extinguish but PILOT will remain ON.
2. To extinguish PILOT depress control knob and continue to turn it clockwise to OFF.
3. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
Note: After use, some discoloration of the emitter screen is normal.
Operation Checklist
For a safe and pleasurable heating experience, perform this check before each use.
Before Operating:
1. I am familiar with entire owner’s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efficiency below 40°F.
7. Heater is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
WARNING
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
heater. Holding in the control knob for more than 20
seconds before igniting the gas will cause a ball of
flame upon ignition.
WARNING
FOR YOUR SAFETY
Heater will be hot after use. Handle with extreme care.
Repeat the “Lighting” steps on prior page.3.
if performed before 5 minutes are up .
Wait at least 5 minutes, to let gas dissipate, before attempting to relight Pilot. Flash out will happen 2.
Turn control knob to OFF.1.
depressing control knob in PILOT position and then rotating it to OFF.
Note: For your safety, control knob cannot be turned OFF without first
Re-lighting:
“Troubleshooting” on page 18.
will be yellow in color.If excessive yellow flame is detected, turn offheater and consult
The "pilot light" should be blue with yellow top once burner is lit. The flame in the glass tube
When heater is ON:
15
Re-lighting:

CARE AND MAINTENANCE
Care And Maintenance
CARE AND MAINTENANCE
Gas odor
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and
render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may
help clear away smaller particles.
Carbon deposits may create a fire hazard. Disassembly the reflector, unscrew the reflector spacer,
take off the screen, take down one side of protective guards. Then take the glass tube from the heater
and wash and clear. After that assembly ,the glass tube and the rest of parts.
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
TIP:
Use high-quality automobile wax to help maintain the appearance of
your heater. Apply to exterior surfaces from the pole down. Do not
apply to emitter screen or domes.
Storage
Between uses:
Turn Control Knob OFF.
Disconnect LP cylinder.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
Turn Control Knob OFF.
Disconnect LP cylinder and move to a secure, well-ventilated location outdoors.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Never leave LP cylinder exposed to direct sunlight or excessive heat.
Note: Wait until heater is cool before covering.
Service
Only a qualified service person should repair gas passages and associated components.
Caution: Always allow heater to cool before attempting service.
17

TROUBLESHOOTING
Troubleshooting & Warranty
Please don't try to modify appliance by yourself. Contact your supplier or distributor to solve any issues not
listed above.
In this particular heater,carbon will build up on the bottom of reflector shield. This will need to be cleaned
periodically after periods of extended use. This is normal based on the way the flame hits the screen
in combustion.
PROBLEM PROBABLE CAUSE CORRECTIVE ACTION
Pilot will not light
Note: heater operates at reduced
efficiency below 40º (5ºC)
Gas valve may be OFF Turn the gas valve ON
Tank fuel empty Refill LPG tank
Opening blocked Clean or replace opening
Air in supply system Purge air from lines
Pilot will not stay on
Debris around pilot Clean dirty area
Loose connections Tighten connections
Thermocouple bad Replace thermocouple
Gas leak in line Check connections
Lack of fuel pressure Tank near empty. Refill LPG tank.
Burner will not light
Pressure is low Tank near empty. Refill LPG tank.
Opening blocked Remove and clean
Control not ON Turn valve to ON
Thermocouple bad Replace thermocouple
Pilot light assembly bent Place pilot properly
Not in correct location Position properly and retry
Burner flame is low
Gas pressure is low Turn cylinder valve OFF and
replace cylinder
Outdoor temperature is less than
40ºF and tank is less thatn 1/4 full Use a full cylinder
Control knob fully ON Check burner and orifices for
blockage
Carbon build-up
Thick black smoke
Dirt or film on reflector and burner
screen Clean reflector and burner screen
Blockage in burner Remove blockage and clean burner
inside and outside
This product carries a one (1) year warranty against defects in workmanship and materials. We will replace the
defective product free of charge within the stated warranty period, when returned by the original purchaser with
proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
WARRANTY
