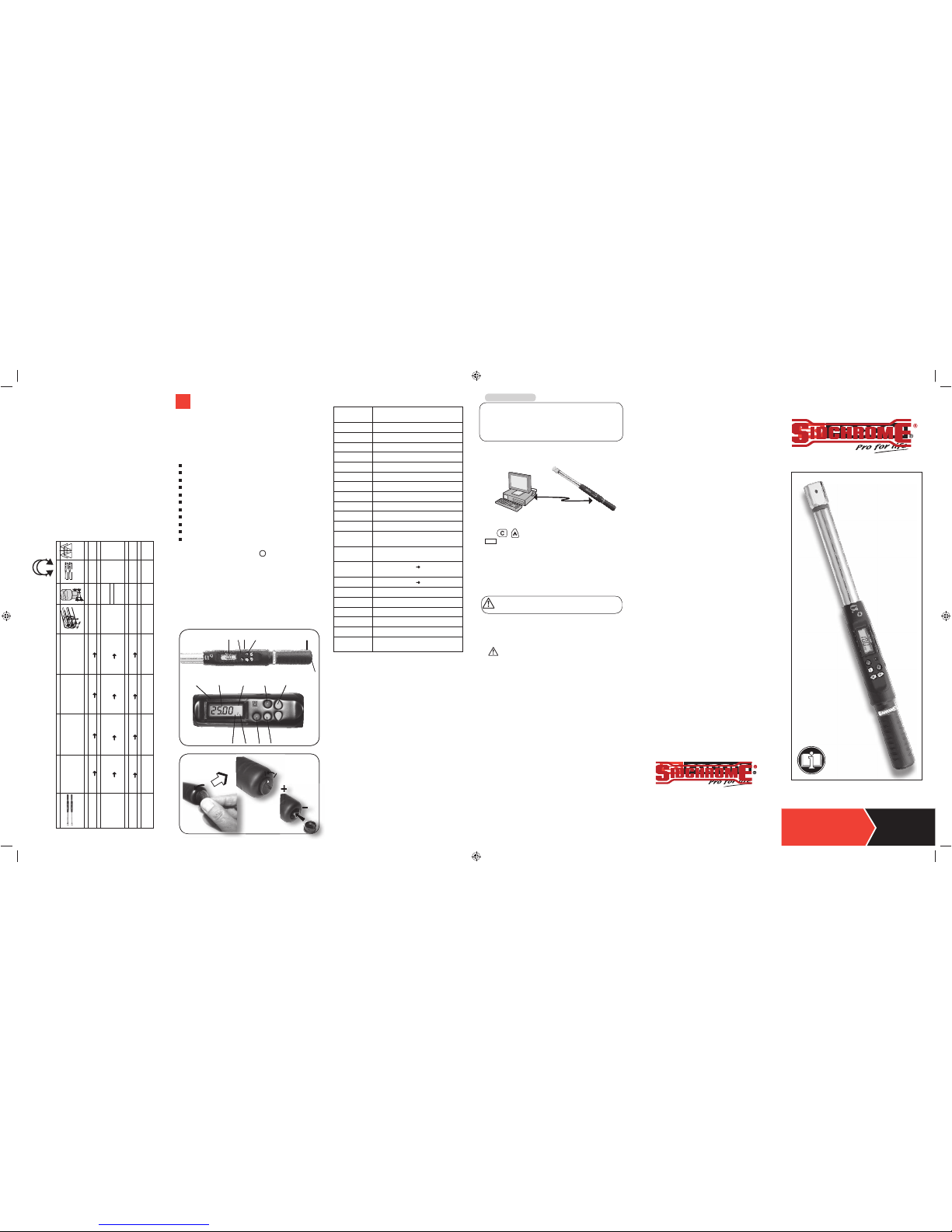

Sidchrome SCMT26950 User manual

1 2 3 4 5
6
A
Dear Customers,
Thank you for purchasing our digital torque wrench. This manual will help you
to use the many features of your new digital torque wrench. Before operating
the torque wrench, please read this manual completely, and keep it
nearby for future reference
MAIN FEATURES
■ Head Interchangeable
■ Digital torque value readout
■ +/-2 % accuracy
■ +/-2 ° accuracy for 90° angle rotation
■ CW and CCW operation
■ Peak hold and track mode selectable
■ Buzzer and LED indicator for the 9 pre-settable target torques
■ Engineering units (N-m, ft-lb, in-lb, kg-cm, ‘‘°’’) selectable
■ 50 or 250 data memory for recall and joint torque auditing
■ Auto Sleep after about 2 minutes idle
■ Both AA and rechargeable batteries are compatible
NAMES AND FUNCTIONS OF PARTS A
1. LCD Display 9. Max. Value Index
2. Buzzer 10. Units(N.m, ft-lb, in.lb, kg.cm)
3. Communication Port 11. P(Peak hold mode) /T(Track mode)
4. Buttons 12. Clear Button
5. Battery Compartment 13. Max. Value Select
6. Battery Cover 14. Unit/Setting Button
7. LED Indicator 15. Up/Down Button
8. Torque / Angle value
7 8 10 13 15
9 11 12 14
N.m
MT
E.316-30D - E.316-135D
E.316-200D - E.316-340D
Torque Accuracy *1 ±2%
Angle Accuracy *2 +/-2 ° for 90° angle rotation
Data memory size 250
PC Connectivity *3 Yes / USB
Pre-setting No. 9 sets
Bright LED 12 LED / 2 Red+10 Green
Operation Mode Peak Hold / Track
Unit Selection N.m, ft.lb, in.lb, kg.cm
Head Type Round Head Ratchet Insert
Button 2
Battery AA x 2
Battery Life *4
(Continuous operation)
60 hrs.
Battery Life *4
(Standby)
1 Year
Operating Tempe-
rature
-10°C ➜ 60°C
Storage Temperature -20°C ➜ 70°C
Humidity Up to 90% non-condensing
Drop Test 1 m
Vibration Test *5 10 G
Life time *6 10000 cycle
Environmental test *7 Pass
Electromagnetic
compatibility test *8
Pass
SPECIFICATIONS
Note:
*1: The accuracy of the readout is guaranteed from 20% to 100% of
maximum range + /- 1 increment. The torque accuracy is a typical value.
Calibration line is at the middle line of the dark spot on the rubber handle. For
keeping the accuracy, calibrate the wrench for a constant period time (1 year).
And the accuracy is based on the zero degree of offset from perpendicular drive.
*2: The angle accuracy is guaranteed at + /- 2° when rotating wrench to
90° at the speed of 30°/sec.
*3:
Use a special designed USB cable (accessory) to upload record data to PC.
*4: Use two AA batteries (Test condition: Toshiba carbon-zinc R6UG battery)
*5: Horizontal and vertical test
*6: One cycle means swing the torque wrench from 0 N.m to maximum
range and back to 0 N.m.
*7: Environmental test:
a. Dry heat e. Impact (shock)
b. Cold f. Vibration
c. Damp heat g. Drop
d. Change of temperature
*8: Electromagnetic compatibility test:
a. Electrostatic discharge immunity (ESD)
b. Radiated susceptibility
c. Radiated emission
B
➩
SPECIFICATIONS ISO 6789 Type 2 Classe A Torque wrench precision : ± 2%
Precaution:
1. Communication function is only supported on some models. Check the
model no. and its specifi cation before using communication function.
2. Do not insert the plug of communication cable into torque wrench that
does not support communication function.
CONNECTING COMMUNICATION CABLE
• Connect the accessory cable between the USB COM port of PC and
torque wrench.
UPLOADING RECORD DATA
• Make sure the connection between PC and wrench is normal.
• Press together to reset the wrench.
• Change the wrench operation mode to “Send”. (Refer to “Peak Hold
Mode Recorded Value Review ” section)
• Use PC to start the uploader program.
• In uploader program, fi rst select the correct COM port No.
• Next, select the fi le path to save the uploaded data.
• Finally, press “upload” button to transmit the torque records to PC.
• The uploaded data is then shown on the column and saved in the *.csv
fi le. Use Microsoft Excel to view *.csv fi le.
CAUTIONS:
Refer to the uploader program user guide for the detail operations .
MAINTENANCE AND STORAGE
ATTENTION:
One-year periodic recalibration is necessary to maintain accuracy.
Please contact your local dealer for calibrations.
CAUTION:
1.
Over-torque (110% of Max. torque range) could cause breakage or lose accuracy.
2. Do not shake violently or drop wrench.
3. Do not use this wrench as a hammer.
4. Do not leave this wrench in any place exposed to excessive heat,
humidity, or direct sunlight.
5. Do not use this apparatus in water.(not waterproof)
6. If the wrench gets wet, wipe it with a dry towel as soon as possible. The
salt in seawater can be especially damaging.
7. Do not use organic solvents, such as alcohol or paint thinner when
cleaning the wrench.
8. Keep this wrench away from magnets.
9. Do not expose this wrench to dust or sand as this could cause serious damage.
10. Do not apply excessive force to the LCD panel.
11. Apply torque slowly and graspe the center of the handle. Do not apply
load to the end of handle
BATTERY MAINTENANCE
1.
When the wrench is not used for an extended period of time, remove the battery.
2. K eep a spare battery on hand when going on a long trip or to cold areas.
3. Do not mix battery types or combine used batteries with new ones.
4.
Sweat, oil and water can prevent a battery’s terminal from making elec-
trical contact. To avoid this, wipe both terminals before loading a battery.
5. Dispose of batteries in a designated disposal area. Do not throw
batteries into a fi re.
COMMUNICATION
Instruction manual
NUen-E.316/0410
En France, pour tous renseignements techniques sur l'outillage à main,
téléphonez au : 01 64 54 45 14
BELGIQUE
LUXEMBOURG
FACOM Belgie B.V.B.A.
Egide Walschaertsstraat 14-16
2800 MECHELEN
BELGIQUE
✆ : [phone]
Fax : [phone]
NETHERLANDS FACOM Gereedschappen BV
Martinus Nijhofflaan 2
2624 ES DELFT
P.O. BOX 1007 . 2600 BA Delft
NETHERLANDS
✆ : 0800 236 236 2
Fax : [phone]
DANMARK
FINLAND
ISLAND
NORGE
SVERIGE
FACOM NORDEN
Nordre Strandvej 119B
3150 HELLEBÆK
DENMARK
✆ : [phone]
Fax : [phone]
SINGAPORE
FAR EAST
FACOM TOOLS FAR EAST
N° 25 Senoko South Road
Woodlands East Industrial Estate
Singapore 758081
SINGAPORE
✆ : (65) 6752 2001
Fax : [phone]
DEUTSCHLAND FACOM
Otto-Hahn-Straße 9
42369 Wuppertal
DEUTSCHLAND
✆ : [phone]
Fax : [phone]
SUISSE
ÖSTERREICH
MAGYARORSZAG
ČESKÁ REP.
FACOM WERKZEUGE GMBH
Ringstrasse 14
8600 DÜBENDORF
SUISSE
✆ : 41 44 802 8093
Fax : [phone]
ESPAÑA
PORTUGAL
FACOM Herramientas S.L.
Poligono industrial de Vallecas
C/Luis 1°, s/n-Nave 95 - 2°Pl.
28031 Madrid
ESPAÑA
✆ : [phone]
Fax : + 34 91 380 65 33
UNITED
KINGDOM
EIRE
FACOM-UK
Europa view
SHEFFIELD BUSINESS PARK
ENGLAND
✆ : (44) 114 244 8883
Fax : [phone]
ITALIA SWK Utensilerie S.r.l.
Via Volta 3
21020 Monvalle (VA)
ITALIA
✆ : [phone]
Fax : [phone]
POLSKA FACOM Tools Polska Sp. zo.o.
ul.Modlińska 190
03-119 Warszawa
POLSKA
✆ : (48 22) 510 3627
Fax : [phone]
FRANCE &INTERNATIONAL
FACOM S.A.S.
6-8, rue Gustave Eiffel B.P.99
F-91423 Morangis cedex
FRANCE
✆ : 01 64 54 45 45
Fax : [phone]
http:/ /www.facom.com
Europa link
SHEFFIELD S9 1 XH
Stanley Deutschland GmbH
EN
E.316-30D
845011
E.316-135D
845020
E.316-200D
845038
E.316-340D
845046
N.m
min. max.
ft.lb
min. max.
in.lb
min. max.
kg.cm
mini. max.
mm mm kg
E.316-30D 1,5 ➜ 30 1,11 ➜ 22,12 13,3 ➜ 265,5 15,3 ➜ 306,1 9 x 12 1/4’’ 360 1,52 E.316-135D 6,8 ➜ 135 5 ➜ 99,5 60 ➜ 1195 69 ➜ 1378 9 x 12
3/8’’
375 1,52
1/2’’
E.316-200D 10 ➜ 200 7,4 ➜ 147,5 88 ➜ 1770 102 ➜ 2041 14 x 18 1/2’’ 474 2,4 E.316-340D 17 ➜ 340 12,5 ➜ 250,7 150 ➜ 3009 173 ➜ 3469 14 x 18 1/2’’ 594 2,56
L
1 2 3 4 5
6
A
Dear Customers,
Thank you for purchasing our digital torque wrench. This manual will help you
to use the many features of your new digital torque wrench. Before operating
the torque wrench, please read this manual completely, and keep it
nearby for future reference
MAIN FEATURES
Head Interchangeable
Digital torque value readout
+/-2 % accuracy
+/-2 ° accuracy for 90° angle rotation
CW and CCW operation
Peak hold and track mode selectable
Buzzer and LED indicator for the 9 pre-settable target torques
Engineering units (N-m, ft-lb, in-lb, kg-cm, ‘‘°’’) selectable
50 or 250 data memory for recall and joint torque auditing
Auto Sleep after about 5 minutes idle
Both AA and rechargeable batteries are compatible
NAMES AND FUNCTIONS OF PARTS A
1. LCD Display 9. Max. Value Index
2. Buzzer 10. Units(N.m, ft-lb, in.lb, kg.cm)
3. Communication Port 11. P(Peak hold mode) /T(Track mode)
4. Buttons 12. Clear Button
5. Battery Compartment 13. Max. Value Select
6. Battery Cover 14. Unit/Setting Button
7. LED Indicator 15. Up/Down Button
8. Torque / Angle value
7 8 10 13 15
9 11 12 14
N.m
MT
SCMT26950 - SCMT26951
SCMT26952
%2±1* ycaruccA euqroT
Angle Accuracy *2 +/-2 ° for 90° angle rotation
052ezis yromem ataD
PC Connectivity *3 Yes / USB
stes 9.oN gnittes-erP
Bright LED 12 LED / 2 Red+10 Green
Operation Mode Peak Hold / Track
Unit Selection N.m, ft.lb, in.lb, kg.cm
Head Type Round Head Ratchet Insert
5nottuB
2 x AAyrettaB
Battery Life *4
(Continuous operation)
60 hrs.
Battery Life *4
(Standby)
1 Year
Operating Tempe-
rature
-10°C 60°C
Storage Temperature -20°C 70°C
Humidity Up to 90% non-condensing
m 1tseT porD
G 015* tseT noitarbiV
elcyc 000016* emit efiL
Environmental test *7 Pass
Electromagnetic
compatibility test *8
Pass
SPECIFICATIONS
Note:
*1: The accuracy of the readout is guaranteed from 20% to 100% of
maximum range + /- 1 increment. The torque accuracy is a typical value.
Calibration line is at the middle line of the dark spot on the rubber handle. For
keeping the accuracy, calibrate the wrench for a constant period time (1 year).
And the accuracy is based on the zero degree of offset from perpendicular drive.
*2: The angle accuracy is guaranteed at + /- 2° when rotating wrench to
90° at the speed of 30°/sec.
*3:
Use a special designed USB cable (accessory) to upload record data to PC.
*4: Use two AA batteries (Test condition: Toshiba carbon-zinc R6UG battery)
*5: Horizontal and vertical test
*6: One cycle means swing the torque wrench from 0 N.m to maximum
range and back to 0 N.m.
*7: Environmental test:
a. Dry heat e. Impact (shock)
b. Cold f. Vibration
c. Damp heat g. Drop
d. Change of temperature
*8: Electromagnetic compatibility test:
a. Electrostatic discharge immunity (ESD)
b. Radiated susceptibility
c. Radiated emission
B
SPECIFICATIONS ISO 6789 Type 2 Classe A Torque wrench precision : ± 2%
Precaution:
1. Communication function is only supported on some models. Check the
model no. and its specifi cation before using communication function.
2. Do not insert the plug of communication cable into torque wrench that
does not support communication function.
CONNECTING COMMUNICATION CABLE
• Connect the accessory cable between the USB COM port of PC and
torque wrench.
UPLOADING RECORD DATA
• Make sure the connection between PC and wrench is normal.
• Press together to reset the wrench.
• Change the wrench operation mode to “Send”. (Refer to “Peak Hold
Mode Recorded Value Review ” section)
• Use PC to start the uploader program.
• In uploader program, fi rst select the correct COM port No.
• Next, select the fi le path to save the uploaded data.
• Finally, press “upload” button to transmit the torque records to PC.
• The uploaded data is then shown on the column and saved in the *.csv
fi le. Use Microsoft Excel to view *.csv fi le.
CAUTIONS:
Refer to the uploader program user guide for the detail operations .
MAINTENANCE AND STORAGE
ATTENTION:
One-year periodic recalibration is necessary to maintain accuracy.
Please contact your local dealer for calibrations.
CAUTION:
1.
Over-torque (110% of Max. torque range) could cause breakage or lose accuracy.
2. Do not shake violently or drop wrench.
3. Do not use this wrench as a hammer.
4. Do not leave this wrench in any place exposed to excessive heat,
humidity, or direct sunlight.
5. Do not use this apparatus in water.(not waterproof)
6. If the wrench gets wet, wipe it with a dry towel as soon as possible. The
salt in seawater can be especially damaging.
7. Do not use organic solvents, such as alcohol or paint thinner when
cleaning the wrench.
8. Keep this wrench away from magnets.
9.
Do not expose this wrench to dust or sand as this could cause serious damage.
10. Do not apply excessive force to the LCD panel.
11. Apply torque slowly and graspe the center of the handle. Do not apply
load to the end of handle
BATTERY MAINTENANCE
1.
When the wrench is not used for an extended period of time, remove the battery.
2. K eep a spare battery on hand when going on a long trip or to cold areas.
3. Do not mix battery types or combine used batteries with new ones.
4.
Sweat, oil and water can prevent a battery’s terminal from making elec-
trical contact. To avoid this, wipe both terminals before loading a battery.
5. Dispose of batteries in a designated disposal area. Do not throw
batteries into a fi re.
COMMUNICATION
Instruction manual
EN
SCMT26950
SCMT26951
SCMT26952
N.m
min. max.
ft.lb
min. max.
in.lb
min. max.
kg.cm
mini. max.
mm mm kg
SCMT26950 1,5 30 1,11 22,12 13,3 265,5 15,3 306,1 9 x 12 1/4’’ 360 1,52
SCMT26951 6,8 135 5 99,5 60 1195 69 1378 9 x 12
3/8’’
375 1,52
1/2’’
SCMT26952 10 200 7,4 147,5 88 1770 102 2041 14 x 18 1/2’’ 474 2,4
L
Instruction manual
The Stanley Works - 82 Taryn Drive
Epping Melbourne - Victoria
Australia 3076
Tel : [phone]
Sidchrome.com.au

BEFORE USING THE WRENCH
BATTERY INSTALLATION B
•Remove the battery cover.
• Insert two AA batteries matching the -/+ polarities of the battery to
the battery compartment.
• Put on the battery cap and rotate it tightly according to the following
figures.
POWER ON AND RESETTING THE WRENCH
•Press to power on the digital torque wrench.
•Usually press to reset the digital torque wrench before using it.
ATTENTION:
If an external force is applied to the torque wrench during power-on/reset
or wake up period, an initial torque offset will exist in the memory.
ACTIVATION DURING SLEEP MODE
• The wrench will auto sleep after about 2 minutes idle for power
saving. Press to wake up the wrench during the sleep mode.
CAUTIONS:
During communication period (Send appears), the sleep function is disabled.
RESETTING THE WRENCH
• To reset the wrench, loosen the battery cap then tighten it to re-start.
• After reset, remember to press .
LOW BATTERY VOLTAGE PROTECTION
• If the battery serial voltage is under 2.3 volts, the wrench will display
a battery symbol and then turn off after a while.
SET UP
1 . Power On/Clear
2 . Unit Selection/Setting
3 . Up/Down Button
4 . Pre-Setting No.
STEP 1: PRE-SETTING NO.
Note:
1.If is appeared, that
means this wrench has ever been
applied more than 110% of maximum
torque.
2.The maximum capacity for
“Pre-setting No.” is 9 sets.
3.
The “Pre-Setting No.” is in sequential.
STEP 2: UNIT SELECTION
N.m
MT
N.m
MT
123
4
N.m
MT
Pre-setting: M1
N.m
MT
Press
M
Press
Pre-setting: M2
Pre-setting: M9
M
N.m
MT
N.m
MT
Pre-setting: Unit: N.m
in.lb
MT
Press
Press
ft.lb
MT
Pre-setting: Unit: in.lb
Pre-setting: Unit: ft.lb
Press
kg.cm
MT
Pre-setting: Unit: kg.cm
STEP 3: SET TORQUE VALUE
N.m
MT
Pre-setting Torque Value
N.m
MT
Press
Press
N.m
MT
Increase Max. Torque Value
Decrease Max. Torque Value
Note:
1.The “Unit Selection” is in sequential.
STEP 4: PEAK HOLD /TRACK
MODE SELECTION
N.m
MT
Track Mode
T
Long Press
P
Set Peak/Track mode
Press
Record No.
Press
for selection
Set Peak/Track mode
Press
Clear Record
Press
N.m
MP
Peak Hold Mode
Note:
1.Please skip this procedure and
continue to the next spet.
*Note 1
*Note 1
TRACK MODE OPERATION
N.m
MT
Max. Target Value
N.m
MT
((...((... ...))...))
N.m
MT
START
(system initial)
*Note 1
Apply torque over 5 N.m
*Note 2
Current Torque Value
Over 80% of Max.
Target Value
N.m
MPT
Current Torque Value
((...((... ...))...))
Buzzer
Green LED
Over 80% of Set Torque
Approach
Max.
Target Value
(((((((( ))))))))
((((((((  )))))))
Buzzer
Red LED
Approach Max. Set Torque
Note:
1. If is appeared, that means this wrench has ever been
applied over than 110% of maximum torque.
2. When using track mode, if you apply torque over 5 N.m, the LCD
dispay will start to display the torque value. If the applied is less than
5 N.m, the LCD display does not have any value changes.
The smallest torque for E.316-30D series is 0.5 N.m.
3. The green LED will be on for 80%, 85%, 90%, 95% and 97.5% of
maximum setting torque.
4. The red LED will be on 99,5% of maximum setting torque.
PEAK HOLD MODE OPERATION
N.m
MP
Max. Target Value
N.m
P
((...((... ...))...))
START
(system initial)
*Note 1
Apply torque
Current Max. Value
(Peak Hold)
N.m
MP
((...((... ...))...))
Buzzer Green LED
Over 80% of Set Torque
Released
Apply torque
N.m
P
M
Recording
Flashing
*Note 2
Approach Max. Target Value
N.m
MP
*Note 3
(((((((  ))))))) ((((((( ))))))))
Buzzer Red LED
Approach Max. Set Torque
Note:
1. If is appeared, that means this wrench has ever been
applied over than 110% of maximum torque.
2. If is appeared, that means the wrench’s memory is full and
the next value record can not be written in. Please refer the “Peak Hold
Mode Recorded Value Review” section to clear the momory data.
3. The green LED will be on for 80%, 85%, 90%, 95% and 97.5% of
maximum setting torque.
4. The red LED will be on for 99,5% of maximum setting torque.
PEAK HOLD MODE RECORDED VALUE REVIEW
N.m
MP
Peak Hold/Track Mode
*Note 1
Long Press
(Clear)
Record Value
Set Peak/Track Mode
Auto Change
Record No.
*Note 2
Press
*Note 3
N.m
Press
Clear Record
Press
No Yes
Deleted
(give up)
Communication
*Note 4, 5, 6
Communication
Press
N.m
MP
Peak Hold/Track Mode
(Exit)
Note:
1. The “Peak Hold” mode recorded value review also can be operated in
“Track” mode operation.
2. If you operate in the “Peak Hold” mode, the display will show
Pand please go to next step.
3. If the record is empty, it will show .
4. This function is not supported on all type of models.
5. Communication mode is for uploading record data to PC.
6. Communication mode is also for calibration of torque wrench. Please
contact your local dealer for more information.
ANGLE MODE OPERATION
((...((... ...))...))
Flashing
M
Angle Mode
*Note 1
M
Auto Change
Apply force and turn
*Note 2
*Note 3
Loose
*Note 5
Note 2:
1. When entering angle mode, the unit will be Degree.
2. When angle is in auto initial mode, please keep the wrench steady
without any disturbance.
3. After a while, the angle function will be in initiative mode with the
flashing .
4. When loosing the wrench with angle mode, the display will show the
corresponding torque value with flashing state.
5. The Green LED will be on with 80%, 85%, 90%, 95% and 97.5% of
target degree.
6.
When reaching the target degree, the green and red LED will be on at the
same time.
Apply force and turn
Approach 80% of target degree
Current Angle
Press
Current Torque
N.m
*Note 4
Reach 80% of target degree
Apply force and turn
Approach target degree
Loose
Current Torque
N.m
*Note 6
((...((... ...))...))
Auto Change
Pre-setting Unit: N-m
Unit Selection: in-lb
Pre-seting Unit: ft-lb
Pre-setting Unit: kg-cm
Press
TORQUE UNIT SELECTION UNDER ANGLE MODE
M
Angle Mode
*Note 1
*Note 2
*Note 3
ft.lb
N.m
Long Press
Set Peak/Track Mode
in.lb
kg.cm
Press
Press
Press
Press
Note:
1. The unit setting could be also entered from the torque mode.
2. Please skip the procedure and go to next step.
3. The unit selection is cyclic
*Note 4
*Note 3
*Note 4
N.m
MP
Long Press
KEY LOCK
Lock on/off selection
Press
N.m
MP
Auto Change
*Note
Note:
If ‘‘LoC on’’ is set, the display will show while pressing
, ,
Current Degree
