HIGH TEMPERATURE 2IN1
AIR TO WATER HEAT PUMP
Hydronic Space Heating & Hot Water
HIGH TEMPERATURE 2IN1
AIR TO WATER HEAT PUMP
Hydronic Space Heating & Hot Water
MAHRW025ZB/P(H2)
MAHRW030ZB/P(H2)
MAHRW040ZB/P(H2)
MAHRW050ZB/P(H2)

CONTENTS
1
1
1
2
2
2
3
4
4
5
5
6
6
7
8
8
9
10
10
10
11
12
14
14
15
15
16
18
18
20
20
20
22
23
23
24
25
26
I. Introduction.......................................................................................
1. Notice...........................................................................................
2. Work principle and function introduction......................................
II. Specification.....................................................................................
1. .....................................................................
2. Parameter .....................................................................................
3. Product appearance and installation dimension............................
III. Installation.......................................................................................
1. Heat Pump Out Unit Installation.....................................................
2. Installation requirement................................................................
3. Domestic Hot Water(DHW) Storage Tank and Buffer Tank
Installation......................................................................................
4.Installtion of indoor heating and cooling equipment......................
5. Pipe connection.............................................................................
6. Installation of the tank temperature sensor probe..........................
7. Electrical wiring ............................................................................
8. Electrical wire selection ................................................................
9. Trial operation by qualified installer .............................................
IV. Use........................................................................... ...... ...............
1. Remote controller interface displays .............................................
2. The use of wire controller...............................................................
3. System state parameter checking...................................................
4. System parameter setting...............................................................
5. Maintenance time requirement.......................................................
6. Date/time/timing on and off settings...............................................
7. Lock button/Ddfrost status/Fahrenheit and Celsius change............
8. Fault code display..........................................................................
9. Parameter Table..............................................................................
V. Installation sketch.................................................... ...... ................
1. Water system installation drawing.................................................
VI. Maintenance and repair............................................. ...... ...............
1. Note...............................................................................................
2. Malfunction Indicating table..........................................................
3. Judgement and solution of malfunction.........................................
VII. Wiring diagram .....................
1. Mk5020 PCB input and output port definition...............................
2. Power phase sequence protecttion board setting ..........................
3. Wiring diagram .............................................................................
4. The working description and installation of electric three-way
valve..............................................................................................
Model Nomenclature
.. ..
.. ..
...
..........................................................

1. Notice
1.1 Save this manual for future reference.
1.2 In order to use this product better and more safely, please read this manual carefully before
installation and initial operation.
1.3 Children or persons with physical, sensory or mental disability should not play with nor operate
this appliance.
1.4 This appliance must be installed by qualified and experienced technicians/tradespeople.
Improper installation of this appliance may cause damage and danger.
1.5 This appliance must be installed in accordance with Australian wiring regulations including an
isolating switch from the supply mains and grounded power supply consistent with the power
requirements of this appliance earthed in accordance with electrical regulations and Australian
StandardAS/NZS3000.
1.6 The installation of this appliance must complywith the model's wiring chart in this manual and its
power requirements as stated on the specification label on the side of the heat pump.
1.7 Do not install this appliance close to flammable or explosive materials, or naked flames.
1.8 A filter in the mains water supply inlet is recommended and should be checked/cleaned periodically.
1.9 Checking and cleaning of the evaporator fin coil is recommended for good air flow to ensure
good heat transfer with the ambient air for efficient operation.
1.10 The battery should be removed from this appliance's controller at the end of its operating life and
disposed of safely.
1. Notice
I.IntroductionI.Introduction
1
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

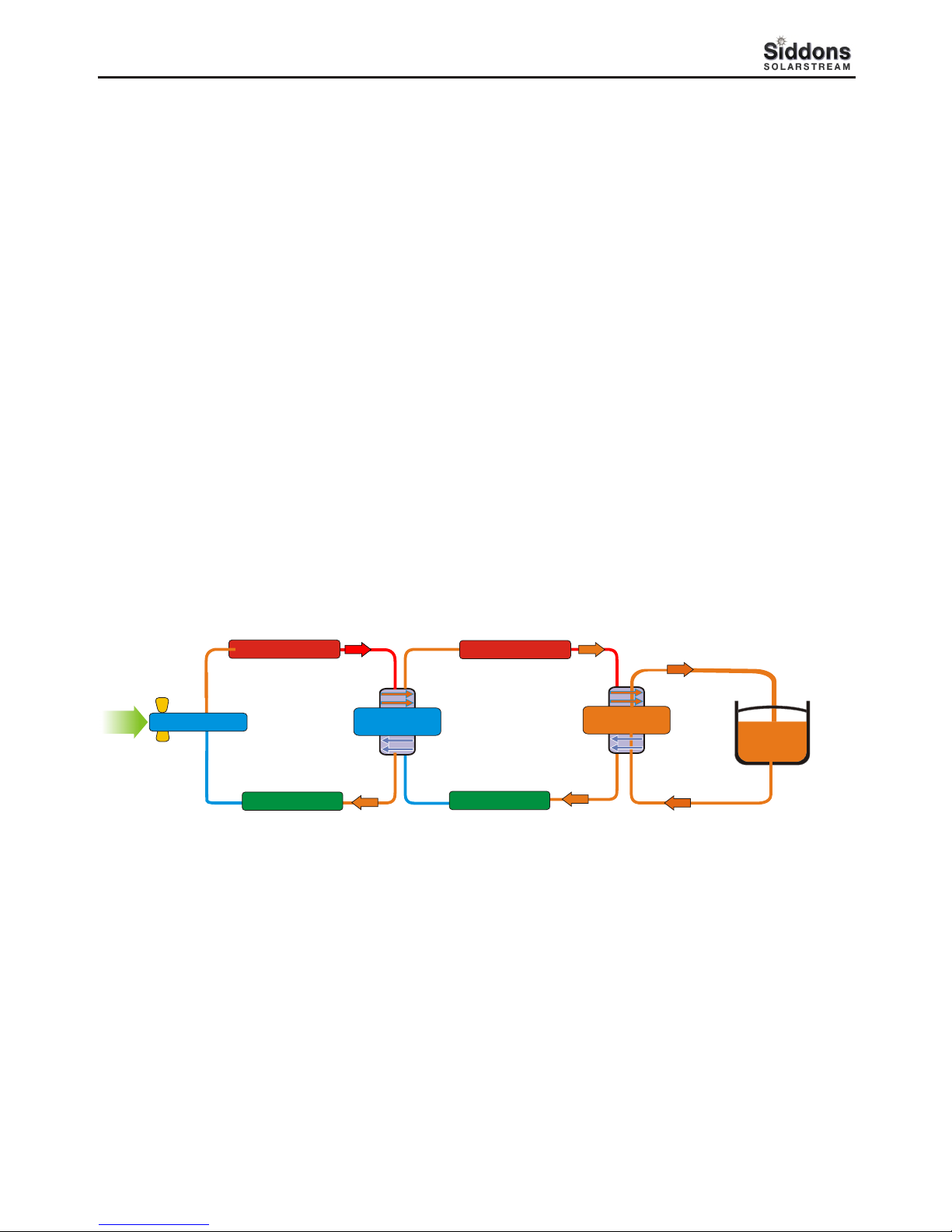

2. Working principle and function introduction
Compressor
heat exchange
Air heat exchange
hot water
tank
Compressor
expansion valve
First heating system
(R410A refrigerant/ EVI series )
First heating system
(R410A refrigerant/ EVI series )
Second heating system
(R134A refrigerant )
Second heating system
(R134A refrigerant )
expansion valve
heat exchange
This heat pump unit is designed with two-stage heating system. The first heating system uses
R410A refrigerant, which works effectively in low ambient air temperatures, with EVI technology
available for sub zero air temperatures as low -15 degrees. The second heating system uses
R134A high heat refrigerant, which can take the water temperature up to as high as 80 degrees,
designed for wall radiators. Both refrigerants are non-flammable, ozone friendly and widely
available in Australia.
The evaporator side of the second heating system is also the condensing side first heating
system so the thermal performance of the heat pump system can be greatly improved in sub
zero ambient air taking the water to high temperatures. Of course, in temperatures above zero,
the heat pump will work more efficiently with less or no need for defrosting the evaporator coil.

II.SpecificationII.Specification
2.Parameter
2
1.Model Nomenclature
MA CHR W S WA / PS(B E DH2)
Source medium
MA: Airsource
MW: Ground source
MD: Double soruce
Function of the unit
C: Aircooling
R: Airheating
CH: Air cooling and hot water
CR: Air cooling and heating
CHR: Air (heating+cooling) and hot water
Energy exchange medium
A: Refrigerant
W: Water
Z: Integrated type
W: Split type(indoor unit )
A: Horizontal fan direction
B: Upward fan direction
(Omit the split type unit model)
B: DC Inverter
(Without inverter omitted)
The figure represents the horse power of unit
eg:010 means 1 horse power
P:With built in pump
(Without built in pump omitted)
S:3phase (single phase omitted)
S:with solar
(Without solar omitted)
D:With electrical heating
(Without electrical heating omitted)
E: EVI
(Without EVI omitted)
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
H1: Signal-stage heating high
temperature heat pump
H2: Two-stage heating high
temperature heat pump
MMooddeellMMAAHHRRWWSS002255ZZAA//PP((HH22))MMAAHHRRWWSS003300ZZBB//PP((HH22))MMAAHHRRWWSS004400ZZBB//PP((HH22))MMAAHHRRWWSS005500ZZBB//PP((HH22))
SSiizziinnggGGuuiiddeeffoorr66ssttaarrhhoommee((mm22))**117700222255330000337755
SSiizziinnggffoorr66ssttaarrhhoommeess
&&hhyyddrroonniiccrraaddiiaattoorrss((mm22))****9900111100115500118855
RRaatteeddHHeeaattiinnggCCaappaacciittyy((kkWW))8.08.0 1100..111133..881177..33
RRaatteeddIInnppuuttPPoowweerr((kkWW))33..1144..4466..0077..55
RRaatteeddIInnppuuttCCuurrrreenntt((AA))1144..001199..992277..333344..00
PPeerrffoorrmmaanncceeCCOOPP((WW//WW))22..6622..331122..330022..3322
RRaatteeddHHeeaattiinnggCCaappaacciittyy((kkWW))5.655.65 88..001100..881133..77
RRaatteeddIInnppuuttPPoowweerr((kkWW))2.92.9 44..2255..6677..00
RRaatteeddIInnppuuttCCuurrrreenntt((AA))13.313.3 1188..992255..333322..00
PPeerrffoorrmmaanncceeCCOOPP((WW//WW))11..993311..992211..994411..9955
PPoowweerrSSuuppppllyy((VV//PPhh//HHzz))220-240220-240//11//5500220-240220-240//11//5500220-240220-240//11//5500220-240220-240//11//5500
MMaaxxwwaatteerroouuttppuutttteemmpp(())8800880088008800
SSoouunnddlleevveell((ddBBaa))5522552255445544
CCoommpprreessssoorrttyyppeeSSccrroollll//ssccrroollllSSccrroollll//ssccrroollllSSccrroollll//ssccrroollllSSccrroollll//ssccrroollll
CCoommpprreessssoorrQQttyy22222222
WWaatteerriinnlleett//oouuttlleettppiippeeddiiaamm..((iinncchh))11""11""11""11""
WWaatteerrFFlloowwVVoolluummee((lliittrreess//mmiinn))3300335544666600
RReeffrriiggeerraannttttyyppeeRR441100aa//RR113344aaRR441100aa//RR113344aaRR441100aa//RR113344aaRR441100aa//RR113344aa
NNeettDDiimmeennssiioonnss((LL//WW//HHmmmm))890/750/1076890/750/1076
SShhiippppiinnggDDiimmeennssiioonnss((LL//WW//HHmmmm))11002200//990000//1111770011002200//990000//1111770011002200//990000//1111770011002200//990000//11117700
NNeettWWeeiigghhtt((kkgg))111155112200114400114455
SShhiippppiinnggWWeeiigghhtt((kkgg))113300113355115500115555
AASSSSUUMMPPTTIIOONNSSOOuuttddoooorraaiirrtteemmpp77//66,,IInnlleettwwaatteerrtteemmpp6600,,OOuuttlleettwwaatteerrtteemmpp6655((HHeeaattiinnggmmooddee))
OOuuttddoooorraaiirrtteemmpp--77,,IInnlleettwwaatteerrtteemmpp6600,,OOuuttlleettwwaatteerrtteemmpp6655((HHeeaattiinnggssuubbzzeerrooaaiirr))
**UUssiinngghhyyddrroonniiccrraaddiiaannttsskkiirrttiinnggbbooaarrddss,,nnootteeuunnddeerrfflloooorrhheeaattiinnggssiizziinnggddeeppeennddssoonntthheefflloooorrccoovveerriinngg,,ttiilleessaarreemmoorreeeeffffiicciieenntt,,ccaarrppeettlleeaasstteeffffiicciieenntt..
****UUssiinngghhyyddrroonniiccrraaddiiaattoorrsswwiitthh22..55mmcceeiilliinngghheeiigghhtt..
890/750/1076890/750/1076890/750/1076890/750/1076 980/870/1175980/870/1175

3. Product appearance and installation dimension
3
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
A
B
C
D
MAHRW
Unit: mm
E
025ZB/P(H2)
750
890
1076
720
520
Sign
AB
C
E
D
030ZB/P(H2)
040ZB/P(H2)
980
870
1175
840
520
050ZB/P(H2)

III. Installation
1 Heat Pump Outdoor Unit Installation
Install the heat pump outdoor unit with good air flow both into and out from the unit. Ensure there
is sufficient space around the unit for maintenance and good operation, refer to the schematics and
points below.
Wrong Right
1. To get enough air for ventilation of the unit, the installation position should have good
air flow.
2. The installation position
3.
4. The water from rain and defrosting should be discharged from the installation position.
5. The unit
6. The discharged air should
7.
8. The installation position should not be affected by garbage, oil or flammable materials.
should not reflect noise from the air outlet or transfer vibration
from the feet. Consider installing rubber pads under the heat pump feet.
Protection from direct sunlight is advisable.
Ensure the condensate water from the heat pump is taken to a drain.
should be protected by an awning from snow in Alpine areas.
not blow into a prevailing wind.
Do not face the air outlet directly at a neighbour's fence.
Notice:
Installation notice:
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
4

9.The installation position should not be affected by sea salt spray or sulphides near a
thermal spring.
10.The unit can be installed on a balcony, roof or other convenient place if there is a
suitable load bearing structure to support its weight.
11.The control panel should not be installed in a bathroom due to high humidity and
moisture.
12.Leave enough space around the unit for good operation and servicing.
13.Use expansion bolts to fix the feet of the outdoor unit to the ground.
75mm
200mm
1500mm
600mm
Air outlet
500mm
200mm
600mm
Bolt
fix
500mm
200mm
600mm
700mm
400mm
600mm
1000mm
700mm
400mm
400mm
1000mm
2000mm
2. Installation requirement
B Top fan type installation space requirements:
Air intlet
Bolt
fix
Unit
Unit
Unit
Bolt
fix
A Side fan type installation space requirements:
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
3.Domestic Hot Water (DHW) Storage Tank and Buffer Tank Installation
3.1 The DHW and Buffer tanks may be installed inside or outside.
3.2 Both tanks must stand vertically on a concrete plinth or firm structure that will support
its weight when full of water and not lean or be prone to fall over during its service life.
3.3 The DHW tank should be installed in accordance with Australian Standard
AS/NZS3500.4 and any local or other relevant Government regulations. It is best to install
the DHW tank as close as possible to the hot water outlet that has the greatest usage,
such as the kitchen.
3.4 Some building codes require a seismic restraint. Consider using stainless steel bands
to secure the tank against the wall.
3.5 When filling the DHW tank, open the hot water taps in the laundry and kitchen to purge
air from the water lines.
3.Domestic Hot Water (DHW) Storage Tank and Buffer Tank Installation
5

6
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
3.6 When filling the Buffer Tank, use pure rain water with mould inhibitor, add Glycol if prone
to freezing conditions, and water pH should ideally be at 7.0.
3.7 An expansion tank must be included in the hydronic closed loop to allow the heated
water to expand.
5.1 Water pipe material should be heat resistant and rust-proof. This can be stainless steel,
copper, aluminium, hot water PPR pipes, etc according to relevant standards.
5.2 The choice of pipe size should match the heat pump inlet and outlet with the pipework
of the system, and follow the relevant standards.
5.3 The hot water storage and buffer tank drain port and pressure and temperature relief
valve should be installed to allow for proper drainage according to relevant standards.
5.4 The hot water storage and buffer tank must be installed with an isolating valve to allow
for maintenance.
5.5 The water pipes should be arranged with smooth bends to reduce pressure loss in the
system.
5.6 The water inlet should be fitted with a one-way valve and isolating valve, or duo valve.
5.7 The water inlet should be fitted with a water filter (note the duo valve may have a water
filter).
5.8 The hot water outlet of the outdoor unit should be connected to the solar return port on
the storage tank.
5.9 The air-conditioning side buffer tank should be installed in series on the outlet of the
main pipe.
5.10 After the water flow and return pipes are connected to the hot water side and
air-conditioning side, the system should be tested at water supply pressure for 24 hours to
ensure that the system does not leak. Then insulate relevant hot water and air-conditioning
pipes, and plumbing fittings.
5.11 In order to discharge all air from the water pipeline, the water supply return pipe should
have an automatic exhaust valve installed at the highest point.
5.12 An expansion tank and automatic stop valve should be installed into the water system,
and located indoors in areas with sub zero temperatures to prevent possible cracking of the
water pipes and valves when not in use in the winter.
5.13 The water flow and return lines to the outdoor unit should have a thermometer and
water pressure gauge installed to enable monitoring of key operational parameters.
5.Pipe connections
4. Installation of indoor heating and cooling equipment
5.1 Indoor heating and cooling equipment such as fan coils, radiator heating or floor
heating, should be installed in accordance with relevant regulatory requirements,
engineering design drawings, and the manufacturer's installation instructions.
5.2 Use soft connectors to connect the outdoor unit and indoor heating and cooling
equipment.
5.3 Install condensate water drain pipes to the indoor fan coil units with smooth drainage
lines for the condensate water to flow easily.

7
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
6.Installation of the tank temperature sensor probe
The head
of sensor
The heat
conduction
silica gel
Detector
Tank
The first step The second step The third step
Tank Tank
< 5 pin
The head
of sensor
Detector Detector
The head
of sensor
The heat
conduction
silica gel
< 5 pin
6.1 Firstly, daub heat conductive silicone onto the front of the temperature sensor, then
insert it
into the temperature detector.
6.2 Next, pull the pin out and check that the position of mark is at the same level as the inlet
of the temperature detector and check whether the sensor is inserted into the pipe terminal.
6.3 Finally, seal the inlet of the temperature detector with silicone.
Note:
(1)
(2)
(3)
(4)
(5)
(6)
The water pipes should be subjected to a pressure test before operation of the water
system.
The water system allows for water pressure range: 200 - 700kPa.
The outdoor unit allows for water temperature range: 5-80 C.
Water should drain from the pressure and temperature relief valve to a drainage pipe.
The pressure and temperature relief valve should be periodically exercised by gently
pulling the lever up. This will help to remove possible accumulation of calcium carbonate,
and ensure that the valve is working properly.
Install one-way valves, filters, pressure and temperature relief valves, and any other
plumbing fittings consistently with the marked flow direction and in accord with relevant
standards.

7.Electrical wiring
7.1 The outdoor unit should use dedicated power supply and power supply voltage line
corresponding with rated voltage.
7.2 The power cable of the outdoor unit must support the maximum starting current
requirements.
7.3 The outdoor unit power supply circuit must have a grounding wire, which should
connect with a reliable and effective external ground wire.
7.4 Wiring must be installed by qualified technicians with reference to the circuit diagram.
7.5 The layout of power lines and signal lines should be neat, rational and strong with weak
lines separated so they cannot interfere with each other.
7.6 When power lines and control lines are parallel, the wires must be placed inside an
insulating tube, with appropriate distance between the lines.
7.7 For electrical connection of the outdoor unit, take the following wiring through the wiring
hole set into the electrical box, then connect to the appropriate terminals in the electrical
box according to wiring diagram:
8.Electrical Wire Selection
8.1 The internal motor protector does not protect the compressor against all possible
conditions. Please be sure that the system is properly earthed when installed in the field.
8.2 To avoid fire, electric shock and other accidents, only use power supply voltage
indicated on the label.
8.3 To protect the power lines, they should be fixed appropriately so that they cannot
become damaged and people cannot trip over them. Pay particular attention to the
positioning and operation of electrical plugs, which should be easily plugged into the
socket.
8.4 Do not overload wall plugs or the power cable line. Overloading may cause fire or
electric shock.
8.5 Check to ensure your electrical socket is appropriate for the power load and is properly
grounded.
8
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
· Power line
· Remote control three core lines
· Electric heater power line
· Solar circulating water pump control power line
· Water tank electrical boost element
· Temperature sensing line
· Solar collector temperature sensor line
·Terminal equipment
· Outdoor unit lines
8.6.Power wiring as follows (single unit):
Model: Wire Specification Circuit breaker Voltage
MAHRW025ZN(H2) 2
6.0mm 2 wire+GND 36AMP
220V/1PH/50Hz
MAHRW030ZN(H2) 2
6.0mm 2 wire+GND 36AMP
220V/1PH/50Hz
MAHRW040ZN(H2) 2
10.0mm 2 wire+GND 40AMP
220V/1PH/50Hz
MAHRW050ZN(H2) 2
16.0mm 2 wire+GND 60AMP
220V/1PH/50Hz

9.Trial operation by qualified installer
9.1 Pre-start-up checks:
· Check the whole pipe system. Ensure the water volume in the system is full and the air is
exhausted completely. Check whether the water valves are open throughout the system.
· Check the thermal insulation of the pipe work, make sure relevant pipes are appropriately
lagged.
· Check the power supply and distribution system. Check whether the power supply voltage
is normal, the power distribution accessory screws are tight, supply power complies with
the wiring diagram and outdoor unit specifications and the wiring is properly grounded.
· Check the air cooled water chiller. Make sure all screws are tight. Check that the signal
indicator light (green) of the outdoor unit control panel is illuminated normally and the fault
indicating lamp (red) is illuminated.
· Connect pressure gauges to the suction Schrader valves in preparation for checking the
refrigerant pressure during operation. Disconnect them when testing is satisfactory.
9.2 Trial operation
· Press on/off on the remote controller, the water pump and fan should start immediately.
The compressor should start shortly after. Observe and determine if there is any abnormal
sound during operation. Stop to check the unit if there is abnormal sound. The outdoor unit
should continue to run only when there is no abnormal sound.
· Check whether the cooling system pressure is normal.
· Check whether the input power and current of the unit are within the parameters set out
in this manual. If not, stop the outdoor unit and check it.
· Observe whether the outlet water temperature is normal.
9.3 The parameters of the remote controller have been pre-set at the factory. We
recommend that you leave these parameters as set.
9
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

1. Remote controller interface displays
IV. USE
PrgPrg
EseEse
UNIT
ON/OFF
SET
BACK
UP
DOWN
ENTER
Press this button to control the unit's
ON or OFF
Press this button to enter the main menu
interface
Press this button to return to the previous
screen
Press this button and enter the next parameters
interface or enter parameters modification state,
and confirm the modification
Modification parameter values or turn to
next page
Modify theparameter values or turn to
next page
PrgPrg
EseEse
2. The use of wire controller
Turn on turn off the unit
Press
turn on /off the unit
button for
0.5 S
Mode selection
Press button
enter the main interface
PrgPrg
Press button enter the mode selection and setting interface
PrgPrg
EseEse
MODE OFF
hot water tank
water outlet
Ambient temp.
2011-04-08 11:25
12
25
25
PrgPrg
EseEse
MODE Hot water
hot water tank
water outlet
Ambient temp.
2011-04-08 11:25
12
25
25
PrgPrg
EseEse
MODE OFF
hot water tank
water outlet
Ambient temp.
2011-04-08 11:25
12
25
25
PrgPrg
EseEse
Main menu
Maintenance
Clock
PrgPrg
EseEse
Mode Hot water&Heat
Hot water temp. 75
Heating temp. 40
Aux ele.heater
option: Hot water
: Heat
Press
button , when the interface is flashing then press button
select the operation mode which you want.
Press button, when the interface is flashing then press button
adjust the setting temperature of hot water tank .
Press button when the interface is flashing then press button
adjust whether turn on /off hot water auxiliary electric heater
Press button, when the interface is flashing then press button
adjust the setting outlet temperature of heating mode .
Press button when the interface is flashing then press button
adjust whether turn on /off hot water auxiliary electric heater
Mode description
PrgPrg
EseEse
Mode Hot water
Hot water temp. 75
Aux ele.heater off
Hot water mode
PrgPrg
EseEse
Mode Heat
Heating temp. 40
Aux ele.heater off
Heating mode
PrgPrg
EseEse
Mode Hot water&Heat
Hot water temp. 75
Heating temp. 40
Aux ele.heater
option: Hot water
: Heat
Hot water&heat mode
10
WELCOME TO USE
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

PrgPrg
EseEse
Mode Electric heater
Hot water temp. 75
Heating temp. 40
Aux ele.heater
option: Hot water
: Heat
Electric heater controldescription
Independent electric heater mode (effective for the unit with electric heater)
Auxiliary electric heater mode
There are two styles of auxiliary electric heater one is automatic and the other is manual
electric heater control.
Automatic auxiliary electric heater control
Under hot water or heat mode setting interface ,if the parameter of aux.ele.heater setting
is on, then this means the automatic auxiliary electric heater is turn on. The controller interface
will display the automatic auxiliary electric heater sign .The electric heater will automat-
ically output when this condition is met as shown in the picture.
When the parameter of Hot water is set to be .this means the independent
electric heater of the hot water tank is turned on
When the parameter of Heat is set to be .this means the independent electric
heater of the hydronic buffer tank is turned on
When the parameters of Heat and Hot water is set to be .this means
the independent electric heater of the hot water tank and the hydronic buffer tankare
both turned on
PrgPrg
EseEse
MODE Hot water&Heat
hot water tank
water outlet
Ambient temp.
2011-04-08 11:25
12
25
25
Manual auxiliary electric heater control
Inoperating mode, you can turn on/off the auxiliary electric heater manually. When you turn on
the auxiliary electric heater, the sign of will keep flashing. If you turn it off, the sign will
disappear. Show as shown in the picture.
PrgPrg
EseEse
MODE Hot water&Heat
hot water tank
water outlet
Ambient temp.
2011-04-08 11:25
12
25
25
Press button for 5 seconds
turn on/off the auxiliary electric heater
PrgPrg
PrgPrg
EseEse
MODE Hot water&Heat
hot water tank
water outlet
Ambient temp.
2011-04-08 11:25
12
25
25
3. System State parameter checks
On the main interface, press to enter the parameter setting interface, choose
"Main menu " , press button, choose "Unit status", press in the mode setting, press
to view the parameter, press to return to the previous menu.
PrgPrg
EseEse
PrgPrg
EseEse
Unit status
hot tank temp.
Water outlet
Ambient
First coil temp.
Second coil temp.
1 Discharge temp.
2 Discharge temp.
55
56
25
40
40
95
95
PrgPrg
EseEse
Main menu
Maintenance
Clock
Mode select
Unit status
PrgPrg
EseEse
Press button Press button
11
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

Display
Hot tank temp.
Water outlet
Ambient
First coil temp.
Second coil temp
1 discharge temp.
2 discharge temp.
1 suction temp.
2 suction temp.
First Compressor
Second Compressor
Fan
4-way valve
Water pump
Auxiliary heater
Unloader
3-way valve
First EEV step
Second EEV step
First L.P SW
First H.P SW
Second L.P SW
Second H.P SW
Water flow SW
Power phase SW
Aux. heater SW
Turn on/off SW
Mode select SW
H. turn on /off SW
Status
50
55
30
40
On
On
On
On
On
On
On
On
On
On
On
On
Close
Close
Close
Close
Close
Description
Hot water tank temp.
Water outlet temp.
Ambient temp.
First system coil temp.
Second system coil temp.
First system discharge temp.
Second system discharge temp.
First system suction temp.
Second system suction temp.
First system compressor on/off.
Second system compressor. on/off
Fan motor on/off
Refrigerant system 4-way valve on/off
Water cycle pump on/off
Auxiliary heater on/off
System u valve on/off
Water system 3-way valve on/off
First system EEV running step
Second system EEV running step
First system low pressure switch
First system high pressure switch
system low pressure switch
system high pressure switch
Water flow switch
Power phase protection switch
Auxiliary electric heater overload switch
Unit turn on/off switch
Mode selection switch
Heating turn on /off switch
nloader
Second
Second
Close
Close
Close
Open
Close
Close
Close
Close
4. System parameter setting
PrgPrg
On the main menu interface press button for 5 seconds unit you hear the beep
sound, the interface will add the parameter setting option, press button to enter the
system parameter settings's as shown in the picture. Note: these parameters should be set by
authorised technicians.
PrgPrg
EseEse
Main menu
Parameter
Maintenance
Clock
PrgPrg
EseEse
Main menu
Maintenance
Clock
Press button for 5 seconds until you hear the beep
PrgPrg
12
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

4.1 Detailed description of the function parameters
PrgPrg
EseEse
1.1 Hot water temp.
1.2 H.W. T
1.3 Heating temp.
1.4 Heating T
1.5 Curve set
1.6 Curve slope
70
5
40
5
25
40
Parameter 1.0 select Temp.setting
Parameter 1.1: Under hot water mode, the setting of water tank temperature
Parameter 1.2: Under hot water mode, the compressor restart difference temperature
Parameter 1.3: Under heating mode, the setting of water inlet temperature
Parameter 1.4: Under heating mode, the compressor restart difference temperature
Parameter 1.5: The curvilinear translation setting of heating mode
Parameter 1.6: The curve slope setting of heating mode
PrgPrg
EseEse
2.1 Def. cycle
2.2 Def. inlet temp.
2.3 Def. outlet temp.
2.4 Def. max. Time
2.5 Def. Second on
2.6 Def. Second off
45M
-7
13
8M
-10
30
Parameters 2.0 select Defrost
Parameter 2.1: Cycle defrost cycle time setting
Parameter 2.2: Enter defrost mode when the coil temperature is below this parameter
setting, the conditions are meet
parameter 2.3: Exit defrost mode when the coil temperature is above this parameter
setting
parameter 2.4: Exit defrost mode when the defrost time runs for longer than this
parameter setting
parameter 2.5:
parameter 2.6:
The 1st-stage compressor suction temp. setting for 2nd-stage
compressor start-up
The 1st-stage compressor suction temp. setting for 2nd-stage
compressor shut down
Parameter 3.1: The auxiliary electric heater will be allowed to start when the ambient
temperature
Parameter 3.2: Auxiliary electric heater start delay time (the time delay after
unit powered on when the electric heater will be allowed to start).
falls below this setting
EseEse
PrgPrg
Parameters 3.0 select Aux-heating
3.1Ambient temp.set
3.2Aux.start delay
15
30M
Parameters 4.0 select Systems
Parameter 4.1: Power-down memory option parameters.
On: with memory Off: without memory
Parameter 4.2: The too-low protection temp. setting of ambient temp.
Parameter 4.3: The ambient temperature setting to turn on the EVI valve
Parameter 4.4: The compressor discharge temperature for too-high discharge
protection
When the unit is running in manual electric heating mode, the hot
water cycle pump will work one in of these two ways:
ormal: the hot water cycle pump does not require a manual signal
·Special: the hot water cycle pump requires a manual signal
Unit stop temp. ( )
Parameter 4.5:
N
PrgPrg
EseEse
4.1 Power memory
4.2 Unit stop
4.3 EVI valve
4.4 Comp.PT temp.
4.5 E.H.H.W.pump
4.6 Water pump
4.7 Mode
4.8 Aux.heater Hot water
On
-25
5
105
Special
Special
Multifuction
Parameter 4.6: When the unit is running, the hot water cycle pump will work one in of these two ways:
Normal: under heating mode when the water outlet temperature reaches the setting temperature, the hot water
pump will stop working.
Special: under heating mode when the water outlet temperature reaches the setting temperature, the hot water
pump will keep working.
Parameter 4.7: The unit mode selection:
Hot water: the unit has heat mode only
Heat: the unit has hear mode only
Multifunction: the unit has hot water mode, heat mode and independent electric heater mode.
the hydronic system's hot water tank and buffer tank do not have an auxiliary electric heater
Parameter4.8 Auxiliary electric heater option:
Hot water: the unit has an auxiliary electric heater in the hot water tank only
Heat: the unit has an auxiliary electric heater in the heating buffer tank only
Both: the unit with auxiliary electric heaters in both the hot water tank and the buffer tank
None:
13
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

Parameter 5.0 Manual testing
Parameter 5.0: This parameter is used by technicians for fault finding, it will allow the water cycle pumps and 3
way-valves to be turned on manually.
Parameter 6.1: The default step setting of the EEV
Parameter 6.2: The superheat temp. setting of the EEV
Parameter 6.3: The discharge temp. Unloading setting of the EEV
Parameter 6.4: The EEV running step setting if the suction sensor or the coil sensor fails
and the discharge temp. is below 55
Parameter 6.5: The EEV running step setting if the suction sensor or the coil sensor fails
sand the discharge temp. is between 55 to 75
Parameter 6.6: The EEV running step setting if the suction sensor or the coil sensor fails
and the discharge temp is between 55 to 105
Parameter 6.7: The first EEV minimum running step setting
Parameter 6.8: The second EEV minimum running step setting
PrgPrg
EseEse
6.1 EEV.default
6.2 EEV T
6.3 EEV unloading
6.4 EEV setting 1
6.5 EEV setting 2
6.6 EEV setting 3
6.7 First min step
6.8 Second min step
450
350
400
450
100
100
5
95
Parameters 6.0 Electronic expansion valve (EEV) setting
5. Maintenance time requirementMaintenance time requirement
In the interface, press to enter the parameter setting interface. Choose "Maintenance''
and press to enter Maintenance time , press to select a
choice, then press botton to return to the last menu.
requirement setting
PrgPrg
EseEse
PrgPrg
EseEse
Main menu
Parameter
Maintenance
Clock PrgPrg
EseEse
1: E01 2010-01-14 09:00
2: P01 2010-01-14 09:10
3: E08 2010-01-14 09:30
4: E05 2010-01-14 09:40
5: P06 2010-01-14 09:50
6: P08 2010-01-14 10:00
7: P12 2010-01-14 10:10
8: E07 2010-01-14 10:20
NOTE:In the picture 2 interface, press the prg button for 5 seconds, then the fault record will
be remove.
Picture1 Picture2
PrgPrg
EseEse
Date
Clock
2010-04-15
18:30
6. Date/ time/ timing on and off settings
PrgPrg
EseEse
Date
Clock
Timer on
Timer off
2010-04-15
18:30
X
X
Press button for 5 seconds until you hear the beep
PrgPrg
In the main interface, press button to enter the parameter setting interface, select
Clock, press button to enter the time setting / timing on or off interface, press the
buttons to find the required settings:
Note: Press button for 5 seconds, when you hear the beep sound, you can see
the page to add Timer on and Timer off settings.
PrgPrg
PrgPrg
14
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
Parameter 7.0 Fan
Parameter 7.1: The fan running mode
Parameter 7.2: The ambient temp. setting for running low-speed fan mode

6.1. When you select "Date", press button, the date of the year setting will flash, press the
buttons to modify the year, then press button againand the month setting will
flash,press the button to modify the month, click the button again and the
daysetting will flash, press the buttons to modify the day, then press button to
confirm and exit, press the button to return to the menu.
EseEse
6.2. When you select "Clock", press the button and the time hour setting will flash, press
the buttons to modify hour, then press button and the minutes setting will flash,
press the buttons to modify the minute, press the button to confirm and exit,
press the to return to the menu.
EseEse
7. Lock button/Defrost status/ Fahrenheit and Celsius change
A: Display Lock: Under the main interface :Press for 5s, the interface will show the
icon as shown in figure below then all buttons on the display are locked, but it can be
unlocked after pressing for 5 seconds again.
B: Defrost status : When the unit is running in heating or hot water mode, if the main interface is
showing the icon as shown in the figure below then that means the unit is running in
defrost mode.
C: Ambient temp too-low protection: When the ambient temperature is too low, the wire
controller interface will display the TEMP LOW sign. The compressor will not work
but the auxiliary electric heater will still work.
D: Fahrenheit and Celsius change Under the Celsius status, press
for 10 seconds to change to Fahrenheit . Press for 10 seconds to change back
to Celsius again.
EseEse
EseEse
PrgPrg
EseEse
MODE
A.C. water Inlet
Hot water tank
Solar Collector
Ambient temp.
2011-04-08 11:25
Off
12
25
25
30
Lock icon
Defrost status icon
6.3. When you select "Timer on", press the button, you will see the on or off setting flash,
press buttons to modify the restart time and on / off will appear with " " symbol when
you choose on,and show regular restart time settings. Click the button for regular on or
off hour value setting, this will flash then press the buttons to modify the value, then
press button for regular on or off minute value setting, this will flash then press
buttons to modify the value, press button to confirm and exit, press the to return
the menu.
EseEse
Timer icon
When there is a fault, the unit controller will automatically display the corresponding
fault code and the fault reasons. When fault is resolved, the fault display will
automatically be eliminated after the unit has been restarted.
8. Fault code display
15
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

9. Parameter Table
Display code1 Display code2 Setting data explanation or
working state
Parameter
setting range Default Remarks
1.0 Temp. set
Parameter
1.1 Hot water temp.
1.2 Hot water T1
1.3 Heating temp.
Hot water mode, the compressor
restart difference temperature
1.4 Heating T2
The setting temp.of hot water mode
The setting temp. of heating mode
Heating mode, the compressor
restart difference temperature
20 75
115
15 80
115
030
30 65
60
5
75
5
25
40
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
1.5 Curve set The curvilinear translation setting
of heating mode
1.6 Curve slope The curve slope setting of
heating mode
2.0 Defrost
2.1 Def. cycle
2.2 Def. inlet temp.
2.3 Def. outlet temp.
2.4 Def. max time
2.5 Def. second on
2.6 Def. second off
defrosting cycle setting
Start defrosting coil temperature setting
Exit defrost temperature setting
Defrost time setting
30min 90min
-30 -0
130
1min 12min
-20 5
-30 30
45min
-7
13
8min
-10
30
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
The 1st-stage compressor suction temp.
Setting for 2nd-stage compressor start-up
The 1st-stage compressor suction temp.
Setting for 2nd-stage compressor shut down
16
30min
15
-20 45
3min 90min
Adjustable
Adjustable
3.0 Aux-ele.heater
3.2 Aux.start delay
Ambient temp. at which the
Auxiliary electric heater will start
working
3.3 Ambient temp. Set
Auxiliary electric heater start delay
4.0 System
ON/OFF
-30 ~ 10
5 ~ 35
30 ~ 125
Special/Normal
Special/Normal
4.1 Power memory
4.2 Unit stop temp.
4.3 Unloader T
4.4 Com.PT setting
4.5 E.H.H.W.pump
4.6 Water pump
4.7 Model
4.8 Aux.heater
4.9 Unloader temp.
ON
-15
15
105
Special
Normal
Hot water
95
Power-down memory option
parameters.
Compressor discharge temp.too high
protection setting.
Water pump working way
The unit mode selection
The installation option of auxiliary
electric heater
ON: with
OFF: without
Special: turn on
Normal: turn off
Unloader valve restart difference
temperature
Electric heating mode, hot water pump
working option.
Adjustable
Adjustable
Adjustable
The temp.setting of ambient temp.
Too low protection
Adjustable
Adjustable
Special: turn on
Normal: turn off
Multifunction
Hot water/Heat
Multifunction
Hot water/Heat
Both/None
Unloading valve start-up discharge
temperature
Adjustable
80 ~ 115
Water Pump
Three-way valve
ON/OFF
ON/OFF
OFF
OFF
5.0 Manual test
Water cycle pump testing
3-way valve testing
Adjustable
Adjustablet

6.1 EEV default The default step setting of electric
expansion valve 150~470 350 Adjustable
6.2 EEV T The superheat degree of expansion
valve setting Adjustable
-20 ~20
5
6.4 EEV setting 1
The EEV settingfor
when the suctionsensor or thecoil
sensor fails andthe discharge temp
is below 55
350 Adjustable
150~450
6.5 EEV setting 2
6.6 EEV setting 3
6.3 EEV unloading
The EEV runningstep setting for
whenthe sensor failsand the
discharge temp isbetween 55 and
75
The EEV runningstep setting for
whenthe sensor failsand the
discharge temp isbetween 75 and
105
400 Adjustable 150~450
150~450 450 Adjustable
The discharge temp.setting of electric
expansion valve unloading.
70 ~110
Adjustable
95
6.0 EEV setting
6.7 First min step The first electric expansion valve
minimum running step setting. 50~300 100 Adjustable
6.8 Second min step 50~300 100 Adjustable
The second electric expansion valve
minimum running step setting.
HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP
7.1 Fan mode The fan running mode Quiet/Night/Auto Adjustable
7.2 Slow down temp. 0~40 30 Adjustable
The ambient temp.Setting for running
inlow-speed fan mode
7.0 Fan Quiet
17
