Siemens LITHOSTAR Multiline Installation manual

LITHOSTAR Multiline
English
Print No.: RXL2-120.034.05.02.02 Doc. Gen. Date: 12.99
Replaces: RXL2-120.034.05.01.02
© Siemens AG 1997
The reproduction, transmission or
use of this document or its contents
is not permitted without express
written authority. Offenders will be
liable for damages. All rights,
including rights created by patent
grant or registration of a utility
model _or_design,_are_reserved.
For generator:
POLYDOROS SX 65
SP
System Configuration with SSW VD02A (47 96 970)
System Configuration with SSW VE00J (58 95 748)
Start-up Instructions

LITHOSTAR Multiline RXL2-120.034.05 Page 2 of 4 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
0 - 2 Revision
Chapter Page Revision
0all02
1all02
2all02
3all02
4all02
5all02
6all02
7all02
8all02
9all02
10 all 02
11 all 02

Contents 0 - 3
Siemens AG RXL2-120.034.05 Page 3 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
1 _______Connecting the Service PC_______________________________________1 - 1
Text Emphasis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Safety-technical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Prerequisites and Remarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Example of Text Descriptions:. . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 2
POLYDOROS SX 65/80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Setting the S3 switch on D100 for POLYDOROS Service Adjustment . . . . . . . . .1 - 4
2 _______Flowchart for System Configuration _______________________________2 - 1
3 _______Installing Service Software on the Service PC_______________________3 - 1
Installing the XCS-Service Software on the Service PC . . . . . . . . . . . . . . . . 3 - 1
Selecting the XCS Service Program . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
4 _______System Configuration___________________________________________4 - 1
POLYDOROS SX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
5 _______Basic Settings _________________________________________________5 - 1
Generator Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 1
X-Ray Tube Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
mAs Relay Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 2
Default for SDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2
6 _______Fluoroscopy Settings ___________________________________________6 - 1
Fluoroscopy Dose Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 1
Determining Dose/Dose Rate directly at the I.I. Input. . . . . . . . . . . . . . . . . .6 - 1
Adjusting the Dose Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 3
For POLYDOROS SX with optional instant stored image. . . . . . . . . . . . . . . .6 - 3
Adjusting the Maximum Skin Dose Rate . . . . . . . . . . . . . . . . . . . . . . . . 6 - 4
7 _______Polydoros Service Diagnostics ___________________________________7 - 1
8 _______Saving the Data on Diskette (Backup)______________________________8 - 1
9 _______Download (Loading Software onto the Generator) ___________________9 - 1
XCU Download POLYDOROS SX 65/80 . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1
10 ______Exiting the System Configuration ________________________________10 - 1
11 ______Changes to Previous Version____________________________________ 11 - 1
Page

0 - 4 Contents
LITHOSTAR Multiline RXL2-120.034.05 Page 4 of 4 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
This page intentionally left blank.

1 - 1
Siemens AG RXL2-120.034.05 Page 1 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
Text Emphasis 1
Safety-technical Information 1
•The safety information RA0-000.012... filedin the system manual must be adhered to.
•Checksandadjustmentsthatmustbeperformedunderradiation arelabeledin the
instructionswiththe radiationwarningsymbol .Taketheappropriateradiation
protective measures while performing them (refer to ARTD 002.731.02...).
Prerequisites and Remarks 1
•Prerequisites for configuring the system using theService PC are:
- Basicknowledge suchasPChandlingand operationofthe Windowsprogram.
- ServicePC,seeARTD-001.719.06.04.02.
- Completion of the POLYDOROS SX 65/80 "RXP 231" training course
•The service software diskettes are included in the delivery (system manual).
•Programming the options:
is permitted only if the respective license is in effect.
The license is supplied along with the BZ order form and is filed in the system manual.
"Warnings" are information provided with special emphasis when
there is the potential for personal injury to the operator or patient.
"Cautions" are information provided with special emphasis when
there is the potential for damage to the equipment.
"Notices" are information provided with special emphasis to facil-
itate proper use of the equipment or proper execution of a proce-
dure.
For the tools and test equipment required, refer to the respective
LITHOSTAR Multiline Start-up Instructions...
POLYDOROS SX 65/80
-80kW
- Fluoroscopy
- Dataprinter
WARNING
CAUTION
NOTICE
NOTICE
Connecting the Service PC 1

LITHOSTAR Multiline RXL2-120.034.05 Page 2 of 4 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
1 - 2 Connecting the Service PC
Legend 1
Example of Text Descriptions: 1

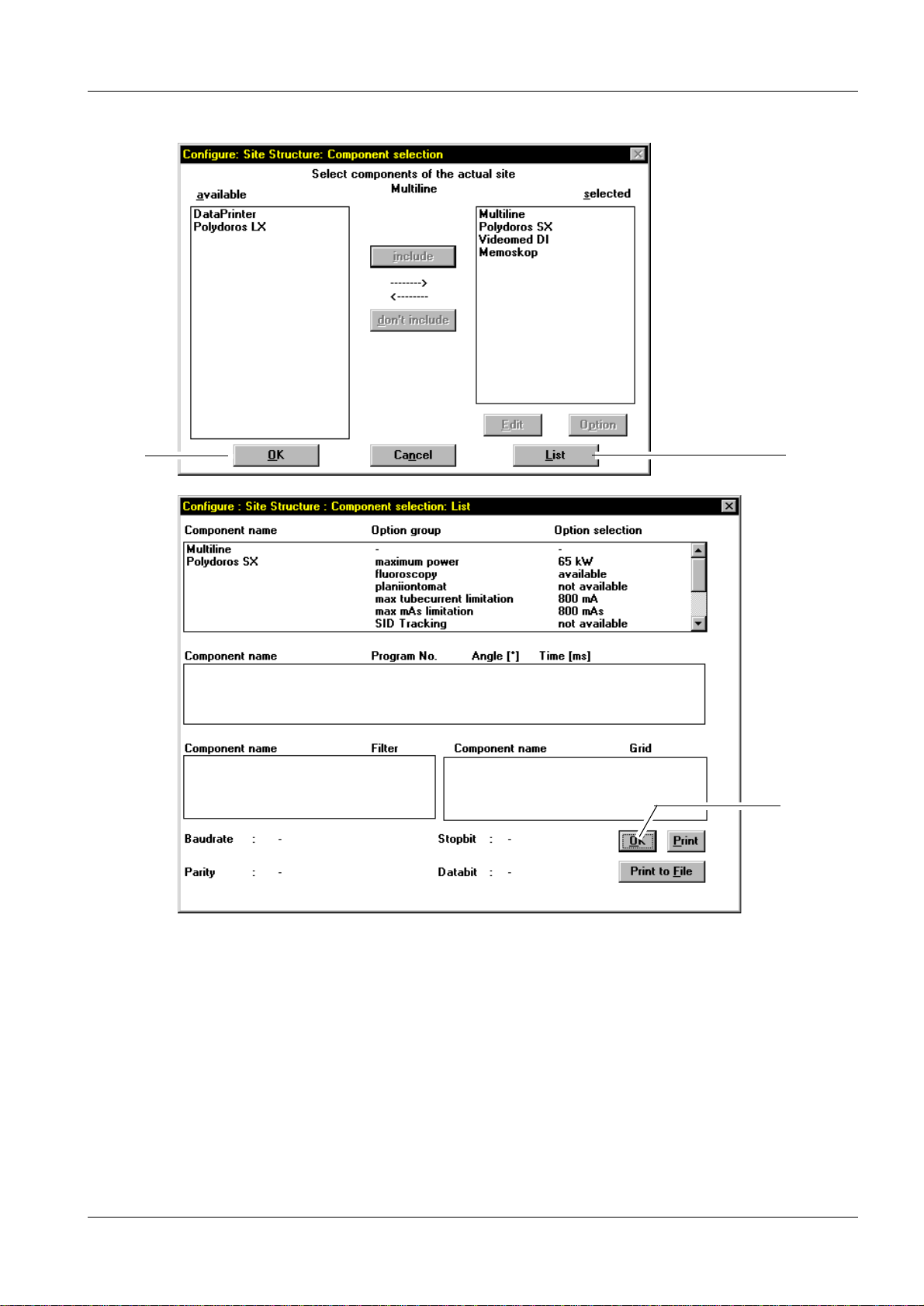

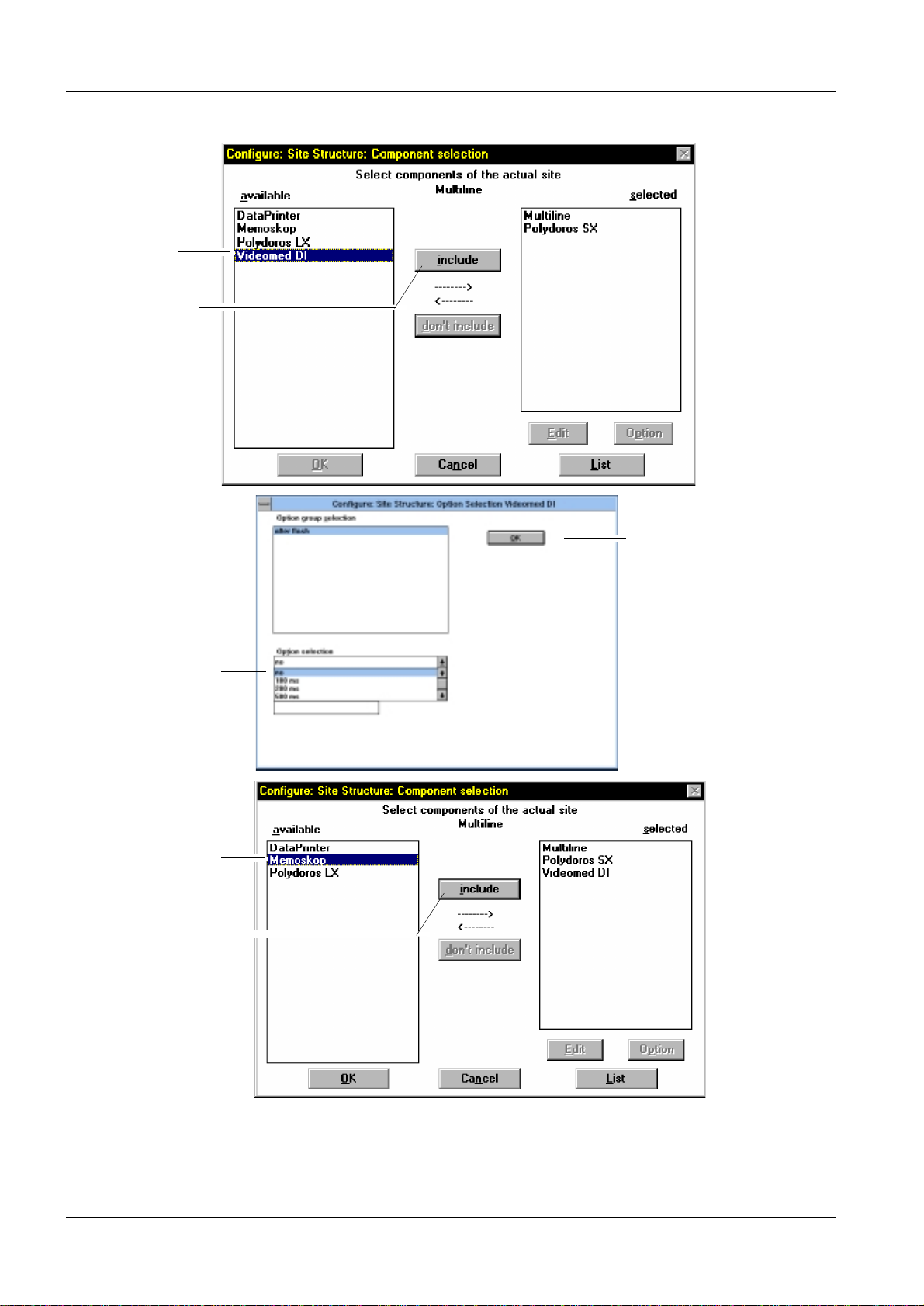

•Select components in the "available" field located in the "Configure:Site
Structure:Component selection" window.
•ExitthewindowwithOK.
Main menu
Submenu
Window
Windowname
Message
window
Field
Window
Window name
Window

Connecting the Service PC 1 - 3
Siemens AG RXL2-120.034.05 Page 3 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
POLYDOROS SX 65/80 1
M9 DIA
T2
M16
BUS mouse
Important:
- Connect the system controller
(D320.XCS) to Com 1.
- Connect the PC mouse to the PC
BUS mouse connector.
D320.XCU
to Com.1
3
2
1

LITHOSTAR Multiline RXL2-120.034.05 Page 4 of 4 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
1 - 4 Connecting the Service PC

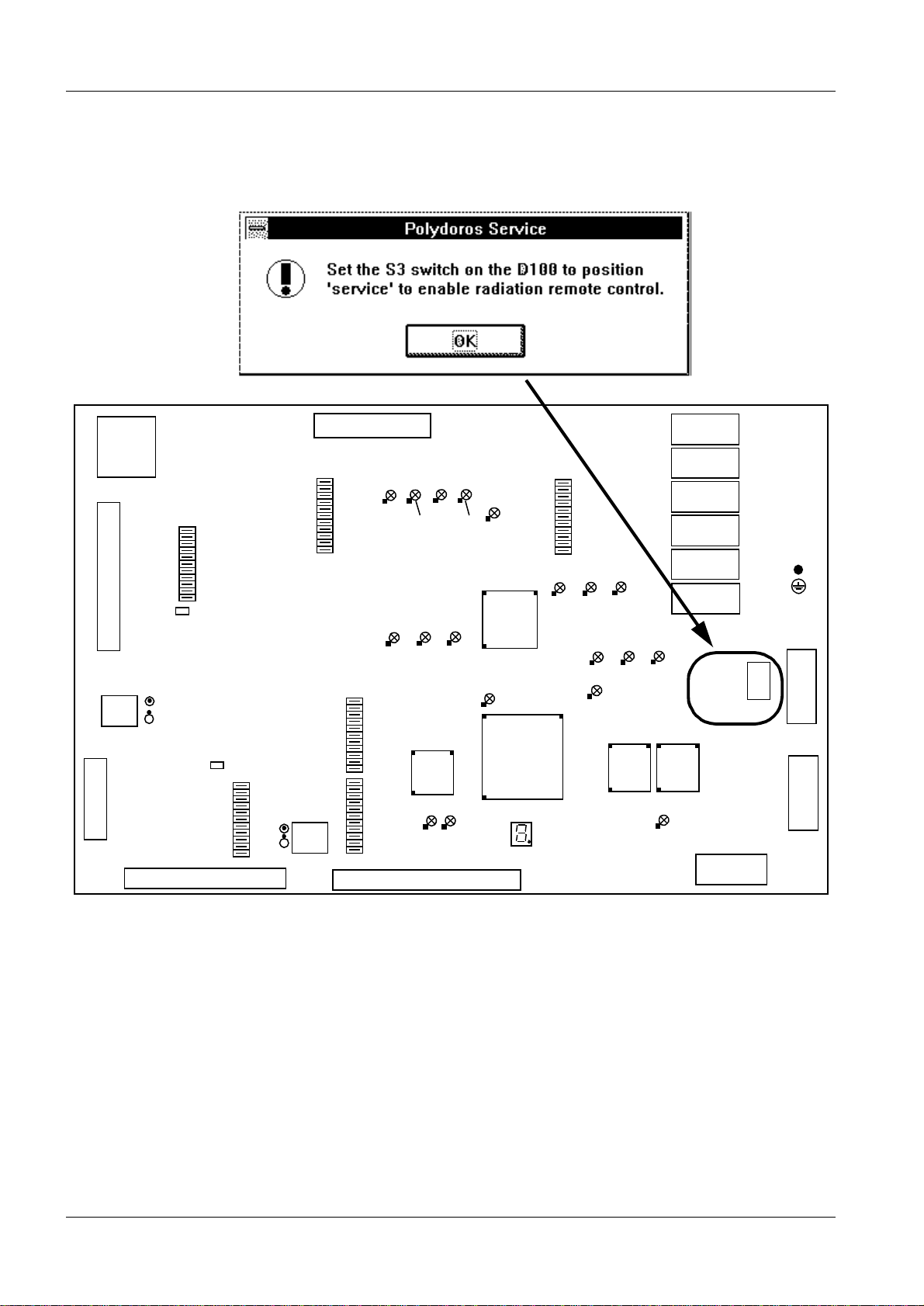

Setting the S3 switch on D100 for POLYDOROS Service
Adjustment 1
2
3
10
12
1
X13
1
X5
3940
KV+
KV-
KV IST
KV_A
KV SOLL
A GND
R371 D100
ILAST
IFAH
IKOR
RAM
KVREG
WR_AUS
AN 0
AN 1
AN 2
AN 3
AN 4
AN 5
OUT A
OUT B
I_ANL
GND
R11
X60
SS
S1
1
249
50
1
2
39
40
2
1
910
X50
ZK
S2
X1 X65
J17 J16
V36
ROT V35
KURZ_AN V14
J15 J8
V29125V_FL
591
6
X2
V74
XRAY
DOM I
DOM II
DOM IIIV113 V110 V108
V90SWR HW
59
16
X40
MA
V MAS
F MAS
CNT
SWR
GND
DL IN
UDL
DL IST
VION
FION
A GND
V168 V167 V166 V165
V164
KVMAX+ WR AUS
KVMAX-
KVMIN+
KVMIN-
V95 V94 V93
AP III AP II AP I J58
ION
AP 0 ION
AP 1 ION AP 2
V138 V137 V136
X63
59
16
X41
1
2
S3(X44)
NORMAL
SERVICE
X4
X19
X64
26
25 2 1
X2
X2
X3
X3
X3
X3
A
B
C
D
E
F
C
BAP
RM
C
BAP
RM
C
BAP
RM
C
BA
P
RM
C
BA
P
RM
C
BA
P
RM
X61
X20
ZK
SS

2 - 1
Siemens AG RXL2-120.034.05 Page 1 of 2 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
This flowchart is intended as a roadmap only. System configura-
tion should be performed according to the chapters listed below.
Chap.3
Chap.4
Chap.5
Chap.6
Chap.7
Chap.7
Yes
Chap.3
No
Chap.8
Exit system configur-
ation (System/Quit) Chap.9
System Configuration
Saving the data
on diskette
(back-up)
Important:
Back-up is mandatory. The
back-up diskette must be of
the latest version, otherwise
the entire system configura-
tion has to be performed.
Save the data on
a diskette
(backup)
Install the service software
(SSW) on the Service PC
Download (load software
onto generator)
Decide on program use
Is the correct service software (SSW)
for the generator loaded on the
Service PC?
XCS service
program on the
PC
System shipment
Subsystem shipment
and for Service Software update
(download XCU)
Chap.7
Configure X-ray tube (test shots)
mAs Relay
Basic settings
Generator parameters
IONTOMAT
Fluoroscopy
Settings
Polydoros Service
Diagnostics
NOTICE
Flowchart for System Configuration 2

LITHOSTAR Multiline RXL2-120.034.05 Page 2 of 2 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
2 - 2 Flowchart for System Configuration
Help Text
•Select"Help/Index" in the main menu.
A help text can be called up for every active window by pressing
the F1 key.
NOTICE

3 - 1
Siemens AG RXL2-120.034.05 Page 1 of 2 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
Installing the XCS-Service Software on the Service PC 3
•Insertthe SSW diskette 1+into the A: drive.
•Select the File Managerin Windows.
•Select/perform the "File" menu.
•Inthe"command line",enterA:\install and confirm withOK.
•Confirm the message window with OK.
- A prompt to insert the corresponding diskette will appear.
•Confirm the following window with OK.
•Thesoftware will then create theSERVICE program group.
Selecting the XCS Service Program 3
•Select the Program Manager (ifnotdisplayed).
•Double click the XCS-SERVICE pictogram (icon) to select it.
•Enter the user name: Name.
•Enterthe Group ID: "_siemens".
•ExitthewindowwithOK.
Do not overwrite the old "C:\SSW\XCS-Serv" directory, erase it.
Installation is carried out automatically.
C:\ SSW is preprogrammed. Do not modify it.
If "Demo" is checked off, the software can work without the XCU.
In the "Demo function", communication with the XCU is not possi-
ble.
CAUTION
NOTICE
NOTICE
Installing Service Software on the Service PC 3

LITHOSTAR Multiline RXL2-120.034.05 Page 2 of 2 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
3 - 2 Installing Service Software on the Service PC
•ExitthewindowwithLogin.
(The connection to the XCU is established when Login isselected.)
•If communication problems occur during “Log in”, Windows must be started from DOS
using C:Win /3.
- Set the baud rate from 19200 to 9600 and repeat the Login.
- When Connectis selected inthe "System" menu, Realtime CI
(clock time for the XCU) and ID code are enabled.
A help text can be obtained for every active window by pressing
the F1 key.
If the password field is empty, obtain the password from the last
Speed info with the title "Password Speed info".
NOTICE
NOTICE

4 - 1
Siemens AG RXL2-120.034.05 Page 1 of 12 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
POLYDOROS SX 4

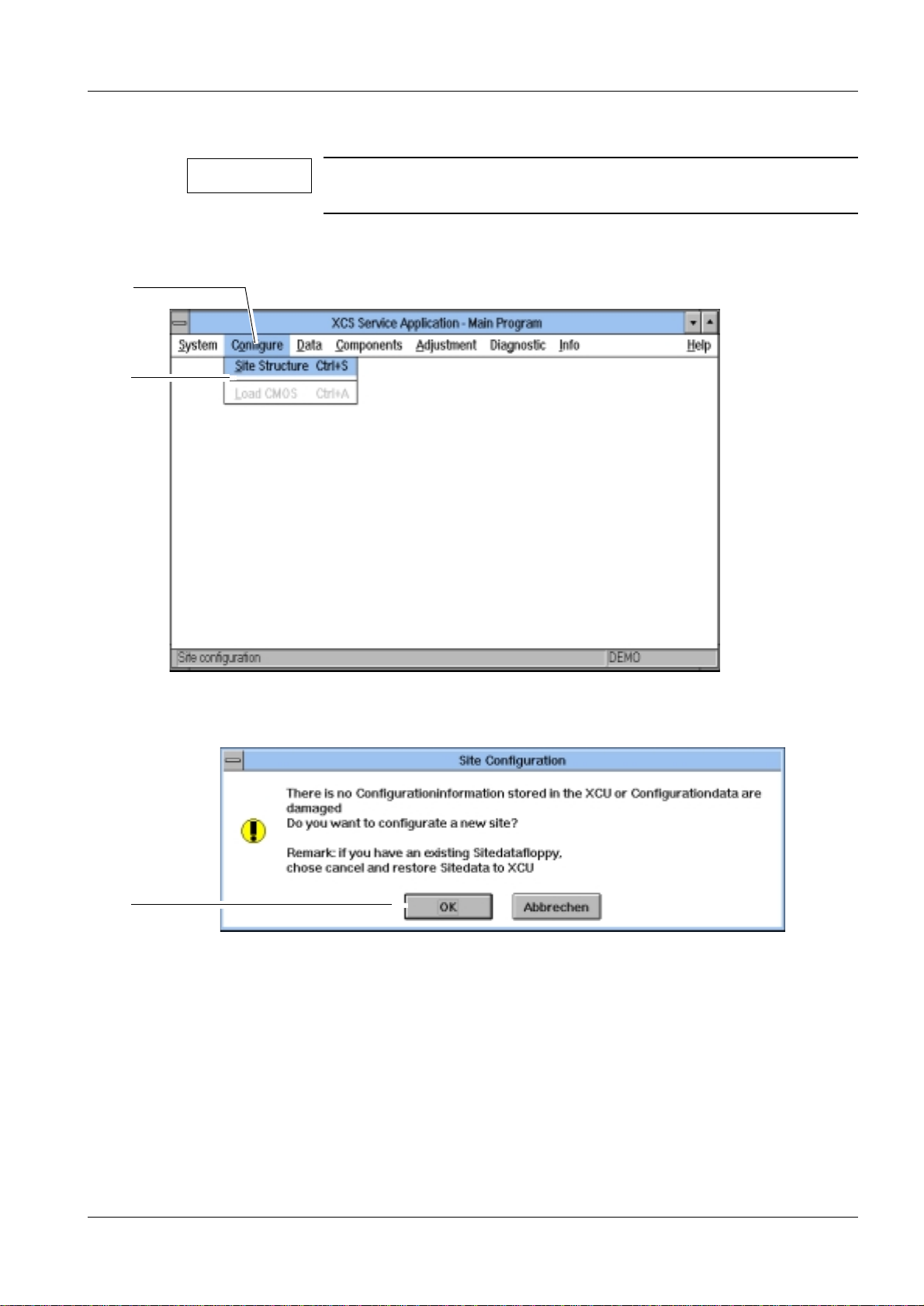

This window appears only if there is no configuration present in the XCU.
(The display on D100 indicates "2").
Exit the window with OK.

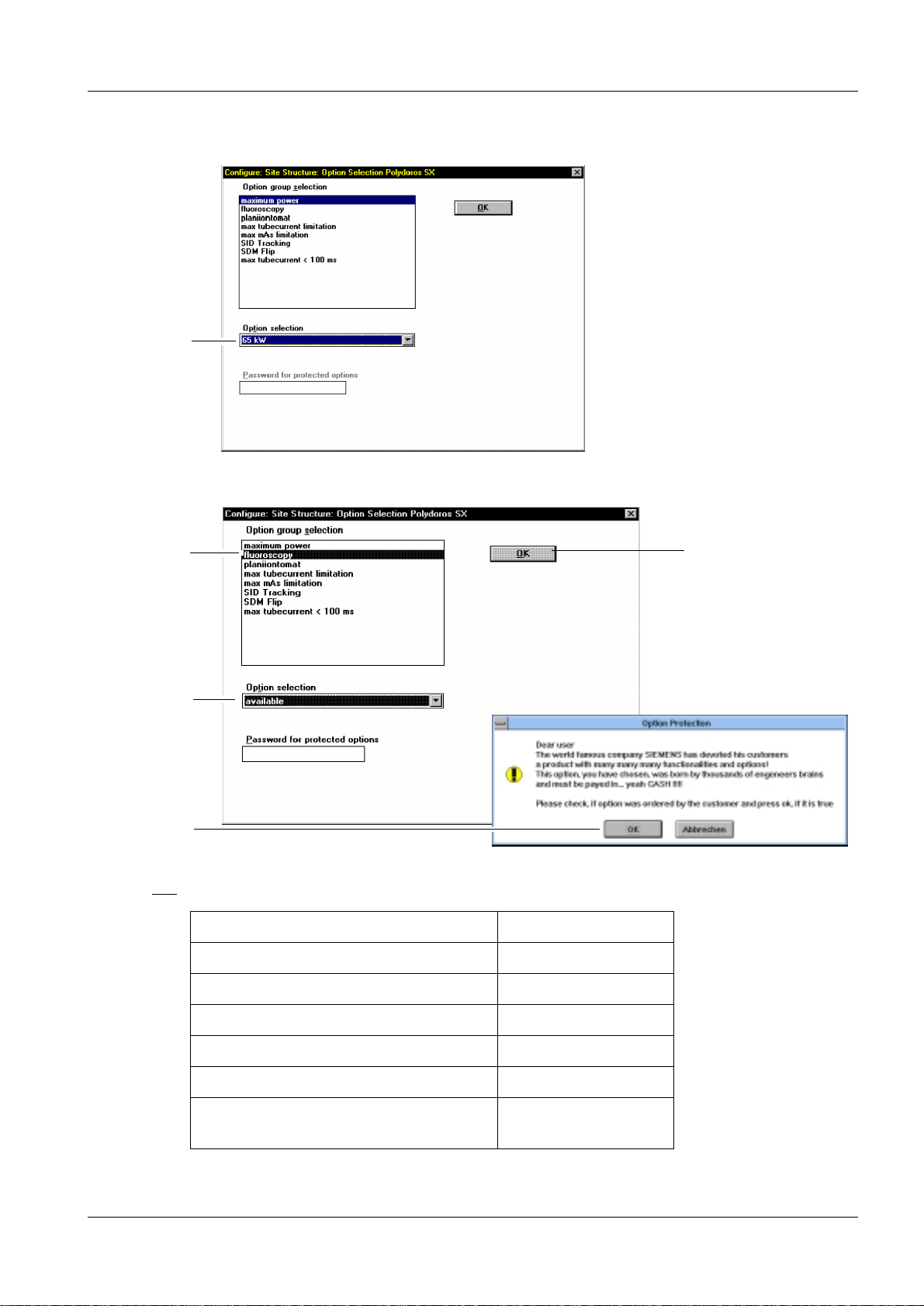

System selection

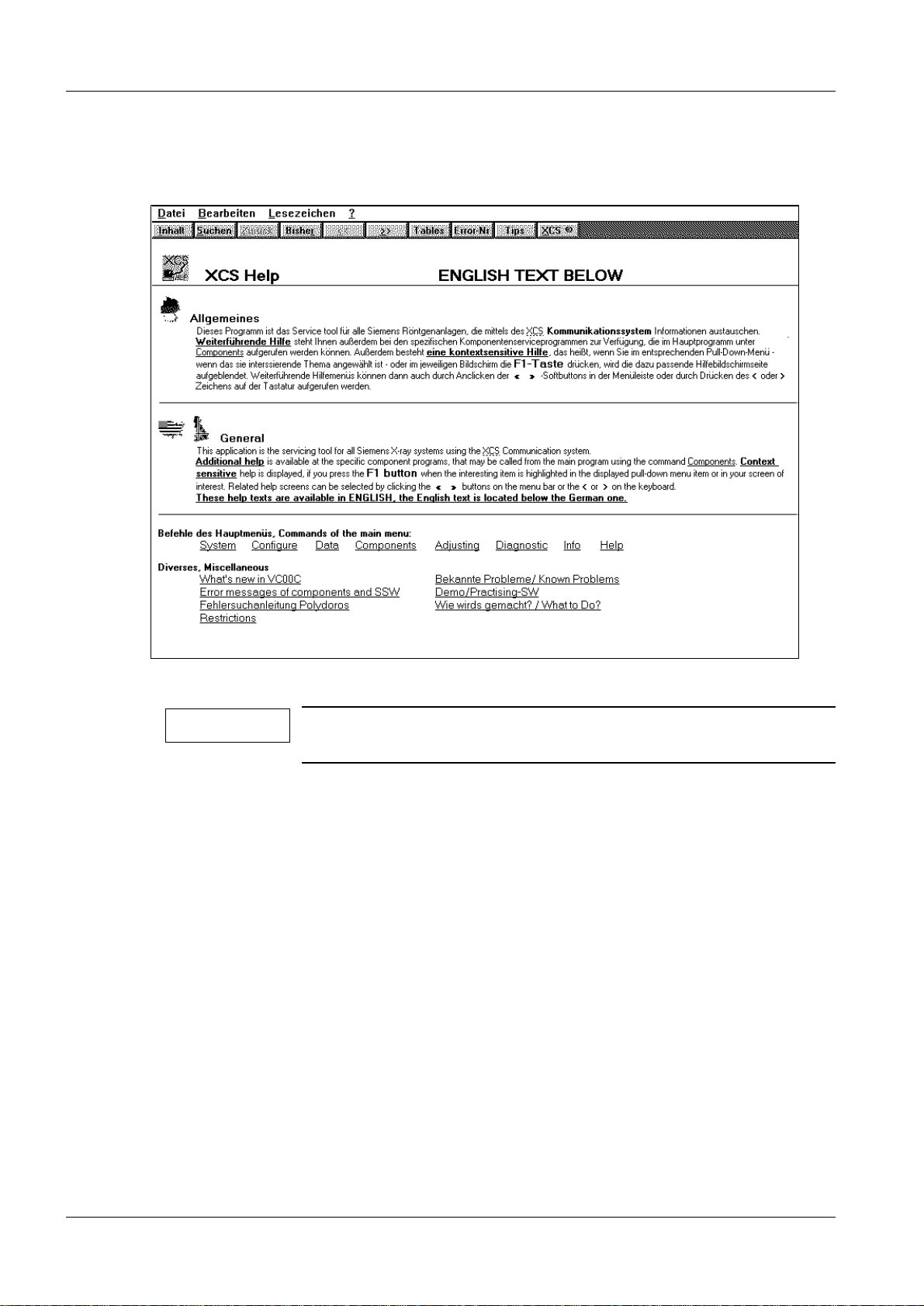

Help texts for configuration are available by pressing the F1 key.
If a system-tested system has crashed, download the configuration from the back-up
floppy. Use the "Data Restore" menu.
The reference numbers "1" through "n" indicate the sequence of
individual work steps.
NOTICE
1
2
3
System Configuration 4

LITHOSTAR Multiline RXL2-120.034.05 Page 2 of 12 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
4 - 2 System Configuration
5
6
4
7
8
9
10

System Configuration 4 - 3
Siemens AG RXL2-120.034.05 Page 3 of 12 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
12
14
11
13
available
65 kW
16
Check the additional options and change, if necessary
Additional options Default
planiiontomat not available
max tubecurrent limitation 800 mA
max mAs limitation 800 mAs
SID Tracking not available
SDM Flip not available
max tubecurrent < 100 ms 1000 mA at VD02A
800 mA at VE00J
15
*
*Text differs depending on the software version.

LITHOSTAR Multiline RXL2-120.034.05 Page 4 of 12 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
4 - 4 System Configuration
The configuration will be interupted unless all necessary components are selected.
20
19
17
18
22
21
no

System Configuration 4 - 5
Siemens AG RXL2-120.034.05 Page 5 of 12 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
25 23
24
*Location of the symbols varies depending on software version.
*

LITHOSTAR Multiline RXL2-120.034.05 Page 6 of 12 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
4 - 6 System Configuration
26
33
34
27
Select
"Multiline"
Select
"Opitop
150/40/80/HC-10xL"
Select
"Multiline
Memoskop"
29
30
31
Select
"SDM (spotfilm)" 32
Click on "F"
35
28
*
*
*Depending on the SW version, additional symbols are available in the form.

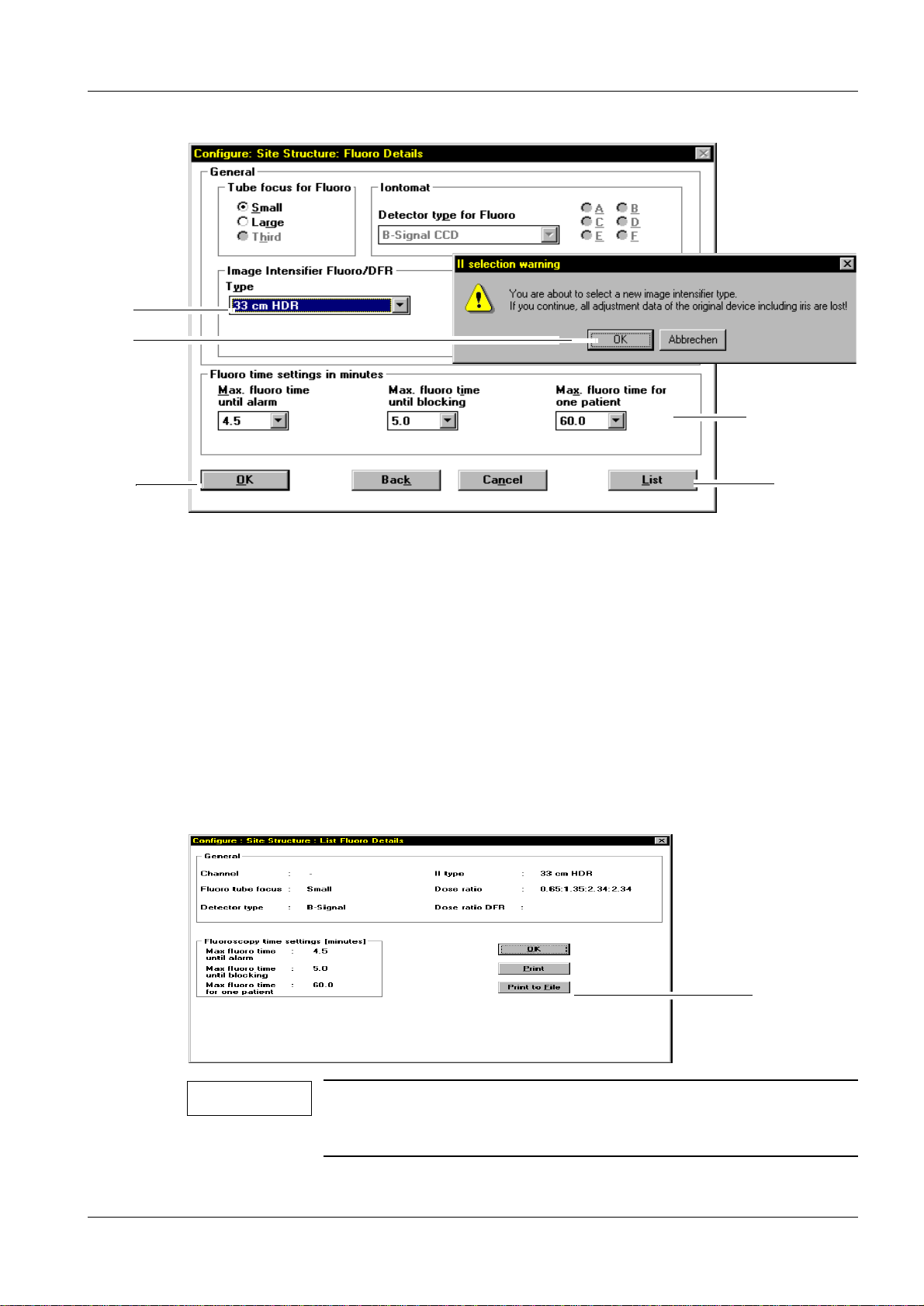

System Configuration 4 - 7
Siemens AG RXL2-120.034.05 Page 7 of 12 LITHOSTAR Multiline
Medical Engineering Rev. 02 12.99 TD PS 24 System Manual
Max. fluoro time until alarm:
(only VD02A) Set according tocountry-specific regulations,
e.g. BRD 4.5 min.; GB 9.5 min. (37 a)
Max. fluoro time until blocking:
(only VD02A) When should FL be shut down without
buzzer deactivation? e.g. BRD 5 min.;
GB 10 min.
(37 b)
Max. fluoro time for one patient:
(only VD02A) When should FL be shut down completely? (37 c)
Cumulated Fluoro time until alarm:
(only VE00J) Set according tocountry-specific regulations,
no shutdown - only alarm
Max. fluoro time without interrupt:
(only VE00J) 10.0; disabled
e.g. shutdown after 10 min. continuous fluo-
roscopy
Dose Rate Fluoro, Dose Rate DFR und Dose rate can be edited:
If you wish to set different dose values in zoom mode, you must
adjust the zoom ratios accordingly.
36
38 a..c
41 39
37
33 cm HDR
*
40
*
NOTICE
*Depending on the software version, different symbols are available.

LITHOSTAR Multiline RXL2-120.034.05 Page 8 of 12 Siemens AG
System Manual Rev. 02 12.99 TD PS 24 Medical Engineering
4 - 8 System Configuration
45
44
Enter
"113"
47
Enter
"113"
46
If the adjacent message appears when
selectinga fluorocurve,clickon OK.
Select
"Antiisowatt"
Select
"Litho 63 KV"
(not with
VE00J)
•The "Mode Selection" field varies depending on the software.
With VE00J, "Normal Fluoro" is designated "Cont. Fluoro".
44
Enter
"113"
42
43
(not with
VE00J)
(not with
VE00J)
