Siemens Simatic S7-1500 Technical Document

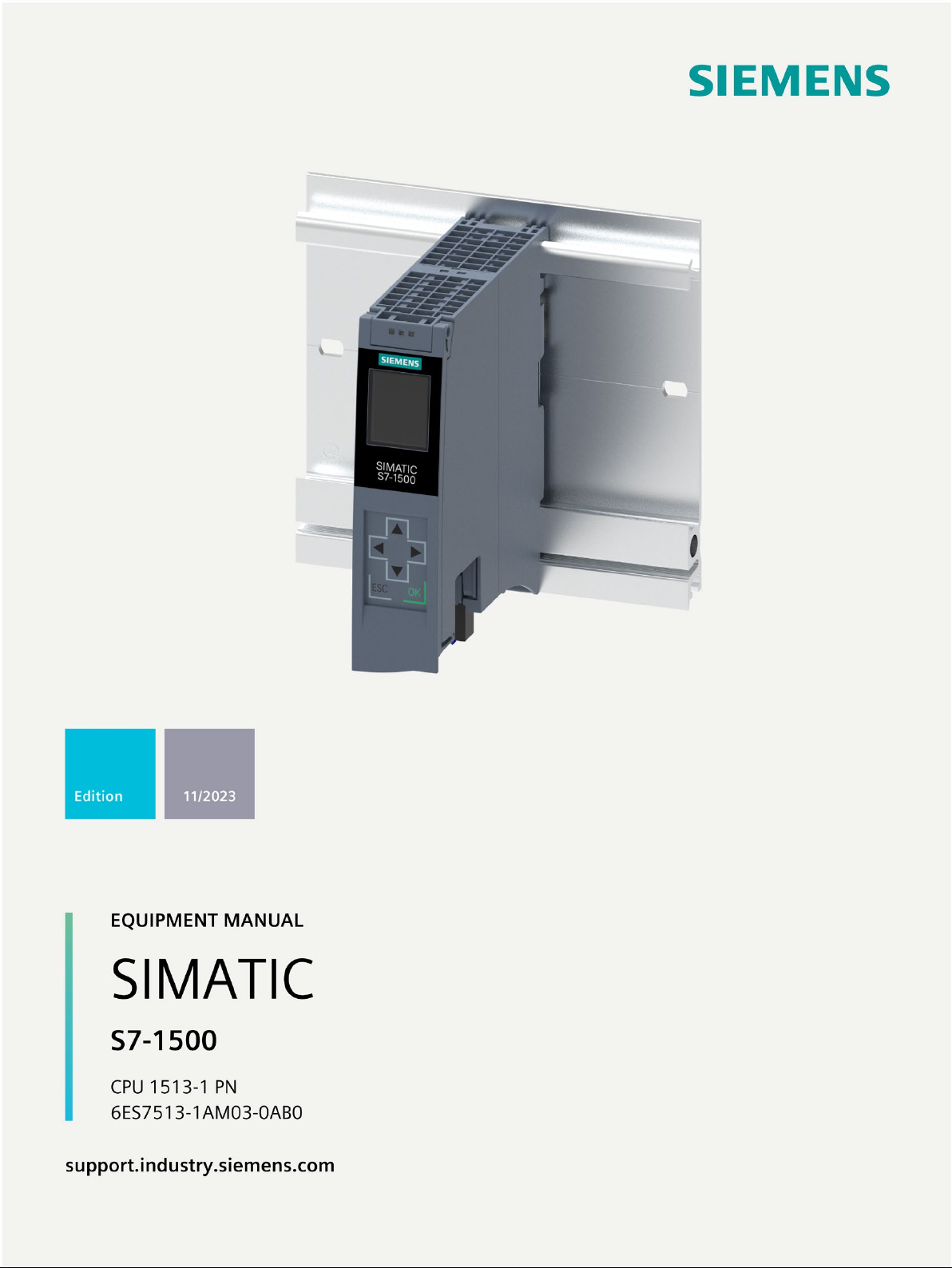

CPU 1513-1 PN (6ES7513-1AM03-0AB0)
SIMATIC
S7-1500
CPU 1513
-1 PN
(6ES7513
-1AM03-0AB0)
Equipment Manual
11/2023
A5E40881673
-AD
Introduction
1
Industrial cybersecurity
2
Product overview
3
Connecting up
4
Interrupts, error messages,
diagnostics and system
alarms
5
Technical specifications
6
Dimensional drawing
A

Siemens Aktiengesellschaft
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E40881673-AD
Ⓟ
11/2023 Subject to change
Copyright © Siemens 2017 - 2023.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens Aktiengesellschaft. The remaining trademarks in
this publication may be trademarks whose use by third parties for their own purposes could violate the rights of
the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 3
Table of contents
1 Introduction ........................................................................................................................................... 4
1.1 Guide documentation S7-1500/ET 200MP ............................................................................ 5
1.1.1 Information classes S7-1500/ET 200MP................................................................................ 5
1.1.2 SIMATIC Technical Documentation....................................................................................... 7
2 Industrial cybersecurity ....................................................................................................................... 10
2.1 Introduction to industrial cybersecurity .............................................................................. 10
2.2 Cybersecurity information.................................................................................................. 10
2.3 Cybersecurity-relevant information .................................................................................... 11
3 Product overview................................................................................................................................. 13
3.1 New functions ................................................................................................................... 13
3.2 Application ........................................................................................................................ 15
3.3 Hardware properties .......................................................................................................... 23
3.4 Firmware functions............................................................................................................ 25
3.5 Operating and display elements......................................................................................... 29
3.5.1 Front view of the CPU with closed front panel .................................................................... 29
3.5.2 Front view of the CPU without front panel and view from below......................................... 31
3.5.3 Rear view of the CPU.......................................................................................................... 33
3.6 Operating mode buttons.................................................................................................... 34
4 Connecting up ..................................................................................................................................... 35
5 Interrupts, error messages, diagnostics and system alarms ............................................................... 39
5.1 Status and error display of the CPU..................................................................................... 39
6 Technical specifications....................................................................................................................... 43
A Dimensional drawing........................................................................................................................... 56

CPU 1513-1 PN (6ES7513-1AM03-0AB0)
4Equipment Manual, 11/2023, A5E40881673-AD
Introduction
1
Purpose of the documentation
This manual supplements the system manual of the S7-1500 automation system/ET 200MP
distributed I/O system as well as the function manuals. This manual contains a description of
the module-specific information. The system-related functions are described in the system
manual. All system-spanning functions are described in the function manuals.
The information provided in this equipment manual and the system manual enables you to
commission the CPU .
Conventions
STEP 7: In this documentation, "STEP 7" is used as a synonym for all versions of the
configuration and programming software "STEP 7 (TIA Portal)".
Please also observe notes marked as follows:
Note
A note contains important information on the product described in the documentation, on
the handling of the product or on the section of the documentation to which particular
attention should be paid.
Recycling and disposal
For environmentally friendly recycling and disposal of your old equipment, contact a certified
electronic waste disposal company and dispose of the equipment according to the applicable
regulations in your country.
Industry Mall
The Industry Mall is the catalog and order system of Siemens AG for automation and drive
solutions on the basis of Totally Integrated Automation (TIA) and Totally Integrated Power
(TIP).
You can find catalogs for all automation and drive products on the Internet
(https://mall.industry.siemens.com).

Introduction
1.1 Guide documentation S7-1500/ET 200MP
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 5
ID link for the digital nameplate
The ID link is a globally unique identifier according to IEC 61406-1, which you will find in the
future as a QR code on your product.
The figure shows an example of an ID link for the CPU 1513-1 PN.
You can recognize the ID link by the frame with a black corner at the bottom right. The ID link
takes you to the digital nameplate of your product.
Scan the QR code on the product or on the packaging label with a smartphone camera,
barcode scanner, or reader app. Call the ID link.
In the digital nameplate, you will find product data, manuals, declarations of conformity,
certificates, and other helpful information about your product.
1.1 Guide documentation S7-1500/ET 200MP
1.1.1 Information classes S7-1500/ET 200MP
The documentation for the SIMATIC S7-1500 automation system and the ET 200MP
distributed I/O system is arranged into three areas.
This arrangement enables you to access the specific content you require. Changes and
supplements to the manuals are documented in a Product Information.
You can download the documentation free of charge from the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109742691).
Basic information
The System Manual and Getting Started describe in detail the configuration, installation,
wiring and commissioning of the SIMATIC S7-1500 and ET 200MP systems.
The STEP 7 online help supports you in the configuration and programming.
Examples:
•Getting Started S7-1500
•S7-1500/ET 200MP System Manual
•Online help TIA Portal

Introduction
1.1 Guide documentation S7-1500/ET 200MP
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
6Equipment Manual, 11/2023, A5E40881673-AD
Device information
Equipment manuals contain a compact description of the module-specific information, such
as properties, wiring diagrams, characteristics and technical specifications.
Examples:
•Equipment Manuals CPUs
•Equipment Manuals Interface Modules
•Equipment Manuals Digital Modules
•Equipment Manuals Analog Modules
•Equipment Manuals Communications Modules
•Equipment Manuals Technology Modules
•Equipment Manuals Power Supply Modules
General information
The function manuals contain detailed descriptions on general topics relating to the SIMATIC
S7-1500 and ET 200MPsystems.
Examples:
•Function Manual Diagnostics
•Function Manual Communication
•Function Manual Motion Control
•Function Manual Web Server
•Function Manual Cycle and Response Times
•PROFINET Function Manual
•PROFIBUS Function Manual
Product Information
Changes and supplements to the manuals are documented in a Product Information. The
Product Information takes precedence over the device and system manuals.
You can find the latest Product Information on the S7-1500 and ET 200MP systems on the
Internet (https://support.industry.siemens.com/cs/de/en/view/68052815).
Manual Collection S7-1500/ET 200MP
The Manual Collection contains the complete documentation on the SIMATIC S7-1500
automation system and the ET 200MP distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet.
(https://support.industry.siemens.com/cs/ww/en/view/86140384)

Introduction
1.1 Guide documentation S7-1500/ET 200MP
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 7
Manual Collection fail-safe modules
The Manual Collection contains the complete documentation on the fail-safe SIMATIC
modules, gathered together in one file.
You can find the Manual Collection on the Internet.
(https://support.industry.siemens.com/cs/de/en/view/109806400)
SIMATIC S7-1500 comparison list for programming languages
The comparison list contains an overview of which instructions and functions you can use for
which controller families.
You can find the comparison list on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/86630375).
1.1.2 SIMATIC Technical Documentation
Additional SIMATIC documents will complete your information. You can find these
documents and their use at the following links and QR codes.
The Industry Online Support gives you the option to get information on all topics. Application
examples support you in solving your automation tasks.
Overview of the SIMATIC Technical Documentation
Here you will find an overview of the SIMATIC documentation available in Siemens Industry
Online Support:
Industry Online Support International
(
https://support.industry.siemens.com/cs/ww/en/view/109742705)
Watch this short video to find out where you can find the overview directly in Siemens Indus-
try Online Support and how to use Siemens Industry Online Support on your mobile device:
Quick introduction to the technical documentation of automation products per
video (
https://support.industry.siemens.com/cs/us/en/view/109780491)
YouTube video: Siemens Automation Products - Technical Documentation at a
Glance (
https://youtu.be/TwLSxxRQQsA)

Introduction
1.1 Guide documentation S7-1500/ET 200MP
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
8Equipment Manual, 11/2023, A5E40881673-AD
Retention of the documentation
Retain the documentation for later use.
For documentation provided in digital form:
1. Download the associated documentation after receiving your product and before initial
installation/commissioning. Use the following download options:
–Industry Online Support International: (https://support.industry.siemens.com)
The article number is used to assign the documentation to the product. The article
number is specified on the product and on the packaging label. Products with new,
non-compatible functions are provided with a new article number and documentation.
–ID link:
Your product may have an ID link. The ID link is a QR code with a frame and a black
frame corner at the bottom right. The ID link takes you to the digital nameplate of your
product. Scan the QR code on the product or on the packaging label with a smartphone
camera, barcode scanner, or reader app. Call up the ID link.
2. Retain this version of the documentation.
Updating the documentation
The documentation of the product is updated in digital form. In particular in the case of
function extensions, the new performance features are provided in an updated version.
1. Download the current version as described above via the Industry Online Support or the ID
link.
2. Also retain this version of the documentation.
mySupport
With "mySupport" you can get the most out of your Industry Online Support.
Registration
You must register once to use the full functionality of "mySupport". After registra-
tion, you can create filters, favorites and tabs in your personal workspace.
Support re-
quests
Your data is already filled out in support requests, and you can get an overview of
your current requests at any time.
Documentation
In the Documentation area you can build your personal library.
Favorites
You can use the "Add to mySupport favorites" to flag especially interesting or
frequently needed content. Under "Favorites", you will find a list of your flagged
entries.
Recently viewed
articles
The most recently viewed pages in mySupport are available under "Recently
viewed articles".
CAx data The CAx data area gives you access to the latest product data for your CAx or CAe
system. You configure your own download package with a few clicks:
•Product images, 2D dimension drawings, 3D models, internal circuit diagrams,
EPLAN macro files
•Manuals, characteristics, operating manuals, certificates
•Product master data
You can find "mySupport" on the Internet. (https://support.industry.siemens.com/My/ww/en)

Introduction
1.1 Guide documentation S7-1500/ET 200MP
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 9
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus on individual products.
You can find the application examples on the Internet.
(https://support.industry.siemens.com/cs/ww/en/ps/ae)

CPU 1513-1 PN (6ES7513-1AM03-0AB0)
10 Equipment Manual, 11/2023, A5E40881673-AD
Industrial cybersecurity
2
2.1 Introduction to industrial cybersecurity
Due to the digitalization and increasing networking of machines and industrial plants, the risk
of cyber attacks is also growing. Appropriate protective measures are therefore mandatory,
particularly in the case of critical infrastructure facilities.
Refer to the System Manual (https://support.industry.siemens.com/cs/us/en/view/59191792)
for general information and measures regarding industrial cybersecurity.
This section provides an overview of security-related information pertaining to your SIMATIC
device.
Note
Security
-relevant changes to software or devices are documented in the section "New
functions (Page 13)".
2.2 Cybersecurity information
Siemens provides products and solutions with industrial cybersecurity functions that support
the secure operation of plants, systems, machines, and networks.
In order to protect plants, systems, machines, and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
cybersecurity concept. Siemens’ products and solutions constitute one element of such a
concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be connected
to an enterprise network or the internet if and to the extent such a connection is necessary
and only when appropriate security measures (e.g. firewalls and/or network segmentation)
are in place.
For more information on protective industrial cybersecurity measures for implementation,
please visit (https://www.siemens.com/global/en/products/automation/topic-areas/industrial-
cybersecurity.html).
Siemens' products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers' exposure to
cyber threats.
To stay informed about product updates at all times, subscribe to the Siemens Industrial
Cybersecurity RSS Feed under
(https://new.siemens.com/global/en/products/services/cert.html).

Industrial cybersecurity
2.3 Cybersecurity-relevant information
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 11
2.3 Cybersecurity-relevant information
Note all cybersecurity-relevant information.
Topics with cybersecurity-relevant information
Reference
Operational application environment and security assumptions
Requirements for the operational application environ-
ment of the system and security assumptions This section is found in the System Manual (https://support.industry.siemens.com/cs/us/en/view/59191792)
.
Area of application You can find the section Area of application (Page 15) in this
Equipment Manual.
Security properties of the product
Access protection
Physical protection:
•You can protect the CPU against unauthorized access
by locking the front flap.
Password protection
You can also protect the CPU with a password.
Password categories:
•Password to protect confidential configuration data
•Password in the context of user management (UMAC)
•Password for display
Information on locking and on password protection can be
found in this Equipment Manual in the section Operator controls
and display elements (Page 29).
Also note the information on the topic of access protection in
the Protection section of the System Manual
(https://support.industry.siemens.com/cs/us/en/view/59191792)
.
Integrated protection functions
•The CPUs have integrated protection functions.
For information on the protection functions, refer to the "Over-
view of protection functions" section of the System Manual
(https://support.industry.siemens.com/cs/us/en/view/59191792)
.
PROFINET Security Class 1
•The device supports PROFINET Security Class 1.
•With the introduction of PROFINET Security Class 1,
additional security settings have been integrated into
the PROFINET communication.
Detailed information about PROFINET Security Class 1 and the
additional security settings can be found in the PROFINET with
STEP 7 Function Manual
(https://support.industry.siemens.com/cs/us/en/view/49948856)
.
Reading out and verifying signatures
You can find detailed information on reading and verifying sig-
natures in the STEP 7 online help (TIA Portal).
Supported Ethernet services
Information about supported services can be found in the sec-
tion Technical specifications (Page 43).
You can find detailed information on the supported Ethernet
services in the Communication Function Manual
(https://support.industry.siemens.com/cs/us/en/view/59192925)
.
Interfaces, ports, protocols and services
Information on the following is security related:
•Communications layer and communication role
•Default states
•Enabling/disabling ports and services
You can find detailed information on these topics in the Com-
munication Function Manual
(https://support.industry.siemens.com/cs/us/en/view/59192925)
.

Industrial cybersecurity
2.3 Cybersecurity-relevant information
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
12 Equipment Manual, 11/2023, A5E40881673-AD
Topics with cybersecurity-relevant information
Reference
Secure operation
Corrective measures for known risks Corrective measures for known risks are announced on the
Siemens ProductCERT (https://siemens.com/productcert) Web
page.
For more information on SIEMENS ProductCERT, refer to the
System Manual
(https://support.industry.siemens.com/cs/us/en/view/59191792)
.
Security checks
Application-specific security measures such as cyclic checks of
the configuration via checksums are described in the System
Manual
(https://support.industry.siemens.com/cs/us/en/view/59191792)
.
Recording Security events Information on recording security events can be found in the
"Safe operation of CPUs" section of the System Manual
(https://support.industry.siemens.com/cs/us/en/view/59191792)
.
Secure decommissioning
Products that contain security-relevant data must be
securely decommissioned before disposal or resale.
Information on secure decommissioning can be found in the
"Safe operation of the system" section of the System Manual
(https://support.industry.siemens.com/cs/us/en/view/59191792)
.

CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 13
Product overview
3
3.1 New functions
This section contains an overview of the most important new firmware functions of the CPU
compared with the predecessor version CPU (V3.0).
New functions of the CPU in firmware version V3.1
New functions
Applications
Customer benefits
Integrated safety
Syslog messages
The CPU stores syslog messages in a local
cache (temporary memory).
The messages can be forwarded to a syslog
server.
The syslog server saves all syslog messag-
es from its connected devices. The mes-
sages can be displayed on the interface of
the server and potential security risks can
be identified.
Local user management
As of TIA Portal version V19 and FW version
V3.1, the CPUs feature improved management
of users, roles, and CPU function rights (User
Management & Access Control, UMAC).
Starting with the above mentioned version,
you can manage all project users with their
rights (e.g. access rights) for all CPUs in the
project. You can do this in the editor for users
and roles in the TIA Portal.
Project users can be managed via the TIA
Portal with their rights (for example,
access rights) for all CPUs in the project in
the editor for users and roles.
Communication of the CPU
Implementation of PROFINET
Security Class 1
As of V19, STEP 7 offers extended configura-
tion options for the SNMP and DCP protocols
in order to meet the requirements for
PROFINET Security Class 1.
Additional protection of communication
within your PROFINET network.
Project-internal shared de-
vice/shared I-device
As of STEP7 V19, a shared device/shared I-
device together with a maximum of two IO
controllers can be created in a single project.
Previously, the second IO controller required
its own project.
Simpler configuration.
Handling timeouts while ex-
changing data When network loads are high, timeouts may occur in PROFINET IO devices during data
record communication. Previously, the
PROFINET IO communication was reduced by
the CPU in this case.
As of STEP 7 V19 and FW version V3.1, you
can configure the behavior of the respective
PROFINET interface.
PROFINET IO communication is main-
tained even under high grid loads
Web server of the CPU
New Web API methods:
Many new API methods extend your access
options to the CPU via the Web API.
Additional applications for the web server

Product overview
3.1 New functions
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
14 Equipment Manual, 11/2023, A5E40881673-AD
New functions
Applications
Customer benefits
Technology functions of the CPU
Axis functions Measuring gearbox for position-
ing/synchronous axis
Advanced configuration options
Torque feedforward control for position-
ing/synchronous axis:
The torque feedforward control of the CPU
controls the torque required to accelerate the
axis, taking into account the motion profile.
Complex motion sequences can be exe-
cuted faster and more precisely. This
leads to a reduction of following errors in
acceleration phases.
Three drive stop modes can be configured for
the alarm response "Remove enable".
You can choose between a deceleration
ramp, coasting down, and rapid stop.
Dynamic filter with floating mean value The new "Floating mean value filter"
mode is available for the dynamic filter.
Standstill signal on external encoder
The standstill signal is also available for
external encoders. The standstill signal is
output when the encoder values are
within the defined standstill window.
Virtual axis The axis is operated in the virtual mode
with improved runtime behavior.
The new mode replaces the existing be-
havior of the virtual axis.
Measuring input functions Monitoring measuring input With the "Measuring via monitoring"
measuring input type, the measuring
input can capture the measured signal of
another configured measuring input.
Cyclic measuring for central measuring input
Cyclic measuring possible without addi-
tional technology module
Trace functionality of the CPU
Live monitoring for the long-
term trace
With live monitoring for the long-term trace,
you can:
•Display and analyze values directly in the
graph during recording
•Use superimposed measurements for the
long-term trace
•Synchronize time bases
Improved display and analysis of long-
term traces
Long-term project trace
With the long-term project trace, you can
record signals of different S7-1500 CPUs sim-
ultaneously.
The CPUs must be configured in a network.
The recording is stored on a drive that you
have configured.
Extended scope of functions
Reference
You can find an overview of all new functions, improvements and revisions in the respective
firmware versions on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109478459).

Product overview
3.2 Application
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 15
3.2 Application
SIMATIC S7-1500 is the modular control system for a wide variety of automation applications
in discrete automation.
SIMATIC S7-1500 is the cost-effective and convenient solution for a broad range of tasks and
offers the following advantages:
•Modular, fanless design
•Simple realization of distributed structures
•User-friendly handling
Areas of application of the SIMATIC S7-1500 automation system include, for example:
•Special-purpose machines
•Textile machinery
•Packaging machines
•General mechanical engineering
•Controller engineering
•Machine tool engineering
•Installation engineering
•Electrical industry and crafts
•Automobile engineering
•Water/waste water
•Food & Beverage
Areas of application of the SIMATIC S7-1500R/H redundant system include, for example:
•Tunnels
•Airports (e.g. baggage conveyors)
•Subways
•Shipbuilding
•Wastewater treatment plants
•High-bay warehouses
Areas of application of the SIMATIC S7-1500T automation system for advanced motion
control applications include, for example:
•Packaging machines
•Converting applications
•Assembly automation
•Pick-and-place automation
•Palletizers
Several CPUs with various levels of performance and a comprehensive range of modules with
many convenient features are available. Fail-safe CPUs enable use in fail-safe applications.

Product overview
3.2 Application
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
16 Equipment Manual, 11/2023, A5E40881673-AD
The modular design allows you to use only those modules that you need for your application.
The controller can be retrofitted with additional modules at any time to expand its range of
tasks.
High industrial suitability due to the high resistance to EMC, shock and vibration enable
universal use of the SIMATIC S7-1500, S7-1500R/H and S7-1500T automation systems.
Performance segments of standard CPUs
The CPUs can be used for smaller and mid-range applications, as well as for the high-end
range of machine and plant automation.
Table 3- 1 Standard CPUs
CPU Performance segment PROFIBUS
interfaces
PROFINET
IO RT/IRT
interfaces
PROFINET
IO RT
interface
Basic
PROFINET
functional-
ity
Work
memory
Processing
time for bit
operations
CPU 1511-1
PN
Standard CPU for small to
mid-range applications
--
1
--
--
1.8 MB
25 ns
CPU 1513-1
PN
Standard CPU for mid-range
applications
-- 1 -- -- 3.1 MB 25 ns
CPU 1515-2
PN
Standard CPU for mid-range
to large applications
-- 1 1 -- 5.5 MB 6 ns
CPU 1516-3
PN/DP
Standard CPU for demand-
ing applications and com-
munication tasks
1
1
1
--
9.5 MB
6 ns
CPU 1517-3
PN/DP
Standard CPU for demand-
ing applications and com-
munication tasks
1
1
1
--
10 MB
2 ns
CPU 1518-4
PN/DP
Standard CPU for high-
performance applications,
demanding communication
tasks and very short reaction
times
1
1
1
1
66 MB
1 ns
CPU 1518-4
PN/DP MFP Standard CPU for high- performance applications,
demanding communication
tasks, very short reaction
times and C/C++ blocks for
the user program
1 1 1 1 116* MB 1 ns
* 50 MB of the integrated work memory is reserved for the function library of CPU runtime

Product overview
3.2 Application
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 17
Performance segments of redundant CPUs
The CPUs of the S7-1500R/H redundant system offer a high degree of reliability and system
availability. A redundant configuration of the most important automation components
reduces the likelihood of production downtimes and the consequences of component errors.
The higher the risks and costs of a production downtime, the more worthwhile the use of a
redundant system. The avoidance of production downtimes compensates for the generally
higher investment costs.
Table 3- 2 Redundant CPUs
CPU Performance segment PROFIBUS
interfaces
PROFINET
IO RT/IRT
interfaces
PROFINET
IO RT
interface
Basic
PROFINET
functional-
ity
Work
memory
Processing
time for
bit opera-
tions
CPU 1513R-
1 PN
Redundant CPU for smaller
to mid-range applications
--
1
--
--
3.1 MB
50 ns
CPU 1515R-
2 PN
Redundant CPU for mid-
range to large applications
-- 1 -- 1 5.5 MB 20 ns
CPU 1517H-
3 PN Redundant CPU for de- manding applications and
communication tasks
-- 1 -- 1 10 MB 4 ns
CPU
1518HF-
4 PN
Fail-safe and redundant
CPU for demanding applica-
tions and communication
tasks
-- 1 -- 2 69 MB 4 ns
Performance segments of compact CPUs
The compact CPUs can be used for smaller to mid-range applications and have an integrated
analog and digital on-board I/O as well as integrated technology functions.
Table 3- 3 Compact CPUs
CPU Performance segment PROFIBUS
interfaces
PROFINET
IO RT/IRT
interfaces
PROFINET
IO RT
interface
Basic
PROFINET
functional-
ity
Work
memory
Pro-
cessing
time for
bit oper-
ations
CPU 1511C-1 PN Compact CPU for small
to mid-range applica-
tions
-- 1 -- -- 1.8 MB 25 ns
CPU 1512C-1 PN Compact CPU for mid-
range applications
-- 1 -- -- 2.4 MB 25 ns

Product overview
3.2 Application
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
18 Equipment Manual, 11/2023, A5E40881673-AD
The following table shows the specific properties of the Compact CPUs.
CPU 1511C-1 PN
CPU 1512C-1 PN
Integrated analog inputs/outputs
5 inputs/2 outputs
5 inputs/2 outputs
Integrated digital inputs/outputs
16 inputs/16 outputs
32 inputs/32 outputs
High-speed counters
6
6
Frequency meters
6 (max. 100 kHz)
6 (max. 100 kHz)
Period duration measurement
6 channels
6 channels
Pulse width modulation (PWM output)
Max. 4 (up to 100 kHz)
Max. 4 (up to 100 kHz)
Pulse Train Output (PTO output)
Max. 4 (up to 100 kHz)
Max. 4 (up to 100 kHz)
Frequency output
Up to 100 kHz
Up to 100 kHz
Performance segments of technology CPUs
The technology CPUs can be used for low and mid-range applications, as well as for the high-
end range of machine and plant automation. Because of their extended motion control
functions, they are primarily used for drive control.
Table 3- 4 Technology CPUs
CPU Performance segment PROFIBUS
interfaces
PROFINET
IO RT/IRT
interfaces
PROFINET
IO RT
interface
Basic
PROFINET
functional-
ity
Work
memory
Pro-
cessing
time for
bit oper-
ations
CPU 1511T-1 PN
Technology CPU for
small to mid-range
applications
--
1
--
--
1.95 MB
25 ns
CPU 1515T-2 PN
Technology CPU for
mid-range to large ap-
plications
--
1
1
--
6 MB
6 ns
CPU 1516T-
3 PN/DP
Technology CPU for
high-end applications
and communication
tasks
1
1
1
--
10.5 MB
6 ns
CPU 1517T-
3 PN/DP Technology CPU for high-end applications
and communication
tasks
1 1 1 -- 11 MB 2 ns

Product overview
3.2 Application
CPU 1513-1 PN (6ES7513-1AM03-0AB0)
Equipment Manual, 11/2023, A5E40881673-AD 19
CPU Performance segment PROFIBUS
interfaces
PROFINET
IO RT/IRT
interfaces
PROFINET
IO RT
interface
Basic
PROFINET
functional-
ity
Work
memory
Pro-
cessing
time for
bit oper-
ations
CPU 1518T-
4 PN/DP
Technology CPU for
high-performance mo-
tion control applications
with large quantities,
demanding communi-
cation tasks and very
short reaction times
1
1
1
1
69 MB
1 ns
CPU 1511TF-
1 PN
CPU 1515TF-
2 PN
CPU 1516TF-
3 PN/DP
CPU 1517TF-
3 PN/DP
CPU 1518TF-
4 PN/DP
These CPUs are described in the fail-safe CPUs.
Performance segments of fail-safe CPUs
The fail-safe CPUs are intended for users who want to implement demanding standard and
fail-safe applications both centrally and decentrally.
These fail-safe CPUs allow the processing of standard and safety programs on a single CPU.
This allows fail-safe data to be evaluated in the standard user program. The integration also
provides the system advantages and the extensive functionality of SIMATIC for fail-safe
applications.
The fail-safe CPUs are certified for use in safety mode up to:
•Safety class (Safety Integrity Level) SIL 3 according to IEC 61508:2010
•Performance Level (PL) e and Category 4 according to ISO 13849-1:2015 or EN ISO 13849-
1:2015
