Siemens LITHOSTAR Multiline User instructions

LITHOSTAR Multiline
English
Print No.: RXL2-120.033.01.03.02 Doc. Gen. Date: 11.01
Replaces: RXL2-120.033.01.02.02
© Siemens AG 1997
The reproduction, transmission or
use of this document or its contents
is not permitted without express
written authority. Offenders will be
liable for damages. All rights,
including rights created by patent
grant or registration of a utility
model _or_design,_are_reserved.
SP
Installation and setting instructions
Installing the Ultrasound Localizer

LITHOSTAR Multiline RXL2-120.033.01 Page 2 of 14 Siemens AG
System Rev. 03 11.01 CS PS 24 Medical Solutions
2 Installing the Ultrasound Localizer1
Document revision level 1
The document corresponds to the version/revision level effective at the time of system
delivery. Revisions to hardcopy documentation are not automatically distributed.
Please contact your local Siemens office to order current revision levels.
Disclaimer 1
The installation and service of equipment described herein is to be performed by qualified
personnel who are employed by Siemens or one of its affiliates or who are otherwise
authorized by Siemens or one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated
with or authorized by Siemens or one of its affiliates are directed to contact one of the
local offices of Siemens or one of its affiliates before attempting installation or service pro-
cedures.
General 1
Safety note
Checks and adjustments which must be performed with radiationswitched on are identi-
fied with the radiation symbol . Radiation protection must be worn during these types
of adjustments.
Protective conductor test 1
Perform the protective conductor test according to TI 236 / ARTD - 002.731.17... after
completing all service work and reattaching all covers. The protective conductor resis-
tance must not exceed 0.2 ohms.
Tools required 1
•Standardinstallationtools
•Powerdrill
•Jigsawwithsaw blade forwood
Documents required 1
When performing service work and tests, observe the product-
specific safety information contained in the system documenta-
tion as well as the safety information contained in Register 2 of
the TI folder.
•Adjustmentofsoftwareparameters... RXL2-120.032....
The option is functional only if the system is upgraded with soft-
ware Update (UI SP 013 / 01).
NOTICE
NOTICE

Installing the Ultrasound Localizer 3
Siemens AG RXL2-120.033.01 Page 3 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 03 11.01 CS PS 24 System
Supplied documentation 1
•Repairinstructionsultrasoundlocalizer RXL2-120.091....
•Supplementforoperatinginstructions
Revision 06 is installed in systems < 07136 (UI SP 013 / 01).
NOTE

LITHOSTAR Multiline RXL2-120.033.01 Page 4 of 14 Siemens AG
System Rev. 03 11.01 CS PS 24 Medical Solutions
4 Installing the Ultrasound Localizer
Unpacking / assembling the ultrasound system 1
•TheSONOLINEPrimadoesnotrequireanyspecialinstallationinstructions.Allyou need
todo isunpacktheunitas describedin the "unpacking procedure"affixedtothe outside
oftheunit and attahtheaccessories.
Mechanical modifications on LITHOSTAR Multiline 1
Preparation 1
•TurnthesystemOn.
•Movethe Multilineto position"0".
•Movethe W driveto the gel position.
•Raisethetabletop to the upper endposition.
•Movethe unitall the way back to the end position(in X direction).
•Removethe right side panel from theunit.

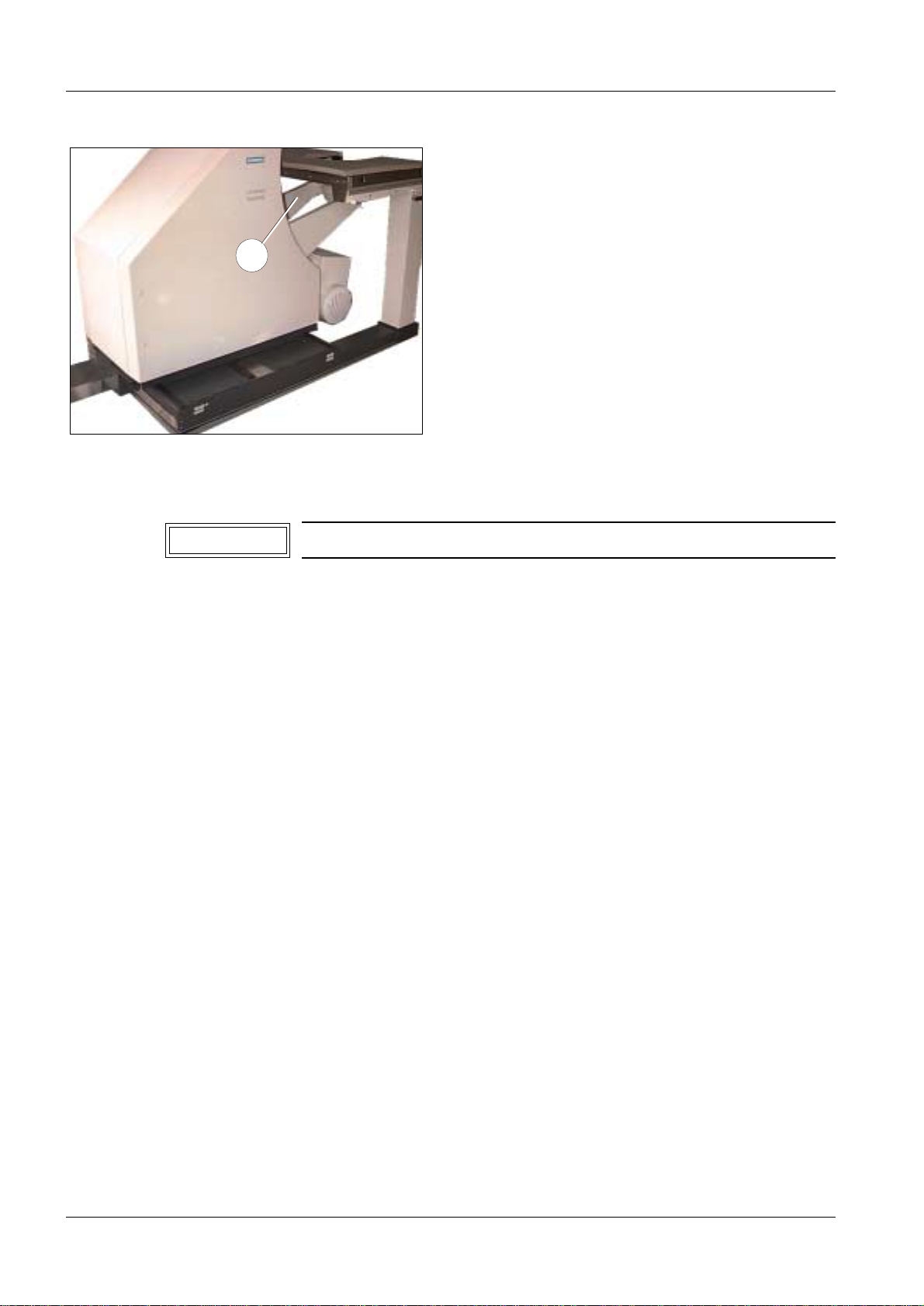

•Remove the inner righthand cover from the coupling system (1/Fig.1).
•Disconnect theinternal probeplug X20.
Observe ESD regulations to avoid damage.
1
Fig. 1
NOTICE

Installing the Ultrasound Localizer 5
Siemens AG RXL2-120.033.01 Page 5 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 03 11.01 CS PS 24 System
Mounting the probe holder
•Placethetemplateon the right side cover as shown in figure2 and secure it with
adhesivetape.
•Attachablade suitablefor wood tothejigsawand cutoutthesectionmarked(2/Fig.2).
•Deburrthe cutting line.
Systems with serial no. < 06045 Systems with serial no. 06045
•Holdthemounting panel to the right
support(Fig.3) andmark the mounting
holes.Watchforthecorrectplacementof
theanglepiece (3/Fig.3).
•Movetheunit to thestartingposition;
releasethe buttonwhen the system stops
intheX direction.
•Coverthedrillingareatopreventdrill
chipsfromfallingintothe unit. •Holdthe mounting paneltothe supporton theright(Fig.3).Besuretocorrectlyplace
theanglepiece(3/Fig.3).
•Drill a6 mm holes. •Attachthe mountingpanel(4/Fig.3) with
2screwsM4 x 12,and 2 washers.
•Removeanydrillchips.
•Movethe unitto thestartingposition;
releasethebuttonwhen thesystemstops
inX direction.
•Attachthemountingpanel (4/Fig.3) with
2screws M4x12,2 washers,and 2 lock
nuts.
Tab. 1
When moving the W drive back, be careful not to damage the
cables.
3
4
2
Fig. 2 Fig. 3
CAUTION

LITHOSTAR Multiline RXL2-120.033.01 Page 6 of 14 Siemens AG
System Rev. 03 11.01 CS PS 24 Medical Solutions
6 Installing the Ultrasound Localizer
Systems with serial no. < 06045 Systems with serial no. 06045
•Placetheprobe holderon the
lateralsupportand mark the upper
mountinghole(Fig.5).
•Remove theplastic plugfrom the front
mountingholeof the probe holder (Fig.5).
•Coverthedrillingsidetopreventdrillchips
fromfallingintothe unit. •Installthe probe cable insidetheprobe holder(Fig.6).
•Drill a ∅6mm hole.
•Removeany drillchips.
•Placeanyexcessivecablelength inside
theholder.
•Mounttheprobe holder.
Tab. 2
5
Fig. 4 Fig. 5
Fig. 6 Fig. 7

Installing the Ultrasound Localizer 7
Siemens AG RXL2-120.033.01 Page 7 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 03 11.01 CS PS 24 System
•Movethe shockwave head to thegel position.
•When moving theW drive out,check that theprobe holder doesnot contactboard D7.
Ifyes,repositionthe probeholderso that it clearsboard D7.
•Raisethetabletop to its highestposition.
•Movethe unit back tothe end position (X direction).
•Reattachtheinnerright-handcover to thecouplingsystem(1/Fig.1).
•Reattachtherightside panel.
•Screwthe cable ties tothesupportbracket(Fig.7) usingwashersand lock nuts.
•Usecable ties to secure thecable(Fig. 7).
•Installthe probecableinsidethe probe
holder(Fig.6).
•Placeanyexcessivecablelength inside
theholder.
•Attachtheprobeholder
- front:panel screwand threadedplate.
- back:contactwasherandlocknut.
•Attachthe probeholder
- front:panel screw.
- back:contactwasherand locknut.
Avoid damaging the cables when moving the W drive forward.
Systems with serial no. < 06045 Systems with serial no. 06045
Tab. 2
CAUTION

LITHOSTAR Multiline RXL2-120.033.01 Page 8 of 14 Siemens AG
System Rev. 03 11.01 CS PS 24 Medical Solutions
8 Installing the Ultrasound Localizer
Attaching the corrugated hose to the unit 1
•Connectthe Sonolineprotectiveconductorto the stud onthe cable holder (Fig.9).
•Attachthescrewmount for the power cable:
- Loosenthescrew (A/Fig.9)and thenretightenthe clamp.
•Connectthe SONOLINE powersupplycable:
•Routethe video cable andthe fiberoptic cable to the controlcabinet.
•Removethe EMC coverfromN11 in frontofboardsD7 d/c, ifexisting.
Cable type Function Ultrasound
device Multiline OK
Unit Cabinet A12
1 x 4 mm2 Protective con-
ductor Back panel Protective con- ductor terminal
3 x 0.75 mm2
shielded Power supply Back panel refer to text below
Canon, 9 pole Control cable VBF US D31.X28
Fiber optic cable Communication Back panel
Video No function
- for 220 V: - Connectthe wirestothelinevoltageterminalNK1, 2, 3(Fig.9)
Forshielding, referto (A/Fig.9).
- for 115 V: (The parts are included in the bag for Power supply 115 V)
- Attachthe adapterplug (female part)und cableconduitsuppliedto the
115 V power supply cablerouted in the baseplate on-site.
- Cutoff the Faston connectorof the linevoltage cableprotruding from
thecorrugatedhose. ReplacetheFastonconnectorwiththethe pin-
shaped(male)connector andthe cable conduit.
- Connectboth adapter plugs together(from the corrugatedhose - from
thepowersupply)
6
Fig. 8
•Selecturologymodeor insertthe uro-panel.
•Removeboth covers from thebaseplate
(6/Fig. 8).
•Turntheuniton and move the system inthe
YdirectiontotheleftuntilD31 is accessible.
•Openthe cable entry holeatthe right rear
portionof thebaseframe.
•Attachthesupportplate forthecorrugated
hosewithscrewsunderneath the opening.
•Feedthe Sonolinecorrugatedhosethrough
theopeningand secure it withthehose clamp
tothesupportplate.

Installing the Ultrasound Localizer 9
Siemens AG RXL2-120.033.01 Page 9 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 03 11.01 CS PS 24 System
•Installthe additionalboard D7 in the control frame. PositionD7 E(motor output stage for
conerotation).
•RemounttheEMC cover.
•Removethe lower shockwavehead cover.
•Remove thejumper from switch S42 (cone drive), if existing, or remove jumperX42 on
boardW2 inthecone drive (Fig.10).
•Reattachthecover.
•Connectthefiberopticcable toboard D6 (observethe colorcode).
•Attach the adhesive clamps to positions 22 and 6 on the right side of the control cabinet.
•Securethefiberopticcableto theadhesiveclamps.
•Connecttheplug from thetable-side operatingpanel to theultrasoundsystem.
•Insertthe inlineprobeinthestoragecompartmentand connect it.
•Connectthecorrugatedtubingtothe SONOLINE, ifrequired.
Ifthecorrugatedtubing has a plug, a wallsupportbracketisrequired.
Fig. 9 Fig. 10
D3
A
Ground lead connector
Cable duct to cabinets
Clamp for corrugated hose
Corru-
gated
hose
Power cable connector
Clamp for power cable X5
W2 rotation
on

LITHOSTAR Multiline RXL2-120.033.01 Page 10 of 14 Siemens AG
System Rev. 03 11.01 CS PS 24 Medical Solutions
10 Installing the Ultrasound Localizer
System start-up 1
•TurntheunitOn.
•Connectthe servicePC.
•Changethe followingparameters:
(alsoreferto instructions "AdjustingSoftwareParametersRXL2-120.032....")
•Makea backup copyofthe parameterfile.
•IfswitchS42 (safety switchforconerotation)is activated, error0011 willbe displayedon
thehostboardD1.
Ifthishappends,bypassS42 orinsertjumperX42 on boardW2 in thecone drive and
rotatethe conewiththe NBF US to "0°"(Fig.9). When doing this,the probe must be
locatedinthecone drive.
•Perform afunction check for the ultrasound system accordingto the instructions
"InstallationSONOLINE PrimaU3.LH300.031....".
•Checkthe isocenter(seeinstructionsRXL2-120.91....).
•Checkthe shock waverelease.
•AlsocheckECG andrespiration triggerfunctions,where existing.Enterthe required
information in the"TechnicalInfo"menuon the servicePC (seepage13).
•Fillin theupdate completionform (referto page 11) and send a copy to Erlangen.
•To setthe date, time and name ofthe clinic,refer to the SONOLINE Adara Operating
Instructions, Chapiter 4 System setup "General system settings".
•Completetheoperatinginstructionsfor theLITHOSTAR Multiline.
•Filethetechnicaldocumentssuppliedin the system binder.
•Performtheprotectiveconductortest.
Parameter Groups Parameters Changes
User terminal: User terminal ultrasound Change the value from 00 to FF
Interface ultrasound: System available Change the value from 00 to FF
Line frequency Depending on line frequency:
00 = 50 Hz, 01 = 60 Hz
Target 136
Configuration:
Motor device MC1 am9 cone rotation Change to 09

Installing the Ultrasound Localizer 11
Siemens AG RXL2-120.033.01 Page 11 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 03 11.01 CS PS 24 System
Completion Protocol 1
The ultrasound localizer option has been installed.
Part Number: 31 27 011 Model No: LITHOSTAR Multiline
Serial Number: ................................ SKZ: ................................
Customer: ................................ Site: ................................
Customer No.: ................................
Name ( CSE ): ................................ Telephone: ................................
Country: ................................ Location: ................................
Date: ................................ Signature: ................................
Remark: ....................................................................................................
....................................................................................................
After completing the update, make a copy of this page, fill it out
and file it in Register 10 of the System Manual at the correspon-
ding site.
NOTE

LITHOSTAR Multiline RXL2-120.033.01 Page 12 of 14 Siemens AG
System Rev. 03 11.01 CS PS 24 Medical Solutions
12 Installing the Ultrasound Localizer
Connect service PC to LITHOSTAR Multiline
(also refer to RXL2-120.113.01...)
Select Technical Info ... in menu Info
Click Get from Unit
Click Edit
Enter the following information:
TI/Speed Info: RXL2-120.033.01
Title: Option Ultrasound
Date: When UI was performed
Done by: Who performed UI
Comments, if necessary
Click OK
Click Put to Unit
Click Save to File
Disconnect service PC from LITHOSTAR Multiline
(also refer to RXL2-120.113.01...)

Installing the Ultrasound Localizer 13
Siemens AG RXL2-120.033.01 Page 13 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 03 11.01 CS PS 24 System
Changes as compared to previous version 1
Page 1 Cover page newly generated and revision level increased
Page 2 Paragraph ’Notice’- text changed
Page 3 Paragraph ’Supplied documentation’- one line deleted
Paragraph ’Requirements’deleted - notice inserted
Page 4 Paragraph ’Unpacking / assembling the ultrasound system’- new
paragraph inserted
Page 10 Paragraph ’System start’- sentence inserted
Page 11 Old page deleted and new page inserted

LITHOSTAR Multiline RXL2-120.033.01 Page 14 of 14 Siemens AG
System Rev. 03 11.01 CS PS 24 Medical Solutions
14 Installing the Ultrasound Localizer
This page intentionally left blank.
