SIREMOBIL Compact
English
Print No.: SPR2-130.814.01.01.02 Doc. Gen. Date: 03.01
Replaces: n.a.
© Siemens AG 2001
The reproduction, transmission or
use of this document or its contents
is not permitted without express
written authority. Offenders will be
liable for damages. All rights,
including rights created by patent
grant or registration of a utility
model _or_design,_are_reserved.
SP
System Manual
Installation Instructions
CODONICS Printer EP 1660

SIREMOBIL Compact SPR2-130.814.01 Page 2 of 4 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
0 - 2 Revision
Chapter Page Revision
1all01
2all01
3all01
4all01
5all01

Contents 0 - 3
Siemens AG SPR2-130.814.01 Page 3 of 4 SIREMOBIL Compact
Medical Solutions Rev. 01 03.01 TD PS 24 System Manual
1 _______General_______________________________________________________1 - 1
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Required documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Required measuring equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Required tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
2 _______Installation ____________________________________________________2 - 1
With prepared monitor trolley (new delivery) . . . . . . . . . . . . . . . . . . . . . . 2 - 1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
Unpacking the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
Unpacking the framegrabber . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2
Installing the framegrabber in the monitor trolley . . . . . . . . . . . . . . . . . . 2 - 2
Installation of the printer in the monitor trolley. . . . . . . . . . . . . . . . . . . . 2 - 3
Attaching the power chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
Wiring the hand-held control unit . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
Wiring the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
Wiring the framegrabber. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5
Wiring the framegrabber video cable . . . . . . . . . . . . . . . . . . . . . . . .2 - 5
Power switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5
Installation when upgrading in the field . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6
Replacing fuse F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6
Checking or replacing fuse F5. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6
Installation of the guide rails, including the fan, and the installation plate
of the framegrabber in the monitor trolley . . . . . . . . . . . . . . . . . . . . . . 2 - 7
Unpacking the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 8
Unpacking the framegrabber . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 8
Installing the framegrabber in the monitor trolley . . . . . . . . . . . . . . . . . . 2 - 9
Installation of the printer in the monitor trolley. . . . . . . . . . . . . . . . . . . 2 - 10
Attaching the power chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 10
Wiring the hand-held control unit . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 11
Wiring the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 11
Wiring the fans. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 11
Wiring the framegrabber. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 12
Wiring of the framegrabber video cable . . . . . . . . . . . . . . . . . . . . . . 2 - 12
Power switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 13
Replacing the rear cover of the monitor trolley . . . . . . . . . . . . . . . . . . 2 - 13
3 _______Commissioning ________________________________________________3 - 1
Inquiry regarding customer requirements . . . . . . . . . . . . . . . . . . . . . . . .3 - 1
Image polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
Film segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
Startup of the printer / framegrabber . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2
Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 2
Film segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2
Enabling the Framegrabber Service Modes . . . . . . . . . . . . . . . . . . . . . 3 - 3
Page

0 - 4 Contents
SIREMOBIL Compact SPR2-130.814.01 Page 4 of 4 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
Programming the external exposure release . . . . . . . . . . . . . . . . . . . . 3 - 3
MEMOSKOP Video singals at hardcopy output . . . . . . . . . . . . . . . . . . 3 - 4
Read out of the actual video frequency. . . . . . . . . . . . . . . . . . . . . . . 3 - 4
Memoskop SMPTE test image selection . . . . . . . . . . . . . . . . . . . . . . 3 - 4
Automatic sizing with existing 50/60 Hz monitors . . . . . . . . . . . . . . . . . 3 - 6
Programming the film type on the printer. . . . . . . . . . . . . . . . . . . . . . . . 3 - 6
Testing the image quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7
Final work. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 9
Page

1 - 1
Siemens AG SPR2-130.814.01 Page 1 of 2 SIREMOBIL C
Medical Solutions Rev. 01 03.01 TD PS 24 System Manual
General 1
Safety notes 1
The product-specific safety notes specified in the system manual and the safety notes
specified in ARTD Part 2 must be observed.
After all work has been completed and after all covers have been fitted, the protective
conductor test must be carried out in accordance with ARTD-002.731.17. The protective
conductor resistance must not exceed 0.2 Ohms.
Required documents 1
Required measuring equipment 1
Required tools 1
•OperatingInstructionsCodonicsPrinter/ Framegrabber
•System Folderfor Basic Unit
•DensitometerX-RITE 331 97 02 416 Y1996
•Protectiveconductormeter
or 44 15 899 RV090
•Bendersafetytester 99 00 440 RE999
•Tool kit
•1setofAllen keys
•1setoftorque screwdrivers

SIREMOBIL C SPR2-130.814.01 Page 2 of 2 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
1 - 2 General
This page intentionally left blank.

2 - 1
Siemens AG SPR2-130.814.01 Page 1 of 14 SIREMOBIL Compact
Medical Solutions Rev.01_V 03.01 TD PS 24 System Manual
Installation 2
With prepared monitor trolley (new delivery) 2
Requirements 2
•Themountingplatesfor the framegrabberare alreadyfittedin the monitortrolley.
•Theguiderails forthe printer,includingthe fan,arealready fittedin the monitortrolley.
•Thecablesfor thevideoprinterarealreadyinstalledin themonitor trolley.
Unpacking the printer 2
•Turnthebox with the printerupsidedownandopenthebottom of the box.
•Removethe foam material.
•Removethe plasticbag.
•Unscrew thewooden baseplate.
•Liftthe printercarefullyout oftheboxand place it on thefloor in theuprightposition.
•Turnthetwo transportlocks intoverticalposition and pullout in verticalposition
(Fig.1).

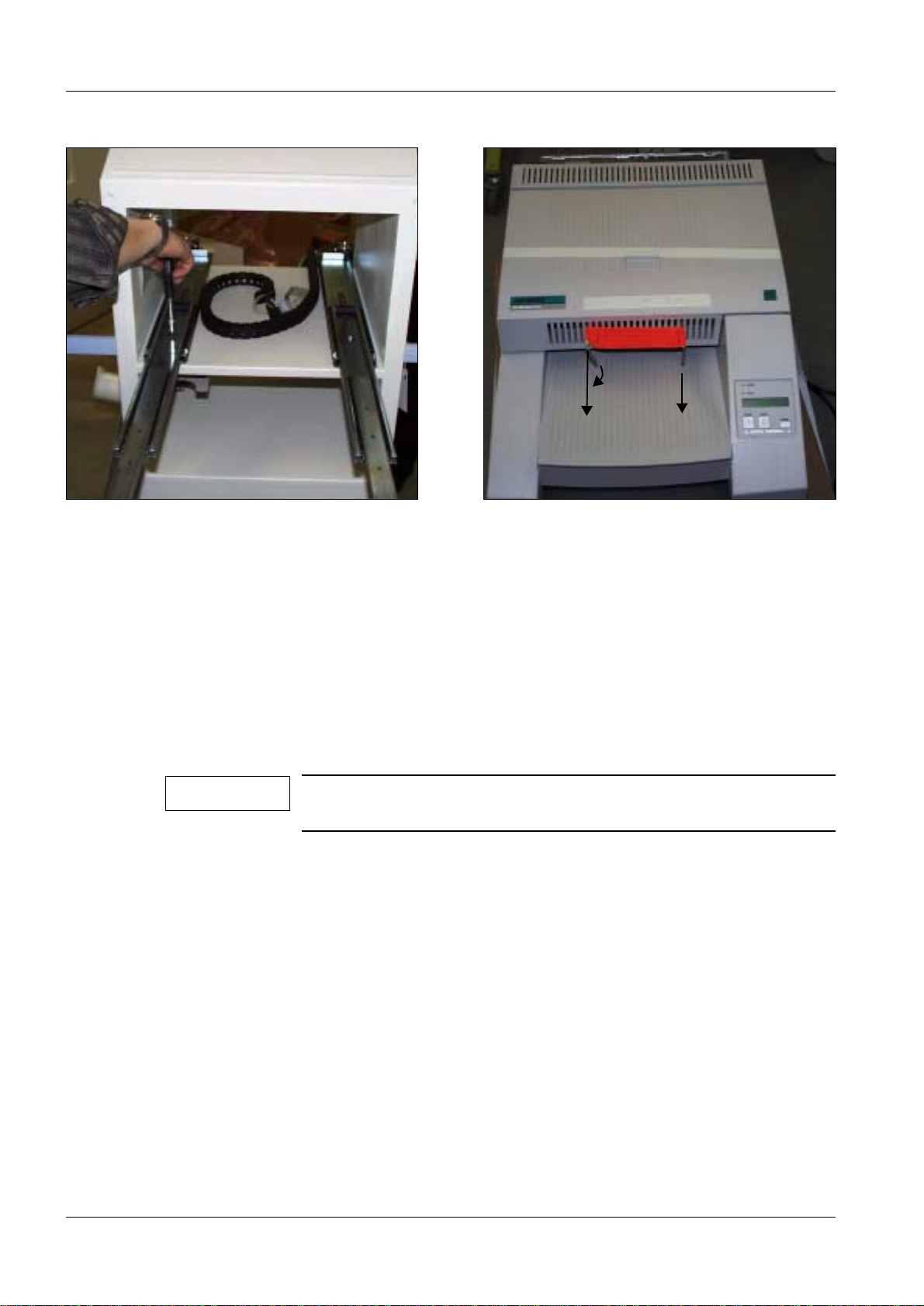

Fig. 1
Keep the two transport locks. If the printer needs to be replaced
or sent in, the transport locks must be re-inserted.
NOTICE

SIREMOBIL Compact SPR2-130.814.01 Page 2 of 14 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
2 - 2 Installation
Unpacking the framegrabber 2
•Open the packaging of the framegrabberfrom thetop.
•Removethe framegrabberand thehand-heldcontrolunit.
•Removethe plasticbag.
Installing the framegrabber in the monitor trolley 2
•Removethe large rearcoverfrom the monitortrolley.
•Removethe framegrabberfrom the packaging.
•Removethe front and rearscrewson both sidesof the framegrabbercover(1/Fig.2).
•Insertthe framegrabberfrom the frontin the fixing bracketand securelaterally to the
fixingbracketwith the lockwashersandknurledscrewssupplied(1/Fig.3).
•Thefanand the connectionsof the framegrabberpointtotherear.
Fig. 2 Fig. 3
1
1
11

Installation 2 - 3
Siemens AG SPR2-130.814.01 Page 3 of 14 SIREMOBIL Compact
Medical Solutions Rev.01_V 03.01 TD PS 24 System Manual
Installation of the printer in the monitor trolley 2
•Pullout the twoguiderailscompletelytothe front.
•Placethe printeron the twoguiderails.
•Fig.4 shows the two drawn-outguide rails withthe attachedprinter frombelow.
•Placethe power chain(1/Fig.4)inasemicirclearound the anglebracket(2/Fig.4).
•Securetheprinterto the railswith the12screwssupplied.
•The3rearthreads oneach of the railscanbe accessed by pushingtheprinterthrough
theopenings(3/Fig.4).
•Pushtheprinter alltheway into themonitortrolleyand at thesametimeguide the power
chainthrough totherear.
Attaching the power chain 2
•Attach the bracket (2/Fig. 5) at the printer with two screws.
•Unscrew thetwo screws(1/Fig.5) from the angle bracket (2/Fig. 5).
•Attachthepower chain(3/Fig.5) to the bracket(2/Fig.5) withthetwo screws (1/Fig.5).

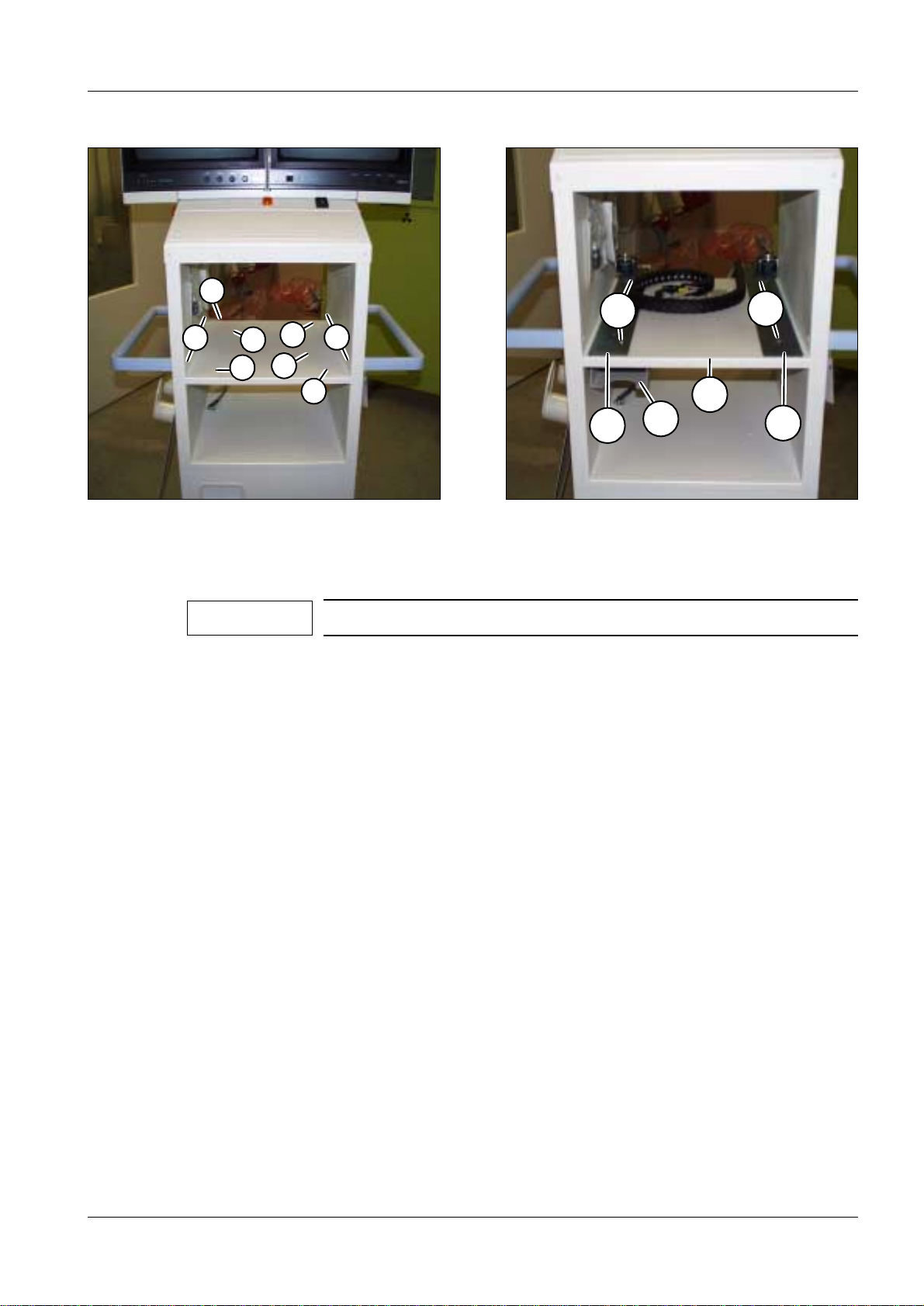

Fig. 4 Fig. 5
One person should hold the printer to make sure it does not fall,
while a second person tightens the screws.
2
3
1
3
1
2
3
NOTICE

SIREMOBIL Compact SPR2-130.814.01 Page 4 of 14 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
2 - 4 Installation
Wiring the hand-held control unit 2
•Guidethe connectorof the hand-heldcontrolunitfromthe front betweentheleft
attachmentrailand the power chain(as seen from thefront)throughtothe rear.
•Attachthe connectorof the hand-heldcontrol unitto the 9-pinSUB-D "HAND CTRL"
socketand secureitwith screws.
•Run the cable from the hand-heldcontrol unit to thecable holder (1/Fig. 6) andsecure it
witha cable tie.
Wiring the printer 2
•Insertthe connectorfromthepower cable inthepower socketoftheprinter(2/Fig.6).
•Theotherend of thepowercableis alreadyconnected tothe ON/OFF assembly,
terminalblockX2.1, X2.2 and theprotective conductorterminal.
•Insertthe control cable in theprinter socket and lock mechanically (3/Fig. 6).
•Insertthe powersupply for thefans in thesocket(4/Fig.6).

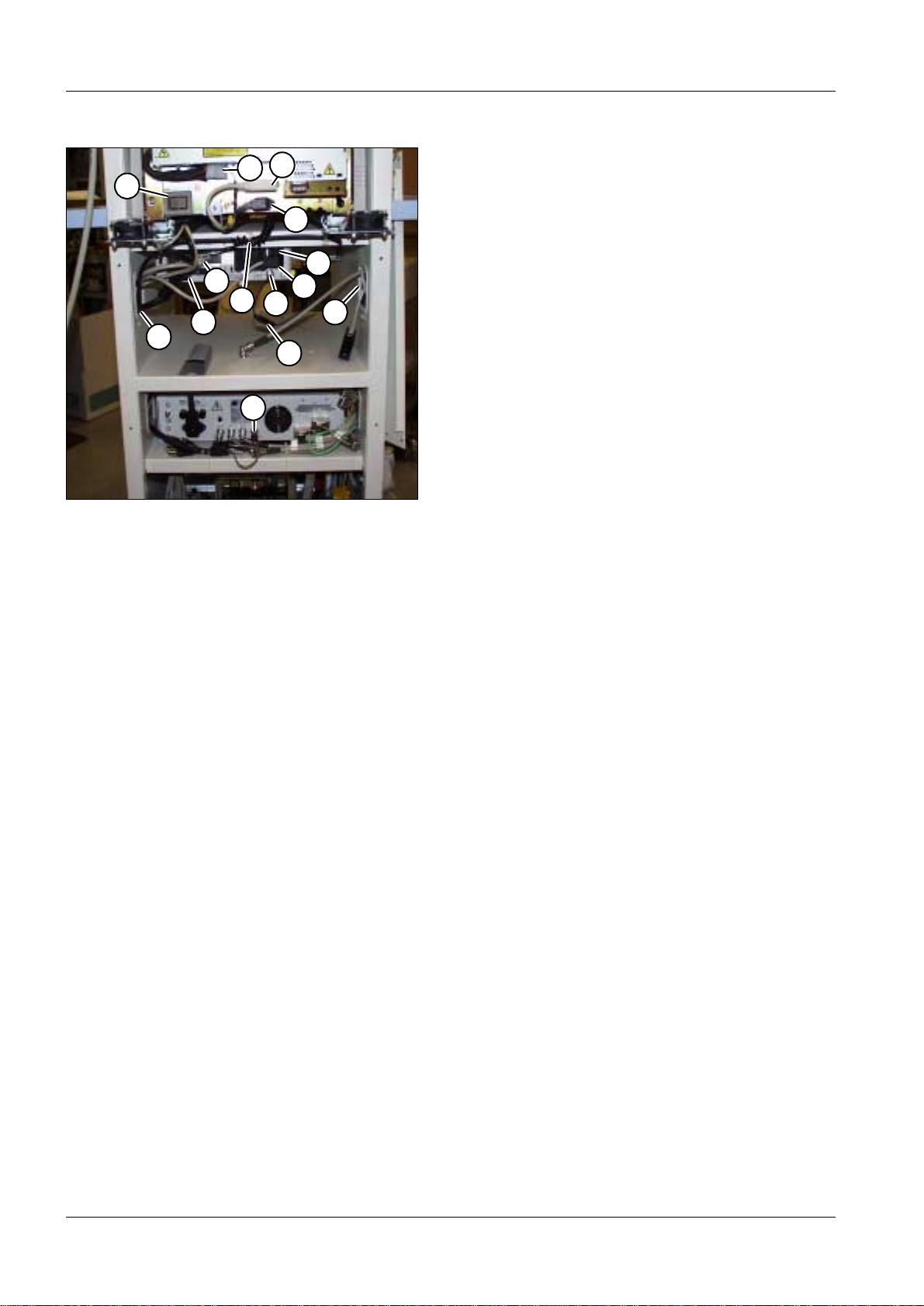

Fig. 6
9
13
14
15
8
10
7
12
2
11 3
4
6

Installation 2 - 5
Siemens AG SPR2-130.814.01 Page 5 of 14 SIREMOBIL Compact
Medical Solutions Rev.01_V 03.01 TD PS 24 System Manual
Wiring the framegrabber 2
•Thepowercableis alreadyinstalledin the monitortrolleyandhas beenconnected.
•Insertthe connectorfromthepowercable inthepower socket ofthe framegrabber
(5/Fig. 6).
•Connect theadapter cable (3.5mm remotejack -BNC connector)from the remote
controlto theBNCsocket"B&W" and lock(6/Fig.6).
•Connect the3.5 mm jackat theother end ofthe adapter cable to the3.5 mm remote
connector(7/Fig.6). (Removetheheatshrinkbefore)
•One end of the printer control cable is already connected to theprinter.The printer
controlcableisfed to the framegrabbervia the powerchain and has a 25-pinSUB-D
connectorat thesecond cableend.
Connectthe 25-pinSUB-D connectorto the "PRINTER"socketof the framegrabber
(10/Fig.6).
Wiring the framegrabber video cable 2
•Connectone end of the video cableto the15-pinSUB-D socket oftheframegrabber
(8/Fig. 6).
•Withnoadditionalvideocomponents present,e.g. a videorecorder:
Runthe other endof the video cablethroughthe duct(14/Fig.6)tothe MEMOSKOP.
PlugtheBNC connector to the"OUT3"socketof theMEMOSKOP and lock.
•Withvideorecorderpresent:
Runthe other endof the video cabletothe video recorder.
•Connectthe BNC connectorto thelooped-throughoutputof thevideorecorderand lock.
•The 75-ohm terminator onthe videorecorder mustbe disconnected orunplugged.
Power switch 2
•Switchon power to the printer(11/Fig.6).
•Switchon power to the framegrabber(12/Fig.6).
•Loadthefilm cassettewith filmscreens and insertin theprinter.
•Additional steps: see Startup section.
The framegrabber is equipped with a 75-ohm terminating resistor
which cannot be disconnected. If additional video components,
e.g. a video printer or video recorder, are present, the framegrab-
ber must always be wired as the last video component.
NOTICE

SIREMOBIL Compact SPR2-130.814.01 Page 6 of 14 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
2 - 6 Installation
Installation when upgrading in the field 2
Replacing fuse F5 2
Requirements
•Thesystemmust be isolatedfrom the power supply.Unplug the powerconnector from
thepowersocket.
•Openthe rear cover ofthemonitor trolley.
Checking or replacing fuse F5 2
•Check thevalue of fuse F5 onboard D50of the ON/OFF assembly(installed in the
bottomshelf ofthemonitortrolley).
•Ifa 4 AT fuse is fitted,replaceitwith the 6.25AT fusesupplied.
•On boardD50, stickthe label (6.25AT) suppliedontopofthe fuse label(4 AT).
•Manuallychangethefuse valueof the F5 fuseto6.25AT in the wiringdiagram.
•Enterthe remark"Condonics printerinstalled"togetherwiththe date and yourinitials.
The system must be isolated from the power supply before begin-
ning work. Unplug the power connector for the system from the
power socket!
WARNING

Installation 2 - 7
Siemens AG SPR2-130.814.01 Page 7 of 14 SIREMOBIL Compact
Medical Solutions Rev.01_V 03.01 TD PS 24 System Manual
Installation of the guide rails, including the fan, and the installation plate
of the framegrabber in the monitor trolley 2
•Remove the dummy covers from thedrill holes(1, 2, 3/Fig. 7).
•Placethe two fan plates(1/Fig.8) on theshelf(4/Fig.8) of the monitortrolley.
Theinstallationholesfor thetwofanplates(1/Fig. 8)are exactly abovethe drillholes
(1/Fig. 7).
•Presstheinstallation plateforthe framegrabber(2/Fig.8) from belowagainstthe shelf
(4/Fig.8).The threadedholesof the installationplateare alsoexactly belowthedrill
holes(1/Fig.7).
•Attachboth fan plates(1/Fig.8) to the installationplate of the framegrabber(2/Fig.8)
withthe 4 screws.Lockwashersare not required,sincethescrewssuppliedarecoated
with Loctite.
•Placethe two guiderails (Fig.9)on the two plates(1/Fig.8).
•Therailscan be pulledouttowards thefront.
•Theattachmentholesoftheguide railsare exactlyabove the threaded holesof the
plates(1/Fig.8).
•Securetheguide railsto the plateswith 8 screws(Fig.9).
•Lockwashersare not required,sinceself-lockingnutsare attachedto the mounting
plate.
•The frontscrew holes can beaccessed bypullingout the rails (Fig.9).
Fig. 7 Fig. 8
A second person is required here.
33
1241
3
1
1
21
2
1
3
NOTICE

SIREMOBIL Compact SPR2-130.814.01 Page 8 of 14 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
2 - 8 Installation
Unpacking the printer 2
•Turnthebox with the printerupsidedownandopenthebottom of the box.
•Removethe foammaterial.
•Removethe plasticbag.
•Unscrewthe wooden base plate.
•Liftthe printercarefullyoutofthe box and placeiton the floorin the uprightposition.
•Turnthetwo transportlocks intoverticalpositionand pullout inverticalposition
(Fig.10).
Unpacking the framegrabber 2
•Open the packaging of the framegrabberfrom thetop.
•Removethe framegrabberand thehand-heldcontrolunit.
•Removethe plasticbag.
Fig. 9 Fig. 10
Keep the two transport locks. If the printer needs to be replaced
or sent in, the transport locks must be re-inserted.
NOTICE

Installation 2 - 9
Siemens AG SPR2-130.814.01 Page 9 of 14 SIREMOBIL Compact
Medical Solutions Rev.01_V 03.01 TD PS 24 System Manual
Installing the framegrabber in the monitor trolley 2
•Remove theframegrabber from the packaging.
•Removethe frontandrearscrews on bothsides of theframegrabbercover(1/Fig.11).
•Insertthe framegrabberfrom the frontin the fixing bracketand securelaterally to the
fixingbracketwith the lockwashersand knurledscrews supplied(1/Fig.12).
•Thefanandthe connectionsof the framegrabberpointto therear.
Fig. 11 Fig. 12
11
11

SIREMOBIL Compact SPR2-130.814.01 Page 10 of 14 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
2 - 10 Installation
Installation of the printer in the monitor trolley 2
•Pullout the twoguiderails completelyto the front.
•Placethe printeron the two guiderails.
•Fig. 13shows the two drawn-out guide rails with theattachedprinter from below.
•Placethe power chain(1/Fig.13)in a semicirclearoundtheanglebracket(2/Fig.13).
•Securethe printerto the railswith the12 screwssupplied.
•The3rearthreadsoneachofthe rails canbeaccessedby pushing theprinterthrough
theopenings (3/Fig.13).
•Pushtheprinterallthe way intothemonitor trolleyand at thesame time guide thepower
chainthrough totherear.
Attaching the power chain 2
•Attachthe bracket(2/Fig.14)to theprinterwithtwoscrews.
•Unscrewthe two screws(1/Fig.14)from the angle bracket(2/Fig.14).
•Attachthe power chain(3/Fig.14) to the bracket(2/Fig.14) withthetwoscrews
(1/Fig.14).
Fig. 13 Fig. 14
One person should hold the printer to make sure it does not fall,
while a second person tightens the screws.
2
3
1
3
1
2
3
NOTICE

Installation 2 - 11
Siemens AG SPR2-130.814.01 Page 11 of 14 SIREMOBIL Compact
Medical Solutions Rev.01_V 03.01 TD PS 24 System Manual
Wiring the hand-held control unit 2
•Guidetheconnectorof thehand-heldcontrolunit from thefrontbetween theleft
attachment rail and the powerchain (asseen from thefront) through to the rear.
•Attachthe connectorofthe hand-heldcontrolunit to the 9-pinSUB-D "HAND CTRL"
socketand secure withscrews.
•Run the cableof thehand-held control unitto the cableholder (1/Fig. 15) andsecure it.
Wiring the printer 2
•Runthe endofthe power cablewiththe free cableends fromthepowerchain to the
lateralduct(13/Fig.15) up to theON/OFFassembly.
•Connectthe two ends (bnandbl)of the power cabletoterminalblocksX2.1 and X2.2.
•Connectthe protectiveconductor(ye/gn)of the powercableto the protectiveconductor
terminal.
•Insertthe connectorfromthepowercable inthe power socket ofthe printer(2/Fig.15).
•Insertthe controlcablein the printersocketandlock mechanically(3/Fig.15).
Wiring the fans 2
•Removethe cover (1Fig.16) (3 screws).
•Insertthe powersupply for thefans in thesocket(4/Fig.15).
•Reattachthecover(1/Fig.16).
•Pluginthe two connectorsof the fanwires to thecorrespondingconnectors(2/Fig.16).
•Lockthefan wireswiththe cableholders (3/Fig.16).
Fig. 15 Fig. 16
1
23
9
13
14
15
8
10
7
12
2
11 3
4
6

SIREMOBIL Compact SPR2-130.814.01 Page 12 of 14 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
2 - 12 Installation
Wiring the framegrabber 2
•Runtheendof the power cablewiththe free cableends fromtheframegrabberto the
lateralduct(13/Fig.15) up to the ON/OFFassembly.
•Connectthe two ends (bnandbl)of the powercableto terminalblocks X2.1 and X2.2.
•Connectthe protectiveconductor(ye/gn) ofthe powercable to the protectiveconductor
terminal.
•Insertthe connectorfrom thepower cable in thepower socketoftheframegrabber
(5/Fig.15).
•Runtheendof the remotecable(7/Fig. 15)from the framegrabberto the MEMOSKOP.
•Connect the9-pin SUB-Dconnectorto the MEMOSKOP "Printer"socket and secure
withscrews.
•Connect theadapter cable for the remote control (3.5mm jack - BNC connector) tothe
"B&W"BNCsocketand lock (6/Fig.15).
•Connect the3.5 mm jackat theother end ofthe adaptercable to the 3.5 mm remote
connector(7/Fig.15).Remove firstthe heatshrink.
•Oneend of the printercontrolcable is alreadyconnectedtotheprinter.The printer
controlcableisfed to the framegrabberviathepower chain and hasa 25-pin SUB-D
connectorat thesecondcable end.
Connectthe 25-pinSUB-Dconnectorto the"Printer"socketof theframegrabber
(10/Fig.15).
Wiring of the framegrabber video cable 2
•Connectone end of the video cableto the 15-pinSUB-Dsocket"Video In"of the
framegrabber(8/Fig.15).
•Withno additionalvideo componentspresent,e.g.a videorecorder:
Runtheotherend of thevideocable throughthe rightduct(14/Fig.15) to the
MEMOSKOP. Plug the BNC connectorto the "OUT3"socketof the MEMOSKOP and
lock.
•Withvideorecorderor vidoeprinterpresent:
Runtheotherend of the videocableto the video recorderor videoprinter.
•Connectthe BNC connectortothelooped-throughoutputof thevideo recorderor
vidoeprinter andlock.
•The 75-ohm terminator onthe videorecorder orvideo printer mustbe disconnected or
unplugged.
The framegrabber is equipped with a 75-ohm terminating resistor
which cannot be disconnected. If additional video components,
e.g. a video printer or video recorder, are present, the framegrab-
ber must always be wired as the last video component.
NOTICE

Installation 2 - 13
Siemens AG SPR2-130.814.01 Page 13 of 14 SIREMOBIL Compact
Medical Solutions Rev.01_V 03.01 TD PS 24 System Manual
Power switch 2
•Switchon power to the printer(11/Fig.15).
•Switchon power to the framegrabber(12/Fig.15).
•Loadthefilm cassettewithfilmscreensand inserttotheprinter.
Replacing the rear cover of the monitor trolley 2
•Unscrew theprotectiveconductorof theexistingrear coverof themonitor trolley.
•Unpackthe new rear cover.
•Screwtheprotectiveconductoronto the new rear cover.
•Ifthenew rearcoverdoes notcontaincableholders,unscrewthecableholdersoftheold
rearcover and mount on new rearcover.

SIREMOBIL Compact SPR2-130.814.01 Page 14 of 14 Siemens AG
System Manual Rev. 01 03.01 TD PS 24 Medical Solutions
2 - 14 Installation
This page intentionally left blank.
