Siemens 5TC1 series User manual

DELTA miro
Flush-Type-Radio
5TC1 …
Operating and installation instructions
12/2008
251653.41.19 DS02
GB

1
GB
Contents
1 General ............................................ 2
1.1 Application.............................................2
1.2 Guarantee conditions..............................3
1.3 Safety....................................................4
2 Description ...................................... 5
2.1 Technical specifications ...........................5
2.2 Layout and symbols................................6
2.3 Extension function..................................7
2.4 Troubleshooting......................................8
3 Assembly and installation................ 9
3.1 Step 1 ...................................................9
3.2 Step 2 ...................................................10
3.3 Step 3 ...................................................11
4 Operation and functions ................. 12
4.1 Radio mode(radioON) ...........................12
Station memory......................................13
Setting the alarm....................................14
4.2 Alarm mode ...........................................15
4.3 Idlestate(radioOFF)..............................16
4.4 Activating the sleep timer........................17
    Operatingthesleeptimer........................18
5 Setup menu ..................................... 19
5.1 Activating the Setup menu ......................19
5.2 Setting the time......................................20
5.3 Setting the contrast ................................21
5.4 Brightness in radio mode.........................22
5.5 Reception setting....................................23
5.6 Configuring the extension .......................24

2
GB
General
1.1 Application
The radio is used for example in private rooms (bathroom, kitchen, bedroom) or as a fixture in a hotel room.
All functions of the radio can be easily set by pressing buttons. Settings and current information are shown in the lit
display (e.g. time, radio functions and alarm function).
•FM-RDSradio(87.5to108.0MHz) •Extensionfunction
•Stationmemory(6stations) •Verticalorhorizontalinstallationwithrotatabledisplayunit
•Timedisplay •2flushboxesnecessary
•Alarmfunction •230V~/50Hzconnectionnecessary
•Sleeptimer

3
GB
1.2 Guarantee conditions
These operating instructions are an integral part of both the device and our terms of warranty. They must be furnished
to the user. The technical design of the appliance is subject to change without prior notification. SIEMENS products are
manufactured and quality-checked with the latest technology according to applicable national and international regu-
lations. Nevertheless, if a product should exhibit a defect, SIEMENS warrants to make remedy as follows (regardless
of any claims against the dealer to which the end-user may be entitled as a result of the sales transaction):
In the event of a justified and properly-established claim, SIEMENS shall exercise its prerogative to either repair or
replace the defective device. Further claims or liability for consequential damages are explicitly excluded. A justifiable
deficiency is one in which the device exhibits a structural, manufacturing, or material defect that makes it unusable
or substantially impairs its utility at the time it is turned over to the end-user.The warranty does not apply to natural
wear, unintended usage, incorrect connection, device tampering or the effects of external influences. The warranty
period is for 24 months from the date of purchase.
General

4
GB
1.3 Safety
This device is only intended to be used for its stated application. Unauthorised conversions or changes are forbidden!
Disposal of the device must be done in compliance with the laws and standards of the country in which the device
is operated!
CAUTION! Danger of electrical shock! Current-carrying components are present inside the
housing. Contact can lead to personal injury! All work on the mains network and the device
may only be done by an authorised electrician.
•Removepowerfromthedevice.•Checkthatthedeviceispoweredoff.
•Securethedeviceagainstbeingpoweredonagain.•Closethehousingsecurelybeforeapplyingpower.
The following must be observed:
•Prevailingstatutes,standardsandregulations.•Thedevice’soperatinginstructions.
•Stateofthearttechnologyatthetimeofinstallation.•Operatinginstructionscanonlycitegeneralstipulations.
•Thedeviceneedstobeprotectedfromwater These are to be viewed in the context of a specific system.
drips and spray.
General

5
GB
Description
2.1 Technical specifications
Reception frequency 87.5 – 108.0 MHz
Power supply 230V~/50Hz
Own consumption 1.5 W (standby)
Temperature range 0-50 °C
Test specifications EN 55020, EN 55013, EN 60065
Marking CE
Protection class IP 20
Dimensions in mm 161 x 90 x 45

6
GB
Description
321
654 7
Function Symbol
Sleep timer
Radio mode
AlarmON
AlarmOFF
AlarmONwithalarmtime
Setting the alarm
Setup menu
Setting the time
Setting the contrast
Setting the brightness
Reception setting
Configuring the extension
6
7:00

2.2 Layout and symbols
Loudspeaker Display
7ON/OFFbutton
61 –Function buttons

7
GB
Notes: – The extension is preconfigured as a switch (configuration on page 24).
– A motion detector has to be configured as a switch!
N 1 L
L
= Button, switch or
motion detector
2.3 Extension function
The radio can be switched on and off by an extension. An extension can be a button, a switch or a motion detector.
The extension is connected to terminal 1 at the back of the display unit.
Extension Function
Button Press button DTurn radio on/off
Switch SwitchON DTurn radio on
SwitchOFF DTurn radio off
Motion detector Onsignal DTurn radio on
Offsignal DTurn radio off
Description

8
GB
2.4 Troubleshooting
•Theradioreceptioncanbeimpairedbydevicesthatemithigh-frequencysignals
(e.g. network adapter and computer). Keep at least a 0.5 metre distance.
•Checkthesurroundingsoftheradiofordevicesthatmayemitinterferences.
•Checkcircuitbreakerandpowersupply(onlyelectrician).
•Checkconnectionlines(onlyelectrician).
•Installtheradioatalocationwheretheradioreceptionisbetter(onlyelectrician).
Contact
Telephone: ...............+49 (0) 0180 50 50-222
Fax: .........................+49 (0) 0180 50 50-223
Internet: ..................www.siemens.de/delta
Email: ......................[email protected]
Note: Before installation, check whether there is a good radio reception at the installation site!
Description

9
GB
Assembly and installation

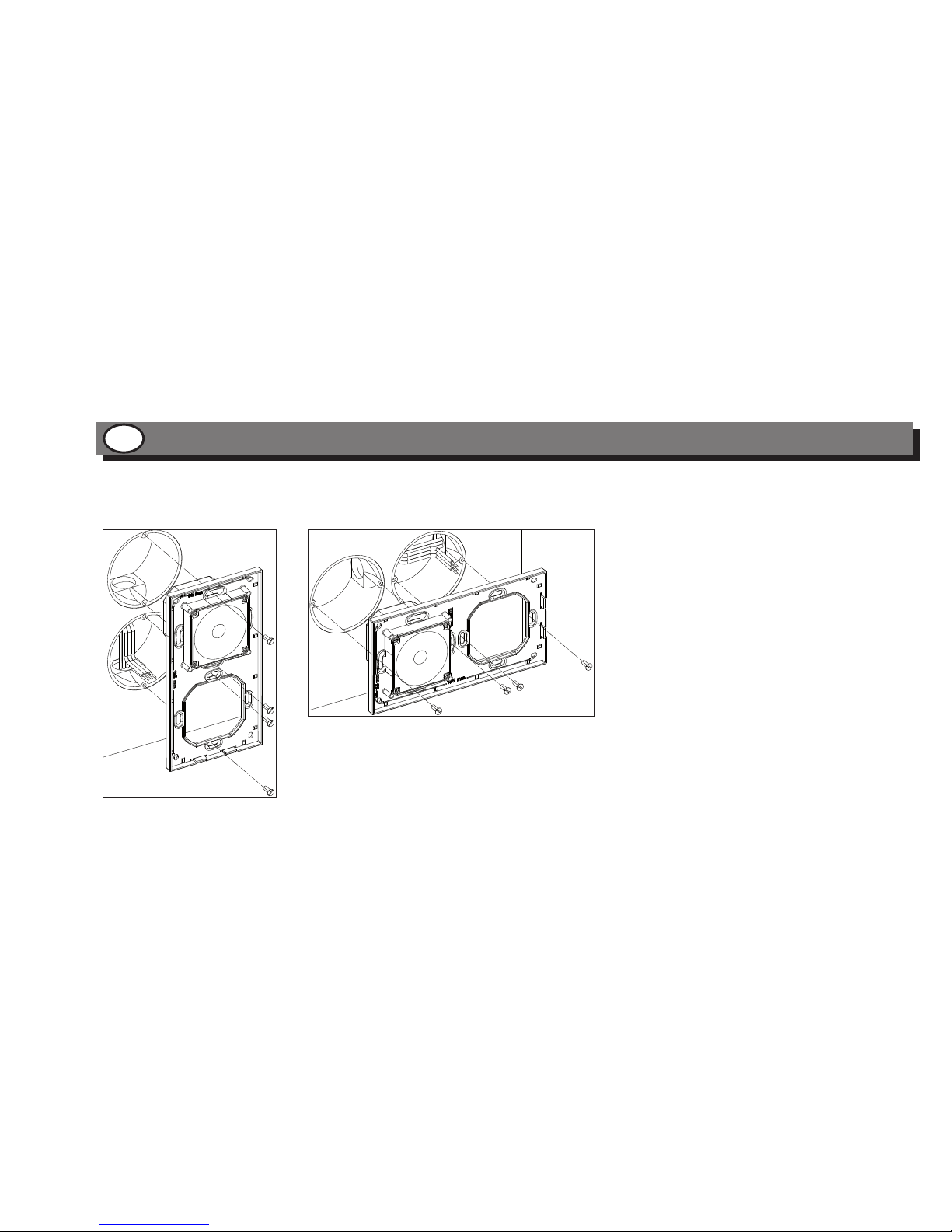

3.1 Step 1
The radio has to be mounted permanently (e.g. in a wall). It is suitable for vertical or horizontal installation because
of the rotatable display unit. Two in-wall installation electrical outlets are needed with 60 mm Ø.
Notes:
– The safety instructions (page 4)
must be observed at installation.
– Before installation, check whether
there is a good radio reception
at the installation site!
• Installin-wallinstallationelectricaloutletsatthesuitablelocationvertically
or horizontally.
• Insertbasewithloudspeakerintotheelectricaloutletandscrewtight.

10
GB
Assembly and installation
3.2 Step 2
• AttachthesupplylinetoterminalL,Nonthebackofthedisplayunit(1).
If desired an extension (button, switch or motion detector) can be attached to terminal 1.
• Insertloudspeakerlineside-wiseintothesocketofthedisplayunit(2).
• Snapdisplayunitintothebase(3).
• Todisassemblethedisplayunit,snapoutthedisplayunitbypressinglightlyandtakeout.
Notes:
– During the installation to the mains
 (230V/50Hz~)theelectricalsystem
has to be without voltage.
– Securethepowerline(230V~/50Hz)
with a circuit breaker (max. 16 A).
– Please note! Ensure phase balance of the
extension!
2
3
N 1 L
N
L
F
230V~/50Hz
1

11
GB
3.3 Step 3
•Snaptheframewiththeloudspeakercoverintothebaseontheside.
•Screwtheframetothebasewiththeenclosedhexagonsocketscrewkey(2mm)
(aligned with the loudspeaker cover).
Assembly and installation

12
GB
Operation and functions
4.1 Radio mode (radio ON)
The display shows the radio station‘s name (or the frequency) and the time. If the transmitter signal is weak,
the display of the station‘s name (RDS signal) can be slightly delayed or fail to appear.



Mode
10:44
1LIVE
1104,7
4
1 32
5 6 7
3
Functions Displays
Press button briey (about 1 sec.) aActivate memory (page 13)
Press button longer (about 8 sec.) aAllocate memory (page 13)
Search downwards for radio station
Search upwards for radio station
Press Mode button aSetting the alarm (page 14)
Volume quieter 
Volume louder 
RadioOFF/ON
2
3
4
5
6
7
1
108.0 - 87.5 MHz
87.5 - 108.0 MHz
1 6
30-1
1-30
-

13
GB
Operation and functions

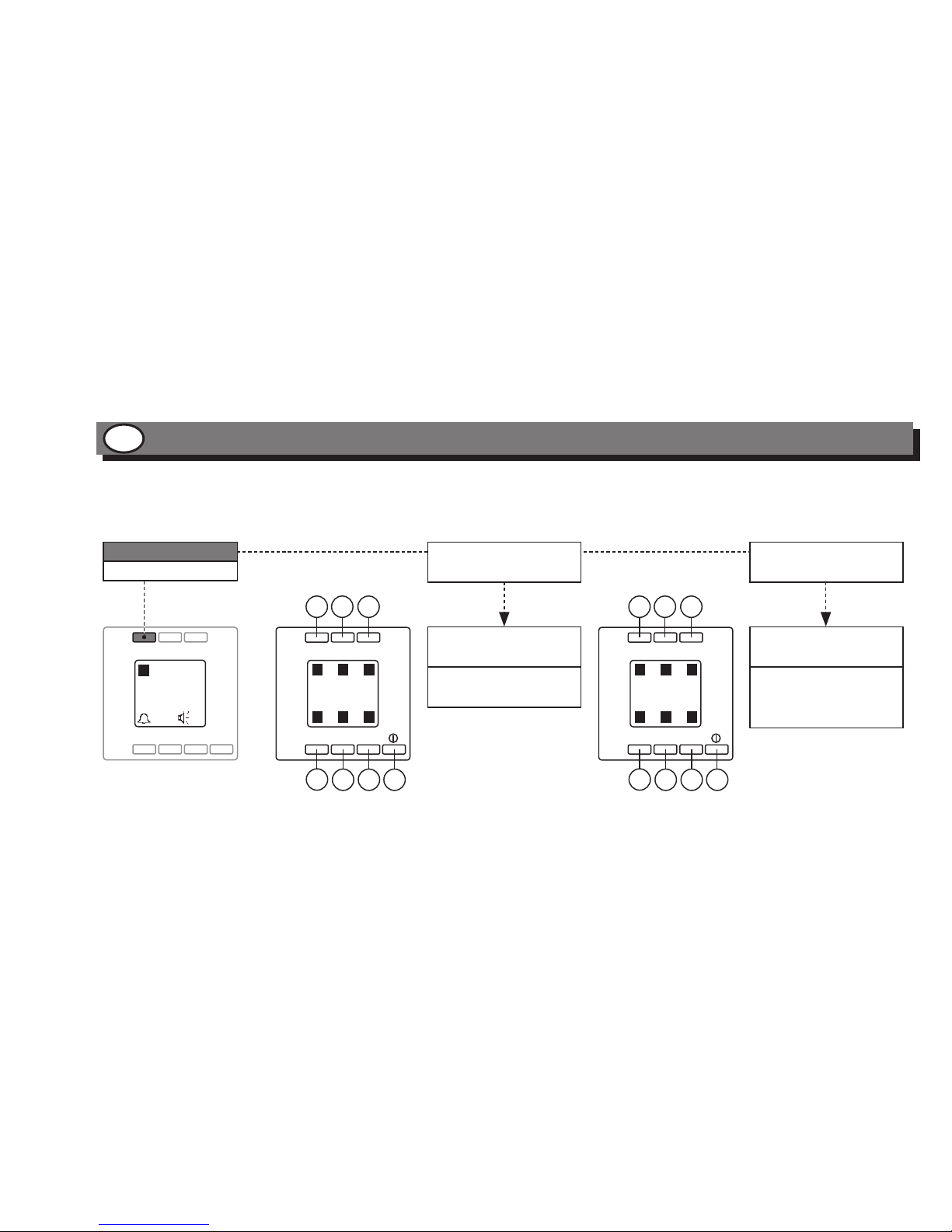

Station memory (in radio mode)
To use this function the radio needs to be turned on (radio mode). Without any activity the radio switches into radio
mode automatically after about 10 seconds.
Press briey
(about 1 sec.)

1104,7
10:44
1LIVE
3
1



Mode
32
45 6 7
1 32
4 65
1



Mode
32
SAVE ?
45 6 7
1 32
4 65
1LIVE
Activate memory
Press button 1-6
Cancel
Press button 7
Allocate memory
Press button 1-6
Cancel without
saving
Press button 7
Press long
(about 8 sec.)
Radio mode
Button 

14
GB
Operation and functions

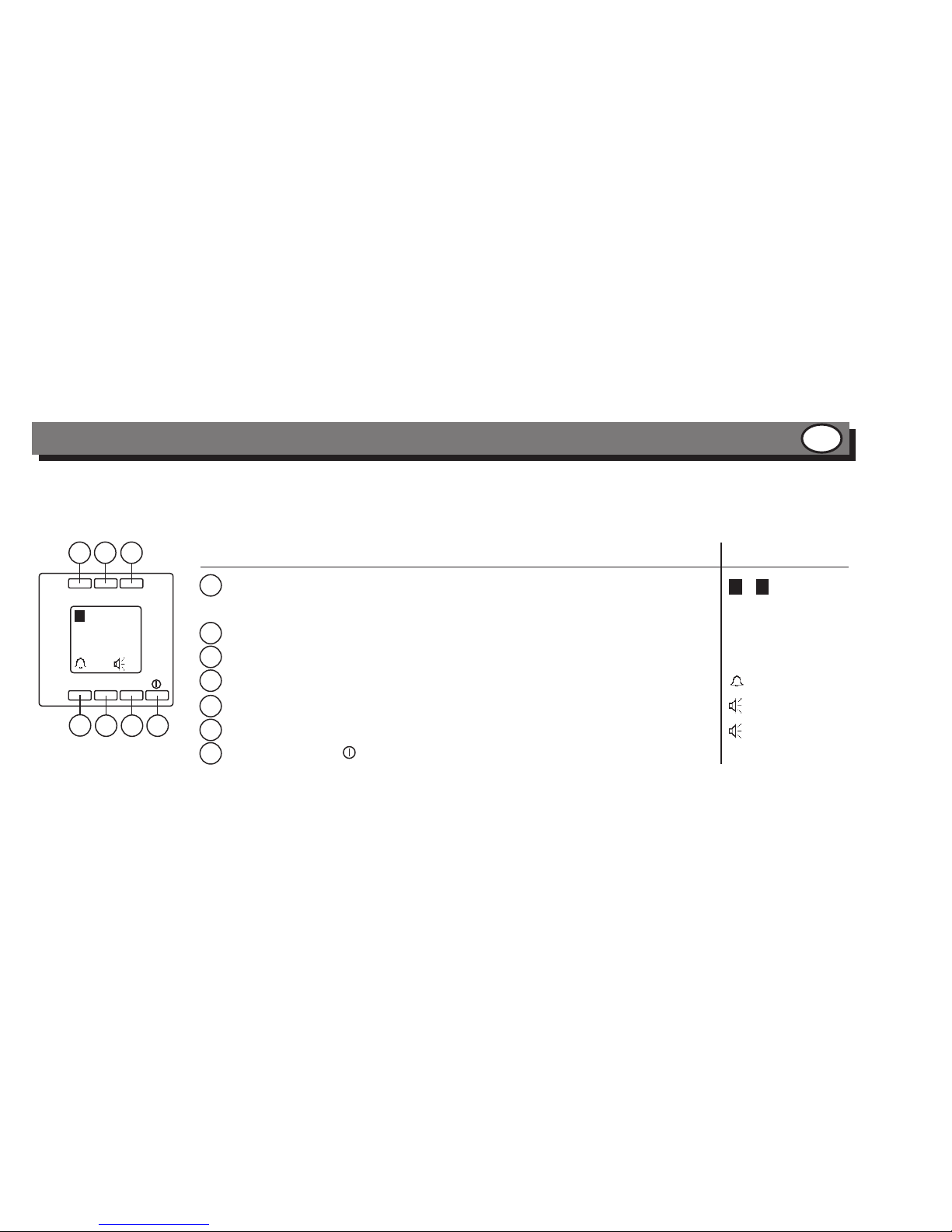

Setting the alarm (in radio mode)
To use this function the radio needs to be turned on (radio mode). Without any activity the radio switches into radio
mode automatically after about 10 seconds.
h/m – +
8:00



Mode
1 32
46

5
00
Mode
1104,7
10:44
1LIVE
3
Press aSetting the alarm
Radio mode
Mode button

:00 8:
:45
:15
9
7
008
,
,
Functions Displays
Select hour or minute 
Alarm time backwards 
Alarm time forwards 
Press Mode button aRadio mode
AlarmOFF/ON, 
Cancel
1
2
3
5
4
6

15
GB
Operation and functions
Functions Displays
Activate snooze function (10 Min.) ,,
Press Mode button a RadioONandalarmmodeOFF
Volume quieter 
Volume louder 
RadioOFFandalarmmodeON
2
3
4
5
1SNOOZE
30-1
1-30

4.2 Alarm mode
The alarm mode last 1 hour.If the snooze function is activated, the alarm mode is switched off for 10 minutes.
After that the alarm mode is switched on again.



Mode
SNOOZE
10:44
1LIVE
23 4 5
3
1

Note: Press the button and button (3, 4) to set the volume of the radios for the alarm mode.

16
GB
Operation and functions

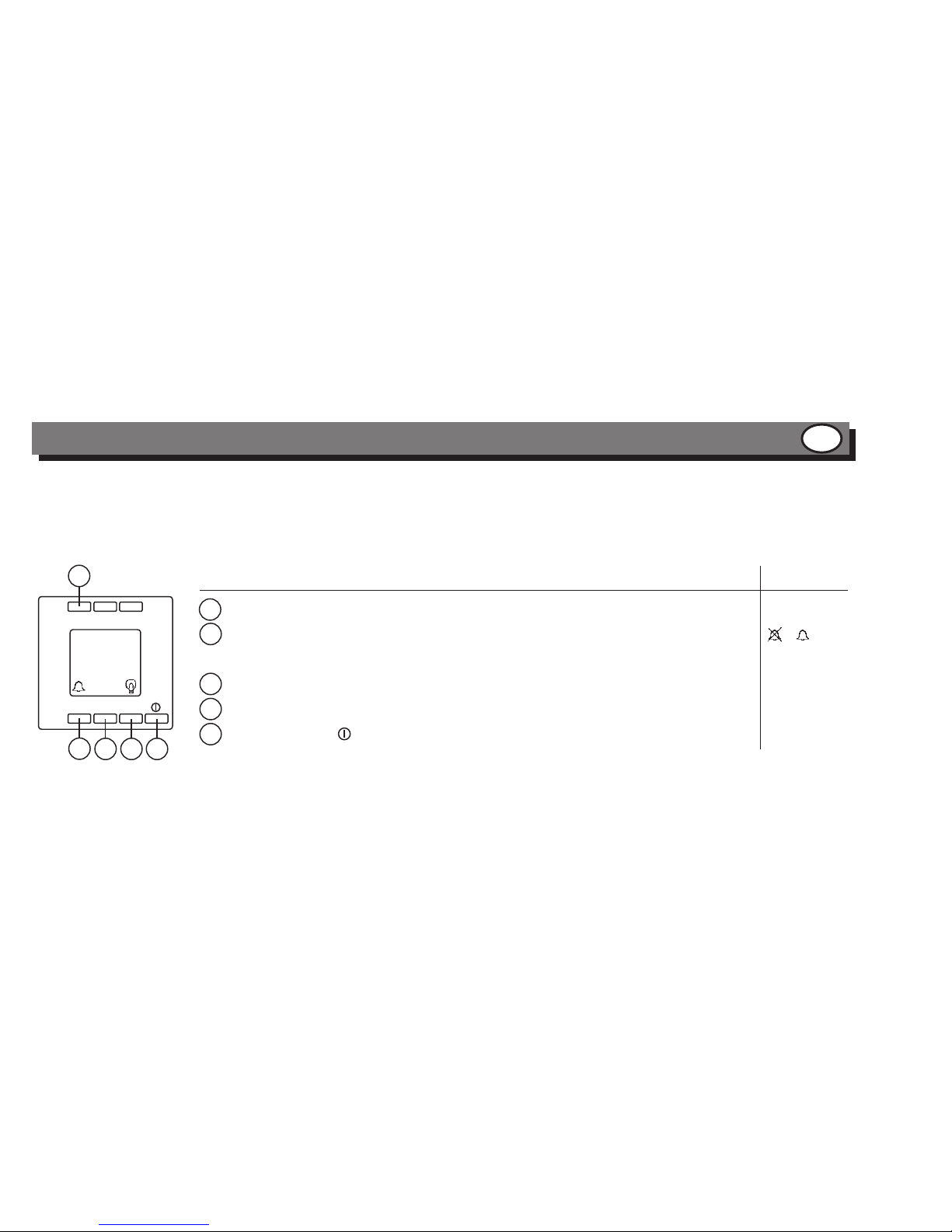

4.3 Idle state (radio OFF)
In idle state, a RDS channel search takes place for an automatic setting of the clock and summer/winter time. The
updating of the time by RDS signal may take various minutes. When the RDS signal is low or the radio station lies in
another time zone, set the clock manually (page 20).
Functions Displays
Activate sleep timer (Page 17)
PressModebuttonbriey(about1 sec.) aAlarmOFF/ONwithalarmtime
Press Mode button longer (about 8 sec.) a Setup menu (Page 19)
Brightness of the display during idle state darker 
Brightness of the display during idle state lighter 
RadioON/OFF
7:00
10:44
6



Mode
23 4 5
1
1
2
3
4
5
7-0
0-7
6
7:00
,

17
GB
Operation and functions
Functions Displays
Select sleep time (minutes)
Cancel
5, 10, 15, 30, 60, 90
4.4 Activating the sleep timer (in idle state)
To use this function the radio needs to be turned off (idle state). The radio is switched on for the duration of the sleep
time. Without any activity the radio switches into idle state automatically after about 10 seconds.
1 6
-
7
1



Mode
32
Sleep timer
45 6 7
515
10
30 9060
PressaActivating the sleep timer

7:00
10:44
6
Idle state
Button 

18
GB
Operation and functions
Operating the sleep timer
Note: After the end of the sleep time the radio turns itself off.
30 min
1



Mode
1104,7
32
10:44
45 6 7
3
6
Functions Displays
Press button briey (about 1 sec.) aActivate memory (page 13)
Press button longer (about 8 sec.) aAllocate memory (page 13)
Search downwards for radio station
Search upwards for radio station
Press Mode button aSetting the alarm (page 14)
Volume quieter 
Volume louder 
SleeptimerOFF
2
3
4
5
6
7
1
108.0 - 87.5 MHz
87.5 - 108.0 MHz
1 6
30-1
1-30
-
