en ,QVWUXFWLRQ0DQXDODQG,QVWDOODWLRQ,QVWUXFWLRQV
Washer dryer
WN44G290GB

2
Your new washer dryer
You have chosen a Siemens washer
dryer.
Please take a few minutes to read and
become familiar with the advantages of
your washer dryer.
To meet the high quality demands
required by Siemens, every washer dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.siemens-
home.bsh-group.com or contact our
after-sales service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washer dryer.
Display rules
:Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■/ -
Lists are represented by a small box or
a dash.

en
3
Contents enInstruction Manual and Installation Instructions
8Intended use. . . . . . . . . . . . . . . . .4
(Safety instructions . . . . . . . . . . .5
Children/people/pets . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 10
7Environmental protection . . . . .12
Packaging/used appliance . . . . . . . . 12
Save energy and conserve
resources . . . . . . . . . . . . . . . . . . . . . 12
Energy saving mode. . . . . . . . . . . . . 12
5Positioning and connecting . . .13
Standard accessories . . . . . . . . . . . . 13
Safety instructions. . . . . . . . . . . . . . . 13
Installation surface . . . . . . . . . . . . . . 14
Installation on a base or a wooden
joist floor. . . . . . . . . . . . . . . . . . . . . . 14
Installing the appliance in a
kitchenette . . . . . . . . . . . . . . . . . . . . 14
Removing the transport locks. . . . . . 14
Removing the support struts. . . . . . . 16
Hose and cable lengths . . . . . . . . . . 16
Water inlet. . . . . . . . . . . . . . . . . . . . . 17
Water outlet . . . . . . . . . . . . . . . . . . . 18
Alignment . . . . . . . . . . . . . . . . . . . . . 19
Electrical connection. . . . . . . . . . . . . 19
Before washing for the first time . . . . 20
Transportation. . . . . . . . . . . . . . . . . . 20
*Getting to know the
appliance . . . . . . . . . . . . . . . . . .22
Appliance . . . . . . . . . . . . . . . . . . . . . 22
Control panel . . . . . . . . . . . . . . . . . . 23
Display panel . . . . . . . . . . . . . . . . . . 24
ZLaundry. . . . . . . . . . . . . . . . . . . .25
Preparing laundry for washing . . . . . 25
Preparing laundry for drying . . . . . . . 26
Starching . . . . . . . . . . . . . . . . . . . . . 26
Dyeing/bleaching . . . . . . . . . . . . . . . 26
CDetergents and care
products . . . . . . . . . . . . . . . . . . . 27
Detergent recommendation. . . . . . . .27
POverview of programmes . . . . . 28
Selectable programme . . . . . . . . . . .28
Drying table . . . . . . . . . . . . . . . . . . . .32
0Programme default settings. . . 33
Temp.°C. . . . . . . . . . . . . . . . . . . . . .33
Spin Speed. . . . . . . . . . . . . . . . . . . .33
Ready in/Time Dry . . . . . . . . . . . . . .33
\Additional programme
settings. . . . . . . . . . . . . . . . . . . . 34
Drying Aim Ô . . . . . . . . . . . . . . . . .34
Stains ã. . . . . . . . . . . . . . . . . . . . . .34
Prewash . . . . . . . . . . . . . . . . . . . . . .35
Less Ironing . . . . . . . . . . . . . . . . . . .35
varioSpeed . . . . . . . . . . . . . . . . . . . .35
1Operating the appliance . . . . . . 35
Preparing the appliance . . . . . . . . . .35
Select programme/switch on the
appliance. . . . . . . . . . . . . . . . . . . . . .36
Placing laundry into the drum . . . . . .36
Dosing and adding detergent and
care products . . . . . . . . . . . . . . . . . .36
Starting the programme . . . . . . . . . .38
Childproof lock . . . . . . . . . . . . . . . . .38
Adding/removing laundry . . . . . . . . .38
Changing the programme . . . . . . . . .38
Cancel the programme . . . . . . . . . . .39
Programme end . . . . . . . . . . . . . . . .39
Removing laundry/switching off the
appliance. . . . . . . . . . . . . . . . . . . . . .39
QAppliance settings . . . . . . . . . . 40
HSensors . . . . . . . . . . . . . . . . . . . 40
Unbalanced load detection system . .40

en Intended use
4
2Cleaning and maintenance . . . 41
Appliance housing/control panel. . . 41
Drum . . . . . . . . . . . . . . . . . . . . . . . . 41
Descaling. . . . . . . . . . . . . . . . . . . . . 41
Emptying the detergent draw,
cleaning the detergent drawer and
its housing . . . . . . . . . . . . . . . . . . . . 41
Drain pump is blocked . . . . . . . . . . 42
The drain hose at the siphon is
blocked . . . . . . . . . . . . . . . . . . . . . . 43
Filter in the water supply is
blocked . . . . . . . . . . . . . . . . . . . . . . 44
3Faults and what to do about
them . . . . . . . . . . . . . . . . . . . . . 45
Emergency release . . . . . . . . . . . . . 45
Information on the display panel . . . 45
Faults and what to do about them . . 47
4Customer Service . . . . . . . . . . . 51
Product number (E-Nr.) and
production number (FD) . . . . . . . . . 51
[Consumption values . . . . . . . . 52
JTechnical data. . . . . . . . . . . . . . 53
rAqua-Stop warranty . . . . . . . . . 53
8Intended use
Intendeduse ■This appliance is intended for private
domestic use only.
■Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■This appliance must only be used for
washing domestic laundry,
consisting of machine-washable
items and hand-washable woollens
(see label on item). Using the
appliance for any other purpose is
outside of the scope of its intended
application and is forbidden.
■This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■This appliance is suitable for
operation with mains water and
commercially available detergents
and care products (must be suitable
for use in washing machines).
■This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.

Safety instructions en
5
(Safety instructions
Safetyinstructions The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■Children must not play with
this appliance.
■Do not allow children to
clean or maintain this
appliance unsupervised.
■Keep children under 3 years
and pets away from this
appliance.
■Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.

en Safety instructions
6
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a
circuit that is regularly
switched on and off by a
utility.
■The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■The installation must have an
adequate cross section.
■The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.

Safety instructions en
7
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
:Warning
Risk of injury!
■The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Caution!
Material damage/damage to
the appliance
■If the water pressure is too
high or too low, the
appliance may not be able to
operate properly, and it may
also result in material
damage or damage to the
appliance.
Make sure that the water
pressure in the water supply
facility is at least
100 kPa (1 bar), and does
not exceed
1000 kPa (10 bar).
Material damage/damage to the appliance

en Safety instructions
8
■If the water hoses are altered
or damaged, this may result
in material damage or
damage to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■The use of hoses supplied
by other brands to connect
to the water supply may
result in material damage or
damage to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
■The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
■Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■Laundry that has been
pretreated with cleaning
agents that contain solvents,
e.g. stain remover/cleaning
solvent, may cause an
explosion in the drum.
Rinse the laundry thoroughly
with water before washing it
in the machine.
Risk of explosions/fire!

Safety instructions en
9
■Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
:Warning
Risk of fire/material damage/
damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.

en Safety instructions
10
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. If accidentally
swallowed, seek medical
advice.
Caution!
Material damage/damage to
the appliance
■If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs.
Material damage/damage to the appliance
■Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■Never take hold of the mains
plug with wet hands.
■When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■Do not make any technical
modifications to the
appliance or its features.

Safety instructions en
11
■Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■Do not allow these agents to
come into contact with the
surfaces of the appliance.
■Clean the appliance with
nothing but water and a soft,
damp cloth.
■Remove any detergent,
spray or other residues
immediately.

en Environmental protection
12
7Environmental
protection
Environmentalprotecti on Packaging/used appliance
Save energy and conserve
resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programmes with low
temperatures and longer wash times
and use maximum load capacity
~Page 28.
■Energy consumption and water
consumption is most efficient.
Use the economy programme settings.
■If you adjust the programme settings
for a programme, the display shows
the expected consumption.
Add ~Page 27 detergent based on
the laundry’s degree of soiling.
■For light to normal soiling, a smaller
amount of detergent is sufficient.
Observe the dosage
recommendation from the detergent
manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
■At low temperatures, the appliance
consumes less energy. For light to
normal soiling, lower temperatures
than indicated on the care label are
also sufficient.
Set the maximum spin speed if you
want to dry the laundry in a tumble dryer
afterwards.
■The drier the laundry, the shorter the
programme duration when drying
which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in the
laundry and increases the volume of
the spin noise.
Wash the laundry without prewash.
■Washing with prewash increases the
programme duration and increases
energy and water consumption.
The appliance has a continuous
automatic load adjustment function.
■Depending on the type of fabric and
load capacity, the continuous
automatic load adjustment function
optimally adjusts the water
consumption and programme
duration.
Energy saving mode
If the appliance is not operated for a
prolonged period (approx. 5 minutes), it
automatically switches to energy-saving
mode, the display panel lighting goes
out before the programme starts and
after the programme has ended, À
flashes. Touch any area of display panel
to activate the display backlighting.
energy saving mode is not be activated
when the programme is running.
)Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.

Positioning and connecting en
13
5Positioning and
connecting
Positioningandconnecti ng Standard accessories
Note: Check the appliance for transport
damage. Never use a damaged
appliance. If you have any complaints,
contact the dealer from whom you
purchased the appliance or our
Customer Service.
In addition, a hose clamp (24 - 40 mm
diameter, available from specialist
retailers) is required to connect the
water outlet hose to a siphon.
Useful tool
■Spirit level for aligning
■Wrench with:
– WAF13 for loosening the
transport braces and
– WAF17 for aligning the appliance
feet
Safety instructions
:Warning
Risk of injury!
■The appliance is very heavy.
Be careful when lifting/transporting
the appliance.
■When the appliance is lifted by its
protruding parts (e.g. the appliance
door), the components may break
off and cause injuries.
Do not lift the appliance by
protruding parts.

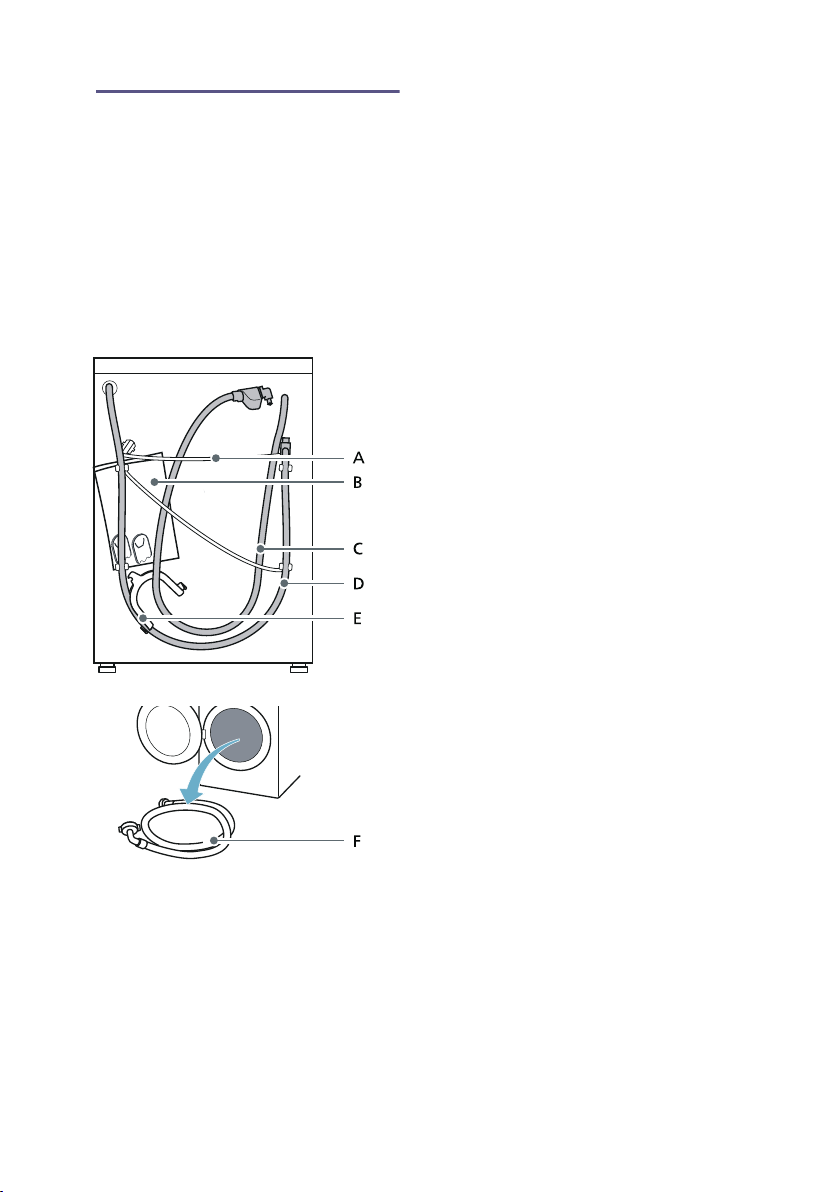

A Mains lead
B Bag:
■Installation and operating
instructions
■Customer Service location
directory*
■Warranty*
■Supplementary sheet for the
installation and operating
instructions*
■Cover caps for openings after
the transport braces have
been removed
■Home Connect Installation
Guides*
C Water inlet hose on aquaStop
models
D Water outlet hose
E Elbow for securing the water
outlet hose*
F Cold water inlet hose on
Standard/Aqua-Secure models
* Depending on the model

en Positioning and connecting
14
■If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the appliance in areas
exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■If in doubt, have the appliance
connected by a specialist.
Installation surface
Note: The appliance must be stable
aligned so that it does not move
around.
■The installation surface must be firm
and level.
■Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The appliance may "wander" and tip/
topple from the base when spinning.
The feet of the appliance must be
secured with holding brackets.
Order no. WMZ 2200, WX 975600,
CZ 110600, Z 7080X0.
Note: On wooden joist floors, install the
appliance:
■In a corner, if possible,
■On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Installing the appliance in a
kitchenette
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not remove the appliance covering
plate.
Notes
■Recess width of 60 cm required.
■Only install the appliance
underneath a continuous worktop
that is securely connected to
adjacent cabinets.
Removing the transport locks
Caution!
Damage to the appliance
■The appliance is secured for
transportation using transport locks.
If the transport locks are not
removed, the appliance may
become damaged when it is
operated.
Before using the appliance for the
first time, make sure that you
completely remove all four transport
locks. Keep the locks in a safe
place.
■To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.

Positioning and connecting en
15
Note: Keep the screws and sleeves in
a safe place.

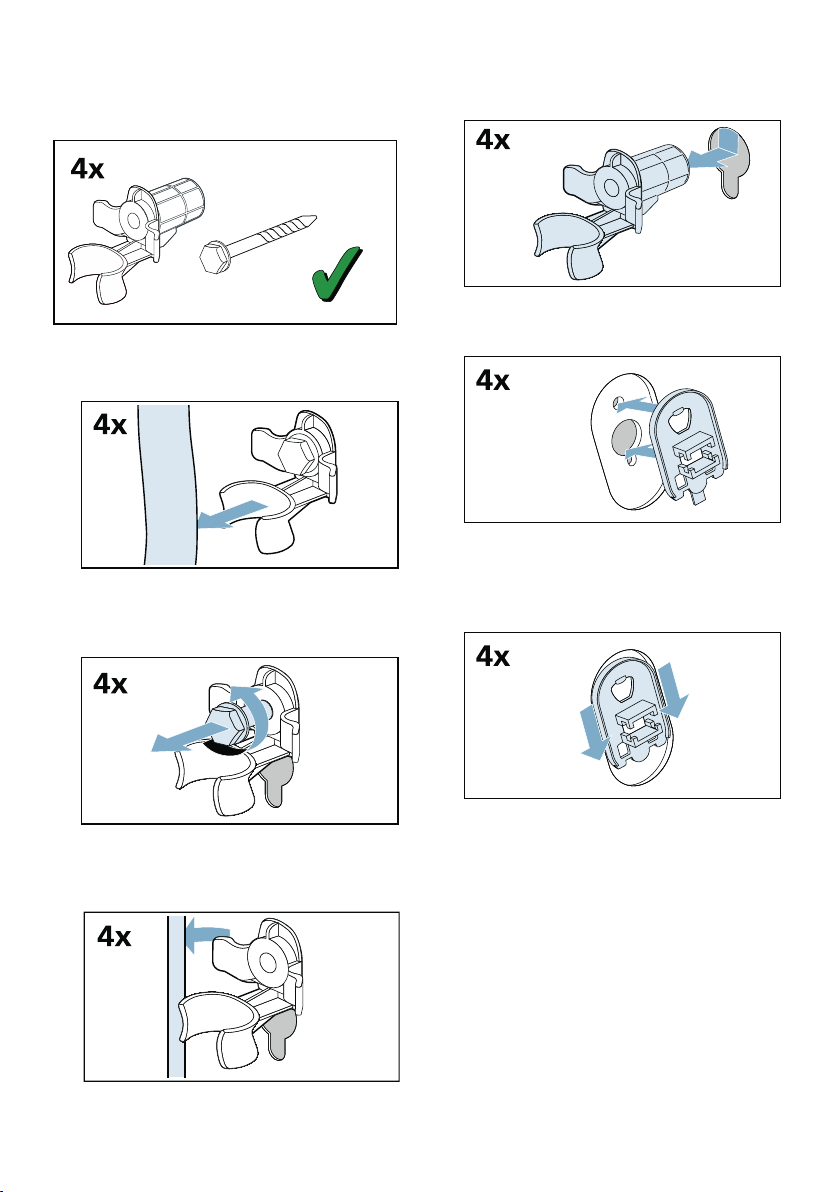

1. Take the hoses out of the holders.
2. Unscrew and remove all four
transport brace screws.
a) Remove the mains cable from the
holders.
b) Remove the sleeves.
3. Fit the covers.
4. Lock the covers firmly in place by
applying pressure to the snap-in
hooks.

en Positioning and connecting
16
Removing the support struts
1. Unscrew and remove all screws in
the vertical transport struts.
2. Remove the transport struts.
3. Undo and remove the screws on the
horizontal transport strut.
4. Remove the transport strut.
Hose and cable lengths
Connection on left side
or
Connection on right side
Tip: The following are available from
specialist dealers/the after-sales
service:
■An extension for Aqua-Stop or cold
water supply hose (approx. 2.50 m);
order no. WZ10131
■A longer supply hose (approx.
2.20 m) for standard model.
7
7
(~ 130 cm
0~ 150 cm
8~ 90 cm
@60 cm ~ 100 cm
(~ 85 cm
0~ 195 cm
8~ 135 cm
@60 cm ~ 100 cm



#



#

Positioning and connecting en
17
Water inlet
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve* in water (it contains an electric
valve).
* Depending on the model
Observe the following when connecting
the appliance:
Notes
■Only operate the appliance using
cold mains water.
■Do not connect the appliance to the
mixer tap of an unpressurised hot-
water boiler.
■Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may be
damaged.
Optimum water pressure in the supply
network
At least 100 kPa (1 bar)
Maximum 1000 kPa (10 bar)
When the tap is open, the water flow is
at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Connection

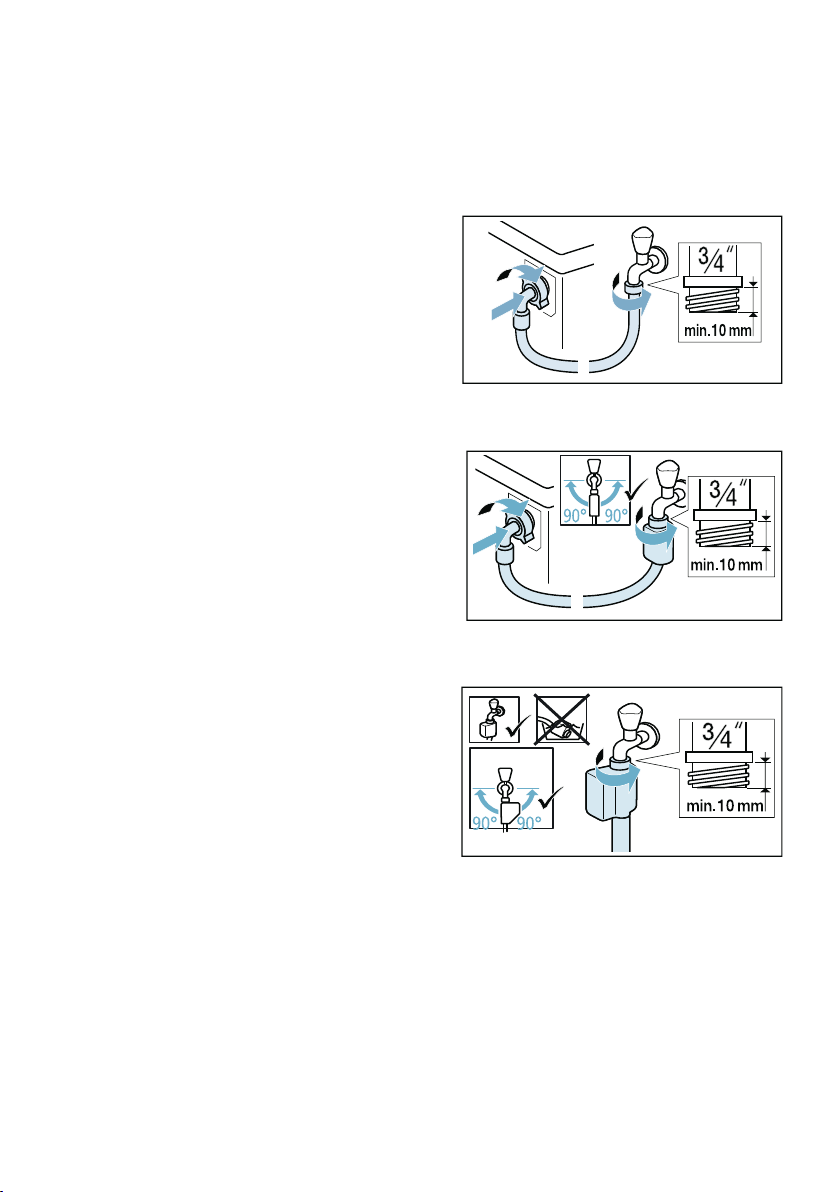

1. Connect the water supply hose to
the water tap (¾" = 26.4 mm) and to
the appliance:
– Model: Standard
– Model: AquaSecure
– Model: Aqua-Stop
Tip: Connect also an external water
filter (depending on the model)
between water supply hose and tap.
The filter filters dirt particles out of the
water.
Water filter must be cleaned regularly
to remove contaminants. This will
prevent blockages. See also ~
separate installation and cleaning
instruction for water filter.

en Positioning and connecting
18
2. Open the water tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
Water outlet
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
(e.g. when draining hot water into a
washbasin).
Do not reach into the hot water.
Caution!
Water damage
When water is being pumped away, the
outlet hose is under water pressure and
may slip out of the wash basin or
connection point.
Secure the drain hose so that it cannot
slip out.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is immersed
in the drained water, water may be
sucked back into the appliance and
may damage the appliance/fabrics.
Make sure that:
■The plug does not block drainage
from the washbasin.
■The end of the drain hose is not
immersed in the drained water.
■The water drains away quickly
enough.
Note: Do not kink the water drain hose
or put strain on it lengthways.

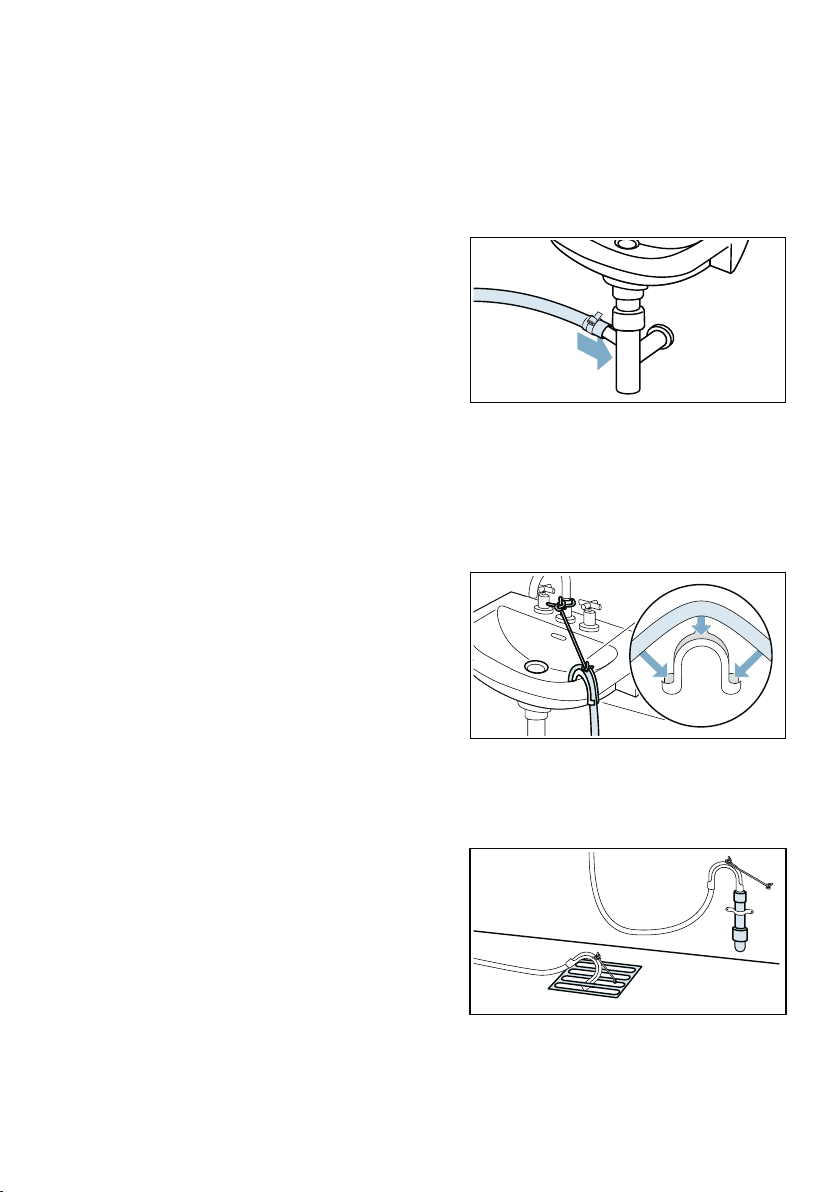

Connection
■Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24 - 40 mm (available
from specialist dealers).
■Drainage into a washbasin
Secure the outlet hose so that it
cannot slip out.
Elbow available from after-sales
service:
Individual part number 00655300
■Drainage into a plastic pipe with
rubber bushing or into a drainage
pit
Note: The plastic pipe is not
standard accessory, available from
specialist dealers.

Positioning and connecting en
19
Alignment
Level the appliance using a spirit level.
Incorrect levelling may result in intense
noise, vibrations and "wandering".
1. Loosen the lock nuts using a wrench,
by turning it in a clockwise direction.
2. Check the alignment of the appliance
with a spirit level, and adjust it if
necessary. Change the height by
turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
3. Tighten the lock nut against the
housing.
In doing so, hold the foot tight and
do not adjust its height.
The lock nuts on all four appliance
feet must be screwed tightly against
the housing.
Electrical connection
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
■Never touch or hold the mains plug
with wet hands.
■Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
Observe the following information and
ensure that:
Notes
■The mains voltage and voltage
indicated on the appliance (rating
plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■The appliance is only connected to
an alternating current via a properly
installed earthed socket.
■The mains plug fits the socket.
■The earthing system is properly
installed.
■The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
■No multiple plugs/couplings or
extension cables are used.
■If an earth-leakage circuit breaker is
used, only a type which displays this
symbol is used: z.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■The mains plug can be accessed at
all times.
■The mains cable is not bent,
squashed, modified, cut through, or
in contact with heat sources.

en Positioning and connecting
20
Before washing for the first
time
The appliance was inspected
thoroughly before leaving the factory. To
remove any residual test water, run the
Cottons 90°C programme the first time
without laundry.
Note:
■The appliance must have been
installed and connected properly.
~"Positioning and connecting"
on page 13
■Never switch on a damaged
appliance.
1. Insert mains plug.
2. Turn the water tap on.
3. Close the door. Do not load any
laundry.
4. Select the Cottons 90°C
programme.
5. Open the detergent drawer.
6. Pour approx. 1 litre of water into
dispenser II.
7. Add standard detergent to dispenser
II according to manufacturer’s
instructions for light soiling.
Note: To prevent frothing, use only
half the recommended amount
of detergent. Do not use any
woollens or mild detergents.
8. Close the detergent drawer.
9. Select Start Reload .
10.When the programme ends, turn the
programme selector to Û(Off).
Your appliance is now ready for use.
Transportation
e.g. when moving home
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the
supply hose. ~Page 44
3. Drain any residual water.
~Page 42
4. Disconnect the appliance from the
mains.
5. Remove the hoses.
6. Empty the dispensers.
Caution!
Risk of damage to the appliance
caused by detergent/fabric softener
leaking from the dispensers
Leaking detergent/fabric softener
can prevent the appliance from
working correctly, e.g. due to
damage to the electronics.
Empty the dispensers before
transporting the appliance.
Installing the transport locks:
1. Remove the covers and keep them
in a safe place.
Note: Use a screwdriver if
necessary.
