Siemens CI18WP03 User manual

en User manual
Wine storage compartment
CI18WP03/CI24WP03

en
2
enTable of contents
en Us er manual
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
About these instructions. . . . . . . . . . . . . . . . . . . . . . . . 3
Risk of explosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Risk of electric shock. . . . . . . . . . . . . . . . . . . . . . . . . . 3
Fire hazard/Danger due to refrigerants . . . . . . . . . . . . 3
Fire hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Avoiding placing children and vulnerable people
at risk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Damage to property . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Green living . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Old appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation and connection . . . . . . . . . . . . . . . . . . . . . 6
Scope of supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing the appliance. . . . . . . . . . . . . . . . . . . . . . . . . 6
Built-in cut-out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Side-by-side installation . . . . . . . . . . . . . . . . . . . . . . . . 6
Tips for saving energy . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before using the appliance for the first time. . . . . . . . . 8
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Getting to know your appliance. . . . . . . . . . . . . . . . . . 9
Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating the appliance . . . . . . . . . . . . . . . . . . . . . . . 11
Switching on the appliance . . . . . . . . . . . . . . . . . . . . 11
Switching off and disconnecting the appliance . . . . . 11
Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . 11
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sabbath mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Door alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Home Connect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting up Home Connect . . . . . . . . . . . . . . . . . . . . .12
Connecting the refrigerator to the Home Connect
app . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Installing updates for the Home Connect software . . .13
Customer Service access . . . . . . . . . . . . . . . . . . . . . .13
Restoring settings. . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Switch on or off the connection to the home
WLAN network (Wi-Fi). . . . . . . . . . . . . . . . . . . . . . . . .13
Information on data protection . . . . . . . . . . . . . . . . . .13
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . .13
Wine storage compartment . . . . . . . . . . . . . . . . . . . . 14

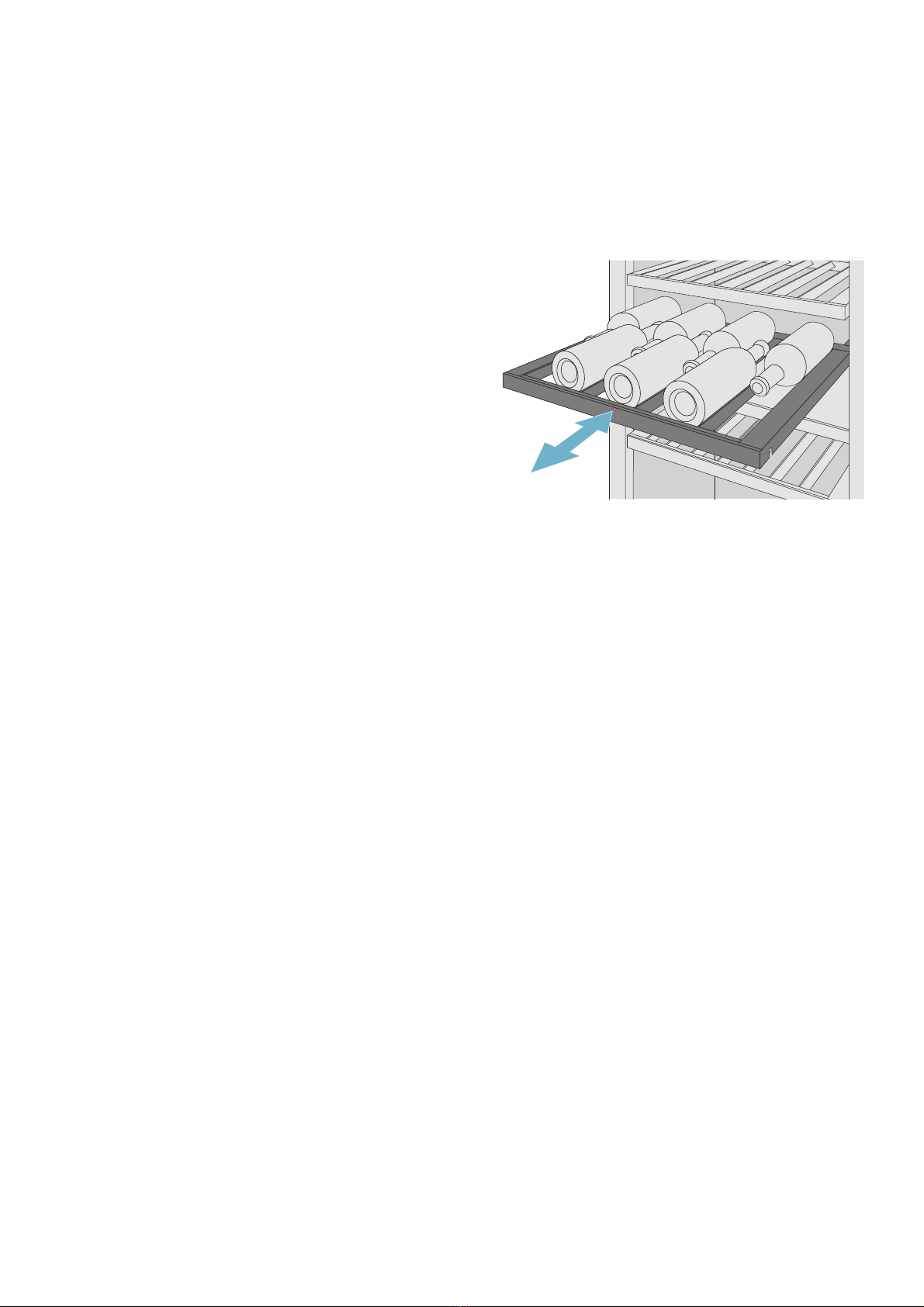

Loading bottles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Tips for storing wine . . . . . . . . . . . . . . . . . . . . . . . . . .14
Drinking temperatures . . . . . . . . . . . . . . . . . . . . . . . .15
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning the display . . . . . . . . . . . . . . . . . . . . . . . . . .15
Cleaning the appliance interior . . . . . . . . . . . . . . . . . .15
Cleaning the equipment . . . . . . . . . . . . . . . . . . . . . . .15
Care instructions for stainless steel surfaces . . . . . . .15
Noises. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Normal noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Preventing noises . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
What to do in the event of a fault. . . . . . . . . . . . . . . . 17
Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Customer Service, product / production
number and technical data. . . . . . . . . . . . . . . . . 18
Appliance self-test . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Obtaining advice and ordering repairs if a fault
occurs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Safety instructions en
3
(Safety instructions
Safety i nst r uct i ons This appliance complies with the relevant
safety regulations for electrical appliances and
is fitted with noise suppression.
The refrigeration circuit has been checked for
leaks.
About these instructions
■Read and follow the instructions for
installation and use.They contain important
information on how to install, use and
maintain the appliance.
■The manufacturer is not liable if you
disregard the notifications and warnings in
the operating and installation instructions.
■Retain all documents for subsequent use or
for the next owner.
Risk of explosion
■Never use electric devices inside the
appliance (e.g. heaters or electric ice
makers).
■Do not store products which contain
flammable propellant (e.g. spray cans) or
explosive substances in the appliance.
Risk of electric shock
Improper installations and repairs may put the
user at considerable risk.
■When installing the appliance, ensure that
the mains cable is not trapped or damaged.
■If the mains cable is damaged: immediately
disconnect the appliance from the electricity
supply.
■Do not use multi-outlet power strips,
extension leads or adapters.
■Have the appliance repaired by the
manufacturer, Customer Service or a
similarly qualified person only.
■Use original parts supplied by the
manufacturer only.
The manufacturer guarantees that these
parts satisfy the safety requirements.
Fire hazard/Danger due to refrigerants
The tubes of the refrigeration circuit
convey a small quantity of an environmentally
friendly but flammable refrigerant (R600a). It
does not damage the ozone layer and does
not contribute to the greenhouse effect. If
refrigerant escapes, it may injure your eyes or
ignite.
■Do not damage the tubes.
If the tubes are damaged:
■Keep naked flames and ignition sources
away from the appliance.
■Ventilate the room.
■Switch off the appliance and pull out the
mains plug.
■Please contact Customer Service.
Fire hazard
Portable multi-outlet power strips or
power supplies may overheat, causing a fire.
Never leave portable multi-outlet power strips
or portable power supplies behind the
appliance.
Avoiding placing children and vulnerable
people at risk
At risk here are:
■Children,
■People with limited physical, mental or
sensory abilities,
■People who have inadequate knowledge
concerning safe operation of the appliance.
Measures:
■Ensure that children and vulnerable people
have understood the hazards.
■A person responsible for safety must
supervise or instruct children and
vulnerable people who are using the
appliance.
■Only children aged 8 years and above may
use the appliance.
■Supervise children who are cleaning and
maintaining the appliance.
■Never allow children to play with the
appliance.

en Safety instructions
4
Risk of suffocation
■If the appliance features a lock: keep the
key out of the reach of children.
■Keep children away from the packaging
and its parts.
Damage to property
To prevent damage to property:
■Do not stand or support yourself on the
base, runners or doors.
■Keep plastic parts and door seals free of oil
and grease.
■Pull on the mains plug – not the power
cord.
Weight
The appliance is very heavy. The appliance
should always be transported and set up by at
least 2 persons.
~"Installation and connection" on page 6

Intended use en
5
8Intended use
Intended use Use this appliance
■only for storing wine.
■Only in the home and in the home environment.
■Only according to this user manual.
This appliance is intended for use up to a maximum
height of 2000 metres above sea level.
7Green living
Green li ving Packaging
All materials are environmentally safe and recyclable:
■Dispose of packaging in an environmentally friendly
manner.
■Please ask your dealer or inquire at your local
authority about current means of disposal.
Old appliances
Valuable raw materials can be reclaimed by recycling
old appliances.
:Warning – Children may become locked in the
appliance and suffocate!
■Leave shelves and containers in the appliance to
prevent children from climbing in.
■Keep children away from the redundant appliance.
Caution!
Refrigerant and harmful gases may escape.
Do not damage the tubes of the refrigerant circuit or the
insulation.
1. Pull out the mains plug.
2. Cut through the power cable.
3. Have the appliance disposed of properly.
This appliance is labelled in accordance with
European Directive 2012/19/EU on waste
electrical and electronic equipment (WEEE).
This Directive provides an EU-wide framework for
returning and recycling old appliances.


en Installation and connection
6
5Installation and
connection
Instal l ati on and c onnect i on Scope of supply
After unpacking all parts, check for any damage in
transit.
If you have any complaints, contact the dealer from
whom you purchased the appliance or our Customer
Service.
The delivery consists of the following parts:
■Built-in appliance
■Interior fittings (depending on model)
■Installation material
■User manual
■Installation instructions
■Customer service booklet
■Warranty enclosure
■Information on the energy consumption and noises
Technical specifications
Refrigerant, cubic capacity and further technical
specifications can be found on the rating plate.
~"Getting to know your appliance" on page 9
Installing the appliance
Installation location
The more refrigerant an appliance contains, the larger
the room in which the appliance is situated must be. In
rooms which are too small, leaking refrigerant can form
a flammable gas-air mixture.
At least 1 m³ of room space is required per 8 g of
refrigerant. The amount of refrigerant in your appliance
is indicated on the rating plate inside the appliance.
~"Getting to know your appliance" on page 9
The weight of the appliance may be up to 460 kg
depending on the model. The base must be sufficiently
stable, and should not give. If necessary, reinforce the
floor.
Permitted room temperature
The permitted room temperature depends on the
climate class of the appliance.
Information on the climate class can be found on the
rating plate.
~"Getting to know your appliance" on page 9
The appliance is fully functional within the permitted
room temperature.
If an appliance with climate class SN is operated at
colder room temperatures, the appliance will not be
damaged up to a room temperature of +5°C.
Built-in cut-out
The cut-out must fulfil these criteria:
■Anti-tilt bracket fitted
■Cut-out depth min. 610 mm, for flush installation
635 mm
■Rectangular
■Sturdy – the side panels and the top must be min.
16 mm thick and securely attached to the floor or
wall
■Depth of shortened side panels: min. 100 mm
Side-by-side installation
Observe the specifications in the installation instructions
for a side-by-side installation.
If a partition wall is required between the appliances, it
must be at least 16 mm wide.
Climate class Permitted room temperature
SN +10°C ... 32°C
N+16°C ... 32°C
ST +16°C ... 38°C
T+16°C ... 43°C

Installation and connection en
7
Tips for saving energy
If you follow the instructions below, your appliance will use less power.
Note:
The arrangement of the features does not affect the energy consumption of the appliance.
--------
Installing the appliance
Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient tempera-
tures and therefore consumes less power.
Install the appliance as far away as possible from heating elements,
cookers and other heat sources:
At least 1¼" (3 cm) from electric or gas cookers.
At least 11¾" (30 cm) from oil or solid-fuel cookers.
Select an installation location with a room temperature of approx.
20°C.
Do not cover or block the ventilation openings. If the warm air can escape, the appliance needs to cool less fre-
quently and therefore consumes less power.
Ventilate the room daily.
Using the appliance
Open the appliance door only briefly. The air in the appliance does not warm up so intensely. The appliance
must cool less frequently and therefore consumes less power.
Transport cooled wine in a cool bag and place in the appliance
quickly.
Always leave a space between the bottles and the back wall. The air can circulate, and the temperature will remain constant. The
appliance must cool less frequently and therefore consumes less
power.
Do not cover or block the ventilation openings. The appliance consumes less power if the warm air can escape freely.
Vacuum the ventilation openings once a year.

en Installation and connection
8
Before using the appliance for the first time
1. Remove information material, adhesive tape and
protective film.
2. Clean the appliance.
Electrical connection
Caution!
Do not connect the appliance to electronic energy saver
plugs.
Note:
You can connect the appliance to mains-controlled and
sine-controlled inverters.
Mains-controlled inverters are used for photovoltaic
systems which are directly connected to the national
grid. Sine-controlled inverters must be used for isolated
applications.Isolated applications, e.g. on ships or in
mountain lodges, which are not directly connected to
the national grid.
1. After installing the appliance, wait at least 1 hour
before connecting it to avoid damaging the
compressor.
2. Connect the appliance to a correctly installed
socket.
The socket must comply with the following data:
Outside Europe: Check whether the indicated
current type of the appliance corresponds with the
values of your power supply. The appliance
specifications are specified on the rating plate.
~"Getting to know your appliance" on page 9
3. Connect the appliance to a socket near the
appliance.
The socket must also be freely accessible after
installation of the appliance.
:Warning
Risk of electric shock!
If the length of the mains cable is insufficient, do
NOT use multi-outlet power strips or extension
leads.Instead, please contact Customer Service for
alternative solutions.
Socket with 220 V ... 240 V
Protective conductor 50 Hz
Fuse 10 A ... 16 A

Getting to know your appliance en
9
*Getting to know your appliance
Get t i ng to know your appl i ance
Appliance
* Not all models.
Controls
Main menu
Press the )button to open the main menu.
The main menu contains the operating modes, an
overview of the information texts for the appliance's
functions, and the ÒSettings menu.
Mode selection
To switch on a mode, tap on it. When an operating
mode is switched on, the corresponding symbol is
shown on the control panel.
A window containing the information text for the
selected operating mode appears.
Overview of the information texts l
The information texts are provided for the most relevant
functions.In the overview l, you will find all the
information texts for the functions. When you switch on
a function, the appliance will display the information text
for this function. If required, you can switch off the
information text for individual functions.The overview l
will still show all the information texts.
In order to switch on all the information texts in the
functions again, reset the appliance to its factory
settings.
(0 Controls
8Main switch on/off
@Shelf
HPartition
PRating plate
XVentilation opening
8
H
P
@
X
(0
(Wine storage compartment temperature
display
Indicates the set temperature in °C/
°F.Depending on the appliance model in
question, 2 or 3 compartments are
displayed.
0)button
Opens main menu.
==button
Switches on the display light with the most
recently selected mode.
ÝOpens the menu for setting the Sabbath
mode.
Note: This function is only visible once it has
been switched on in the Settings menu.
All non-essential functions are switched off so
you can also use the appliance on the
Sabbath.
~"Sabbath mode" on page 11

&

&

&
(
0

en Getting to know your appliance
10
Settings menu
Tap Òto open the settings.
Features
Shelf
You can pull out the shelves to reach wine bottles more
easily.
Note:
The shelves separating the climate zones are not
movable.
Dimming effect
and display light
Adjust the interior lighting of the
appliance.
Dimming effect
When the dimming effect is
switched on, the interior lighting
of the appliance slowly brightens
when you open the appliance
door and then slowly darkens
when the appliance door is
closed.
Display light
You can use the pre-
programmed light modes to
illuminate your bottles when the
door is closed. The light modes
have different illumination levels
in the individual climate zones.
Display brightness
and standby
screen
Adjust the control panel
brightness and select a display
option for standby mode.
Volume Set the volume of the touch key
tone and the audible signal.
Home Connect Connect your refrigerator to your
mobile device.
~"Home Connect" on page 12
Sabbath mode Opens the menu for setting the
Sabbath mode and displaying
the Sabbath mode in the main
menu.
All non-essential functions are
switched off so you can also use
the appliance on the Sabbath.
~"Sabbath mode" on page 11
Self-test and reset Self-test
Start fault analysis on your
appliance.
Factory settings
Reset the appliance back to its
factory settings as received on
delivery.
Demo mode
After switching on the appliance,
this menu item is displayed for
3 minutes. To switch Demo
mode on or off later, switch the
appliance off and on again. The
mode is displayed again for
3 minutes.
Note: Do not store any food in
Demo mode, as the appliance
remains at room temperature.
The cooling function of the
appliance is switched off.You can
use all other functions.
¿Regional
settings
¿Language
Change the display language.
Temperature unit
Select the temperature unit °C/
°F.
