Siemon LC Bladepatch User manual

LC Bladepatch Instructions
Mate
Unmate
5
34
2
Polarity change
2
1
180
o
67
1
From the factory jumpers
come in RFP configuration
but can easily be changed
to CFP configuration in the
following steps.
RFP

LC Bladepatch instructions
Global Headquarters
Watertown, Connecticut USA
Tel: [phone]
For a complete listing of our global offices visit our web site
www.siemon.com
© 2021 Siemon INS_LCBladePatchInstructions_RevC
Comply with the following for safe installations:
A. Use caution when installing or modifying
telecommunications circuits.
B. Never touch uninsulated wire terminals unless
the circuit has been disconnected.
C. Never install this device in a wet location.
D. Never install wiring during a lightning storm.
10
8

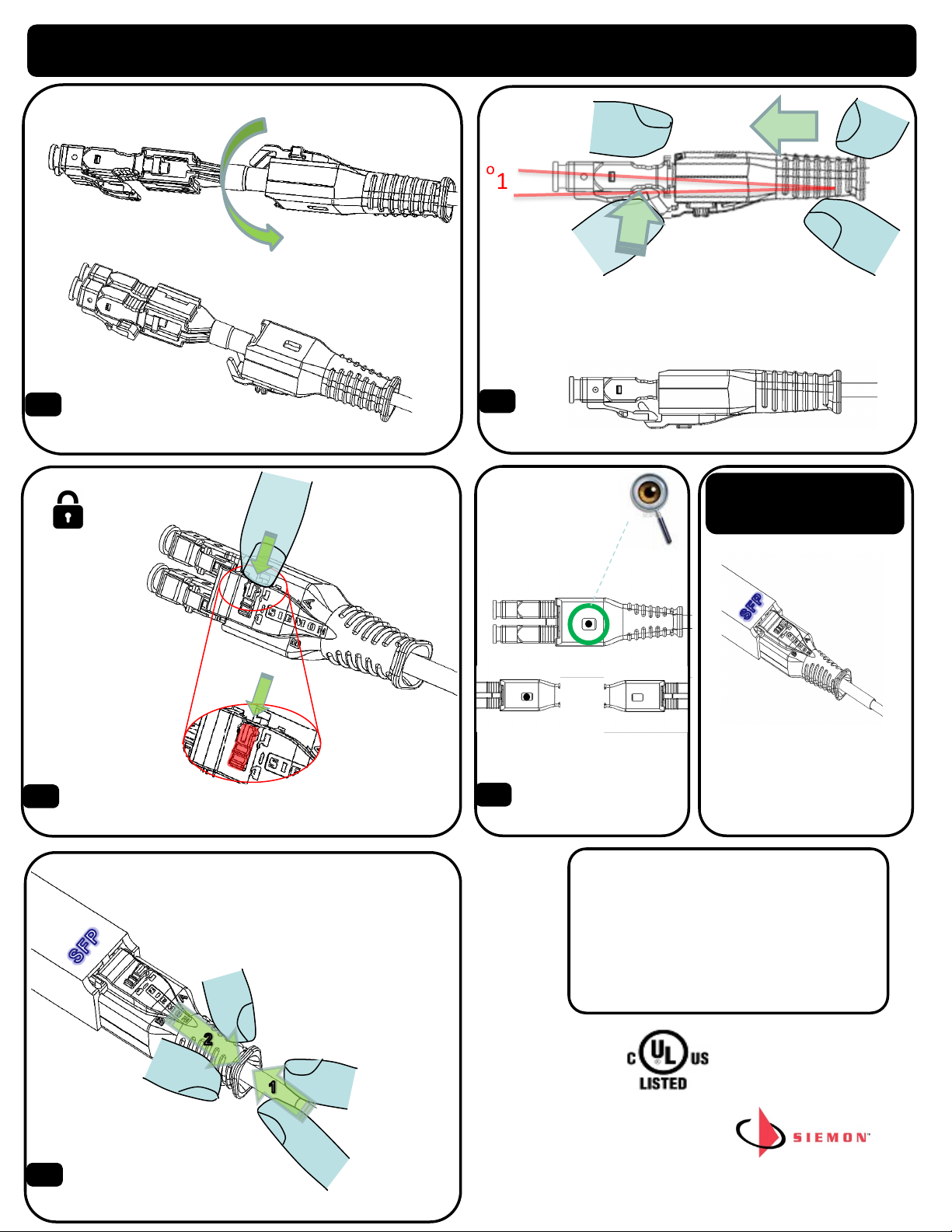

After polarity has been changed
through the field procedure one
side will show a hole and the other
side will show blank. In the unlikely event the jumper will
not withdraw from an SFP follow
step “A” to remove the connector.
Procedure for out of spec.
SFP port removal
A
9
1
o
2
1
While Depressing the LC connector
latches tilt slightly (arrow 1) to allow
boot housing to move back into
place.
11
100.27579.00
