Signet 8059 User manual
Signet 8059 External Relay Module
2. Specifications
1. Description
Signet 8059 External Relay Modules supplement the output capabilities of certain host instruments such as Signet 8250 Level
Transmitters. AC-powered versions accept universal line voltage, and also provide 24 VDC output that can be used to power the host
instrument or other device(s). The host instrument controls relay operation by way of a single S3L connection. The compact plastic
housing is DIN rail mountable and includes LED annunciators for each relay, plus one each for power-on and data transfer or test
mode.
Input: S3L (Signet Sensor Serial Link)
via host instrument
Enclosure
Material: Noryl®UL 94 V-O
Type: DIN rail mountable
Electrical connection: Standard screw-type terminals
Shipping weight: 0.37 kg (0.8 lb.)
Power
8059-4AC: 100-240 VAC ± 10%, 50/60 Hz, 20VA
8059-4: 12 to 24 VDC, 100 mA
Add current requirements for external
equipment if using DC output
DC output
8059-4AC: 24 VDC regulated, 300 mA max
8059-4: Pass-through (Input DC less 0.7 VDC)
(12 VDC in = 11.3 VDC out)
Isolation: >5000 Vrms
Relays
Type: SPDT 250VAC/30VDC @ 5A
Resolution: 2 ms
Response time: < 100 ms
Annunciators: Red LED, 1 per relay
Maximum cable: 400 ft. total S3L wiring
WARNING!
• Remove power to unit before wiring input and output connections.
• Do not alter product construction.
• This product should only be used for the purposes
and in the manner described in this manual.
• This unit must be installed on a DIN rail.

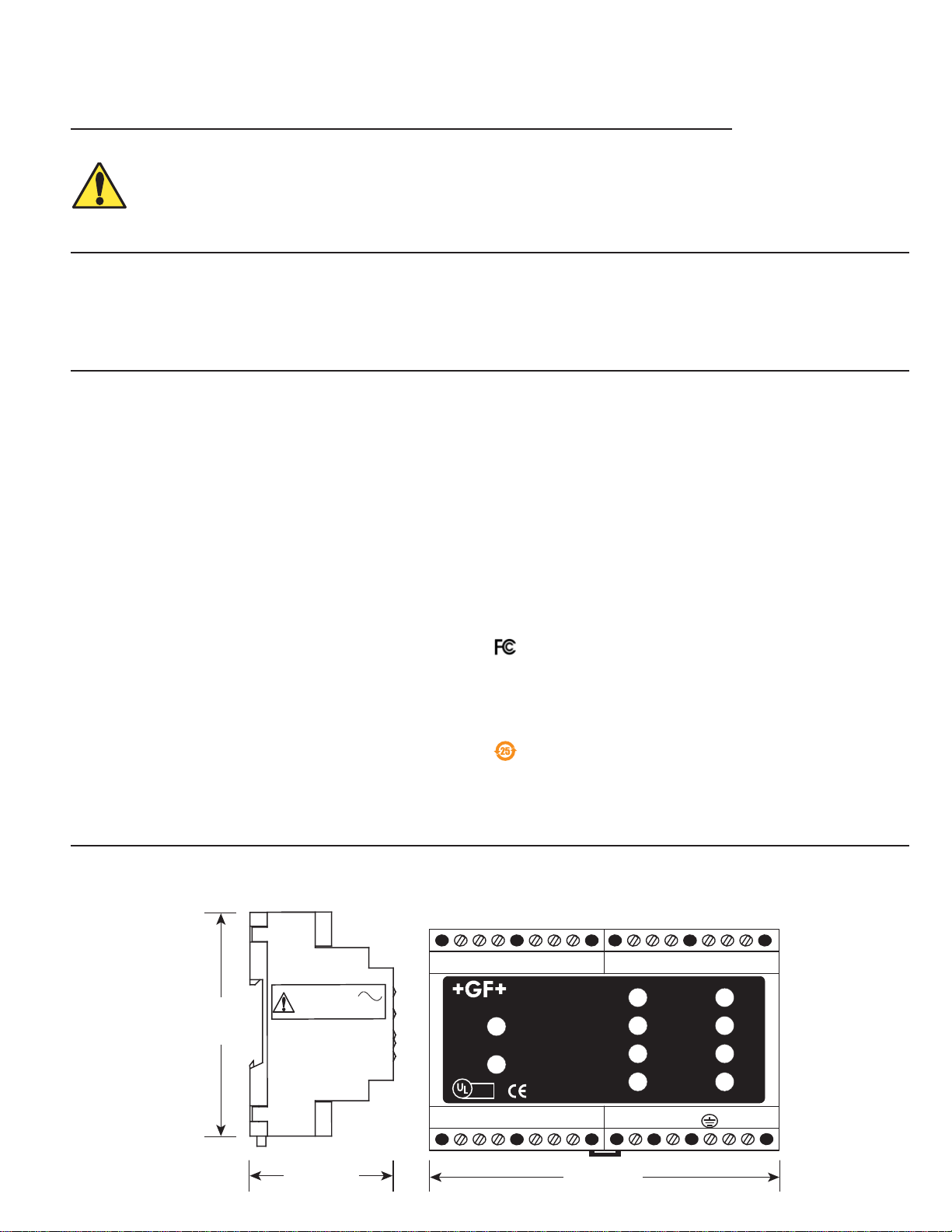

Dimensions
Noryl®is a registered trademark of GE Plastics
100 - 240 V
50/60 Hz, 20 VA
NC C NO
RELAY A
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+ S
3
L- + S
3
L- OUTPUT 24VDC
+ - AC INPUT
INPUT PASS-THRU
L N
COM
32:(5
Signet 3-8059 Relay Module Test A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
89 mm
(3.5 in.)
57 mm
(2.25 in.) 108 mm
(4.25 in.)
Table of Contents
1. Description
2. Specifications
3. Installation
4. Power
5. Wiring
6. Operation
7. Relay Test
8. Ordering Information
3-8059-4AC version is shown. External dimensions are identical for all versions.
3-8059.090 Rev. G 03/13 English
*3-8059.090*
English
Environmental
Ambient temperature
• Storage: -20 °C to 85 °C (-4 °F to 185 °F)
• Operating: -10 °C to 55 °C (-14 °F to 130 °F)
Relative humidity: 0 to 90% (non-condensing)
Maximum altitude: 2000 m (6500 ft)
Insulation category: II
Pollution degree: 2
Standards and approvals
• CE, UL, CUL
• RoHS Compliant
• Manufactured under ISO 9001 for Quality,
ISO 14001 for Environmental Management and
OHSAS 18001 for Occupational Health and Safety.
Declaration of Conformity according to FCC Part 15
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and,
(2) This device must accept any interference received,
including interference that may cause undesired operation.
China RoHS (Go to www.gfsignet.com for details)
Signet 8059 External relay module2
4. Power
OUTPUT 24VDC
+ -
AC INPUT
N L
AC Power terminals
100 - 240 VAC
50/60 Hz, 20 VA
24 VDC Regulated,
300 mA maximum
DC OUTPUT
+ - DC INPUT
- +
DC Power terminals
12 to 24 VDC
100 mA maximum
Pass-through DC
(less 0.7 VDC)
3. Installation
Tilt top of the 8059 to insert under top DIN rail, then press bottom
of 8059 until the locking pin snaps onto lower DIN rail.
Removal
Insert screwdriver into release mechanism on bottom of 8059.
Pull down on release while lifting 8059 away from the DIN rail.
• This unit must be installed inside a protected panel.
• Always connect to earth ground.
• Disconnect power before wiring.
• Do not install where persons may inadvertently come in
physical contact with the terminals.
• Include protection devices in the power system in case of
power supply malfunction. A very high voltage may occur at
output terminals during failure.
• Do not touch immediately after removing power. Some
surface areas may be very hot.
• Do not exceed temperature specifications.
• Do not store or operate the AC power supply in any
environment subjected to vibrations or shock.
WARNING
NC C NO
RELAY A
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+
S
3
L
- +
S
3
L
-
OUTPUT 24VDC
+ -
AC INPUT
INPUT PASS-THRU
L N
COM
32:(5
Signet 3-8059 Relay Module Test A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
3Signet 8059 External relay module

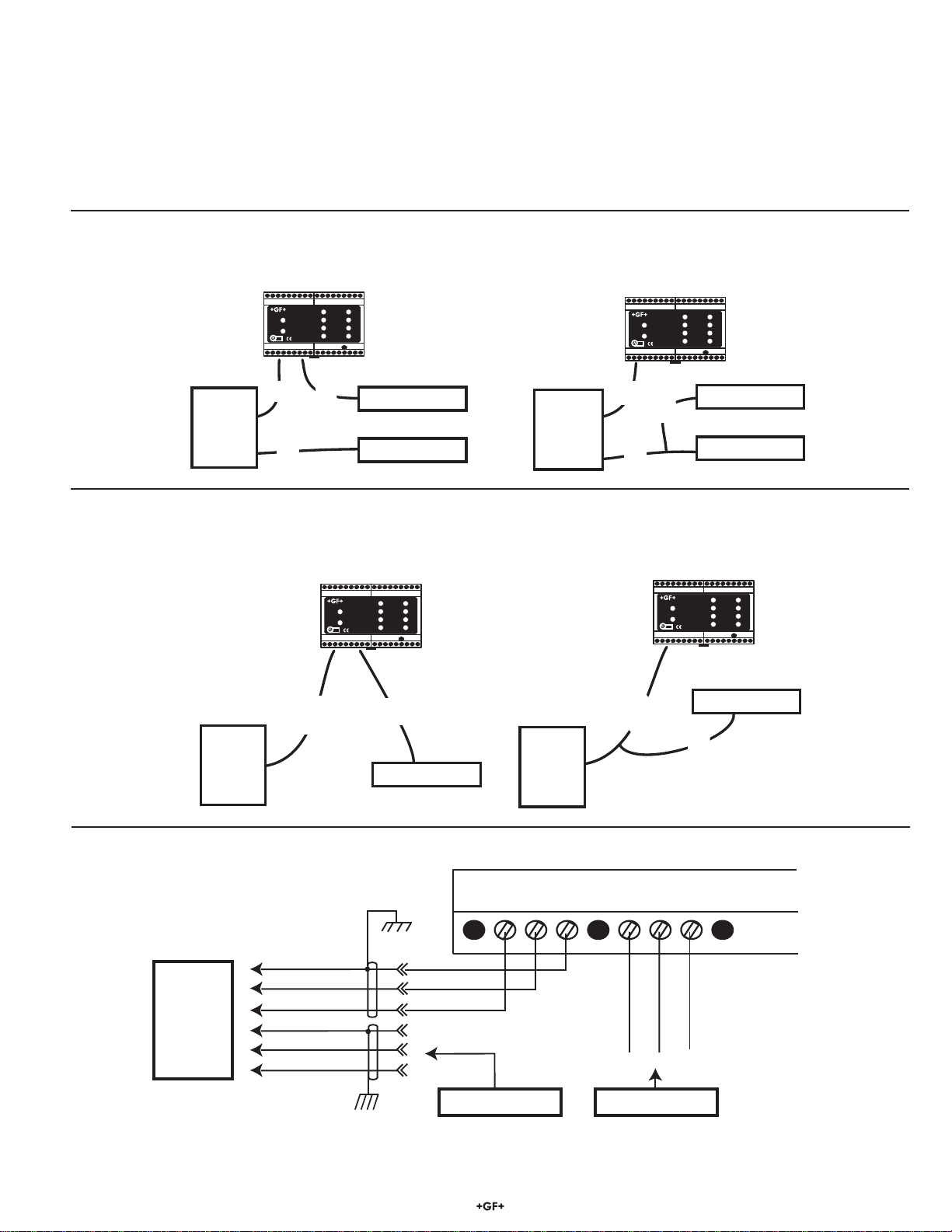

5. Wiring
A + B + C 122 m (400 ft.)
B
A
C*
B
A
C
NC C NO
RELAYA
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+
S
3
L
- +
S
3
L
-
OUTPUT 24VDC
+ -
AC INPUT
INPUT PASS-THRU
L N
COM
32:(5
Signet 3-8059 Relay Module Tes t A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
NC C NO
RELAYA
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+
S
3
L
- +
S
3
L
-
OUTPUT 24VDC
+ -
AC INPUT
INPUT PASS-THRU
L N
COM
32:(5
Signet 3-8059 Relay Module Tes t A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
S
3
L
I/O
Terminals S
3
L Sensor #1
S
3
L Sensor #2 S
3
L
I/O
Terminals S
3
L Sensor #1
S
3
L Sensor #2
• S3L devices may be connected to any available set of I/O terminals, or may be spliced into existing S3L device cable.
*Sensor may be connected to host instrument via pass-through S3L terminals on the 8059.
• Only one wire should be inserted into a terminal. Splice double wires outside the terminal.
• The TOTAL cable length from all S3L devices to the transmitter must not exceed 122 m (400 ft.).
• Do not route I/O cables in conduit containing AC power wiring. Electrical noise may interfere with data signal.
• Routing cable in grounded metal conduit will help prevent electrical noise and mechanical damage.
•The sensor configuration must be reset before the host instrument will recognize a new S3L device.
(see Calibrate menu, “Reset Sensor Configuration” in the 8250 Level Transmitter manual.)
Dual Sensor system
Single Sensor system
A + B 122 m (400 ft.)
B*
AB
A
NC C NO
RELAYA
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+
S
3
L
- +
S
3
L
-
OUTPUT 24VDC
+ -
AC INPUT
INPUT PASS-THRU
L N
COM
32:(5
Signet 3-8059 Relay Module Tes t A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
NC C NO
RELAYA
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+
S
3
L
- +
S
3
L
-
OUTPUT 24VDC
+ -
AC INPUT
INPUT PASS-THRU
L N
COM
32:(5
Signet 3-8059 Relay Module Tes t A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
S
3
L Sensor
S
3
L Sensor
S
3
L
I/O
Terminals
S
3
L
I/O
Terminals
+ S
3L
- + S
3L
-
INPUT PASS-THRU
8059 I/O terminals
Sensor Gnd
Sensor IN
Sensor V+
Sensor Gnd
Sensor IN
Sensor V+
Black (Sensor V+)
Red (Sensor IN)
Silver (Sensor Gnd)
S3LSensor #1 S3LSensor #2
S3L
I/O
Terminals
Georg Fischer Signet LLC, 3401 Aero Jet Avenue, El Monte, CA 91731-2882 U.S.A. • Tel. (626) 571-2770 • Fax (626) 573-2057
For Worldwide Sales and Service, visit our website: www.gfsignet.com • Or call (in the U.S.): (800) 854-4090
For the most up-to-date information, please refer to our website at www.gfsignet.com
3-8059.090 Rev. G 03/13 English © Georg Fischer Signet LLC 2013
6. Operation
S3L Terminals
• Connect “input” directly to the S3L instrument.
• Connect an S3L sensor to “pass-thru” for convenience.
Indicator LEDs
DATA On when S3L serial data is transmitted,
or when a relay is in TEST mode.
POWER On when input power is connected to 8059
Relay A On when Relay A is energized
Relay B On when Relay B is energized
Relay C On when Relay C is energized
Relay D On when Relay D is energized
Test Buttons
Test A Press to manually control Relay A
Test B Press to manually control Relay B
Test C Press to manually control Relay C
Test D Press to manually control Relay D
NC COM NO
RELAY A
NC COM NO
RELAY B
NC COM NO
RELAY C
NC COM NO
RELAY D
DC OUTPUT
+ -
DC INPUT
- +
+
S
3
L
- +
S
3
L
-
INPUT PASS-THRU
COM
POWER
Signet 3-8059 Relay Module Test A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
Relays
The 250V/5A dry-contact relays are controlled via the serial
connection to the instrument. Use NO (normally open), COM
(common) and NC (normally closed) to control external
equipment.
Normal Operation:
• Green COM LED flickering rapidly.
• Both relays are controlled by the host instrument.
8. Ordering Information
3-8059-4 159 000 772 External 4-Relay Module
3-8059-4AC 159 000 773 External 4-Relay Module with power supply
3-8050.396 159 000 617 RC Filter Kit
6205-0002 159 000 858 DIN Rail, 1m
6205-0003 159 000 859 End Clips, DIN Rail
NC C NO
RELAY A
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+
S3L
- +
S3L
-
OUTPUT 24VDC
+ -
AC INPUT
INPUT PASS-THRU
L N
COM
POWER
Signet 3-8059 Relay Module Test A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559
®
7. Relay Test
NOTE: The 8059 will automatically return to normal operation if no buttons are pressed for 5 minutes.
8059-4 8059-4AC
Action 8059 Response
Press and hold TEST button for 5 seconds (until
green DATA LED begins to blink slowly) • The selected relay is now controlled by the TEST button.
• Pressing the other relay TEST button has no effect.
Momentarily press TEST button to toggle relay. • The red RELAY LED will toggle to indicate relay condition.
To return relay to Normal Operation:
Press and hold the TEST button for 5 seconds
(until green DATA light begins to flicker rapidly) • The relay returns to active status, controlled by the host
instrument.
