TULS/TULM/TULL
IMPORTANT: FOR YOUR PROTECTION, YOU MUST CAREFULLY READ ALL WARNINGS AND INSTRUCTIONS IN THEIR
ENTIRETY PRIOR TO INSTALLATION, OPERATION, SERVICE OR MAINTENANCE. FAILURE TO DO SO CAN RESULT IN DEATH,
PERSONAL INJURY AND PROPERTY DAMAGE. If you do not understand these warnings and instructions, or if additional
information is desired, please contact Signify, Lumec. [email protected] phone [phone].
S/A INSTRUCTION SHEET FOR BIRD SPIKES
BXK - 442295030951
•Installation, service and maintenance of luminaires must be performed by a qualified professional and in accordance with all federal, state and local
laws, regulations and electrical codes. This professional should be familiar with the construction and operation of this product and any hazards
involved. If not qualified, do not attempt installation, service or maintenance.
•To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts, abrasions and other hazards, please read
all warnings and instructions included with the luminaire, on the luminaire’s packaging and affixed to the luminaire itself.
•Maintenance of the luminaires should be performed by person(s) familiar with the luminaire’s construction and operation and any hazards involved.
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY
•Disconnect or turn off power before attempting any installation, service or
maintenance.
•Verify that supply voltage is correct by referencing the luminaire label
information.
•Make all electrical and ground connections in accordance with the National
Electrical Code (NEC) and any other applicable laws, regulations or codes.
•All wiring connections should be capped with UL-approved wire connectors.
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY
•Wear gloves and safety glasses at all times when removing luminaire
from carton, installing, servicing or performing maintenance.
•▪Avoid direct eye exposure to the light source while it is on.
CAUTION
RISK OF PRODUCT DAMAGE
• Never connect luminaires and/or components under load with supply voltage turned on.
• Do not mount or support these luminaires in a manner that can cut the outer jacket or damage wire insulation.
• Do not restrict fixture ventilation. Allow for some volume of airspace around luminaire. Avoid covering luminaire with insulation, foam or other material that will
prevent convection or conduction cooling.
• Do not exceed luminaire maximum ambient temperature.
• Do not modify the luminaire.
• Only use luminaire in its intended application and location.
• Led products are polarity sensitive. Ensure proper polarity before installation.
• Electrostatic Discharge (ESD) can damage LED. Personal grounding equipment must be worn during all installation and servicing of the luminaire.
• Do not touch individual electrical components as this can cause ESD, shorten LED life, or impact LED performance.
• Some components inside the luminaire may not be serviceable. In the unlikely event your luminaire may require service, stop using it immediately and contact
Signify.
• Always read the luminaires complete installation instructions prior to installation for any additional luminaire specific warnings.
• In the case of HID or Fluorescent luminaires, regular re-lamping is required to keep luminaire operating within safe limits
• Do not install damaged product. Handling and installing damaged products can potentially increase the risks mentioned In case of damage and/or missing parts
upon arrival of the luminaire.
• These instructions do not purport to cover all details or variations in equipment nor to provide every possible contingency to meet in connection with installation,
operation or maintenance.
• Please see luminaire specific Installation and Maintenance Instruction for additional warnings or any applicable FCC or regulatory statements. Failure to follow
any of these Instructions could void luminaires warranties.
Luminaire Maintenance
• Regular luminaire maintenance programs are recommended.
• It is recommended to clean the outside of the luminaire and the refractor/lens.
• Frequency of cleaning will depend on ambient dirt level and minimum light output which is acceptable to user.
• If clean water is not sufficient for cleaning, use a neutral, synthetic, not-scratching and not-abrasive cleaning substance.
• Never use alkaline and/or acetous cleaning substances.
• Make sure that the cleaning substance is carefully removed by rinsing with lots of clean water.
• Signify recommends using a cleaning solution that has a PH between 5 and 8.
• Recycle: For information on how to recycle electronic products and components, please visit www.epa.gov.
WARNING
RISK OF FIRE OR PERSONAL INJURY
•Keep combustible materials away from LED/lamp & lens
•▪Do not operate in close proximity to persons, combustible materials
or substances affected by heat or drying.
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY
•Allow Led/lamp & lens to cool before handling.
•▪Do not touch enclosure or light source
•▪Do not exceed maximum wattage marked on luminaire label.
•▪ Follow all manufacturer’s warnings, recommendations, instructions
and restrictions for driver type, burning position, mounting locations
and replacement.

Signify Classified - Internal
page6/4/2019 2
Installation Instructions - 442295030951
TULS/TULM/TULL
www.brandwebaddress.com
Bird Spike strip
CAUTION Prevent over torque damage
Do not over torque nuts and bolts

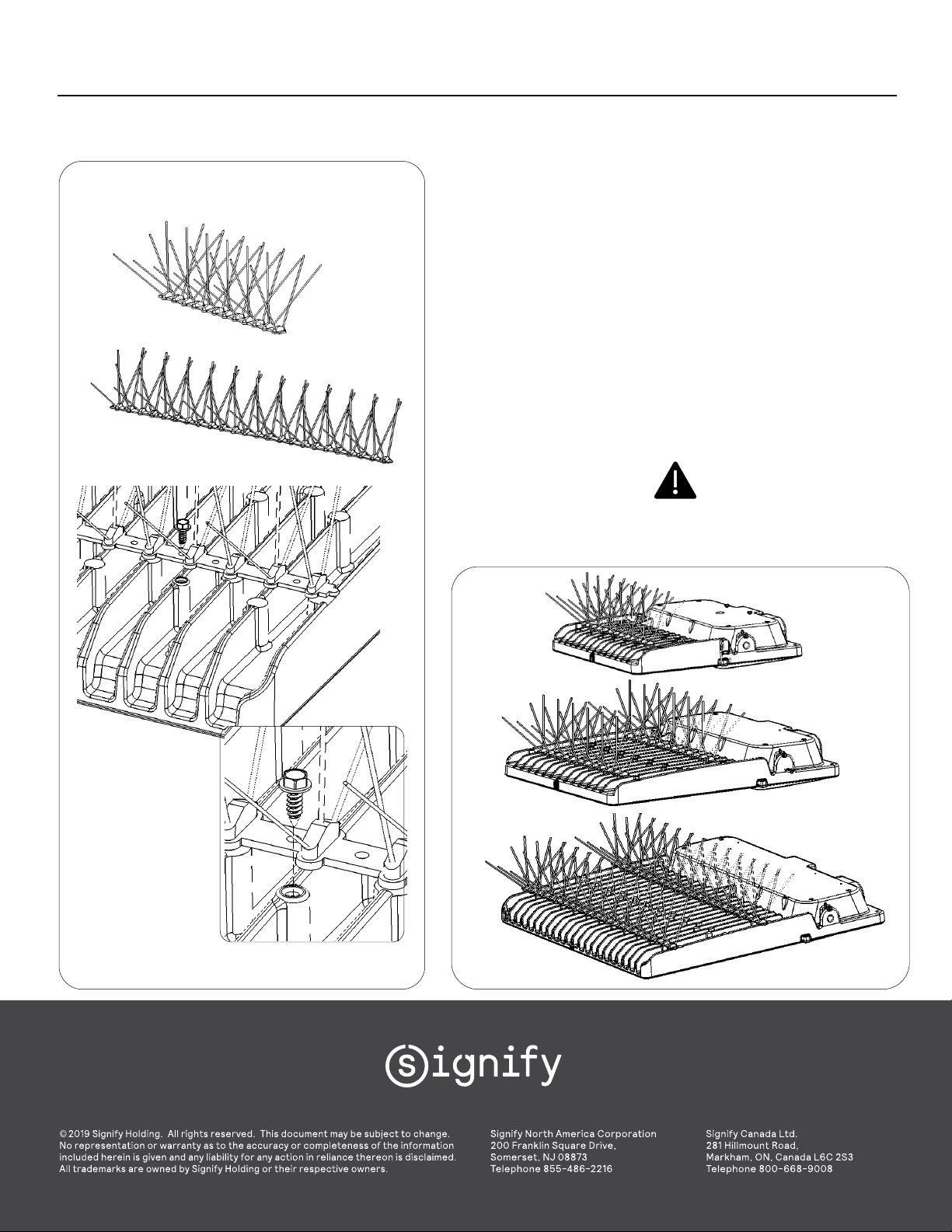

Instructions for attaching Bird Spikes
INSTRUCTIONS
1. Make sure there are no debris inside the luminaire’s
pre-drilled holes (see detail 1).
2. The bird spikes will be installed only on top of the fins.
3. Match the luminaire’s pre-drilled holes to the ones in
the bird spike strip (see detail 1).
4. Secure to luminaire with (2) #8 x ½ ’’ per bird spike strip.
5. The TULS and TULM use the same bird spike length.
6. Install one strip on TULS and two on TULM/TULL
7. Tight the set screws to 25 lbs.in
For TULS/TULM
DETAIL 1
Luminaire’s pre-drilled holes.
TULS
TULM
TULL
For TULL
