Signostics uscan User manual

User Manual
P003948
November 2017
www.signosticsmedical.com

P003948 Uscan User Manual Page | ii
CONTENTS
1. Important Information.................................................................................. 1
About the User Manual .................................................................................. 1
Product Description........................................................................................ 1
Intended uses of Uscan ................................................................................. 3
System and Transducer applications ............................................................. 4
Training .......................................................................................................... 5

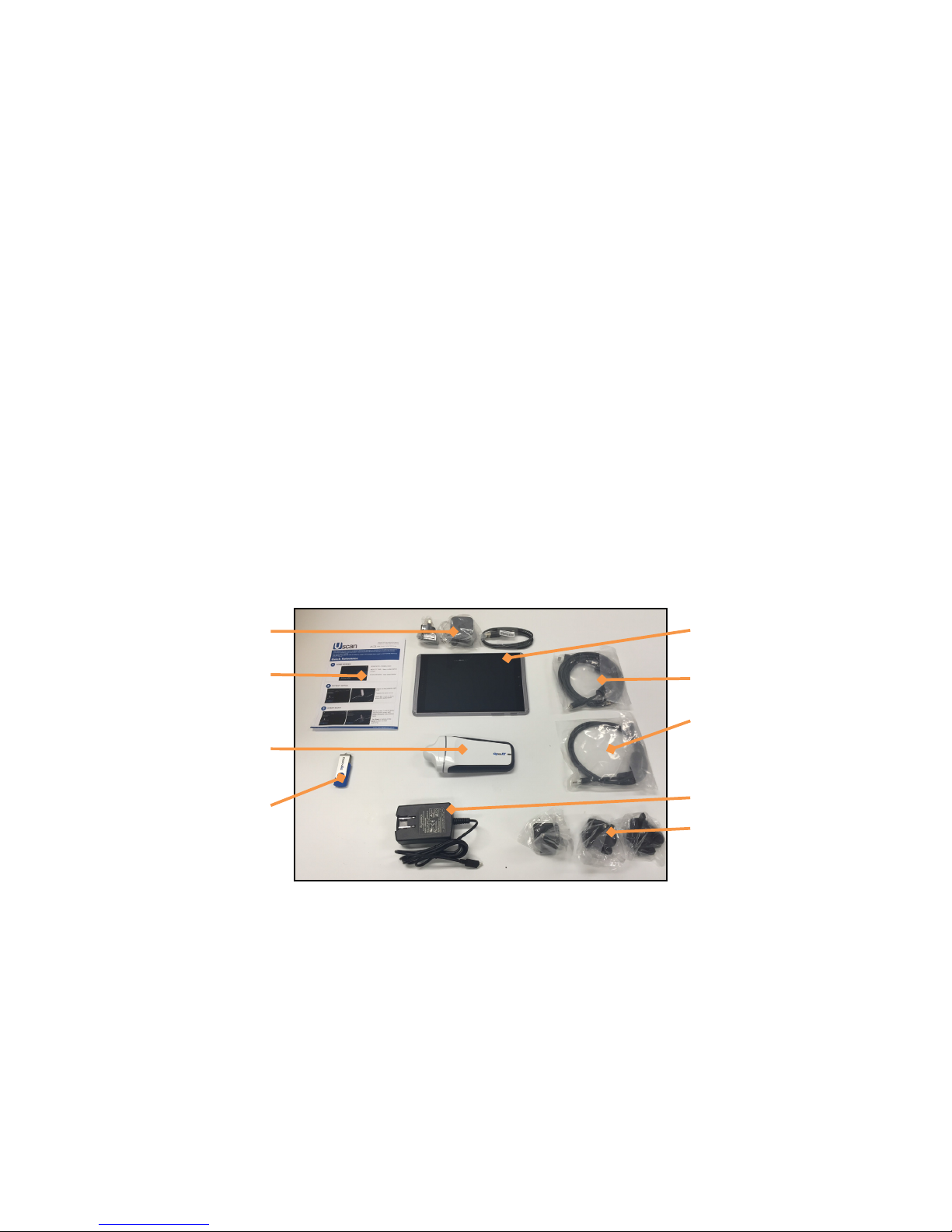

Contents of the Uscan packages ................................................................... 6
System Features ............................................................................................ 7
Classifications ................................................................................................ 7
Patient Environment....................................................................................... 8
Cautions, Warnings and Contraindications .................................................... 8
Warnings ................................................................................................... 8
Cautions .................................................................................................. 10
Contraindications..................................................................................... 10

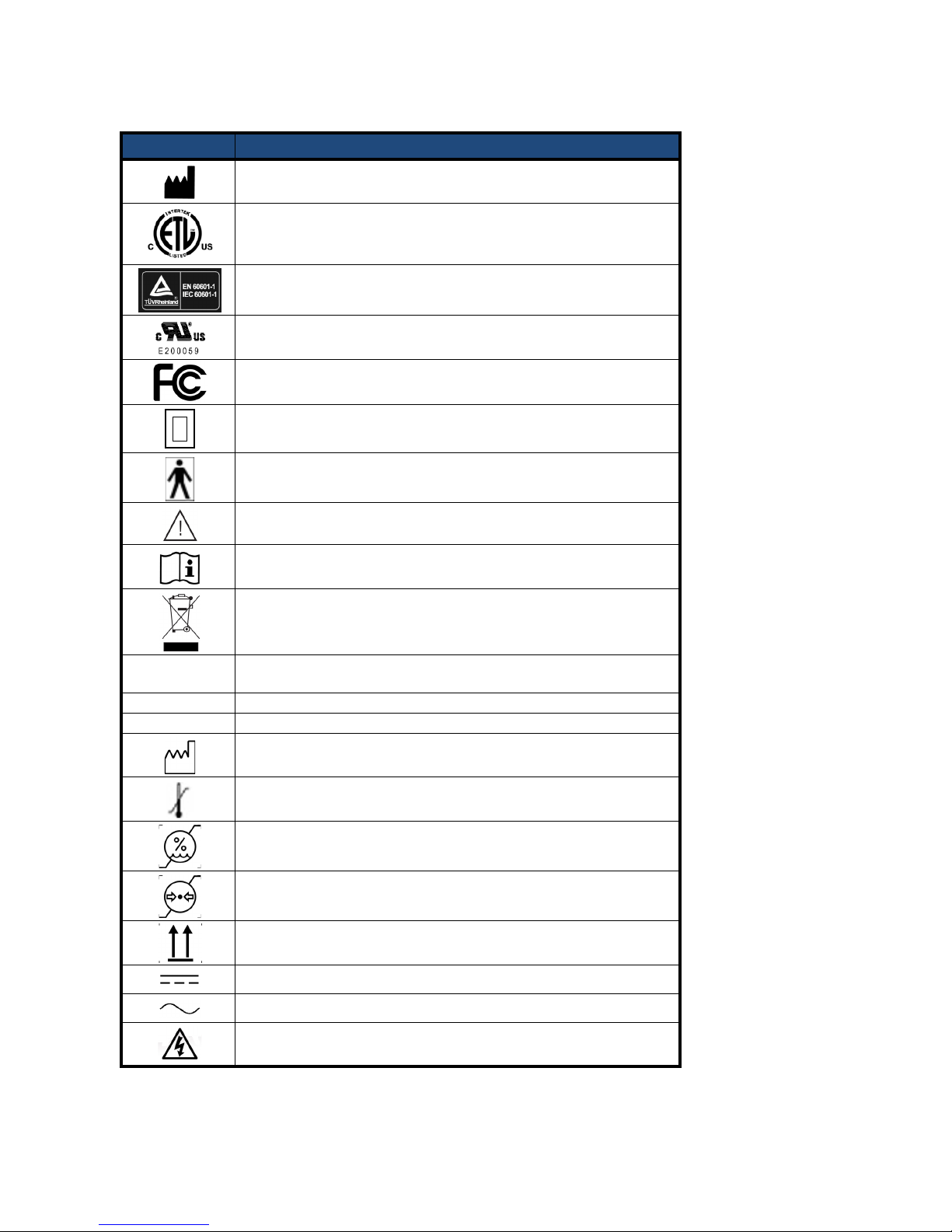

Labeling........................................................................................................ 11
Contact information ...................................................................................... 12
Trademarks and document copyright........................................................... 12
2. Getting Started ........................................................................................... 14
Unpacking the Boxes ................................................................................... 14
Options .................................................................................................... 14
Connecting and disconnecting the Power Supply........................................ 14

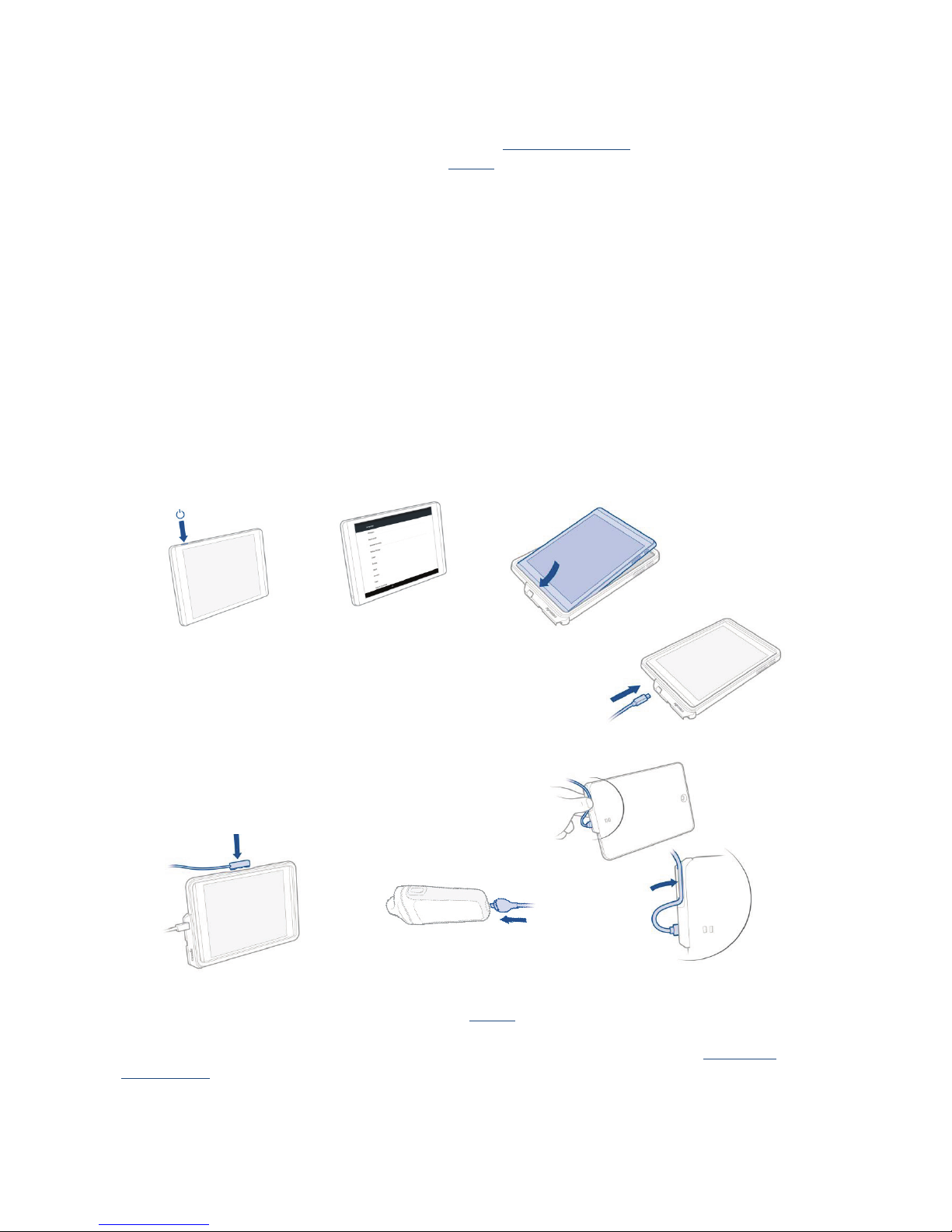

Setting up the System .................................................................................. 15
Basic Device Control.................................................................................... 16
Settings ........................................................................................................ 17
Network Printer Setup (Optional) ................................................................. 19
Bluetooth Printer Setup (Optional) ............................................................... 19
Bar Code Scanner Setup (Optional) ............................................................ 19

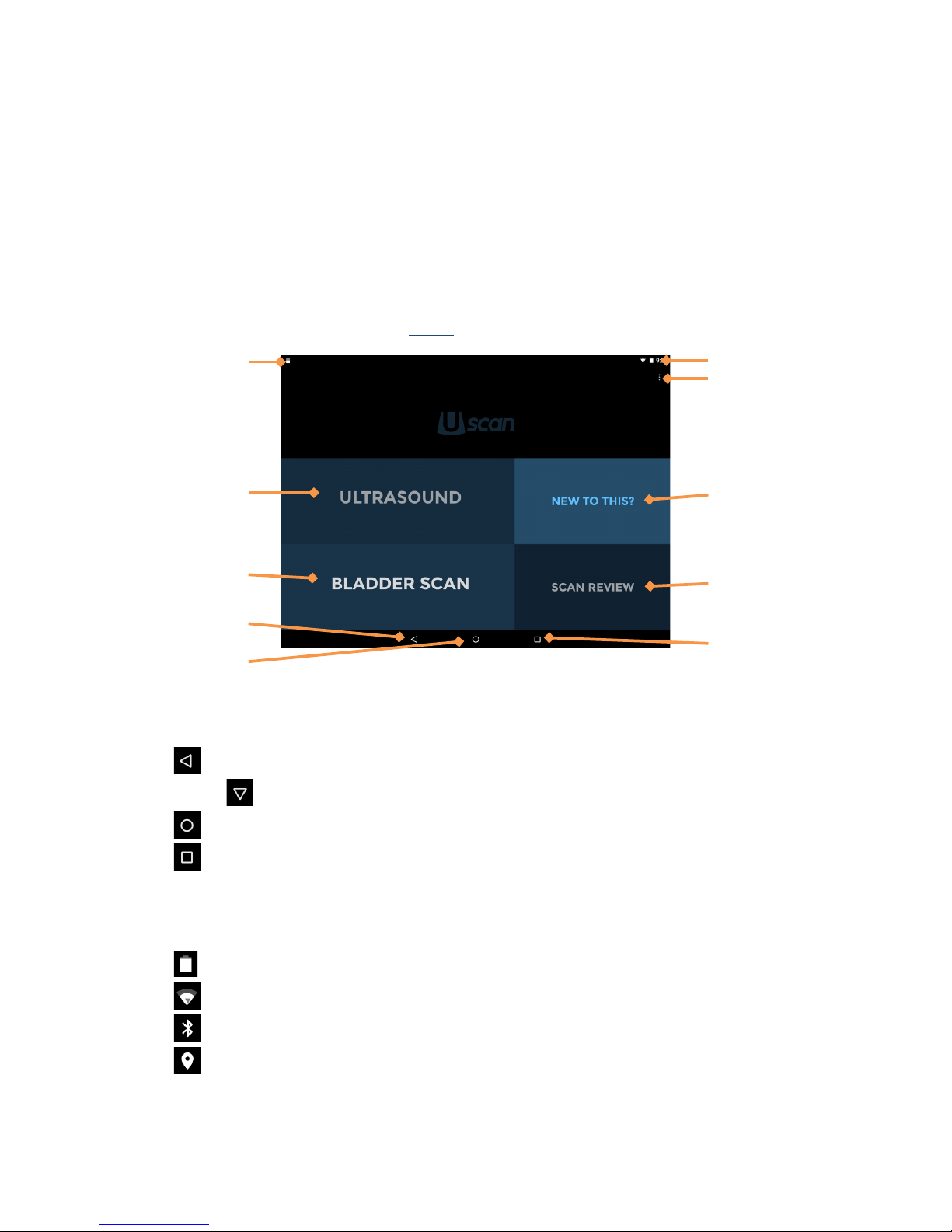

Imaging Screens .......................................................................................... 20
Ultrasound Scan Screens........................................................................ 20
Recommended ultrasound transmission gel ................................................ 23
Recommended ultrasound probe sterile sheaths......................................... 23
3. Scanning ..................................................................................................... 24
Preparing for the Exam ................................................................................ 24
Default Settings............................................................................................ 24
Ultrasound Scanning.................................................................................... 24
Ultrasound Presets .................................................................................. 24
Ultrasound Scanning ............................................................................... 25
Ultrasound measurement ........................................................................ 25
Ultrasound Movies................................................................................... 26
Bladder Scanning......................................................................................... 26
Measuring Bladder Volume ..................................................................... 26
Audio Feedback....................................................................................... 27
Common Functions ...................................................................................... 27
After Use ...................................................................................................... 28
Turning Uscan off......................................................................................... 28
4. Other Functions ......................................................................................... 29
Annotations .................................................................................................. 29
Text Annotations...................................................................................... 29
Voice Annotations.................................................................................... 29
Exam Notes.................................................................................................. 29
Entering Patient Details................................................................................ 30
Printing ......................................................................................................... 30

P003948 Uscan User Manual Page | iii
Export........................................................................................................... 31
Scan Review ................................................................................................ 31
Deleting exams and patients........................................................................ 32
Data Security................................................................................................ 32
Setting a Device Password...................................................................... 33
5. Maintenance and Troubleshooting........................................................... 34
Maintenance................................................................................................. 34
Battery Maintenance .................................................................................... 34
Transducer cleaning and disinfection........................................................... 35
Cleaning .................................................................................................. 35
Disinfection .............................................................................................. 35
Troubleshooting ........................................................................................... 36
Clinical Troubleshooting .......................................................................... 36
Signostics Customer Support.................................................................. 36
6. Connectivity And Accessories.................................................................. 37
Accessories.................................................................................................. 37
Power sources ............................................................................................. 37
Internal battery ............................................................................................. 37
Power Supplies (Charger)............................................................................ 37
Mobile Stand Setup...................................................................................... 38
Cleaning .................................................................................................. 39
Disinfection .............................................................................................. 39
7. Specifications............................................................................................. 40
System dimensions ...................................................................................... 40
Environmental Operating and Storage Conditions....................................... 40
Power Supplies (Chargers) .......................................................................... 41
Internal battery ............................................................................................. 41
Measurement accuracy................................................................................ 41
Degree of Protection Against Ingress of Water............................................ 42
8. Safety .......................................................................................................... 43
Ergonomics .................................................................................................. 43
External materials ........................................................................................ 43
Disposal ....................................................................................................... 43
Electrical safety ............................................................................................ 43
Electromagnetic compatibility (EMC) ........................................................... 44
Power Supplies (Chargers) .......................................................................... 46
Biological safety ........................................................................................... 46
Acoustic Output............................................................................................ 46
9. Advanced Device and IT Setup................................................................. 48
Administrator Setup...................................................................................... 48
User Management........................................................................................ 49
Multiple Device Setup .................................................................................. 49
Ultrasound Scanning Restrictions ................................................................ 49
Data Recording Restrictions ........................................................................ 50
Storage Access Restrictions ........................................................................ 50
Device Tracking ........................................................................................... 50
References.................................................................................................. 52
Glossary ....................................................................................................... 53
Index.............................................................................................................. 5

P003948 Uscan User Manual Page | 1
1. IMPORTANT INFORMATION
About the User Manual
This User Manual is a reference tool for users of the Uscan; it does not constitute medical advice nor provide
clinical training, instruction in exam protocols, or information on how to interpret scans.
This manual should be read before Uscan is used. The Uscan is intended to be used in a medical facility.
Manual conventions
The following style conventions are used in this manual:
Buttons found on your Uscan are indicated in bold italics, e.g., Scan button. This style is also used to
describe areas of the display touch screen, e.g., Image name.
“Tap” refers to touching the screen quickly with your finger.
“Click” refers to pressing and releasing the button on the probe unit.
“Drag” refers to touching the screen with your finger and then moving your finger across the screen.
“Swipe” refers to moving your finger across the screen quickly.
“Pinch” refers to moving two fingers in a pinch motion or pinch release motion across the screen.
“Check” refers to tapping a checkbox to enable the associated function.
“Uncheck” refers to tapping a checkbox to disable the associated function.
“Select” refers to tapping a menu item from a menu list.
New terms that describe functions for the App are introduced in italics, e.g., exam.
Numbered steps must be performed in a specific order.
Bulleted items are lists in no specific order.
Links to other sections within the manual appear colored and underlined, e.g., see Contact information
(page 12).
Version information
This User Manual applies to Uscan with software version V3.5.x
Warnings, Cautions and Contraindications
A Warning describes precautions a user should take to prevent injury or loss of life.
A Caution describes precautions a user should take to prevent damage to the device.
A Contraindication is a specific situation in which the device should not be used because it may be harmful to
the patient.
Warnings, cautions and contraindications are included throughout this manual along with the content to which
they apply. In addition all warnings and cautions are listed in the Cautions, Warnings and Contraindications
(page 8).
Product Description
The Uscan consists of a Uscan display running a Signostics App, connected to a Uscan probe via a cable. The
system has been designed for non-invasive urological imaging examinations, and enables users to non-
invasively perform general abdominal imaging and measurements at the point-of-care. The Uscan generates
and transmits ultrasound energy in the form of pulses in the 3 to 7MHz range into a patient, detects the
reflected pulses, and processes the information in order to generate ultrasound images and measure anatomical
structures.

P003948 Uscan User Manual Page | 2
The Uscan display is an off-the-shelf Android tablet or phone approved, pre-configured, and supplied by
Signostics. The tablet or phone specifications are at least the following:
Processor with processing performance of a dual core 1.5GHz Cortex-A9;
5 inch diagonal color display with 1200 x 780 pixels;
Touch screen interface;
Internal speakers and microphone;
Fully compliant on-the-go (OTG) or host USB 2.0 port;
Android operating system 5.0 or later;
IEC 60950-1 certification (or IEC 60601-1 certification);
Storage specification of -20°C to 50°C, 10-93% non-condensing relative humidity, and 50-101.5kPa
pressure;
Operating specification of 5°C to 40°C, 15-90% non-condensing relative humidity, and 70-101.5kPa
pressure;
Bluetooth 4.0
IEEE 802.11 a/b/g/n/ac
1GByte SDRAM memory;
16GBytes storage; and
Power, volume up and volume down buttons.
The Uscan display is provided with a power supply. When the Uscan display is connected to the Uscan probe
the combination is configured as a medical electrical system.
The Uscan probe contains a probe assembly (P003992 or P003993) attached to an ultrasound transducer (B3-
5 Transducer, P004200). The transducer shall be referenced in this manual when the patient contact part of the
probe and transducer is being described.
The Uscan enables the user to automatically measure bladder volume with or without a brightness mode (B-
mode) image for guidance (Fig 1.1). The system processes data in real-time, and when the user is not scanning
in the correct location to detect a bladder, the display guides the user to the correct location, reducing
measurement errors.
The user can elect to scan organs beside the bladder, including the kidney and prostate, with controls to change
brightness and depth in this mode.
Images are able to be annotated by using voice or text. Examination notes can be entered.
The Uscan provides optional wireless connectivity allowing remote storage and device tracking.
Accessories for wireless printing, bar code scanning, and a mobile stand are supported and available in some
countries.
The Uscan display and probe are battery powered.

P003948 Uscan User Manual Page | 3

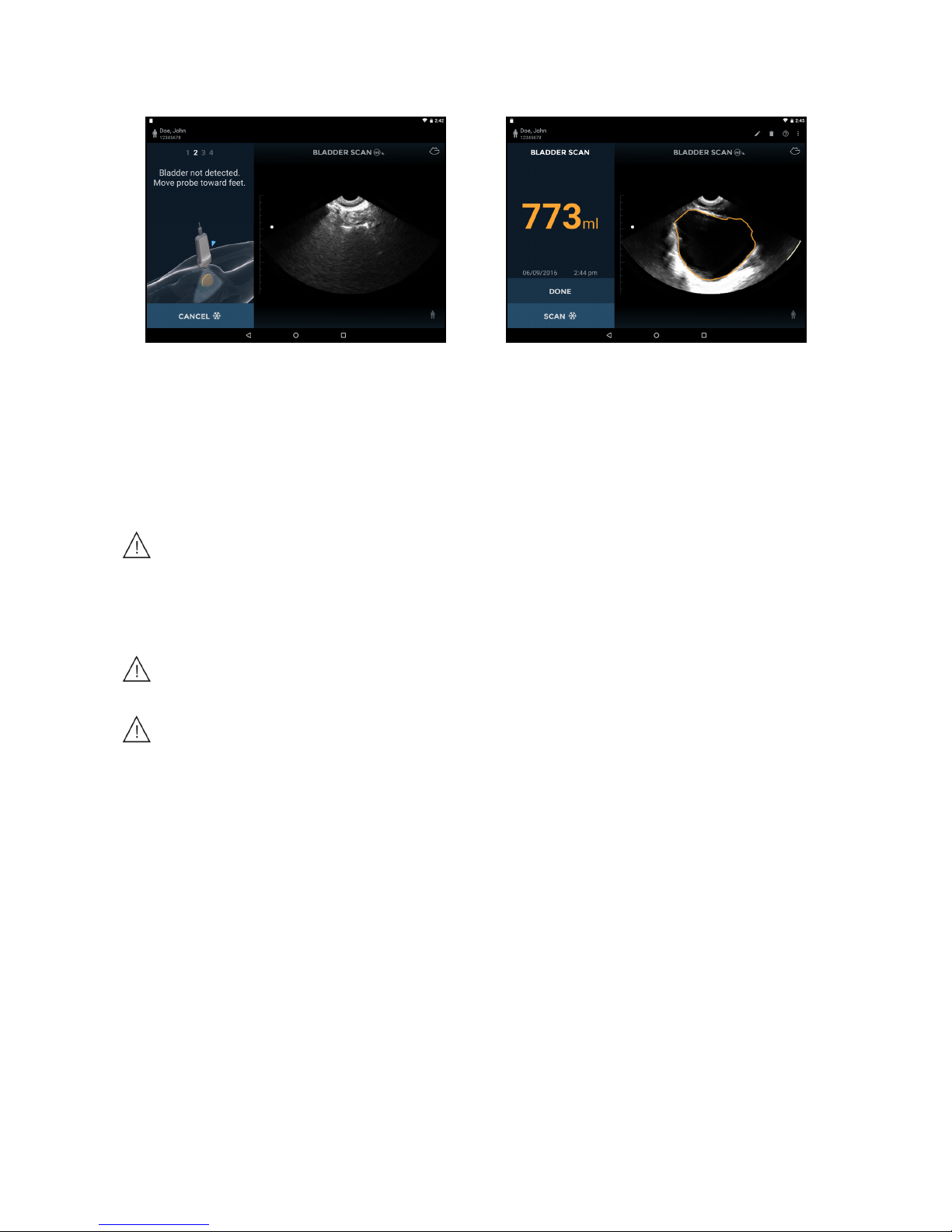

Fig 1.1 System User Interface and Display
Intended uses of Uscan
The Uscan is for non-invasive imaging of the human body and is intended for the following applications:
Abdominal, Musculoskeletal, Pediatric, and Small Organ. Users must have ultrasound training for abdominal,
musculoskeletal, pediatric, and small organ imaging.
The Uscan can also be used to obtain an image of the bladder that is used to automatically determine bladder
volume.
Contraindications
The Uscan is designed for percutaneous scanning only. Do not attempt intra-cavity imaging; in partic-
ular, trans-esophageal, trans-vaginal and trans-rectal scans are contraindicated.
The Uscan is not intended for ophthalmic use or any use causing the acoustic beam to pass through the
eye.
Cautions
Federal (USA) law restricts this device to sale by or on the order of a physician.
Warning
Show care when scanning near a wound to avoid damaging or further injuring the affected area.
Review the ultrasound image when measuring bladder volume on pregnant or post-partum patients,
and adjust the bladder outline if it has included amniotic fluid or the uterus in the measurement.

P003948 Uscan User Manual Page | 4
System and Transducer applications
Table 1.1 Uscan applications
Clinical Application Mode of Operation
General Specific B-mode B-mode/
M-mode
B-mode/
PW Doppler
Ophthalmic Ophthalmic
Fetal imaging &
other
Fetal
Abdominal 
Intra-operative (specify)
Intra-operative (neuro)
Laparoscopic
Pediatric 
Small organ (specify)* 
Neonatal cephalic
Adult cephalic
Trans-rectal
Trans-vaginal
Trans-urethral
Trans-oesophageal (non-cardiac)
Musculoskeletal (conventional) 
Musculoskeletal (superficial)
Intravascular
Other (specify)
Cardiac
Cardiac adult
Cardiac pediatric
Intravascular (cardiac)
Trans-esophageal (cardiac)
Intra-cardiac
Other (specify)
Peripheral
vessel
Peripheral vessel
Other (specify)
* Small organ use is prostate

P003948 Uscan User Manual Page | 5
Table 1.2 Uscan applications for the B3-5 transducer (P004200)
Clinical Application Mode of Operation
General Specific B-mode B-mode/
M-mode
B-mode/
PW Doppler
Ophthalmic Ophthalmic
Fetal imaging &
other
Fetal
Abdominal 
Intra-operative (specify)
Intra-operative (neuro)
Laparoscopic
Pediatric 
Small organ (specify)* 
Neonatal cephalic
Adult cephalic
Trans-rectal
Trans-vaginal
Trans-urethral
Trans-esophageal (non-cardiac)
Musculoskeletal (conventional) 
Musculoskeletal (superficial)
Intravascular
Other (specify)
Cardiac
Cardiac adult
Cardiac pediatric
Intravascular (cardiac)
Trans-esophageal (cardiac)
Intra-cardiac
Other (specify)
Peripheral
vessel
Peripheral vessel
Other (specify)
* Small organ use is prostate
Training
The Uscan device is intended to be used by clinicians with appropriate professional qualifications and clinical
training. Intended users include physicians, nurses, nurses' aides, midwives, and physical therapists.
All users should read the generic ALARA education program supplied with your Uscan (see enclosed ISBN
1-93004 7-71-1, Medical Ultrasound Safety) or the Health Canada “Guidelines for the Safe Use of Diagnostic
Ultrasound” available on the Health Canada website. This program outlines the guiding principle for
diagnostic ultrasound, where the qualified user keeps ultrasound exposure to “as low as reasonably
achievable” while performing a diagnostic examination.
In addition to the above, users intending to use the general imaging must have appropriate training in
ultrasound. Appropriate information on training may be obtained by contacting Signostics or your local
professional body.
For users measuring bladder volume an understanding of anatomy and location of the bladder is required.
Ultrasound training is required if bladder outline adjustments are to be performed.
Warning
You must have appropriate ultrasound training before using the system for general ultrasound imaging
or adjusting bladder measurement outlines.

P003948 Uscan User Manual Page | 6
Contents of the Uscan packages
You r Uscan pack contains the Uscan Probe carton with the Uscan probe and accessories, and the Uscan
Display carton with an off-the-shelf tablet (or handheld display) pre-loaded with Signostics software.
The Uscan Probe carton contains the following:
A Uscan probe (with connected transducer);
2 Quick Reference Guides.
A Signostics power supply.
A USB Flash device containing:
The User Manual.
Training materials including:
• A generic ALARA education program (see enclosed ISBN 1-93004 7-71-1, Medical
Ultrasound Safety).
Terms and conditions of Warranty.
Quick Reference and Setup Guides.
The Uscan Display carton contains the following:
A tablet (or handheld display) preconfigured with the Uscan software;
A probe connection cable.
A Signostics power supply.
A setup guide.
Fig 1.2 Uscan Pack Contents
Uscan Display (tablet
shown)
1800mm Probe tablet
connection cable
(P003968 or
P003986) 
or
900mm Probe phone
connection cable
(P003969)
Signostics Power
Supply (P003198)
and adaptors
Uscan Display Power
Supply (P003198) and
adaptors
Quick Reference
Guides (P003958 and
P004039) and Setup
Guide (P004040)
Ultrasound probe
(P003992 or P003993)
and transducer
(P004200)
USB Flash

P003948 Uscan User Manual Page | 7
System Features
The front of the Uscan tablet display and probe are shown in Fig 1.3. The Uscan handheld display contains the
features in Fig 1.3 except the dock connector but may differ from the layout shown.
Fig 1.3 System Features
1 Audio output/Audio input 8 USB Connector
2 Touch screen 9 Power LED
3 Power On/Off 10 Over-mold
4 Volume Up/Volume Down 11 Transducer
5 Microphone 12 Scan button
6 Speaker 13 Dock Connector
7USB port
Camera for bar code scanning is on the rear of the display.
Classifications
The Uscan is internally battery powered during scanning.
The Signostics Power Supply P003198 classification for Protection against electric shock: Class II
equipment.
The B3-5 Sector (P004200) transducer is: Type BF Applied Part.
The Uscan probe is classified as IPX1.
The Uscan is not for use within an oxygen rich environment.
The Uscan is suitable for non-continuous operation (Mode of Operation (page 41)).
1
2
3
4
6
7
8
9
10
11
12
513
13

P003948 Uscan User Manual Page | 8
Patient Environment
The Uscan is intended to be used in a medical facility. It is battery powered and the user is expected to bring
the system into the patient environment for use. Power supply connections for recharging are to remain outside
the patient environment. See Fig 1.4 for a drawing of the patient environment. When a power supply is
connected, ensure the connection can be easily disconnected.
Fig 1.4 Patient Environment
Warning
Equipment not suitable for use in the presence of a FLAMMABLE ANAESTHETIC MIXTURE
WITH AIR OR WITH OXYGEN OR NITROUS OXIDE.
Do not use the system near high-frequency surgical equipment, as it could create a burn hazard.
Do not recharge the system in the patient environment.
Caution
Do not allow any fluid to enter the USB connector on the probe or any connectors on the display.
If fluid is spilled on the probe, display, or cable, immediately remove the fluid with a soft dry cloth. Carefully
inspect the probe USB connector and display connectors for signs of fluid ingress. If there are any signs of
fluid ingress or if the device exhibits any unusual behavior, do not use and contact Signostics customer support
or your Signostics distributor immediately. If required, also follow the cleaning and disinfection instructions
(see Cleaning).
Cautions, Warnings and Contraindications
To ensure the device is not damaged and user and patient safety is maintained, please read and follow the
cautions and warnings below.
Warnings
Show care when scanning near a wound to avoid damaging or further injuring the affected area.
You must have appropriate ultrasound training before using the system for general ultrasound imaging
or adjusting bladder measurement outlines.
Review the ultrasound image when measuring bladder volume on pregnant or post-partum patients,
and adjust the bladder outline if it has included amniotic fluid or the uterus in the measurement.
Equipment not suitable for use in the presence of a FLAMMABLE ANAESTHETIC MIXTURE
WITH AIR OR WITH OXYGEN OR NITROUS OXIDE.
Do not use the system near high-frequency surgical equipment, as it could create a burn hazard.
Do not recharge the system in the patient environment.
Recharge Uscan only with the Power Supplies (chargers) provided.
The Uscan Power Supply are dedicated units to be used exclusively with the Uscan System only.
Only connect the Power Supplies to a mains supply rated at 100-240V and 50-60Hz.
Patient Environment Side View Patient Environment Top View
1.5m 1.5m

P003948 Uscan User Manual Page | 9
Do not use the device or Power Supply if there are signs of damage.
Be aware of latex allergy. Some commercially available transducer covers contain latex. Refer to the
US FDA alert title: “Medical Alert: Allergic Reactions to Latex-Containing Medical Devices”, issued
March 29, 1991.
Check the connecting cable, connectors, and system housings before use for cracks or fraying. Do not
use if damaged.
No modification of this equipment is allowed.
This device contains no user-serviceable parts. Please contact Signostics customer support or your
Signostics distributor for maintenance or repair.
The internal probe battery is not to be replaced by the user – doing so may create fire or explosion
hazard.
Remove all particles and other matter from crevices and surfaces when cleaning the system and
components.
The device is supplied unsterile.
Clean and disinfect the transducer between patients.
Before cleaning or disinfection turn Uscan off and disconnect from the power supply.
Do not submerge the probe, the display or the power supply (charger) as electric shock could result.
The ultrasound probe is IPX1 which allows water falling vertically onto the probe. The display is
IPX0 and has no protection against ingress of water.
Clean and disinfect the system before placing in a bag for transport. Use the supplied Signostics probe
holder to store the probe. Clean and disinfect the probe holder regularly.
After cleaning or disinfection examine the ultrasound probe and display as appropriate for cracks or
leaks, and if damage exists discontinue use of the system and contact Signostics customer support or
your Signostics distributor.
The user must not touch the any device connectors while in physical contact with the patient.
The Uscan probe is connected to the Uscan display running Signostics software to configure a
medical system. The display has been certified by Signostics as part of a medical system to IEC
60601-1: 3rd edition.
Do not connect the Uscan display to external computers or peripherals using the USB port unless the
system is outside the patient area. Failure to comply with these guidelines may result in electric shock.
Mounting the Uscan display on a mobile stand is configuring a medical system. Only use the
Signostics provided mobile stand accessory (P004013).
Only connect accessories that are specified as being compatible with Uscan. Contact Signostics
customer support or your Signostics distributor for information on compatible accessories and
systems.
If required, recharge the Uscan Probe only with the Signostics power supply (charger) provided
(P003198).
The Uscan power supplies are dedicated units to be used exclusively with the Uscan System only.
Do not open or modify the Signostics Power Supply P003198 or any other supplied power supplies –
Risk of electric shock
When using the optional Signostics mobile stand, if a Multiple Socket Outlet is required only use an
outlet and power cable certified to IEC 60601-1, and fix to the stand using a bolt and tool.
After storage at extreme temperatures, check the transducer surface temperature before applying to a
patient. A cold or hot surface may burn a patient.
Avoid musculoskeletal strain with prolonged use of Uscan.

P003948 Uscan User Manual Page | 10
Do not incinerate or discard the device in general waste at end of life. The lithium battery is a potential
environmental and fire safety hazard.
Uscan complies with the requirements of IEC 60601-1:3rd Edition. To avoid the risk of injury or
electrical shock, comply with all safety instruction and warnings.
Uscan complies with the Electromagnetic Compatibility requirements of AS/NZ CISPR 11:2004 and
IEC 60601-1-2:2007. However, electronic and mobile communications equipment may transmit
electromagnetic energy through air and there is no guarantee that interference will not occur in a
particular installation or environment. Interference may result in artifacts, distortion, or degradation of
the ultrasound image. If Uscan is found to cause or respond to interference, try re-orienting Uscan or
the affected device, or increasing the separation distance between the devices. Contact Signostics
customer support or your Signostics distributor for further information
When using the optional mobile stand, the Uscan system can be susceptible to ESD and may require
manual intervention. If ESD results in an error, unplug the probe and plug back in to restore operation.
Neurological use on patients with Creutzfeld-Jacob disease must not be performed. The device is
unable to be disinfected after such use.
The ALARA principle (As Low As Reasonably Achievable) should be employed for all medical
ultrasound exposure
Cautions
Federal (USA) law restricts this device to sale by or on the order of a physician.
Ultrasound transducer crystals are fragile and are easily damaged if knocked, dropped or excessively
vibrated.
Avoid unnecessary bending or winding of the connecting cable.
The Uscan batteries should be charged every six months at a minimum, even if you are not using your
device. When storing for greater than 3 days, store at ambient or cooler temperature.
Use only recommended disinfection methods.
Use abrasive cleaners, isopropyl alcohol or solvents sparingly, and if used immediately clean and
remove residual substances from the Uscan.
Do not heat sterilize any part of the Uscan device.
Minimize application of alcohol based disinfectant to colored overmold materials. Long term use may
result in material degradation. If alcohol based disinfectant is applied to the overmold, immediately
remove by wiping with a damp cloth.
Only operate, charge and store Uscan within the approved environmental parameters.
Uscan contains sensitive components and circuits. Failure to observe proper static control procedures
may result in damage to the system. Any faults should be reported to Signostics customer support or
your Signostics distributor for repair.
Contraindications
The Uscan is designed for percutaneous scanning only. Do not attempt intra-cavity imaging; in
particular, trans-esophageal, trans-vaginal and trans-rectal scans are contraindicated.
The Uscan is not intended for ophthalmic use or any use causing the acoustic beam to pass through the
eye.

P003948 Uscan User Manual Page | 11
Labeling
Symbol Explanation
Manufacturer
Intertek nationally recognized testing laboratory certification mark for
Canada and United States
TUV Rheinland nationally recognized testing laboratory certification mark
UL Recognized Component mark certifying compliance with Canadian
and United States requirements
Tested to comply with FCC standards
Class II Equipment
Type BF applied part (B – Body, F = floating applied part)
Caution or Warning
Consult instructions for use
Do not dispose of this product in normal trash or landfill (see European
Commission Directive 93/86/EEC). Refer to local regulations for disposal
IPX1 Degree of protection from moisture for the ultrasound probe. The probe is
protected against effects of vertically falling water
REF Part Number
SN Serial number
Date of manufacture
max °C
min °C
Temperature limitation
Humidity limitation
Atmospheric pressure limitation
Stack box this way up
Direct Current (DC)
Alternating Current (AC)
Dangerous voltage

P003948 Uscan User Manual Page | 12
Contact information
United States

EchoNous Inc.
8310 154th Avenue NE
Building B, Suite 200
Redmond, WA 98052
Technical Support (toll free) 844-502-7094
Sales (toll free) 844-854-0800
Email [email protected]
Website www.signosticsmedical.com
Trademarks and document copyright
EchoNous®, Uscan®, the EchoNous® Logo and the Uscan® Logo are registered trademarks of EchoNous,
Inc. and its subsidiaries in the United States and other countries. Unauthorized use is strictly prohibited.
Mopria®, the Mopria® Logo and the Mopria® Alliance logo are registered trademarks and service marks of
Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited.
All other trademarks are the property of their respective owners.
© EchoNous, Inc., 2017
Scan button
Rx only
Caution: Federal (USA) law restricts this device to sale by or on the order
of a physician or any other practitioner licensed by law of the State in
which he practices to use or order the device
Symbol Explanation

P003948 Uscan User Manual Page | 14
2. GETTING STARTED
Unpacking the Boxes
You r Uscan system is shipped in multiple boxes. Be careful not to insert anything sharp through the top of the
boxes when opening. Check you have received all of the ordered components:
A Uscan display (with pre-installed Signostics software), associated power supply, probe connection
cable, protective cover, and setup guide.
A Uscan probe with Signostics power supply, USB Flash drive, and quick reference guide.
Options
Carry bag with probe holder and protective cover.
Wireless printer (Citizen Systems Model CMP-20BTU 2" Mobile Printer with Bluetooth).
Wireless barcode scanner (not available in all countries. Contact Signostics customer support or your
Signostics distributor for recommended scanners).
Mobile stand (P004013) with Signostics power supply and probe connection cable.
If any parts are missing or damaged then contact Signostics customer support or your Signostics distributor as
soon as possible.
Connecting and disconnecting the Power Supply
Fig 2.1 Power Supply Connections
(Tablet shown)
You should fully charge the display and probe before using them for the
first time (see Fig 2.1).
Warning
Recharge Uscan only with the Power Supplies (chargers)
provided.
The Uscan Power Supply is a dedicated unit to be used
exclusively with the Uscan System only.
Only connect the Power Supplies to a mains supply rated at
100-240V and 50-60Hz.
Do not use the device or Power Supply if there are signs of
damage.
Recharge the display using the power supply provided with the display. The connector is magnetic and can
only be connected in one orientation.
The Uscan probe contains an internal rechargeable battery. The probe can be directly charged using the Power
Supply (P003198) as shown in Fig 2.1. If the probe is connected to the tablet display, and the tablet display is
plugged into its power supply, both the display and ultrasound probe batteries are recharged together. The
handheld display does not have separate charging and USB ports, so concurrent charging is not possible.
If required, recharge the probe using the Signostics Power Supply (P003198) (see Fig 2.1). To disconnect all
mains voltages from the equipment remove the display power supply connection and (if applicable) the
probe power supply connection.

P003948 Uscan User Manual Page | 15
Setting up the System
To setup the system with the optional mobile stand refer to Mobile Stand Setup. To configure the system for
mobile use, follow the instructions below (and see Fig 2.2):
1. Press and hold the Power button for 2 seconds to turn the Uscan Display on.
2. The UScan application setup wizard will run. Setup the following:
2.1 Language.
2.2 Date and time.
2.3 Wi-Fi connectivity.
2.4 Registration information.
3. Insert the display into the cover.
4. Insert the USB cable into the display.
5. Secure the cable in the provide cable clip (tablet only).
6. Insert the other end of the cable into the Uscan probe.
7. Connect the provided display charger to the display and fully charge the system.
Fig 2.2 Display setup
After setup, the Uscan Home screen is displayed (see Fig 2.3) and the device is ready to use with default
settings. The default settings are appropriate where there is a single user of the system and patient data is not
saved to remote servers. The system can be further customized by setting preferences (see Preference
SetupSettings).
1
2
3
4
5
6
7

P003948 Uscan User Manual Page | 16
Basic Device Control
The Uscan communicates with the user in a number of ways.
Menus
Screens and windows
Message boxes
Icons
Navigate by using the touch screen, using common control gestures such as tap, drag, pinch, spread, and
swipe.
The system controls and status are shown in Fig 2.3.
Fig 2.3 Uscan Home Screen
System Controls
Three system controls are always available at the bottom of the screen:
Back – tap to return to a previous screen.
Hide – shown when a keyboard is active. Tap to hide a keyboard.
Home – tap to return to the Home screen.
Tasks – tap to display background tasks (this should not be used except by administrators or
service staff).
System Status Icons
System status icons are shown at the top right of the screen:
Tablet (or phone) battery status.
Wi-Fi status.
Bluetooth status (used for wireless printing and bar code scanning).
Location services – The device GPS is active and transmitting.
System Status
Uscan Menu
Bladder scan
instruction video
Exam review (not
shown in all
configurations)
Show Background
Task s
System Notifications
Initiate ultrasound
scan (not shown in all
configurations)
Initiate bladder
measurement
Back
Home

P003948 Uscan User Manual Page | 17
System Notification Icons
System notification icons are shown at the top left of the screen:
Probe battery status.
Remote storage upload notification.
Uscan software update notification (not for Japan).
The remote Device Manager has located the device.
Uscan Menu
Tap to go to the Uscan menu. The following menu items are available:
Settings – provides access to all Uscan application and tablet system settings.

About – displays the software version number and license keys.
Settings
To setup or change Uscan preferences or tablet system settings, tap from the Home screen and select
Settings. The following preferences can be configured:
Exam Data Storage – tap to see storage preference
Local Storage – check to automatically store patients and images on the tablet (or phone)
internal storage.
Remote Storage – check to automatically store patients and images to a remote server.
Remote Server – Select the type of remote server. Options will only be displayed if
the applicable license has been purchased and installed (see Advanced Device and
IT Setup).
Patient Data – select the source for patient lists (see Advanced Device and IT Setup).
Exam Patient Details – check to force users to enter patient information before starting a
scan.
Send Anonymized Data to Signostics – check to send anonymized images to Signostics to
enable future product improvements. Check with your institution’s data policies or legal
department before enabling this option.
Send data over metered connection - check to allow data to be sent when connected to a
metered (cellular) connection.
Organization – tap to update registration details including organization name and address. These
details are transferred to Signostics when a network connection is available.
Printing – select the Printer Type to None, Network Printer (see Network Printer Setup (Optional)), or
Bluetooth Mobile Printer (see Bluetooth Printer Setup (Optional)).
Display – tap to see display preferences
Show Organization and Transducer Frequency - check to display the Organization and
transducer center frequency on the ultrasound image.
Ruler – check to display a cm ruler down the left side of the ultrasound screen.
Show Ultrasound Button – uncheck to remove quick access to ultrasound scans from the
Home screen.
Show Bladder Image by Default – determines whether the ultrasound image is initially
visible when bladder scans are performed.

P003948 Uscan User Manual Page | 18
Clinical – tap to see clinical preferences
Default Patient Type – tap to change the default patient type (Normal, Pediatric, Deep,
Pregnant, Phantom, “Use last selected value”, or “Ask each time”).
Strict Probe Positioning Rules - check to prevent fanning for bladder scans unless the bladder
or pubic bone is detected.
Administration – Refer to Advanced Device and IT Setup section for advanced user management and
setting up several devices with the same preferences.
Maintenance – provides maintenance related functionality including access to software updates.
System Settings – provides access to tablet system settings, including Wi-Fi, Bluetooth, Display
settings, Location services, linked Accounts for device tracking, Language, and Date & time.
