SII TMI VD55C User manual

Issued on: 15. Jan. 2016
ψ29. 50 mm
H 3. 97 mm
Specification - 1
Specification - 2
Appearance
Casing
Hand Fitting
Hand Setting Stem
Dial - 1
Assembly Plan - 1

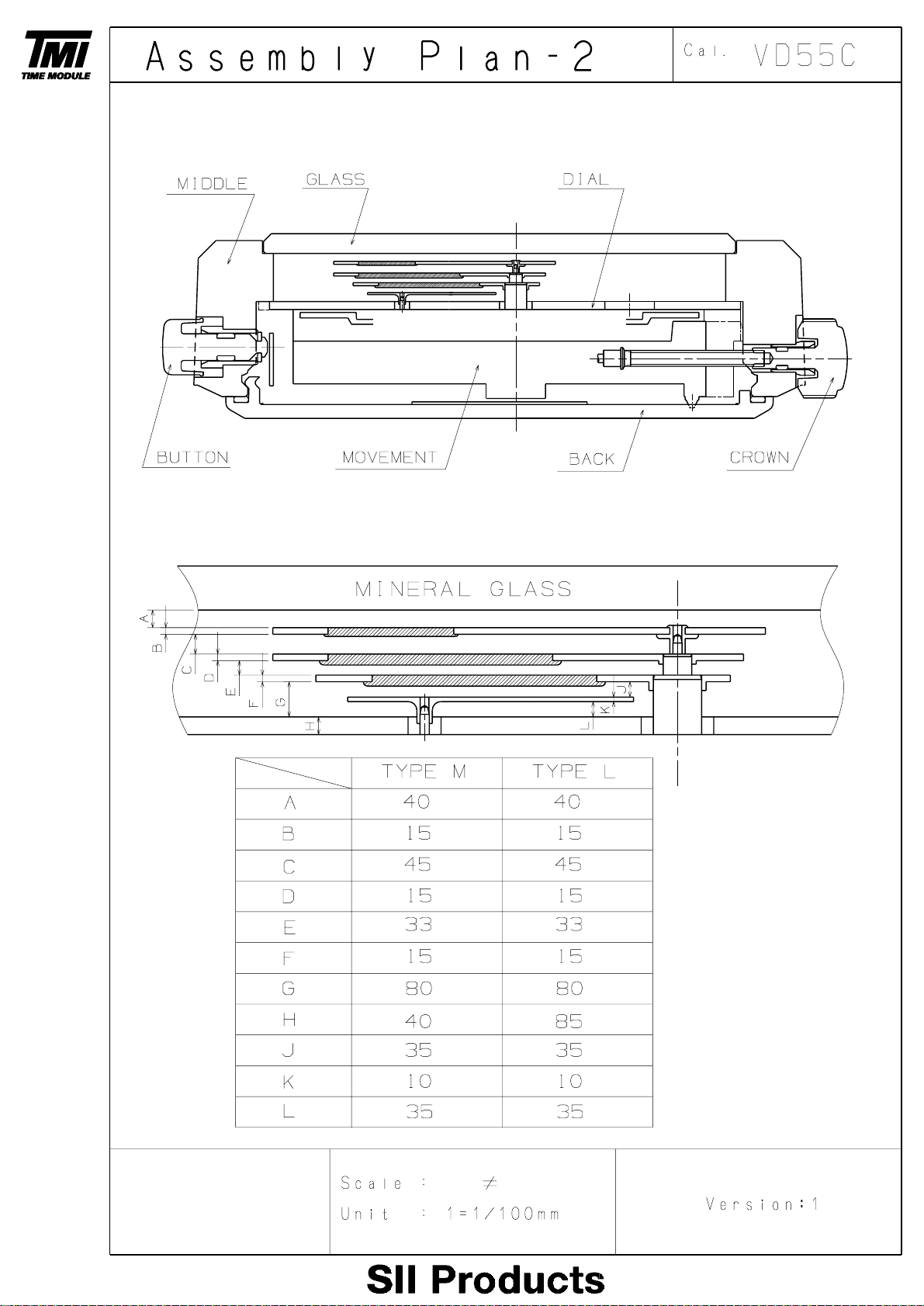

Assembly Plan - 2
Hands
SII Products
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1
Cal. VD55C
Version No.Item

MOVEMENT SPECIFICATION - 1
CAL.VD55C 12 3 / 4 Ligne Quartz Movement
Three Hands with 3 Eyes ( Minute, Second, 1 / 10 Second Chronograph )
1. MOVEMENT DIMENSIONS
·
Outside diameter ψ29.50mm
(12H~6H) x 26.00mm (3H~9H)
·
Casing diameter ψ28.80mm
(12H~6H)
·
Total height 3.97 mm
·
Dimensions of small hands away from center 7.50 mm
2. TIME STANDARD
·
Type of quartz oscillator Tuning fork
·
Frequency of quartz oscillator 32,768 H Z
·
Accuracy Monthly rate: Less than 20 seconds per month at
normal temperature range
·
Regulation device Nil
·
Regulation hands unbalance Second : Less than 0.09 µN·m ( 9mg·mm )
Minute : Less than 0.60 µN·m ( 60mg·mm )
Hour : Less than 0.50 µN·m ( 50mg·mm )
Chronograph hands : Less than 0.05 µN·m ( 5mg.mm )
·
The moment of inertia
1/10 chronograph hand
: Less than 0.40 µg·m² ( 400mg·mm² )
(Disc hand)
·
Additional function Stopwatch : up to 1 minute in 1/10 second ( 2 seconds per round )
up to 60 minutes in 1 second split time
3. BATTERY
·
Type Silver oxide battery
·
Nominal voltage 1.55 V
·
Size ψ9.5 x t 2.0 ( mm )
·
Battery life Approx. 3 years
·
Recommended battery SR920SW ( SEIZAIKEN )
4. DIAL FIXED METHOD
The dial is fixed by two dial leg holes of the main plate
5. JEWEL
0 jewel
6. ANTIMAGNETISM
≧1600 A / m
( direct current magnetic field )
7. SHOCK RESISTANCE
On equal level with general quartz movement
8. OPERATING TEMPERATURE RANGE From - 5 ℃to + 50 ℃
9. TEST OF ACCURACY
·
Equipment to be used SEIKO Quartz Tester QT - 99
Greiner Quartz Timer - C
Witschi Q-Tester 4000
·
Duration of measurement 10 seconds
·
Microphone to be used Electromagnetic detection type
* All specifications are subject to change without notice.
SII Products
Version: 1

Movement Specification - 2
OPERATION 3 step motors ( 3 hands, 1 / 10 sec. chrono. maximum to 60 minutes )
* Stopwatch 1/10 second hand moves 2 seconds for 1 circle.
* Pull the crown to 2nd click to adjust the stopwatch hand position.
* AC functions is available if stopwatch hand position is disorderly.
* When using AC functions, stopwatch hand moves back and returned to where it was
( second hand moves 1/2 circle counterclockwise and 1/2 circle clockwise, 1/10
second hand moves 1 circle clockwise )
Version 1
SII Products
CAL. VD55C
stopwatch
second hand
stopwatch
minute hand 3 hands
Normal position
AC FUNCTIONS
( KEEP BUTTONS
"A" AND "B"
PRESSED AT THE
SAME TIME FOR
2 SECONDS, AND
THEN, RELEASE
THE BUTTONS )
START
STOP
FREE
linkage
SPLIT
RESET
ADJUSTING THE
STOPWATCH SEC.&
MIN. HAND POSITION
(CLOCKWISE )
TIMING
SETTING
RESET SWITCH
SECOND
ADJUSTING THE
STOPWATCH 1/10
SEC. HAND POSITION
(CLOCKWISE )
Chronograph 1/10 second hand
(This chronograph hand moves for the first minute
which indicates the measurement time in 1/10 unit)
1st click
adjusting minute, hour & chrono.

         
