SII TMI VH63A User manual

Issued on : 29. Feb. 2016
ψ23. 70 mm
H 3. 45 mm
Specification - 1
Specification - 2
Appearance
Casing

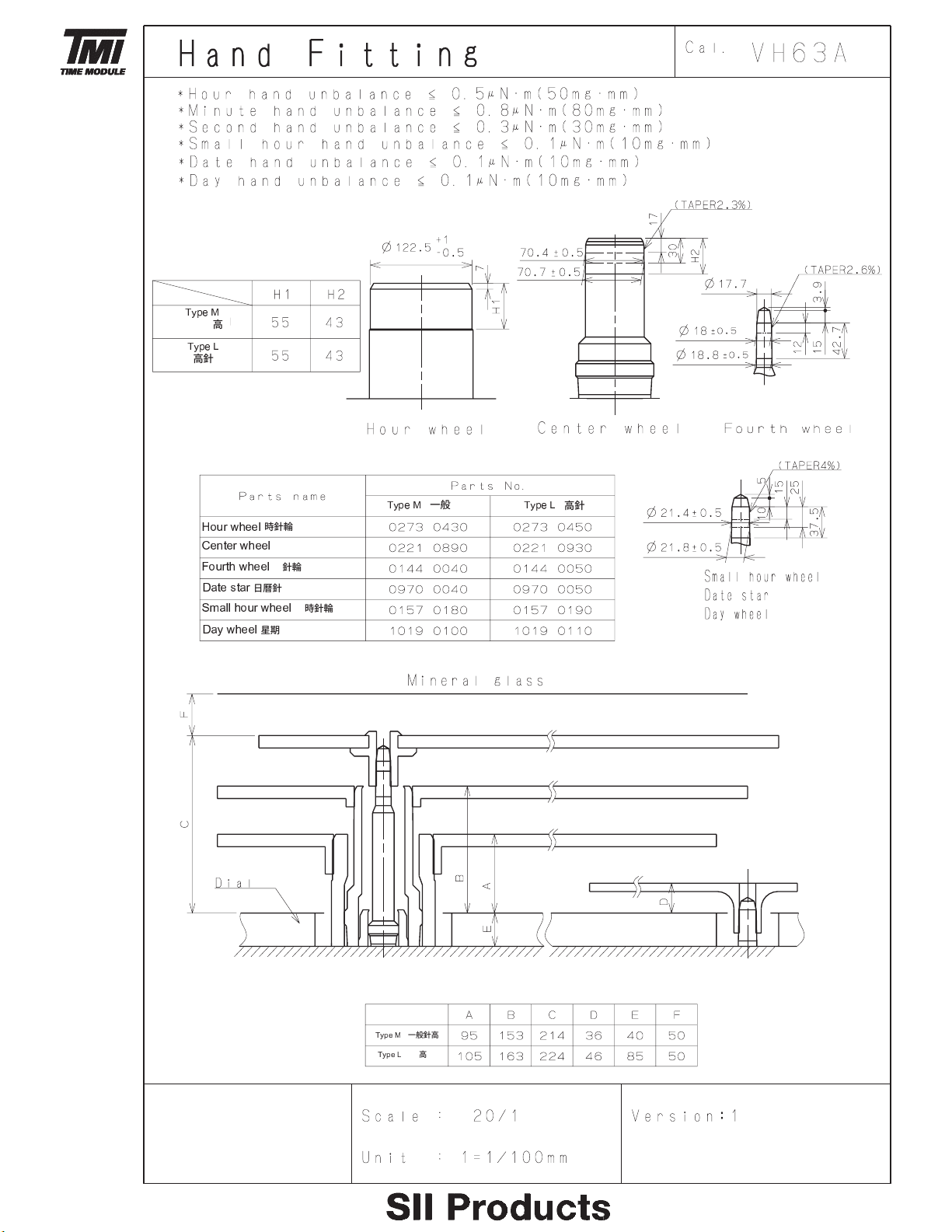

Hand Fitting

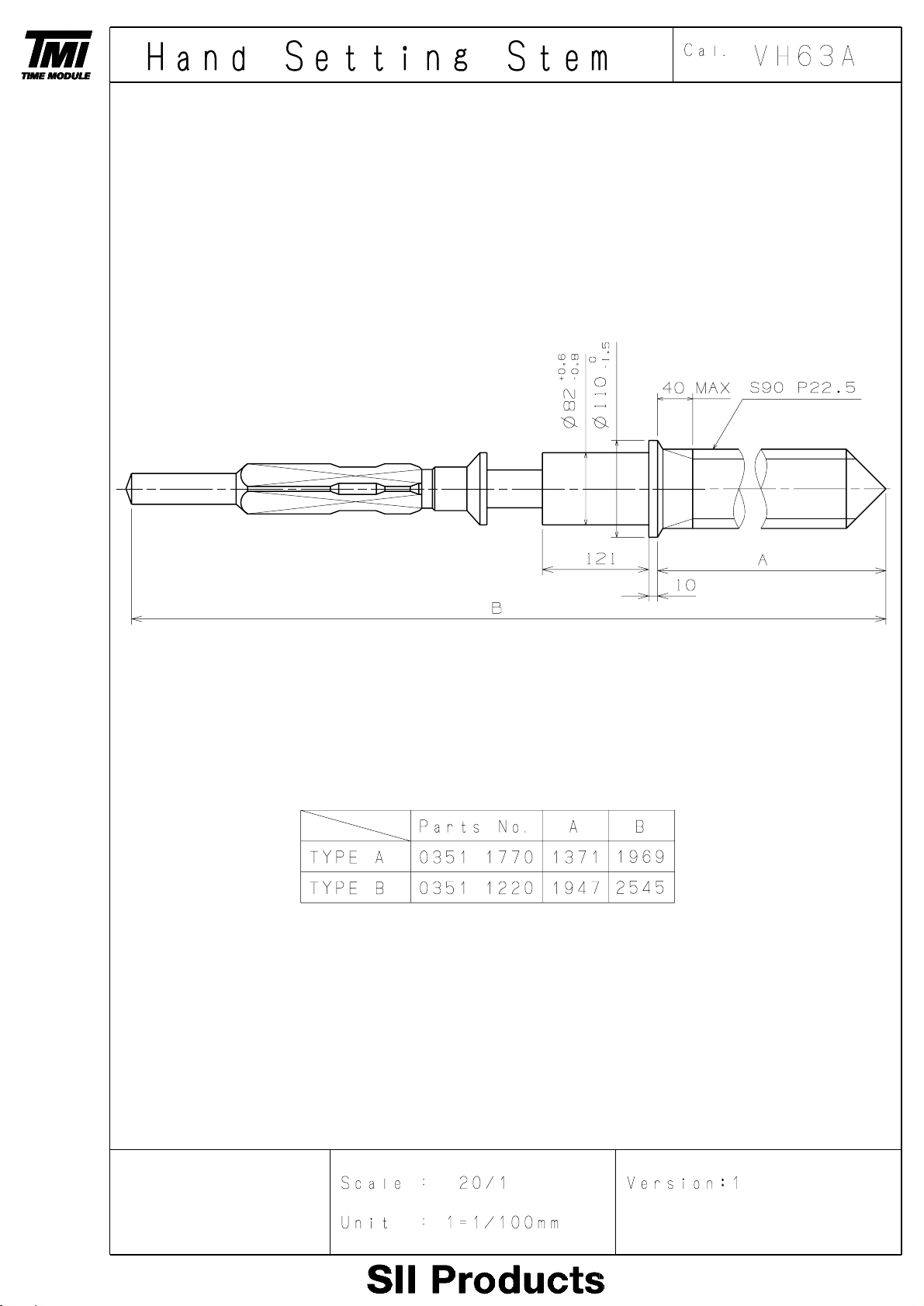

Hand Setting Stem
Dial
Casing Ring

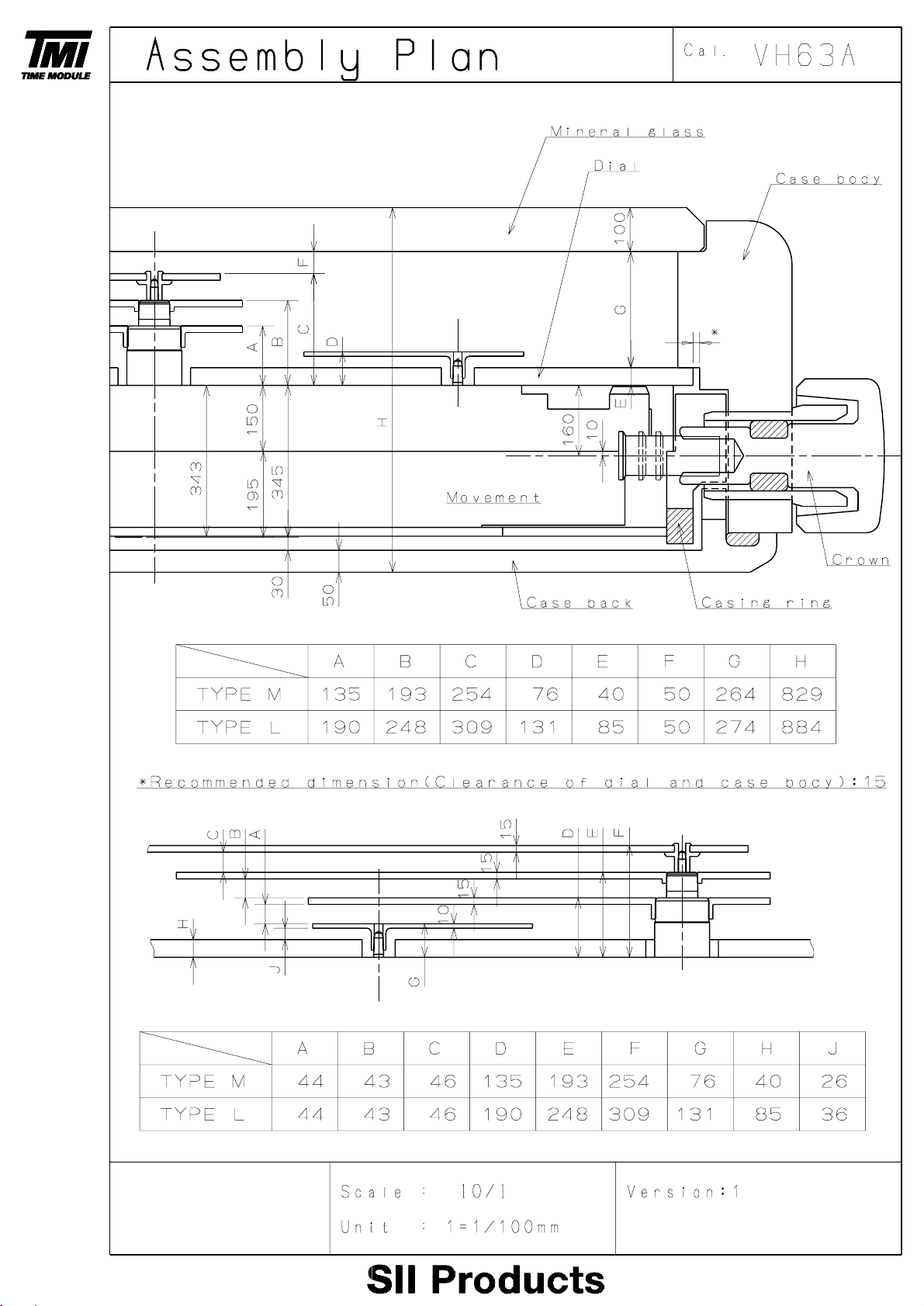

Assembly Plan
Hands
SII Products
Version No.Item
Version 1
Version 1
Version 1
Version 1
Cal. VH63A
Version 1
Version 1
Version 1
Version 1
Version 1
Version 1

1. MOVEMENT DIMENSIONS
·
Outside diameter ψ23.70mm { 22.60mm (12H~6H) x 22.60mm (3H~9H) }
·
Casing diameter ψ23.30mm { 22.10mm (12H~6H) x21.40mm (3H~9H) }
·
Total height 3.45 mm
·
Dimensions of small hands away from center 6.90 mm
2. BASIC FUNCTION
·
Jewels
2 jewels
·
Regulation device Nil
·
Accuracy ± 15 seconds per month at normal temperature range
·
Battery life Approx. 2 years
·
Operation temperature range From - 5 ℃to + 50 ℃
·
Antimagnetism ≧1600 A / m
( direct current magnetic field )
·
Shock resistance On equal level with general quartz movement
·
Hands Regulation hands unbalance
Hour : Less than 0.50µN·m ( 50mg·mm )
Minute : Less than 0.80µN·m ( 80mg·mm )
Second : Less than 0.30µN·m ( 30mg·mm )
Small hands : Less than 0.10µN·m ( 10mg·mm )
(Date, Day, 24H hands)
3. OSCILLATOR
·
Type of quartz oscillator Tuning fork
·
Frequency of quartz oscillator 32,768 Hz
4. BATTERY
·
Type Silver oxide battery
·
Nominal voltage 1.55 V
·
Size ψ9.5 x t 2.0 ( mm )
·
Recommended battery SR920SW ( SEIZAIKEN )
5. DIAL FIXED METHOD Dial legs fitted with holes on the main plate
6. TEST OF ACCURACY
·
Equipment to be used SEIKO Quartz Tester QT - 99
Greiner Quartz Timer - C
Witschi Q-Tester 4000
·
Duration of measurement 10 seconds
·
Microphone to be used Electromagnetic detection type
* All specifications are subject to change without notice.
SII Products
Version: 1
CAL. VH63A 10 ½ Ligne Quartz Movement
Three Hands (1/4 Center Second)
MOVEMENT SPECIFICATION - 1
Small Date Hand, Small Day Hand, Small 24 Hours Indicator

Movement Specification - 2
OPERATION
2nd click
SII Products
CAL. VH63A
Version 1
Minute hand
[ Normal position]
Date hand
Hour hand
Day hand
Second hand
24H hand
no function (free)
[ 1st click position] date change
(counter-clockwise)
[ 2nd click position] time setting,
second setting and
reset switch

         
中心柱位
                                
與機芯平面之最大高度
                       
機芯總高度
    
一般針高
    
高針

    
一般針高
    
高針
    
一般針高
    
高針
    
一般針高
    
高針
        
時針輪
  
分針輪
          
秒針輪
       
日曆針輪
    
小時針輪
       
星期針輪

䠄 䠅
                    

[SPECIFICATION]
*Refer to the 2pages for other Cal. No. specifications.
φ23.70 mm
22.60 mm ：between 12 o'clock and 6 o'clock sides
22.60 mm ：between 3 o'clock and 9 o'clock sides
φ23.30 mm
22.10 mm ：between 12 o'clock and 6 o'clock sides
21.40 mm ：between 3 o'clock and 9 o'clock sides
3.45 mm
Cal. No.
Electronic circuit reset switch
Second setting device
Date setting
SR920SW (Silver oxide battery)
Battery life is approximately 2 years
Use 10-second gate
* Set the winding stem with crown at the normal position
* All specifications are subject to change without notice.
1
○
○
Accuracy
Less than ±15seconds : Monthly rate at normal temperature range
Battery
Measuring gate
by quartz tester
Jewels
2 Jewels
Driving System
Step motor
Additional mechanism
Antimagnetic
≧1600 A/m
○
○
○
VH64A
SII Products
VH65A
VH67A
－
－
○
－
○
－
－
－
－
○
－
VH68A
VH61A
－
○
○
○
○
－
○
○
─
○
─
－
○
VH63A
Movement
Movement
size
Outside diameter
Casing diameter
Total height

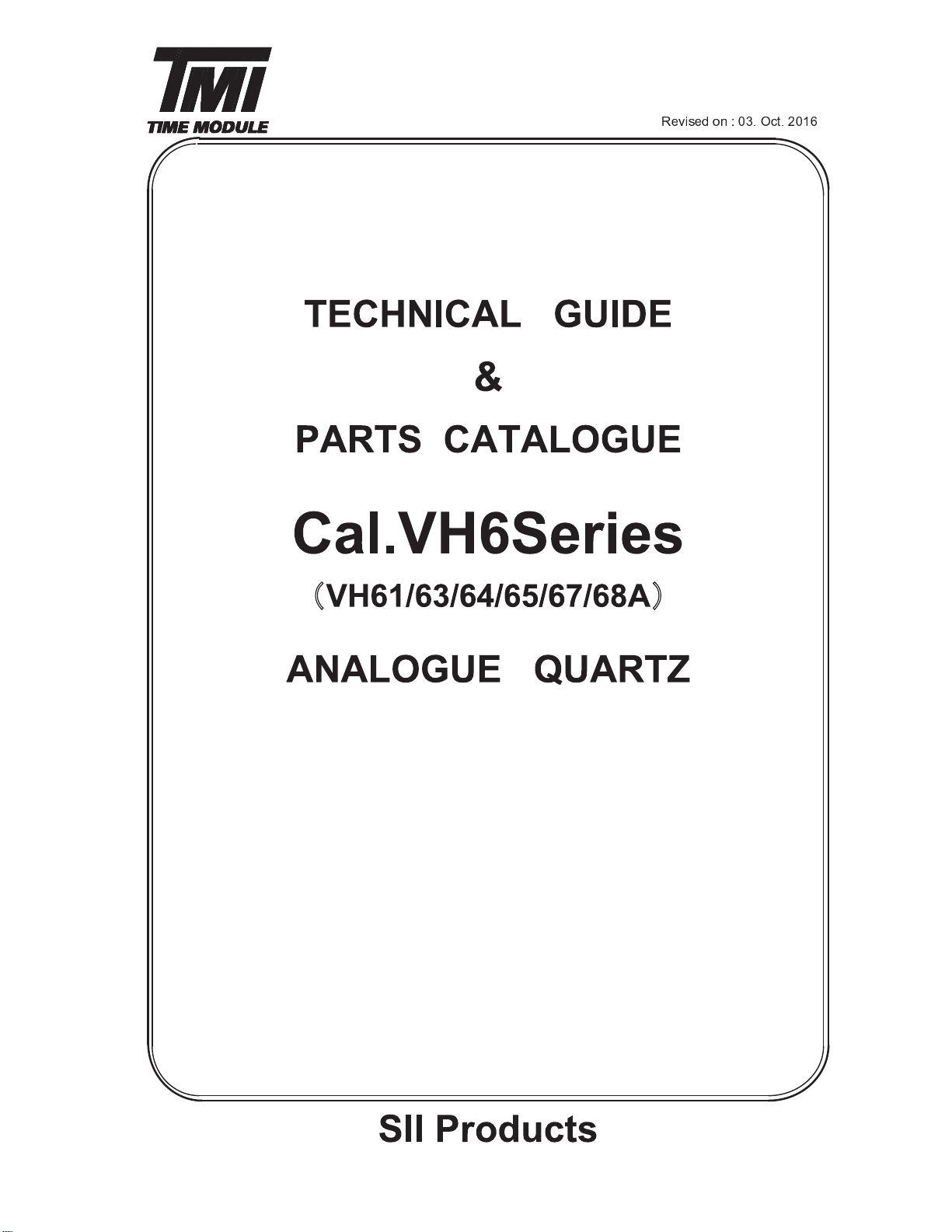

PARTS CATALOGUE / TECHNICAL GUIDE
VH6Series
Version-02
Cal. No.
VH63A
Item
Time
indication
24Hour hand (6H)
Date -Calendar
Hand （2H）
Day -Calendar
Hand （9H）
3Hands
(hour,minute,second)
Date -Calendar
Hand （3H）
Date -Calendar
Hand （12H）
Day -Calendar
Hand （10H）
－
－
－
－
－
－
○
○
－
－
○
○
－

SII Products
2
MOVEMENT VARIATION
Version-02
VH6A
VH63
VH64
VH67
VH61
VH65
VH68
day
date
24hours
day
date
24hours 24hours
day date
date
date
24hours
date
day

Disassembling procedures Figs. Lubricating : Types of oil Oil quantity
Reassembling procedures Figs. Moebius A
Normal quantity
*Refer to the 10pages for the each parts code
Hour , Minute ,Second hands
Dial
Date calendar,24Hour hands
0012 354
Support for dial side
0012 354
parts screw Support for dial side parts screw
0273 043
0604 014 *
Hour wheel
Support for dial side parts
0491 014
Dial washer
0970 004
Date star
0157 018
Small hour hand
0012 354
wheel
Intermediate wheel for
date corrector holder screw
0802 469
Day driving wheel 0802 469
Date driving wheel
0804 170 *
Intermediate wheel for
0737 006
date corrector C Intermediate wheel for
date corrector D
0836 005 *
0737 169
Intermediate wheel for
Date corrector wheel
date corrector holder
0962 033
Intermediate wheel for
date corrector B
<<VH61A>>
1
PARTS CATALOGUE
Version-01
VH6A
①
⇒
⑰
⑰
⑨
⑰
⇒
①
⑮
⑪
①
②
④
⑤
⑭
⑯
③
2
3
15
14
SII Products
④
⑫
⑥
⑦
⑧
⑩
⑬

Disassembling procedures Figs. Lubricating : Types of oil Oil quantity
Reassembling procedures Figs. Moebius A
Normal quantity
*Refer to the 10pages for the each parts code
Hour , Minute ,Second hands
Date-Day calendar,24Hour hands
Dial
0012 354
side parts screw
0012 354
Support for dial side parts screw
0273 043
0604 014 *
Hour wheel Support for dial side parts
0491 014
Dial washer
0970 004
Date star
0157 018
Small hour hand
wheel
0012 354
Intermediate wheel for
1019 010
date corrector holder screw
Day wheel
0802 469
0802 469 Date driving wheel
Day driving wheel
0962 033 *
0873 018 Intermediate wheel for
Day jumper date corrector C
0737 006
Intermediate wheel for
date corrector D
0836 005 *
Intermediate wheel for
0737 169
date corrector holder Date corrector wheel
0962 033
Intermediate wheel for
date corrector B
⑤
⑱
③
⑩
⑪
⑮
4
SII Products
⑰
⑯
⑬
⑭
Version-02
VH6A
①
⑲
⇒
PARTS CATALOGUE
Support for dial
⑲
①
②
④
⇒
①
<<VH63A>>
④
⑦
⑧
⑥
⑨
⑲
⑫

Disassembling procedures Figs. Lubricating : Types of oil Oil quantity
Reassembling procedures Figs. Moebius A
Normal quantity
*Refer to the 10pages for the each parts code
Hour , Minute ,Second hands
Date-Day calendar
0012 354 Dial
side parts screw
0012 354
Support for dial side parts screw
0604 014 *
Support for dial side parts
0273 043
0970 004
Hour wheel Date star
1019 010
0012 354
Day wheel
Intermediate wheel for
date corrector holder screw
0802 469
Day driving wheel
0802 469
Date driving wheel
0873 018
0962 033 *
Day jumper Intermediate wheel for
date corrector C
0962 033
Intermediate wheel for
0737 006
date corrector B Intermediate wheel for
date corrector D
0836 005 *
0737 169
Intermediate wheel for Date corrector wheel
date corrector holder
②
PARTS CATALOGUE
Version-01
VH6A
①
⇒
⑰
⑰
⇒
①
<<VH64A>>
①
③
④
Support for dial
④
⑫
⑤
5
⑨
⑬
⑧
⑯
⑪
⑮
⑭
⑩
SII Products
⑥
⑦
⑰

Disassembling procedures Figs. Lubricating : Types of oil Oil quantity
Reassembling procedures Figs. Moebius A
Normal quantity
*Refer to the 10pages for the each parts code
Hour , Minute ,Second hands
Date calendar
Dial
0012 354
Support for dial
side parts screw
0012 354
Support for dial side parts screw
0604 014 *
Support for dial side parts
0012 354
Intermediate wheel for
date corrector holder screw
0970 004
Date star
0273 043
Hour wheel
0802 469
Date driving wheel
0836 005 *
Intermediate wheel for
0962 033 *
date corrector holder Intermediate wheel for
date corrector C
0962 033
0737 006
Intermediate wheel for
Intermediate wheel for
date corrector B date corrector D
0737 169
Date corrector wheel
②
PARTS CATALOGUE
Version-01
VH6A
①
⇒
⑭
⑭
⇒
①
<<VH65A>>
①
③
④
④
⑨
⑤
6
⑩
⑥
⑬
⑫
⑪
SII Products
⑭
⑦
⑧
