SIIG 04-0585C User manual

1
Wireless Multimedia
Keyboard & Mouse
Quick Installation Guide
04-0585C
Introduction
The Wireless Multimedia Keyboard & Mouse offers
performance, value and convenience of wireless
connectivity.
Key Features and Benefits
• No driver installation required
• 104 key standard QWERTY keyboard layout
• High-quality key switches for the click and
feel typists prefer
• Water resistant keyboard
• Snap-open legs for tilt/height adjustment
Package Contents
• Wireless Multimedia Keyboard
• Wireless Mouse
• USB Wireless Receiver
• 4 AAA batteries
• Quick installation guide

2
System Requirements
• PC computer with an available USB port
• Windows®7 (32-/64-bit) / Vista (32-/64-
bit) / XP (32-/64-bit) / Server 2003 & 2008
(32-/64-bit) / 2000
Specifications
Keyboard
• Water resistant keypad
• LED: On briefly when the batteries are first
installed & low battery indicator
• Key press force: 55g ± 8g
• Key switch life: ~ 10 million cycles
• Number of keys: 104 standard + 18 hot keys
• RF output power: 1.6mW
• Operating distance: up to 33ft/10m (max)
• Battery type: 2x AAA
• Operating frequency: 2.4 GHz
• RF channel: 79 (hopping)
• Dimensions: 19" (l) x 7 1/4" (w) x 1 3/4" (h)

3
Mouse
• 5-button mouse
• Sensor: Optical
• CPI: 1600
• RF output power: 1.6 mW
• Operating distance: up to 33ft/10m (max)
• Battery type: 2x AAA
• Dimensions: 3 3/4" (L) x 2 1/8" (W) x 1 3/
8" (H)
• RF channel: 79 (hopping)
USB Wireless Receiver
• Input voltage: 5V DC
• Connection interface: USB

4
Layout
Figure 1: Keyboard Layout Top
Figure 2: Keyboard Layout Bottom
123456 7 8 91011 12 13 14 15 16 17 18 19
20 21 22
22

5
Keyboard Buttons
1Web Back - Return to previous webpage
2Web Forward - Go to the next webpage
3Web Stop - Stop loading the current webpage
4Refresh - Reload the current webpage
5Search - Opens the browser search box
6My Favorites - Opens your list of favorite
websites
7Home Page - Starts the default Web browser
and loads the home page
8Email - Starts the default email program
9Media Player - Starts the default media player
(not supported in Windows 2000)
10 Play/Pause - Switch between playing and
pausing the media player
11 Previous - Switch to the previous media
track
12 Next - Switch to the next media track
13 Stop - Stops playing the current media track
14 Volume down - Decreases the system sound
15 Mute - Mutes system sound
16 Volume up - Increases the system sound

6
17 My Computer - Opens Computer/My
Computer (not supported in Windows 2000
& Windows 2003)
18 Calculator - Starts Microsoft Calculator (not
supported in Windows 2000)
19 Low battery indicator - LED blinks
intermittently for 10 seconds
20 Connect button - Press to pair with USB
Wireless Receiver
21 Battery compartment - Insert 2 AAA batteries
22 Snap open legs - Tilt/height adjustment
Wireless Mouse & USB Wireless Receiver

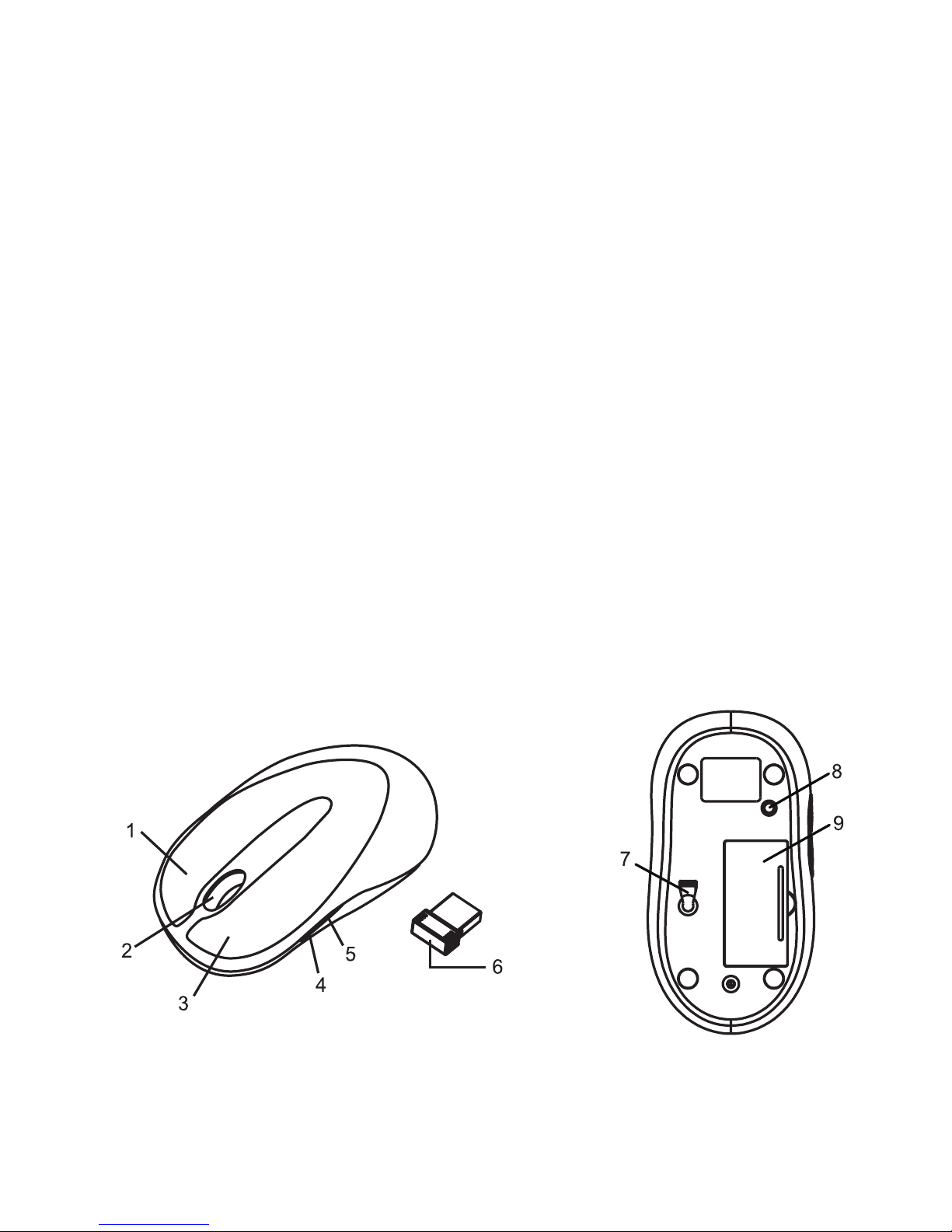

Figure 3: Wireless Mouse & USB Wireless Receiver

7
1Right click button
2Scroll wheel
3Left click button
4Forward button
5Backward button
6USB wireless receiver
7Optical sensor
8Connect button - Press to pair with USB
wireless receiver
9Battery compartment - Insert 2 AAA batteries
Setting Up Your Keyboard & Mouse
Use the snap-open legs on the bottom of the
keyboardtoadjustthe tilt/heightfor yourcomfort.
1. Plug the USB Wireless Receiver into a USB
port of the computer. The driver will install
automatically. No additional driver
installation is needed.
2. Insert the batteries into the keyboard and
mouse.

8
3. If the keyboard and mouse are not working,
place them in pairing mode.
Pairing: Re-plug the USB wireless receiver
into the USB port of the computer, then
press the Connect button of the keyboard
and mouse. Wait 30 seconds, if the mouse
or keyboard still does not work, keep trying.
It may take several tries before you are
successful.
4. When the battery for the keyboard is low,
the Low Battery Indicator LED flashes
intermittently for 10 sec.
Power Requirements
Keyboard
• Operating: 3V/~5.0mA
• Standby (~3 sec no activity): 3V/~0.01mA
Mouse
• Operating: 3V/~9.9mA
• Standby (~3 sec no activity): 3V/~1.46mA
• Sleep1 (~35 sec no activity): 3V/~1.05mA
• Sleep2 (~5 min no activity): 3V/~254uA

9
Blank Page

10
Blank Page

11
