SIIG CE-H20411-S1 User manual

1
Introducing the HDMI over CAT5e Transceiver
TheHDMI over CAT5e Transceiver providesacosteffective
solution by which high definition video and high quality
audio can be transmitted to mulitiple locations over long
distances using inexpensive CAT5e/6 cables.
FeaturesandBenefits
• HDMI 1.2a compliant
• HDCP compatible
• Allows unlimited cascading
• Regenerates HDMI signal
• Supports distances up to 60m/200ft @ 1080i or
40m/130ft @ 1080p with CAT5e cables
• Support up to 15m/50ft HDMI cables (Input/
Output)
TechnicalSpecifications
• Video bandwidth: 1.65 Gbps
• Input: 1x RJ45
• Output: 1x HDMI, 1x RJ45, 1x 3.5mm stereo audio
jack
• HDMI connector: 19-pin female
PackageContents
•HDMI over CAT5e Transceiver & 4x rubber pads
• Power adapter (5V DC)
• Quick Installation Guide
04-0506A
HDMIoverCAT5eTransceiver
Quick Installation Guide

2
Figure 1: Rear Panel
RearPanel
• Connection LED: this LED will be lit when
proper RJ-45 In is established with another
transmitter/transceiver
• Rotary Switch: adjust the 16-level equalization
switch according to the transmission distance of the
receivedHDMIsignal. For5.1ch/7.1chaudiooutput,
adjust from 0-to-7 (longest-to-shortest transmission
length). For stereo audio output, adjust from 8-to-
F (longest-to-shortest transmission length). It is
recommended to adjust from 7-to-0 or from F-to-8 to
find the optimal visual experience
• RJ-45 In: connect from an upstream transmitter/
transceiver using a CAT5e cable
• Audio Out: 3.5mm audio jack, plug in your local
stereo speakers here
• HDMI Out: connect a local display here
• RJ-45 Out: link to the next transceiver/receiver
(optional) or remote display via RJ45 adapter. The
two LEDs will be lit when the HDMI over CAT5e
Transceiver is powered up
• Power Jack: plug in the 5V power adapter here
Layout
Connection
LED Rotary
Switch
RJ-45
In
Audio
Out HDMI
Out
RJ-45
Out
Power Jack
LED

3
Hardware Installation
Please read and follow the safety guidelines to protect
yourself from possible injury and to minimize the risk of
damage to your equipment.
• Do not attempt to service the unit yourself.
• Provide proper ventilation and air circulation, do
not use near water
• Keep objects that might damage the device a safe
distance away, place the unit on a stable surface.
• Use only the power adapter and accessories that
came with the unit.
• Do not use liquid or aerosol cleaners to clean the
unit. Always unplug the power to the unit before
cleaning.
1. Turn off all devices, including displays.
2. Connect a local HDMI display to the HDMI Out
connector of the HDMI over CAT5e Transceiver, then
connect a speaker to the Audio Out connector.
3. ConnectthenextHDMI over CAT5e Transceiver to the
RJ-45 Out by a CAT5e cable (optional).
4. Plug the included power adapter into the Power
Jack, then plug the power adapter into a reliable
power source.
5. Power on all devices.

4
Speakers
HDMI display
Transceiver
Figure 2: Cascading Transceivers
CAT5e cable
(up to 200ft)
Transceiver
Speakers
CAT5e cable to
Transceiver or
Display

5

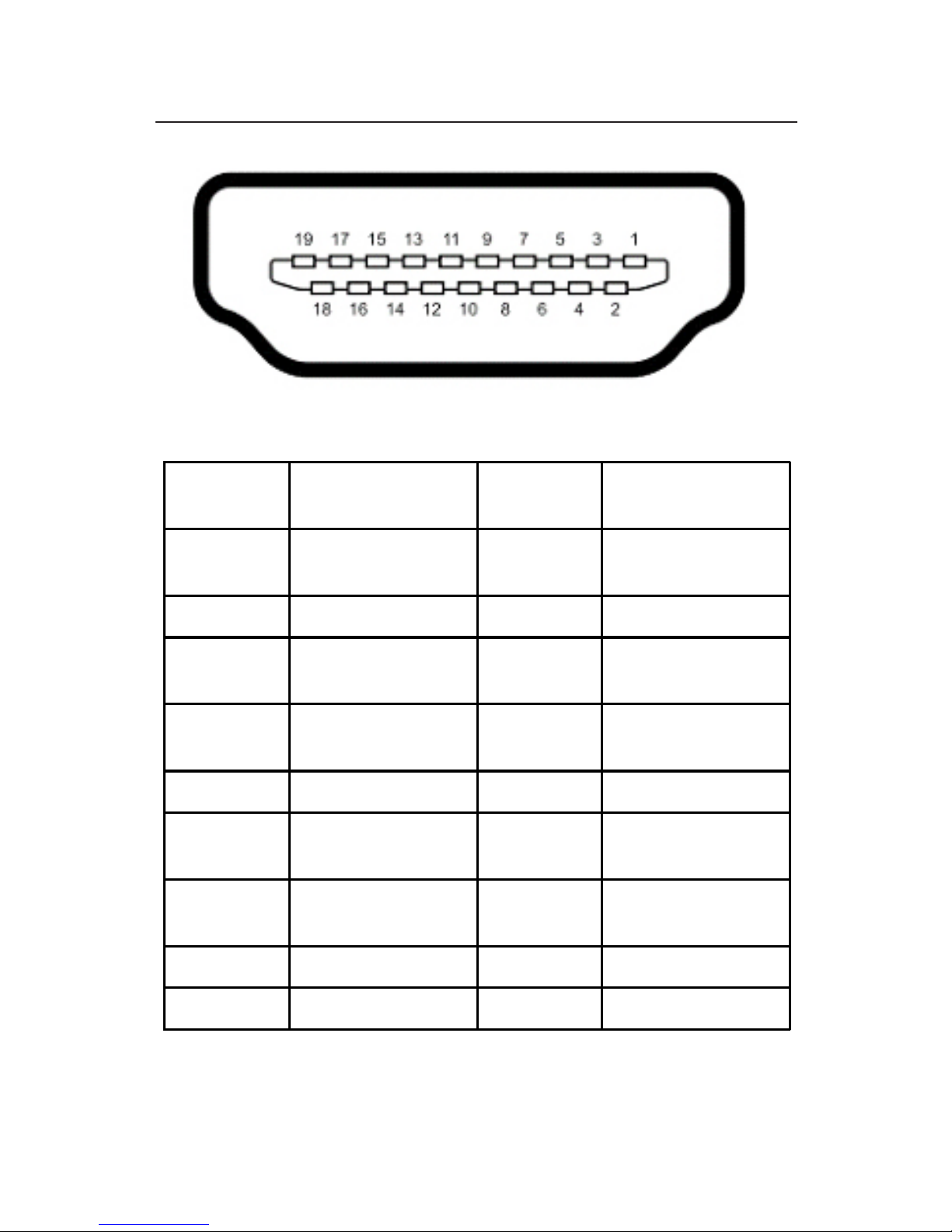

HDMI Pin Definition
Pin 1 TMDS Data2+ Pin 11 TMDS Clock
Shield
Pin 2 TMDS Data2
Shield Pin 12 TMDS Clock-
Pin 3 TMDS Data2- Pin 13 CEC
Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on
device)
Pin 5 TMDS Data1
Shield Pin 15 SCL
Pin 6 TMDS Data1- Pin 16 SDA
Pin 7 TMDS Data0+ Pin 17 DDC/CEC
Ground
Pin 8 TMDS Data0
Shield Pin 18 +5V Power
Pin 9 TMDS Data0- Pin 19 Hot Plug Detect
Pin 10 TMDS Clock+
Table 2: HDMI Pin Definition

6
Blank Page

7
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyourquestionscouldbe just a few clicks away. You can also submit
questions online and a technical support analysts will promptly
respond.
SIIGoffers a 2-year manufacturer warranty withthisproduct. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyourpurchase has passed the store's return policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.

HDMI over CAT5e Transceiver is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered
trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be
trademarksoftheirrespectivecompanies.
September, 2008 Copyright © 2008 by SIIG, Inc. All rights reserved.
