Proper Use
This radio frequency transmitter has been
designed to be used only with Silentsystem®
branded devices. LEM International s.r.l. reserves
the right not to provide support if malfunctions
arise due to improper use.
Before using the transmitter, it is advisable
to carefully read the instructions. We strongly
recommend to retain this manual.
For Your Safety
Please read carefully and observe important
safety information listed below.
• DO NOT disassembly or modify this item .
Disassembly can result in serious injury.
If the item sustains any kind of damage
please contact LEM International s.r.l. for
instructions for sending it back to repair;
• Keep Dry . DO NOT allow this item to become
wet or handle it while you have wet hands.
DO NOT use this product outside when it’s
raining. Failure to obey this warning can very
easily result in electric shock to yourself or
others;
• DO NOT use this product near open flames or
ignitable gasses . This is an electronic device
which can cause a static charge. This can
ignite any flammable gas present. Failure to
obey this warning can very easily result in
electric shock to yourself or others;
•
DO NOT store or transport this item in an hot
environment . Do not store this item in the
direct sun or in an hot area such as a hot
car or near a furnace or fireplace. Extended
exposure to heat can damage the electronics
in this item and cause malfunction which
can lead to shock;
• Use only the original power supply and be
careful with it . DO NOT plug or unplug the
item while you are wet. DO NOT damage,
disassemble, forcibly pull or place objects
on the top of the power supply. Check the
metal plug for dirt or debris and remove
any contaminates before plugging it in.
If the power supply suffers any damage
please contact LEM International s.r.l. for
instructions on how to obtain a replacement.
Using of a third party power supply can
result in damaging the transmitter, item
malfunction or injuries.
Important Safety Instructions

TX-400-MOBI
4 - ENGLISH LEM International S.r.l. - Corso Monte Cucco 71/A - 10141 - Turin - Italy - VAT IT10762880010 - All Rights Reserved ®
Technical Specifications
Power Supply: 12V
Maximum Transmission Range*: 400 mts in an
open field
Use and Storage Temperature: 5 °C – 35 °C
Dimensions: 160x64x13 mm (antenna included)
Weight: 121 grammi
Frequency Response: 30-20.000 Hz
Transmission Technology: UHF-RF
Signal to Noise Ratio: >75dB
Distortion: <1%
*the actual transmission range may vary
based on factors such as obstacles between
headphones and transmitters, magnetic fields
generated by electronic devices (e.g. microwave
ovens), static electricity or antenna signals.
Preservation
• When not in use, turn off the transmitter;
Warranty
This System (in all its components) is covered
by a warranty for a period of 12 months starting
from the date of purchase.

EN
SILENTSYSTEM
TX-400-MOBI
5

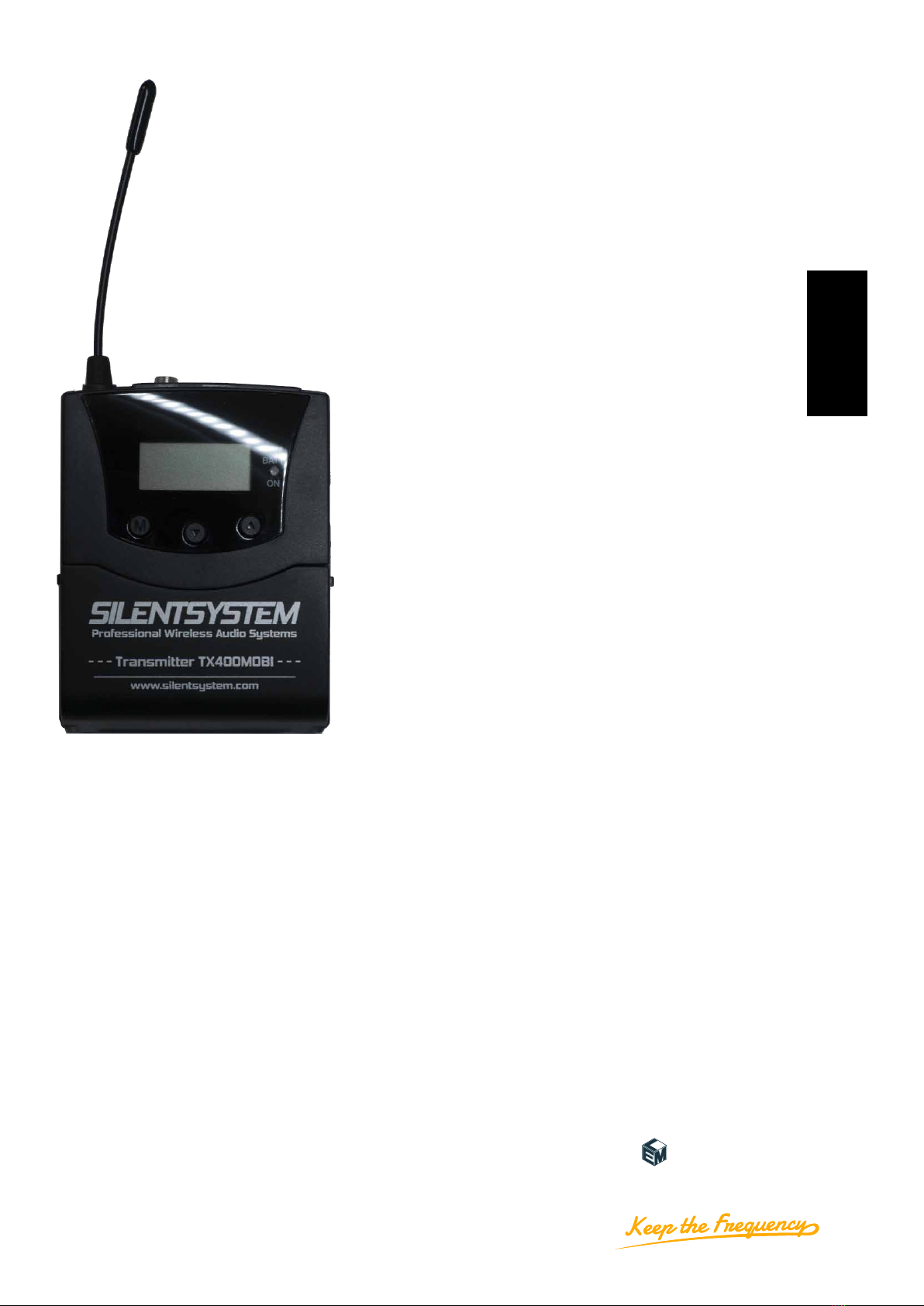

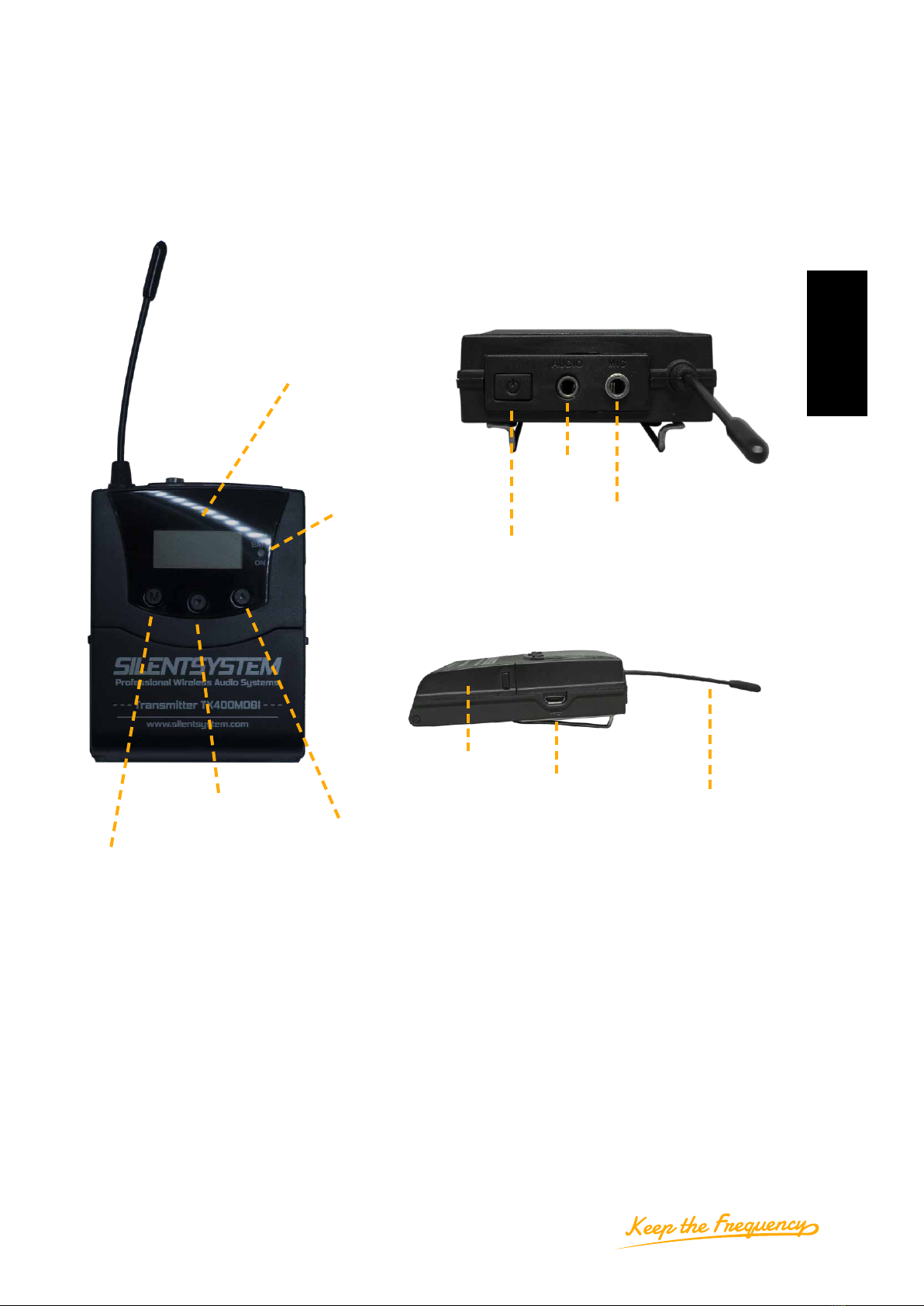

Pic. 1 - TX-400-MOBI Transmitter
Components
The UPPER SURFACE features the Display that shows the current transmission channel, the Mod key,
which if pressed allows the selection of the channel (using the appropriate Channel + and Channel
- keys) and a convenient status LED. The SUPERIOR SIDE, on the other hand, features the ON / OFF
button and the inputs for the Microphone and the Audio Source. Looking at the RIGHT SIDE, you
can identify the Micro-USB port used for charging the integrated AA stylus. If necessary, you can
temporarily replace the rechargeable batteries with normal stylus.
Channel - Channel
+
Mod
Batteries
Mic
Input
Antenna
Display
UPPER SURFACE SUPERIOR SIDE
Audio
Input
Micro-USB
Port
ON/OFF
RIGHT SIDE
Status LED

TX-400-MOBI
6 - ENGLISH LEM International S.r.l. - Corso Monte Cucco 71/A - 10141 - Turin - Italy - VAT IT10762880010 - All Rights Reserved ®
Being the transmitter intended for mobile use
mainly, make sure that the battery is sufficiently
charged to sustain the desired activity.
Please note that the maximum battery life is
approximately 8-10 hours and, over the time,
due to the natural deterioration of lithium it may
reduce.
It is advisable to recharge the battery in
environments with temperatures between 10° C
and 30° C. Charging in other environments may
not be as effective.
Power Supply &
Charging
Make sure that the Micro-USB Cable (Pic. 2) is
connected to a wall power supply (not included
in the package) and to the dedicated port (Pic. 1)
located on the RIGHT SIDE of the transmitter.
Pic. 2 - Micro-USB Cable
To find out the state of the charge, observe the
Status LED (Pic. 1) which will be red when
the charge percentage drops below 20% and
during the charging procedure till 75%, while it
will be green with sufficient charge and when
charging is complete.
Powering On/Off
To turn on the transmitter, simply press and hold
the ON / OFF button located on the TOP SIDE of
the transmitter. As soon as the transmitter is
correctly switched on, the DISPLAY (Pic. 6) on
the front (Pic. 1) will show the channel on which
the transmitter operates.
Consequently, to proceed with the shutdown,
proceed by exerting the same pressure on the
ON / OFF button.
Audio Source
Whatever audio source you want to transmit, it
must be connected to the Audio Input on the
SUPERIOR SIDE of the transmitter (Pic. 1).
This means that if you have another type of
connector, you will need an adapter. Usually
most devices have a 3.5 mm output, so you
can use the AUX cable included in the package
(Pic. 3).
Battery

EN
SILENTSYSTEM
TX-400-MOBI
7
Pic. 3 - AUX Cable
Mic
In order to spread your voice, you need to connect
a microphone compatible with the 3.5mm port
to the Mic Input located on the SUPERIOR SIDE
of the transmitter.
The SILENTSYSTEM® TX-400-MOBI kit does not
include a microphone. As a reference, you can
consider purchasing a Headband Microphone
(Pic. 4) or a Clip Microphone (Pic. 5).
Channel Selection
With the device switched on, the audio source
and the microphone properly connected, by
holding down the Mod key located on the
UPPER SURFACE (Pic. 1) the Display will begin to
flash.
Once done, simply use the Channel - and
Channel + buttons to select the one you want.
The same channel has to be selected on the
headphones to hear what is being broadcast.
Pic. 4 - Headband Microphone
Pic. 5 - Clip Microphone
Pic. 6 - Transmitter Display

TX-400-MOBI
8 - ENGLISH LEM International S.r.l. - Corso Monte Cucco 71/A - 10141 - Turin - Italy - VAT IT10762880010 - All Rights Reserved ®
Notes
There is a clip on the back of the transmitter
to secure it comfortably during physical activity.
However, we recommend using a dedicated
pouch or backpack.

EN
SILENTSYSTEM
TX-400-MOBI
9
Compatibility
MODEL WORKS
SX 553 E-PLUS Yes
RX-805 Receiver Yes
Trademarks and Patents
TRADEMARK / PATENT INFORMATIONS
Headphones Design SX-809 Super Power Bass ®
Brand SILENTSYSTEM ®
Model No. SX-809 Super Power Bass
Patent No. 0000101677
Deposit Date 27 giugno 2014
Class Code 1401
Country : Italy
Trademark SILENTSYSTEM ®
Req. Number 017042045
Playable in any character, size, and color
Country: Europe , Italy, Kazakhstan, USA, Costa
Rica, China, Hong Kong, Switzerland, Argentina
Trademark SUPER POWER BASS ®
Trademark No. 0001633691
Country : Italy
