ADLINK Technology IMB-M43 User manual

Advance Technologies; Automate the World.
Manual Rev.: 2.00
Revision Date: Dec. 31, 2015
Part No: 50-1X014-1000
IMB-M43
ATX Intel®Core™ i7/i5/i3
Industrial Motherboard
User’s Manual

ii
Revision History
Revision Release Date Description of Change(s)
2.00 Dec. 31, 2015 Initial Release

Preface iii
IMB-M43
Preface
Copyright 2015 ADLINK Technology, Inc.
This document contains proprietary information protected by copy-
right. All rights are reserved. No part of this manual may be repro-
duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, spe-
cial, incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.
Environmental Responsibility
ADLINK is committed to fulfill its social responsibility to global
environmental preservation through compliance with the Euro-
pean Union's Restriction of Hazardous Substances (RoHS) direc-
tive and Waste Electrical and Electronic Equipment (WEEE)
directive. Environmental protection is a top priority for ADLINK.
We have enforced measures to ensure that our products, manu-
facturing processes, components, and raw materials have as little
impact on the environment as possible. When products are at their
end of life, our customers are encouraged to dispose of them in
accordance with the product disposal and/or recovery programs
prescribed by their nation or company.
Trademarks
Product names mentioned herein are used for identification pur-
poses only and may be trademarks and/or registered trademarks
of their respective companies.

iv Preface
Conventions
Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.
NOTE:
NOTE:
Additional information, aids, and tips that help users perform
tasks.
CAUTION:
Information to prevent minor physical injury, component dam-
age, data loss, and/or program corruption when trying to com-
plete a task.
WARNING:
Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.

Table of Contents v
IMB-M43
Table of Contents
Revision History...................................................................... ii
Preface.................................................................................... iii
List of Figures........................................................................ ix
List of Tables.......................................................................... xi
1 Introduction ........................................................................ 1
1.1 Features............................................................................... 1
1.2 Specifications....................................................................... 2
1.3 Motherboard Topography.................................................... 5
1.4 I/O Panel.............................................................................. 7
1.5 Onboard Headers and Connectors...................................... 9
1.5.1 CN46 24-pin ATX Power Input Connector..................9
1.5.2 CN44 System Panel Header ....................................10
1.5.3 COM3 Serial Port Header.........................................10
1.5.4 COM4 Serial Port Header.........................................11
1.5.5 COM5 Serial Port Header.........................................12
1.5.6 COM6 Serial Port Header.........................................12
1.5.7 CN16 USB3.0 Header..............................................13
1.5.8 CN14 USB2.0 Header..............................................14
1.5.9 CN15 USB2.0 Header..............................................15
1.5.10 CN38 Front Audio Header........................................15
1.5.11 FAN1 4-Pin CPU FAN Connector.............................17
1.5.12 FAN2 4-Pin System FAN1 Connector......................17
1.5.13 FAN3 4-Pin System FAN2 Connector......................18
1.5.14 CN54 LAN1 LED Indicator........................................18
1.5.15 CN53 LAN2 LED Indicator........................................19
1.5.16 PS2 Combo Connector.............................................19
1.5.17 CN37 LPT Connector...............................................20

vi Table of Contents
2 Getting Started.................................................................. 23
2.1 Package Contents.............................................................. 23
2.2 Mounting the motherboard................................................. 24
2.3 Installing Memory Modules (DIMM)................................... 24
2.4 Installing Expansion Cards (PCI and PCI Express)........... 26
2.5 Jumper Settings................................................................. 27
2.6 Driver Installation............................................................... 29
A Appendix: UEFI Setup Utility............................................31
A.1 Introduction........................................................................ 31
A.2 UEFI Menu Bar.................................................................. 31
A.3 Navigation Keys................................................................. 32
A.4 Main Menu......................................................................... 32
A.5 Advanced Menu................................................................. 33
A.5.1 ACPI Settings ...........................................................34
A.5.2 CPU Configuration....................................................35
A.5.3 Chipset Configuration...............................................38
A.5.4 System Agent (SA) Configuration.............................39
A.5.5 Graphics Configuration.............................................40
A.5.6 PCI Express Configuration .......................................41
A.5.7 USB Configuration....................................................45
A.5.8 USB Configuration....................................................48
A.5.9 HD Audio Configuration............................................49
A.5.10 SATA Configuration..................................................50
A.5.11 Onboard Device Configuration .................................51
A.5.12 Advance Power Management...................................54
A.5.13 AMT Configuration....................................................56
A.5.14 Intel® BIOS Guard Technology................................57
A.5.15 Network Stack Configuration....................................58
A.5.16 CSM Configuration ...................................................59
A.5.17 NCT6106D HW Monitor............................................61
A.5.18 Miscellaneous Configuration.....................................65

Table of Contents vii
IMB-M43
A.6 Security.............................................................................. 66
A.6.1 Administrator Password............................................66
A.6.2 Secure Boot menu....................................................67
A.7 Boot ................................................................................... 68
A.8 Save & Exit........................................................................ 70
Important Safety Instructions.............................................. 73
Getting Service...................................................................... 75

viii Table of Contents
This page intentionally left blank.

List of Figures ix
IMB-M43
List of Figures

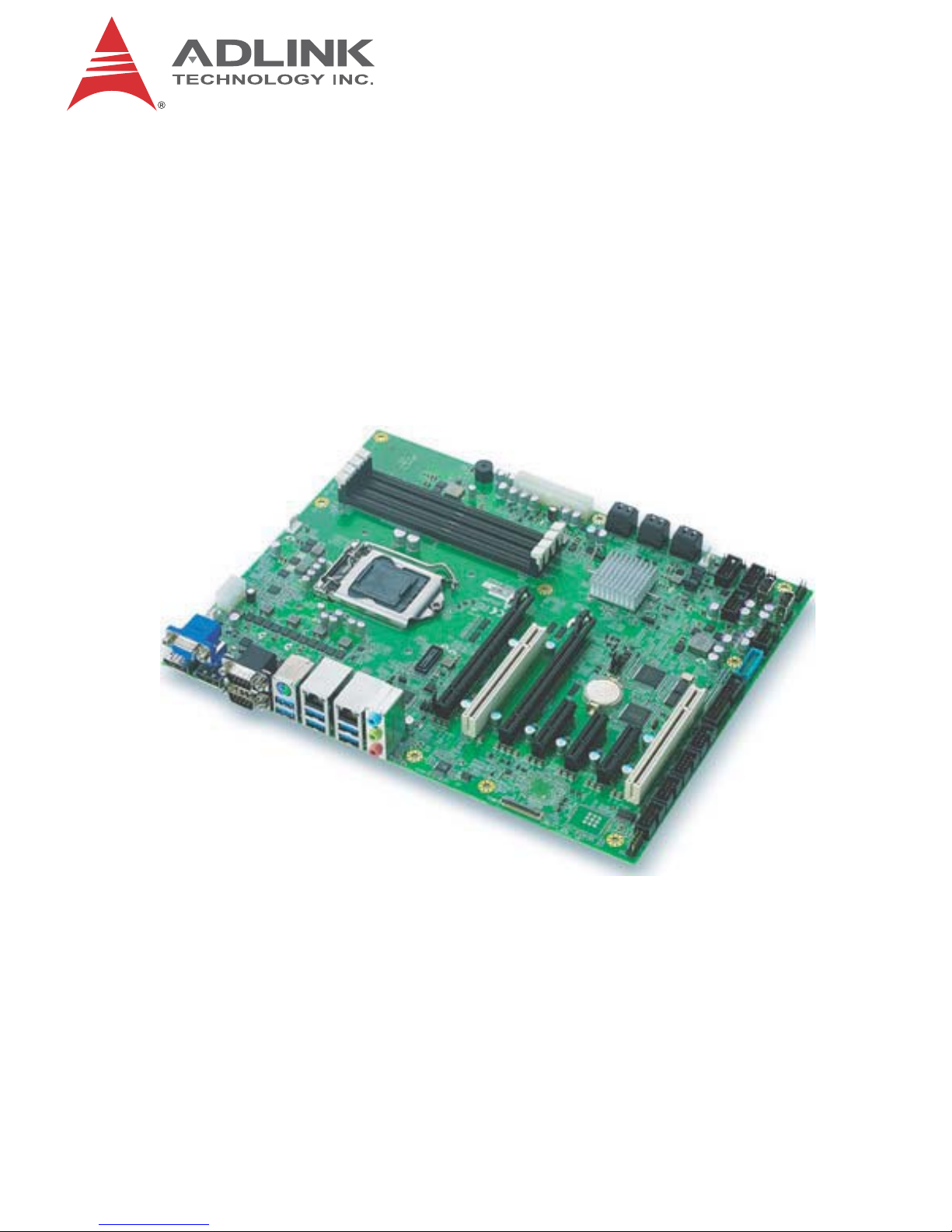

Figure 1-1: IMB-M43 Motherboard.....................................................5
Figure 1-2: IMB-M43 I/O Panel..........................................................7
Figure 1-3: LAN Port LED Indicators..................................................8

xListofFigures
This page intentionally left blank.

List of Tables xi
IMB-M43
List of Tables
Table 1-1: IMB-M43 Motherboard Legend........................................6
Table 1-2: IMB-M43 I/O Legend .......................................................7
Table 1-3: COM Port Pin Definitions.................................................8
Table 1-4: LAN Port LED Legend.....................................................8
Table A-1: Navigation Key Functions..............................................32

xii List of Tables
This page intentionally left blank.

Introduction 1
IMB-M43
1 Introduction
1.1 Features
XATX form factor (305 mm x 244 mm)
X6th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron pro-
cessors in LGA1151 package support
XDual-channel DDR4 2133MHz, 4x 288-pin DIMM sockets,
up to 64GB non-ECC unbuffered DIMM support
X1x PCIe x8 Gen3, 4x PCIe x4 Gen3, 2x PCI 2.2 slots (con-
figurable)
XIntel i219-LM Gigabit Ethernet PHY and Intel i211-AT Giga-
bit Ethernet controller
X8x USB 3.0 ports/pin headers (6x rear, 2x pin headers), 6x
USB 2.0 ports (2x vertical type A connector, 4x pin headers)
X6x SATA 6 Gb/s ports
X1x VGA, 2x DisplayPort, supporting up to 3 independent
displays
X6x COM ports/pin headers (2x rear, 4x onboard pin head-
ers), COM1/2 supporting RS232/422/485/RS-485 w/ auto
flow control
XWatchdog Timer, Hardware Monitor
X1x 10-pin/2.54mm GPIO pin header: 4 in/4 out, one ground
pin and one power pin (5V/12V/no power, jumper selected)
X1x 25-pin/2.54mm printer port pin header
X1x Mini-DIN for PS/2 keyboard/mouse
XRoHS compliance
XSEMA utility (optional, built to order)
NOTE:
NOTE:
With specification and BIOS updates, the content of this man-
ual is subject to change without notice. Updated versions, as
well as the latest CPU support lists are available at
http://www.adlinktech.com
For technical support, please visit http://askanexpert.adlink-
tech.com/AAE/Answers.aspx for model-specific information.

2Introduction
1.2 Specifications
Processor& System
CPU
XIntel® Core™ i7-6700, 3.4GHz, 8M Cache,
14nm, 65W TDP, LGA1151 (4C/8T)
XIntel® Core™ i7-6700TE, 2.4GHz 8M Cache,
14nm, 35W TDP, LGA1151 (4C/8T)
XIntel® Core™ i5-6500, 3.2GHz, 6M Cache,
14nm, 65W TDP, LGA1151 (4C/4T)
XIntel® Core™ i5-6500TE, 2.3GHz, 6M Cache,
14nm, 35W TDP, LGA1151 (4C/4T)
XIntel® Core™ i3-6100, 3.7GHz, 3M Cache,
14nm, 51W TDP, LGA1151 (2C/4T)
XIntel® Core™ i3-6100TE, 2.7GHz, 4M Cache,
14nm, 35W TDP, LGA1151 (2C/4T)
XIntel® Pentium® G4400, 3.3GHz, 3M Cache,
14nm, 54W TDP, LGA1151 (2C/2T)
XIntel® Pentium® G4400TE, 2.4GHz, 3M Cache,
14nm, 35W TDP, LGA1151 (2C/2T)
XIntel® Celeron® G3900, 2.8GHz, 2M Cache,
14nm, 65W TDP, LGA1151 (2C/2T)
XIntel® Celeron® G3900TE, 2.6GHz, 2M Cache,
14nm, 35W TDP, LGA1151 (2C/2T)
Chipset Intel® Q170 Express
Memory 4x 288-pin DDR4 sockets (vertical)
Dual channel DDR4 2133 MHz, up to 64GB
BIOS AMI®UEFI BIOS, 128 Mbit SPI flash memory
Watchdog Timer 24 to 65536 sec.software programmable, can execute
system reset
Hardware
Monitor
XCPU voltage
X+3.3V voltage
X+5V voltage
X+12V voltage
XCPU temperature
XSystem temperature
XCPU fan speed
XSystem fan speed

Introduction 3
IMB-M43
OS
XMicrosoft® Windows® 7 32/64-bit
XMicrosoft® Windows® 8.1 64-bit
XMicrosoft® Windows® 10 64-bit
XUbuntu 15.10 32/64-bit
I/O
Serial ATA 6x SATA 6.0 Gb/s connectors
Software RAID support 0/1/5/10
USB
6x USB 3.0 connector (rear)
2x USB 3.0 pin header
4x USB2.0 pin headers
2x USB2.0 vertical type A connector
Serial Ports 2x RS-232/422/485 with auto flow control connector (rear)
4x RS-232 pin headers
Expansion Slots
<Signal>:
XIf PEG3 is occupied, PEG1 is PCIex8 Gen3,
PEG2 is PCIex4 Gen3, and PEG3 is PCIex4
Gen3
XIf PEG3 is not occupied and PEG2 is occupied,
PEG1 is PCIex8 Gen3, PEG2 is PCIex8 Gen3,
and PEG3 is no signal
XIf PEG3 is not occupied and PEG2 is not occu-
pied, PEG1 is PCIex16 Gen3,PEG2 and PEG3 is
no signal
XPCIe1: PCIe x4 Gen3, PCIe2: PCIe x4 Gen3,
PCI1: PCI 2.2, PCI2: PCI 2.2
<Physical Slot>:
XPEG1 PCIex16 slot
XPCI1 PCI slot
XPEG2 PCIex16 slot
XPEG3 PCIex4 slot
XPCIe1 PCIex4 slot
XPCIe2 PCIex4 slot
XPCI2 PCI slot
Parallel Port 1x LPT pin header
PS2 Combo Port 1x PS/2 keyboard & mouse connector (rear)

4Introduction
DI/O 1x 10-pin/2.54mm GPIO pin header: 4 in and 4 out, one ground pin and one power pin (5V/12V/no power, jumper
selected)
Audio
Audio Codec Realtek® ALC262-VC2-GR
Interface 1x Mic-in, 1x Line-out and 1x Line-in connector (rear)
Graphics
Graphics Engine Integrated Intel® HD graphics series (based on CPU)
VGA 1 VGA connector (rear), resolution up to 1920 x
1200@60Hz
DisplayPort 1.2 2 DP connector (rear), resolution up to 4096x2304 @
60Hz
Ethernet
Controller LAN1: Intel® I219-LM via RJ45 connector (rear)
LAN2: Intel®I211-AT via RJ45 connector (rear)
Intel® AMT LAN1 Support
Wake On LAN LAN1 and LAN2 support
Mechanical and Environmental
Form Factor ATX
Dimensions 305 mm x 244 mm (WxL)
Operating
Temperature 0°C to 60°C
Storage
Temperature -20°C to 80°C
Relative
Humidity 10% to 90, non-condensing
Certification CE & FCC Class B

Introduction 5
IMB-M43
1.3 Motherboard Topography
Figure 1-1: IMB-M43 Motherboard
AFAN2 4-pin system FAN1 connector
BFAN1 4-pin CPU FAN connector
CSATA3/4 Upper: SATA3
Lower: SATA4
DSATA1/2 Upper: SATA1
Lower: SATA2
ESATA5/6 Upper: SATA5
Lower: SATA6
FFAN3 4-pin system FAN2 connector
GCN23 Digital I/O pin header
HCN22 GPI/O port power select
A
B
CE D F
G
H
I
J
K
L
M
N
O
P
Q
R
S
TUV W X Y Z
AA
BB
CC
DD
EE

6Introduction
Table 1-1: IMB-M43 Motherboard Legend
ICN44 System panel header
JCN14 USB2.0 header (USB2.0 port 7/8)
KCN50 USB2.0 connector(USB2.0 port 14)
LCN49 USB2.0 connector(USB2.0 port 13)
MCN15 USB2.0 header (USB2.0 port 9/10)
NCN16 USB3.0 header (USB3.0 port 7/8, USB2.0 port 5/6)
OCN37 Printer port header
PCOM6 Serial port 6
QCOM5 Serial port 5
RCOM4 Serial port 4
SCOM3 Serial port 3
TPCI2 PCI connector
UPCIe2 PCIe x4 connector
VPCIe1 PCIe x4 connector
WPEG3 PCIe x4 connector
XPEG2 PCIe x16 connector
YPCI1 PCI connector
ZPEG1 PCIe x16 connector
AA CN31 Serial port 3 power select
BB CN32 Serial port 4 power select
CC CN35 Serial port 5 power select
DD CN36 Serial port 6 power select
EE CN24 Clear CMOS header

Introduction 7
IMB-M43
1.4 I/O Panel
Figure 1-2: IMB-M43 I/O Panel
Table 1-2: IMB-M43 I/O Legend
The IMB-M43 supports RS232/422/485 on COM ports 1 and 2,
with pin definitions as follows, with both COM ports configurable in
BIOS setup.
AVGA JUSB3.0 (#4)
USB2.0(#4)
BCOM1 KUSB3.0 (#1)
USB2.0(#1)
CPS2 Combo LUSB3.0 (#2)
USB2.0(#2)
DLAN1 MUSB3.0 (#5)
USB2.0(#11)
ELAN2 NUSB3.0 (#6)
USB2.0(#12)
FLine In OCOM2
GLine Out PDP2
HMic In QDP1
IUSB3.0 (#3)
USB2.0(#3)
Pin RS232 RS422 RS485
1DCD, Data Carrier Detect TX- Data-
2RXD, Receive Data TX+ Data+
3TXD, Transmit Data RX+ N/A
ABC D EFGH
IJ
KL
M
N
O
P
Q

8Introduction
Table 1-3: COM Port Pin Definitions

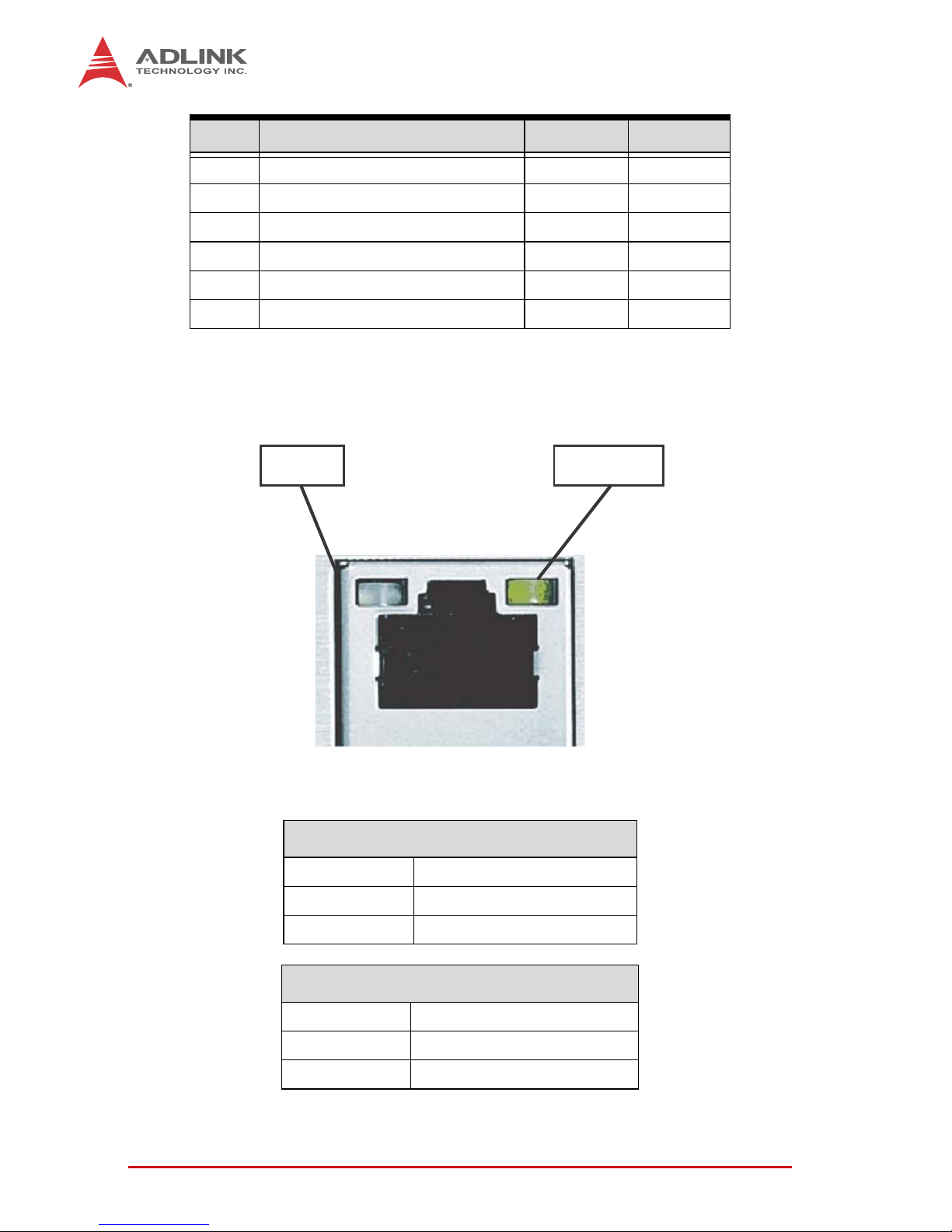

Two LEDs on either side of the RJ-45 LAN port indicate activity
and speed as follows.
Figure 1-3: LAN Port LED Indicators
Table 1-4: LAN Port LED Legend
4DTR, Data Terminal Ready RX- N/A
5GND GND GND
6DSR, Data Set Ready N/A N/A
7RTS, Request To Send N/A N/A
8CTS, Clear To Send N/A N/A
9RI, Ring Pin N/A N/A
ACT/LINK
Off No Link
Blinking Transmission Underway
Lit Link
SPEED
Off 10 Mb/s
Green 100 Mb/s
Orange 1 Gb/s
Pin RS232 RS422 RS485
ACT/LINK
SPEED
